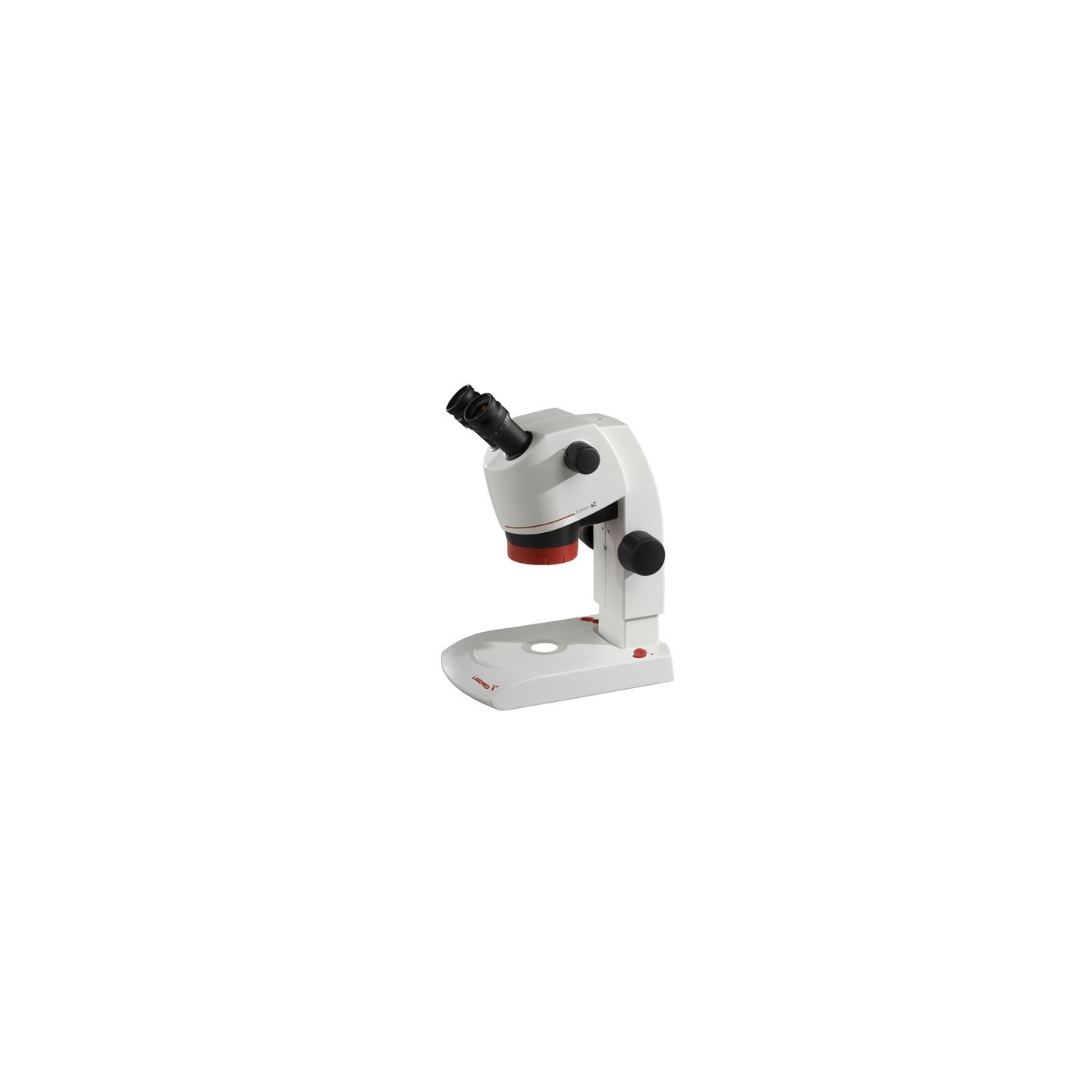

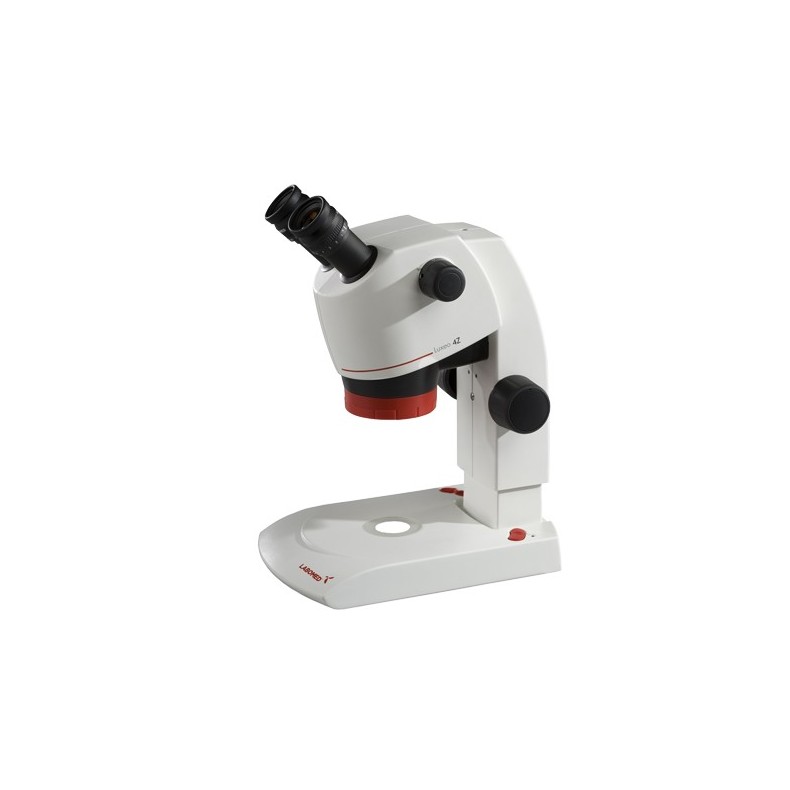

Stereo Microscope LBM LUXEO 4Z Zoom 4144000

The LABOMED stereo microscope, model LUXEO 4Z is a binocular head microscope with a so-called Greenough zoom optical system and a magnification ratio of 4.4:1.

With an innovative design in illumination, optics and mechanics, the LABOMED LUXEO 4Z is a fantastic choice for applications such as dissection, visual inspection, mineralogy, etc., offering clearly superior performance. The LABOMED LUXEO 4Z stereo microscope is versatile for almost any application thanks to its ergonomic character.

With a philosophy of continuous innovation and adherence to strict quality standards, each LABOMED® microscope offers unmatched performance in its class at a very affordable price. Here are some of the great features you get with LABOMED:

• Sharp images and high color fidelity at any magnification
• Ergonomic stands with durable construction for years of worry-free use
• Eco-friendly LED illumination with up to 100,000 hours of bulb life (LED illumination is optional)
• 5-year manufacturer's warranty

Technical Specifications:

• 8X / 35X magnification range
• 10X / 20mm fixed standard eyepieces
• Replaceable eyepieces
• 50mm to 75mm interpupillary distance
• 45° viewing angle
• Maximum resolution 140X
• Working distance 100 mm
• Object field diameter 5.7 mm to 25 mm
• Parafocal optical system
• 100% visual beam path
• Integrated grip
• LED ring light with adjustable spot size and spot angle
• Approximately 25,000 hours LED life expectancy
• On / off selector switch
• 100V-240V
• Stand: stable dual light stand with ball bearing focusing controls
• Viewing bodies: Binocular tube, 45° inclined, 360° rotatable, IPD 54-74 mm
• Eyepieces: Wide field WF 10x / 22 mm focusable eyepiece paired with eyepiece shields
• Magnification: 10x-40x
• Illumination: Built-in illumination system 12V-20W halogen incident light and 12V-10W halogen transmitted light.
• Electrical: Universal power supply (110V-240V) UL, CE approved.
• Packed in polystyrene box, with operation manual, Allen key, dust cover, cleaning cloth, power cord, spare bulb and spare fuses
