Baader M48 15 mm heavy-duty quick-change quick-change system
Baader M48 15 mm heavy-duty quick-change quick-change system
Baader M48 15 mm heavy-duty quick-change quick-change system

Baader M48 15 mm heavy-duty quick-change quick-change system

BAD2958593
Stock at Supplier
104.96
VAT excluded Shipping 5/7d

Baader M48 heavy-duty 15 mm quick-change quick-change system

Buy it now and receive it between on Monday, 18 November and Monday, 25 November with Home delivery - International

Delivery Options
Carrier Description Estimated Delivery
Home delivery - International Home delivery - International

Monday, 18 November - Monday, 25 November

Home delivery - International

Home delivery - International

Estimated delivery:
Monday, 18 November - Monday, 25 November

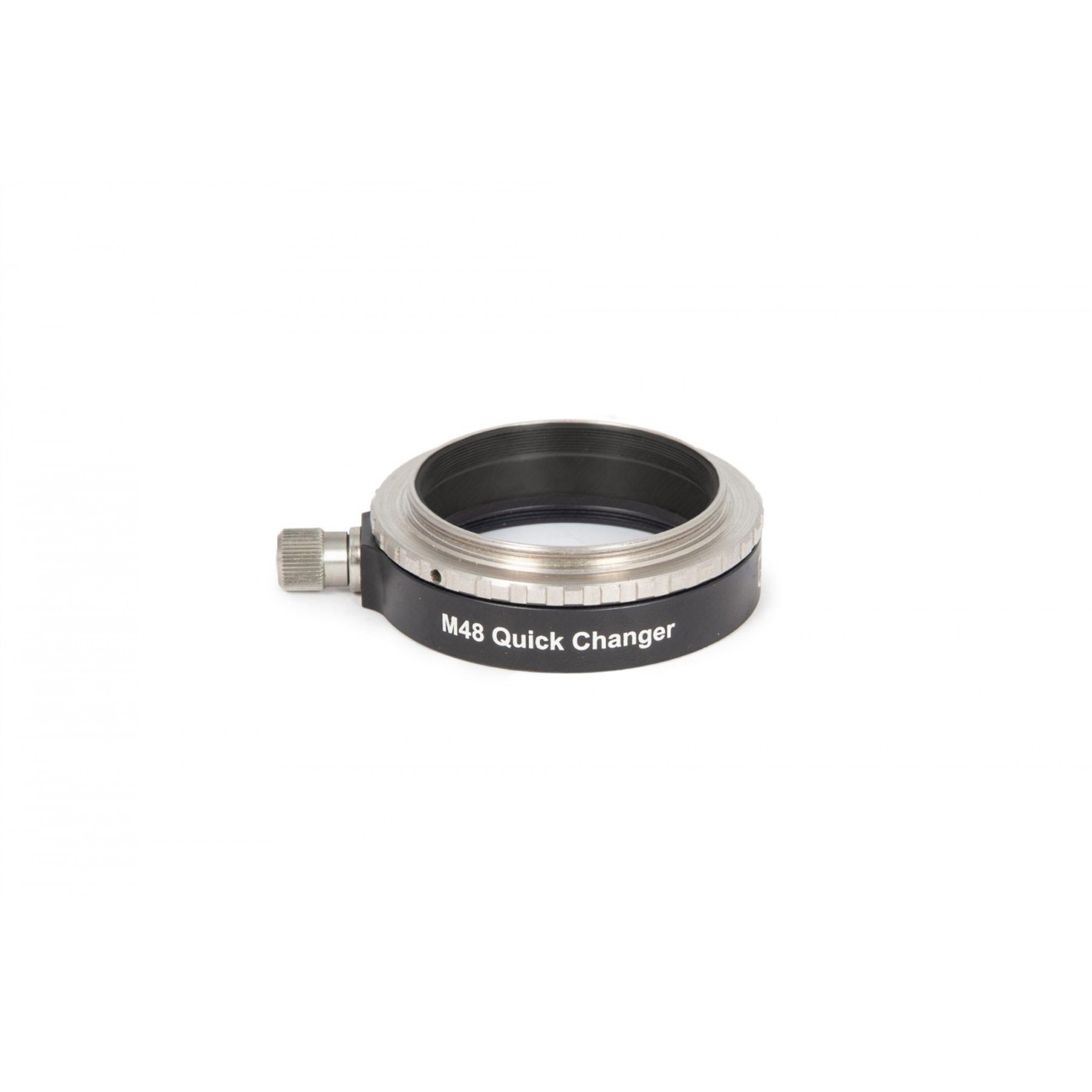

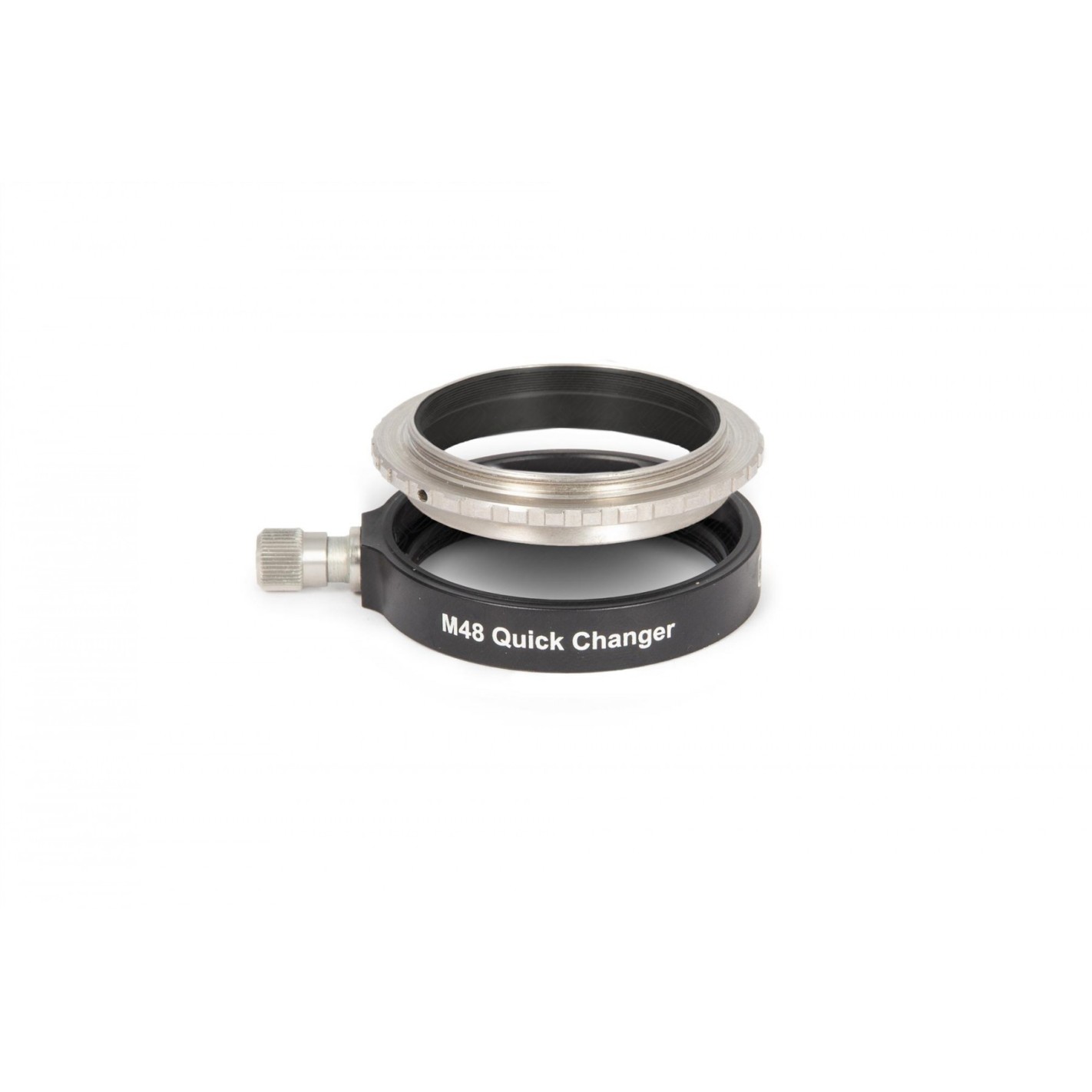

Baader M48 Heavy Duty Quick Changer System optical length 15 mm (consisting of parts BAD2958590 & BAD295859595)

Summary of main features:

  • The M48 Heavy Duty Quick Changer System M48 allows ultra-fast changes between cameras, filter wheels or ClickLock eyepiece clamps, for example
  • Optical path length 15 mm

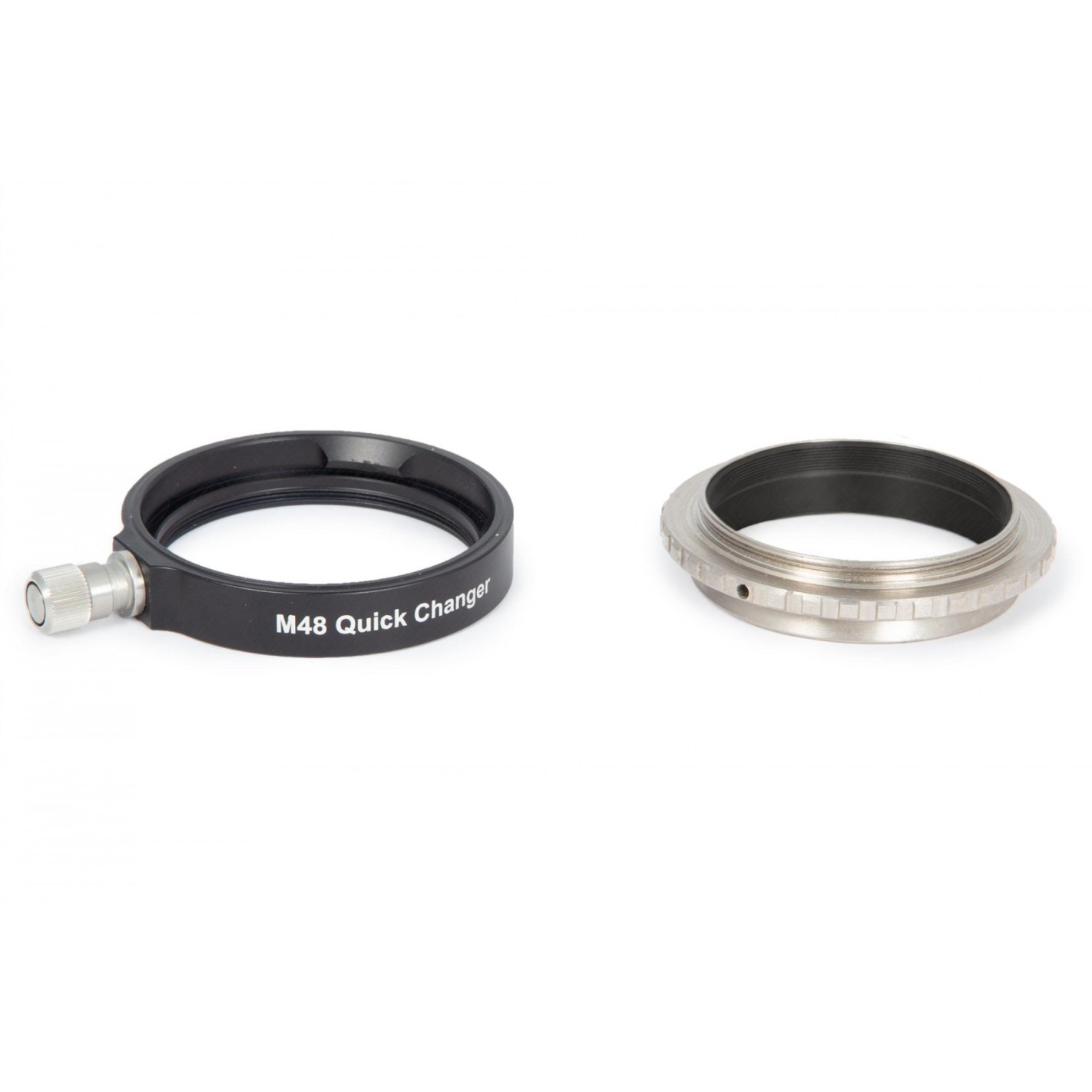

  • Consists of the Baader M48 Heavy Duty quick changer (BAD2958590) and the Baader M48 quick-change ring (BAD2958595) with 50 mm dovetail
  • Quick-change and swiveling device with maximum load capacity
  • Dust caps not included


Baader Heavy Duty M48 quick-change system A useful addition to the M48 system is the Heavy Duty M48 quick-change system. A combination of quick changer and dovetail will carry any load with maximum safety. Itallows for repeatable, rotation-proof clamping of heavy attachments.

MANUFACTURER Baader Planetary
NET WEIGHT(KG) 0.07
OPTICAL LENGTH15 mm
CLAMP CLAMP SYSTEMDovetail clamp
SCREW TYPE Large clamping screw with brass thrust part
INTERNAL DIAMETER / CLEAR OPENING 44 mm
EXTERNAL DIAMETER 59 mm x 75 mm
INTERNAL CONNECTION (SIDE LENS) Thread M48
OUTSIDE CONNECTION (SIDE LENS) Dovetail Ring, M48
INSIDE CONNECTION (EYE / SIDE CAMERA) Dovetail ring clamp, M48
OUTSIDE CONNECTION (EYE / SIDE CAMERA) Thread, dovetail ring, M48
COMPATIBLE BRANDS Astro T-2, Baader Planetarium
ADAPTER TYPEQuick-Changer

Baader M48 heavy duty quick change system with 15 mm optical length
