Baader M48 extension pipe 40 mm / 2" nozzle with safety grooves

Baader M48 extension pipe 40 mm / 2" nozzle with safety grooves

Name: Baader M48 extension pipe 40 mm / 2" nozzle with safety grooves
Brand: Baader Planetarium
SKU: BAD2958640
Price: 26.45 EUR
Availability: PreOrder

Reference BAD2958640

Stock at Supplier

26.45

VAT excluded Shipping 5/7d

Baader M48 extension pipe 40 mm / 2" nozzle with safety grooves

Buy it now and receive it between on Friday, 3 January and Friday, 10 January with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Friday, 3 January - Friday, 10 January

Home delivery - International

Estimated delivery:
Friday, 3 January - Friday, 10 January

✖

Description
Product Details

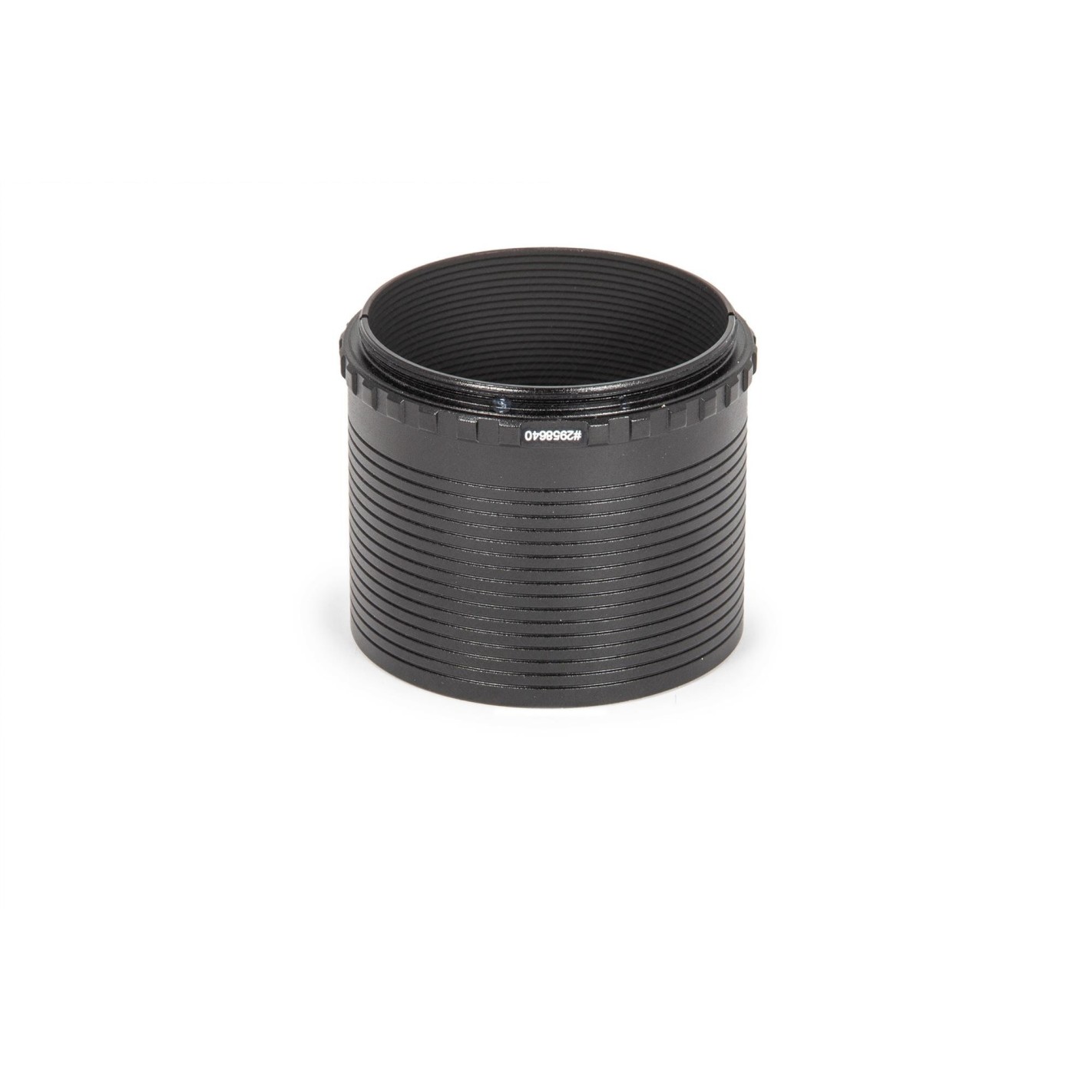

Baader M48 Extension Tube 40 mm / 2" nosepiece with Safety Kerfs

Summary of main features:

Used to adjust the working distance of larger cameras and similar accessories with M48 thread
Telescope side M48 inner thread, 3.5 mm deep
Eyepiece / camera side M48 external thread, 3 mm deep
Optical path length 40 mm
Also used as M48 / 2" nozzle with 36 mm insertion depth, safety cutouts and 5 mm optical height

MANUFACTURER Baader Planetary

NET WEIGHT 0.05 kg
OPTICAL LENGTH40 (or 5) mm
CLAMP SYSTEMNo clamp
USE Adjusting distances of M48 threaded fittings, nozzle M48 / 2"
INTERNAL DIAMETER / CLEAR OPENING 45 mm
EXTERNAL DIAMETER 53 mm
INTERNAL CONNECTION (SIDE LENS) Body, Thread M48 2" (50.8 mm)
EXTERNAL CONNECTION (EYE / SIDE CAMERA) Thread M48
COMPATIBLE BRANDS Baader Planetarium
ADAPTOR TYPEExtension

Baader M48 40 mm / 2" nosepiece with Safety Kerfs M48 Extension Pipe
