Filter holder wheel Moravian CCD-EFW-4L-7 for G4 series CCD cameras

Filter wheel Moravian CCD-EFW-4L-7 for G4 series CCD cameras.

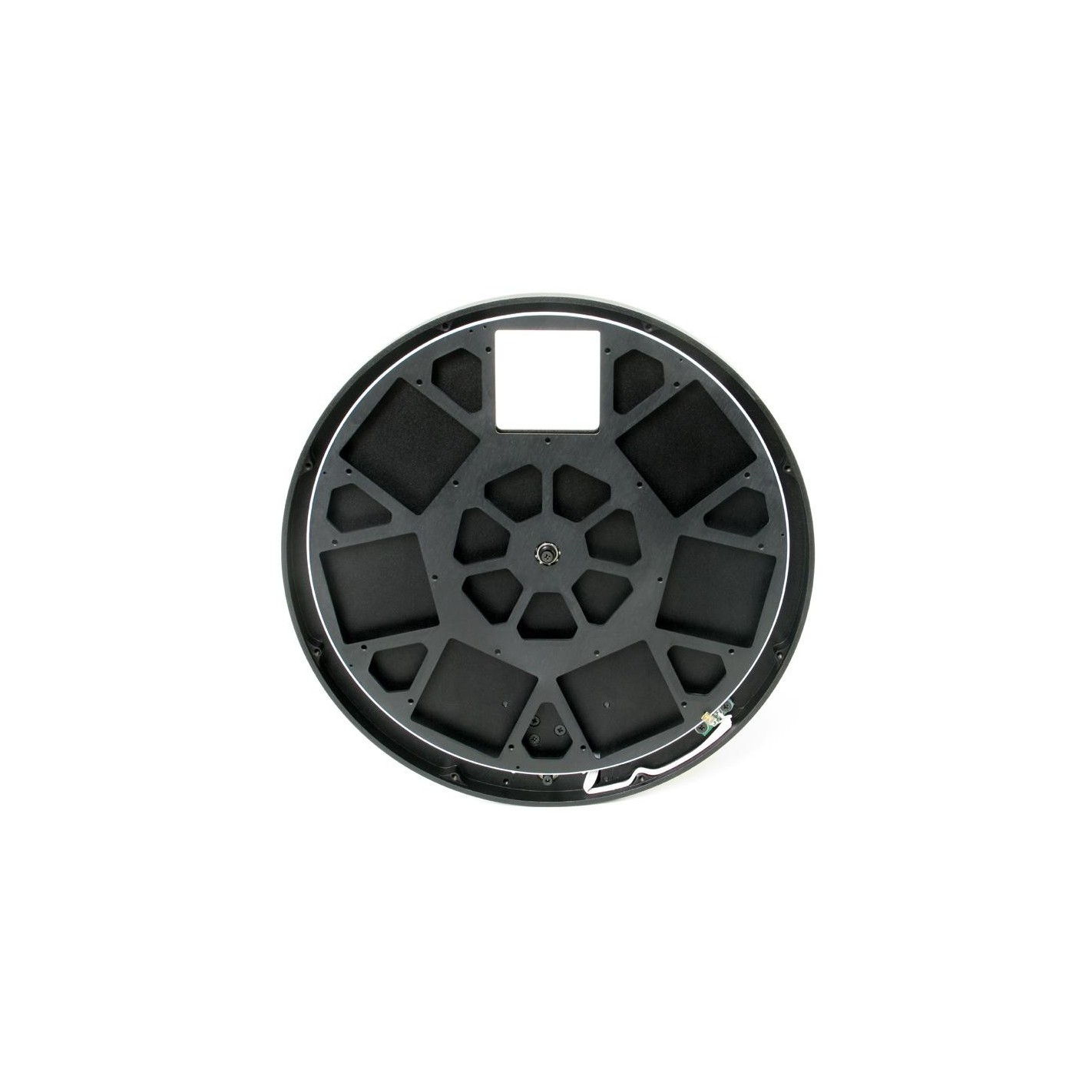

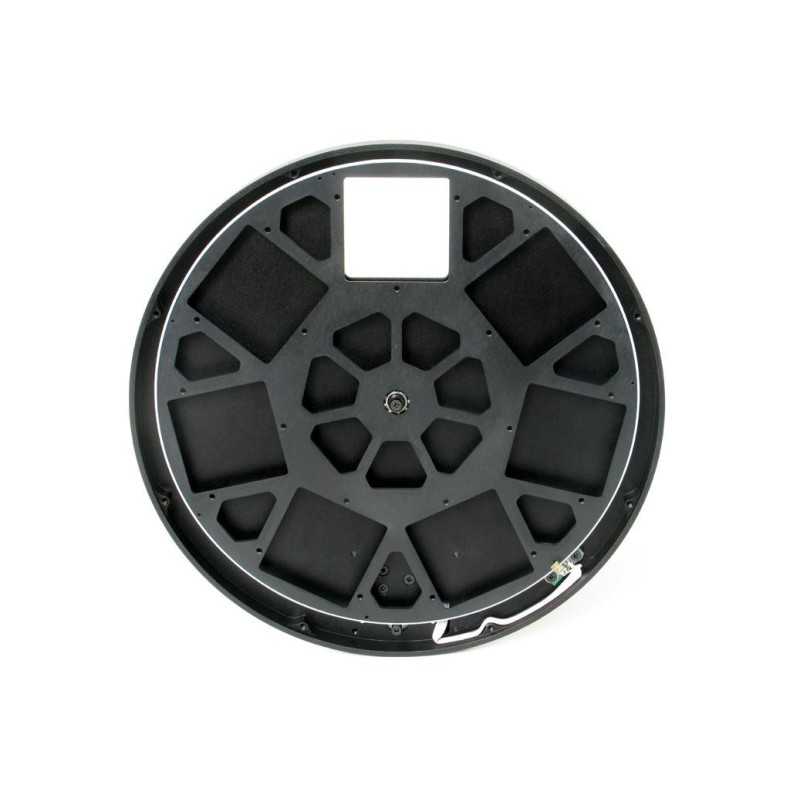

The wheel accepts 7 filters sized 50mm x 50mm and is compatible with the off-axis guide from Moravian, making it perfect for LRGB and narrow band tri-color photography.

Many astrophotographers prefer to have all their filters combined in one unit. The most commonly used filters are 3 narrow band filters O III, H-alpha, S II and the four LRGB filters. In this filter wheel, all seven filters can be inserted together, making it the perfect solution for optimal remote camera operation

To enable trouble-free adaptation, the working distance is short. Thus, the total distance is 33.5 mm from the sensor to the outside of the front filter housing.

The filter wheel receives power and camera control commands from a single cable with RJ45 connector.

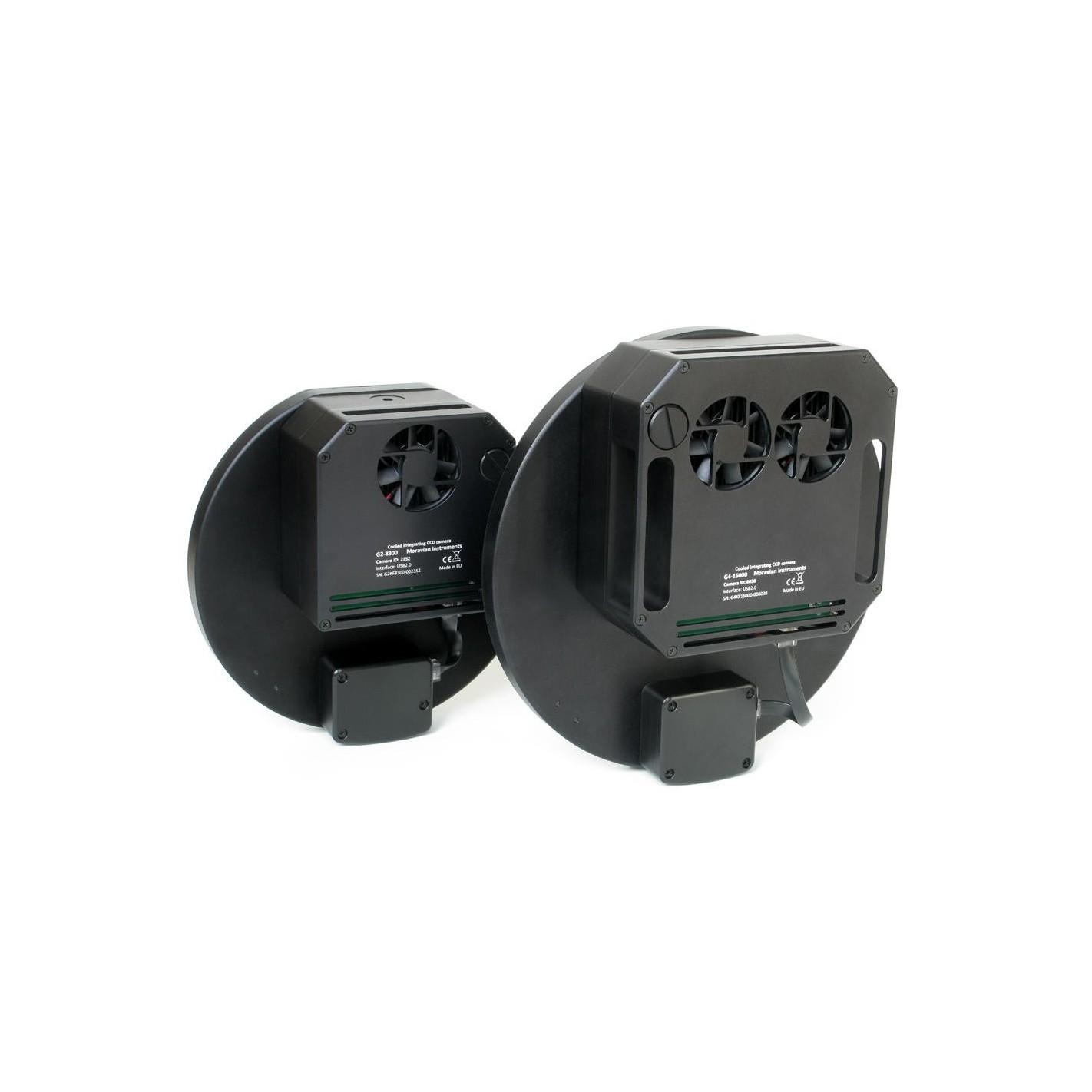

The filter wheel is screwed directly to the camera. Even then, there is still enough space to use Canon telephoto lenses, for example.

The included SIPS software controls the wheel and drivers for MaximDL and AstroArt are also included.

As some cameras cannot control the filter wheels, the manufacturer offers a tool for the configuration of the internal and external filter wheels of the G2, G3 and G4 CCD cameras. The tool is available at: http://www.gxccd.com/cat?id=150&lang=409

Important tip: if you order a filter wheel and tell us the camera model and its serial number, Moravian will deliver the filter wheel already configured correctly for your camera.

Technical specifications:

• Motorized filter wheel
• Filter positions: 7
• Filter types: 50 mm x 50 mm square filters unmounted
• For camera series: Moravian G4
• Camera connection: 4 M3 screws and 1 8-pin cable with RJ45 connector
• Distance from the front plate to the camera sensor: 33.5 mm
• Weight: 900 g

Filter holder wheel Moravian CCD-EFW-4L-7 for CCD cameras G4 series.
