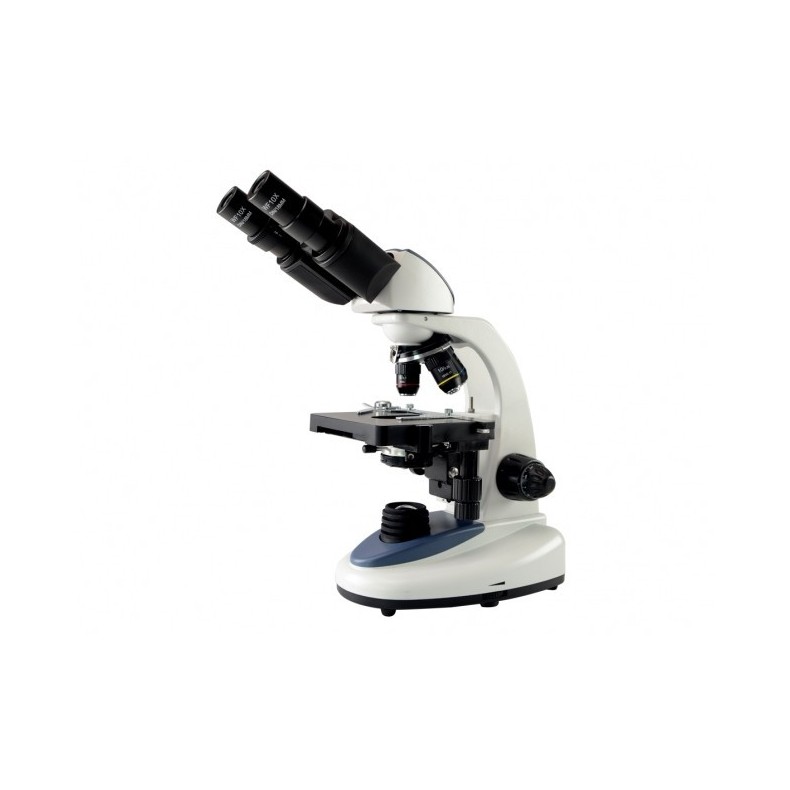

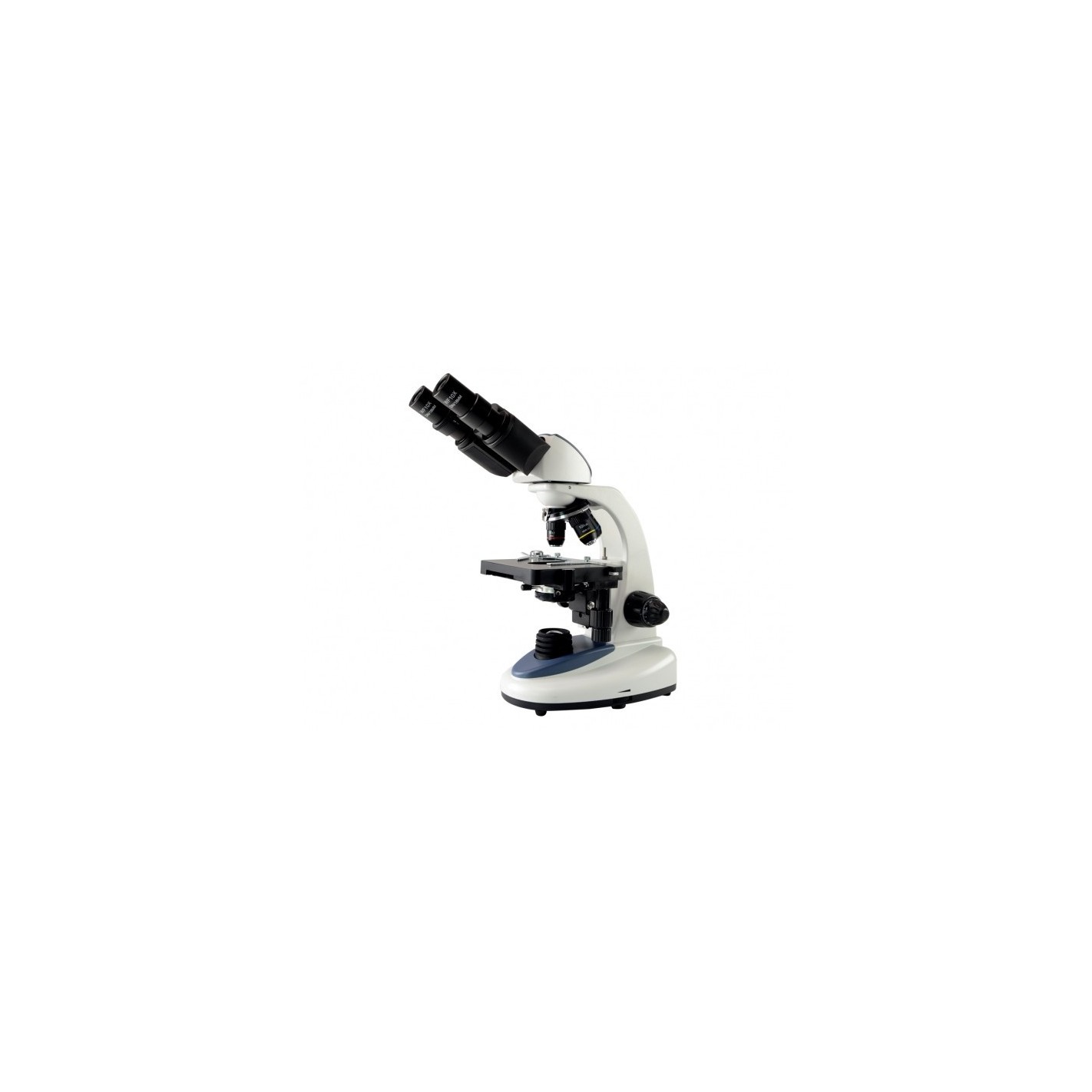

Biological Microscope BMS 146 FLArQ Binocular 748915

Biological Microscope BMS 146 FLArQ Binocular 748915.

The microscope BMS 146 FLArQ Binocular is a high quality, robust and well equipped instrument, ideal for teaching and entertainment.

The stand and stand base offer great stability.

The transmitted illumination system of the BMS 146 FLArQ Binocular is characterized by a dimmable LED device and an Abbe condenser with iris diaphragm. Thus, it is possible to work with a wide range of objectives such as 4x, 10x, 40x and the immersion 100x. The objectives supplied with the microscope are semi-planar achromatic and comply with DIN standards. With the 10x wide field eyepiece, and the standard version, magnifications between 40 and 400x (1500x optionally) are achieved.

The optical components provide sharp, true-color, high-contrast images. This series features a 360° rotatable monocular, binocular or triocular observation head, coaxial macro and micrometer focusing drive and mechanical stage with XY sliding carriage.

Thanks to a wide range of accessories, this microscope series is optimal for various observation techniques, including camera imaging.

Technical Specifications:

• • • • • Stand: Vertical, robust construction.
        • Observation head: Integrated binocular head, Siedentopf design, 45° inclined, 360° rotatable, interpupillary distance adjustable between 55 and 75mm, diopter corrector.
        • Objective revolving nosepiece: Quadruple.
        • Focusing: Coaxial macro and micrometric focusing knobs. Micro precision 0.002mm. Stage elevation locking device. Macro mechanism tension adjustment knob.
        • Mechanical stage: 140x132mm double-plate mechanical stage with XY moving carriage, 75x30mm travel by means of coaxial movement knobs on vertical axis.
        • Eyepieces: WF 10x/18 wide field.
        • Objectives: Three semi-flat objectives DIN standards 4x/0.10, 10x/0.25 and 40x/0.65 retractable
        • (Optional 20x/0.40 retractable, 60x/0.85 retractable, 100x/1.25 retractable and immersion).
        • Condenser: Abbe A.N. 1.25 with iris diaphragm, height adjustable.
        • Illumination: Transmitted LED of 1W (equivalent to 20W halogen) of adjustable intensity.
        • Lamp life: 50000 hours.

Biological Microscope BMS 146 FLArQ Binocular 748915.
