Digital Microscope Dino-Lite USB AM4515ZT EDGE

Digital Microscope Dino-Lite USB AM4515ZT EDGE

The Universal series of Dino-Lite provides a wide range of products with the highest image quality as well as user-friendly software with comprehensive measurement functions and several unique hardware and software features to satisfy the most demanding users.

This range consists of models Dino-Lite with USB connection and a magnification of up to 200x, as well as an image resolution of 1.3 or 5 megapixels. For working with reflective objects, you can choose models with integrated polarization filter, with adaptive polarization. We offer models with robust aluminum alloy housing, for the best look and feel, as well as increased durability.

The series Dino-Lite Edge is a special category within the Universal range. The Edge series offers even better image quality and greater flexibility. The high-quality optics provide a very sharp, bright and natural color image with very low aberration and vignetting. Interchangeable caps provide even more flexibility for use in all kinds of professional applications.

Thanks to the integrated automatic magnification readout, measurements can be performed easily and quickly. Different caps are supplied with the microscope, converting to Dino-Lite Edge is the perfect choice for any professional application.

Technical comments:

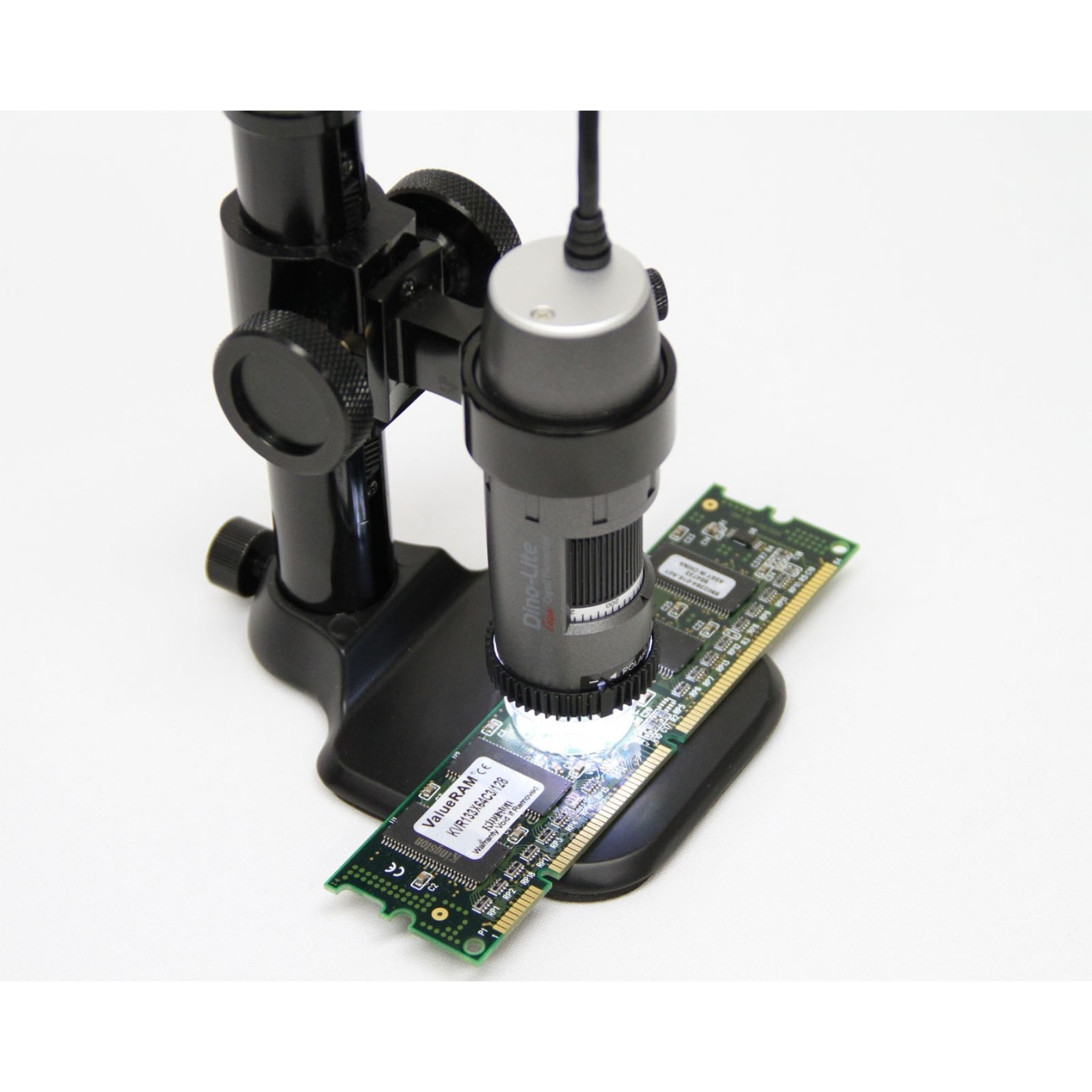

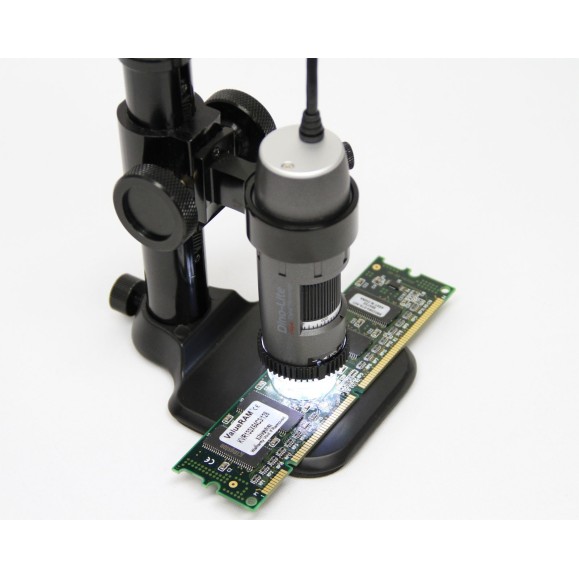

These unique features make the AM4515ZTfrom Dino-Lite into a superb inspection tool for biomedical and scientific research, materials analysis, electronic inspection or any similar application requiring high magnification, versatility and mobility. The model AM4515ZTfrom Dino-Lite comes equipped with the easy-to-use DinoCapture 2.0 software. For this model it includes functions such as calibration, measurement, image capture and annotation, and video recording. Although the model AM4515ZTcan be used in a portable way, a high-precision stand is recommended. The RK-10A of Dino-Lite is, for example, a superb addition. It is a high-end, robust and stable stand, made of sturdy stainless steel and lightweight aluminum, and offers a very precise fine focus adjustment.

Technical Specifications:

• LIGHTING
• Light/ LED Type: White
• Number of LEDs:
• LED on/off switch:Yes
• Infrared filter: IR blocking filter>650 nm
• Diffuser available:Yes,N3C-D included
• Emission filter:No

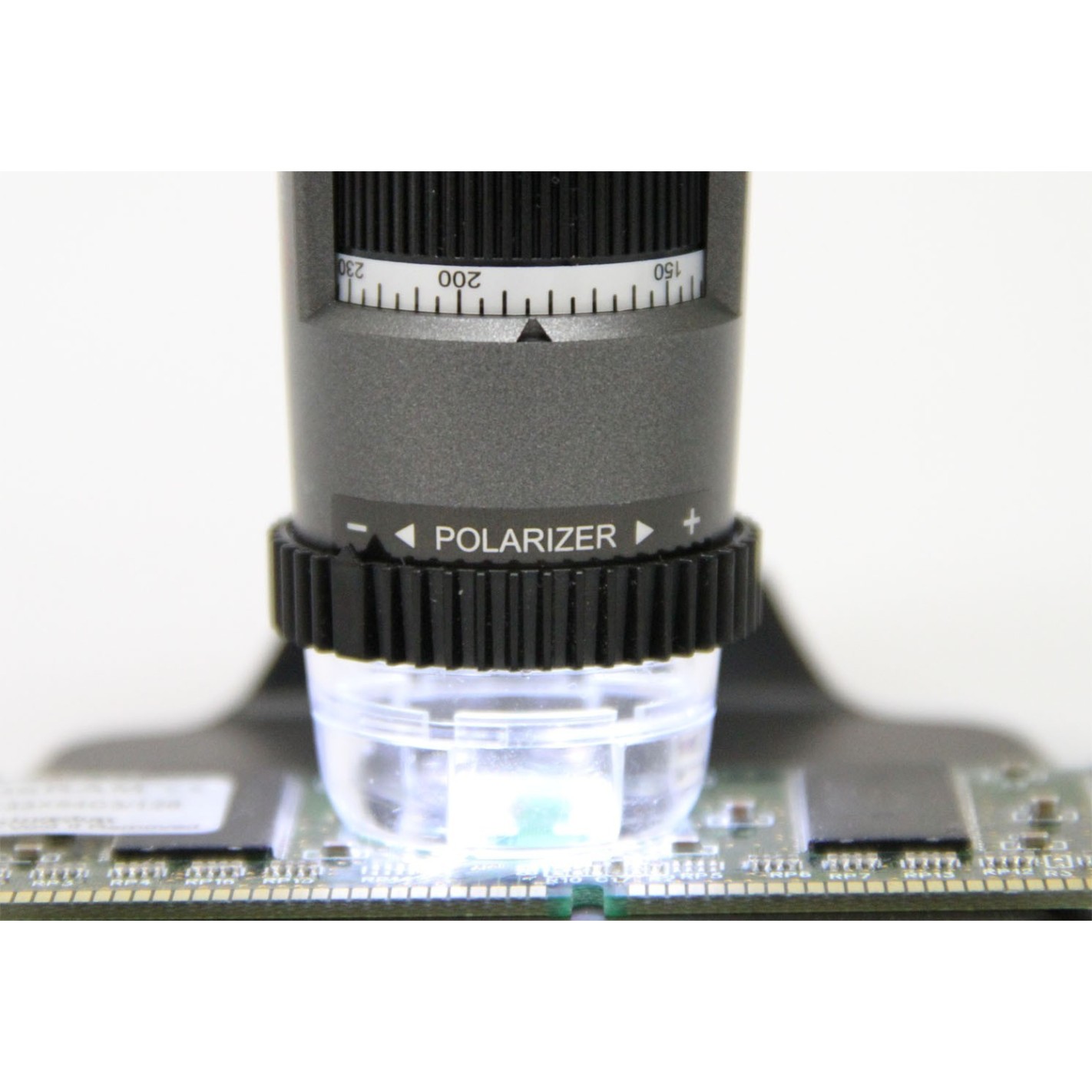

• Polarizer:Yes, linear
• OPTICS
• Increases:20-220x
• Zoom Macro:No
• Working distance:Standard
• Lens Type: Lens with anti-reflective coatings
• SENSOR
• Sensor Type:CMOS
• Resolution:1.3 Megapixels (1280x1024)
• Maximum frame rate:30 fps
• COMPATIBILITY
• Interface:USB 2.0
• Operating System:Windows XP, Vista, 7 & 8 and 10
• Software included:DinoCapture 2.0 (Windows)
• Supported image formats (Windows):BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX, PGX, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows):WMV, FLV, SWF
• Supported image formats (MacOS): -
• Supported video formats (MacOS):-
• Image capture standards:DirectShow, UVC
• MICROSCOPE BODY
• Material:Composite/plastic
• Magnification fixation:Yes
• Dimensions:10.5cm (L) x 3.2cm (D)
• Weight:105g
• Cable length:1.8m
• BENEFITS
• Special features:AMR (Automatic Reading Reading)
• Measure:Yes
• Calibration:Yes
• MicroTouch sensor:Yes
• INFORMATION
• Box contents:Microscope, case, CD with software, calibration standard, user's manual,N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-Extension cap, N3C-L- Long cap, N3C-S- Side light cap
• Warranty:2 years against factory defect
