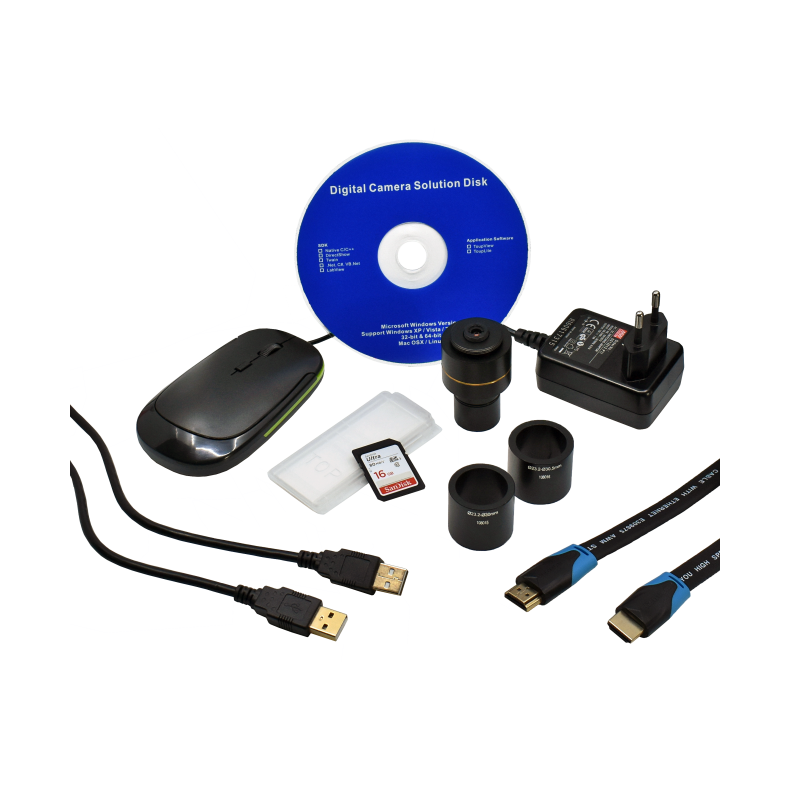

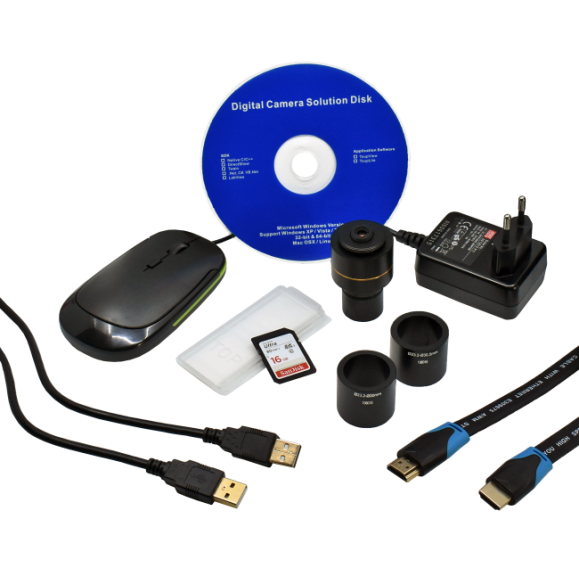

USB 2.0 microscopy camera kit BMS 5 Mp HDMI + WIFI
USB 2.0 microscopy camera kit BMS 5 Mp HDMI + WIFI
USB 2.0 microscopy camera kit BMS 5 Mp HDMI + WIFI
USB 2.0 microscopy camera kit BMS 5 Mp HDMI + WIFI
USB 2.0 microscopy camera kit BMS 5 Mp HDMI + WIFI

USB 2.0 microscopy camera kit BMS 5 Mp HDMI + WIFI

BMS76601080PHB
Stock at Supplier
878.50
VAT excluded Shipping 5/7d

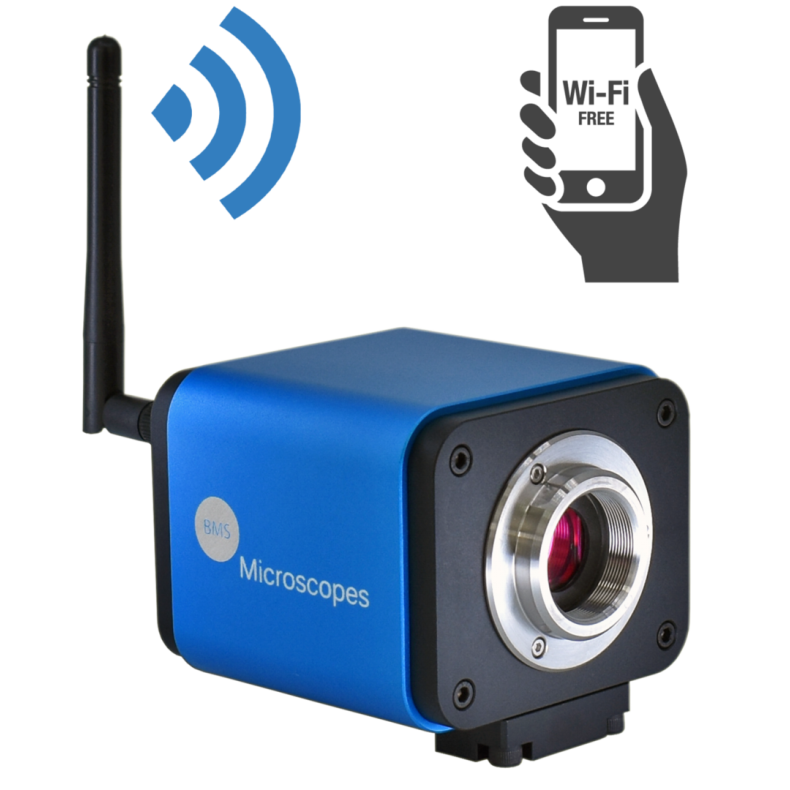

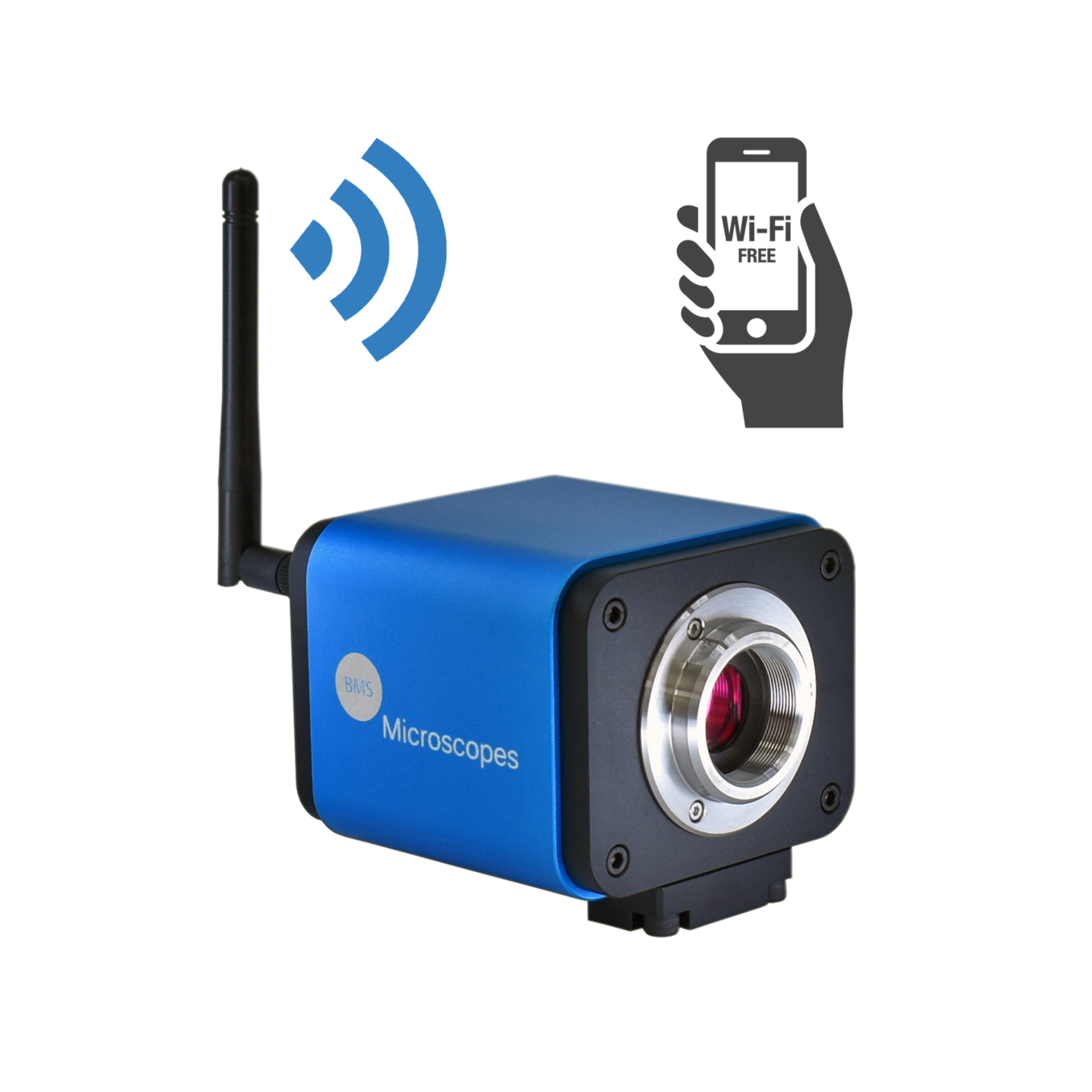

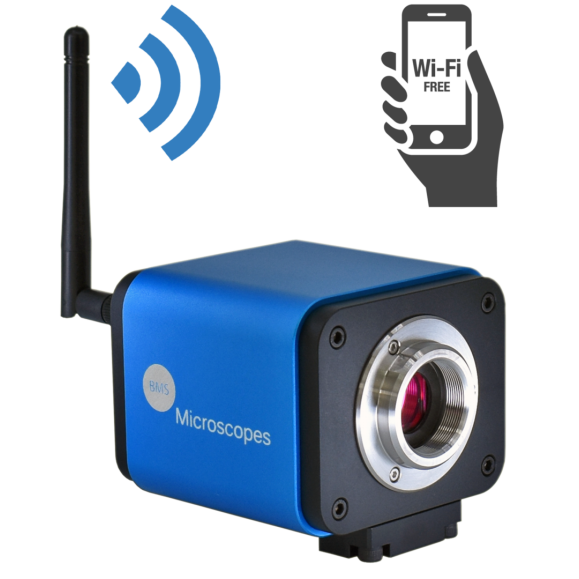

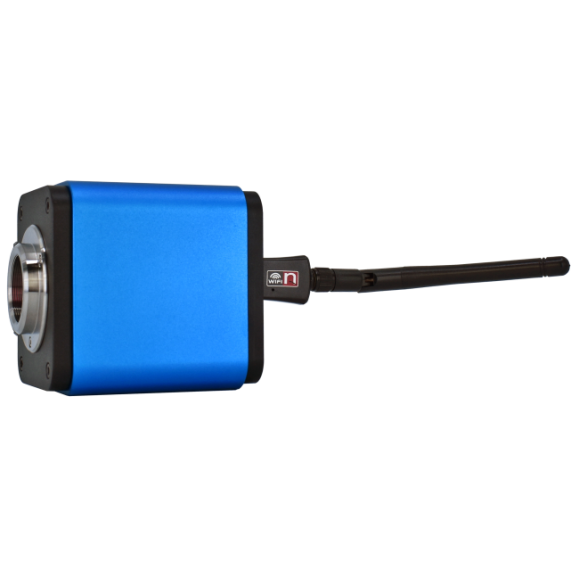

All-in-one C-mount camera (HDMI, WiFi, SD card) with high-sensitivity, high-performance Sony CMOS sensor.

Order it before 7 hours and 21 minutes and receive it between on Tuesday, 15 April and Tuesday, 22 April with Home delivery - International

Delivery Options
Carrier Description Estimated Delivery
Home delivery - International Home delivery - International

Tuesday, 15 April - Tuesday, 22 April

Home delivery - International

Home delivery - International

Estimated delivery:
Tuesday, 15 April - Tuesday, 22 April


  • All-in-one C-mount camera (HDMI, WiFi, SD card) with high-sensitivity, ultra-high-performance Sony CMOS sensor.
  • Simultaneous HDMI and WiFi output.
  • Mouse control via USB connection.
  • Integrated image capture and video recording via SD card.
  • On-screen camera control panel via mouse.
  • On-screen toolbar with zoom, mirror image, freeze, crosshair and browser functions.
  • Ultra-thin color engine with perfect color reproduction capability.
  • Supports standard SDK for Windows/Mac/Linux (USB).


HDMI and WiFi are used to transfer data to an HDMI display or a computer.
For HDMI output: The camera control panel and toolbar are displayed on the HDMI screen. In this case, the USB-connected mouse can be used to configure and control the camera.

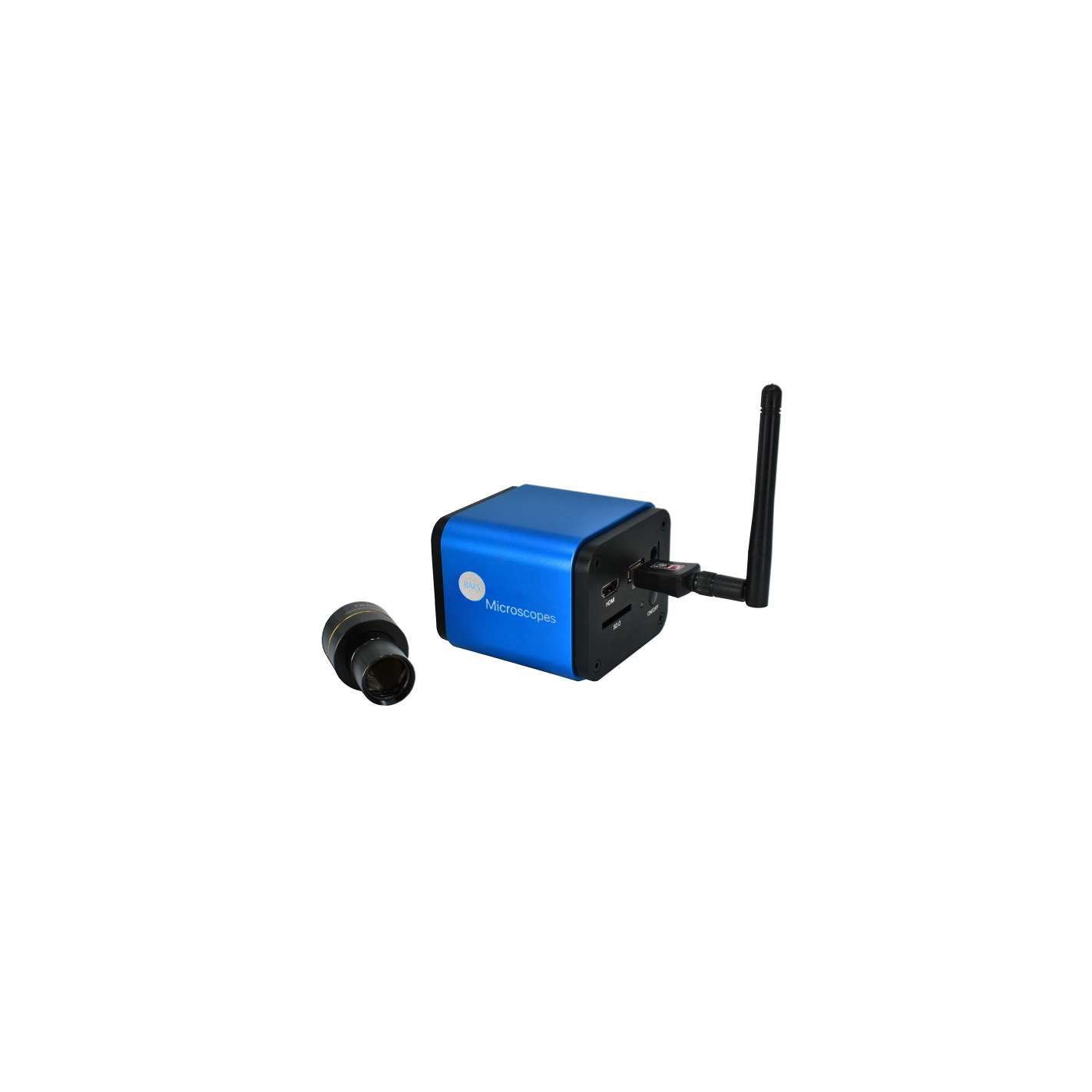

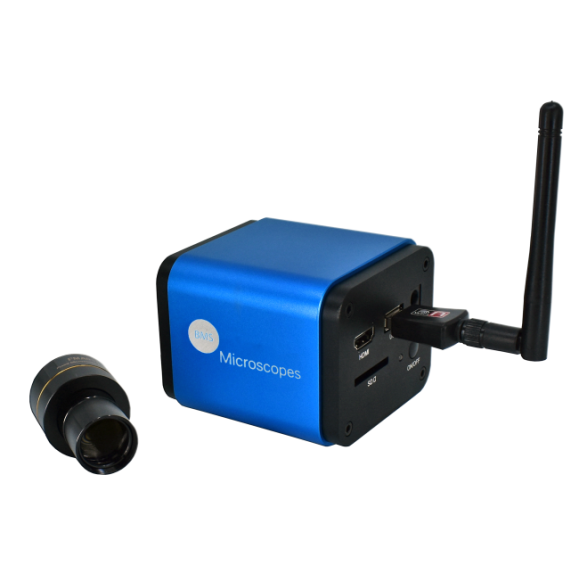

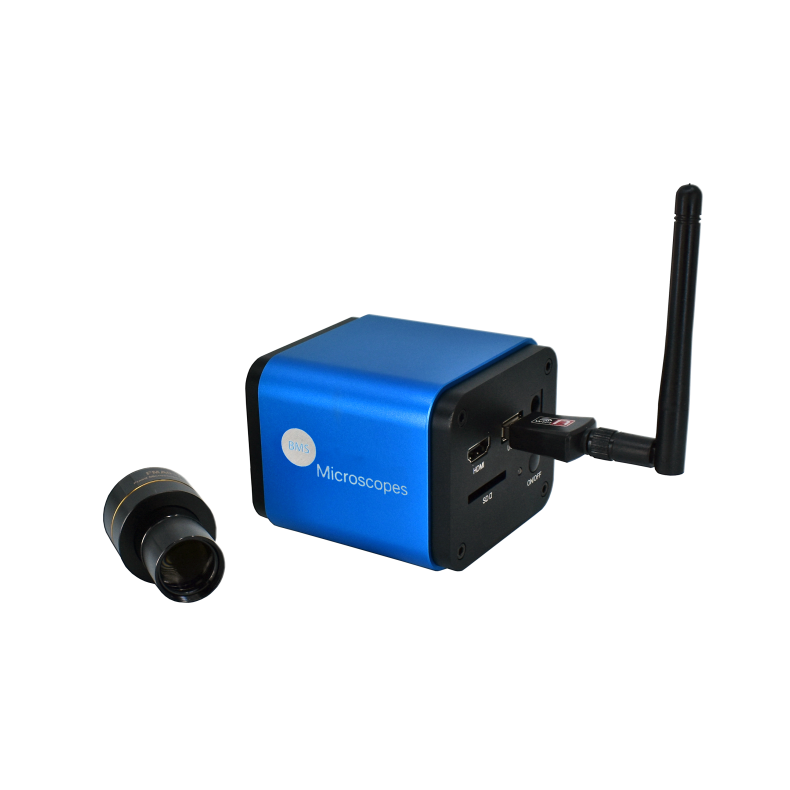

For WiFi output: connect the WiFi adapter to the USB port of the camera. Connect the computer (smartphone or tablet) to the camera and open the BMS_Pix3 application. The camera can now be controlled by the computer via the on-screen display.

Technical specifications:

Basic Performance

Sensor and size

1080P Sony CMOS 1/ 2,8

Pixel (in µm)

2,8 x 2,8



Frames per second

60 @ 1920 x 1080 (510 mV with 1/30s)

30 @ 1920 x 1080 (0.15 mV with 1/30s)

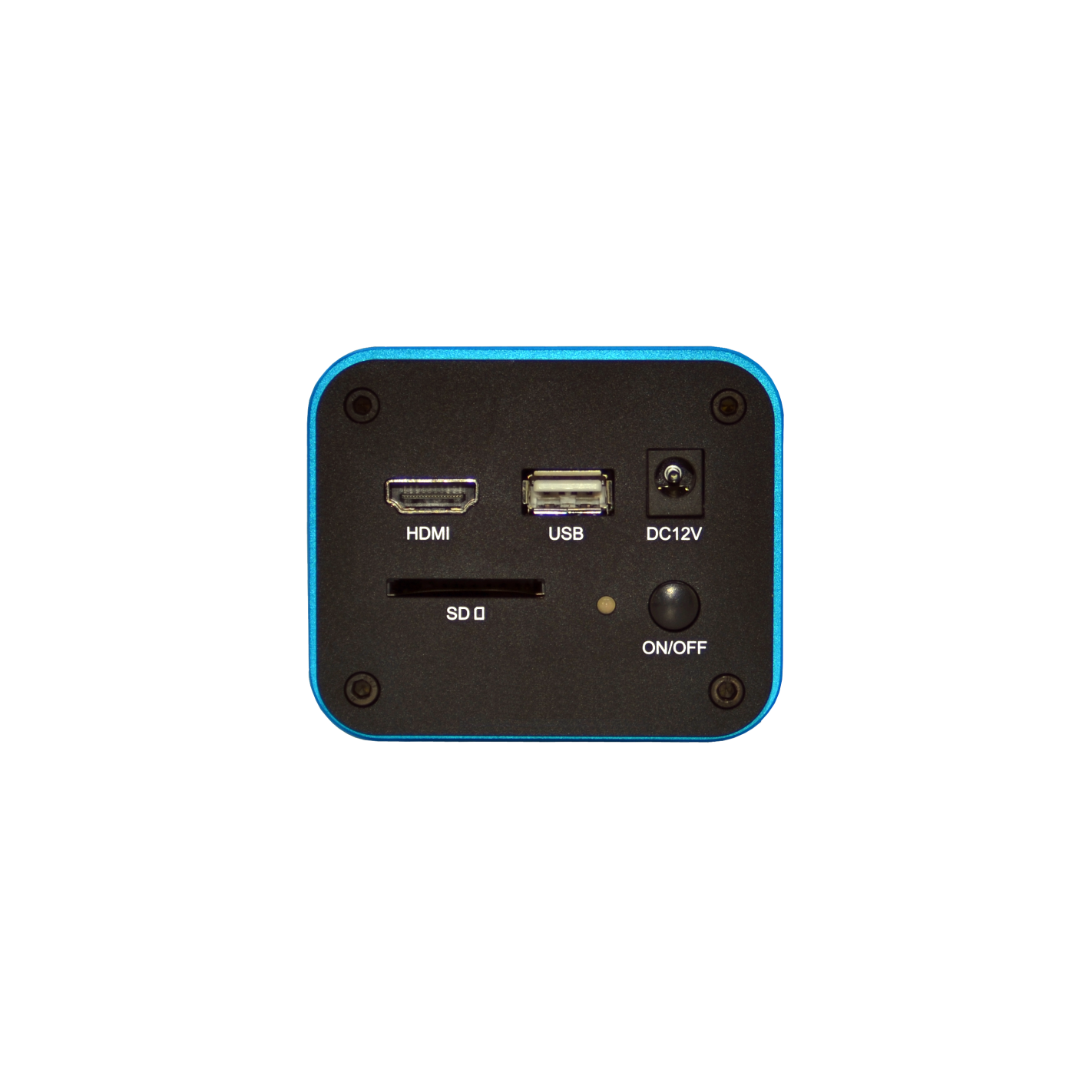

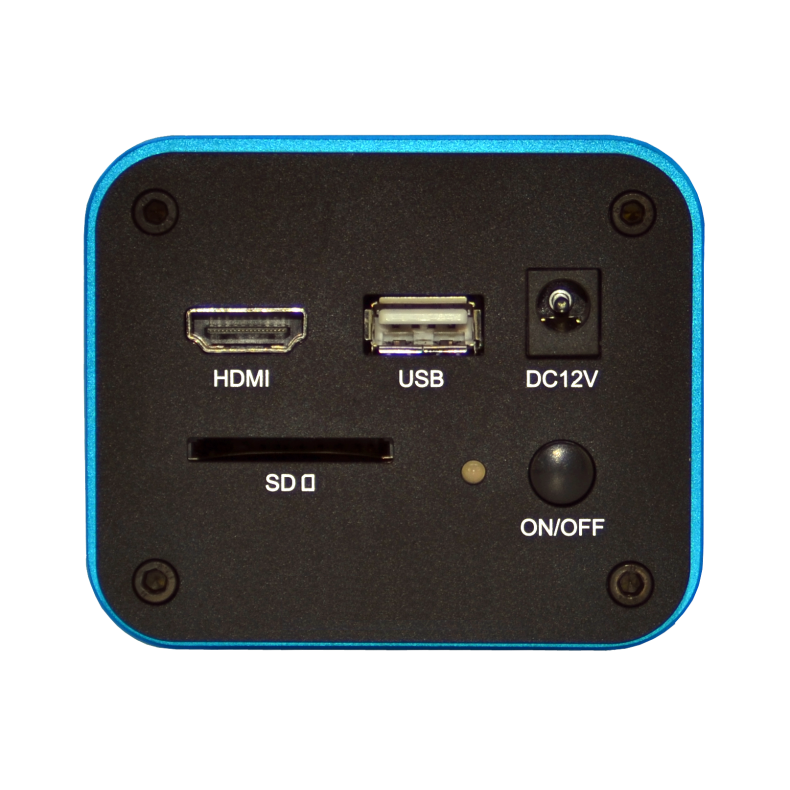

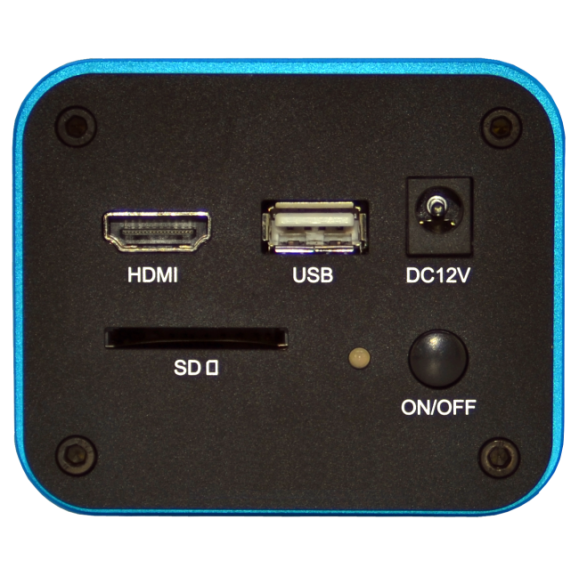

Interface & Button Functions

USB

USB WiFi adapter or USB mouse

HDMI

HDMI output

DC 12 V

12 V power in

SD

SD card slot

ON/OFF

Power on / off switch

LED

Power on (blue) and power off (red)





Specifications for HDMI output

UI operation

With USB mouse

Image capture

High speed in SD card

Video record

1030P 30 fps in SD card

Camera control panel

Exposure, gain, white balance, color adjustment, sharpness and denoising control,

Toolbar

Zoom, mirror, comparison, freeze, cross, cross browser function



Specifications for USB output

White Balance

Auto white balance

Color technique

Ultra fine color engine (USB)

Capture/control API

Standard UVC for Window/Mac (USB)/Linux

Recording system

Still picture or Movie (USB)



Software environment (for USB 2.0 connection)

Operating system


Support Windows 8/10 &11 (32 & 64 bit), OSx (Mac OS X) & Linux


PC requirements

CPU: equal to Intel Core 2 2.8 GHz or higher

Memory: 4 GB or more

USB 2.0 high speed port

Display 19" or larger

CD ROM



Operating environment

Operating temperature in ºC

-10 to 50

Operating humidity in % RH

30 - 80

Power supply

DC 12 V/2 A adaptor



Exterior

Colour

Blue cast and black sides

Dimensions (WxDxH) in mm

78 x 70 x 92

Weight in g

470
