Filtyro Antlia H-Beta 3nm Pro narrow...

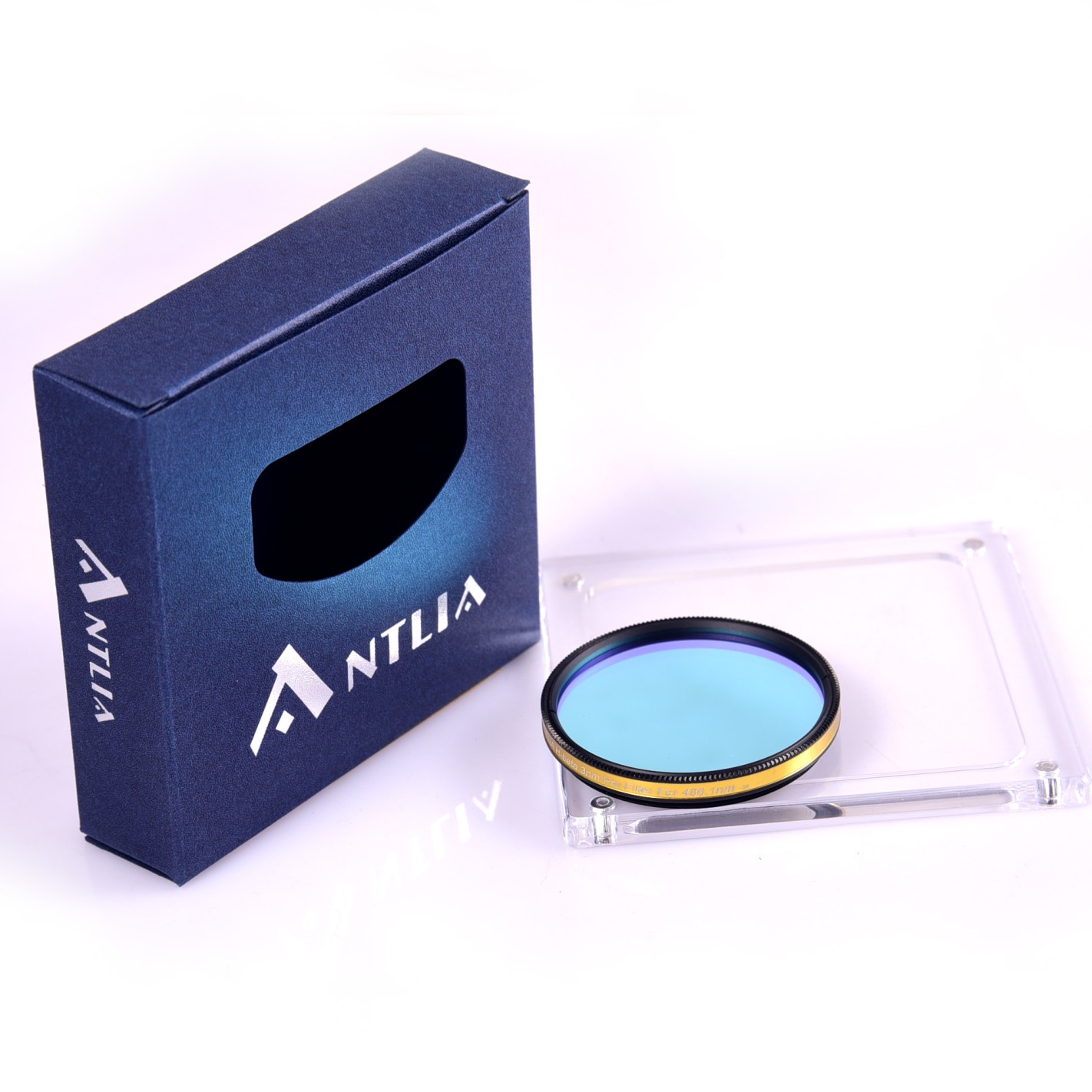

Filtyro Antlia H-Beta 3nm Pro narrow band Filtyro Antlia H-Beta 3nm Pro - 2'' mounted

ANTHBeta3nmPro
Stock at Supplier
413.21
VAT excluded

The Antlia H-Beta Pro narrowband filter optimizes the FWHM at a bandpass of 3 nm. As the bandwidth narrows, these 3 nm Pro narrow band filters improve the contrast of emission objects by effectively reducing unwanted background signals.

Buy it now and receive it between on Thursday, 17 April and Thursday, 24 April with Home delivery - International

Delivery Options
Carrier Description Estimated Delivery
Home delivery - International Home delivery - International

Thursday, 17 April - Thursday, 24 April

Home delivery - International

Home delivery - International

Estimated delivery:
Thursday, 17 April - Thursday, 24 April



Designed to achieve an impressive 88% transmission at the 486.1 nm line, Antlia H-Beta 3nm Pro filters provide maximum signal and well-defined nebula structures. The out-of-band blocking specification is rated at OD5 (0.001%), ensuring excellent signal-to-noise ratio (SNR) and effective cut-off rates to minimize interference from other wavelengths. These enhanced 3nm Pro filters for sharp cut-off astrophotography are specifically designed to reduce halos around bright stars.

The Antlia 3nm Pro series currently comprises Ha, SII, OIII and H-Beta filters that capture exceptionally narrow four-channel data, allowing a wider range of combinations in post-production to meet your diverse requirements.

Importantly, Antlia also offers dual narrowband filters designed for OSC cameras: the ALP-T Dualband Ha&OIII 3nm and the SII&Hb 3.5nm. The synergy of these two dual-band filters allows capturing exceptionally narrowband images with OSC cameras by acquiring spectral data from four channels: Ha, OIII, SII and Hb. Spectra from these four channels can be separated and recombined into various color palettes during post-processing. The resulting images can enhance the luminance contrast in traditional balanced RGB images or facilitate the creation of visuals in various popular false color palettes, such as H-O-Hb, S-H-O, H-S-OHb, H-O-O-O, and others.

Key features and application

  • High transmittance and minimum bandwidth to maximize contrast
  • Pronounced spectral profile minimizes halos around bright stars
  • Single substrate to eliminate internal reflections
  • Narrow band objects: H-Beta emission nebulae
  • Use in light-polluted areas and dark locations
  • Extends imaging time when moon is present
  • All Antlia Pro narrowband filters can be used down to f/3 with minimal signal loss
  • All unmounted Antlia Narrowband filters are edge-blackened to eliminate internal stray light reflections
  • Superior optical reliability reduces image post-processing
  • This filter is only effective for deep sky objects containing H-Beta emissions

Antalia H-beta 3 nm technical specifications

FWHM (Full width at half maximum)

3 nm
CWL (Center wavelength) 486.1nm
Peak transmission 88%
Blocking > 5 OD (out-of-band blocking) @ 300-1100nm
Filter thickness 2mm+/-0.05mm
Base substrate Optical substrate, single / unbonded
Surface quality S/D (scratch/dig)= 60/40 (refer to MIL-O-13830)
Transmission wavelength Lambda/4 or better
Parallelism Less than 30 arc seconds
Ring type 2" (M48*0,75)

Warranty: 3 years against delamination

Available size: 2'' only mounted

Spectral curve

Antlia Hb 3nm spectrum curve.jpg

Filter ring:

  • 2'' (M48*0.75)
  • Ultra-thin filter cell to minimize vignetting by maximizing the clear aperture possible
  • Black anodized finish
  • Laser engraved with no discoloration

Not recommended:

  • Solar imaging
  • Night visual observation

Not allowed:

DO NOT LOOK DIRECTLY AT THE SUN WITH THIS FILTER

Failure to observe this warning may result in serious eye injury.
