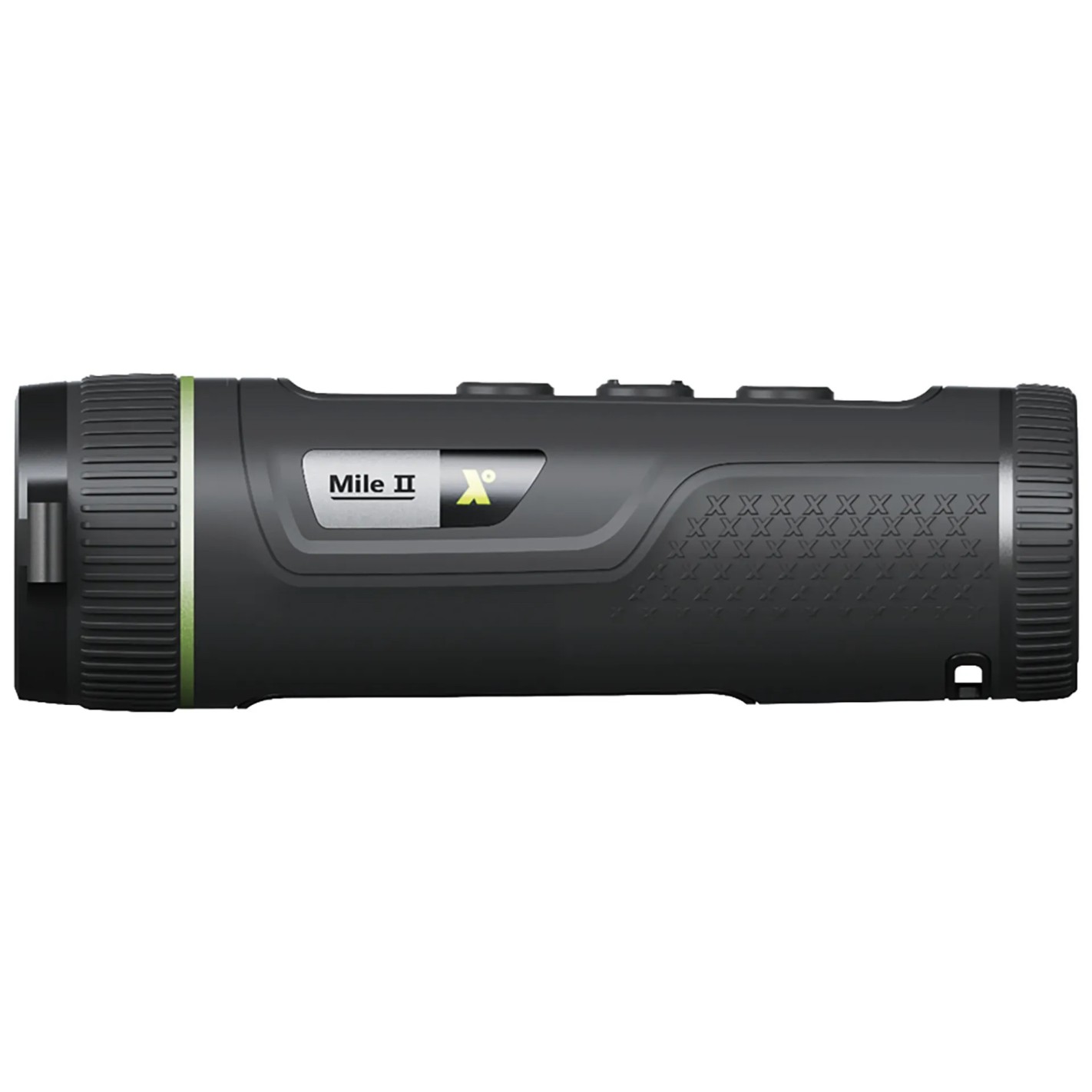

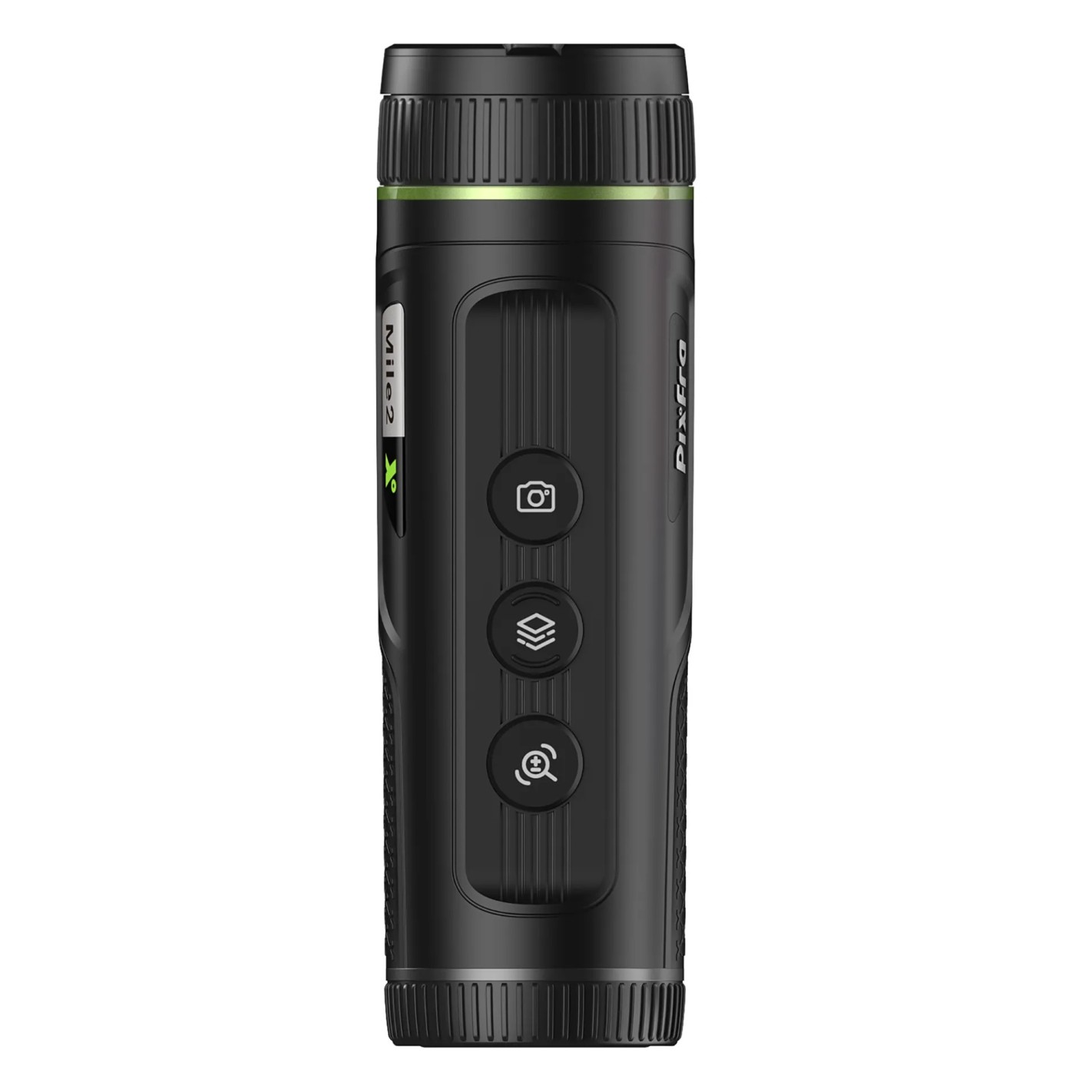

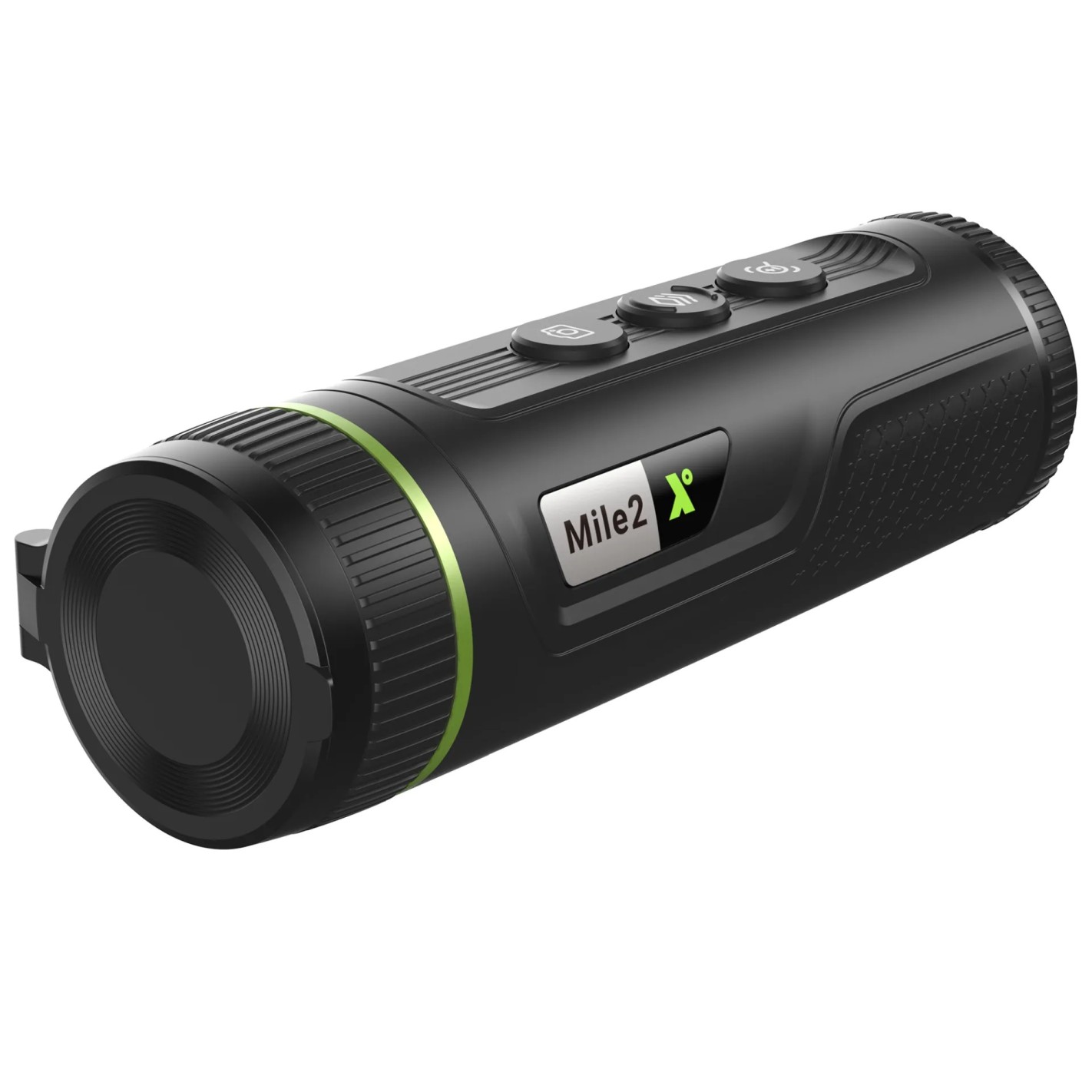

Thermal Monocular PIXFRA Mile 2 M215M

Main features

• Winner of the Red Dot Design Award 2024
• 256×192, 12µm VOx thermal sensor,
• Wide field of view (H: 20.5m ; V: 15.4m) for a complete perspective
• Compact and lightweight, perfect for stalking, hunting in the woods or scouting in the wilderness
• PIPS 2.0 firmware with enhanced zoom, noise reduction and improved contour sharpness
• Up to 8.5 hours of battery life, ideal for long days outdoors
• IP67 certified: water and dust resistant, designed to withstand the most extreme conditions
• 6 color palettes: warm-white, warm-black, warm-black, rainbow, warm-red, warm-green and sepia
• Hot-spot tracking for accurate target identification
• Electronic compass function for safe orientation

The PIXFRA Mile 2 M215M combines advanced technology with award-winning design. Its highly sensitive 256×192, 12µm VOx thermal sensor and 15mm f1.0 lens and 800 x 600 AMOLED display ensure reliable detection and clear imaging of thermal signatures up to 800m. The innovative button design allows for easy one-handed operation even in complete darkness. Despite its powerful internal components, this rugged device is compact and lightweight, fitting comfortably in any pocket.

Wide field of view

The wide field of view of over 20 m (at 100 m) makes the PIXFRA Mile M215M the ideal spotter for hunters and scouts.

Award-winning design

The Mile 2 thermal model series has received the prestigious Red Dot Award thanks to its compact, lightweight and easy-to-use design.

Modern firmware for high quality images

The device comes with the latest PIPS 2.0 (Pixfra Imaging Processing System) firmware, which enhances image quality with advanced features such as optimized zoom, noise reduction and improved sharpness.

6 color palettes

Choose from 6 color palettes: warm-white, warm-black, warm-black, rainbow, warm-red, warm-green and sepia.

Rugged and reliable in any environment

Thanks to its IP67 certification, the device is water and dust resistant, ensuring flawless operation in adverse conditions such as rain or fog. In addition, its thermally stabilized technology enables reliable performance in extreme temperatures, from -30 °C to +55 °C. The high-performance battery provides up to 8.5 hours of autonomy, ideal for long days outdoors.

Innovative features for diverse applications

It includes an electronic compass that provides accurate navigation and orientation, perfect for adventures in nature or the field. In addition, the hot spot function automatically identifies the most intense heat source with a crosshair, making target detection easy.

Live WiFi streaming

Connect to your smartphone or tablet via WiFi, with the ability to connect up to four devices at the same time within a range of 40 m.

Recording and storage function for images and videos

The large 16 GB internal memory offers enough space for image and video recordings.

Practical accessories for easy transport

The device includes a protective pouch, neck strap and hand strap, providing comfort and safety at all times

Technical Specifications

• 256×192, 12µm VOx thermal sensor,
• 15mm f1.0 lens with 800m sensing distance
• Manual focus
• Wide field of view (H: 20.5m; V: 15.4m)
• Base magnification: 2.33x
• Digital zoom: 1x, 2x, 4x, 8x
• Image and video recording function
• Large 16 GB internal memory
• PIPS 2.0 firmware: zoom enhancement, noise reduction and sharpness improvement
• 6 color palettes: warm-white, warm-black, warm-black, rainbow, warm-red, warm-green and sepia
• Hot-spot tracking for accurate detection
• Electronic compass function for safe orientation
• Capture and storage function for images and videos
• 16 GB internal storage
• Fast and stable live streaming over WiFi
• IP67 water and dust resistant
• Compact and lightweight - ideal for stalking and exploring
• Up to 8.5 hours of battery life
• Red Dot Design Award Winner
• Dimensions/Weight: 157.5 mm × 56.6 mm × 50.3 mm / 300 g

Includes

• PIXFRA Mile 2 M215M thermal monocular
• Protective pouch
• Neck strap
• Hand strap
• USB-C cable
• User manual

Diopter adjustment: 1

Total height (mm): 50

Total width (mm): 56

Magnification to: 18.64

Magnification from: 2.33

Progressive magnification: 1x, 2x, 4x, 8x

Automatischer Ausschaltmodus: 1

Field of view (degrees): 11.7

Field of view (m/100m) min: 20.5

Field of view at 1000m 7) (m): 205

Color: black

Lens diameter: 15

Battery life (h): 8.5

Entfernungsmesser: 0

Erfassungsbereich (m): 800

Product family: Mile 2

Farbpalette: 1

Near focus (m): 2.6

Function 'Display aus': 1

Waterproof 8): 1

Calibration: Auto, Manual

Compatible with Pulsar control :

Total length (mm): 157

Housing material: Plastic

Head mountable: 0

NETD ( 35

Waterproof protection level: IP67

Eyepieces for spectacle wearers: 0

Net weight (g): 303

Net weight (without accessories) (g): 453

Batteries included: 0

Exit pupil (mm): 5

Max. temperature range (°C): 55

Min. temperature range (°C): -30

Casing coating: Rubber/Plastic

Tripod connection thread: 1

Stream Vision kompatibel: 0

Type: monocular
