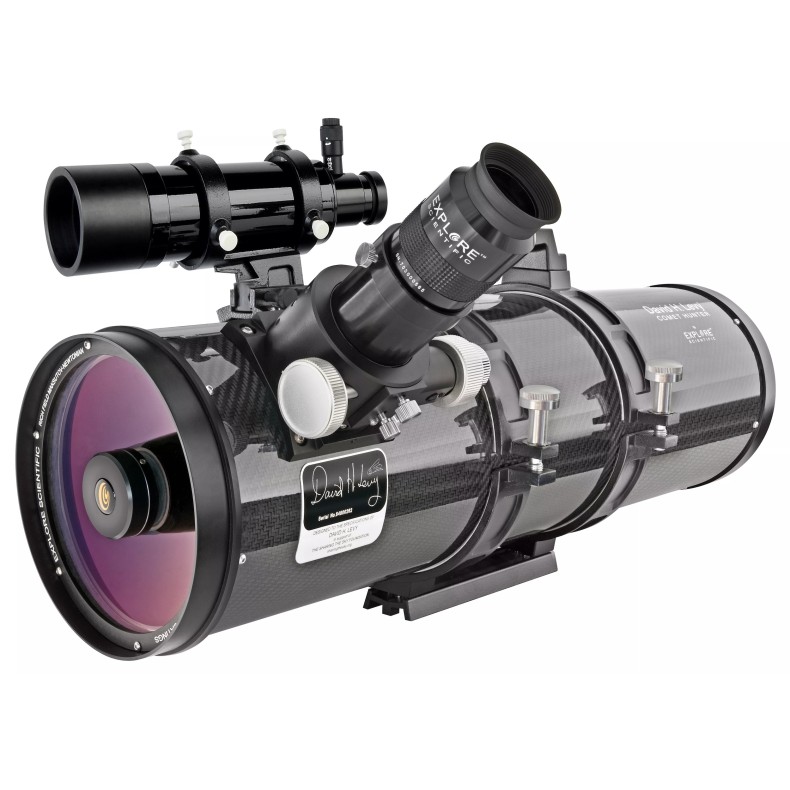

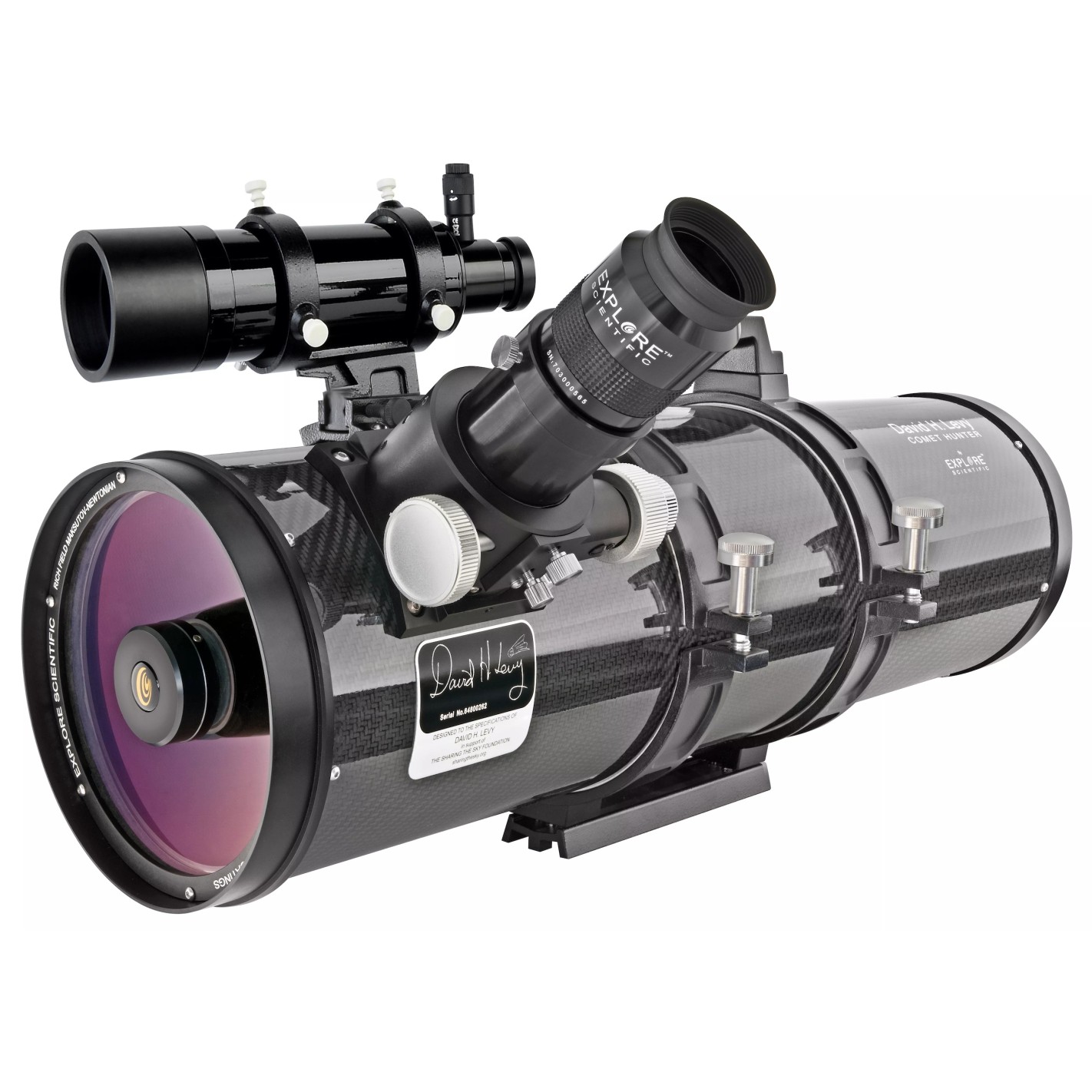

EXPLORE SCIENTIFIC MN-152 Comet Hunter David H. Levy EXPLORE SCIENTIFIC MN-152 Comet Hunter Telescope

Features

• Highly corrected Maksutov-Newton
• Aperture 152 mm; focal length 731 mm
• Carbon fiber tube for superior rigidity and reduced weight
• Thermal focus shift very close to zero due to carbon fiber tube
• Excellent performance without additional corrector for visual and astrophotographic photography up to APS-C
• Handgrip with camera mounting function
• 44 mm universal dovetail plate with stainless steel rail (fits Vixen SP/GP; Meade LXD75; Skywatcher EQ5; Bresser EXOS I/II)
• Excellent straight finder with illumination unit

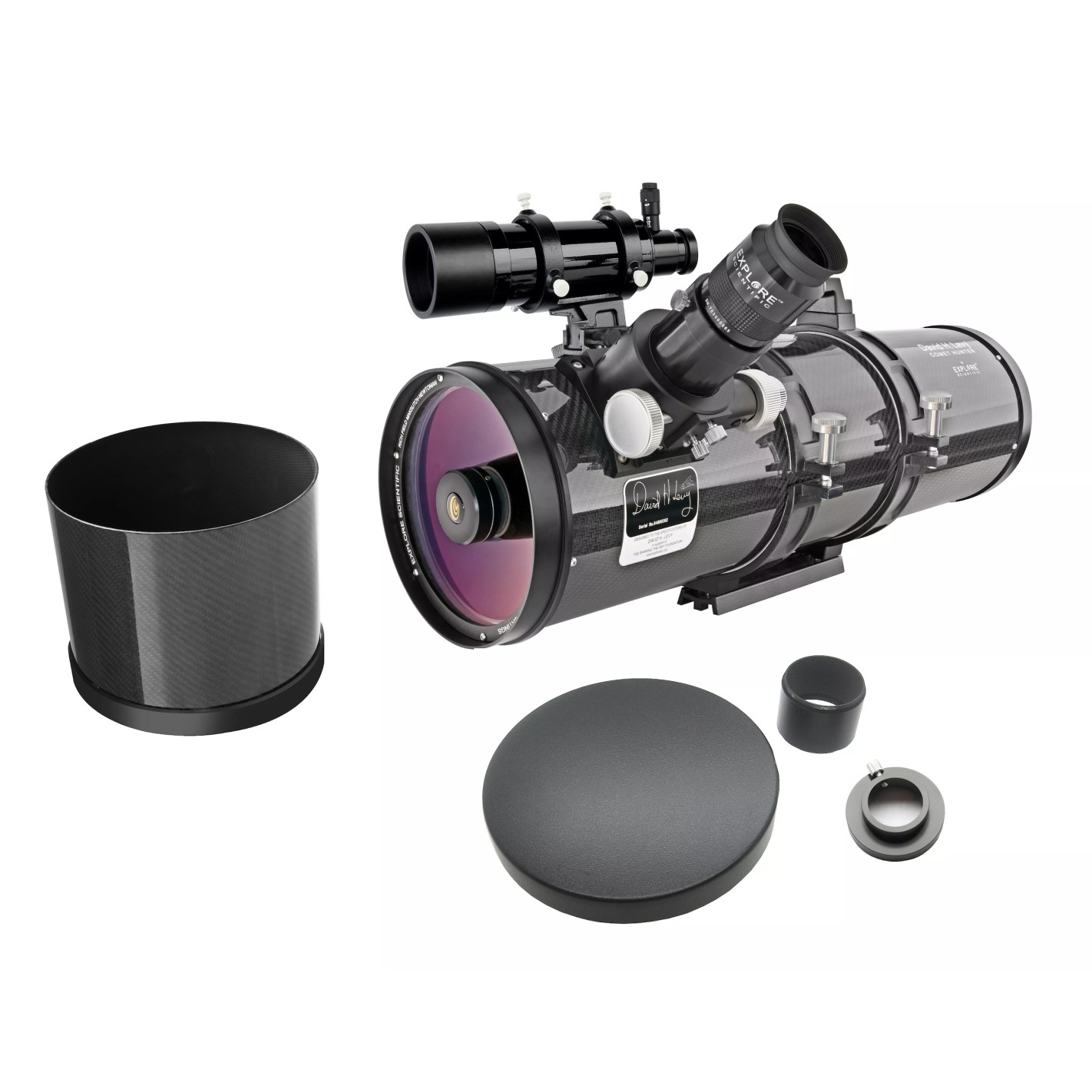

• Scope of delivery: Telescope, Manual, Tube rings, Handle, excellent 8x50 scope, ES 30mm LER 52 deg eyepiece, focusing extension, 44mm universal dovetail plate, 2"/1.25" reducer, carbon fiber dew screen

Maksutov-Newton MN-152 Comet Hunter David H. Levy EXPLORE SCIENTIFIC Telescope

Highly corrected optics for wide-field observation and astrophotography. Developed in collaboration with the famous "comet hunter" David H. Levy. The Maksutov-Newton system has some advantages and disadvantages over the classical Newtonian design.

Apart from its higher price, the main disadvantage is its heavier weight, due to the thick corrector lens at the front. The main advantage of the Maksutov-Newton over the classical newton is the sharpness of the field of view. Classical newton telescopes show a sharp stellar image only in the center of the field of view; off the optical axis they have a dominant aberration, the so-called coma. This is inherent to the Newtonian design, and therefore valid for all Newtonian telescopes of all brands and not caused by manufacturing tolerances. The coma distorts the image of the star - the point star shows a tail, just like a small comet. This considerably decreases sharpness and contrast.

The Maksutov-Newton shows a much sharper star image - for most applications the coma is not visible. The result is a high-contrast image across the entire field of view, both for visual observations and for astrophotography with DSLR cameras. This makes the Maksutov-Newton an ideal multi-purpose telescope, capable of displaying a sharp field without the need for additional correctors.

SUPPLIED ITEMS

• Carbon fiber optical tube with a 2'' focuser and 10:1 reduction
• Carbon dew shield with dust cap
• Dovetailed tube rings
• Eyepiece Explore Scientific 52° LER 30mm
• 8x50 finder with illumination
• Eyepiece barrel diameters: 2'' and 1.25''
• 44mm universal dovetail plate with stainless steel rail (fits LXD75/Great Polaris/EQ5)
• Instruction manual

Specifications

• Total length with spray screen: 825 mm (825 in.)
• Net weight including tube rings, handle, spray shield and finder: 7,9kg
• Angular resolution (arc seconds): 0.77
• Aperture ratio: 4.8
• Batteries included: 0
• Color Carbon fiber
• Dust protection caps: Dust protection caps for front lens and eyepiece carrier
• ED glass: 0
• Extended warranty (years): 10
• Eyepiece barrel diameter (mm): 50.8
• Viewfinder: 8 x 50 mm - illuminated
• Focal length (mm) 731
• Target group [Telescopios]: Advanced Amateurs, Specialists and Research, Visual Enthusiasts
• Focusing system: 2 Crayford Focuser with 10:1 reducer
• Image field receiver height 24x36 mm (degrees) 1.7
• Magnification from: 25
• Material Carbon fiber
• Maximum recommended magnification 300
• Mirror/lens diameter (mm): 152
• Mount type [Telescopios]: Unmounted optics
• Net weight OTA (incl. accessories) (kg): 7.9
• Net weight heaviest part (kg) 7
• Obstruction (%): 32
• Optical design: Maksutov-Newton
• Primary mirror diameter (mm) 152
• Product Family [Telescopios]: Catadioptric Telescope
• Reticle 0
• Secondary mirror diameter (mm) 49
• Tripod height adjustment: 0
• Tube diameter (mm) 180
• Tube length (mm): 696
• Coating type Enhanced multi-layer arrangement (EMD)
• Limiting magnitude of view (approx., mag): 13.4
• Receiving image field width 24x36 mm (degrees): 2.5
