AstroPegasus eXternal Motor Controller

Name: AstroPegasus eXternal Motor Controller
Brand: Pegasus Astro
SKU: PEG-XMOTORCTRL
Price: 140 EUR
Availability: PreOrder

Reference PEG-XMOTORCTRL

Stock at Supplier

140.00

VAT excluded Shipping 5/7d

An expansion accessory for Ultimate Powerbox v2, v3, Pocket Powerbox Advance & Micro

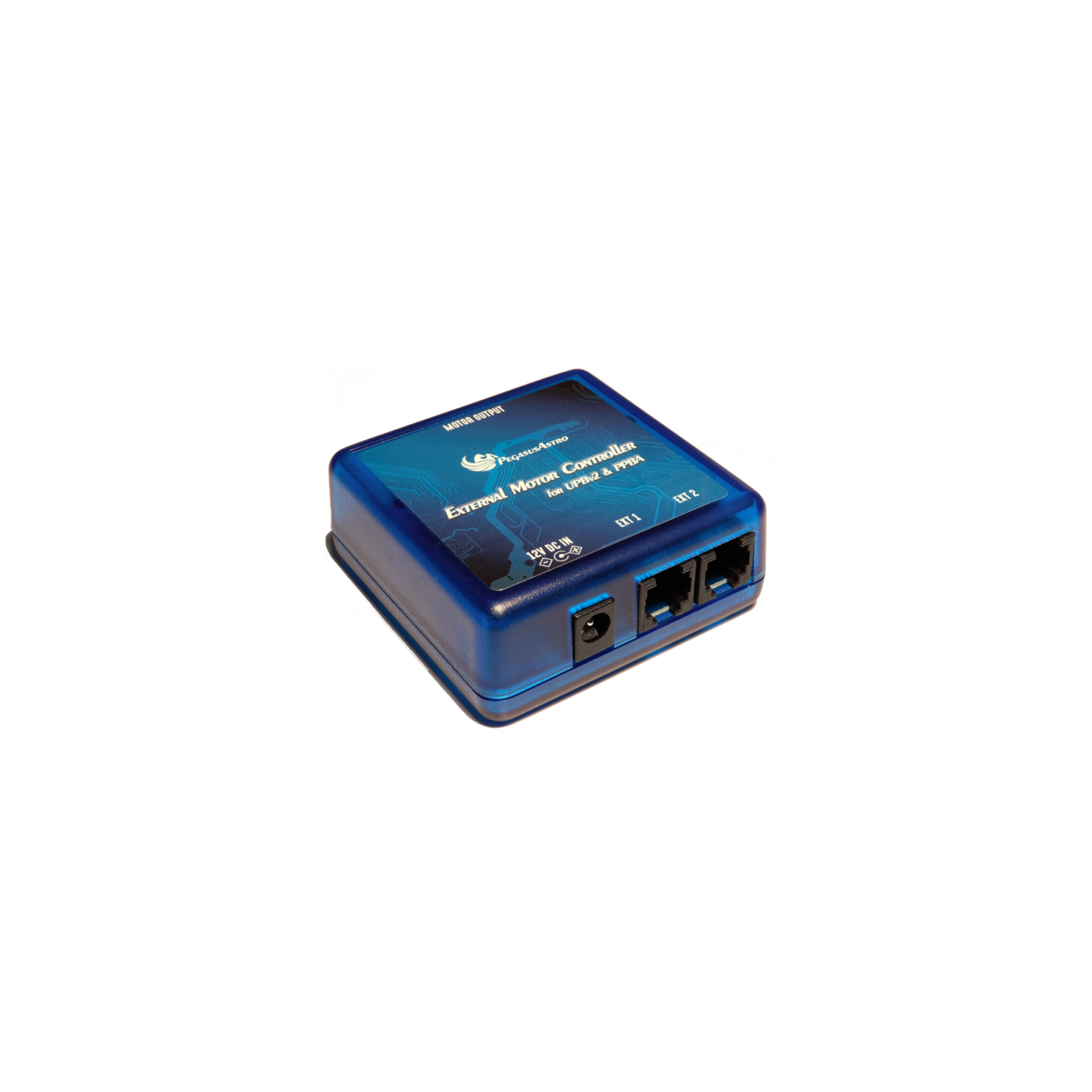

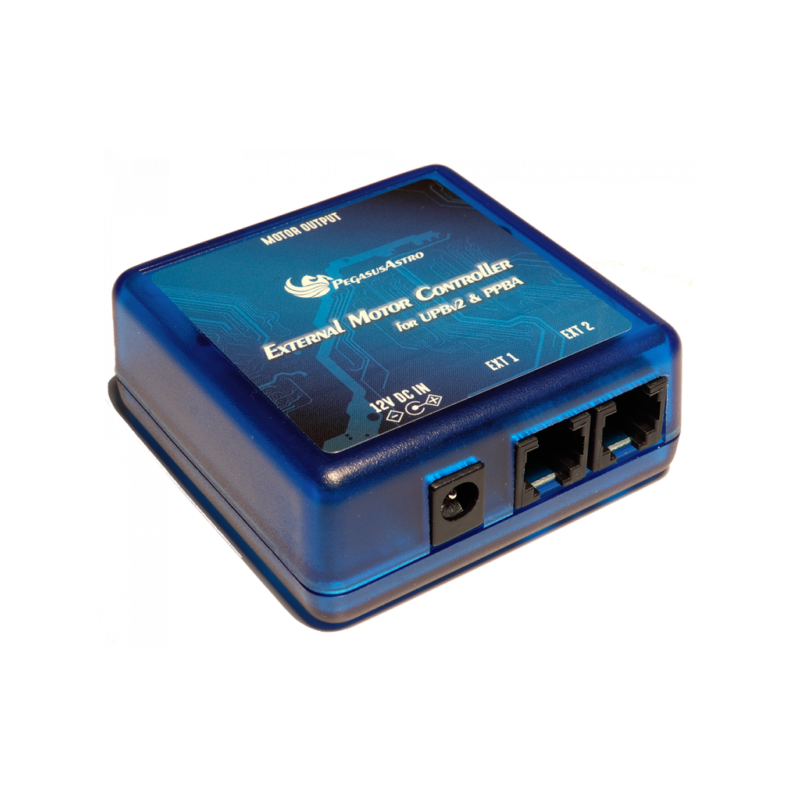

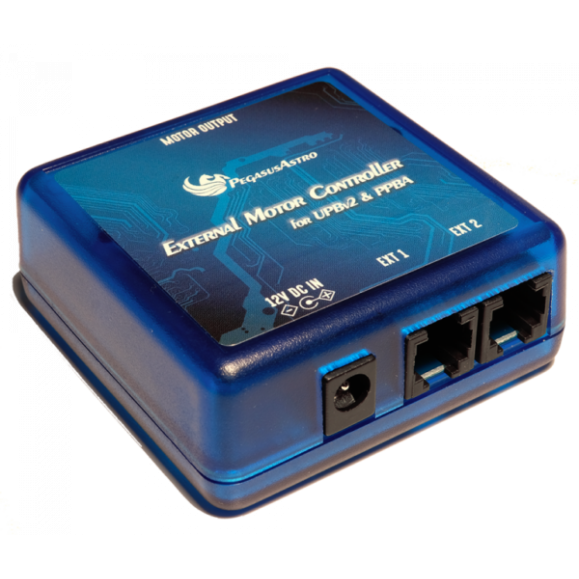

The PegasusAstro external motor controller (abbreviated XMC) was designed to expand the focusing capabilities of the UPBv2 or UPBv3 (supports a 2nd focus controller) and adds focusing functionality to the PPBAD or PPB Micro.

Buy it now and receive it between on Monday, 17 March and Monday, 24 March with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Monday, 17 March - Monday, 24 March

Home delivery - International

Estimated delivery:
Monday, 17 March - Monday, 24 March

✖

Description
Product Details

The device does not require a USB cable and can be connected directly to the EXT port of these Powerboxes. It can drive a large bipolar stepper motor (up to 2Amps per coil) with high precision.

Compatible with:

Ultimate Powerbox v3
Ultimate Powerbox v2
Pocket Powerbox Advance
Pocket Powerbox Micro

Microstepping

The controller supports microstepping that can be configured by software in full step, half step, 1/4 step and 1/8 step. This provides additional precision due to higher resolution and smooth rotation of the stepper motor shaft.

No USB port required

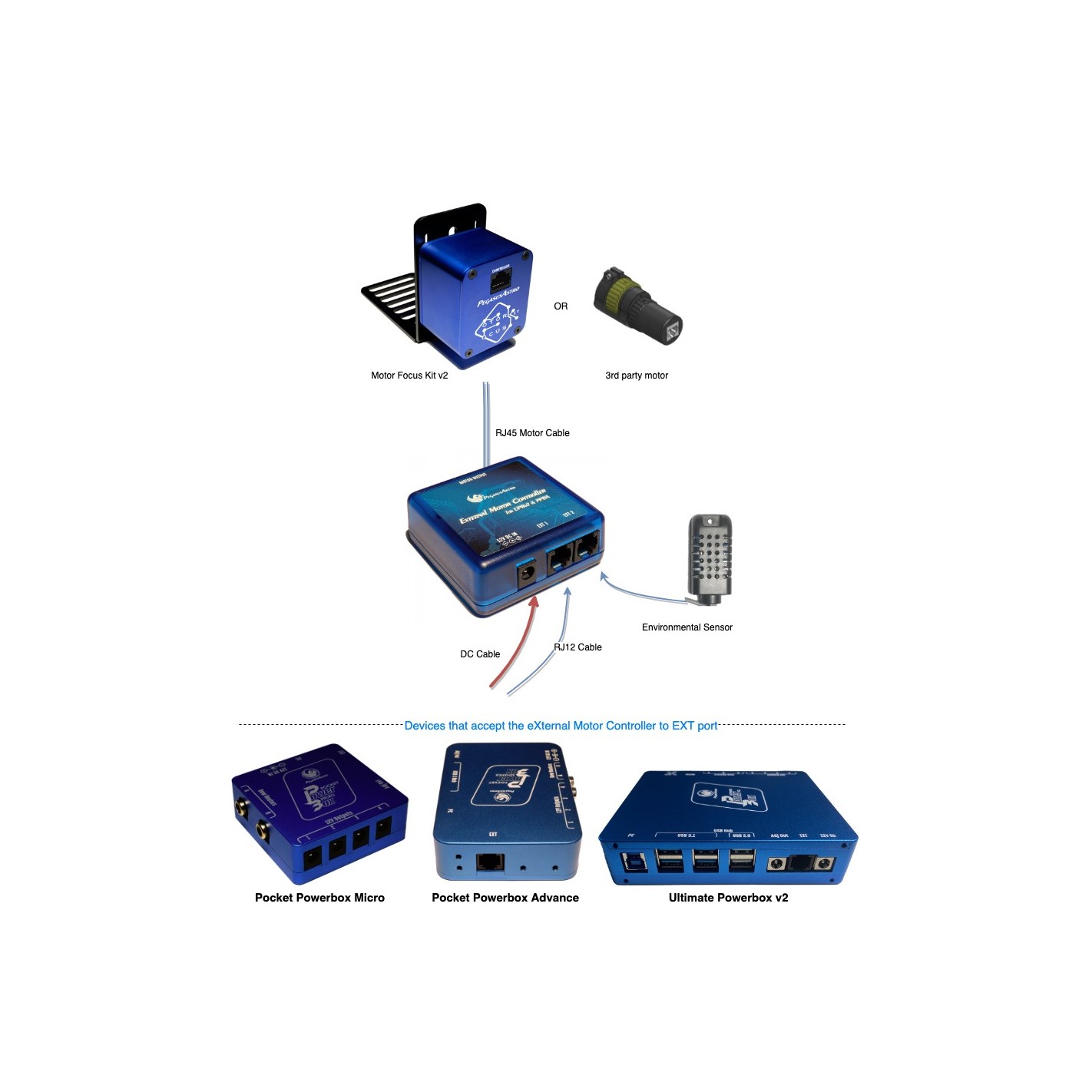

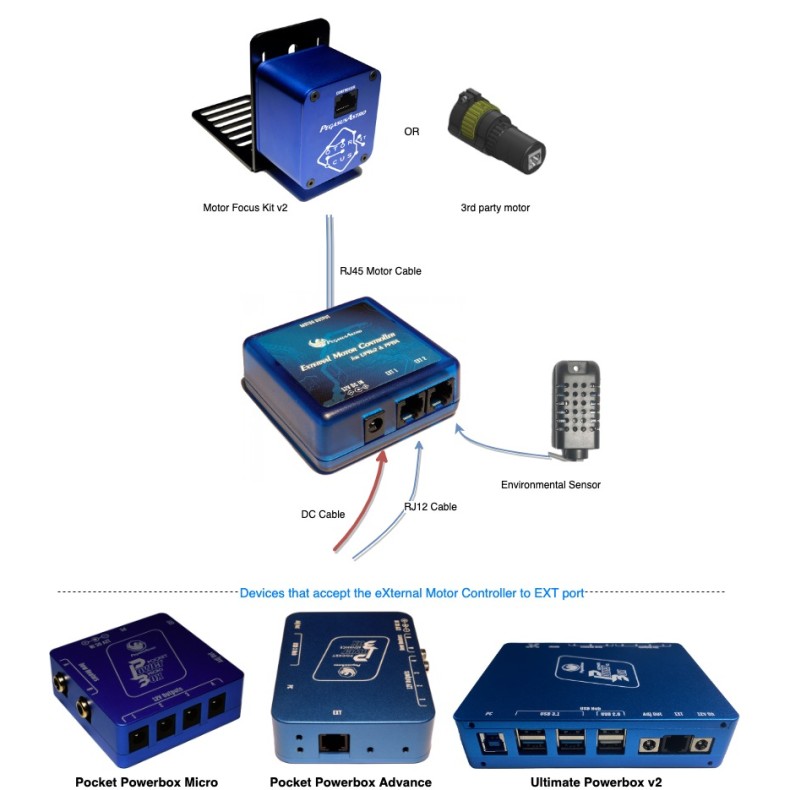

There is no need to occupy a USB port as the controller does not require USB connectivity. Just connect the RJ12 port to the EXT port and the controller will be recognized from the powerbox software. It's that simple!

In the box

1 x eXternal Motor Controller

1 x RJ12 to RJ12 - EXT cable (60cm)

1 x 2.1mm to 2.1mm DC cable (1m)

Note: The motor cable (RJ45 to RJ45) is now included in the Motor kit package Focus

Protections

The controller is fully protected against undervoltage, overcurrent and overtemperature events.

Second EXT port available

A second EXT port allows you to daisy-chain future equipment or connect your environmental sensor.

Compatible motors

We have successfully tested and controlled the following stepper motors:

Please note that each motor requires its own cable due to the different pin-out selection of each manufacturer. * We optionally provide any of these cables. Check the cable type SKU in the table below.

STEPPER MOTOR	CABLE TYPE (SKU)
Pegasus Motor Focus (v1 & v2)	Straight RJ45 Network Cable
Starlight HSM 25 / 30 / 35	PEG-CMOT-HSM
Starlight MSM 25 / 30 / 35	PEG-CMOT-MSM
Starizona Micro-Touch	PEG-CMOT-MSM
Rigel nStep Motors	PEG-CMOT-MSM
Moonlite Stepper Motor	PEG-CMOT-RJ45DB9
Robofocus Stepper Motor	PEG-CMOT-RJ45DB9
Lakeside Stepper Motor	PEG-CMOT-RJ45DB9
Lacerta Motor	PEG-CMOT-LCRT

Technical Specifications

Type	Value
Supply voltage	12V DC Preferred. Accepts 8.2 V to 24 V - motor dependent.
Drive current	2 Amps per motor coil
Motor compatibility	Unipolar and bipolar stepper motors

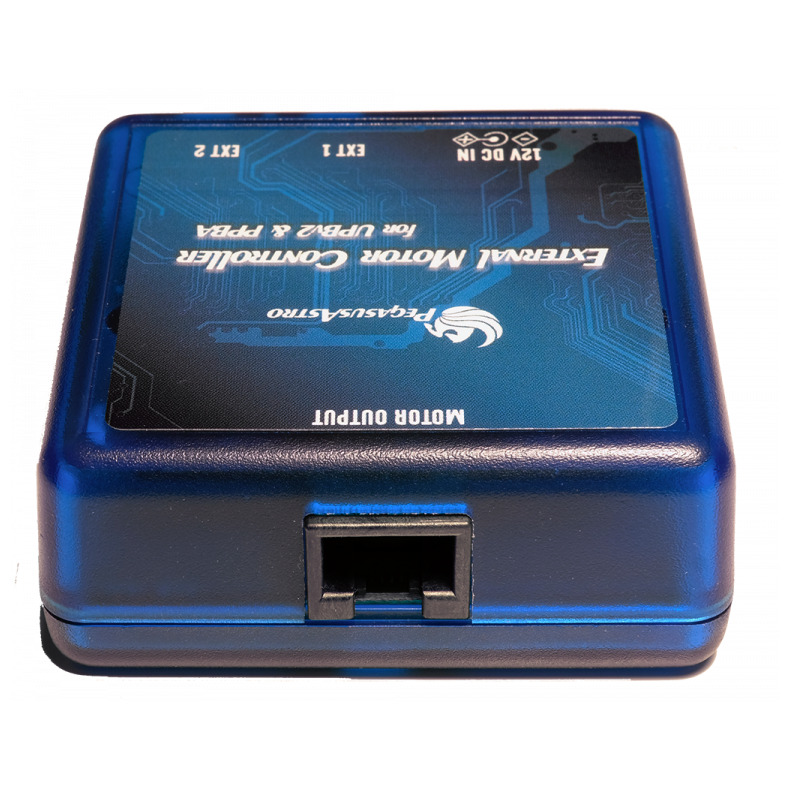

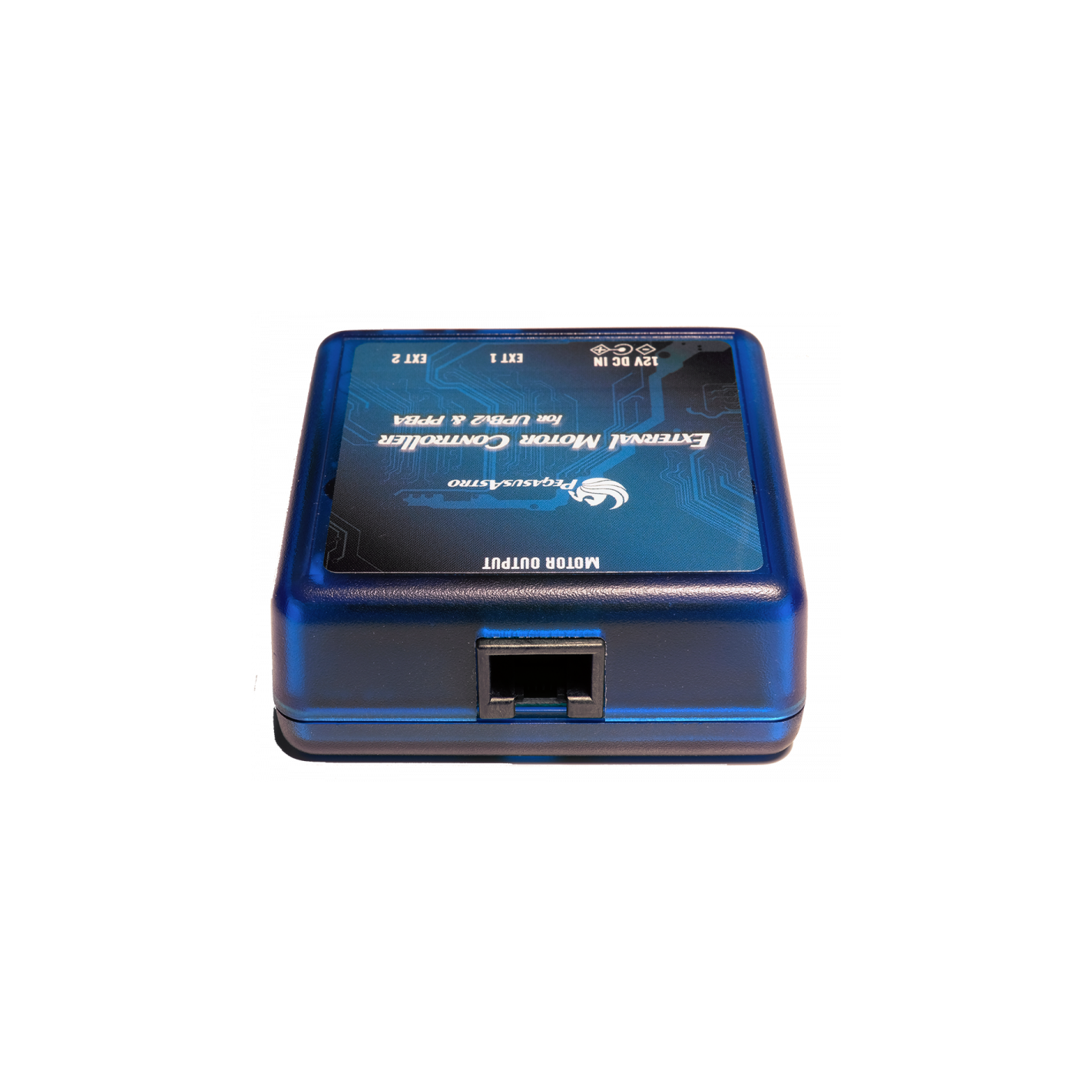

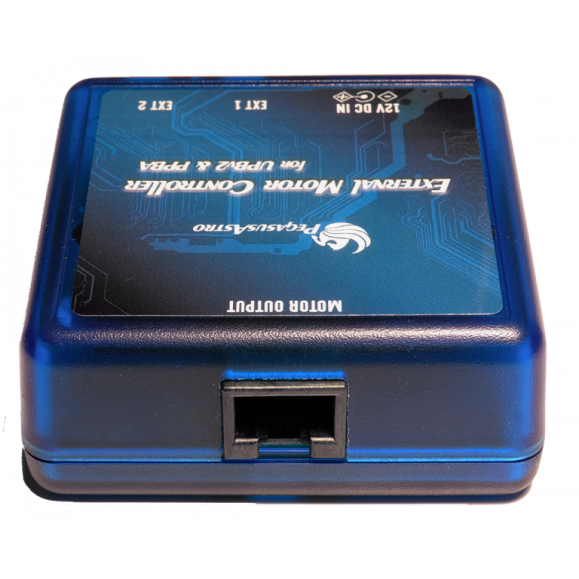

Motor output	RJ45 connector
Connectivity	RJ12 socket (RJ12 to RJ12 straight cable) up to meters
Power input connector	2.1 mm center positive socket
Dimensions	66mm x 66mm x 28 mm
