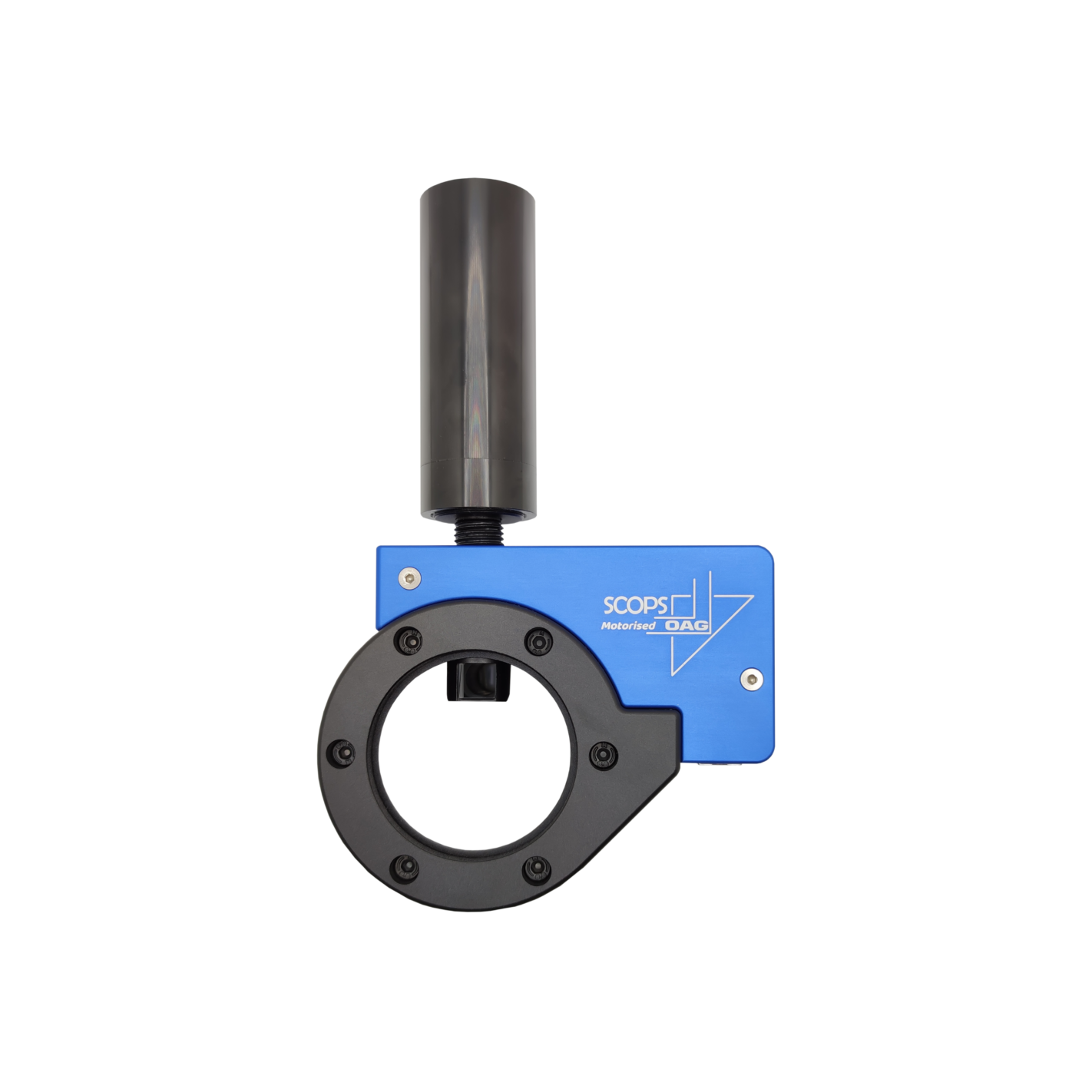

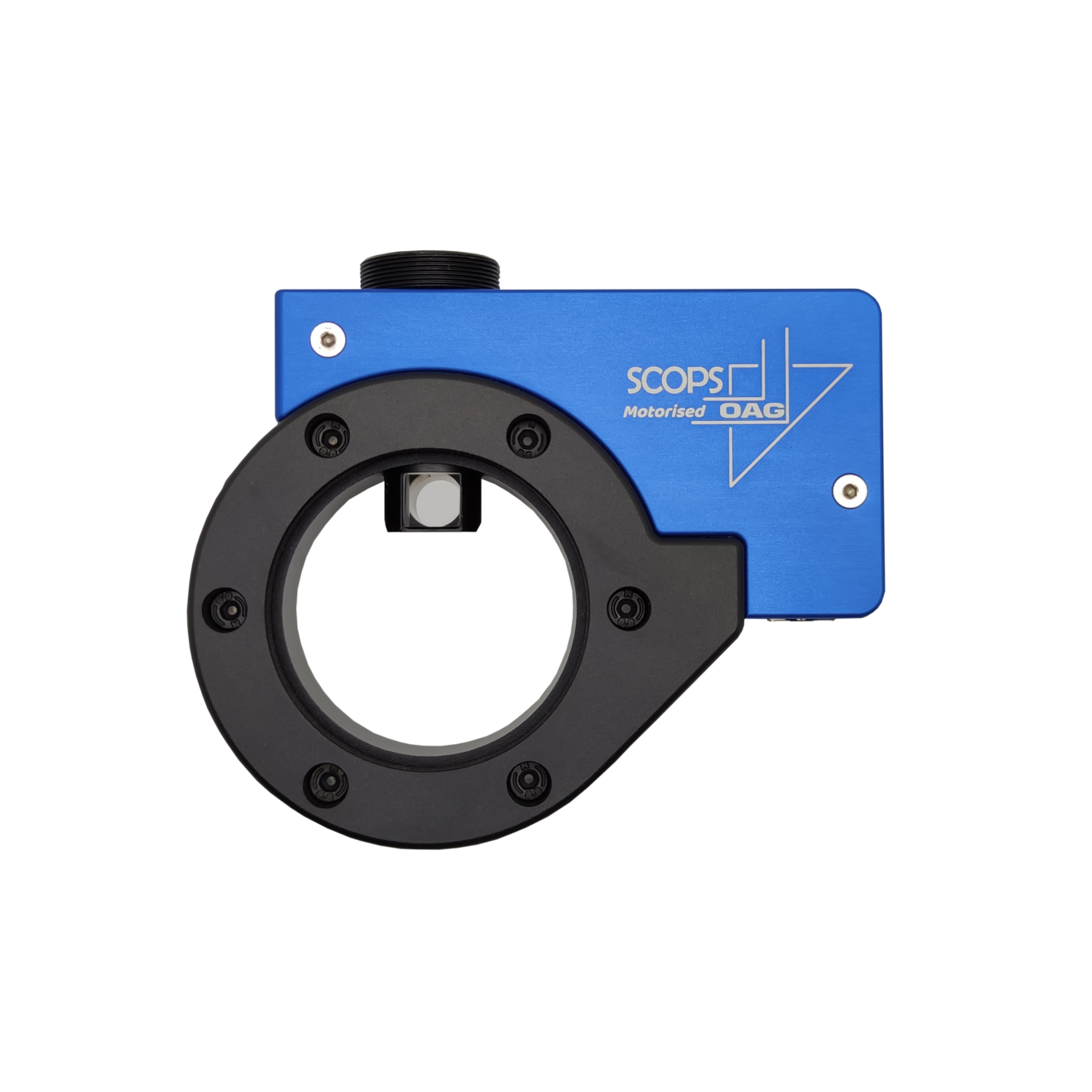

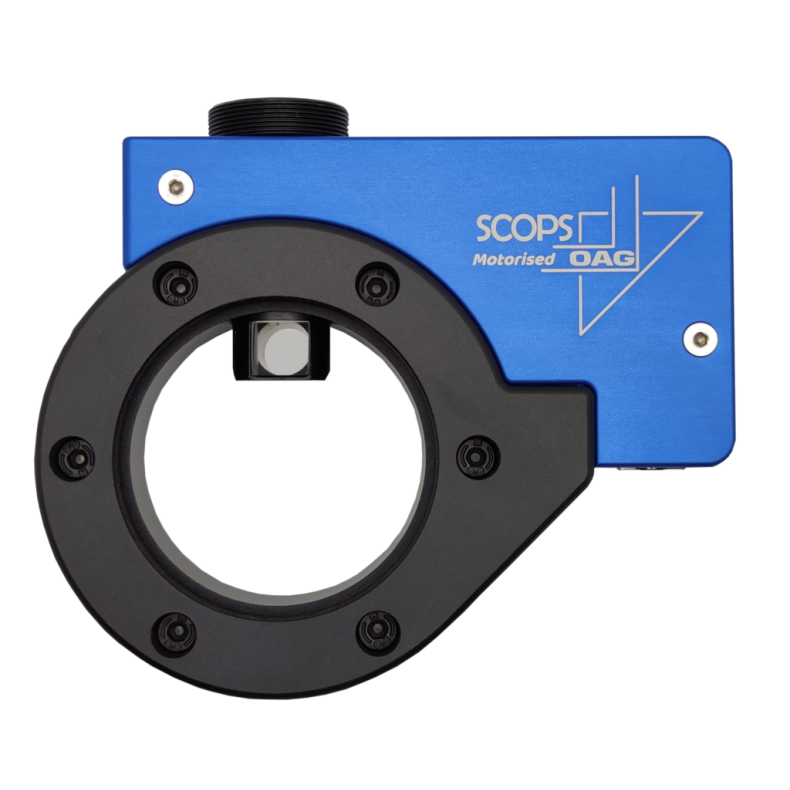

SCOPS OAG PegasusAstro Motorized Off-Axis Guiding SCOPS OAG PegasusAstro

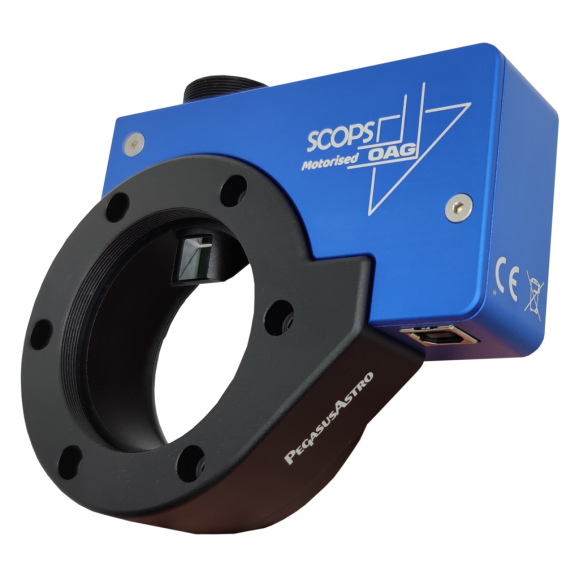

Single cable operation

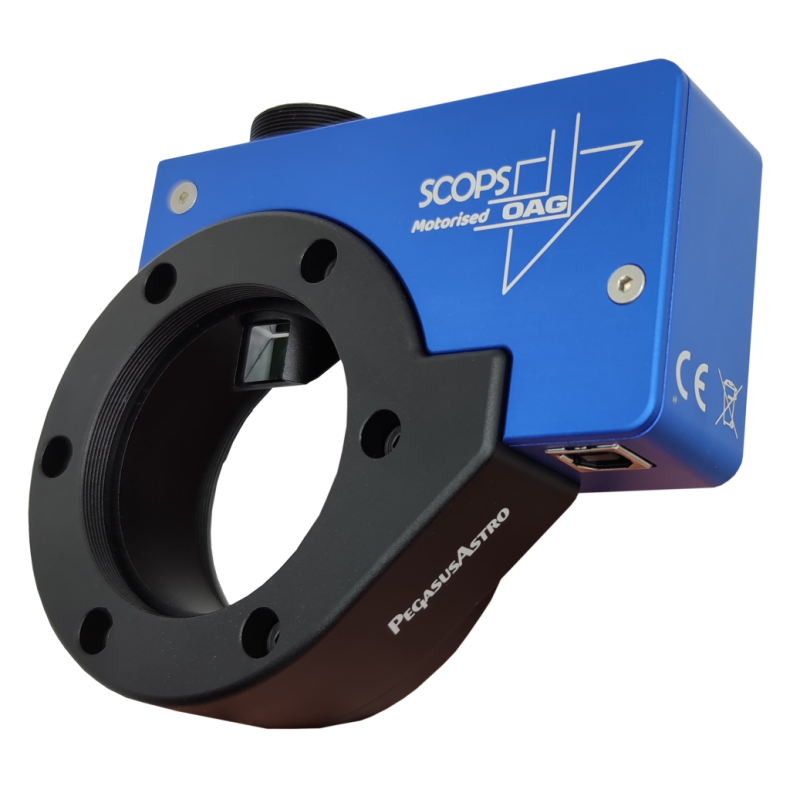

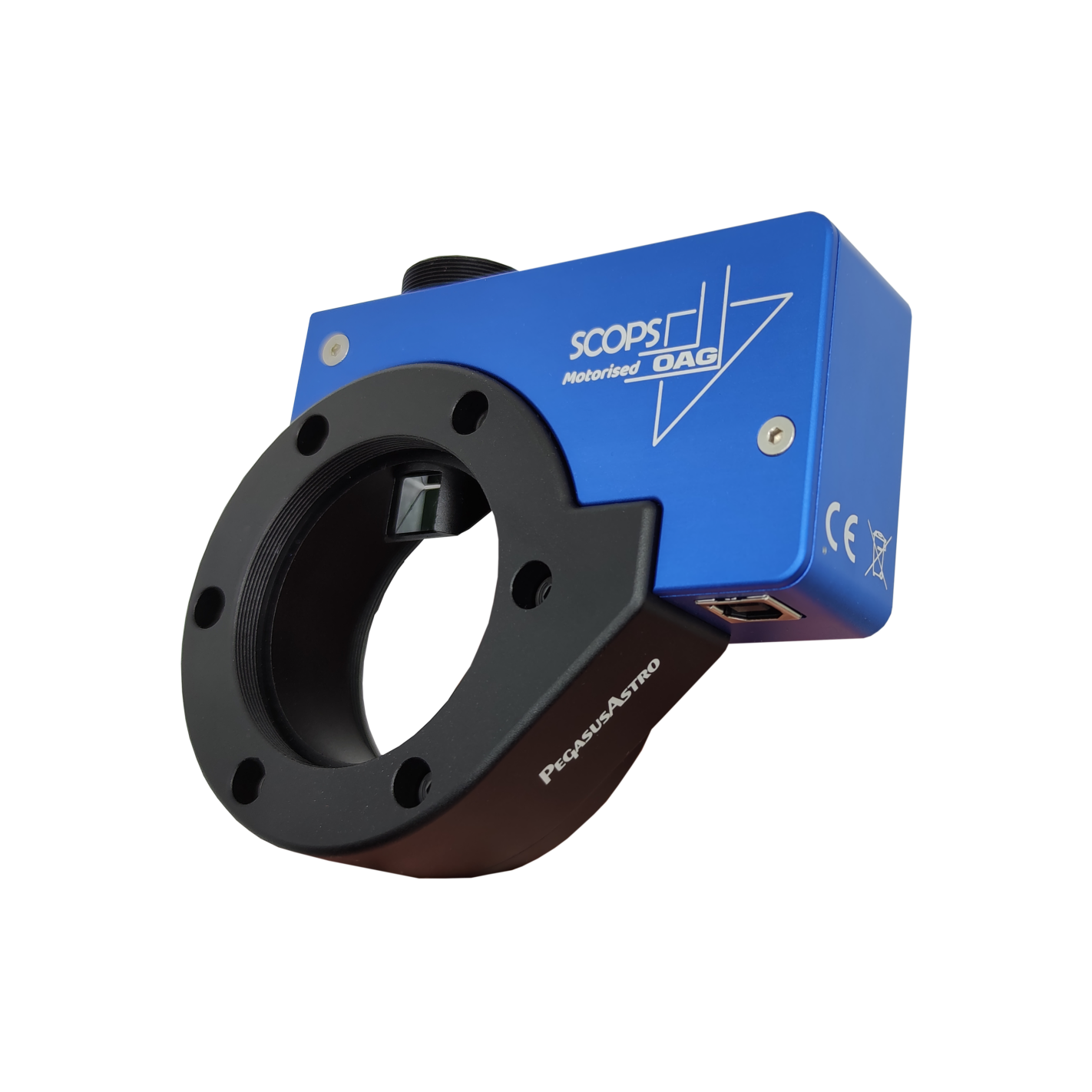

Scops OAG does not require an external controller. Its body includes all electronics and only one USB cable is plugged in to provide power and control to the OAG.

Adjustable prism height

The prism height can be adjusted to allow better illumination of the guiding camera's field of view. If the imaging/main camera sensor is large, the prism can be moved (with a set screw) upward so as not to block the optical path of the sensor.

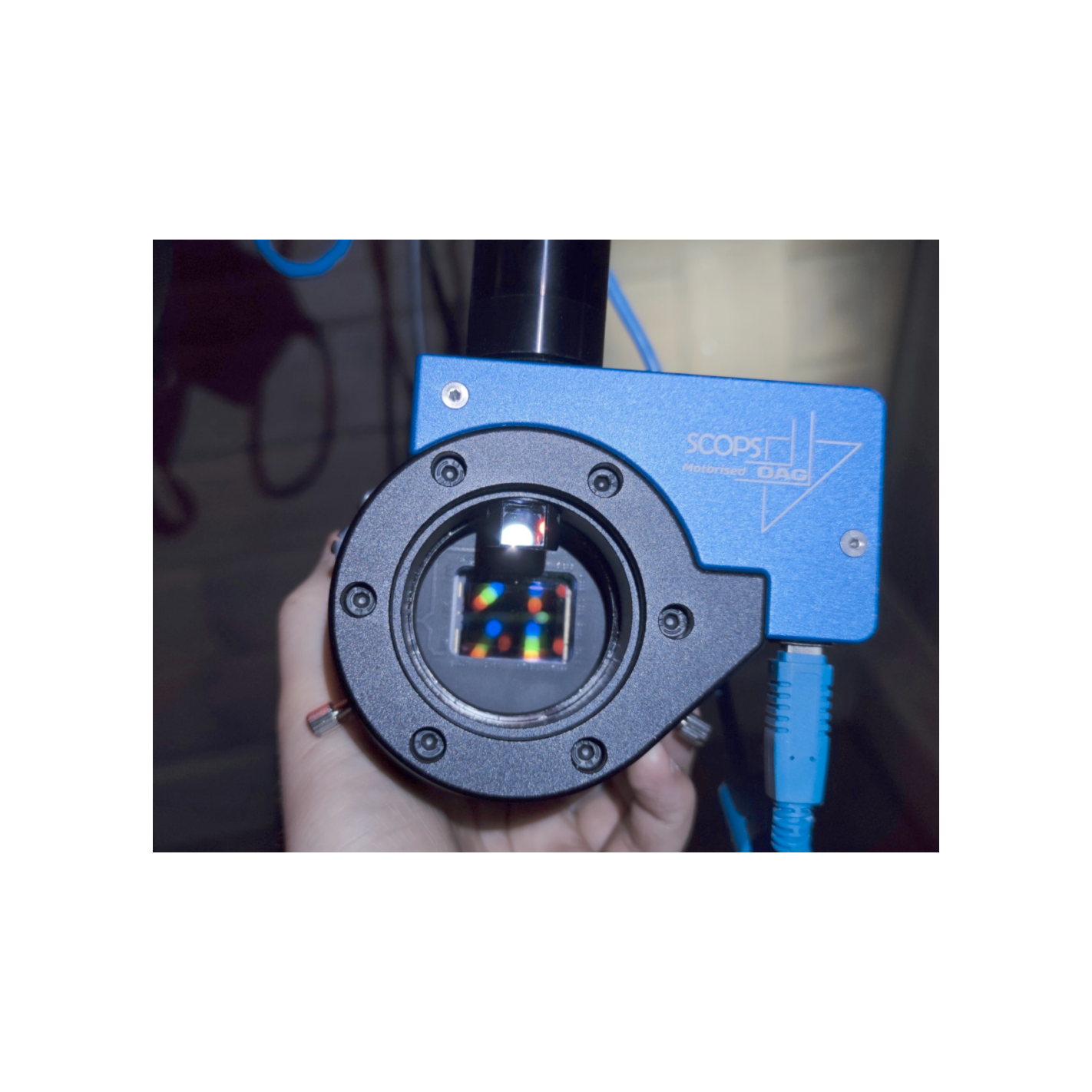

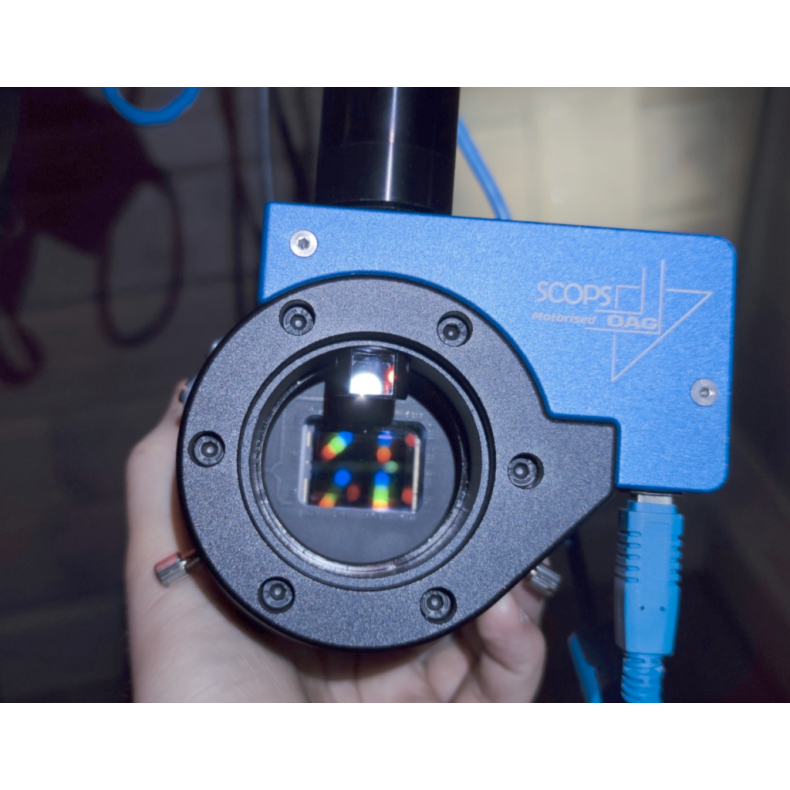

Large mirror

A large 10×10 mm fully multi-reflective and anti-glare 10×10 mm mirror provides full illumination to the guidance camera. Stars are round and bright over the entire field of the OAG.

Stepper motor ensures focusing accuracy

A stepper motor ensures absolute position of the focus point.

It profiles each filter that may have a different focus position and simply click on the filter in the supplied software to fine-tune the OAG to the stored position.

Robust design for heavy loads

The thickness of the OAG is 31.4 mm, allowing it to support heavy imaging equipment.

OAG has 50 mm clear aperture. It accepts M54 threaded adapters on both sides.

OAG Scops with QHY268C

Falcon Rotator Combination

Scops OAG has 6 screw holes allowing it to be combined with our Falcon Rotator (without additional adapters)

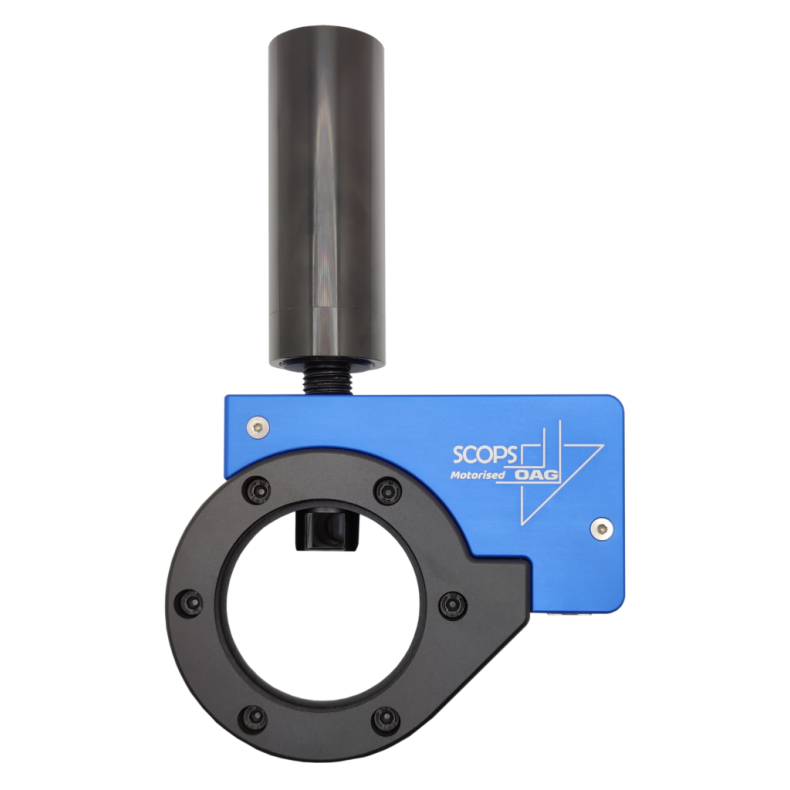

Camera guide not included

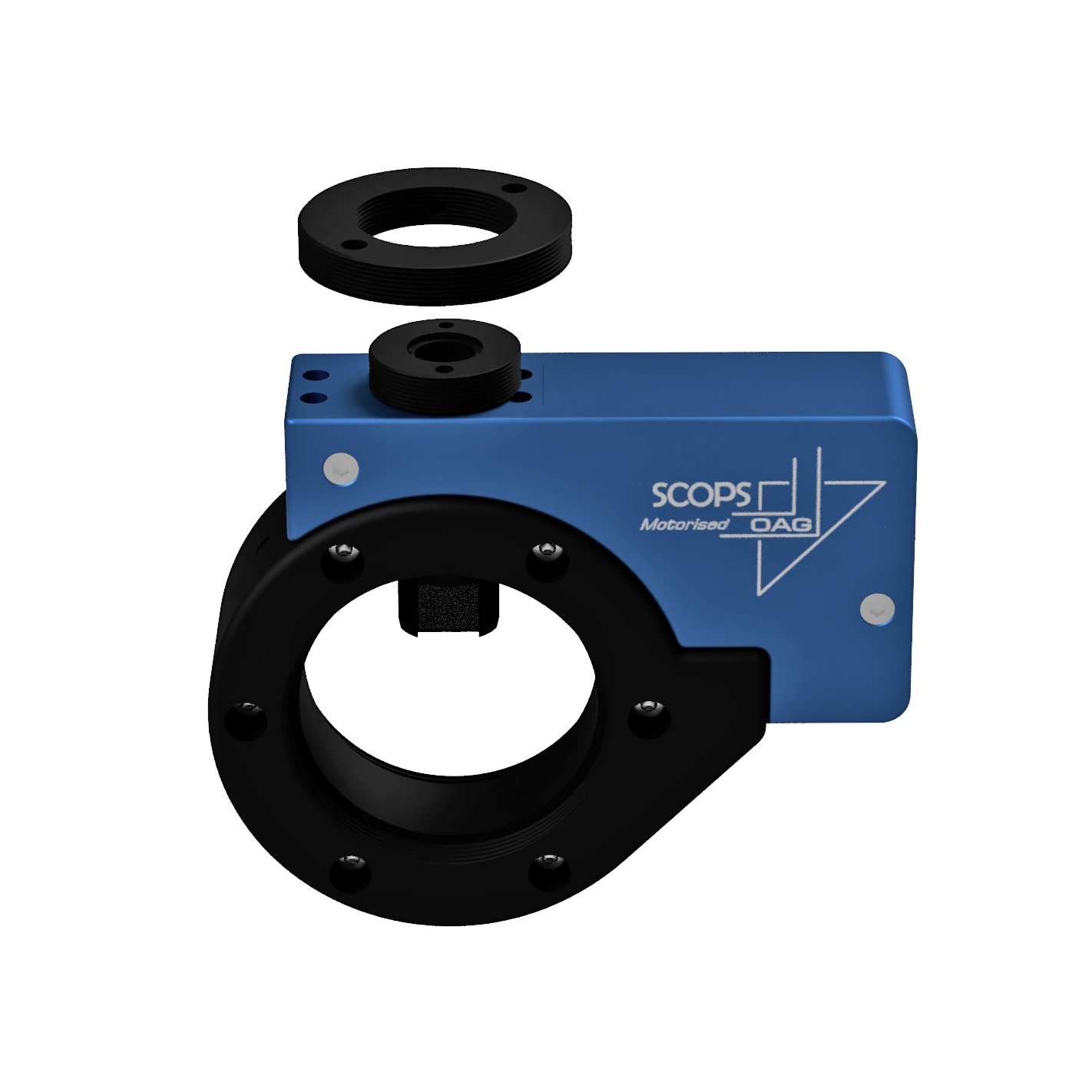

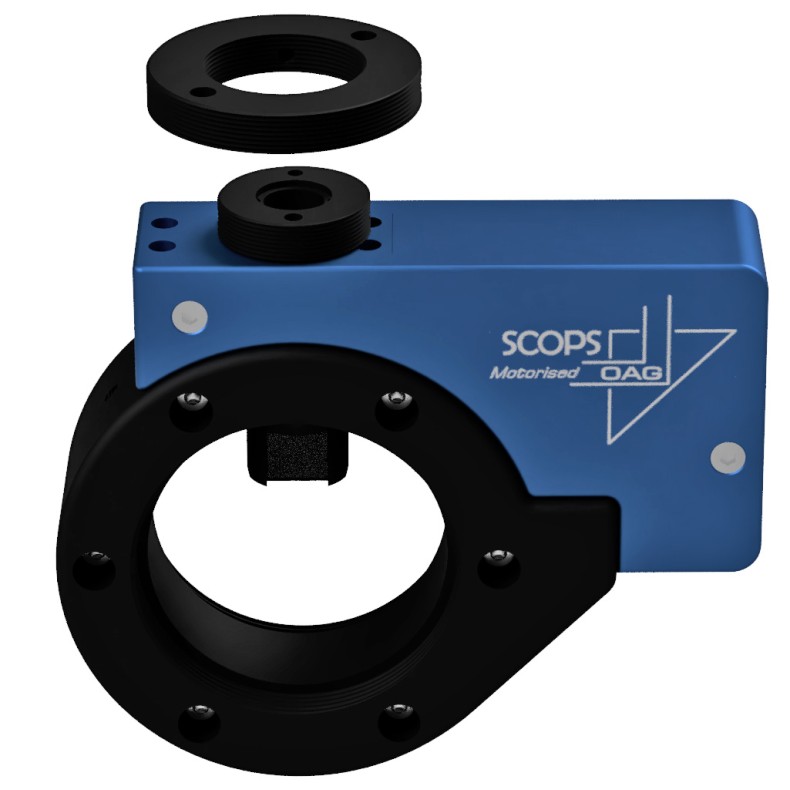

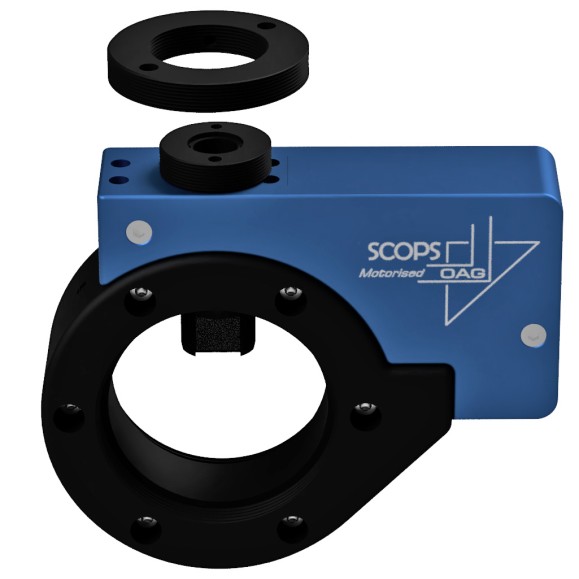

Camera connection - Accepts M42 and C threaded cameras

Scops OAG accepts M42 and all new C threaded guiding cameras. Both adapters (M42 / C) are included in the box.

Optional adapters available
