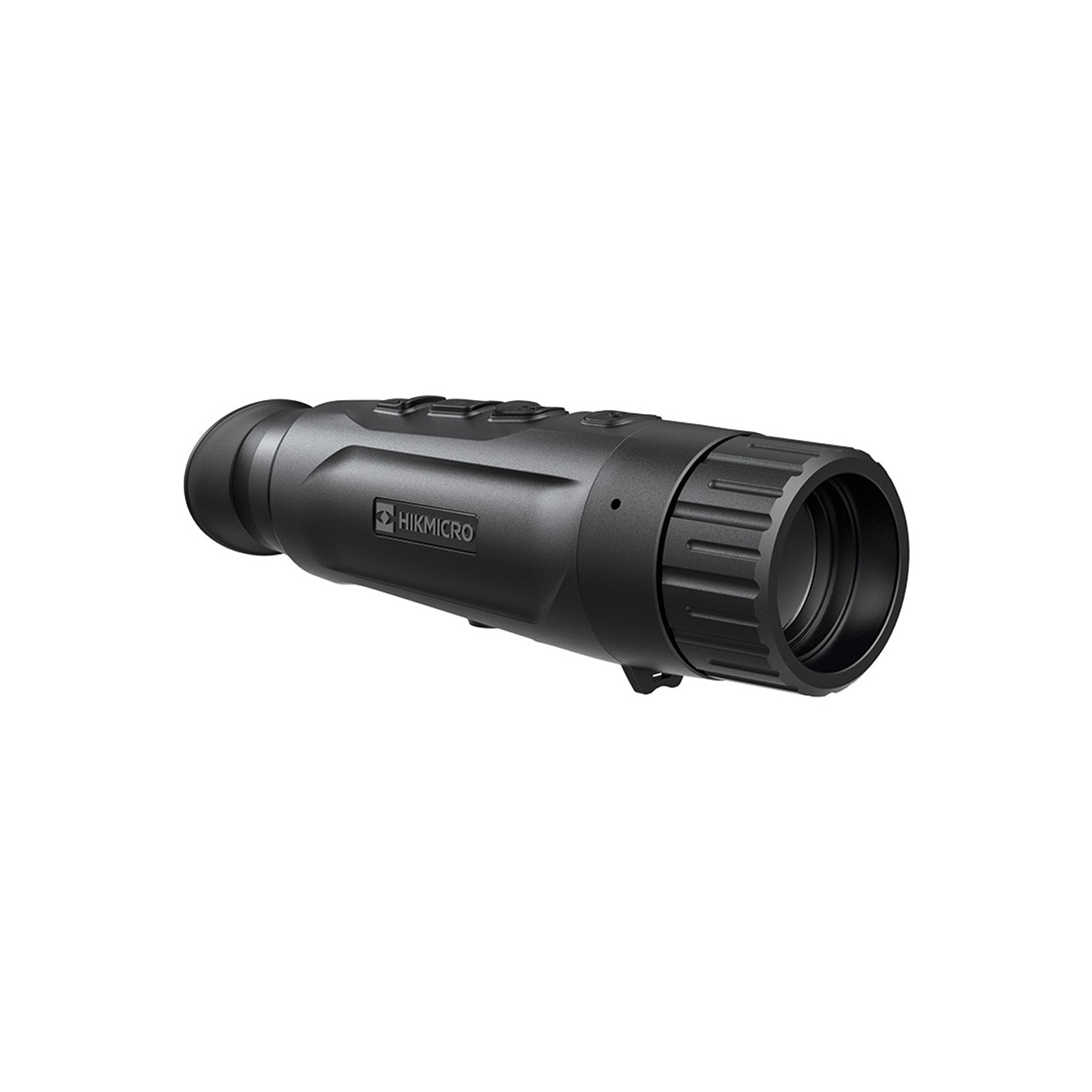

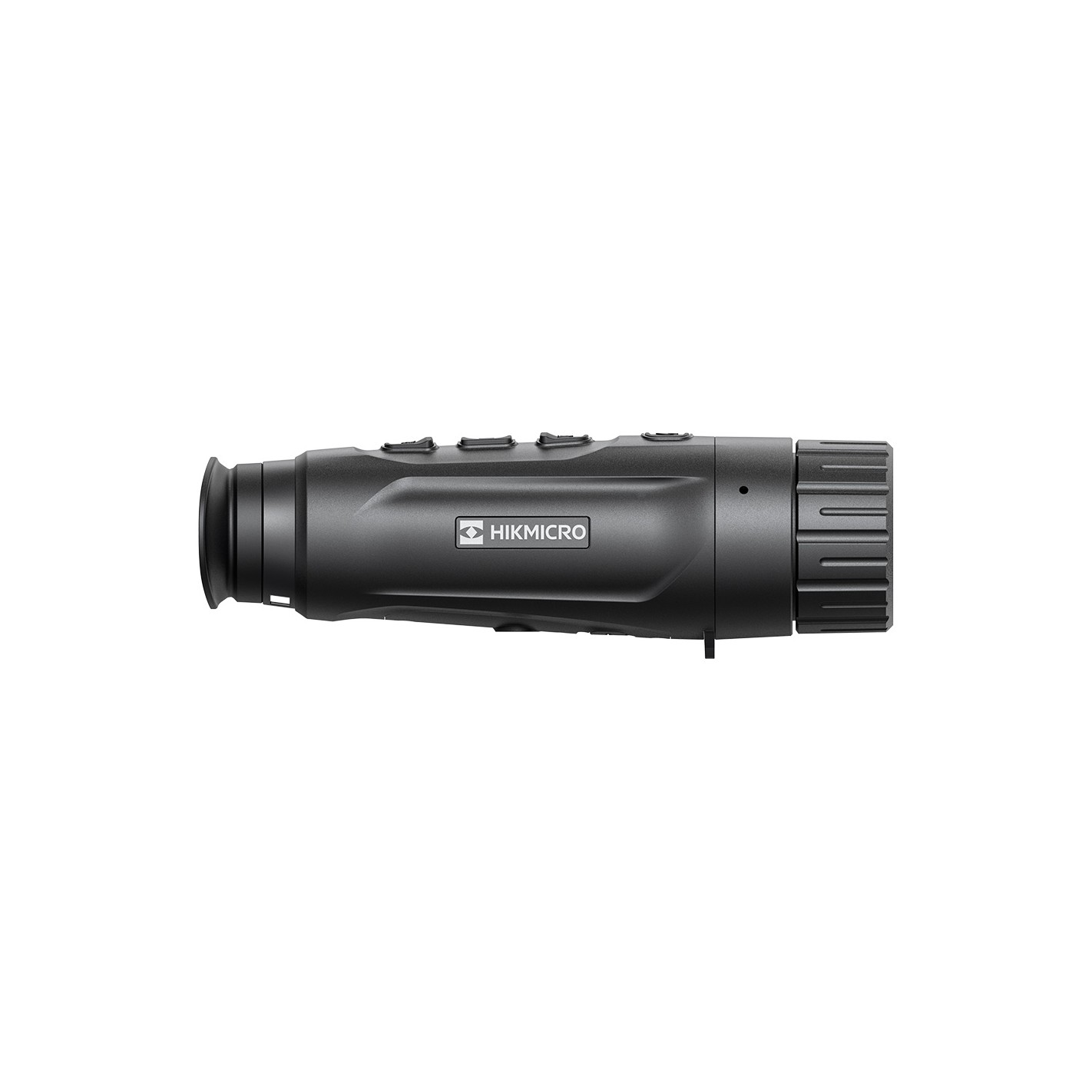

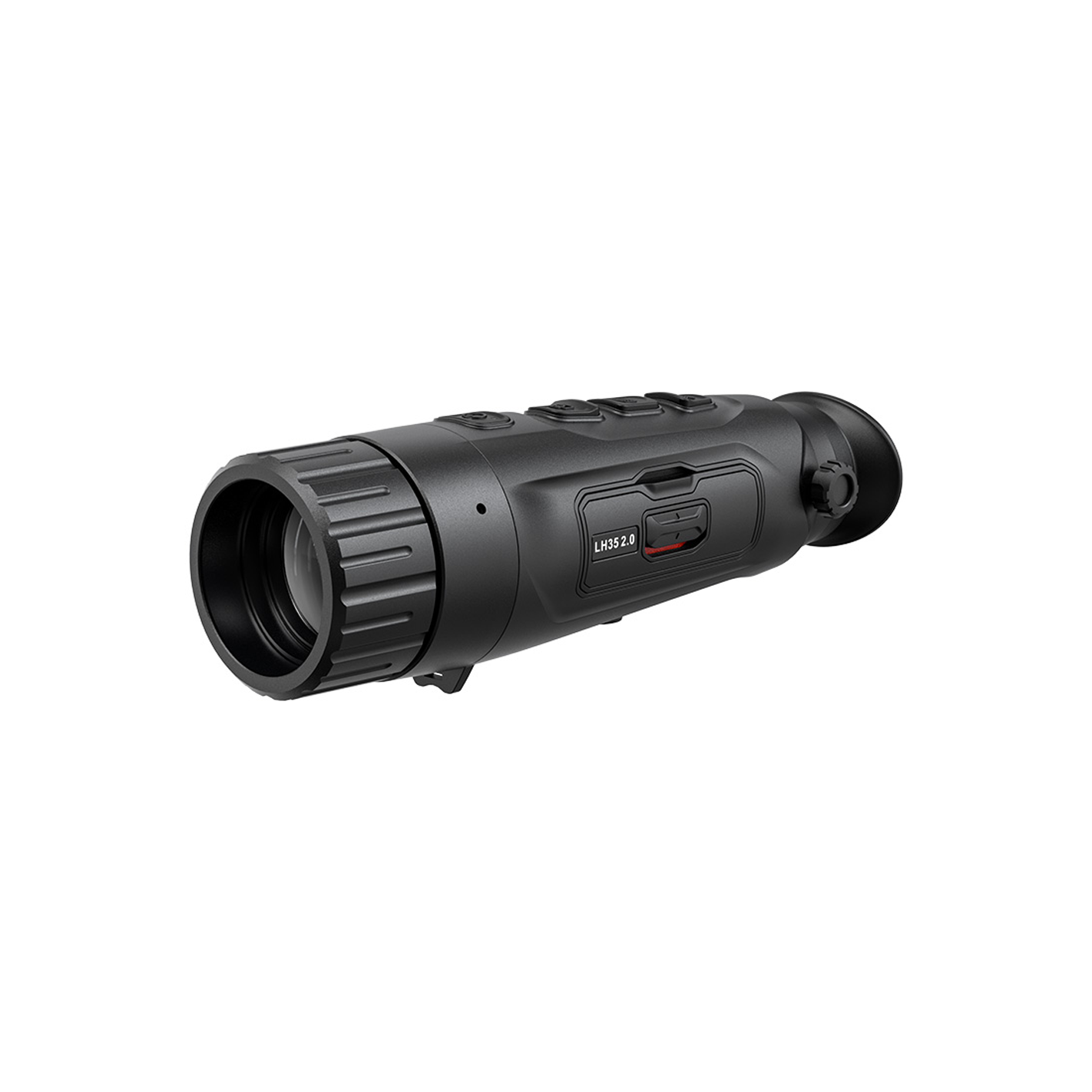

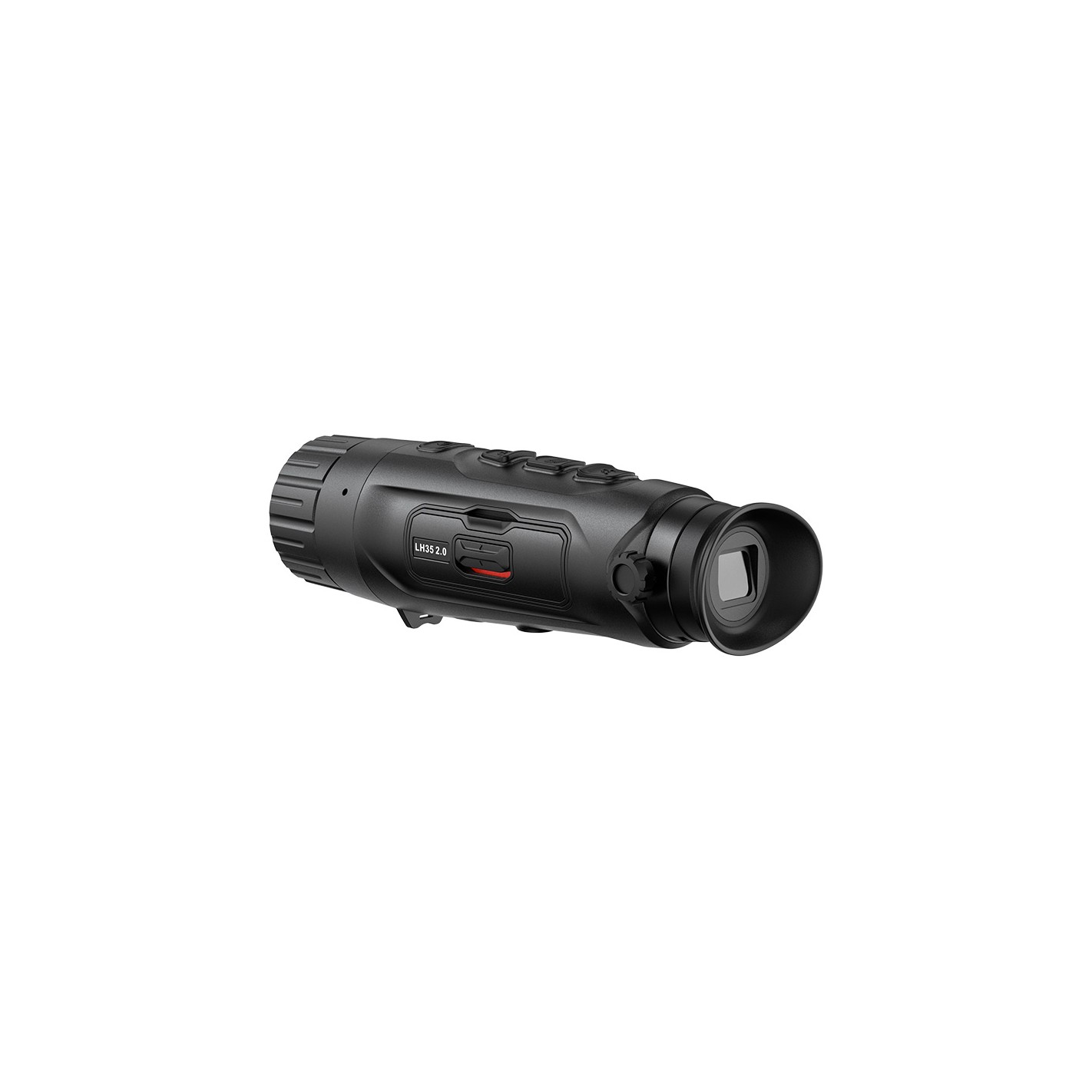

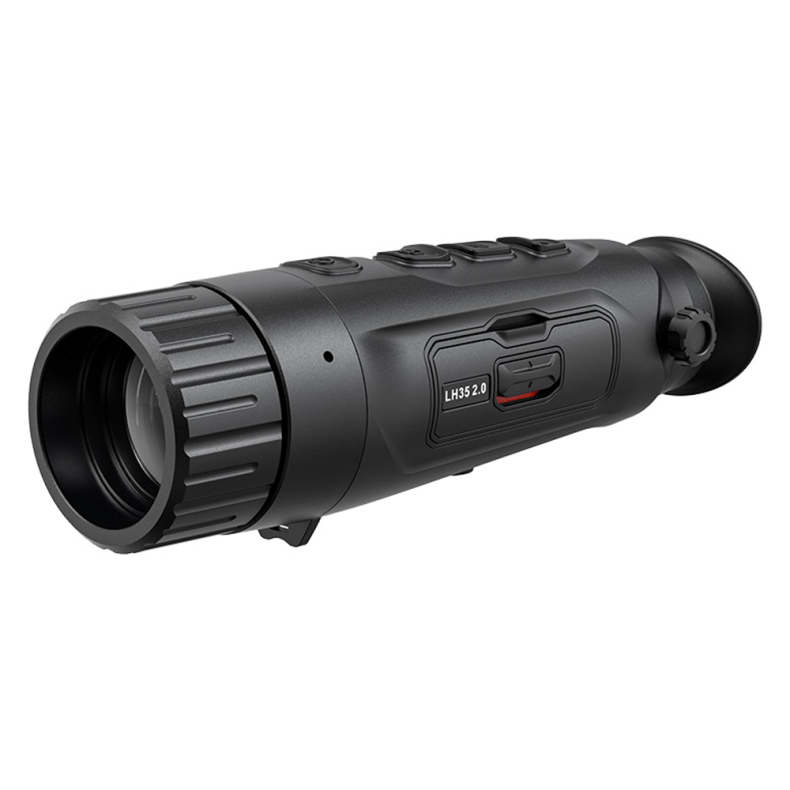

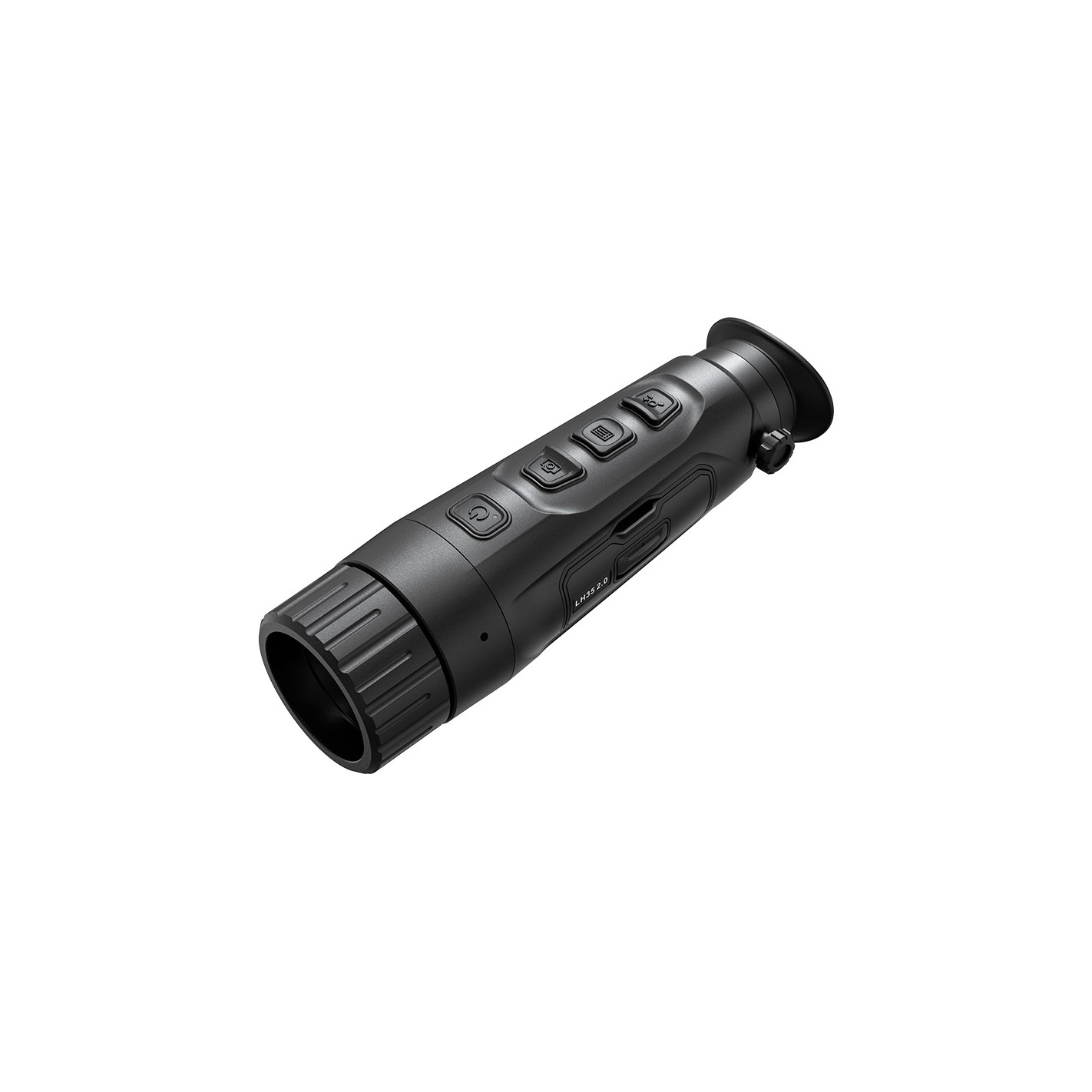

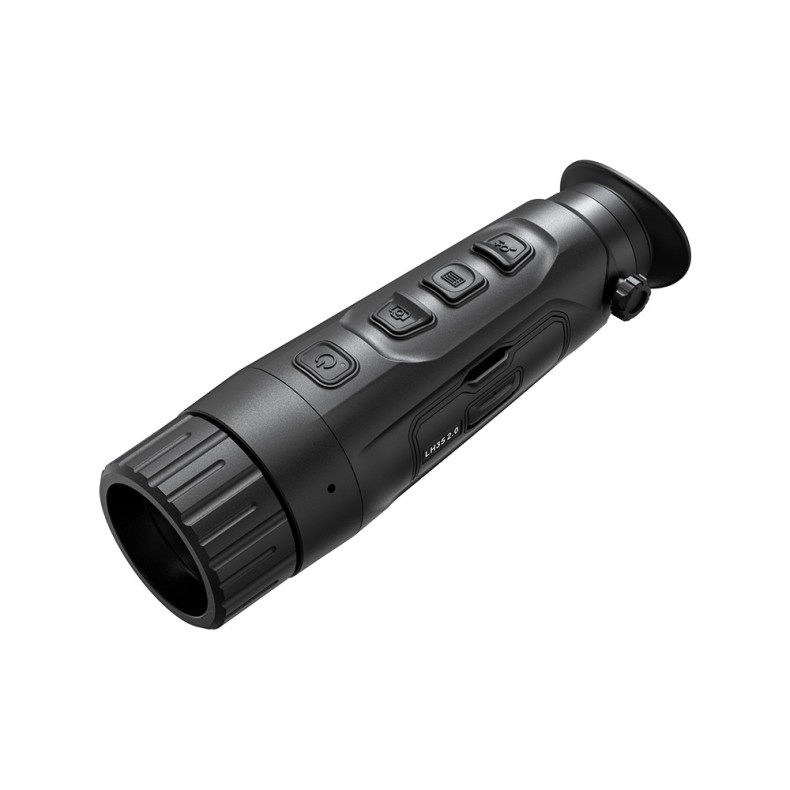

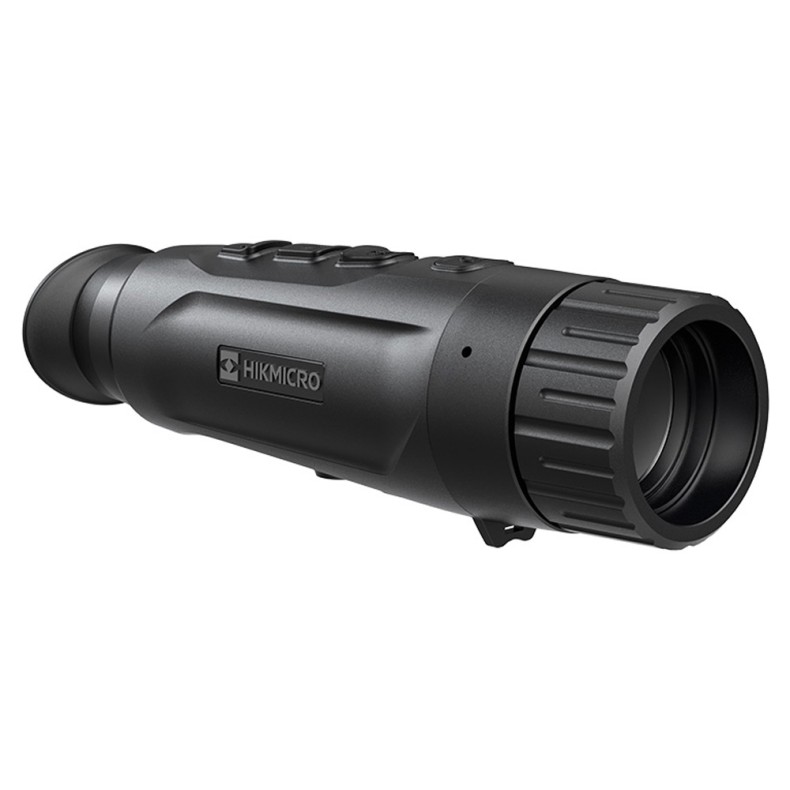

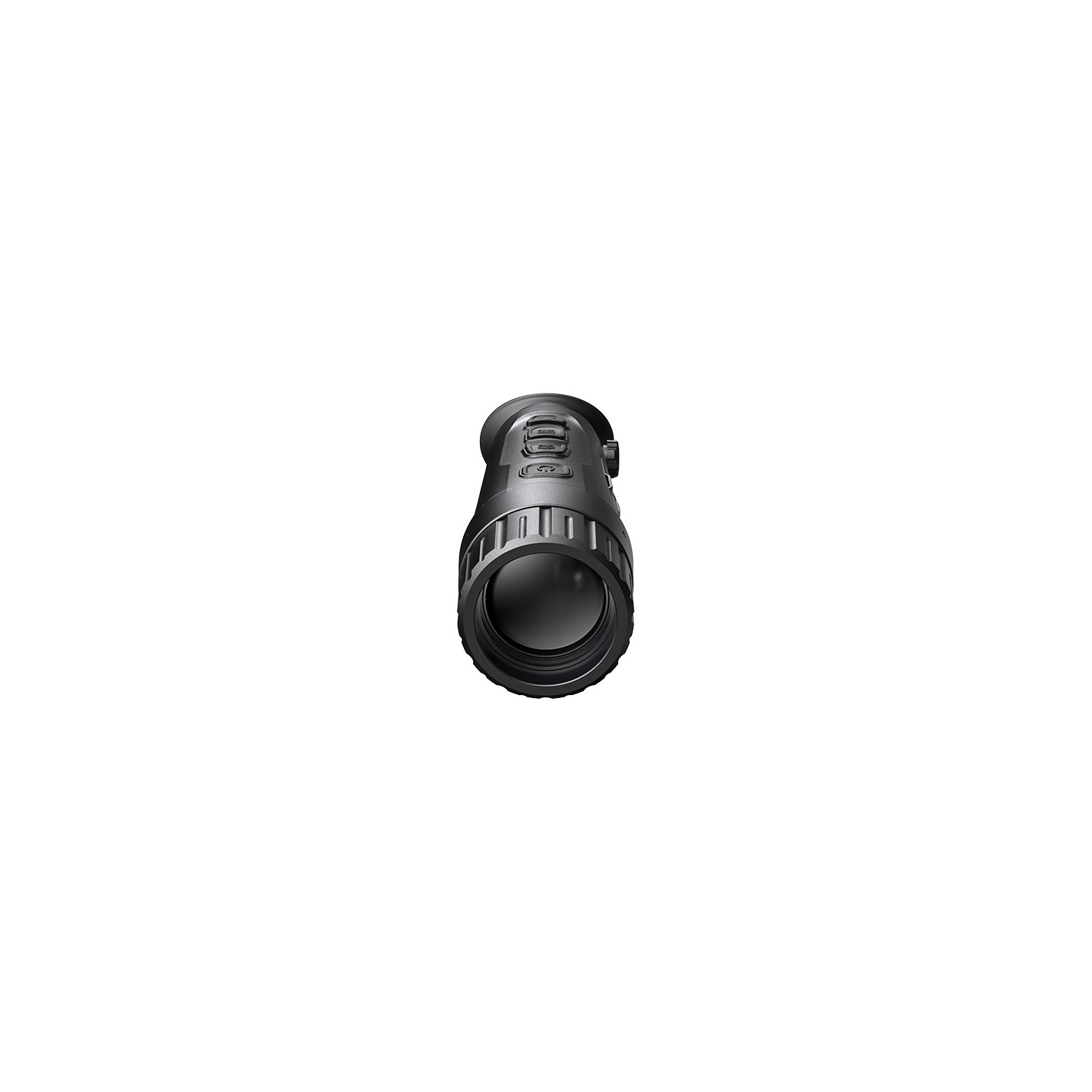

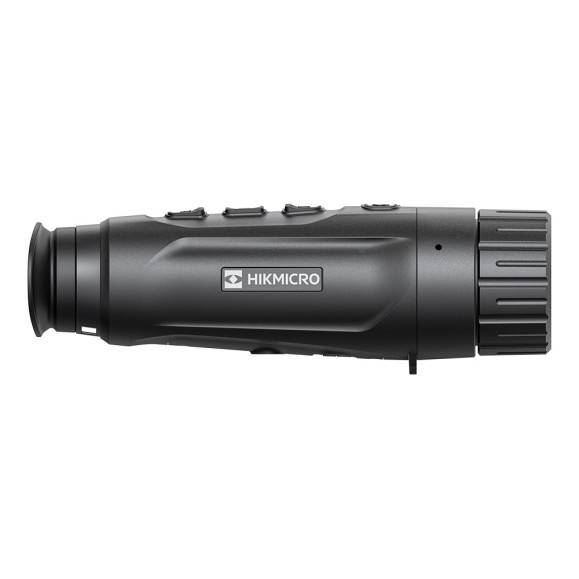

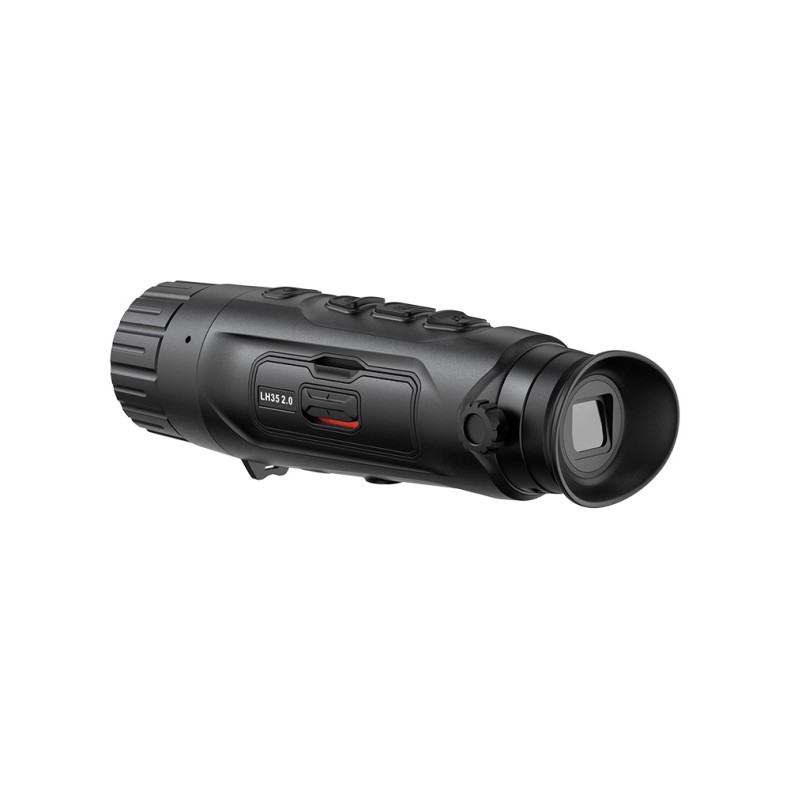

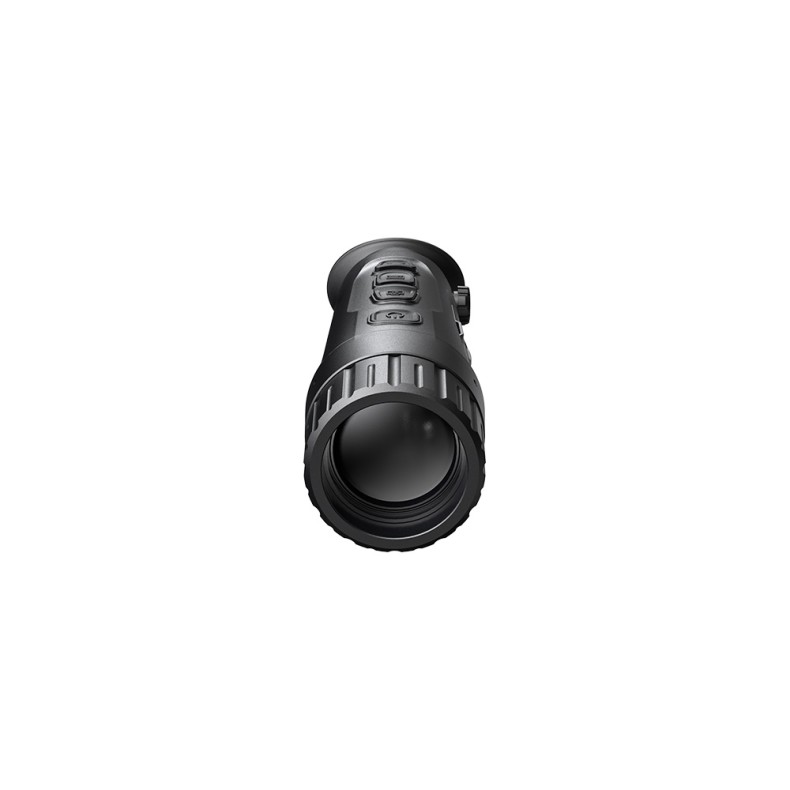

Equipped with a powerful 35-millimeter lens and an advanced 384 x 288 sensor with 12-micrometer detector, the HIKMCRO LYNX Pro LH35 2.0 thermal monocular captures highly detailed images at short and medium distances with high thermal sensitivity of NETD
Key Features
- High sensitivity NETD thermal module
- 384 × 288 resolution with 12μm detector.
- 0.39 inch OLED display with 1024 × 768 resolution
- Replaceable and rechargeable 18650 lithium-ion battery
- 338 g light weight, compact and ergonomic design
- Up to 6.5 hours of continuous operation
Specifications
Thermal module
- Image sensor: Uncooled VOx focal plane arrays
- Resolution Resolution: 384 × 288
- Frame rate: 50 Hz
- Pixel spacing: 12 μm
- Response waveband: 8 μm to 14 μm
- NETD: Less than 20 mK (@25°C), F# = 1.0
- Lens (focal length): 35 mm, f1.0
- Detection range: 1800 m
- Min. focusing distance: 3.5 m (10 ft)
- Magnification: 3.3x to 26.4x (8x)
- Field of View (H × V), Degrees / m @100m: 7.5° × 5.7°/ 13.1 m×10.0m
Screen Image
- Display: 1024 × 768, 0.39 inch, OLED
- Palettes: Warm Black, Warm White, Warm Red, Fusion
- FFC (Flat Field Correction) mode: Auto, Manual, External correction
- Exit Pupil: 6 mm
- Eye relief: 20 mm
- Diopter (range): -5 D to +3 D
- Brightness Adjustment: Yes
- Tint Adjustment: Cool, Warm
- Contrast Adjustment: Yes System
- Video Recording: Yes
- Snapshot Image Capture: Yes
- Audio Recording. Yes
- Standby mode: Yes
- Storage: Built-in EMMC (16 GB)
- PIP: Yes
- Hotspot: Yes
- Hot Track: Yes
- Distance measurement: Yes
Power supply
- Battery type: Replaceable, rechargeable 18650 lithium-ion battery
- Battery operating time: 6.5 hours continuous operation with CVBS and hotspot function off (@25°C)
- Power Supply Type-C: 5VDC, 2A External Power Supply Supported
General
- Protection level: IP67
- Dimensions: 193 mm × 56 mm× 62 mm
- Weight: 338 g without battery
- Operating temperature: -30°C to +55°C (-30°F to +55°C)
Warranty
- Product warranty: 36 months
- Sensor warranty: 10 years
Box Contents
- LYNX Pro LH35 2.0.
- USB cable
- Dust cloth
- Protective pouch
- Wrist strap
- Charger
- 2 18650 batteries
- User manual
HIKMICRO SIGHT App for IOS and Android
Download the HIKMICRO SIGHT APP to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You will also be able to download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the APP HIKMICRO SIGHT. Compatible with all models of HIKMICRO thermal monoculars.
