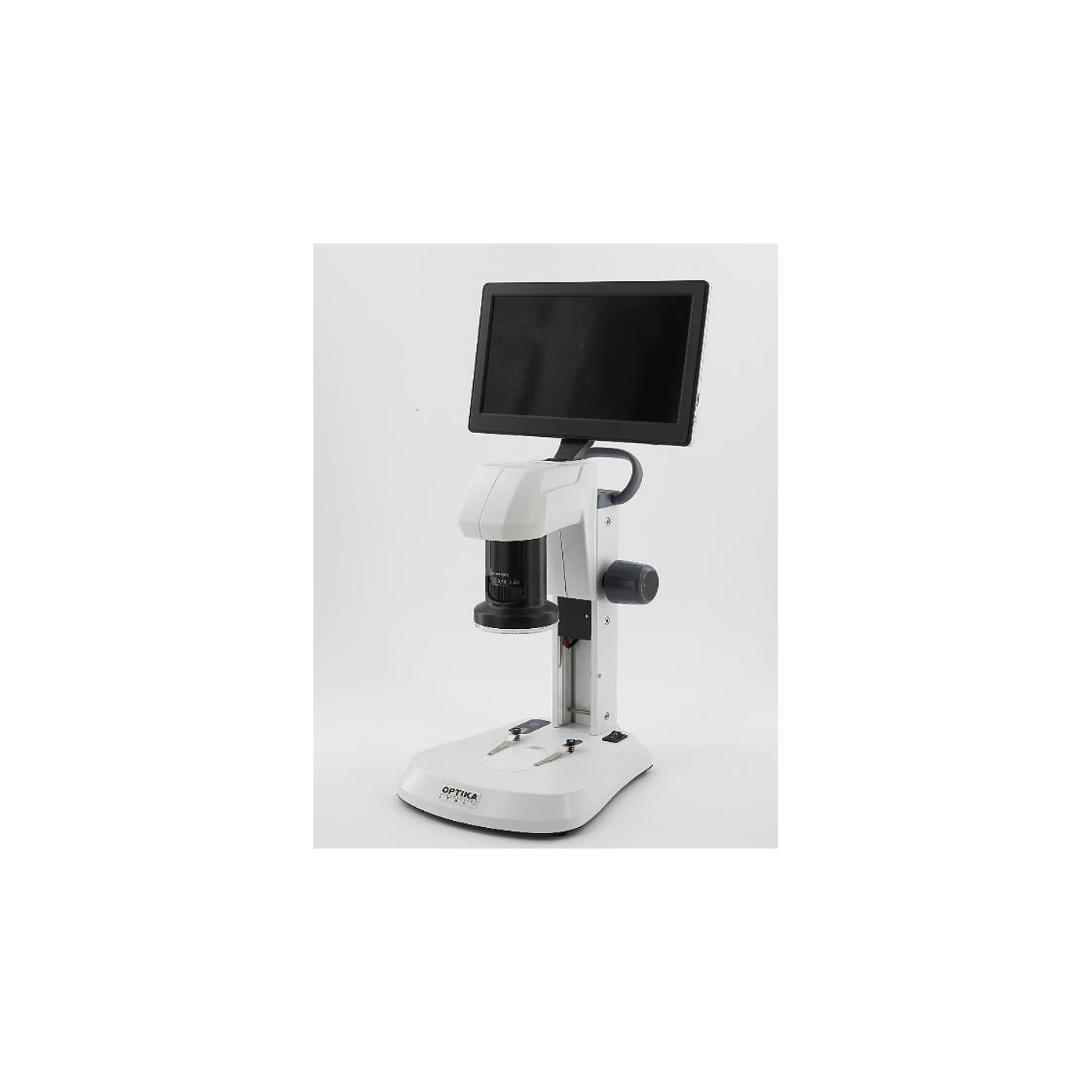

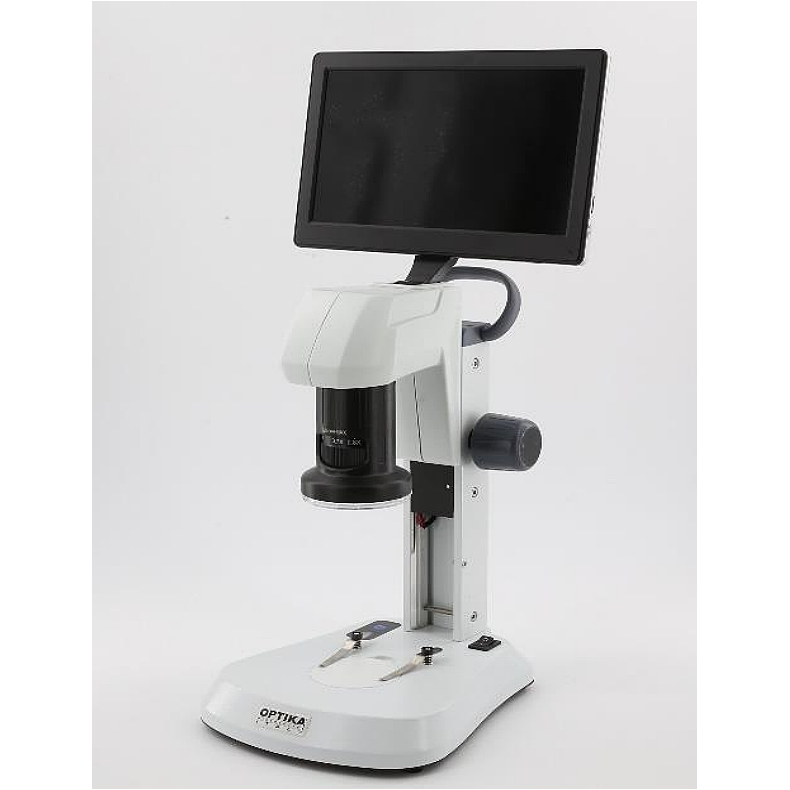

Microscopio estereoscópico Optika digital con pantalla

Technical characteristics

Observation method

Transmitted light Bright field: Yes

Incident light Bright field: Yes

Objective

Antifungal treatment: Yes

Objective type: Achromatic

Zoom Type: Parfocal Achromatic

Working distance (mm): 100

Standard magnifications: 0.7x-4.5x

Zoom ratio 6.43

Total magnification on monitor: 8x-54x

Field of view (min. magnification) (mm): 17.5x10x

Field of view (maximum magnification) (mm): 4,7x2,5

Lens resolution: 60 lp/mm @ 0.7x, 240 lp/mm @ 4.5x

Focusing System

Type: Coarse

Total Thick Travel (mm): 41

Mount

Type: Precision fixed arm

Handle: Yes

Platen

Ground diffuser plate for transmitted ill.: Yes, diameter 60 mm

Black/white contrast plate for incident image: Yes, diameter 60 mm

Specimen clamp: Yes

Transmitted illumination

Type: LED

Power of light source (W): 1

Brightness control: Touch panel

Lifetime (hours): > 65,000

Temperature (K): 6,300

Max. power required (W): 1.5

Lighting incidence

Type: LED

Ring: Yes

No. of LEDs: 21

Light source power (W): 1

Brightness control: Touch panel

Lifetime (hours): > 65,000

Temperature (K): 6,300

Max. power required (W): 1.5

Lighting Power Supply

Type: External

Microscope Connector Jack: 2.1 mm

Plug type: Multi-plug (EU, UK, US)

Input voltage: 100/240 Vac, 50/60 Hz

Output voltage: 12 Vdc 2 A

LED indicator: Yes

Included accessories

Dust cover: Yes

User's manual: Digital version (downloadable)

SD card: Yes

Calibration guide: Yes

Additional information

Maximum sample height (mm): 35

Dimensions

Overall height (mm): 445

Overall width (mm): 225

Base height (mm) 45

Base width (mm) 183

Base depth (mm) 205

Weight

(kg): 2

Digital head

Resolution (MP): 5

Sensor type: CMOS

Sensor size: 1/2.8

Sensor Aspect Ratio 4/3

Full image size 2592x1944

Pixel size (µm): 2.0x2.0

Frame rate 60 fps (2592x1944)

Signal-to-noise ratio (dB): >65

Exposure time (sec): 1 ms - 1 sec

Monitor: 9"

Monitor resolution: 1024x600

USB: type 2.0

Software: built-in

General

Archiving: Yes

Multilingual menu: Yes

Available languages

Chinese: Yes

English: Yes

Japanese: Yes

Spanish: Yes

Image Acquisition

Video recording: Yes

Storage Media Card: SD

Continuous auto exposure: Yes

Manual exposure: Yes

Color acquisition: Yes

Grayscale acquisition: Yes

White balance: Auto/Manual

Image Enhancement: Yes

Zoom in: Yes

Zoom out: Yes

Image comparison: Yes

Image and video scanning: Yes

Freeze Image: Yes

Flip Horizontal: Yes

Vertical Flip: Yes

Image Processing

HDR (High Dynamic Range): Yes

Crosshatching: yes

Text Overlay: yes

Measurements

Live metering: Yes

Still image measurement: Yes

Select unit of measurement: Yes

Measurements available

Line: Yes

Angle: Yes

Parallel lines: Yes

Rectangle: Yes

Circle: Yes

Curve: Yes

Arc: Yes

Polygon: Yes
