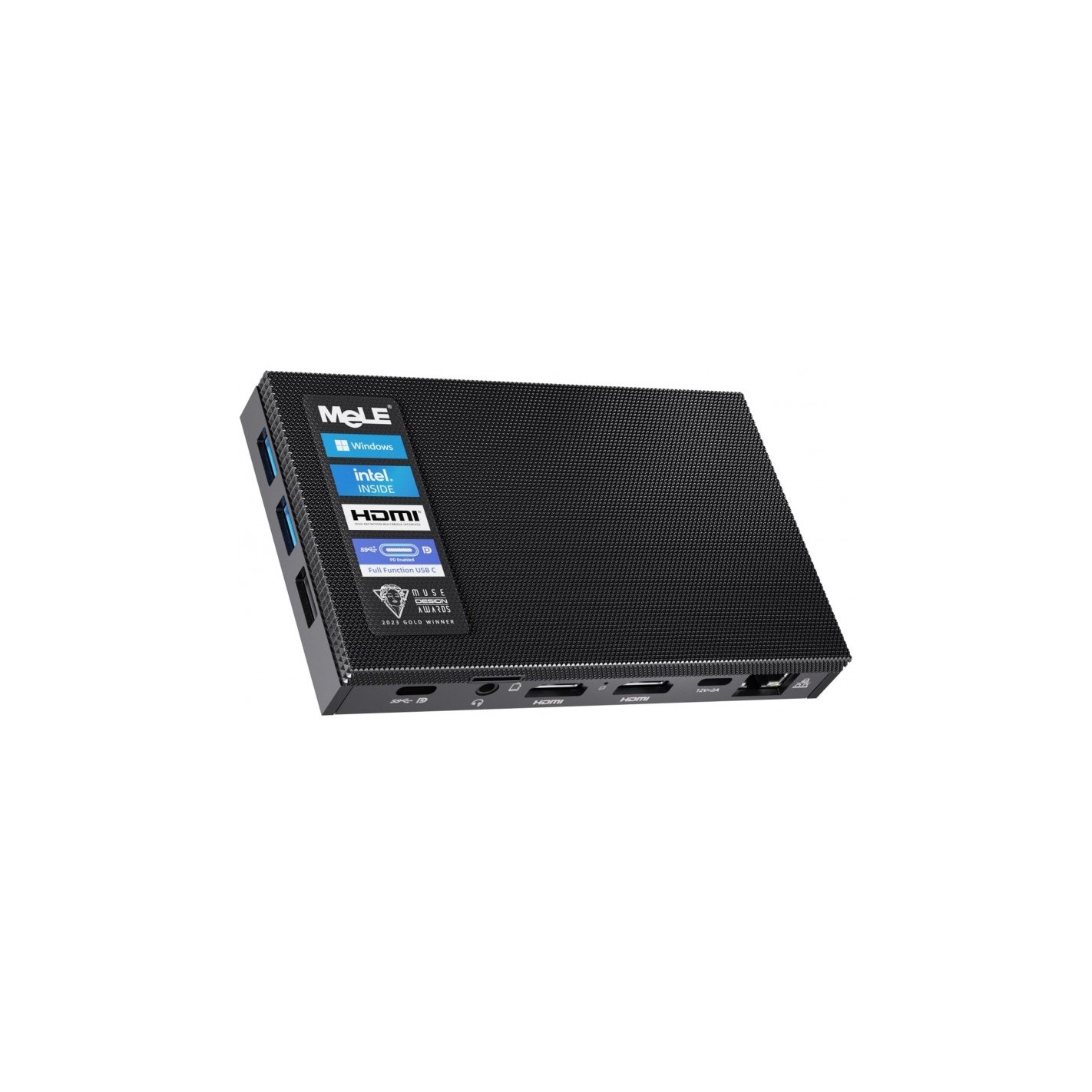

Quieter 4C 16GB/512GB Windows11 PRO Mini PC - MeLE

why choose it for astrophotography?

The MeLE Quieter 4 Mini PC is a Fanless Mini PC, which means it is fanless and therefore avoids micro-vibrations. So you can install it directly on your telescope without any problem.

In addition, this Mini PC is equipped with the Windows 11 PRO operating system, so there are no hardware restrictions. It will be compatible with all computers on the market.

You can use it in remote desktop mode via another PC or via a tablet or smartphone using an application known as ANYDESK.

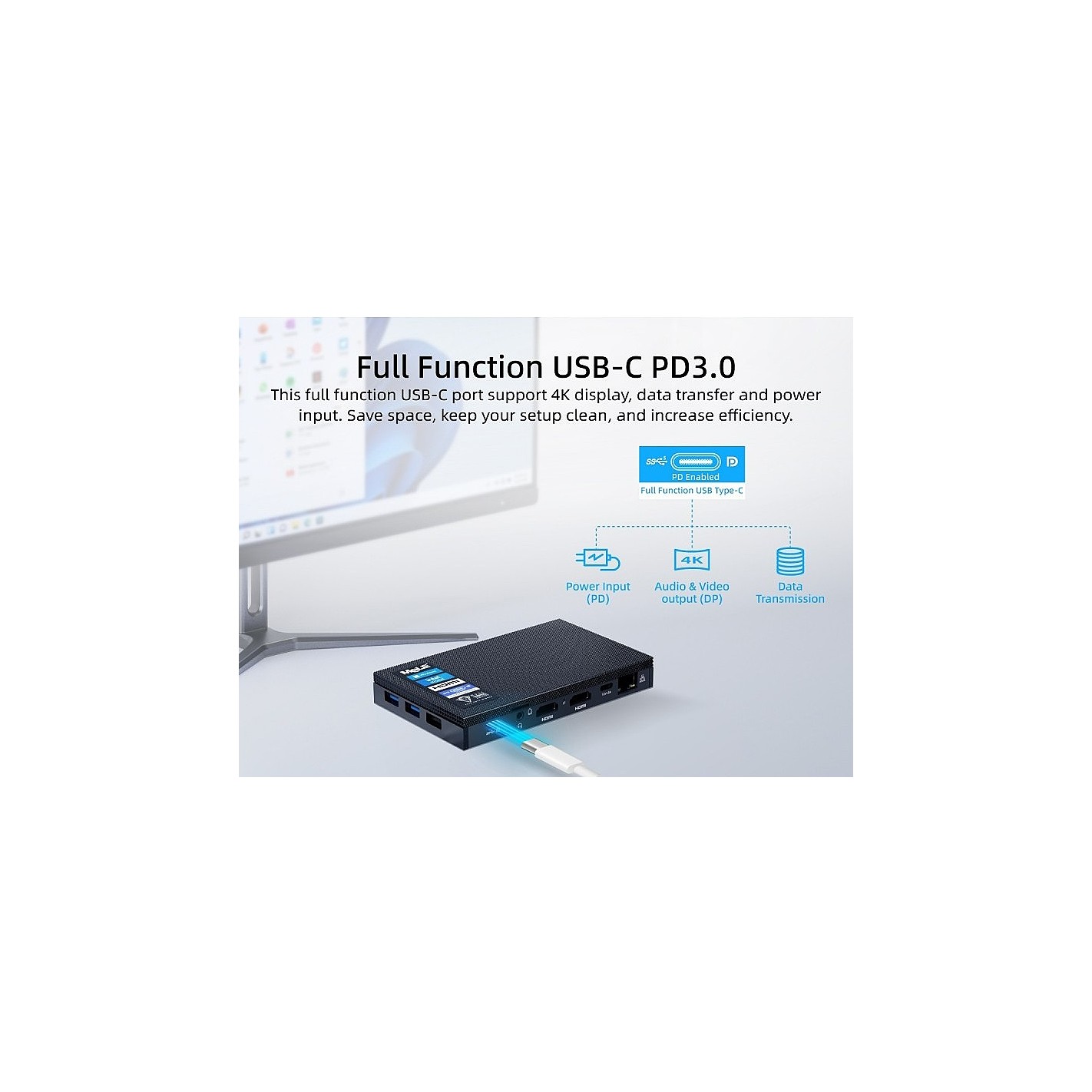

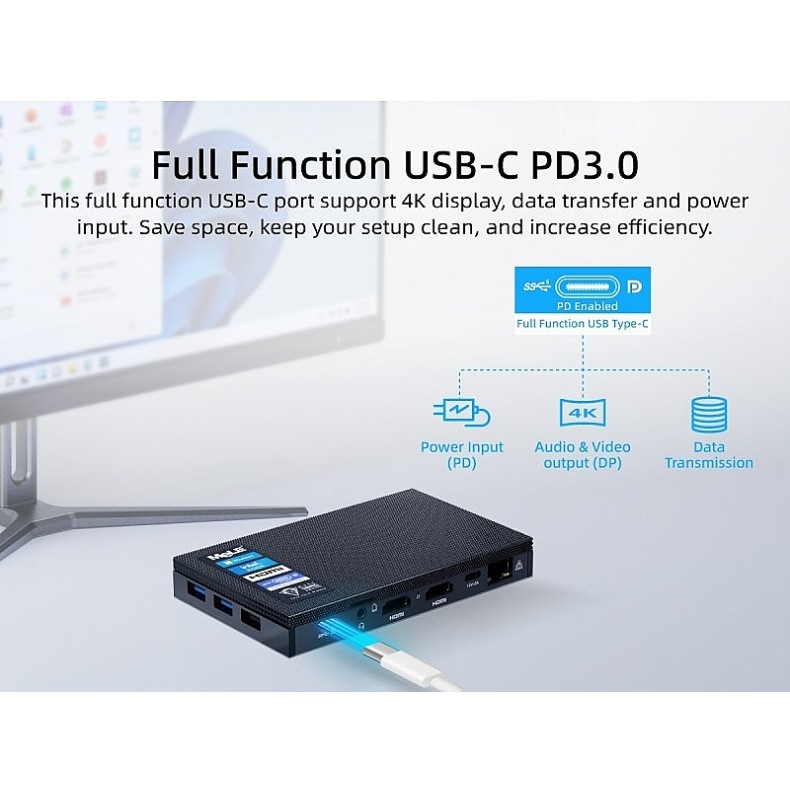

It has a USB-C power port so you can use certain equipment that requires more power, such as the latest generation electric focusers without power supply (EAF ZWO, Focus CUB PEGASUS ASTRO, ESATTO from Primalucelab).

12V power supply

This mini PC is powered at 12V, so it is easily compatible with the various PowerTANK on the market. Its power connector is USB-C, and you will find cables to power it through a 5.5 - 2.1 mm POWER BOX, for example.

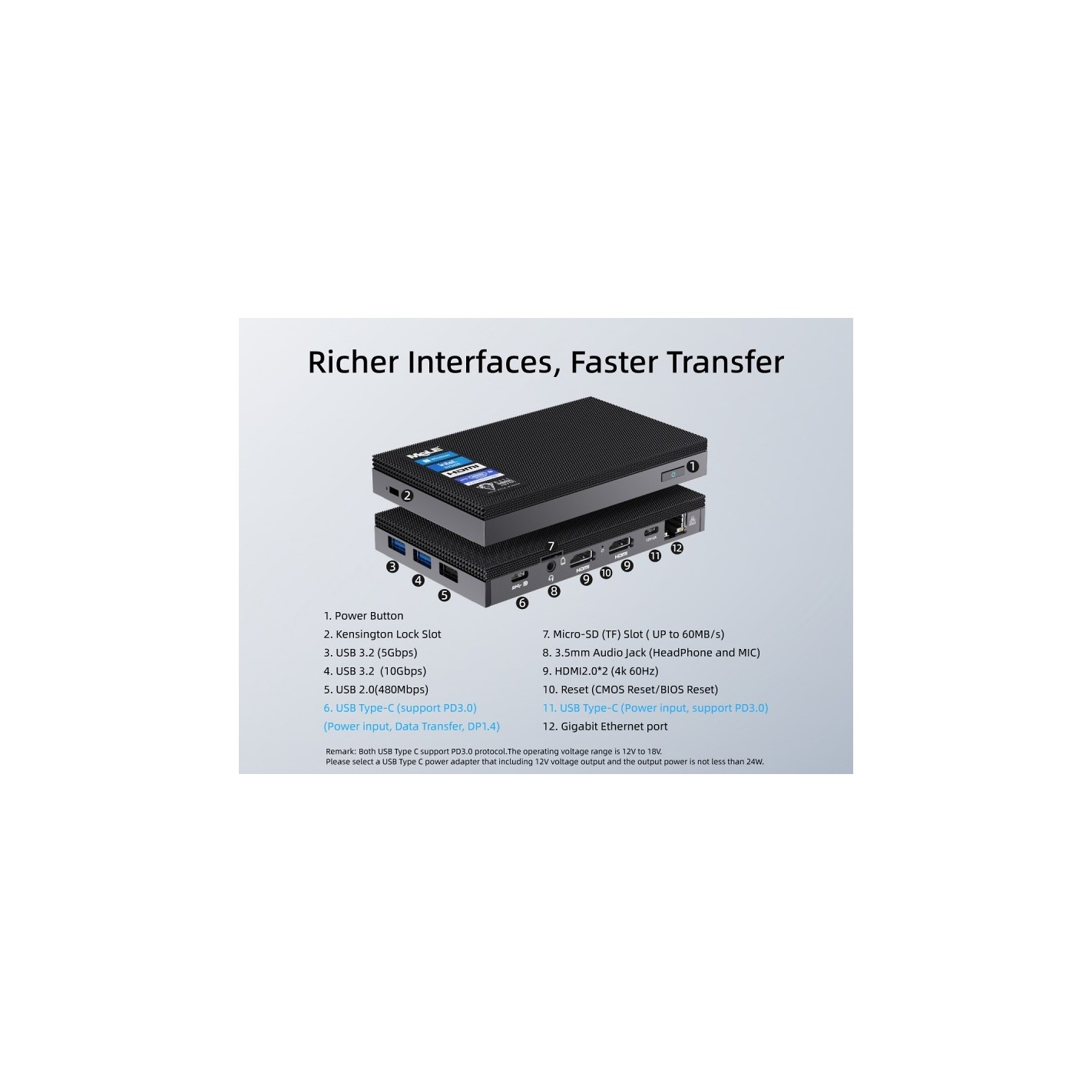

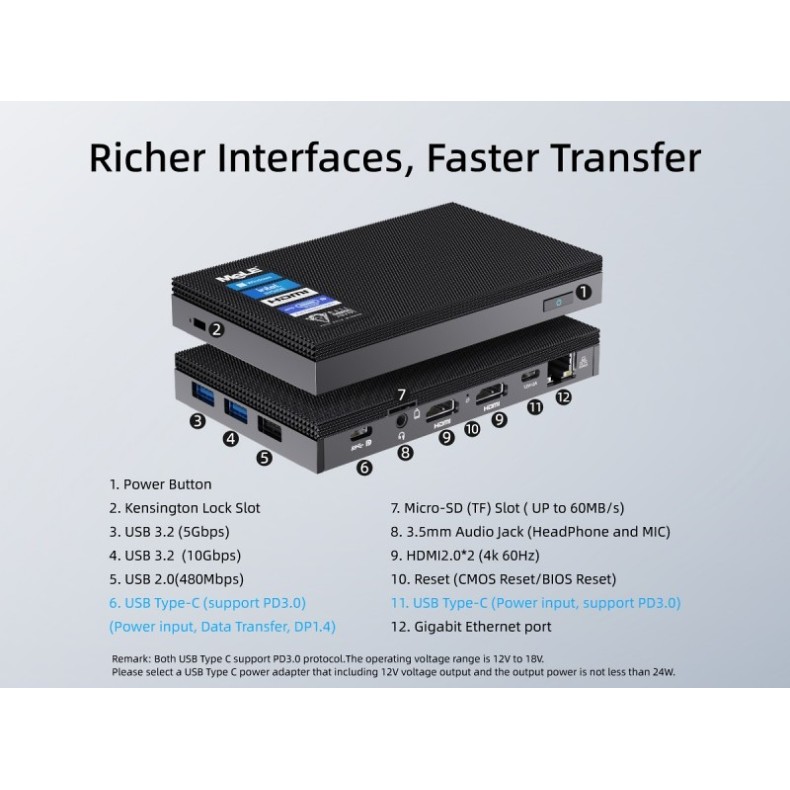

Available USB ports

This mini PC has a total of 4 USB ports:

• 2 USB 3.2 ports
• 1 USB 2.0 port
• 1 USB-C power - data port

Power and memory

This mini PC incorporates a powerful Intel® N100 12th generation quad-core CPU at 3.4GHz, with a low power consumption of 8W.

With 16 GB of RAM (LPDDR4x 4266MHZ) and 512 GB of total storage memory, this mini PC allows you to add memory via a Micro SD slot.

Integrated Wifi - Bluetooth ETHERNET

The MeLE Quieter 4C has full wireless connectivity with 802.11 wifi 5 on 2.4GHZ and 5 GHZ Bluethooth 5.1.

It also has ETHERNET connectivity for 100/1000 Mbps wired connection.

Video and Sound Output

It will have 2 conventional HDMI outputs and a video output via USB-C. Sound can be captured both through these HDMI ports and through a 3.5 mm JACK port for headphones.

Technical Features

CPU: Intel® N100 quad-core 3.4 GHz

Graphics: Intel UHD Graphics

OS Support: Windows 11 Pro, Windows 11 IoT,

Memory: 16GB LPDDR4X(4266MHz)

Storage: eMMC/256GB eMMC+256GB M.2 SSD

Expansion: 1 x Micro-SD (TF) card slot, 1 x SSD M.2 2280 card slot

Connectivity: WiFi 802.11 ac 5 (2.4 GHz and 5 GHz) and Bluetooth 5.1

Gigabit LAN port at 100/1000 Mbps

Video output: 2 x HDMI 2.0 (4096*2160,Support 4K@60 Hz)

1 x USB Type-C (DP1.4, Support 4K@60Hz)

Audio Output: 2 x HDMI 2.0, 1 x USB Type-C

3.5mm audio jack (headphone and microphone)

USB connection: USB 3.2 Gen2 (10Gbps) *1, USB 3.2 Gen1 (5Gbps) *1,

USB 2.0 (480 Mbps) *1, USB Type-C (10 Gbps) *1
