get ready to take your astrophotography experience to new heights!

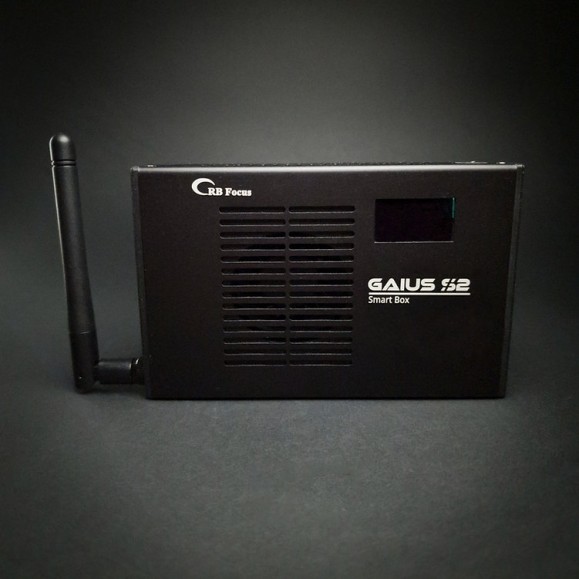

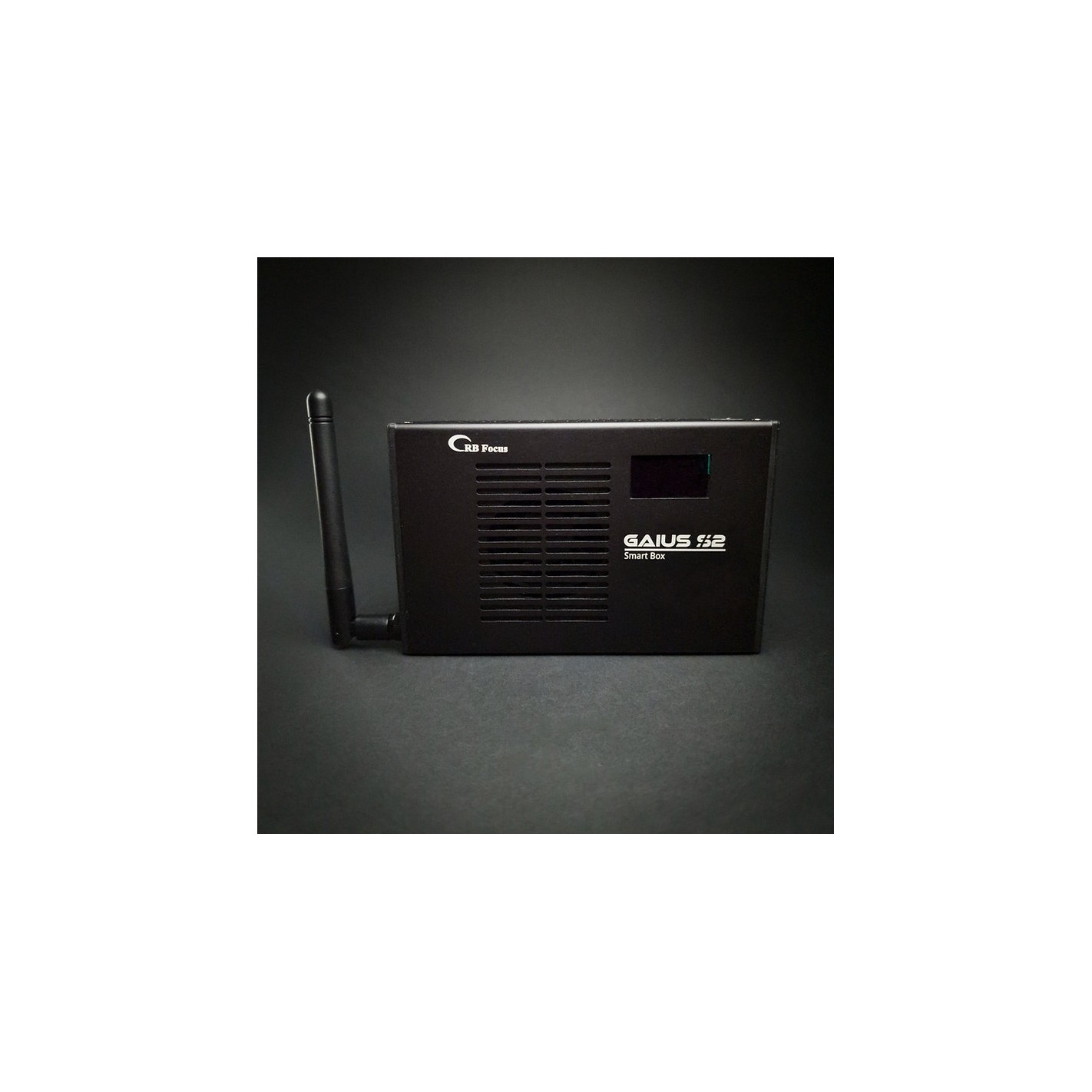

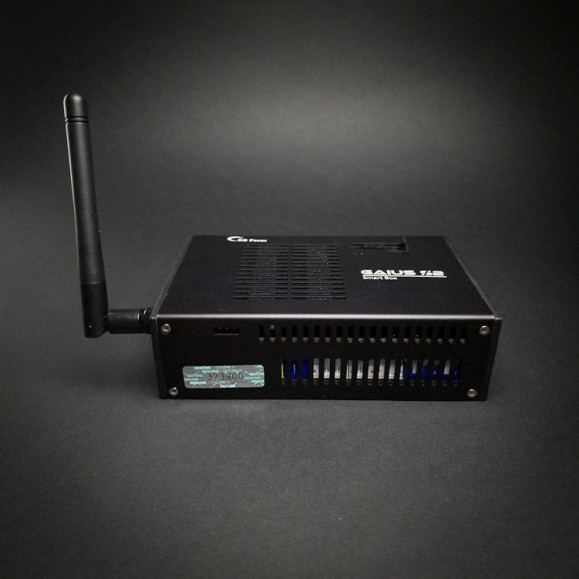

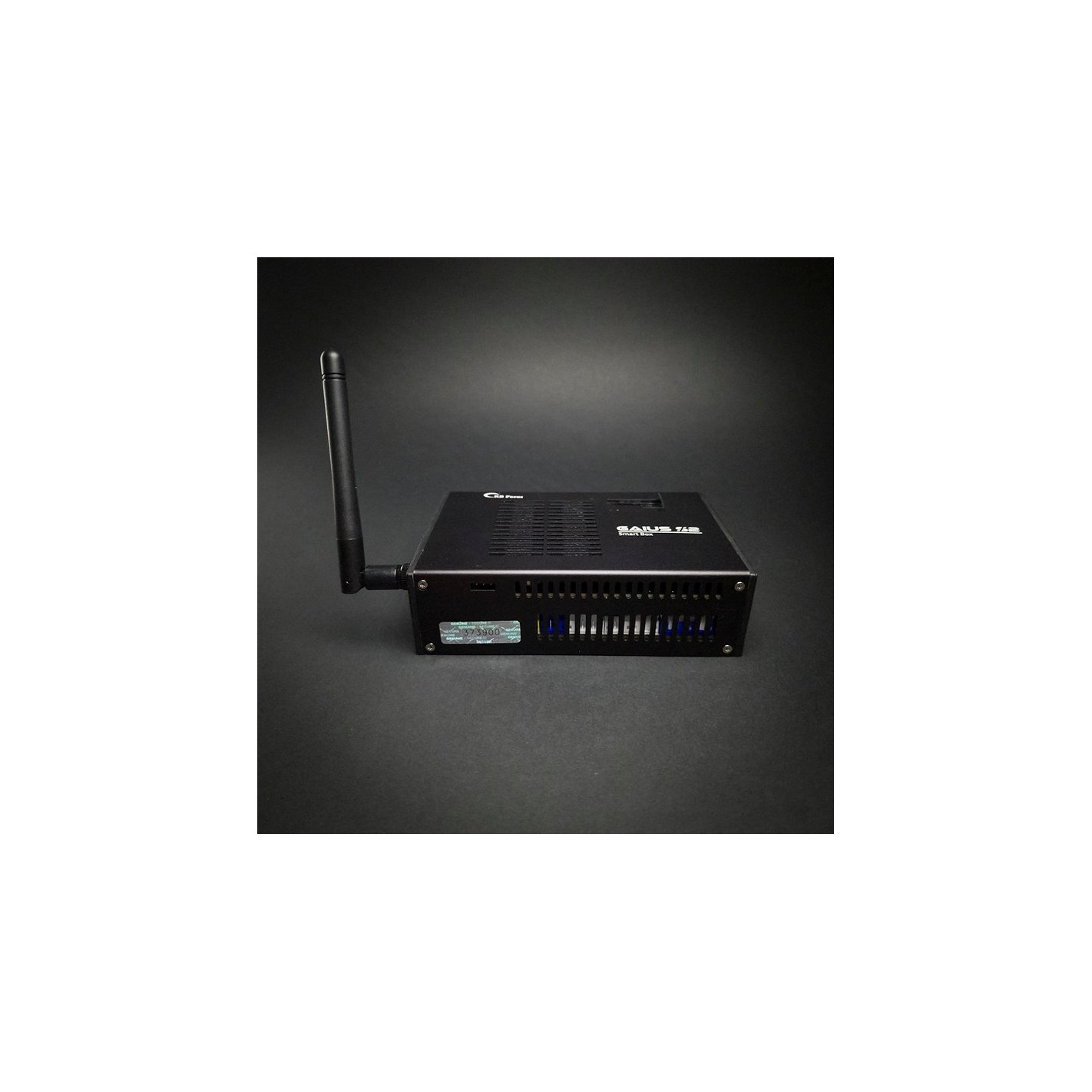

With its integrated full-featured computer, the SmartBox Gaius-S2™ offers 4GB, 8GB or 16GB DDR4 RAM options and features the powerful Intel Celeron N5105 4-core 2.90GHz processor, making this device the perfect solution for your needs. Its 6 USB ports and 7 power outputs are strategically configured to allow the connection of up to 5 devices and 2 heating strips.
The connection to this device is established via WiFi direct and LAN, giving you high quality remote access from any device, be it a tablet, smartphone or laptop. In addition, you will be able to visualize in real time the atmospheric conditions, such as temperature, humidity and dew point - don't miss any important detail! You will also be able to monitor the power consumption and the voltage supplied by the power source, either a battery or a 220VAC to 12VDC transformer.

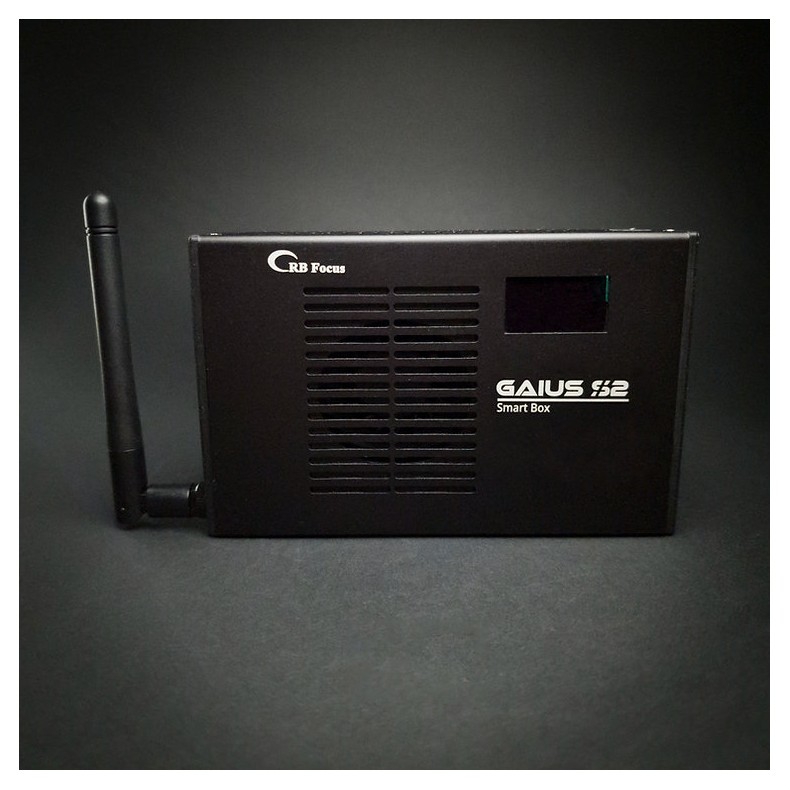

Ready for astrophotography, the SmartBox Gaius-S2™ comes with Windows 11 Pro operating system and pre-installed software, such as N.I.N.A, ASCOM, EQMOD, ASCOM drivers for RB Focus, PHD2, ASTAP, Plate Solve 2 and Stellarium. All ASCOM outputs and drivers are preconfigured, so you simply need to plug in your equipment and go out and capture images of the night sky. On both the OLED display and the aforementioned software, you will be able to see real-time data from the device, showing the status of the environment and power supply.
We have improved connectivity by incorporating a state-of-the-art WiFi 6 card and a dual-band antenna. This ensures optimal connection speed even when you are away from the device. We want to give you the best possible experience in all situations.
The SmartBox Gaius-S2™ is compatible with observatory control programs and allows you to remotely turn the equipment on and off, as well as configure heating bands or fans automatically. You can control it from any software that supports the ASCOM Switch Box, such as N.I.N.A or Voyager. In addition, you can program the automatic shutdown of the equipment at the end of the session, so you no longer have to worry about leaving the camera or mount on all night.
The automatic band controller is an outstanding feature of the SmartBox Gaius-S2™. Thanks to the included temperature and humidity sensors, the device has the necessary data to calculate the dew point. This will allow you to program the control software to turn on the heating bands only when they are really needed, avoiding unnecessary electricity consumption and unwanted currents in the OTA.

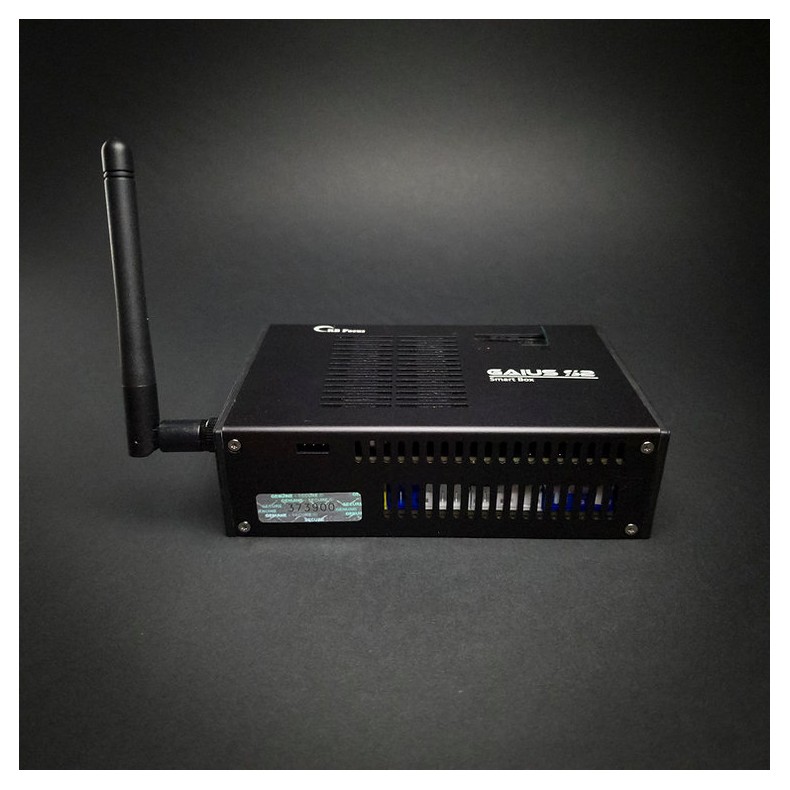

Small, compact, lightweight and energy efficient, the new SmartBox Gaius-S2™ has been designed with your astrophotography needs in mind. Don't worry about extra space or weight on your equipment. Weighing only 250 grams and measuring 12.4cm x 7.9cm x 3.6cm, this device fits into any setup. In addition, its power consumption of only 0.8Ah ensures efficient and long-lasting performance.
Don't miss this opportunity to take your astrophotography to the next level with the SmartBox Gaius-S2™ from RB Focus. Get ready for an unparalleled experience and capture amazing images of the universe!
Technical Specifications
RAM: 4GB,8GB,16GB DDR4 .
Processor: Intel Celeron N5105 4-core at 2.9GHZ.

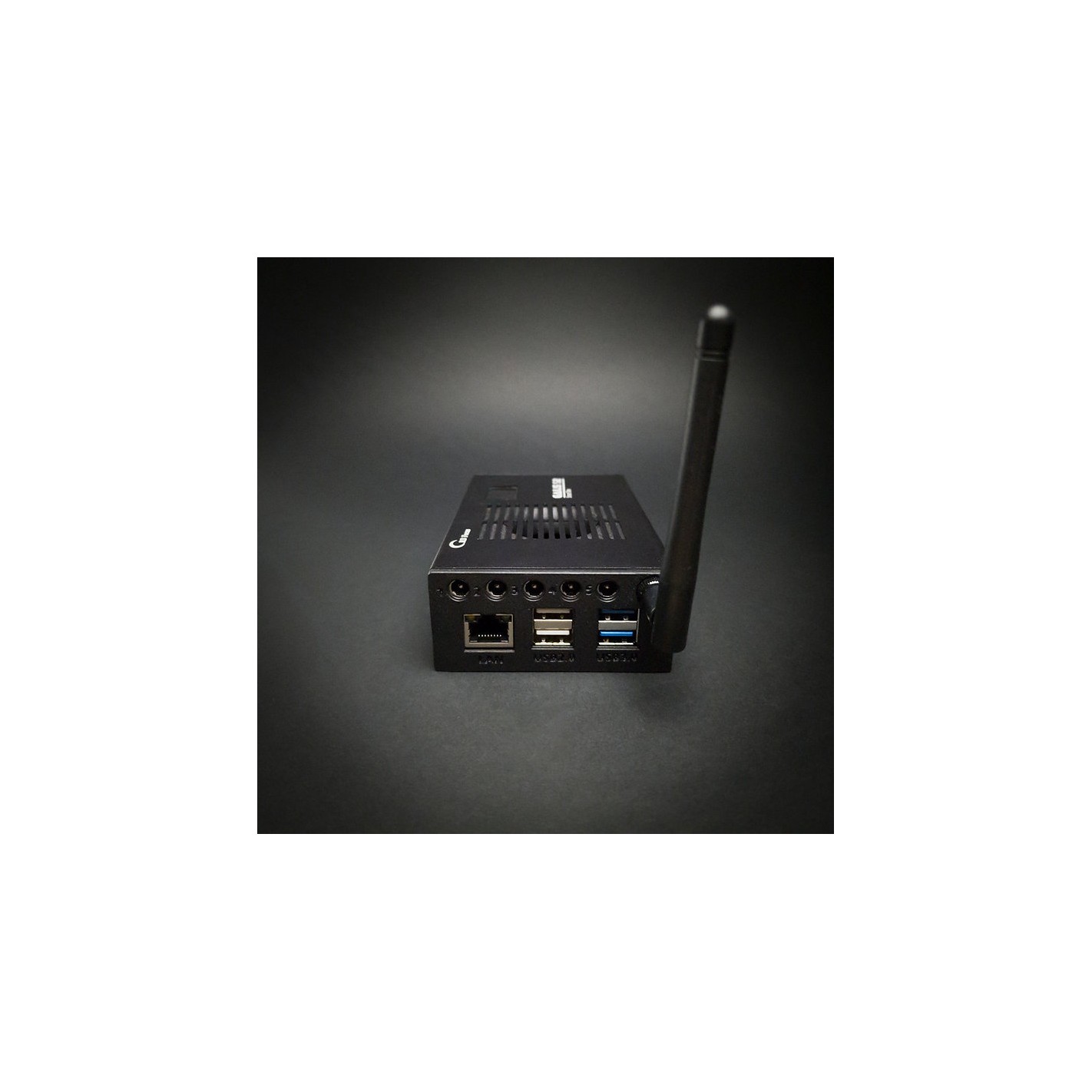

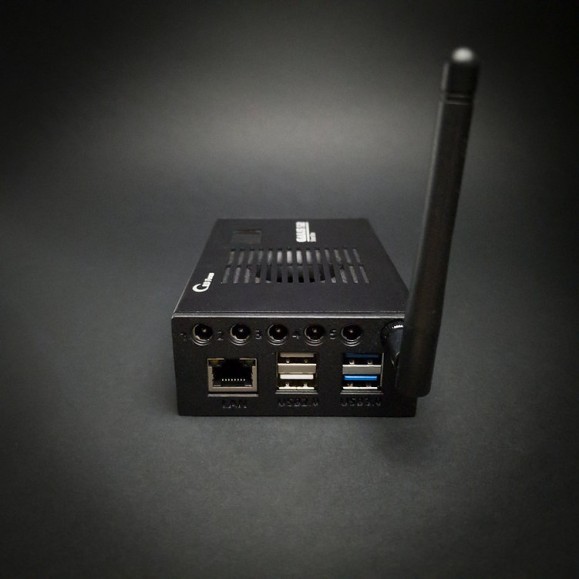

Ports: 2x USB3.0, 4x USB 2.0 1x HDMI, 1x 2.5GBit LAN, 7 x 2.1 DC Jack.
Operating voltage: 12V DC.
Maximum current: up to 10A.

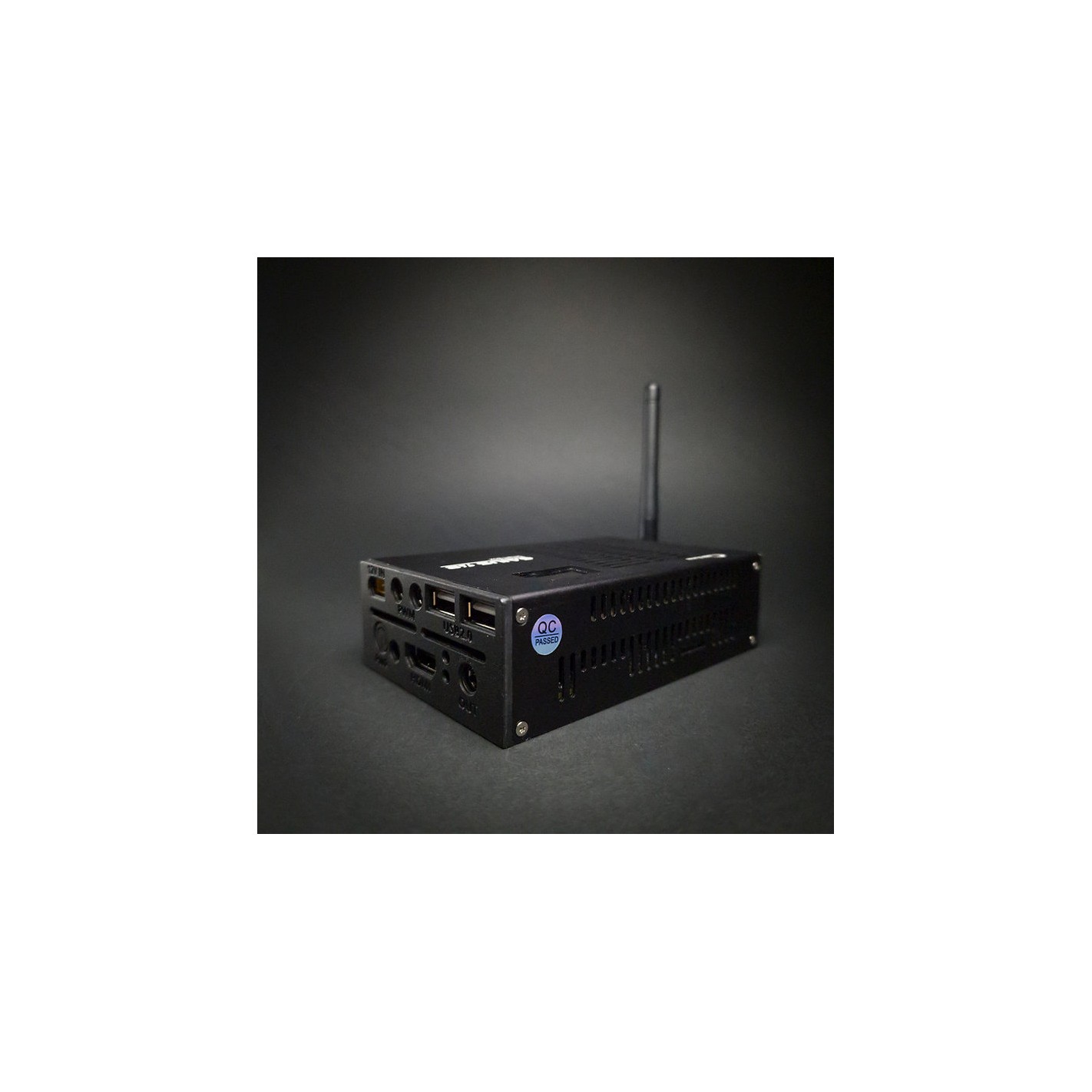

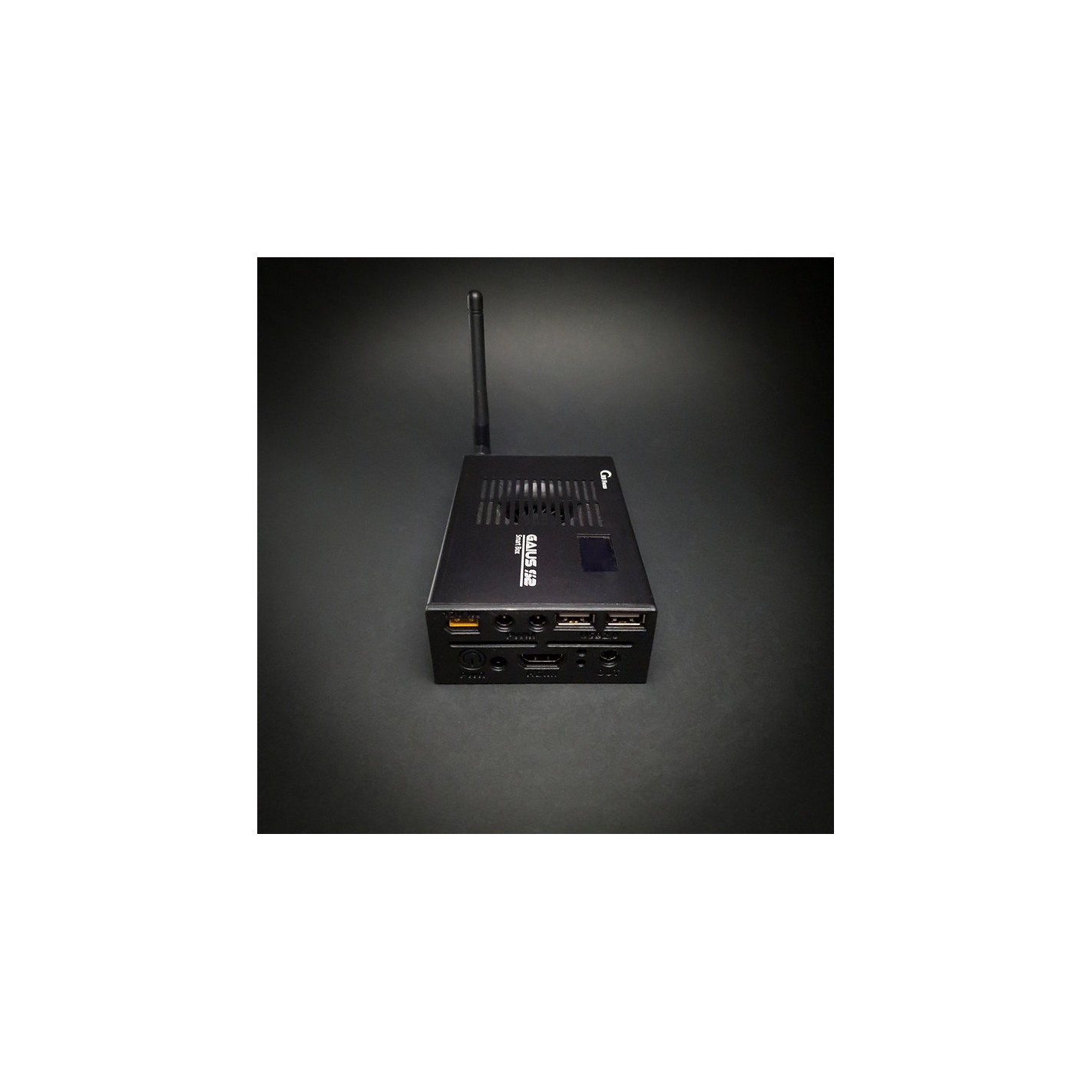

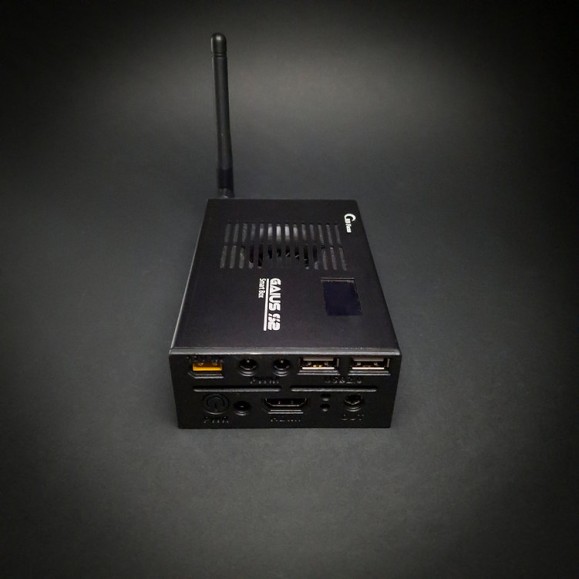

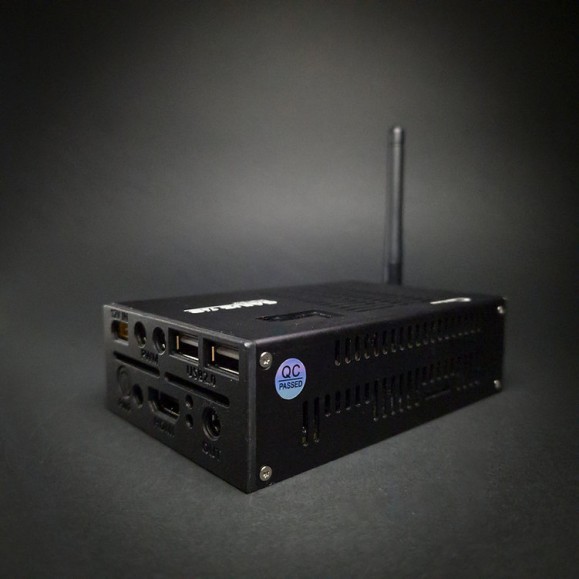

Power S/E: 1 x 12V XT30 DC input, 5 x 12V DC outputs, 2 x PWM outputs.
Weight: 250g.
(Without reverse voltage protection).
What's included in the box
1 x RB-Focus Gaius-S2 SmartBox.
1 x Temperature and Humidity Sensor.
