SONSTIGE refracting telescope Watch mechanics for graphoscope, model VII 15 x 60 mono | +504.13 |
SONSTIGE 15x60 graphoscopic telescope model VII
Panoramic telescopes are popular all over the world and, to the benefit of their owners, have been working quite well for more than a quarter of a century. All the improvements and information gathered about them during this time have been taken into account in the design of the Model VII.

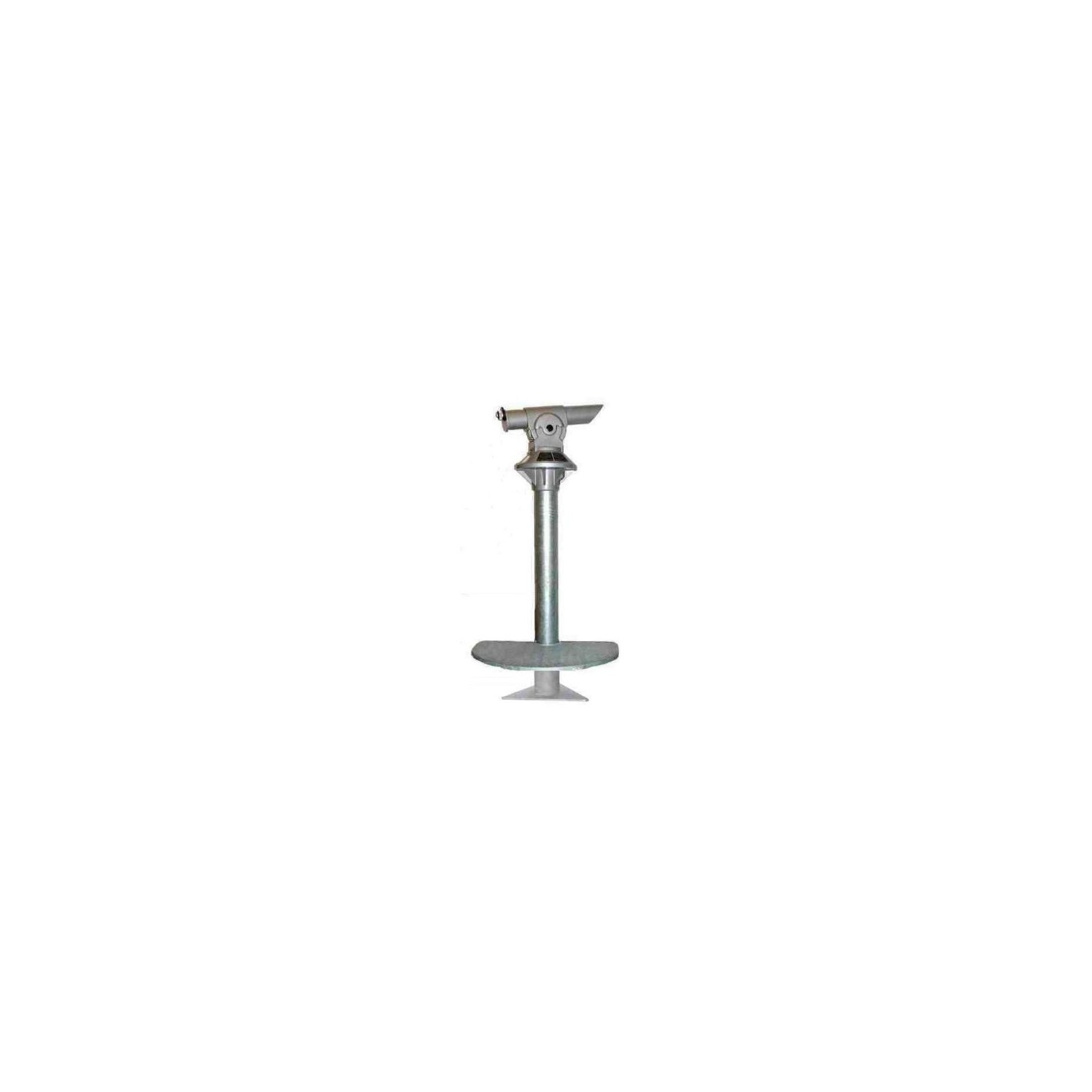

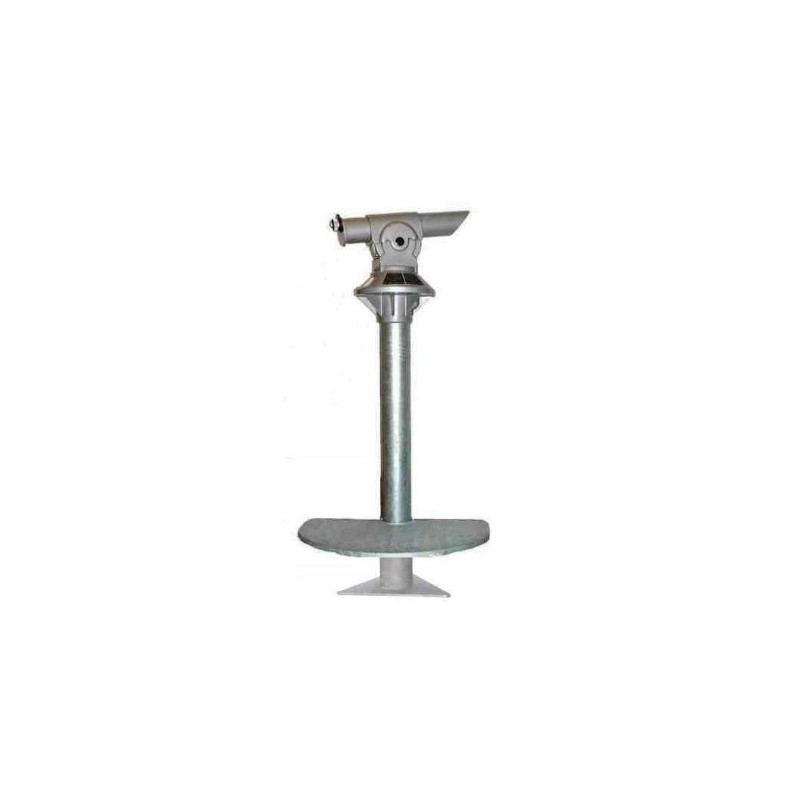

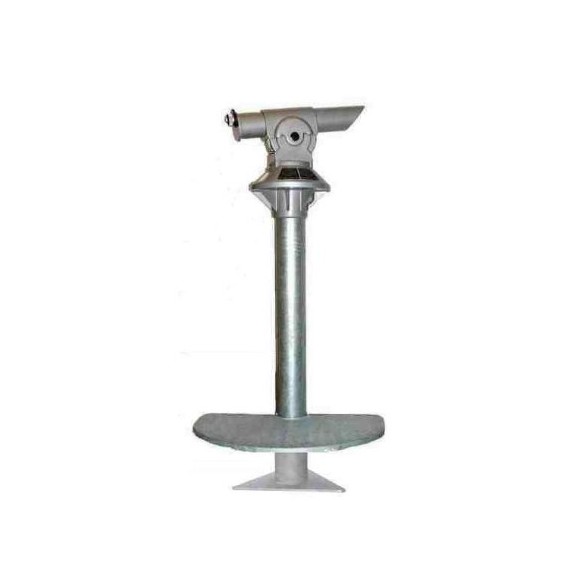

NOTE: Under this reference only the prismatic is administered, in the image the final assembly is shown for illustrative purposes.
Carrier | Description | Estimated Delivery | ||
---|---|---|---|---|
Home delivery - International | Home delivery - International |
Monday, 6 January - Monday, 13 January |
Home delivery - International
Home delivery - International
Estimated delivery:
Monday, 6 January - Monday, 13 January
Panoramic telescopes are popular all over the world and, to the benefit of their owners, have been working quite well for more than a quarter of a century. All the improvements and information gathered about them during this time have been taken into account in the design of the Model VII.

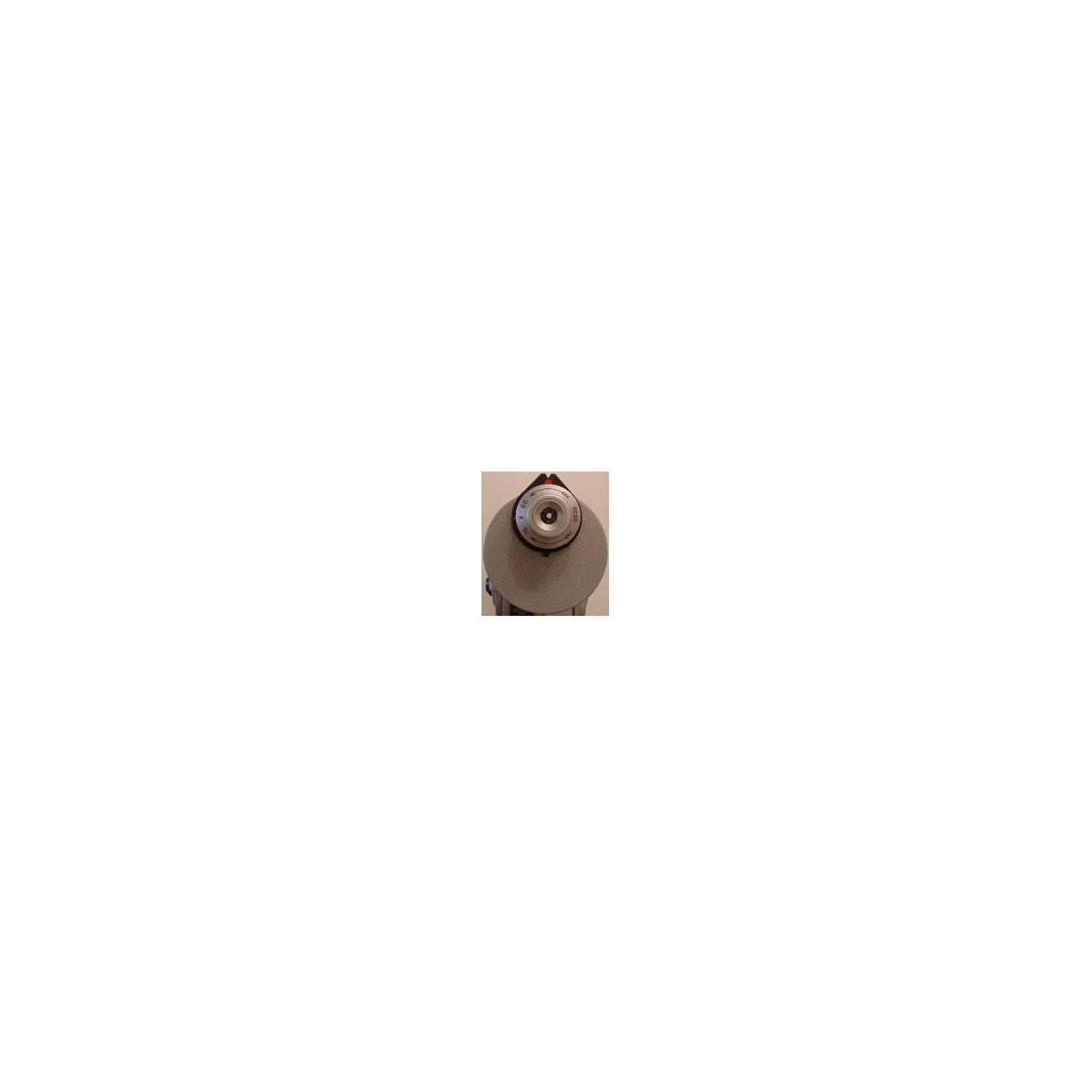

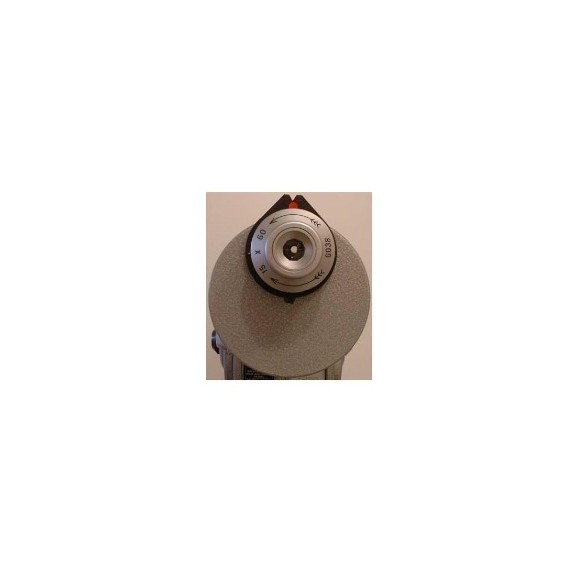

The monocular optical system with a magnification factor of 15x is of high quality and has been specially designed for this model. It is particularly well waterproofed, which makes it suitable for outdoor or any location regardless of the weather. It has a protective glass in front of each lens to protect them from scratches and prevent damage. To determine the magnification, simply rotate the eyepiece.
The viewfinder is at a height of 147cm, or 120cm with the children's step (optional).
Coin mechanism, child's step and support base are not included - these items can be found in our recommended accessories section.
Technical specifications:
Optical System
Telescope Type: Landscape Viewing Telescope
Construction Type: Monocular
Magnification: 15
Diameter of front lens (mm): 60
Exit pupil (mm): 4
Objective lens diameter (mm): 60
Field of view
Horizontal swivel range (°): 360
Vertical swivel range: 30 up/down
Field of view at 1,000 m (m): 61
Minimum focusing distance (m): 15
Brightness: 16.0
Twilight factor: 30
General
Color: metallic
Height (mm): 1510
Weight (kg): 57.5
