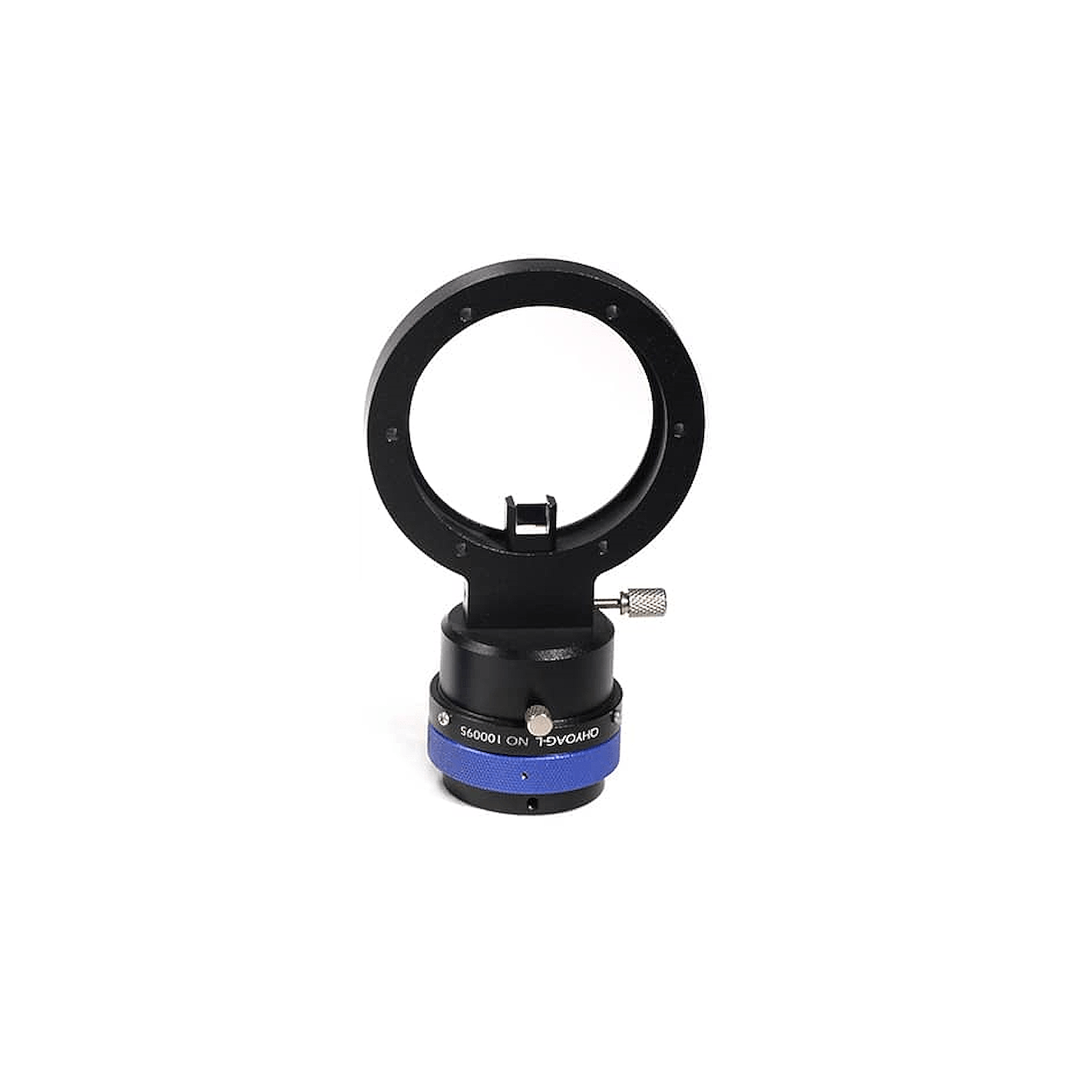

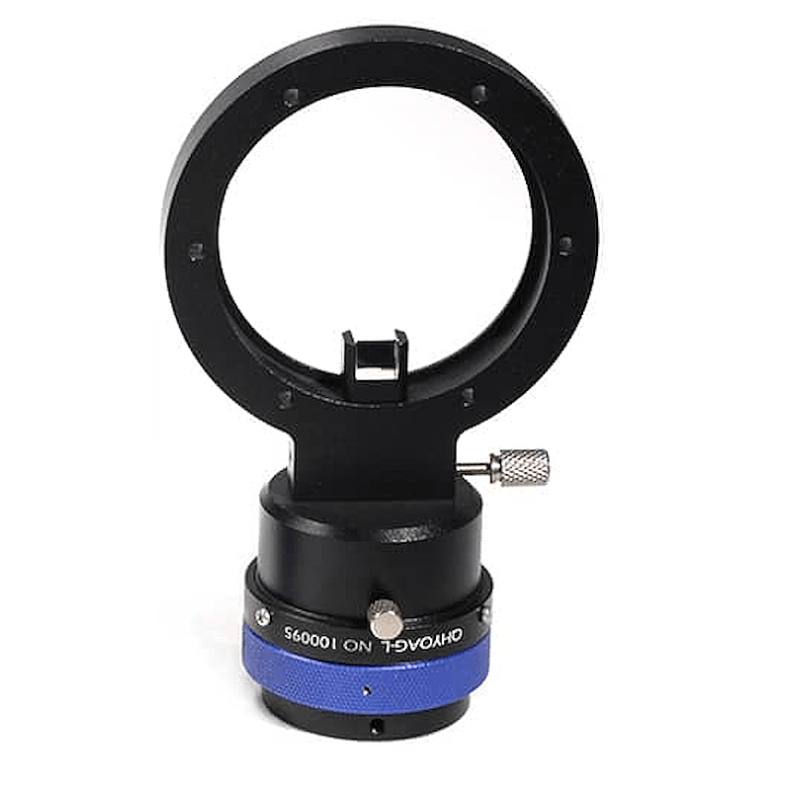

QHY off-axis guide model QHYYQAG-L

Name: QHY off-axis guide model QHYYQAG-L
Brand: QHYCCD
SKU: QHY100075
Price: 293.35 EUR
Availability: PreOrder

Reference QHY100075

Stock at Supplier

293.35

VAT excluded Shipping 5/7d

Buy it now and receive it between on Monday, 20 January and Monday, 27 January with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Monday, 20 January - Monday, 27 January

Home delivery - International

Estimated delivery:
Monday, 20 January - Monday, 27 January

✖

Description
Product Details

QHYOAG includes a 1.25-inch precision helical focuser that supports our QHY5II and QHY5III cameras. The focusing process is convenient. After focusing, you can lock the focusing mechanism with thumbscrews.

Introduction

QHYOAG is a slim and solid design. The main body of the OAG is only 10mm thick. If an M42 thread or M54 adapter ring is added, the total thickness is only 3 mm, giving a total of 13 mm. There are six 3 mm through holes in the OAG for direct connection to QHYCFW and QHY A series cameras.

There is a focuser on the QHYOAG. It is used to adjust the focus of the guide. There is a thumb to lock the position. When focusing, release the thumb. After focusing well, lock it. Do not move the focus ring when it is locked to avoid damage. When locked, the focus ring may rotate slightly. This is normal and the focus does not change.

The light hole of the QHYOAG is 7 mm for the guide camera.

QHY OAG-L

Technical Specification

Model	QHY OAG-S	QHY OAG-M	QHY OAG-M PRO - new!	QHY OAG-L	QHY OAG-L PRO - new!
Telescope Connection	M42/0.75	M54/0.75	M54/0.75（adapter required)	M62/0.75	M62/0.75 or M54/0.75 (adapter required）
Diameter 6 x M3 screw positions	54mm	62mm
Valid for CCD/CMOS	1" or smaller	4/3 inch APS-C, APS-H, 36 x 24mm	Full Frame and APS-C CMOS	Larger than Full Frame	Full Frame and Medium CMOS
QHYCFW3-S， QHY183M QHY5III Series QHY90A QHY695A	QHYCFW3-M QHY16200A QHY268M/C QHY600M/C QHY294Pro M/C QHY163M QHY128C/247C/367C /168C/410C QHY16200A	QHYCFW3L and QHYCFW3M (combined with some adapters)	QHYCFW3-XL QHY16803 QHY09000	QHYCFW3-XL QHYCFW3M or QHYCFW3-L with included adapter
Camera connection Guide	1.25-in.	1.25-in.	1.25-in.	1.25-in.	1.25-in.
Weight	127g	145g	155g	149g	165g

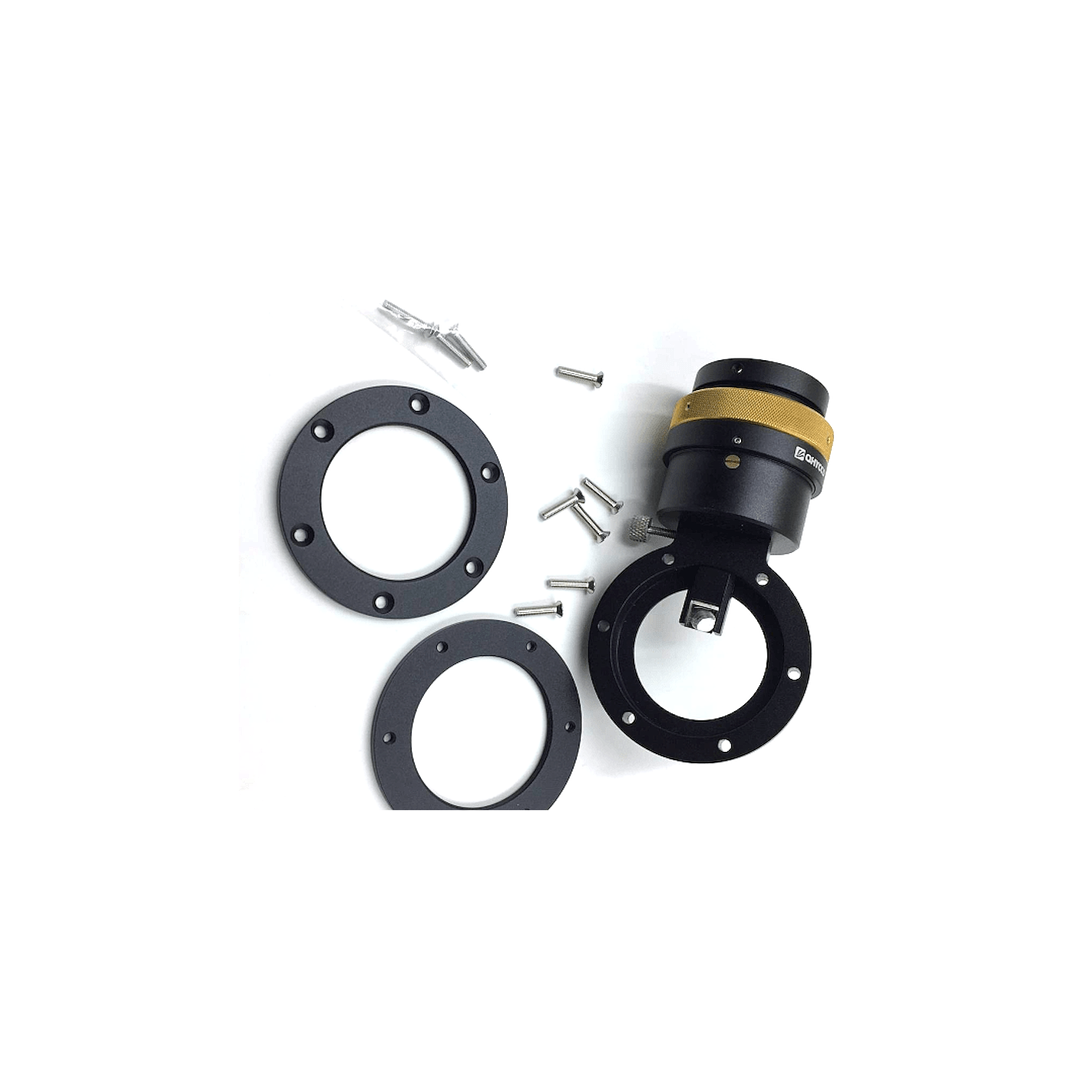

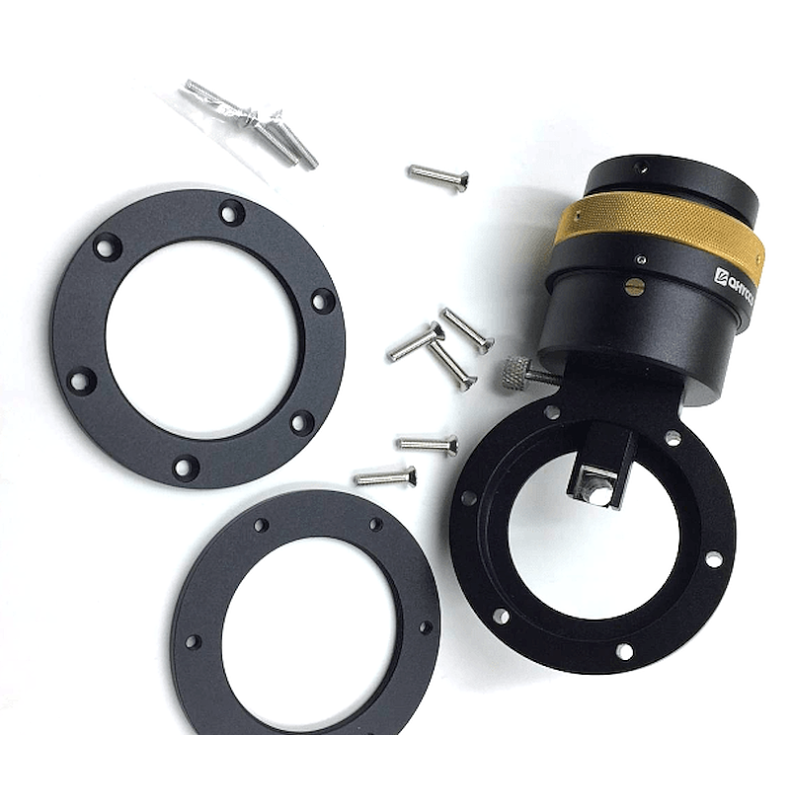

Accessories
