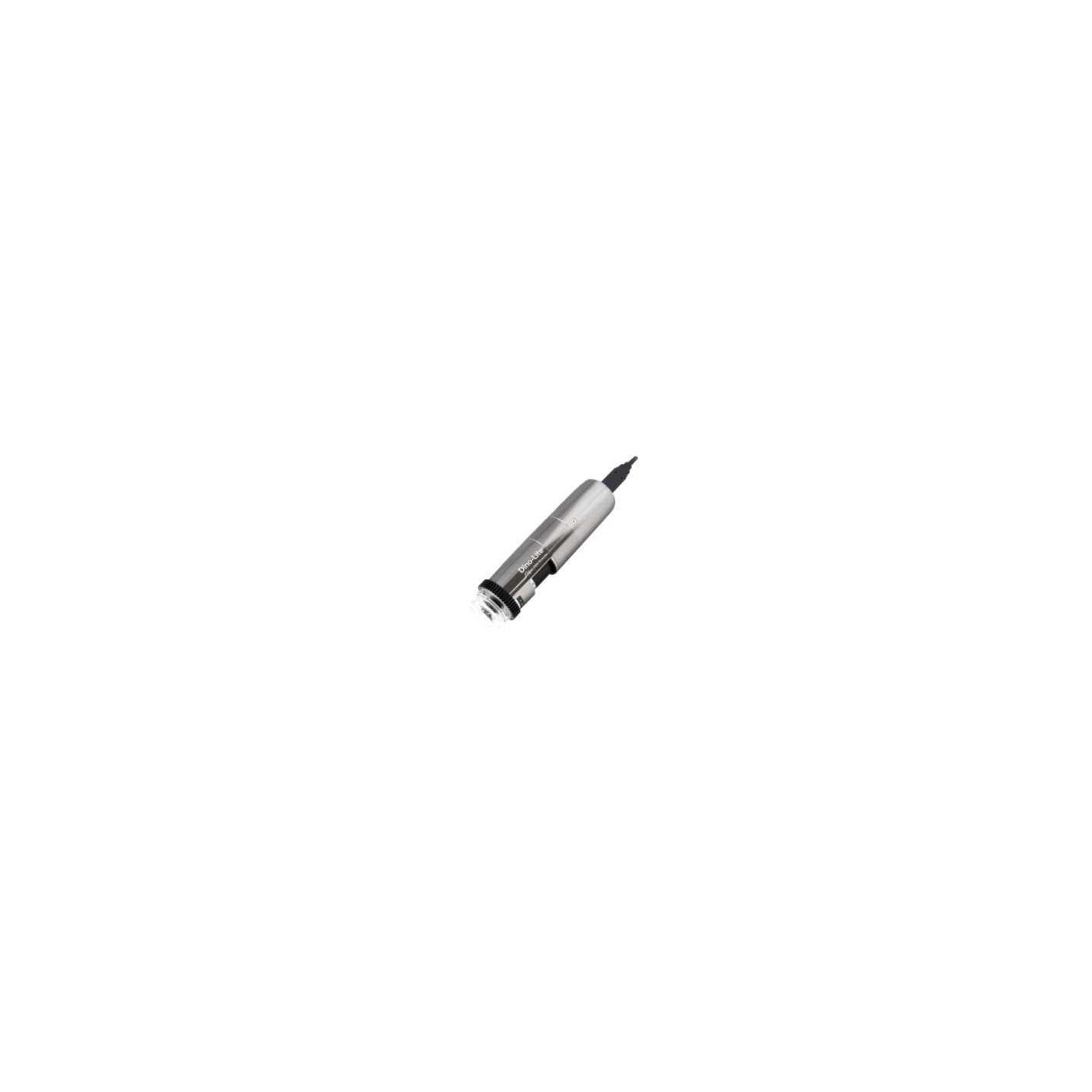

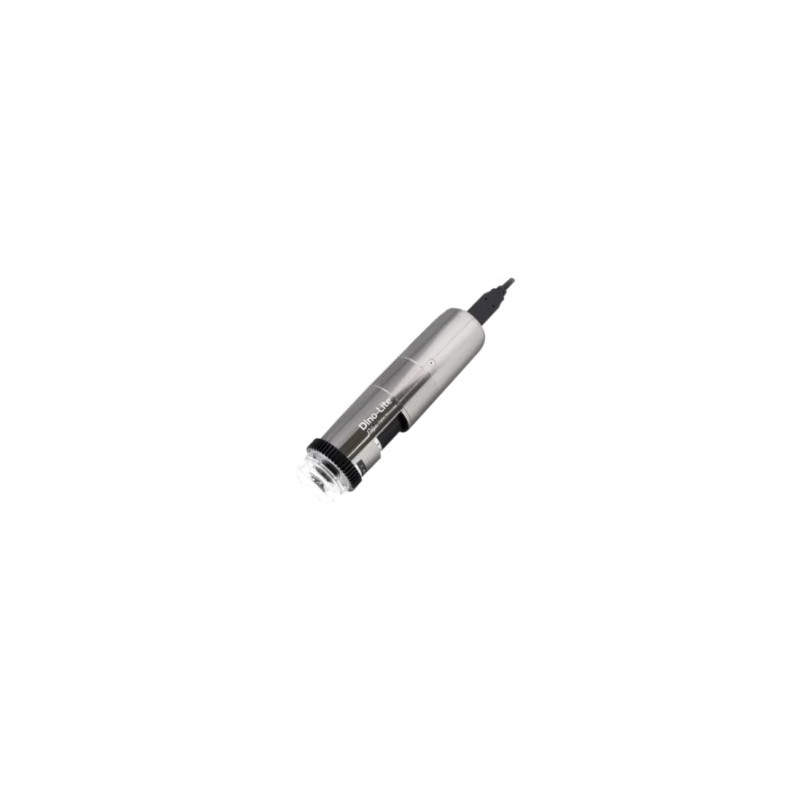

Taking image quality to the next level, the AM8117MZT 8-megapixel digital microscope offers high resolution and color fidelity for a detailed and natural imaging experience. The AM8117MZT includes a polarizer to reduce unwanted reflections, as well as eFLC to maximize illumination adjustability.
The main features of the AM8117MZT are:
- 8 megapixels
- High optical resolution
- Enhanced Flexible LED Control (eFLC)
- Adjustable polarizer
- Rugged metal housing
- 10x to 220x magnification (Edge shadowing occurs below 25x when previewing in 16:9 windows)
- And more..
Specification
| Lighting |
| Light/ LED type |
White |
| Number of LEDs |
|
| Optics |
| Magnification |
10x ~ 220x |
| Working distance |
142.6 ~ 11.5 mm |
| Sensor |
| Sensor type |
CMOS |
| Resolution |
8 Megapixel (3840 x 2160) |
| Maximum frame rate |
10 fps at 8.0 MP, MJPEG 25 fps at 2.0 MP, MJPEG |
| Compatibility |
| Interface |
USB 2.0 |
| Operating system |
Windows 10/11 |
| Supported image formats (Windows) |
BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM |
| Supported video formats (Windows) |
WMV, FLV, SWF |
| Housing |
| Housing material |
Metal housing |
| Dimensions |
130 mm (H) x 33 mm (D) |
| Weight |
120 g |
| Features |
| Measurement |
Yes |
| Calibration |
Yes |
| Microtouch sensor |
Yes |
| Information |
| Package contents |
N3C-C (Close Cap) N3C-D (Diffuser Cap) N3C-D2 (Opal Diffuser Cap) N3C-E (Extended Open Cap) N3C-L (Long Cap) N3C-O (Open Cap) N3C-S (Sidelight Cap) N3C-S (Sidelight Cap) |
| Warranty information |
2 years European warranty |
| Regulatory approval: |
CE, FCC, ROHS |
Working distance/field of view/ depth of field:
| MAGNIFICATION RATE |
WORKING DISTANCE * |
FIELD OF VIEW(X) |
FIELD OF VIEW(Y) |
DEPTH OF FIELD |
|
142. |
60. |
34. |
26. |
|
59. |
30. |
17.07 |
7.05 |
|
33.1 |
20. |
11. |
3. |
|
20.5 |
15. |
8. |
2. |
|
13. |
12. |
6. |
1. |
|
9. |
10. |
5. |
1.01 |
|
6. |
8. |
4.88 |
0. |
|
5.1 |
7. |
4. |
0. |
| 90 |
4.1 |
6. |
3. |
0. |
|
3. |
6.07 |
3. |
0.45 |
| 110 |
3. |
5.52 |
3. |
0. |
|
3. |
5.06 |
2. |
0. |
|
4.1 |
4. |
2. |
0. |
|
4.5 |
4. |
2. |
0. |
|
5. |
4.05 |
2. |
0. |
|
5. |
3. |
2. |
0. |
| 170 |
6. |
3. |
2.01 |
0. |
|
7.5 |
3. |
1.90 |
0. |
|
8.5 |
3. |
1. |
0. |
|
9. |
3. |
1. |
0. |
|
10.5 |
2. |
1. |
0. |
| 220 |
11.5 |
2. |
1. |
0. |
| Listed values may differ slightly |
* Without front cap |
|
Unit = mm |
