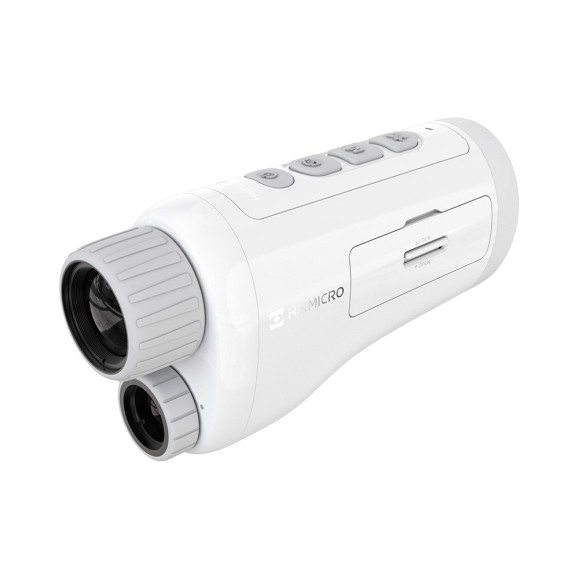

Heimdal H4D digital night monocular with 850 nm IR day mode HIKMICRO

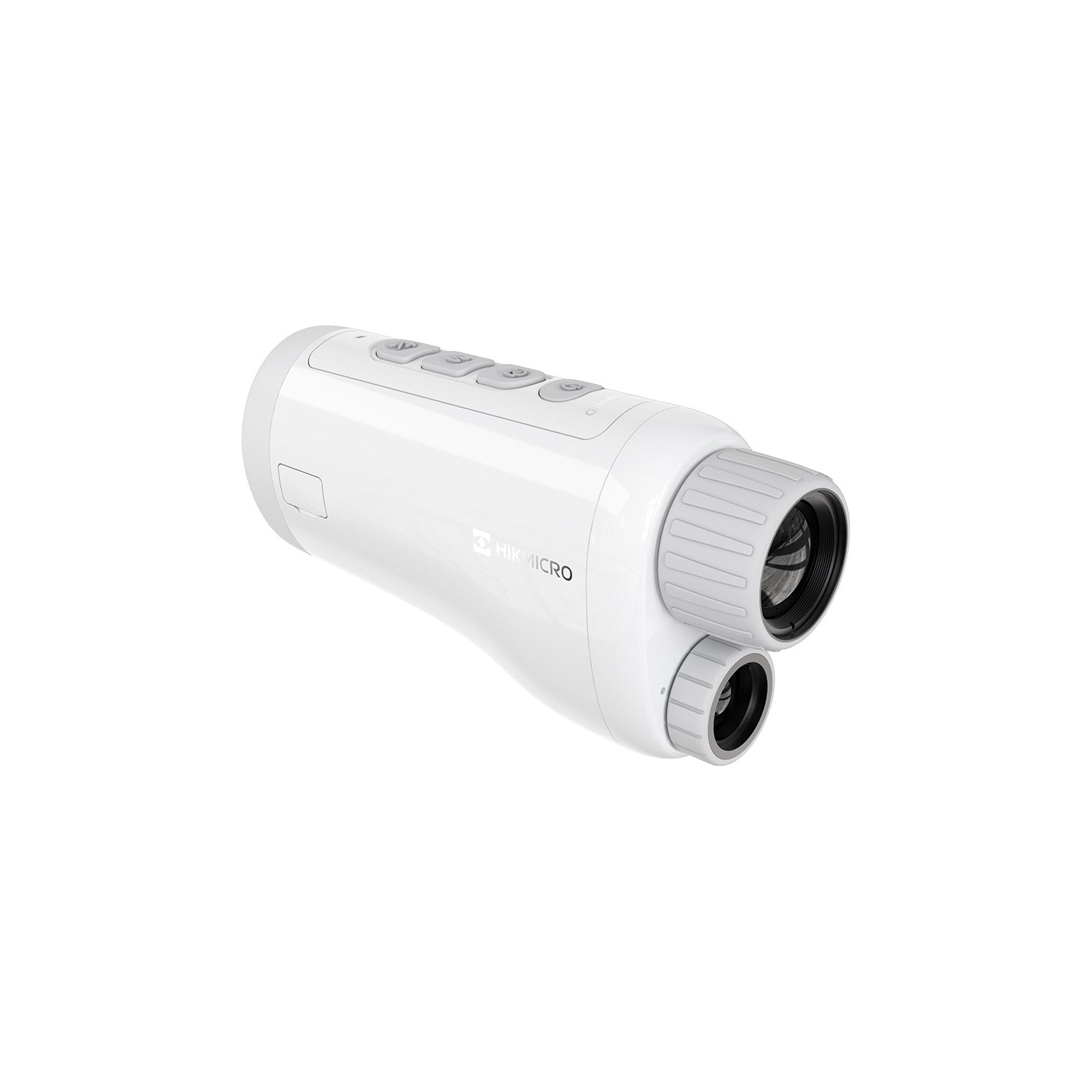

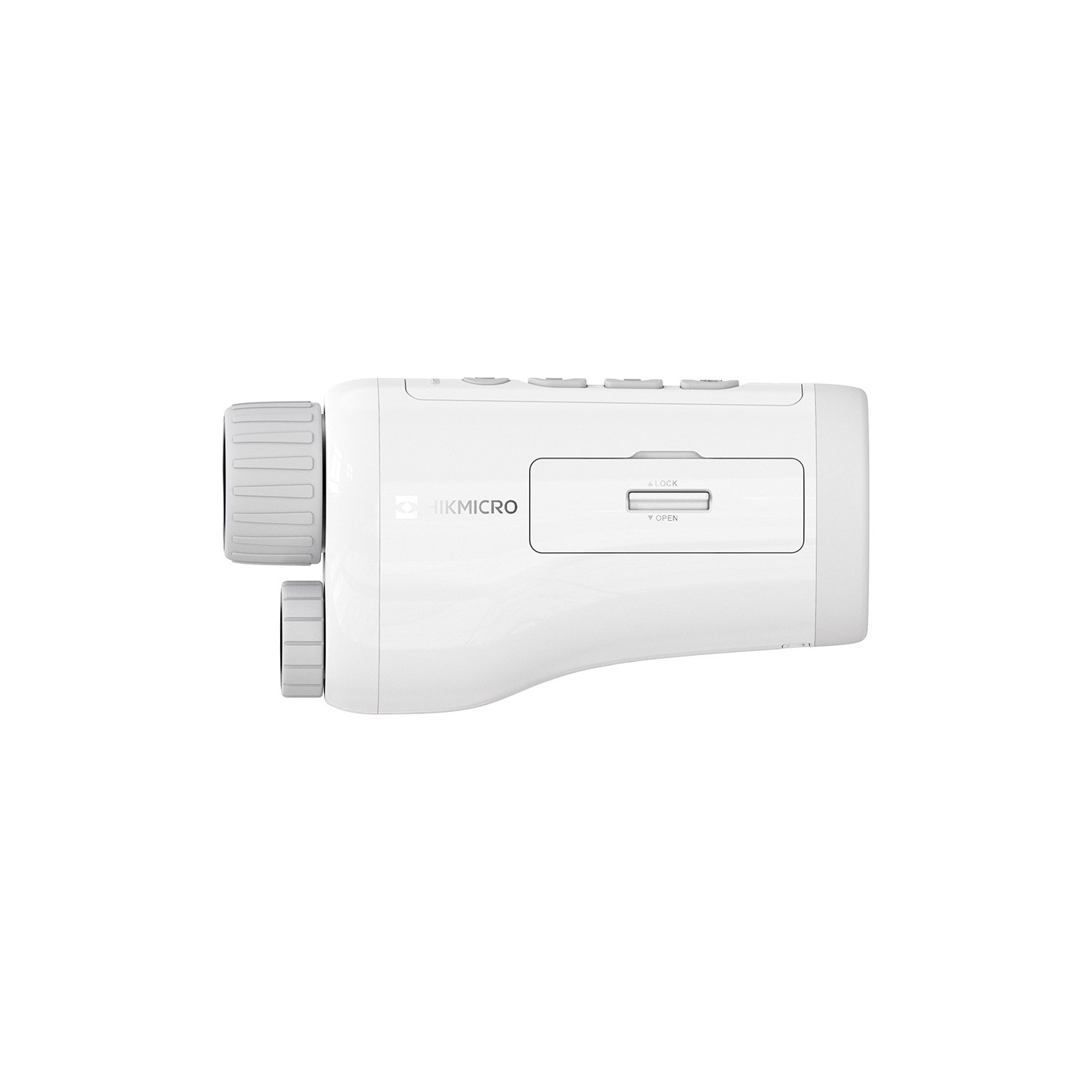

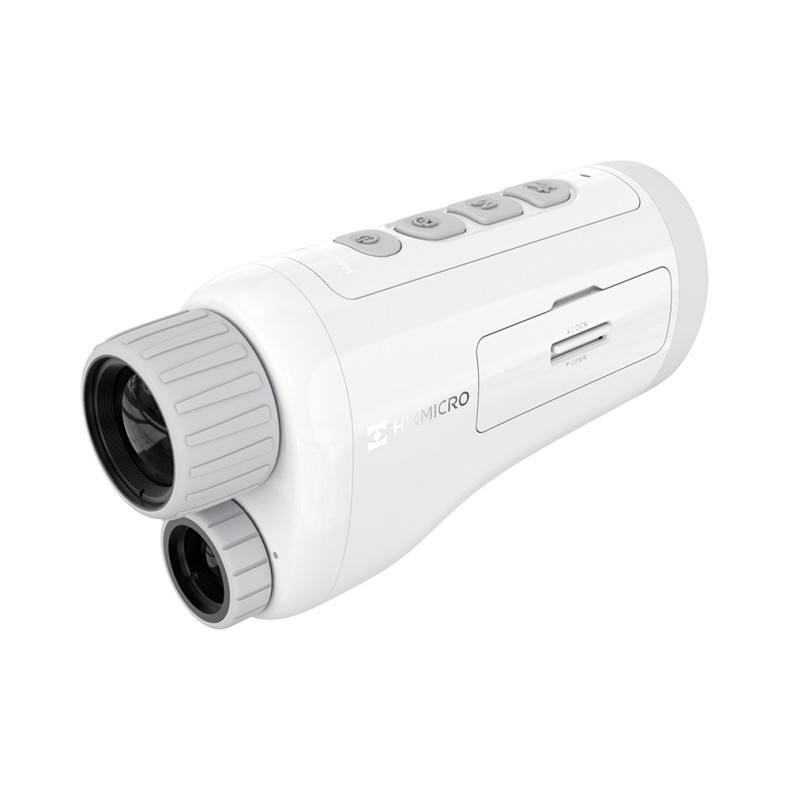

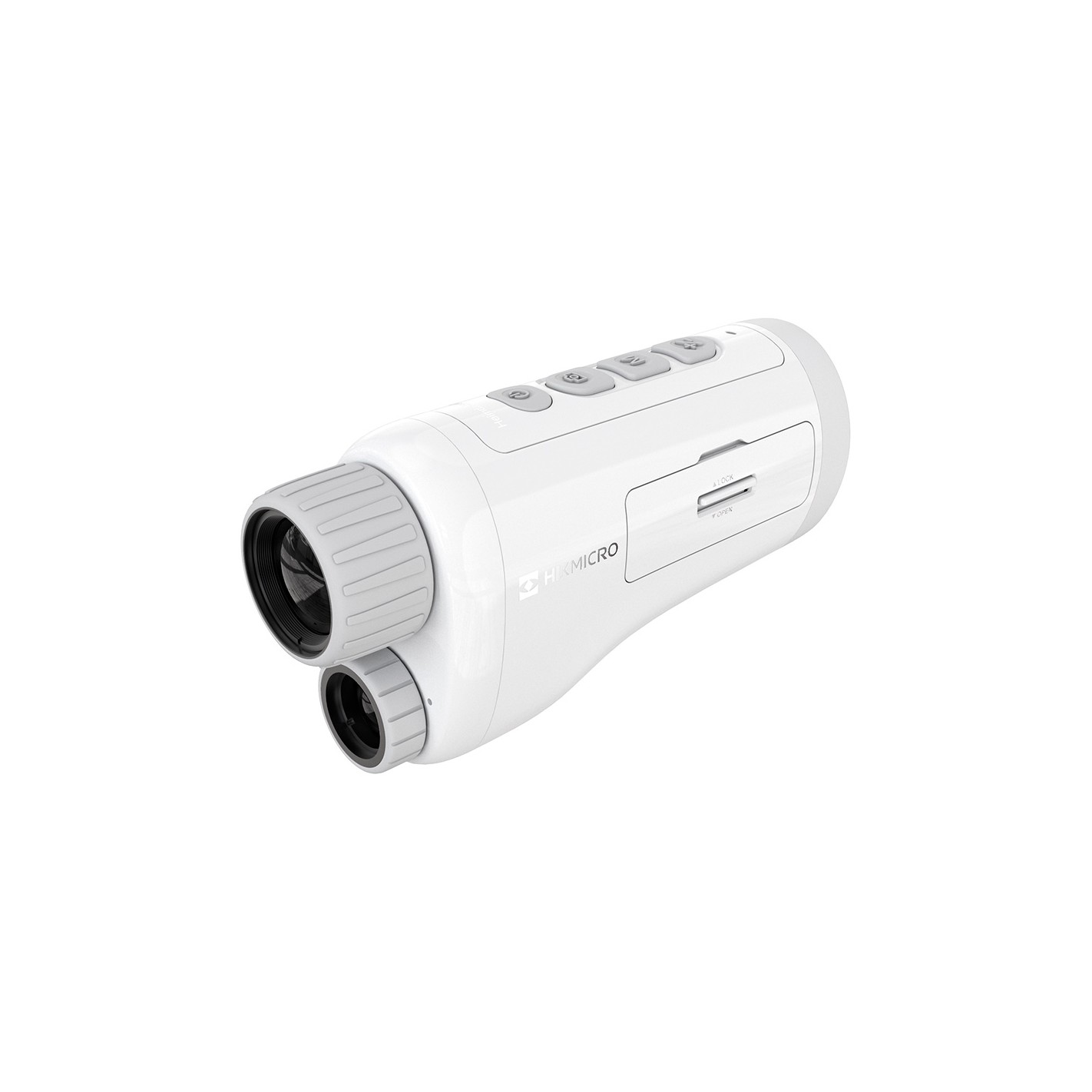

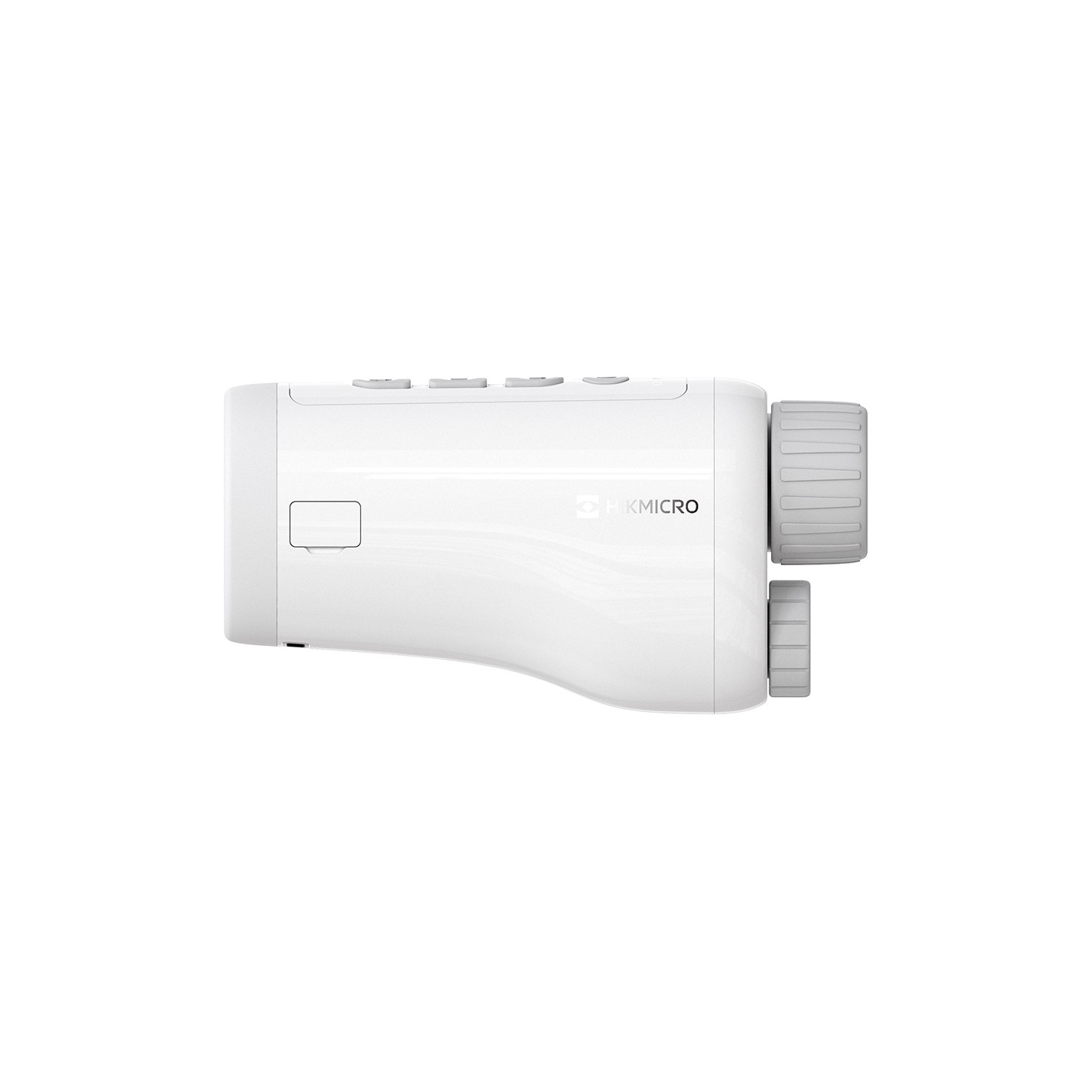

HIKMICRO Heimdal H4D is a digital night vision monocular with a 1.39-inch AMOLED display, providing clear, smooth and vivid images and video even on the move. Its built-in 850nm infrared light enables clear viewing with a detection range of up to 200 meters from dawn to total darkness for 24/7 use. The monocular is perfect for various outdoor activities such as hunting, hiking, camping, bird and landscape watching, etc.

Main Features

• 2560 × 1440 high-definition sensor
• 454 × 454 and 1.39 inch AMOLED display
• Supports Day/Night/Auto/Anti-Fog mode

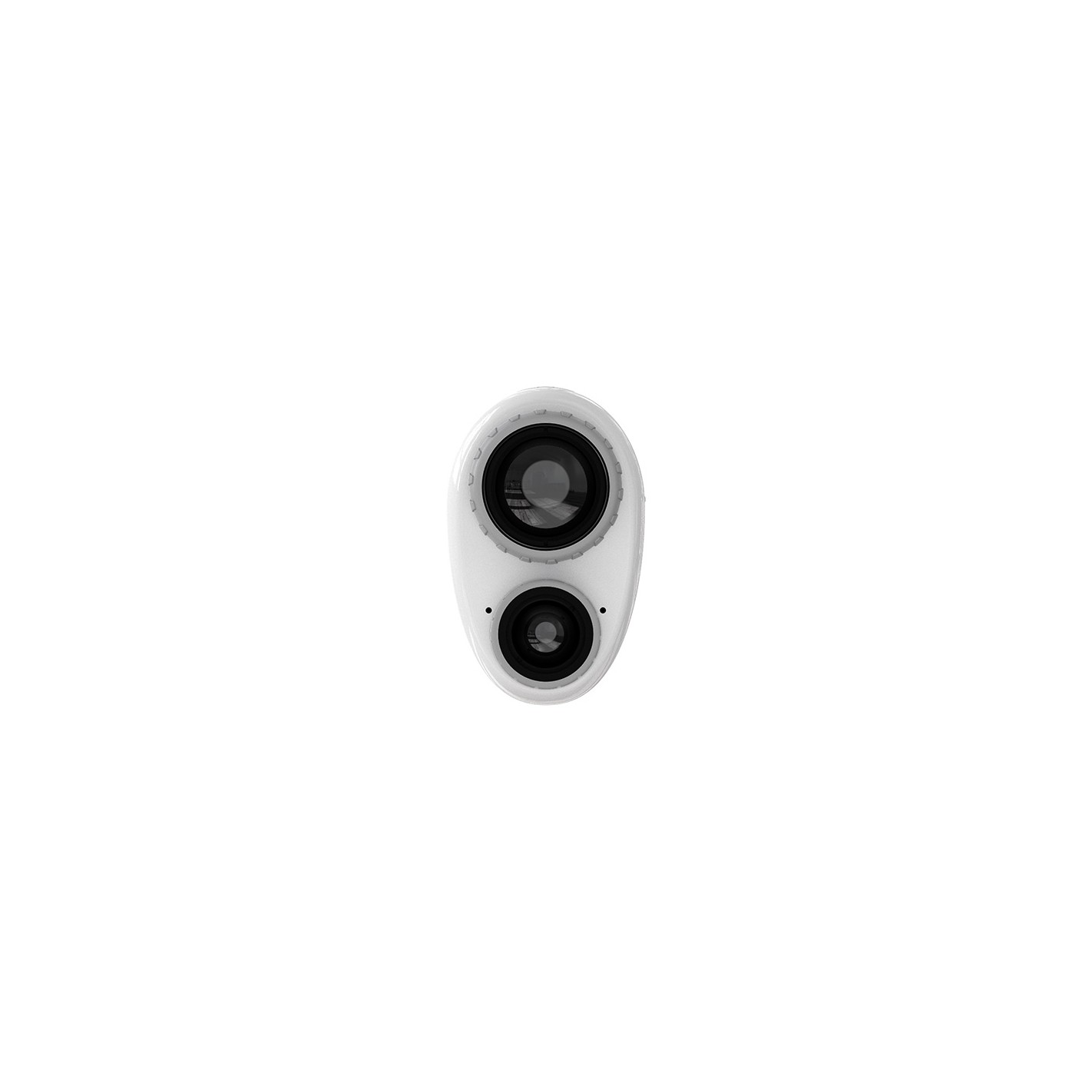

• Built-in 850nm IR emitter
• Video and snapshot recording support, built-in eMMC (32 GB)
• Detection range up to 200m
• Replaceable and rechargeable battery

Specifications

Optical module

• Maximum resolution: 2560 x 1440
• Frame rate: 25 fps
• Lens: 31 mm
• Field of view: 13.66° × 7.71° Field of view: 13.66° × 7.71° Lens: 31 mm
• Aperture: F1.2
• Magnification: 1x, 2x, 4x, 8x
• Detection range: 200 m (with IR 850 nm ON)
• IR light: Adjustable beam angle

Display

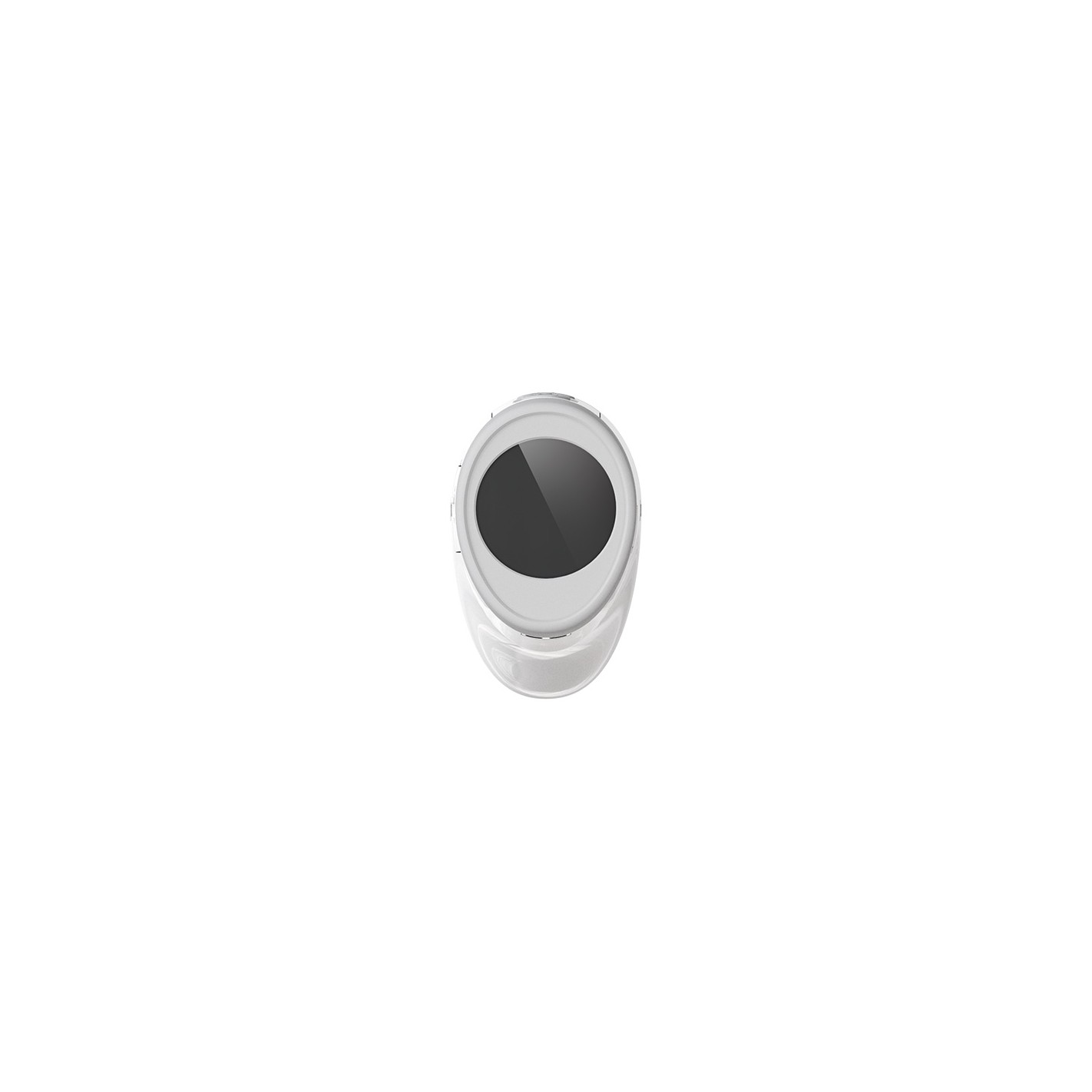

• Monitor: 454 × 454 AMOLED 1.39″ resolution
• Frame rate: 50 fps
• Image Modes: Day, Night, Auto, Anti-Fog
• Brightness adjustment: Yes
• Contrast adjustment: Yes
• White Balance: Yes
• Image Stabilization: Yes

System

• Image capture: Yes (2560 x 1440, JPEG)
• Standby mode: Yes (2560 x 1440, MP4)
• Video recording: Yes
• Storage: Built-in eMMC (32 GB)
• Audio recording: Yes
• Multilanguage: Yes
• Startup time: Standby mode
• WI-FI: Yes
• Local album: Yes

Power supply

• Battery type: Rechargeable lithium-ion battery
• Autonomy: >4 h
• Power supply: 5 VDC, USB Type-C

General

• Working temperature: -30°C to 55°C (-30°F to 55°C)
• Working humidity: ≤ 95%
• Dimensions: 153 mm × 50 mm × 80 mm
• Weight: 375 g
• Protection level: IP66

HIKMICRO SIGHT App for IOS & Android

Download the HIKMICRO SIGHT APP to be able to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You will also be able to download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the APP HIKMICRO SIGHT. Compatible with all models of HIKMICRO thermal monoculars.
