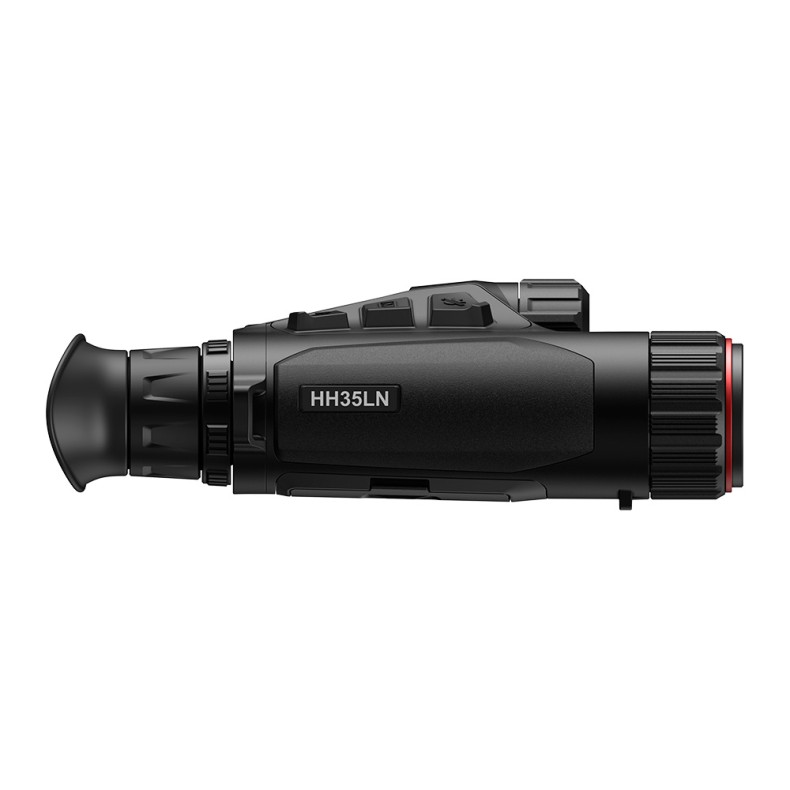

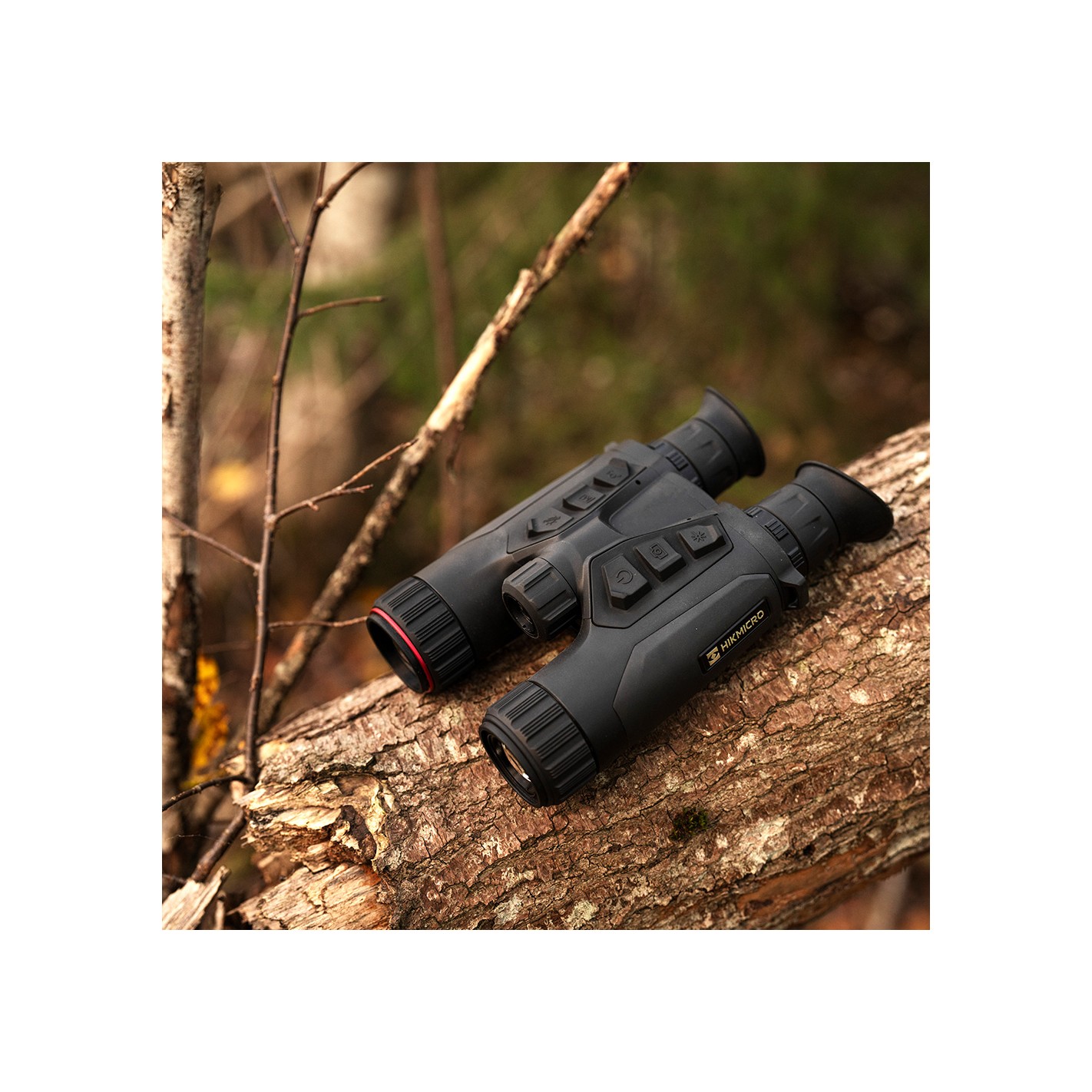

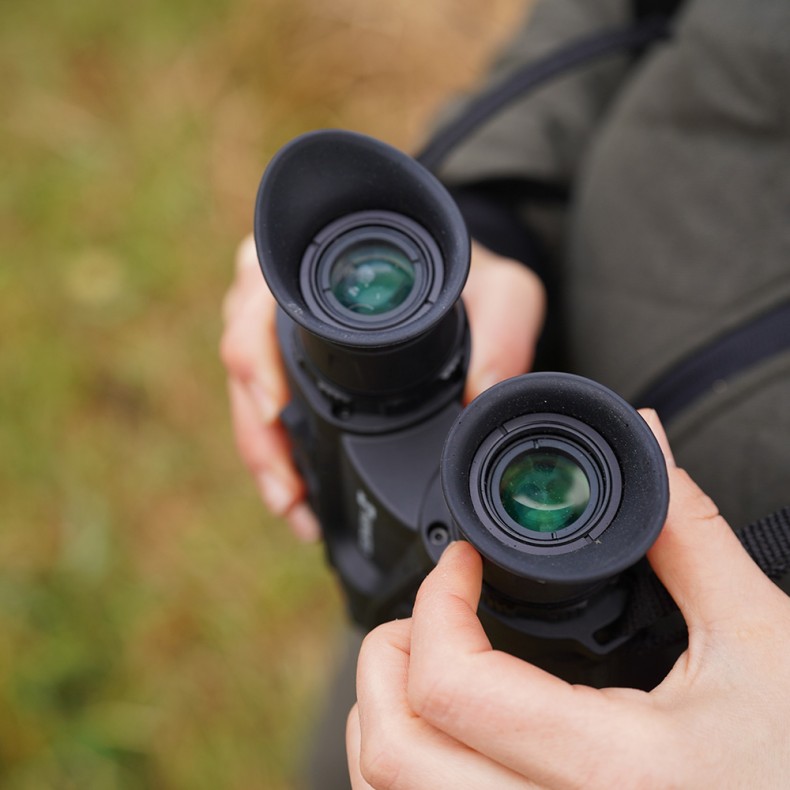

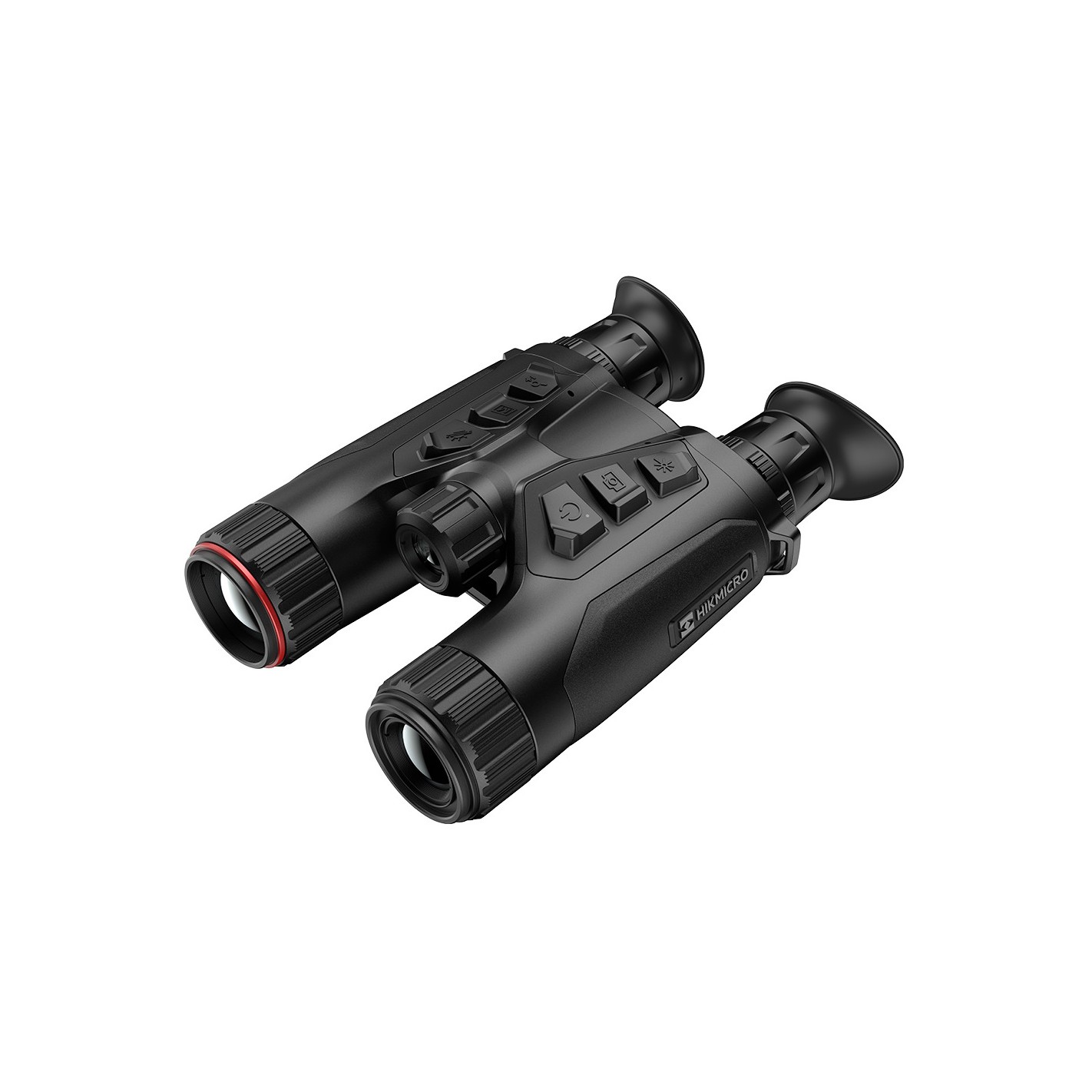

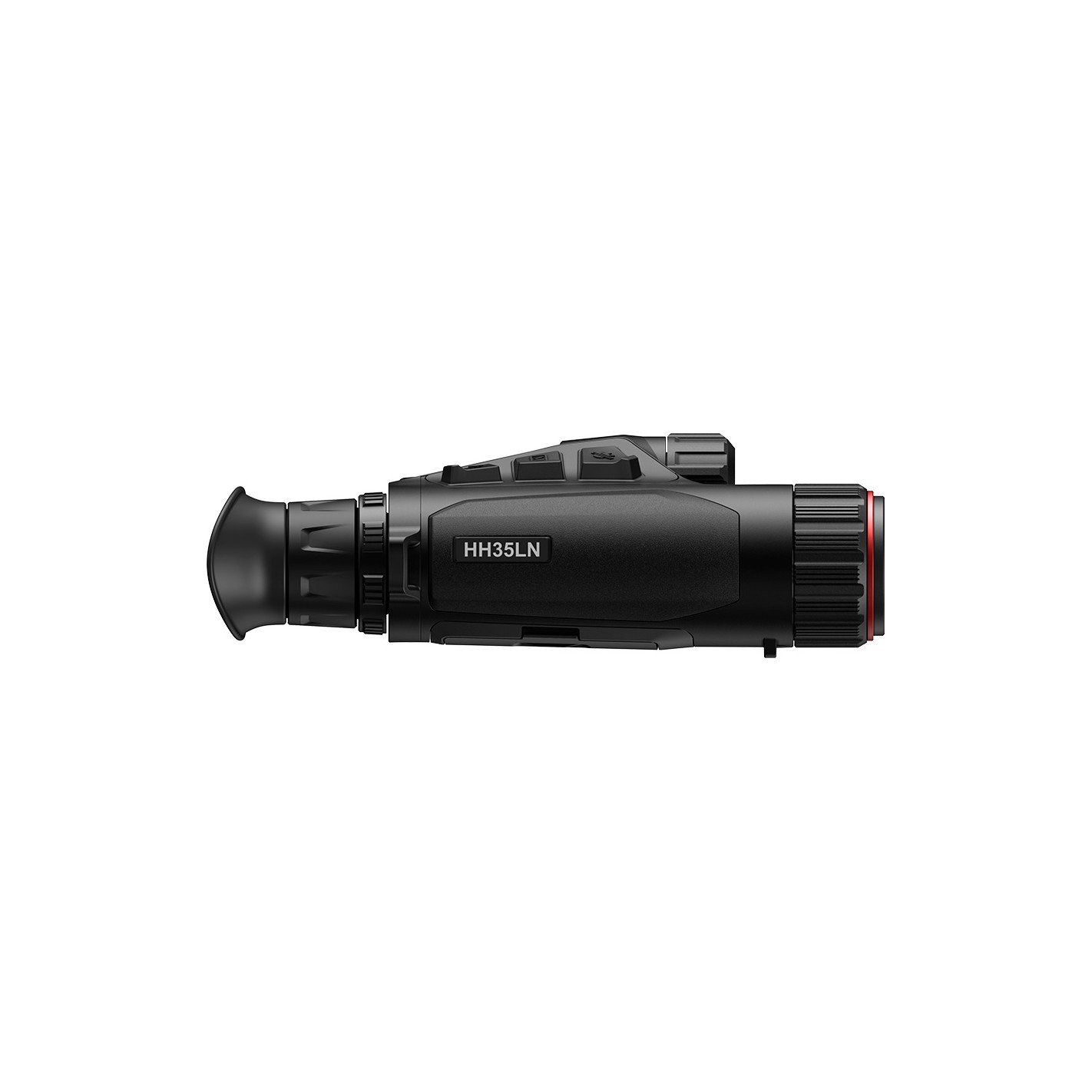

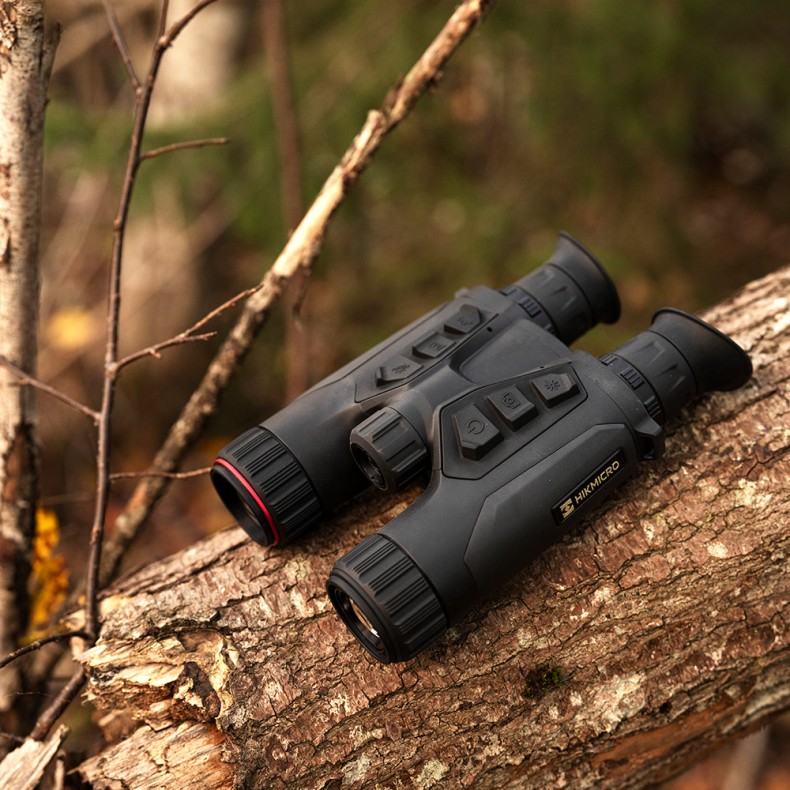

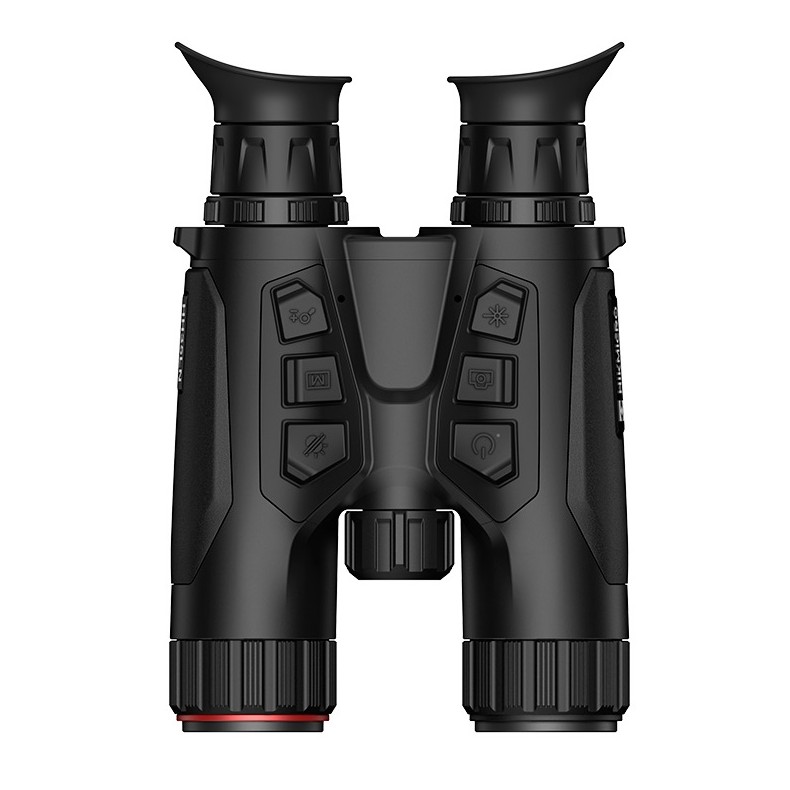

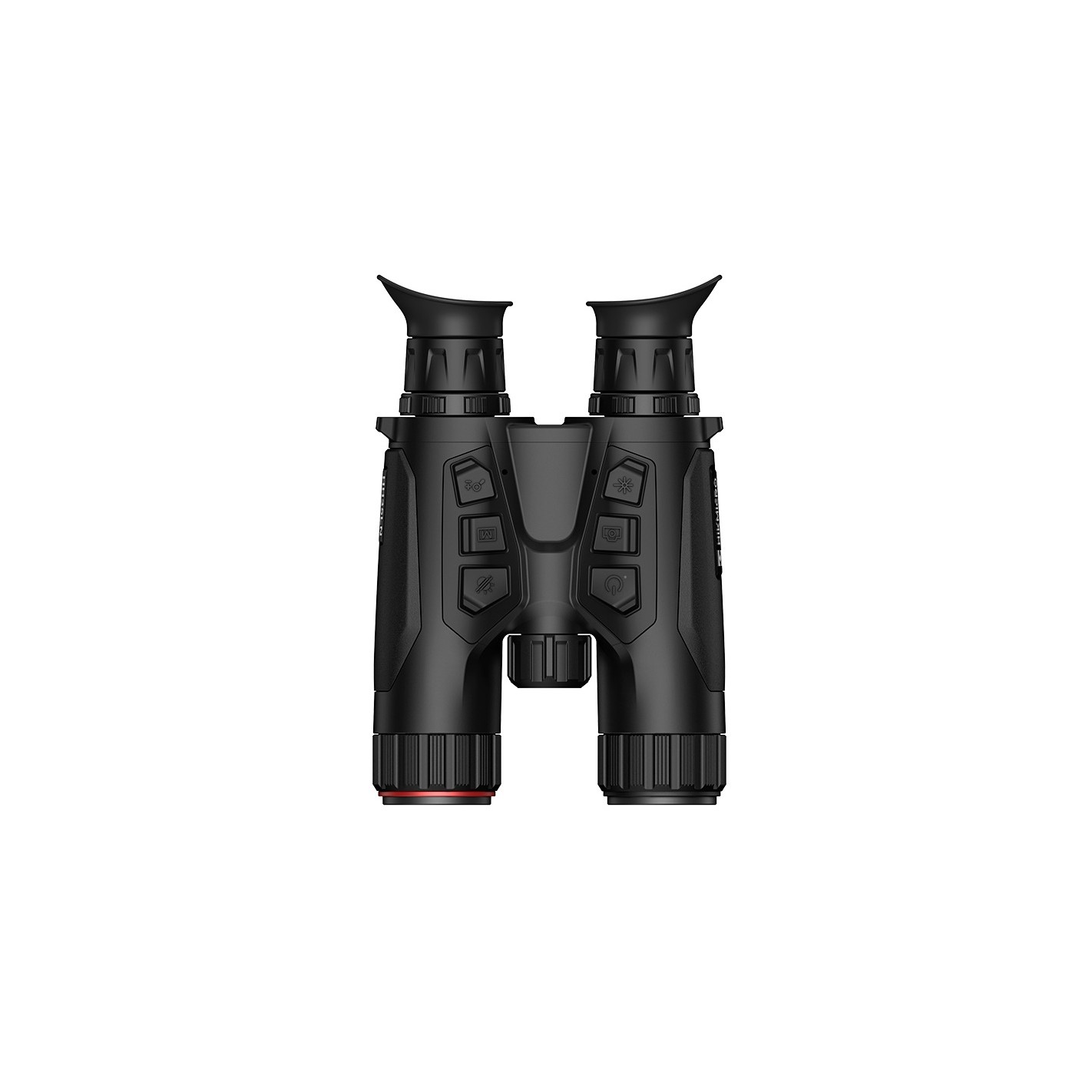

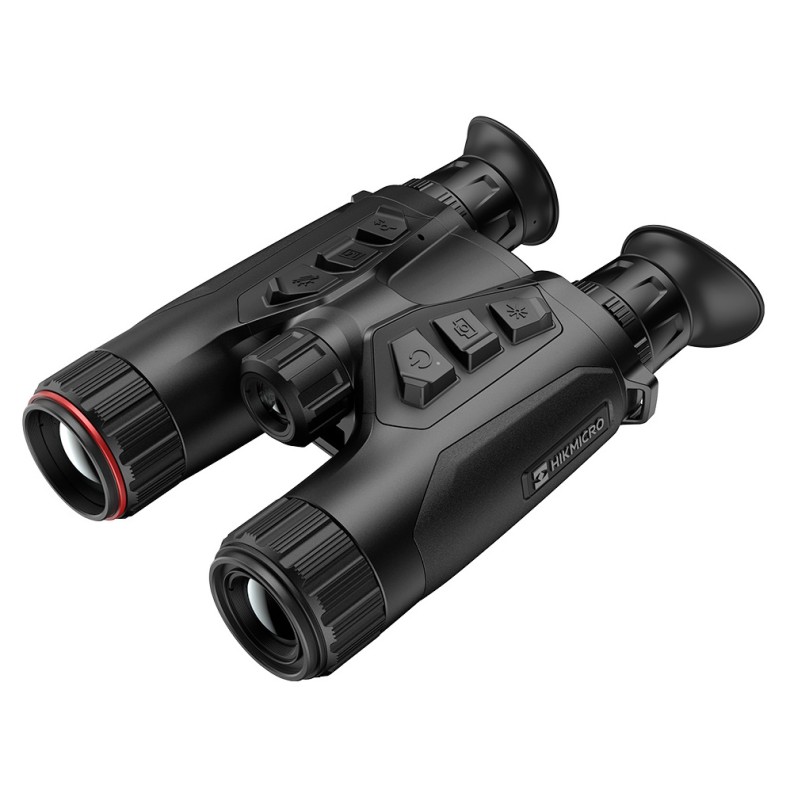

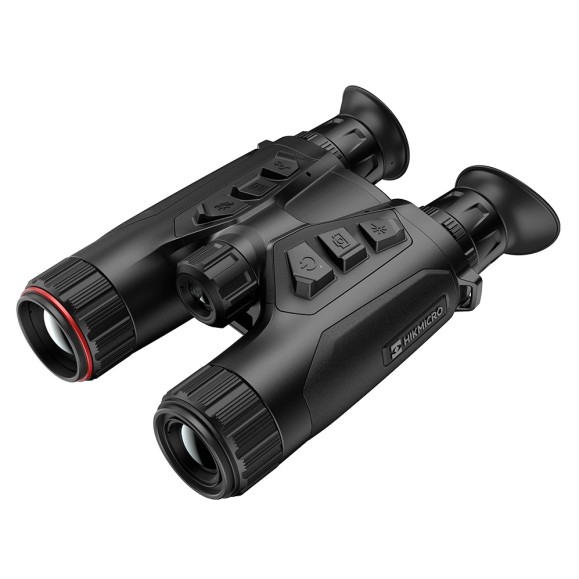

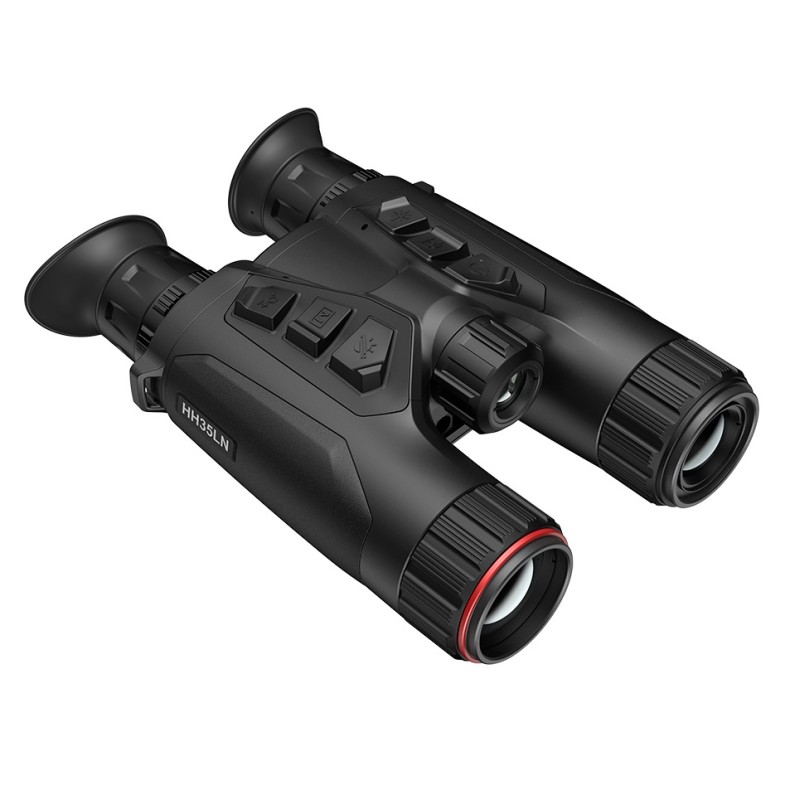

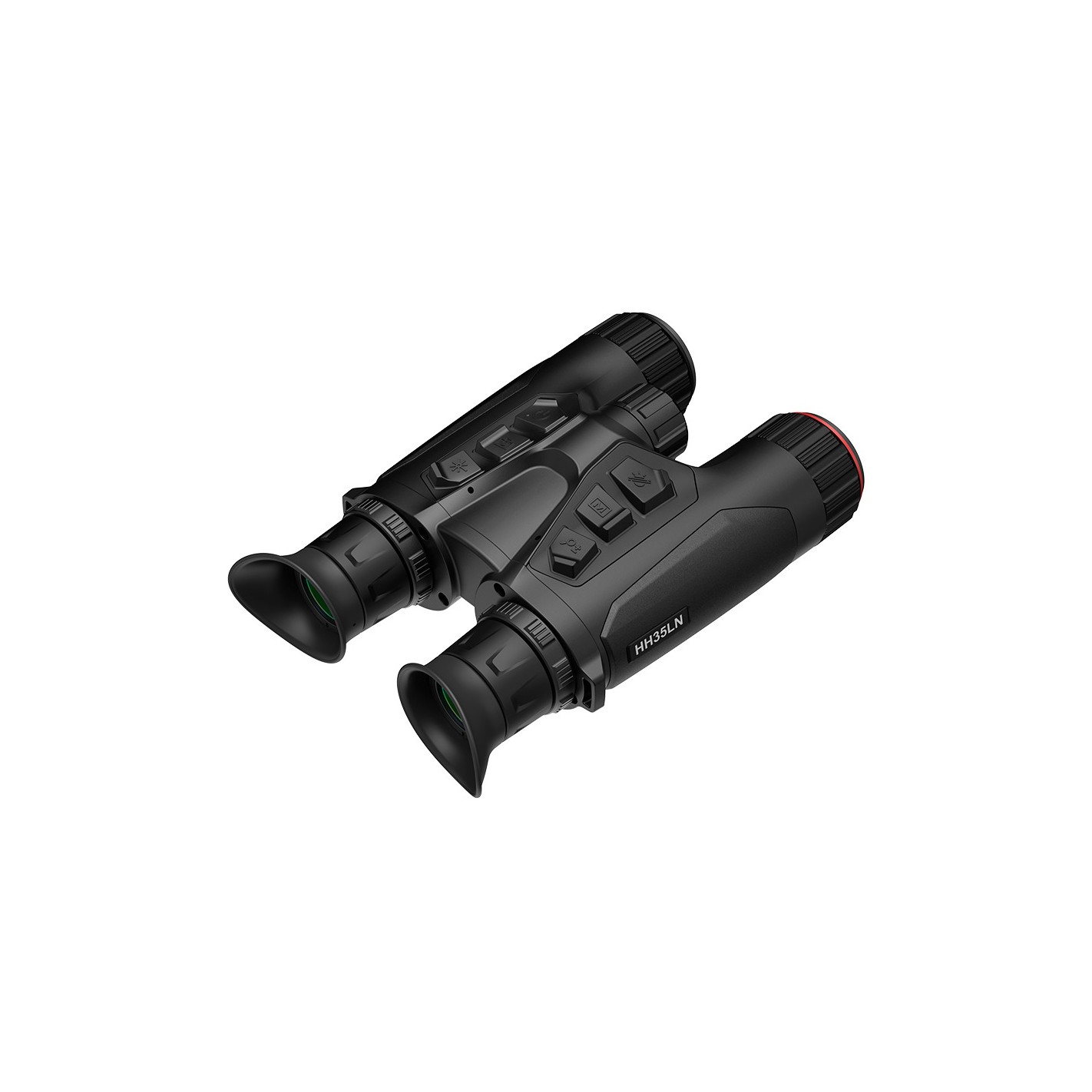

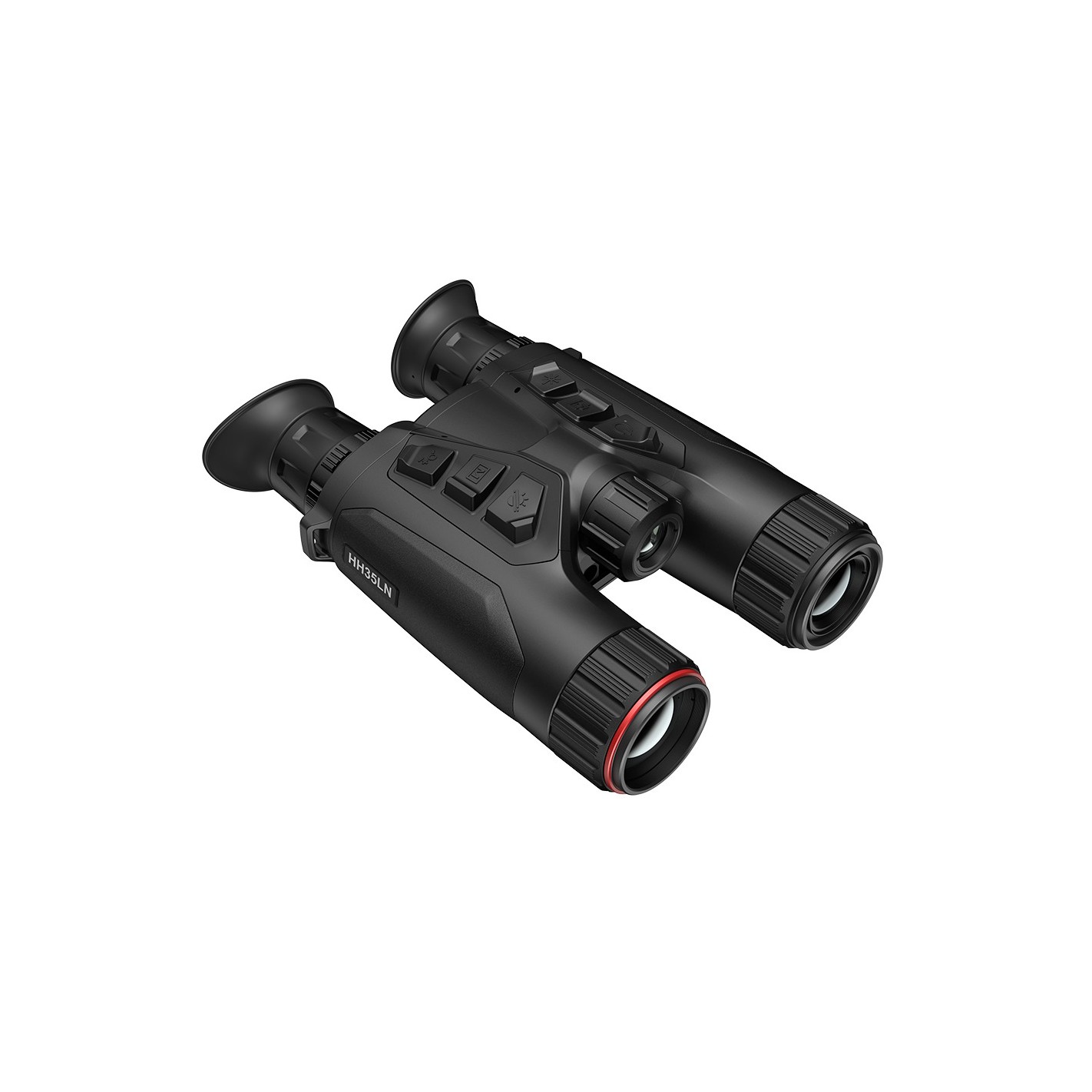

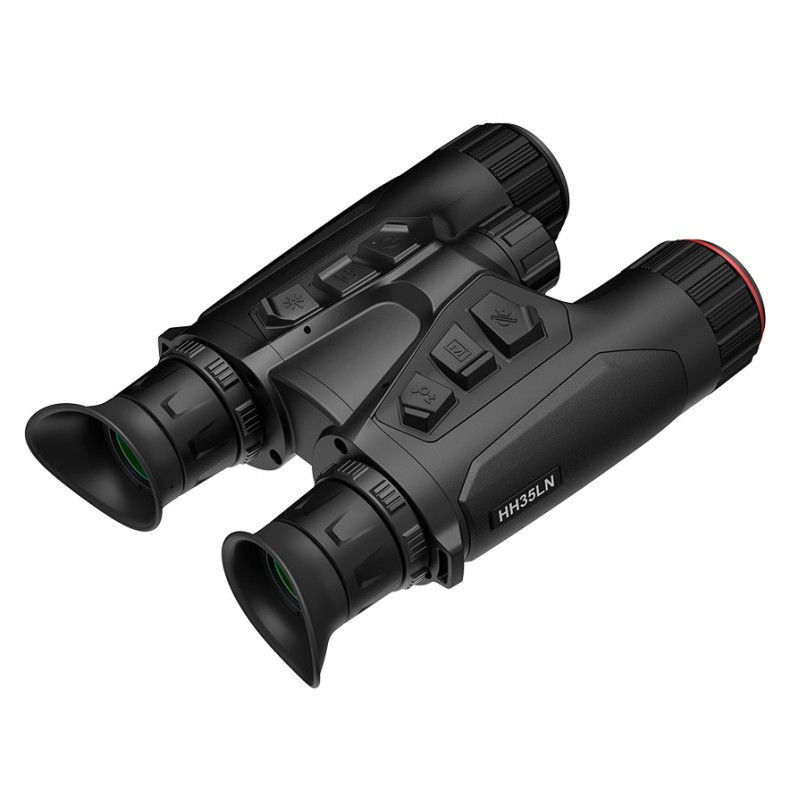

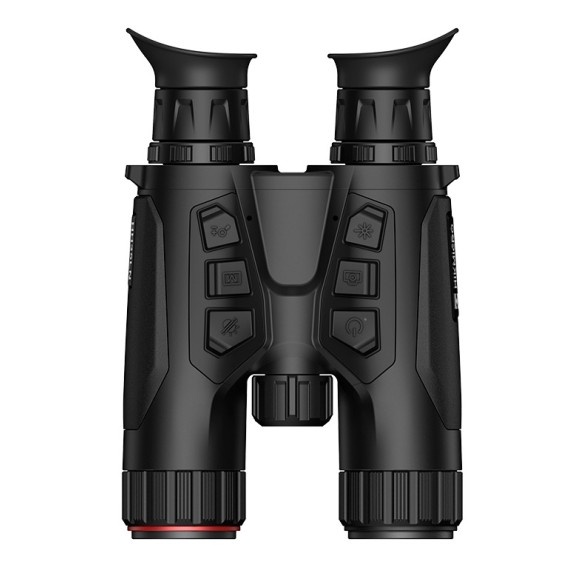

HABROK HH35LN HIKMICRO Multispectrum Thermal Binoculars with IR Rangefinder 940nm HABROK HH35LN HIKMICRO

The HIKMICRO HABROK HH35LN multispectral binocular is equipped with a 384 × 288 @ 12um, NETD thermal sensor

Main features

• 384 × 288 @ 12 μm resolution thermal sensor
• NETD＜20 mK high-sensitivity thermal module (@25°C, F# = 1.0)
• 35 mm F1.0 lens with detection range of up to 1,800 meters
• 2560 x 1440 high-resolution CMOS detector
• 0.49-inch OLED display with 1920 × 1080 resolution
• Built-in 940 nm IR emitter and laser range finder with 1,000 m measuring distance
• Up to 5 hours of continuous operation
• 850 g weight with compact and ergonomic design

Technical Specifications

Thermal module

• Image sensor: Uncooled focal plane arrays VOx 384 × 288
• Pixel pitch: 12 μm
• Lens: 35 mm
• NETD: Less than 20 mK (@ 25 ° C), F# = 1.0
• Field of view: 7.5 ° × 5.7 ° ( H × V)
• Magnification: 5.0x - 40x (8x)
• Detection range: 1,800 meters

Optical module

• Image sensor: 1.88″ progressive scan CMOS
• Resolution: 2560 x 1440
• Lens: 31 mm, F1.2
• Minimum illumination: 0.001 lux @ (F1.0, AGC on)
• Magnification: 2.9x - 23.2x (8x)
• Field of view: 13.9° x 7.8° (13.9° x 7.8°)
• IR Emitter: 940nm
• Safety class: Class 1
• Night vision range: 350 meters

Image Display

• Monitor: OLED 1920 x 1080 px
• Frame Rate: 50 Hz
• Palettes: THERMAL (Vivid Black, Vivid White, Vivid Red, and Fusion); OPTICAL (Day, Night, and Auto)
• Image enhancements: Image Pro and Zoom Pro

Distance Meter

• Laser range finder: Yes
• Maximum measuring range: 1,000 meters
• Minimum measuring range: 10 meters
• Rangefinder wavelength: 905 nm
• Measurement accuracy: ± 1 m

System

• Storage: Built-in memory module (64GB) Yes
• Video recording: Yes
• Snapshot capture: Yes
• Hot track: Yes
• Wifi: Yes
• Standby mode: Yes

General

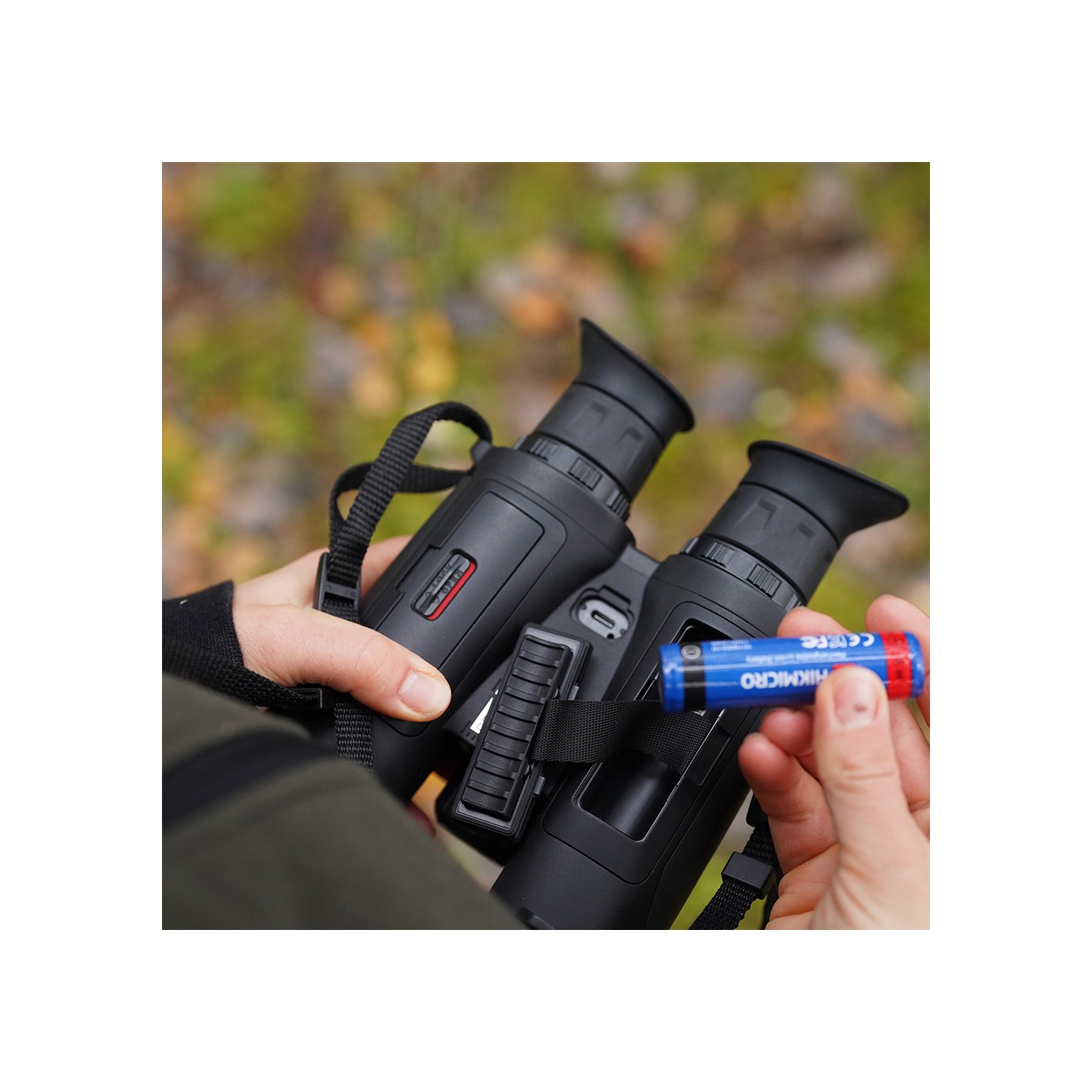

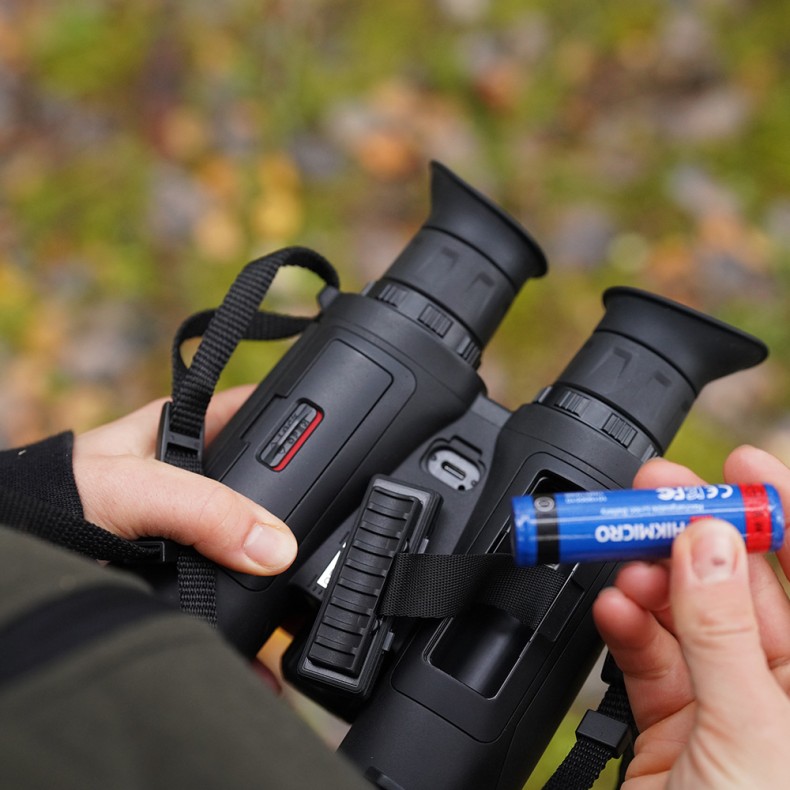

• Battery Type: Rechargeable lithium-ion (replaceable)
• Operating time: Up to 5 hours continuous operation.
• Protection: IP67
• Working Temperature: From -30 ° C to 55 ° C
• Dimensions: 217.5 mm × 155 mm × 87.5 mm
• Weight: 850 g (without batteries)
• Warranty: 36 months
• Sensor warranty: 10 years

App HIKMICRO SIGHT for IOS and Android

Download the HIKMICRO SIGHT APP to be able to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You will also be able to download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the APP HIKMICRO SIGHT. Compatible with all models of HIKMICRO thermal monoculars.
