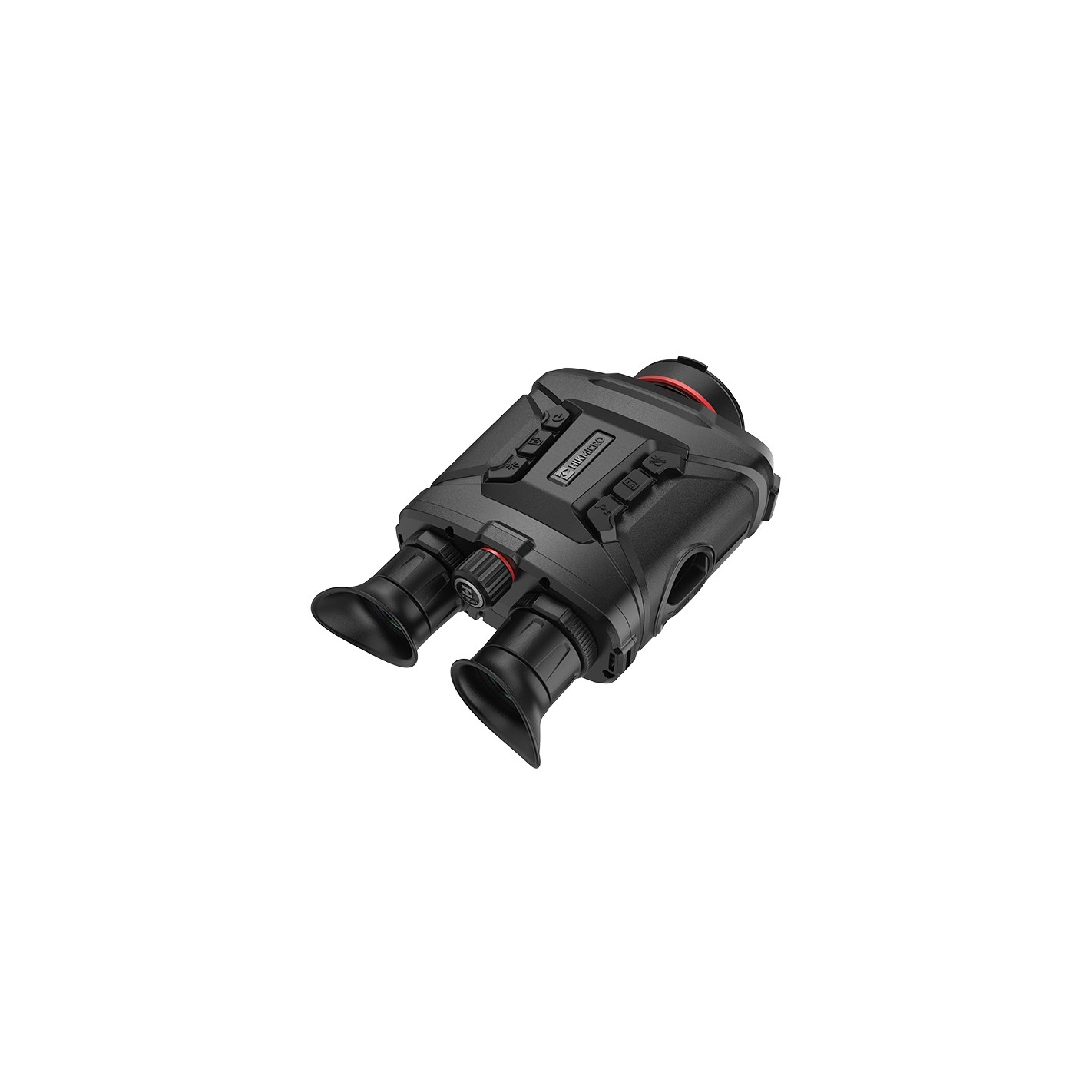

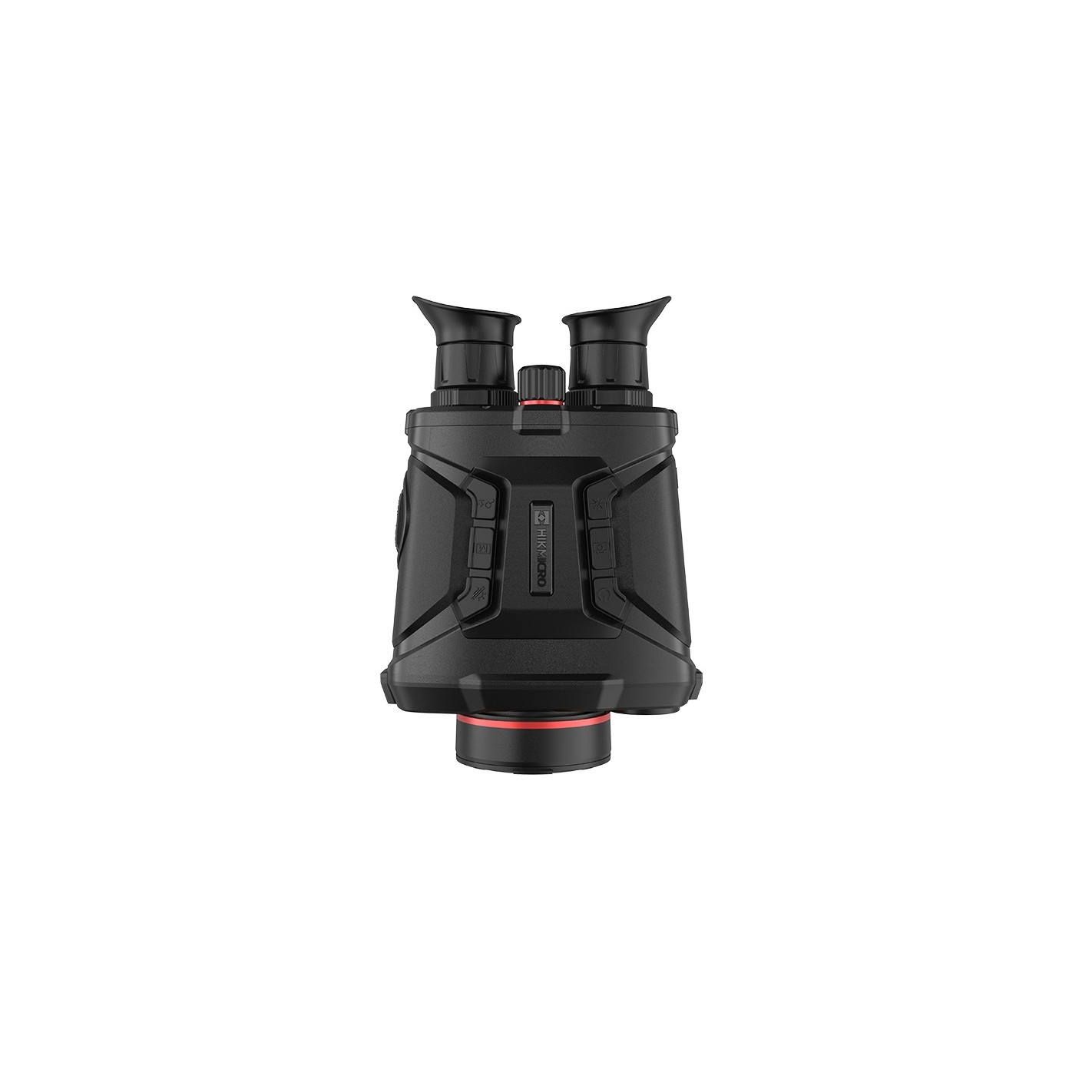

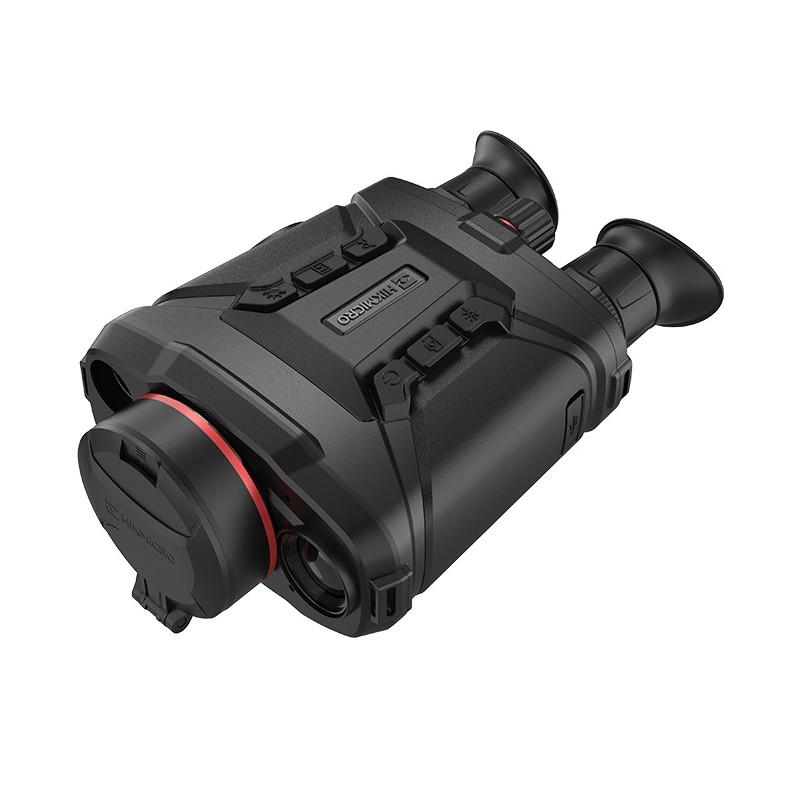

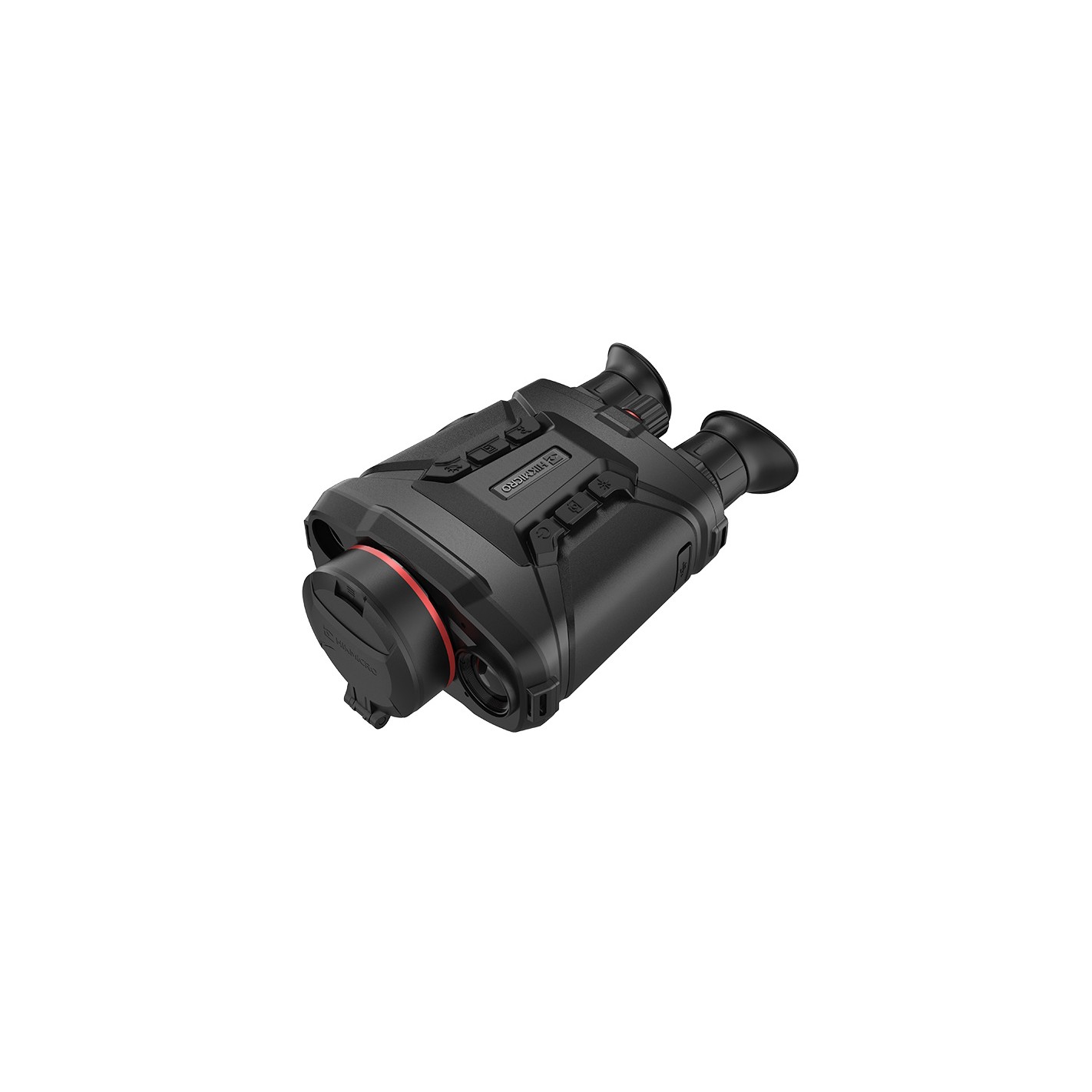

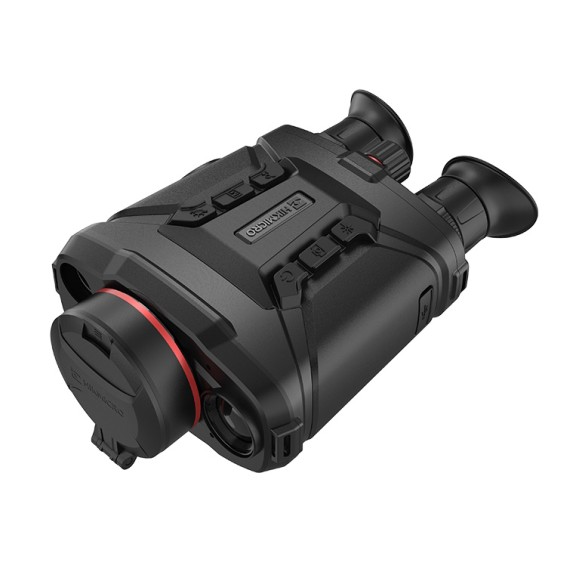

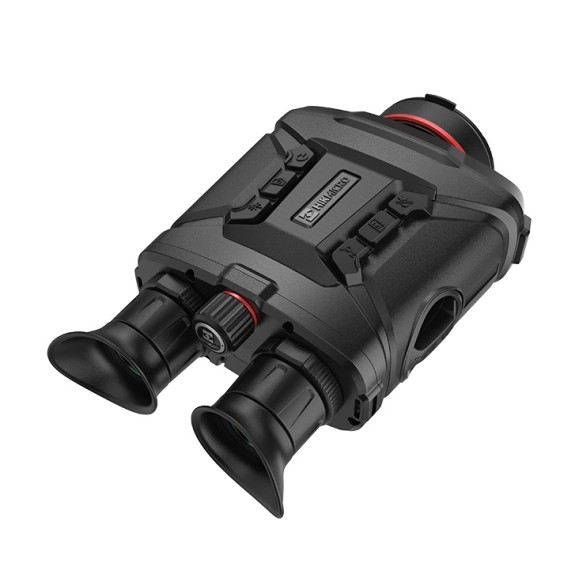

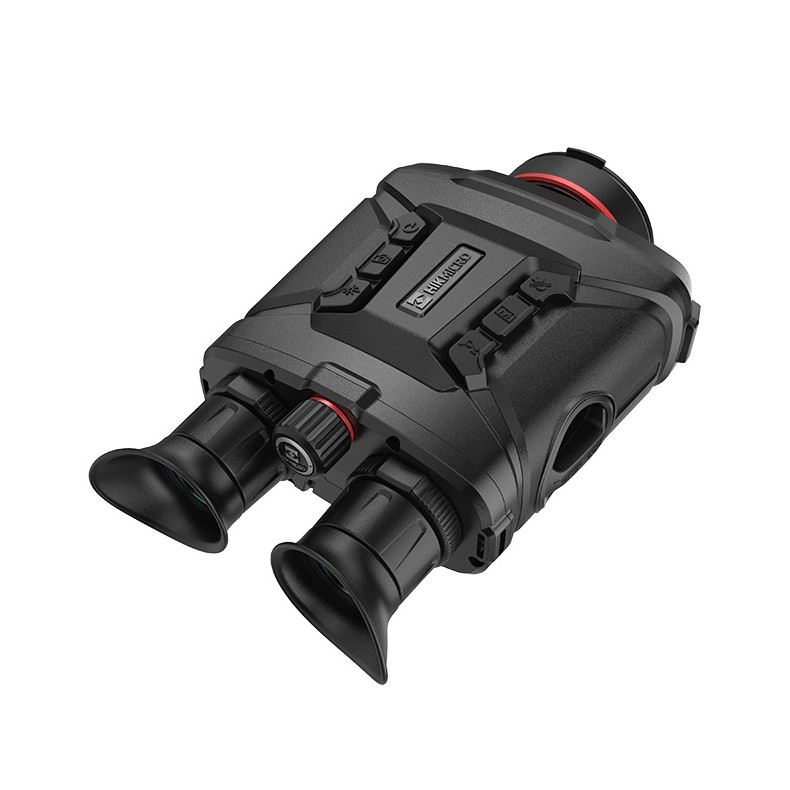

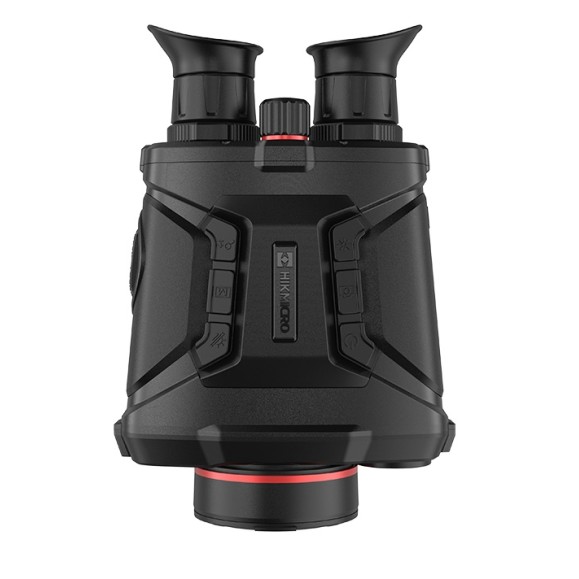

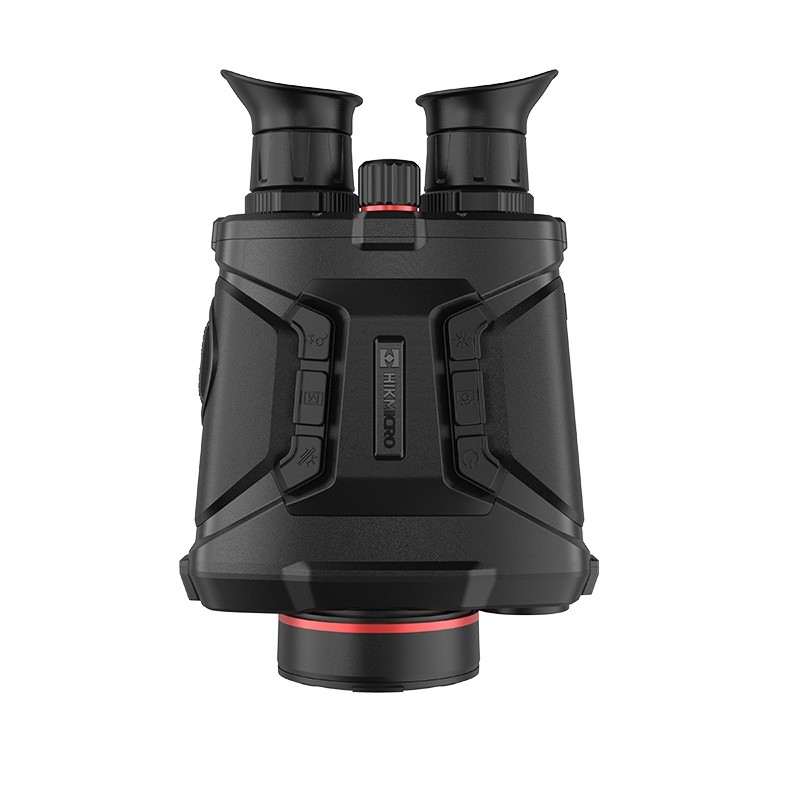

The HIKMICRO RAPTOR series is a powerful and innovative handheld thermal and digital night vision binocular that adopts a 12 μm infrared thermal sensor with NETD sensitivity
Features
- 640 × 512 resolution with 12 μm thermal sensor
- High sensitivity NETD thermal detector
- Super large aperture thermal lens f / 0.9
- High resolution 2560 × 1440 CMOS sensor
- Built-in 850 nm IR illuminator
- Laser range finder, measuring distance of 1000 m (with an accuracy of ± 1 m)
- Thermal detection range up to 3,600 m (10,000 ft)
- Supports thermal mode, optical mode and image fusion mode
- 0.39 inch OLED display with 1024 × 768 resolution
- Support PIP, GPS, DMC, local album, hotspot, etc. Intelligent functions
- Video and snapshot recording support, built-in EMMC (64 GB)
Technical Specifications
- Image sensor: Uncooled focal plane arrays VOx 640× 512
- Pixel pitch: 12 μm
- Lens: 75 mm
- NETD: Less than 20 mK (@ 25 ° C), F# = 1.0
- Field of view: 5.9 ° × 4.7 ° ( H × V)
- Magnification: 5.1
- Monitor: OLED 1024 x 768 px
- Frame Rate: 25 Hz
- Color palettes: Vivid black, vivid white, vivid red, fusion
- Digital zoom : 1 x, 2 x, 4 x, 8 x, 16 x
- Hot track: Yes
- Detection range: 3,600 meters
- Intelligent IR: Yes
- IR wavelength: 850 nm
- Night vision range: 400 meters
- Laser range finder: Class 1
- Measurement range: 1,000 meters
- Rangefinder wavelength: 905 nm
- Measurement accuracy: ± 1 m
- Storage: Built-in memory module (64 GB) Yes
- Video recording: Yes
- Snapshot capture: Yes
- Wifi: Yes
- Standby Mode: Yes
- Battery Type: Rechargeable lithium ion (replaceable)
- Operating Time: Up to 8 hours continuous operation.
- Protection: IP67
- Working Temperature: From -30 ° C to 55 ° C
- Dimensions: 230 mm × 155 mm × 88 mm
- Weight: 1,450 g
- Warranty: 36 months
- Sensor warranty: 10 years
HIKMICRO SIGHT App for IOS and Android
Download the HIKMICRO SIGHT APP to be able to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You will also be able to download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the APP HIKMICRO SIGHT. Compatible with all models of HIKMICRO thermal monoculars.
