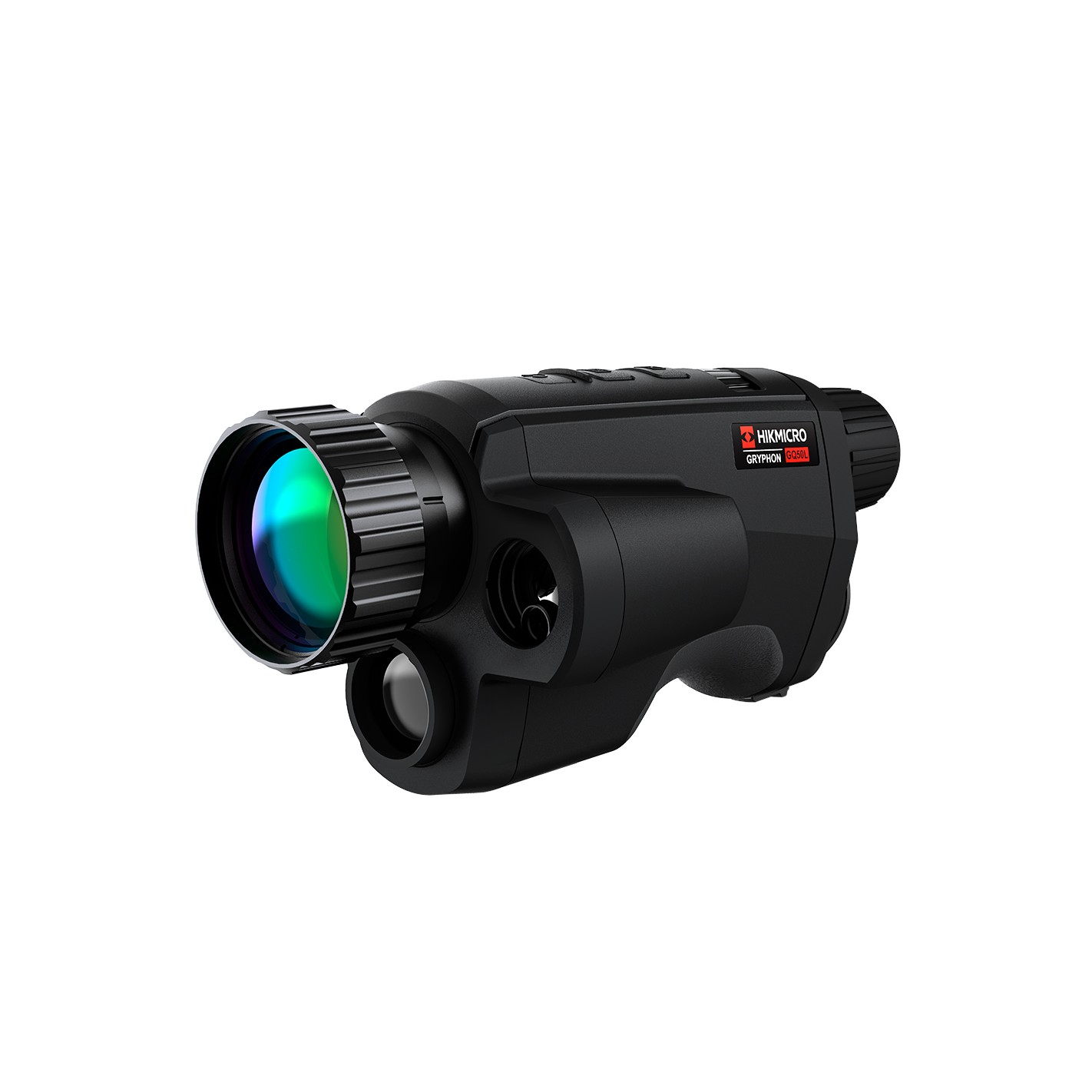

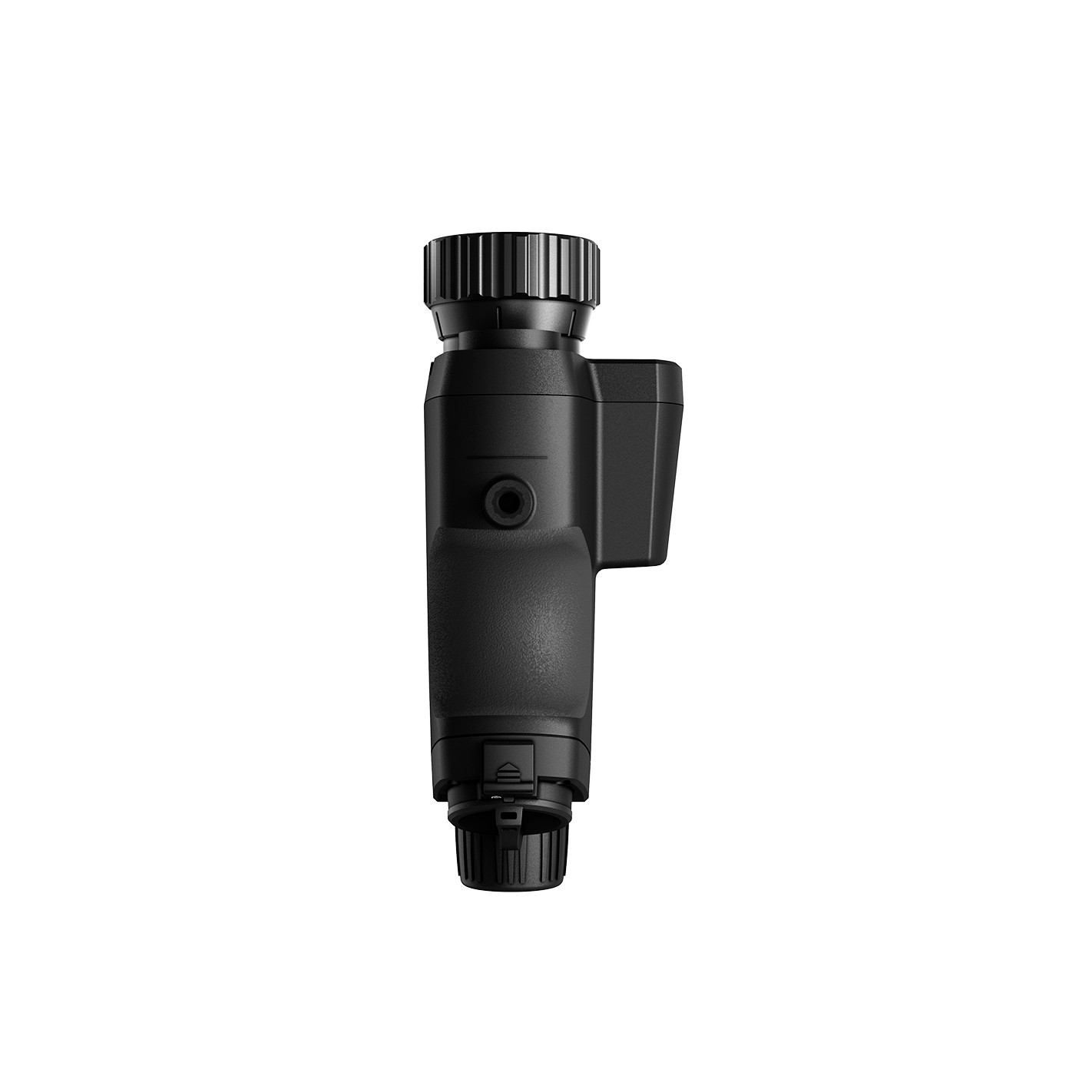

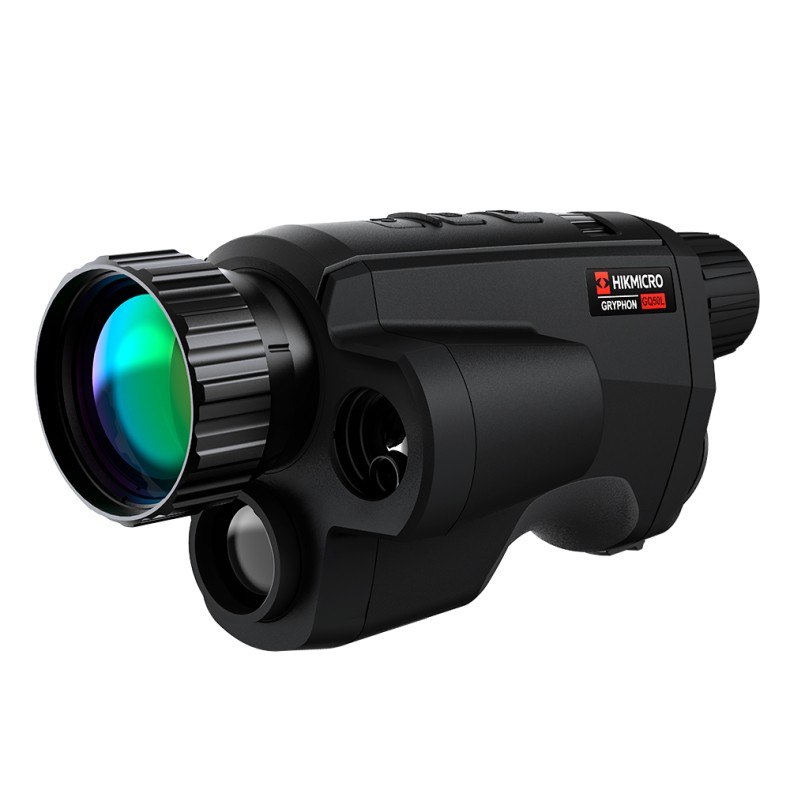

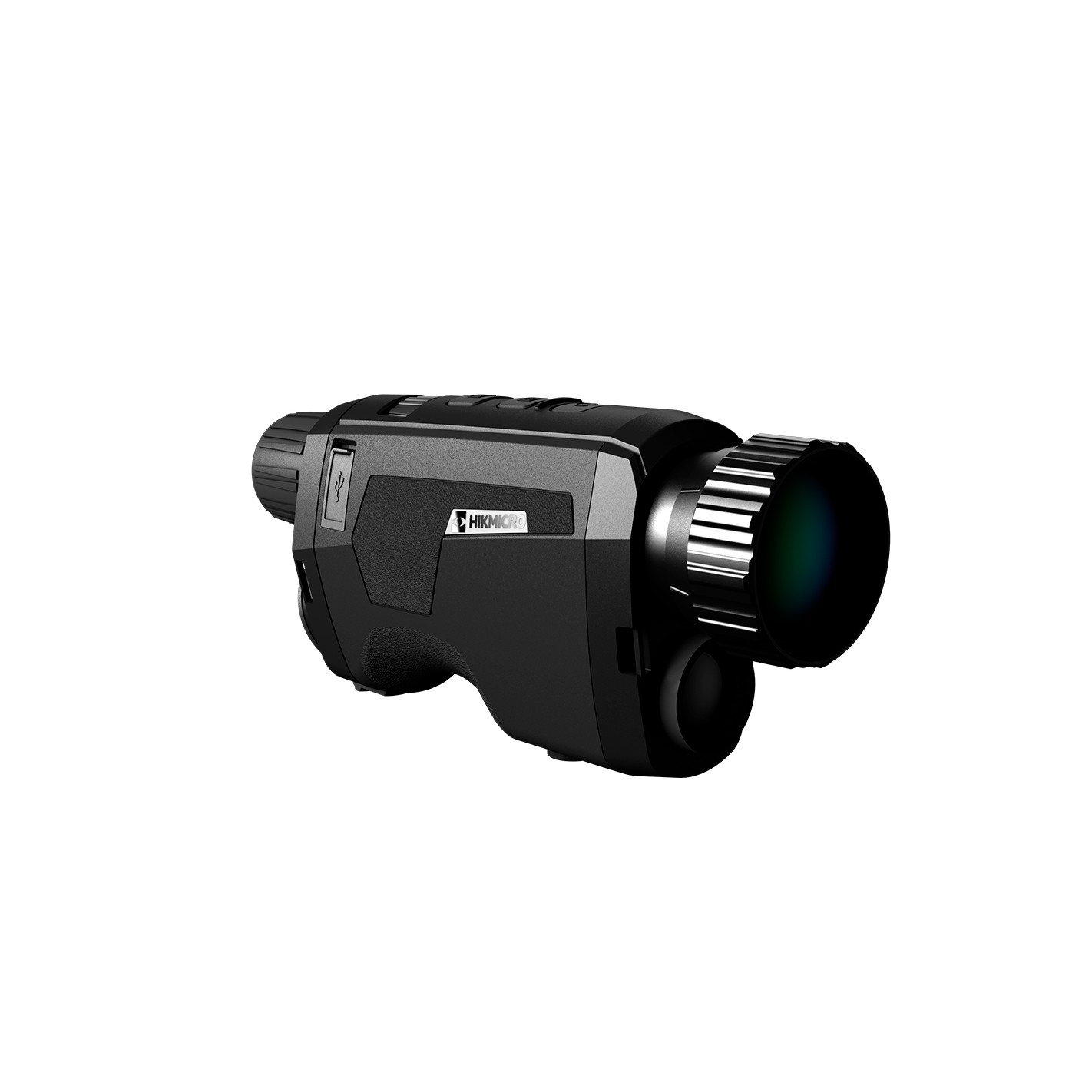

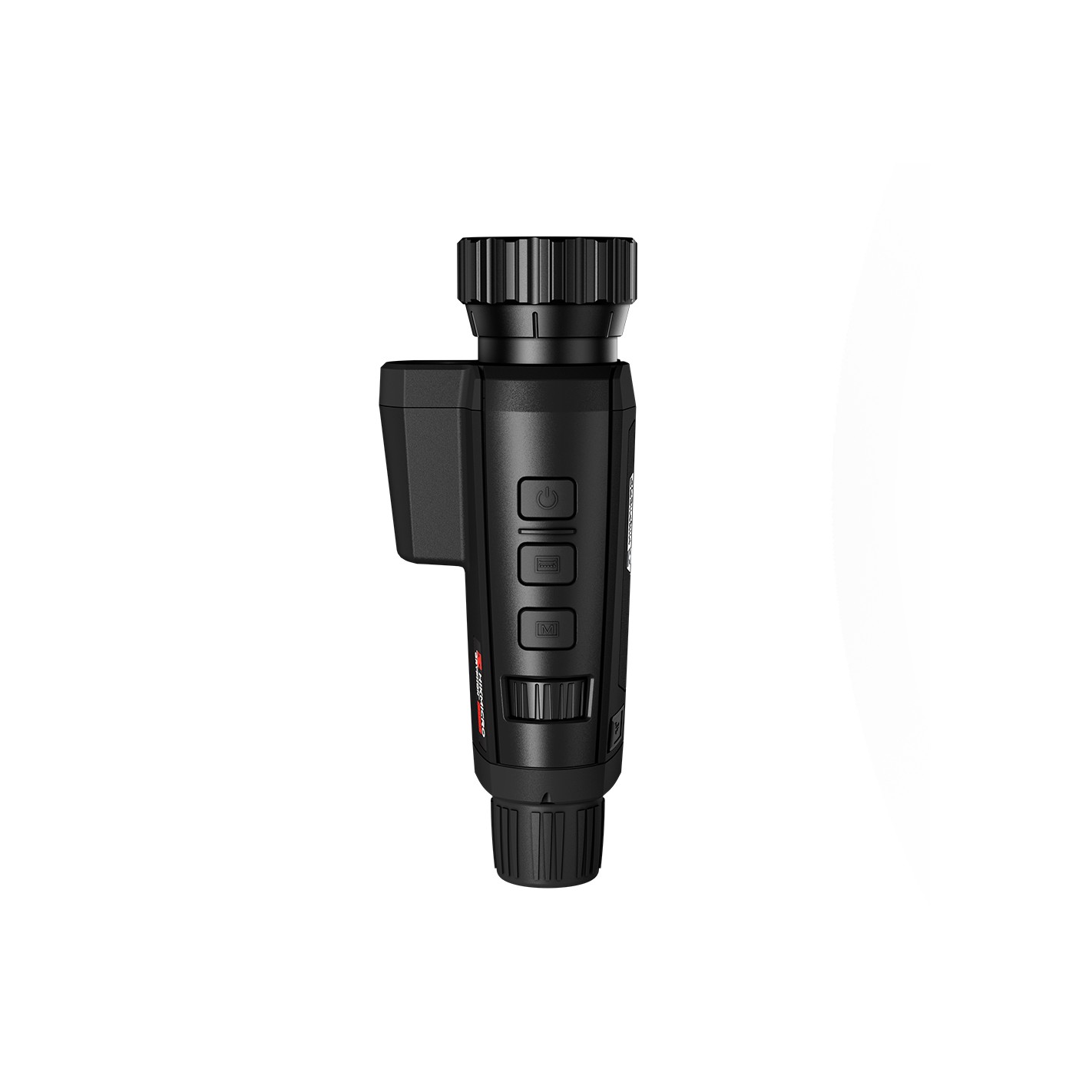

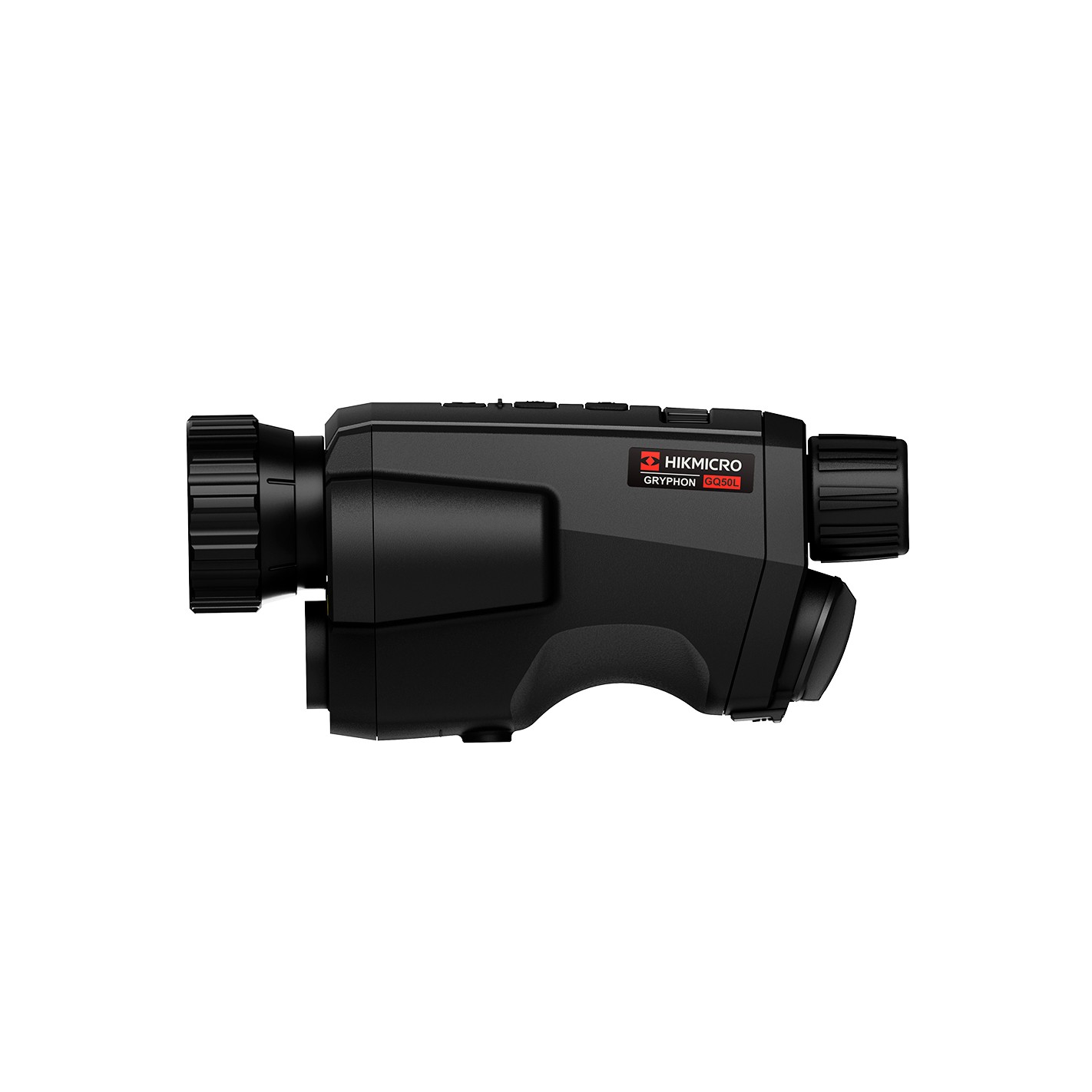

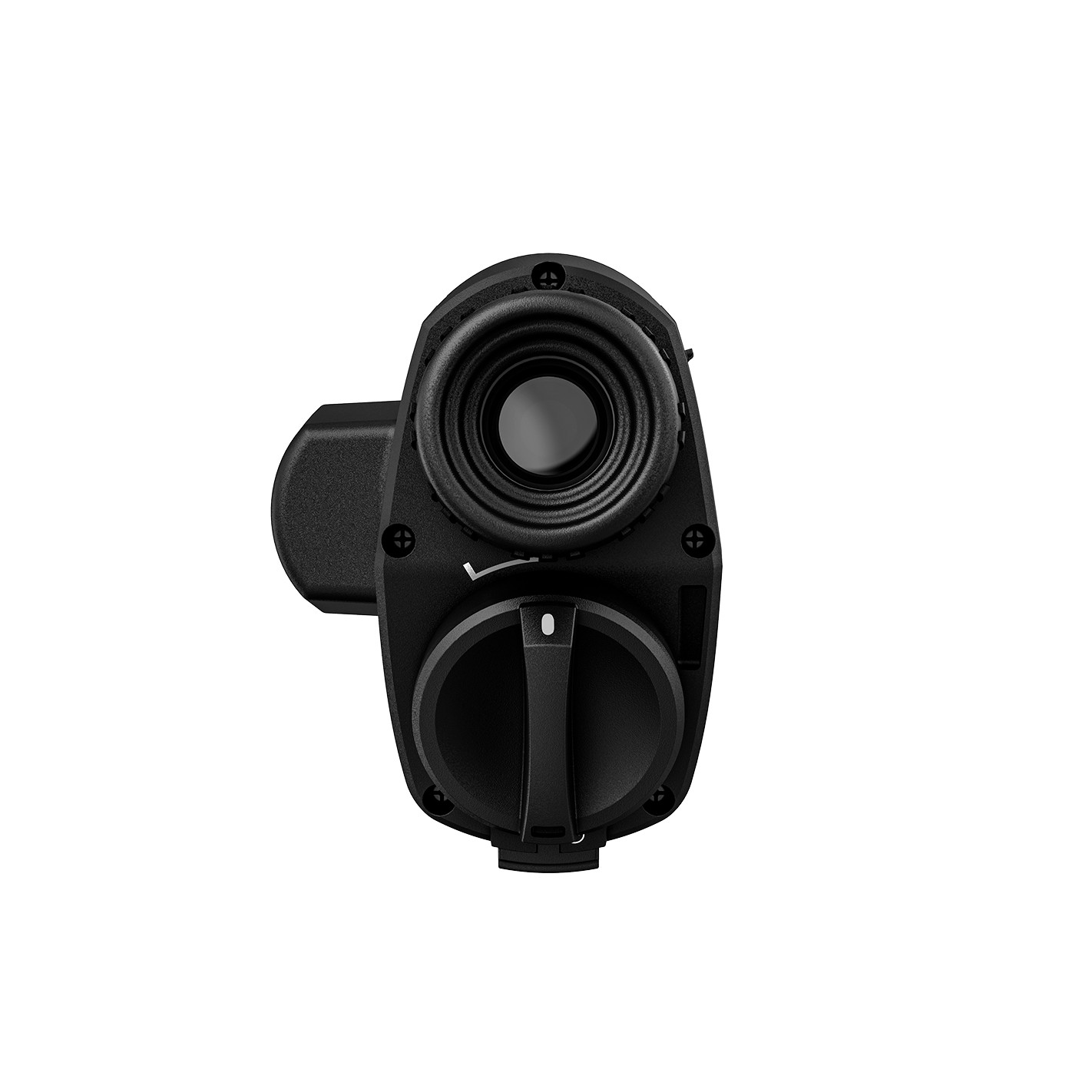

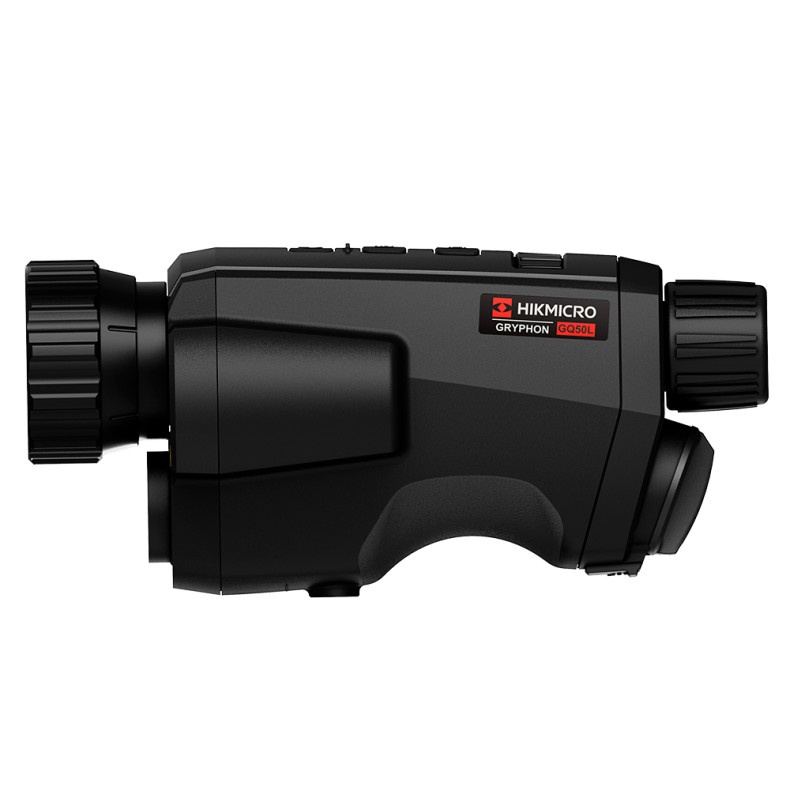

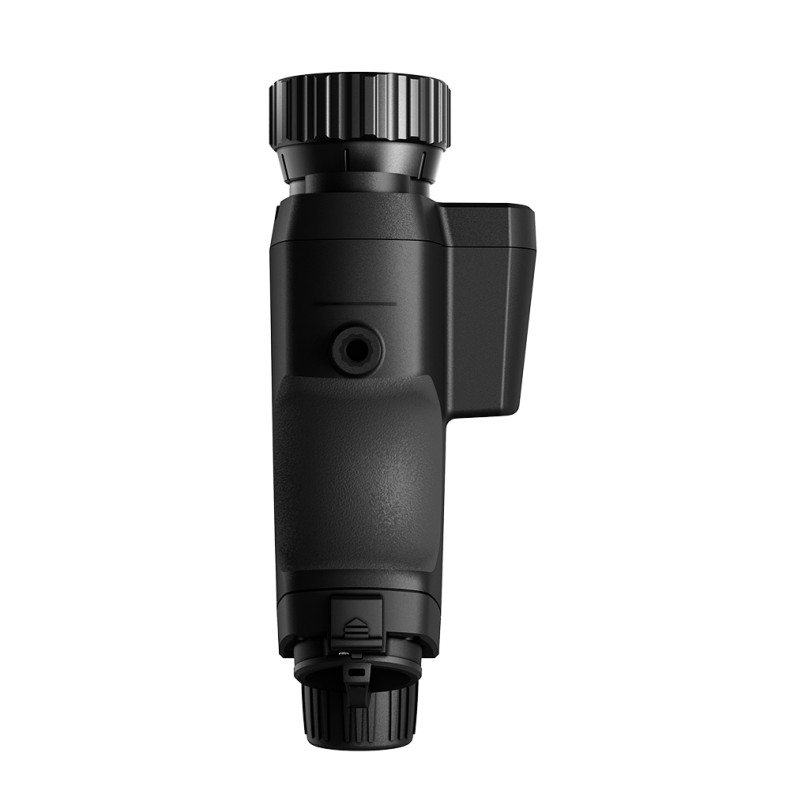

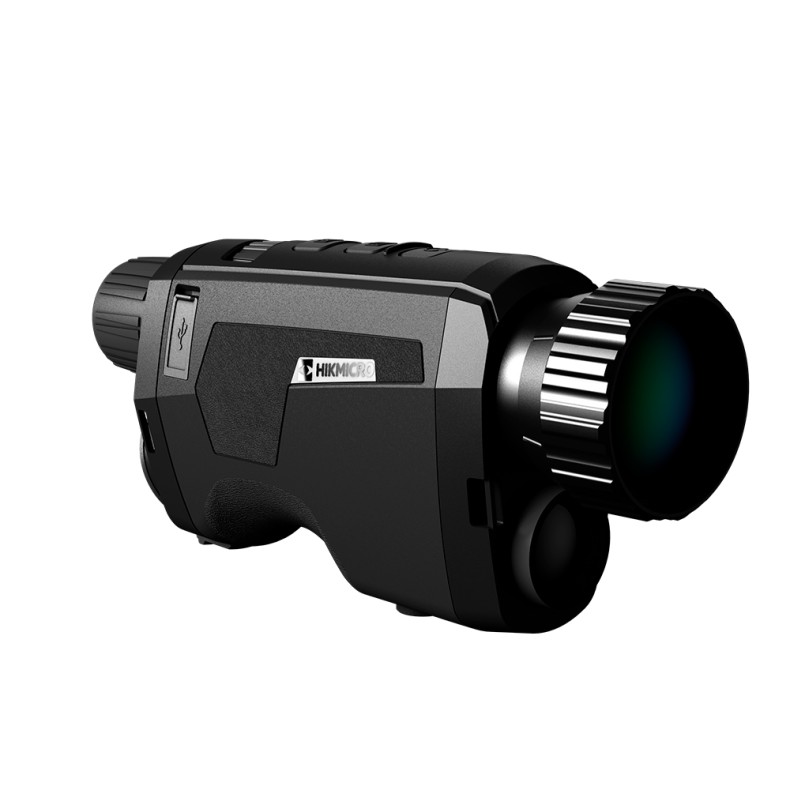

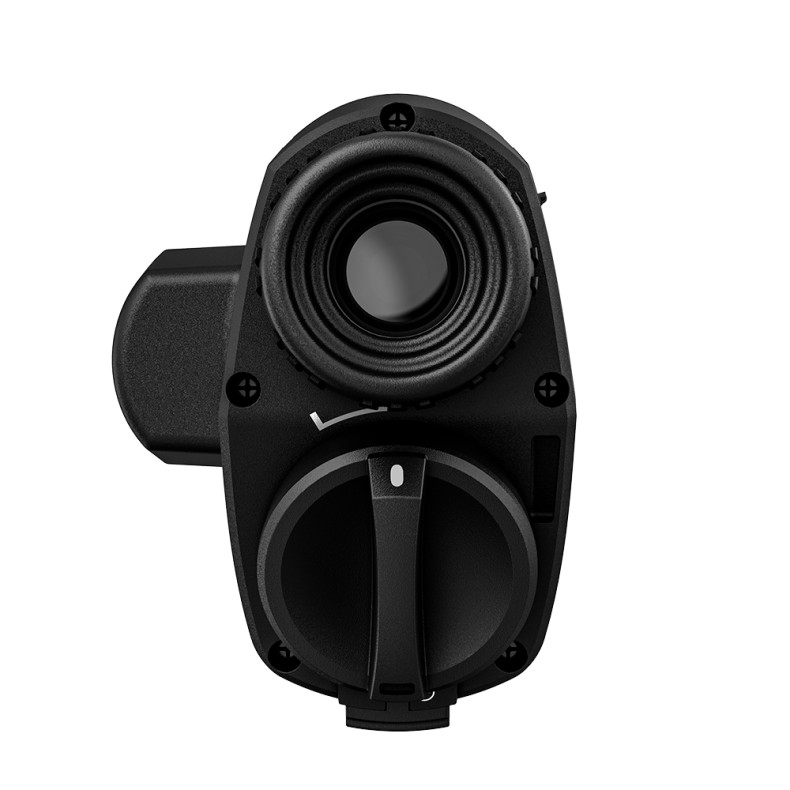

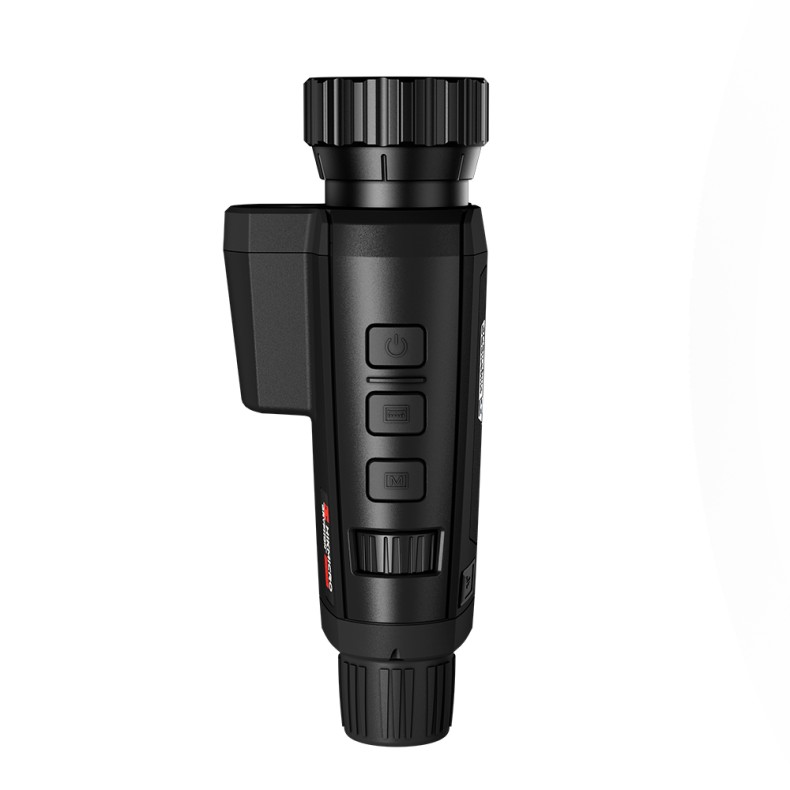

Gryphon GQ50L thermal monocular with dual camera and rangefinder HIKMICRO

The HIKMICRO Gryphon GQ50L handheld thermal monocular is equipped with a 640 × 512 12 μm sensor and a 1024 × 768 OLED display. This monocular, in addition to dual camera, also incorporates distance meter (laser rangefinder) with a maximum measuring range of 600 meters. The built-in high-sensitivity thermal sensor gives you a clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, search and rescue, hiking, travel and hunting, etc.

Main features

• 640 × 512 high-sensitivity thermal sensor
• NETD
• OLED display with 1024 × 768 resolution
• Built-in rechargeable lithium-ion battery
• Up to 4.5 hours of continuous operation

Specifications

• Image sensor: VOx uncooled focal plane arrays 640 × 512
• Pixel spacing: 12 μm
• Waveband response: 8 μm 14 μm
• Lens: 50 mm
• NETD: Less than 35 mK (@ 25 ° C), F# = 1.2
• Field of view: 8.78 ° × 7.03 ° ( H × V) F1.0
• Monitor: OLED, 1024 × 768
• Frame rate: 50 fps
• Color Palettes: Vivid Black, Vivid White, Vivid Red, Visible, Auto Fusion
• Digital zoom: 1 ×, 2 ×, 4 ×, 8 ×, 8 ×
• Hot track: Yes
• Detection range: 2600 meters
• Measuring range (rangefinder): 600 meters
• Measuring accuracy: ±1 m
• Storage: Built-in memory module (16 GB) Yes
• Video recording: Yes
• Snapshot capture: Yes
• Wifi: Yes
• Standby Mode: Yes
• Battery Type: Rechargeable 18650 lithium battery
• Operating Time: Up to 4.5 hours continuous operation.
• Protection: IP67
• Working Temperature: From -20 ° C to 55 ° C
• Dimensions: 183.6 mm × 87.2 mm × 73.3 mm
• Weight: 548 gr
• Warranty: 36 months
• Sensor warranty: 10 years

App HIKMICRO SIGHT for IOS and Android

Download the HIKMICRO SIGHT APP to be able to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You will also be able to download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the APP HIKMICRO SIGHT. Compatible with all models of HIKMICRO thermal monoculars.

HIKMICRO Sight App for Android

App HIKMICRO SIGHT for IOS
