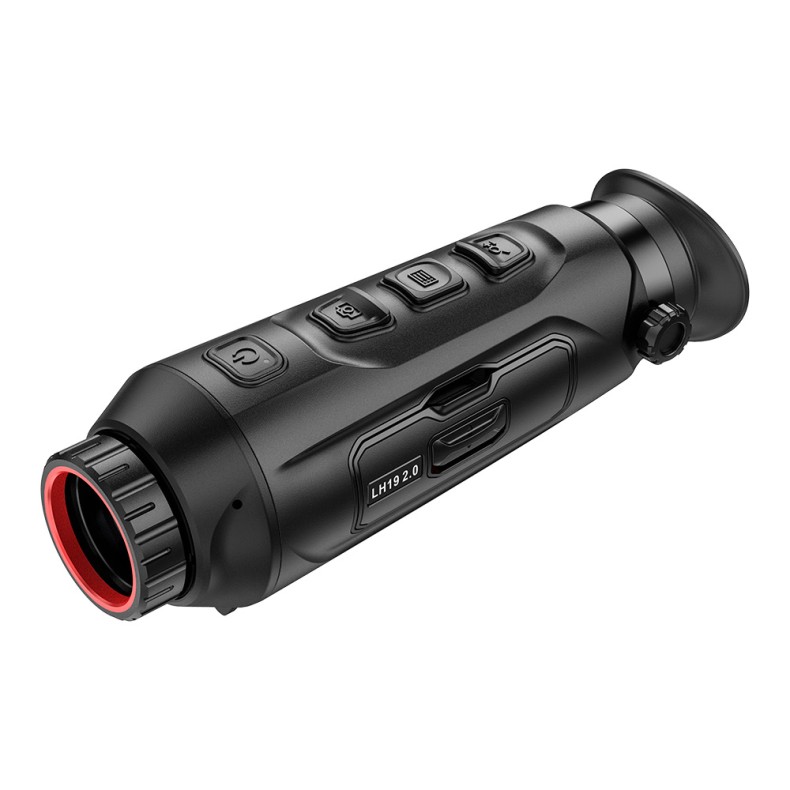

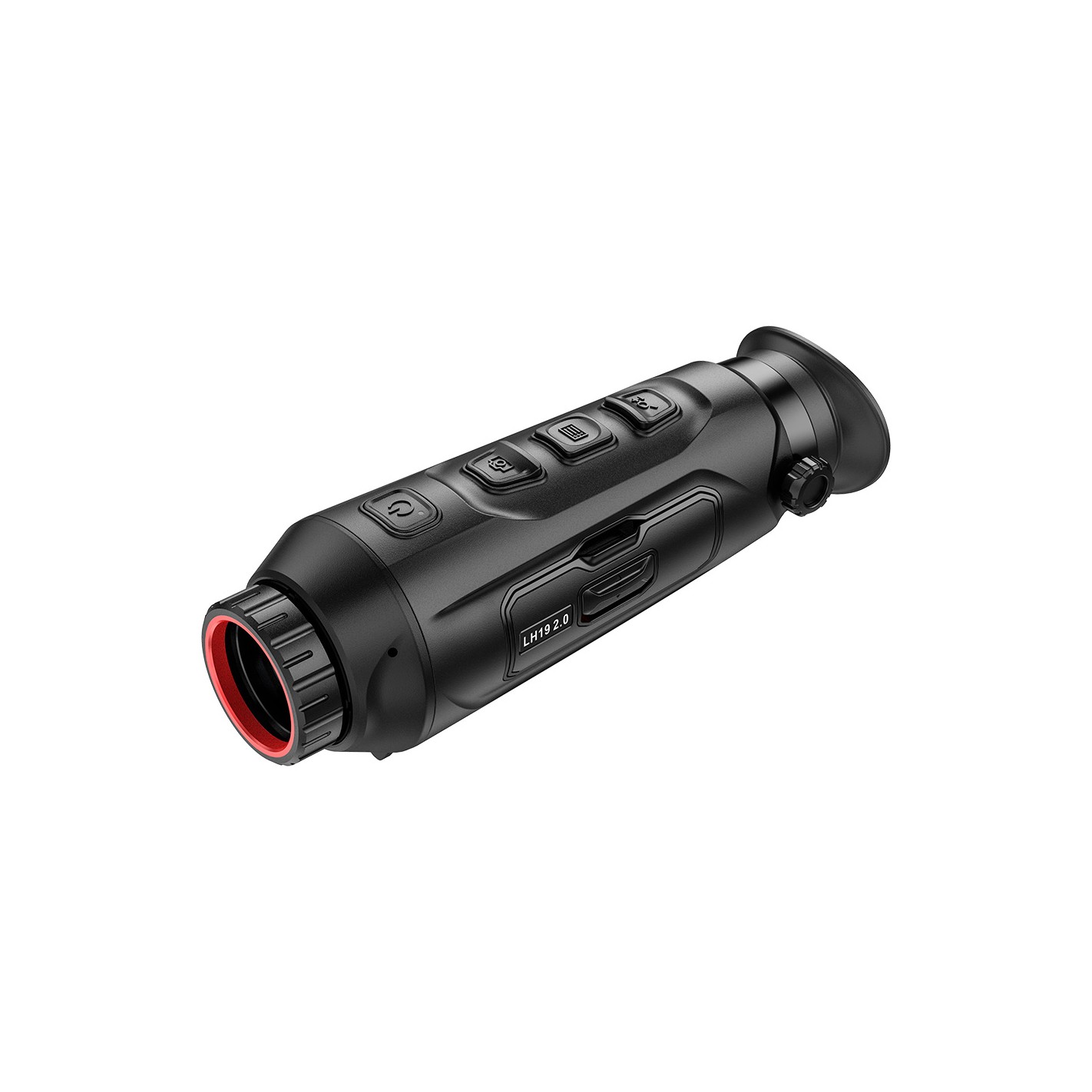

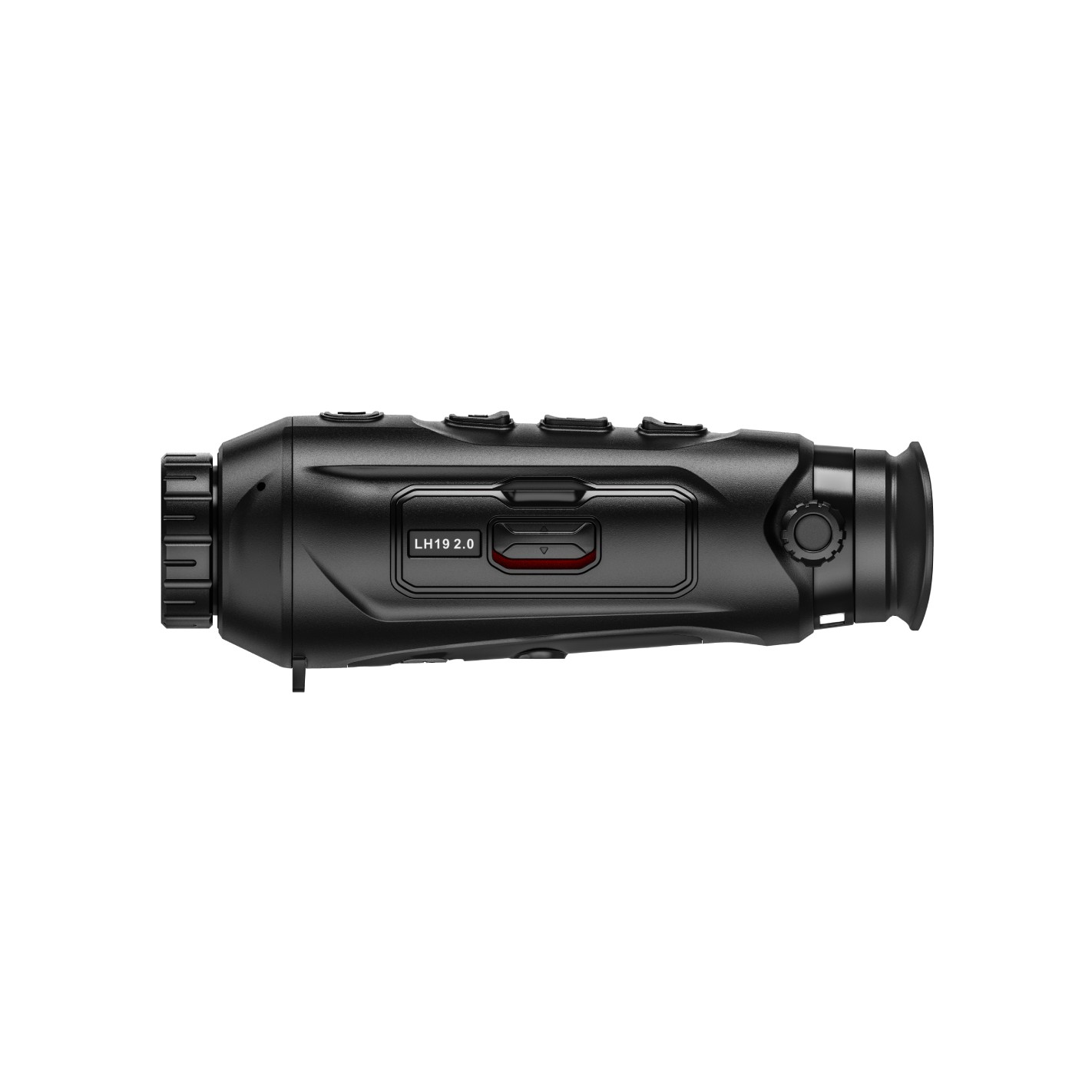

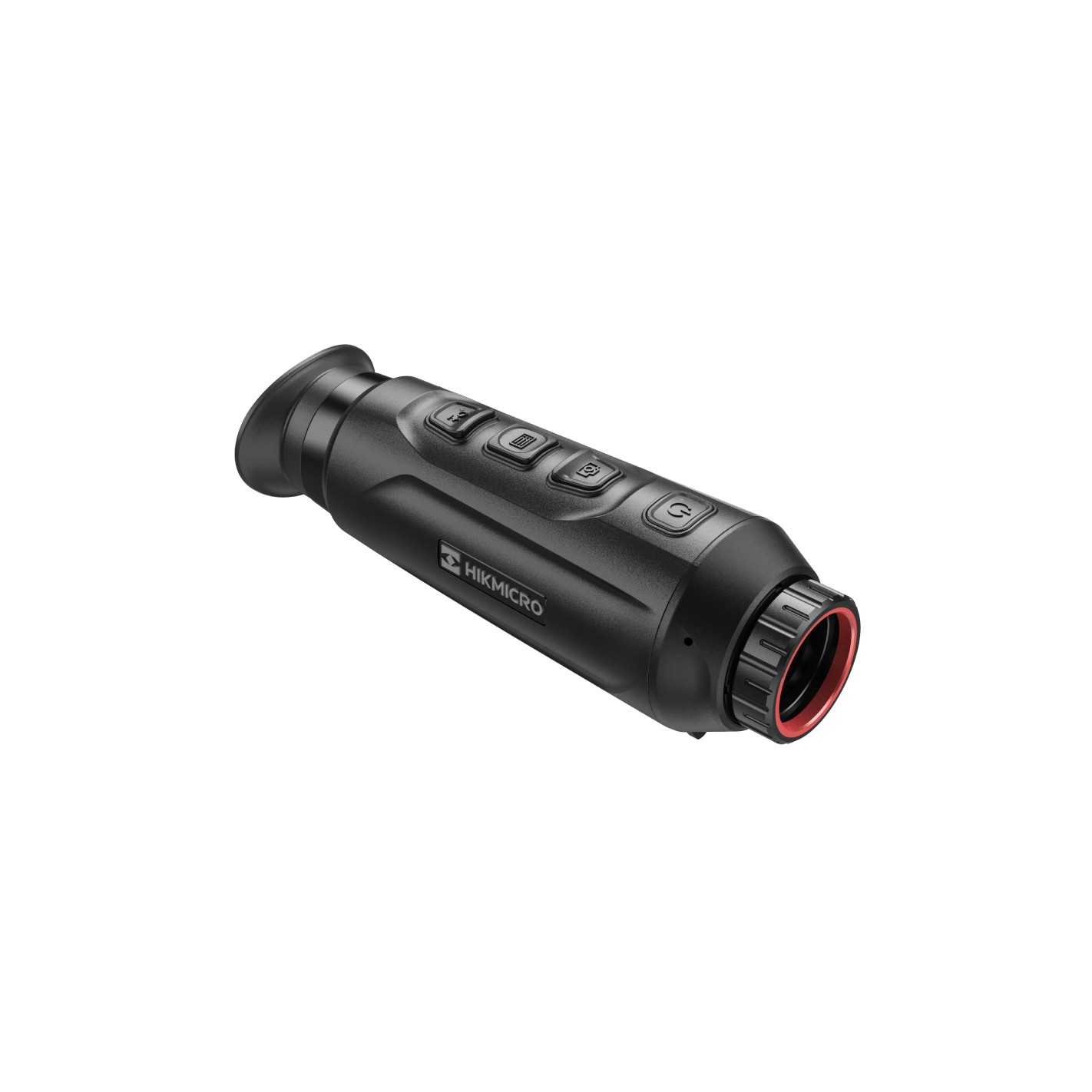

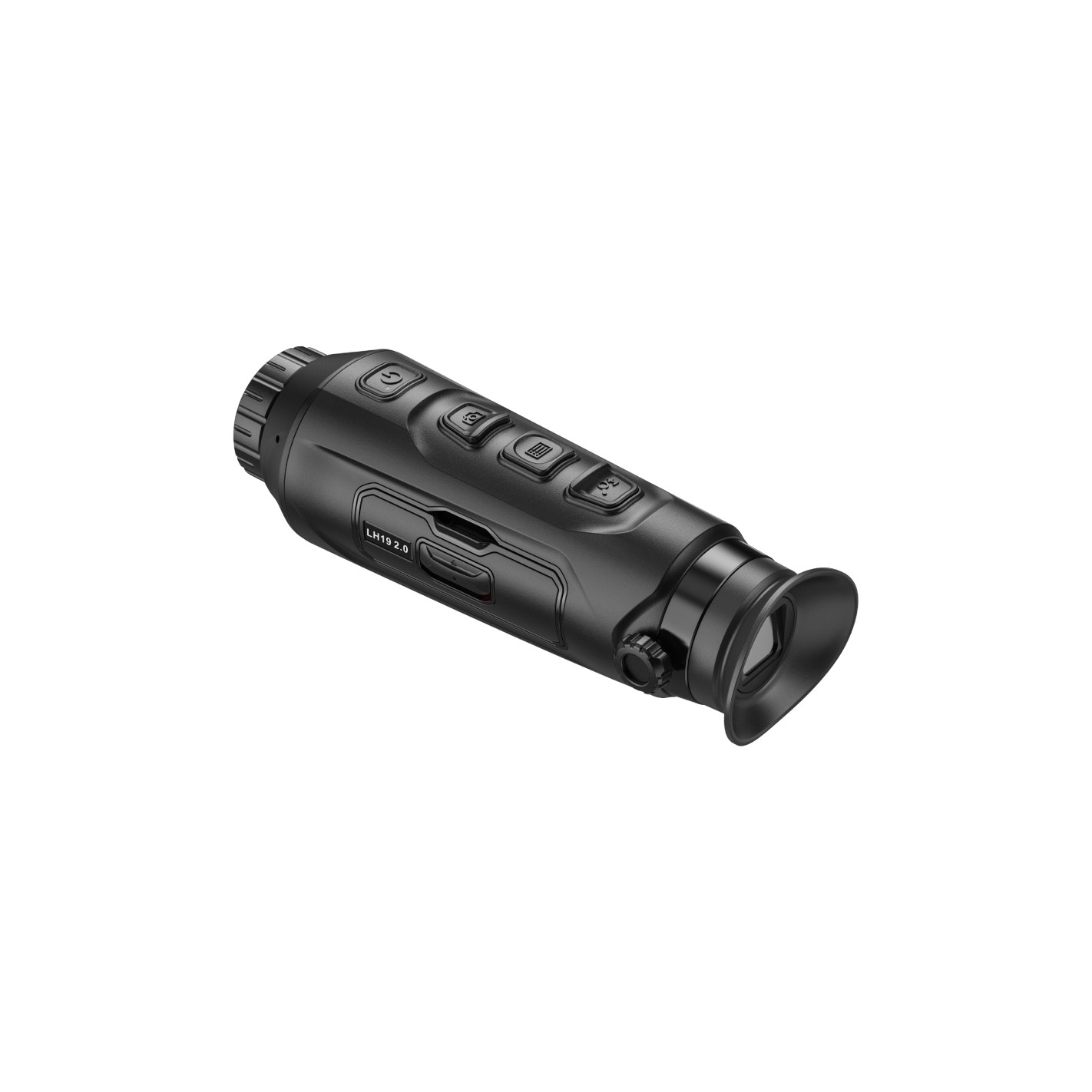

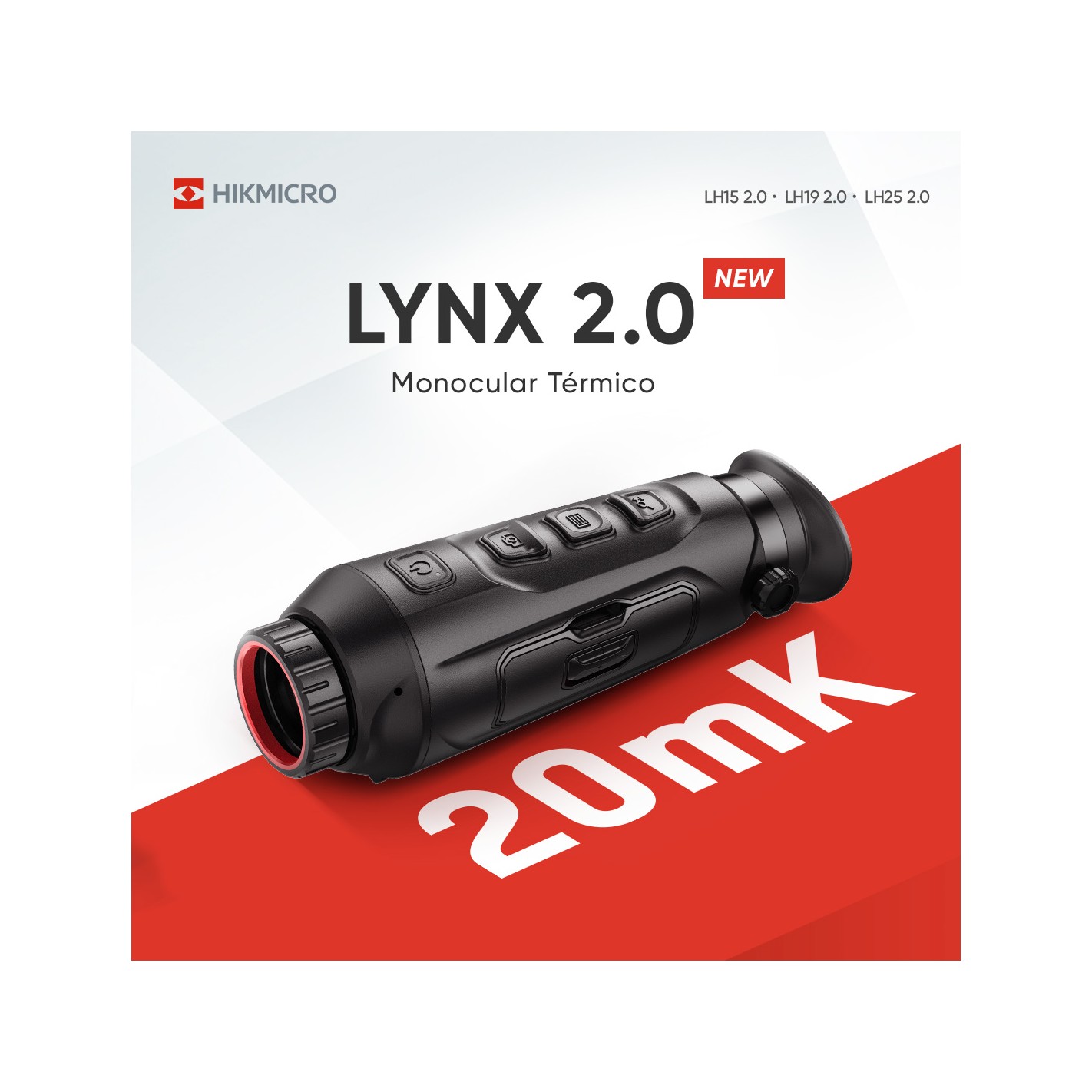

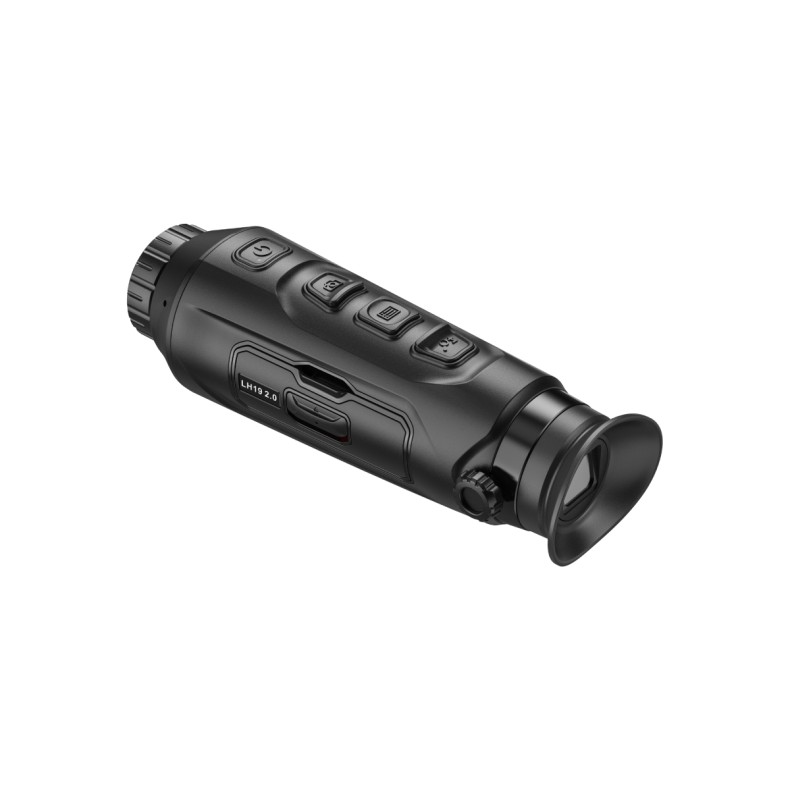

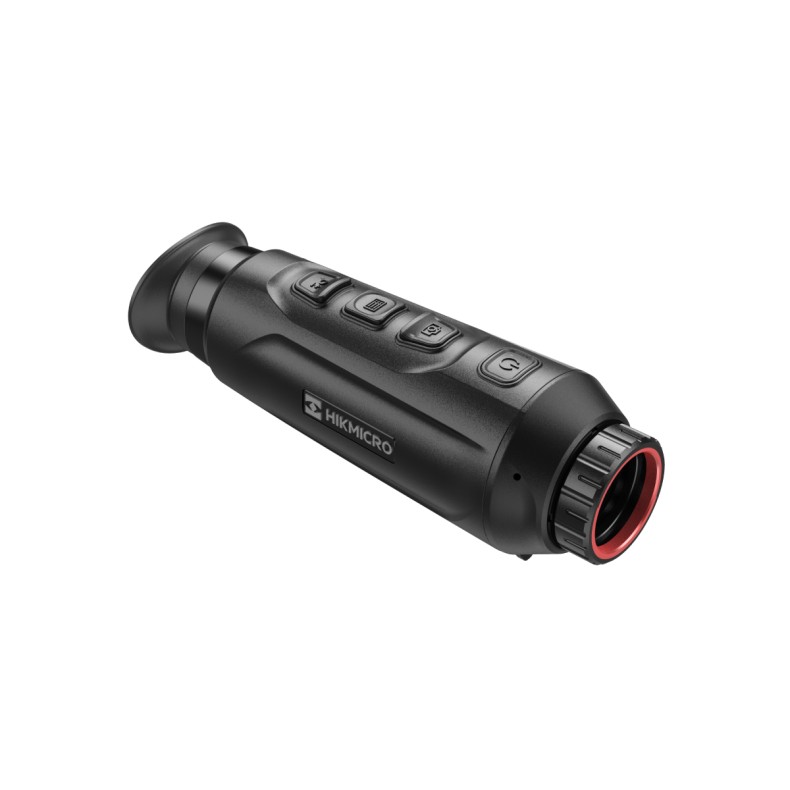

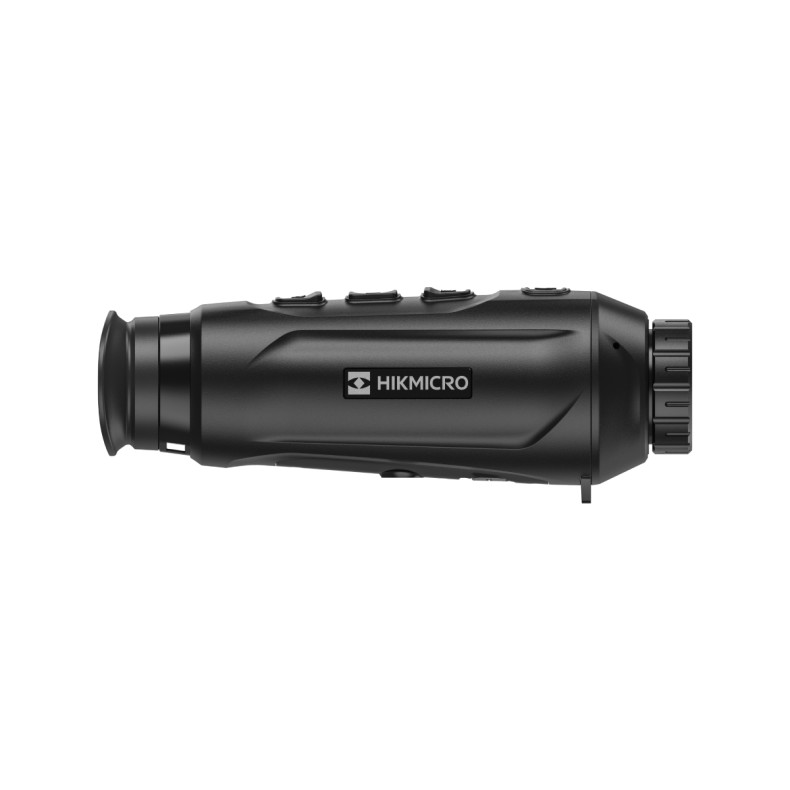

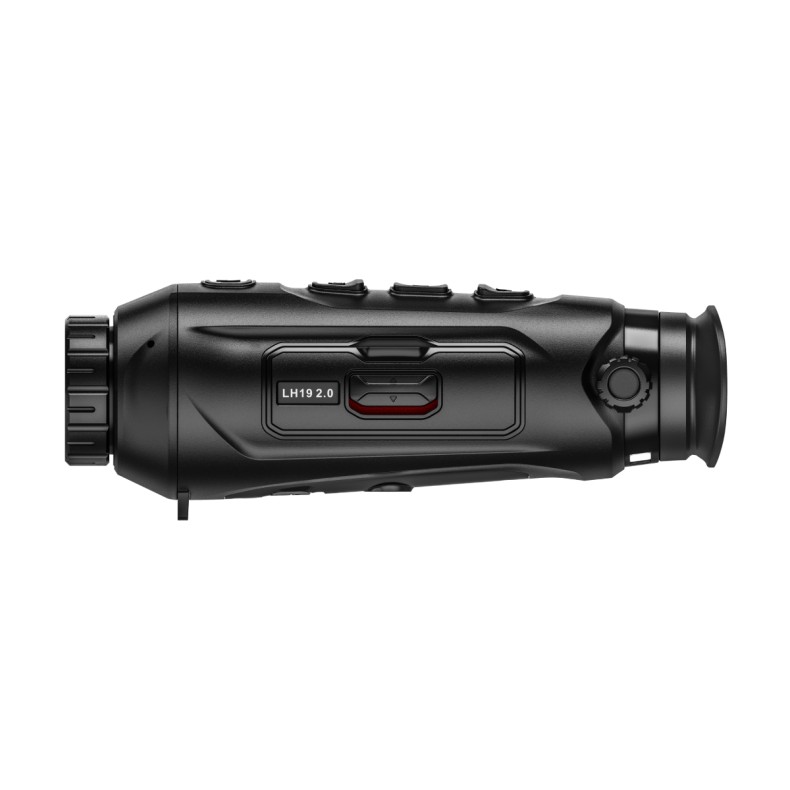

LYNX Pro LH19 2.0 HIKMICRO Thermal Monocular LYNX Pro LH19 2.0

With NETD's high thermal sensitivity

Key Features

• NETD high sensitivity thermal module
• 384 × 288 resolution with 12μm detector.
• 0.39 inch OLED display with 1024 × 768 resolution
• Replaceable and rechargeable lithium ion battery

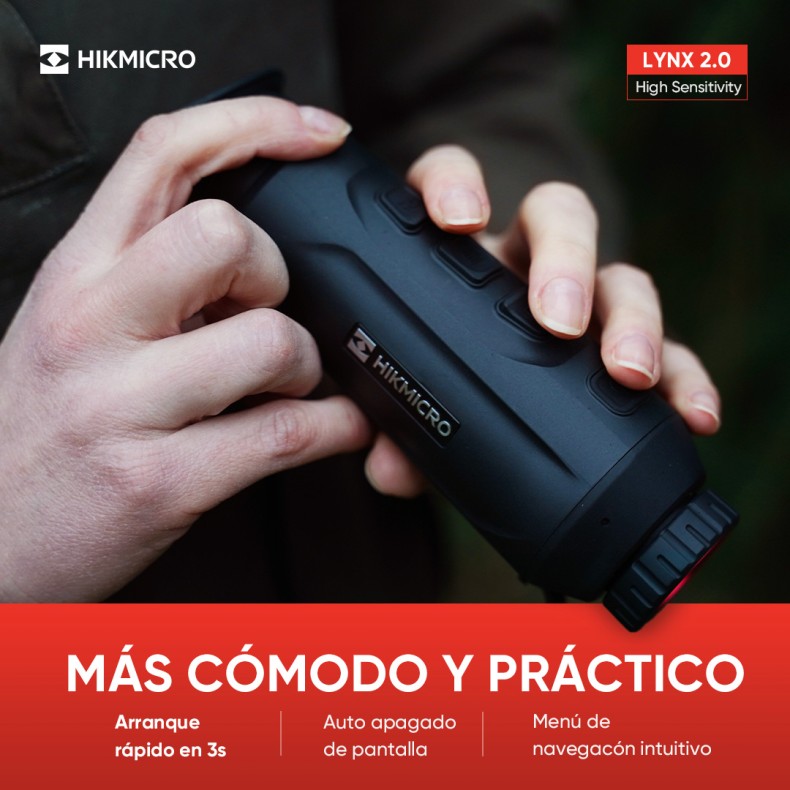

• 280 g light weight, compact and ergonomic design
• Up to 6.5 hours of continuous operation

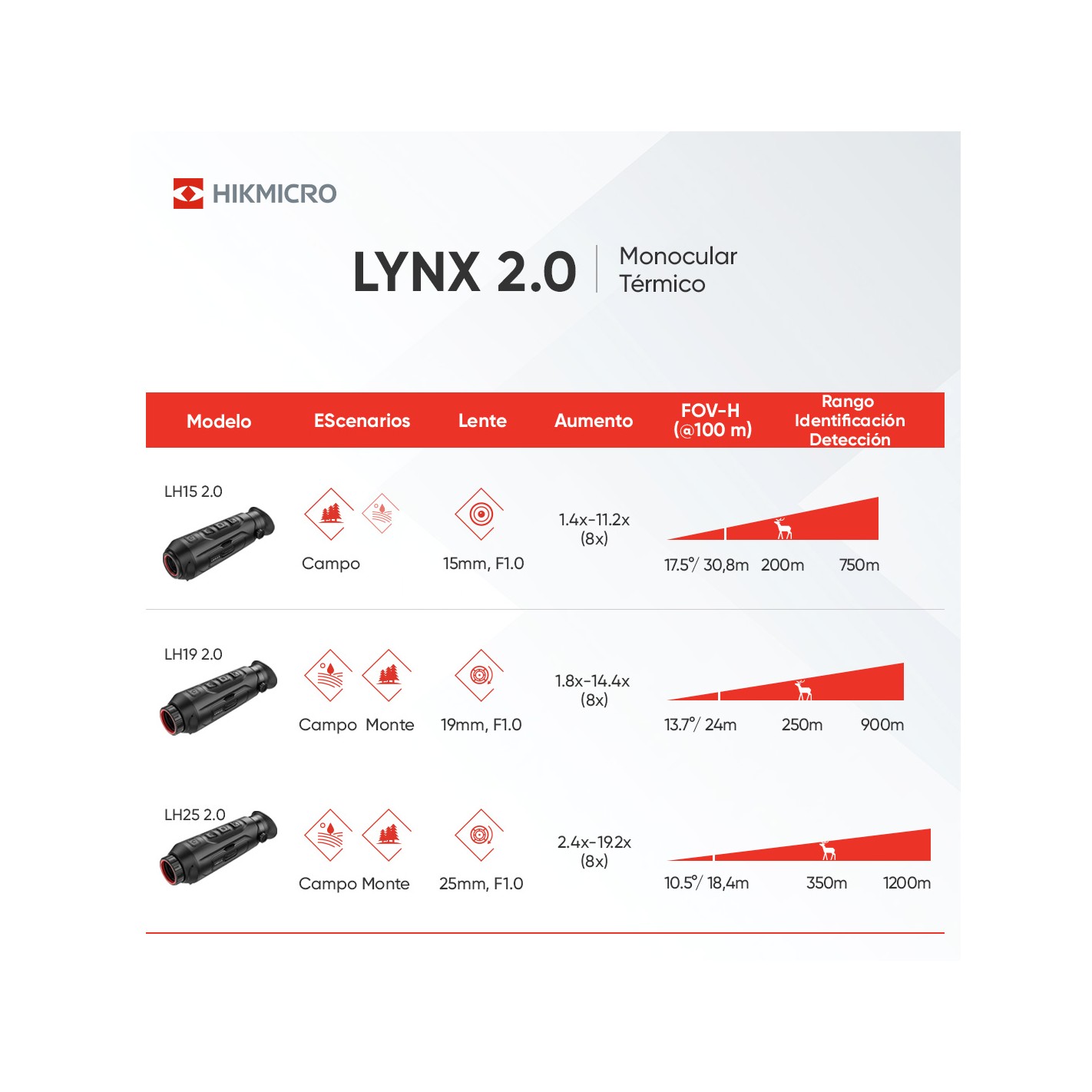

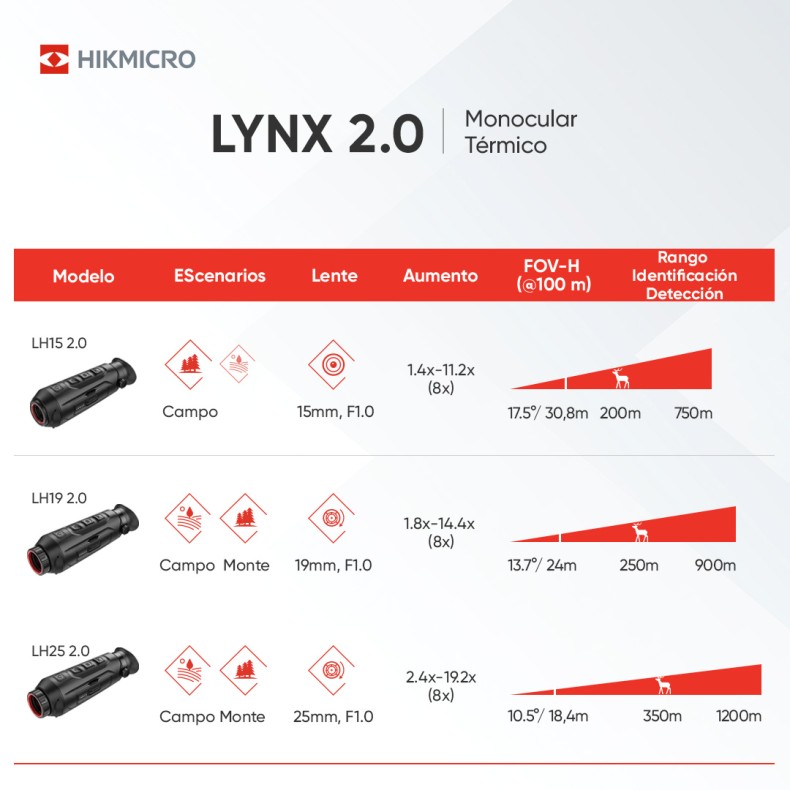

Specifications

Thermal module

• Image sensor: Uncooled VOx focal plane arrays
• Resolution: 384 × 288
• Frame rate: 50 Hz
• Pixel spacing: 12 μm
• Waveband response: 8 μm to 14 μm

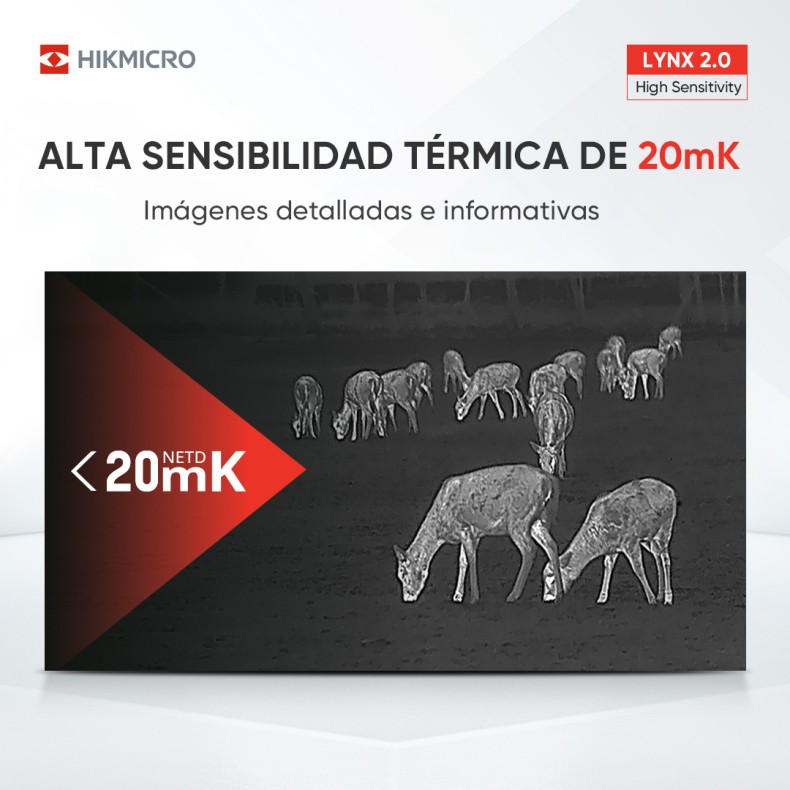

• NETD: Less than 20 mK (@25°C), F# = 1.0
• Lens (focal length): 19 mm, f1.0
• Detection range: 900 m
• Min. focusing distance: 1.9 m (4 ft)
• Magnification: 1.8x to 14.4x (8x)
• Field of view (H × V), Degrees / m @100m: 13.7° × 10.3°/24.0 m × 18.0 m

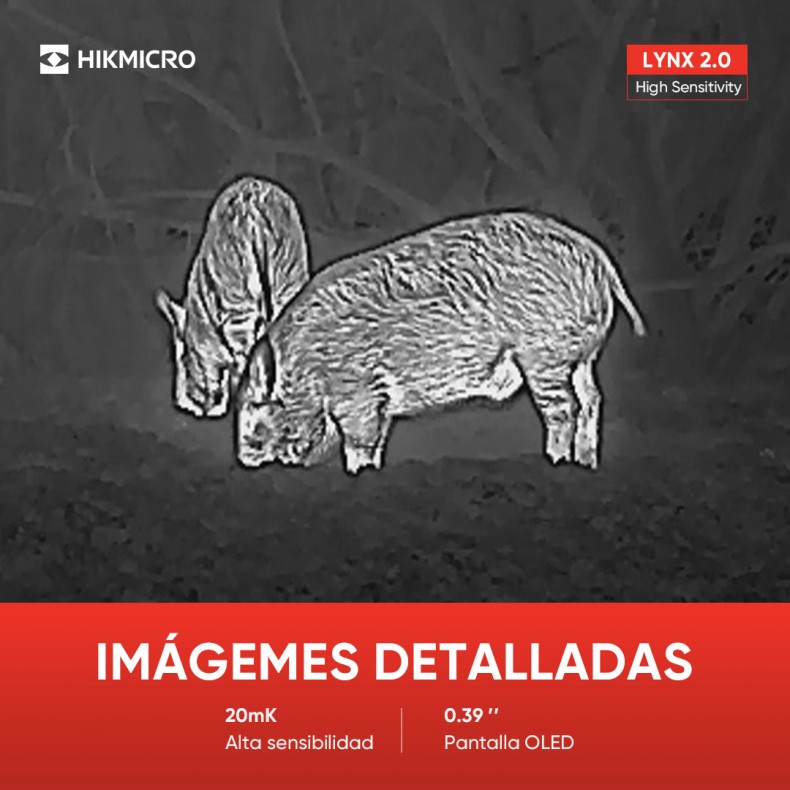

Display Image

• Display: 1024 × 768, 0.39 inch, OLED
• Palettes: Warm Black, Warm White, Warm Red, Fusion
• FFC (Flat Field Correction) mode: Auto, Manual, External correction
• Exit Pupil: 6 mm
• Eye relief: 20 mm
• Diopter (range): -5 D to +3 D
• Brightness Adjustment: Yes
• Tint Adjustment: Cool, Warm
• Contrast Adjustment: Yes System
• Video recording: Yes
• Snapshot Image Capture: Yes
• Audio Recording. Yes
• Standby mode: Yes
• Storage: Built-in EMMC (16 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance measurement: Yes

Power

• Battery type: Replaceable and rechargeable lithium-ion battery
• Battery operating time: 6.5 hours continuous operation with CVBS and hotspot function disabled (@25°C)
• Power Supply Type-C: 5VDC, 2A External Power Supply Supported

General

• Protection level: IP67
• Dimensions: 172.5 mm × 56.0 mm× 60.8 mm
• Weight: 282 g without battery
• Operating Temperature: -30°C to +55°C (-30°F to +55°C)

Box Contents

• LYNX Pro LH19 2.0.
• USB cable
• Dust cloth
• Protective pouch
• Wrist strap
• Charger
• 2 batteries
• User manual

HIKMICRO SIGHT App for IOS and Android

Download the HIKMICRO SIGHT APP to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were operating it from the device itself. You will also be able to download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the APP HIKMICRO SIGHT. Compatible with all models of HIKMICRO thermal monoculars.
