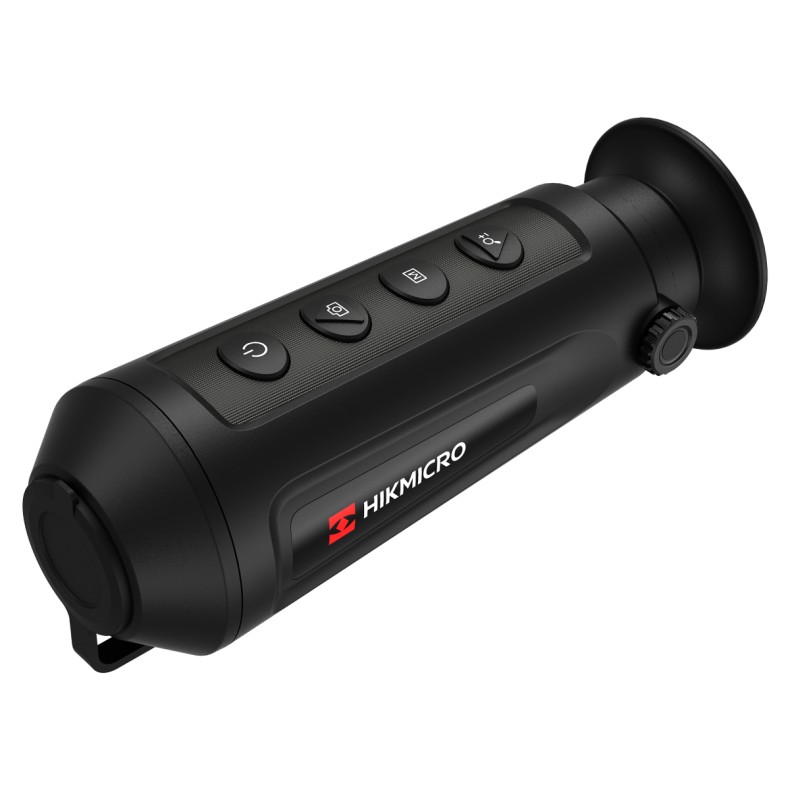

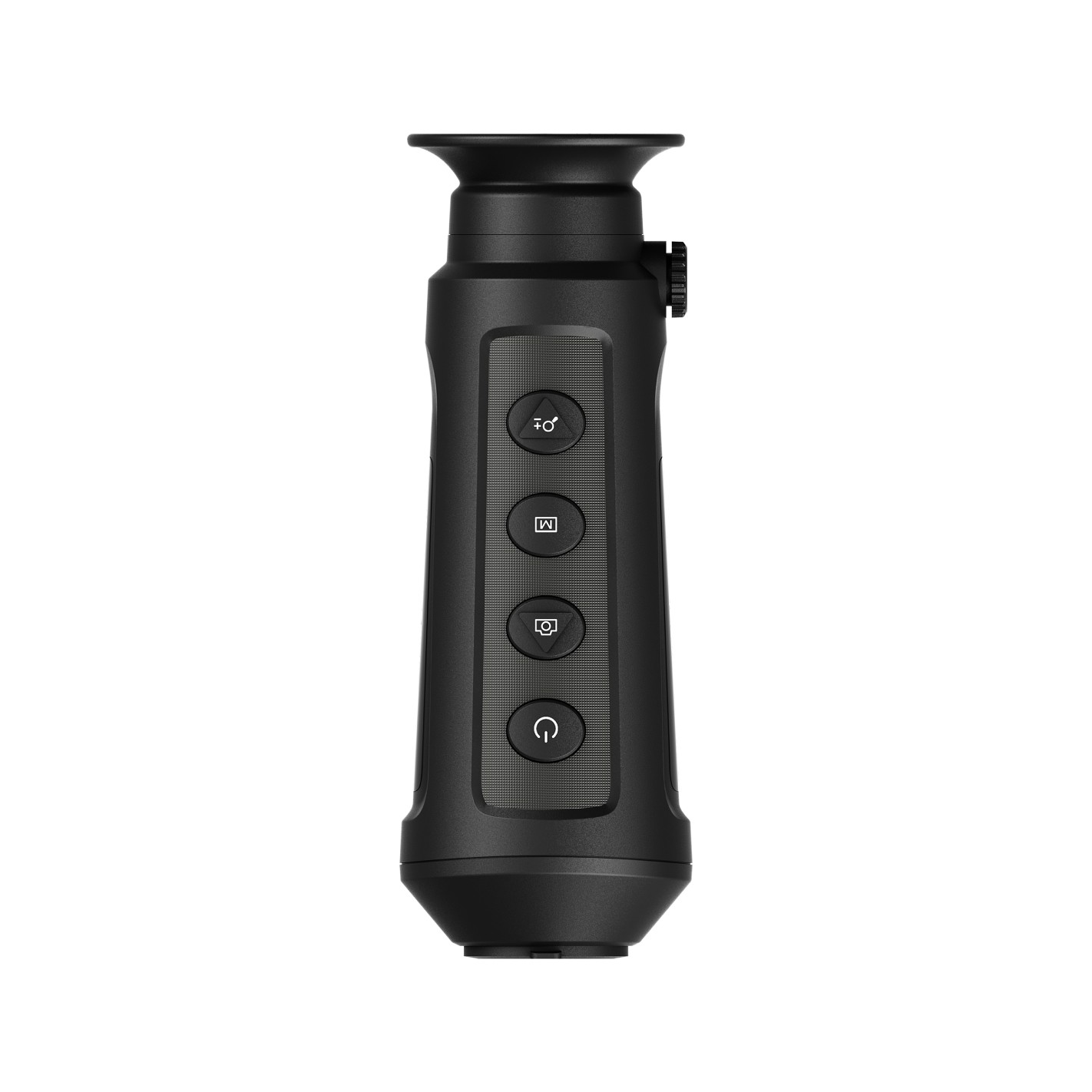

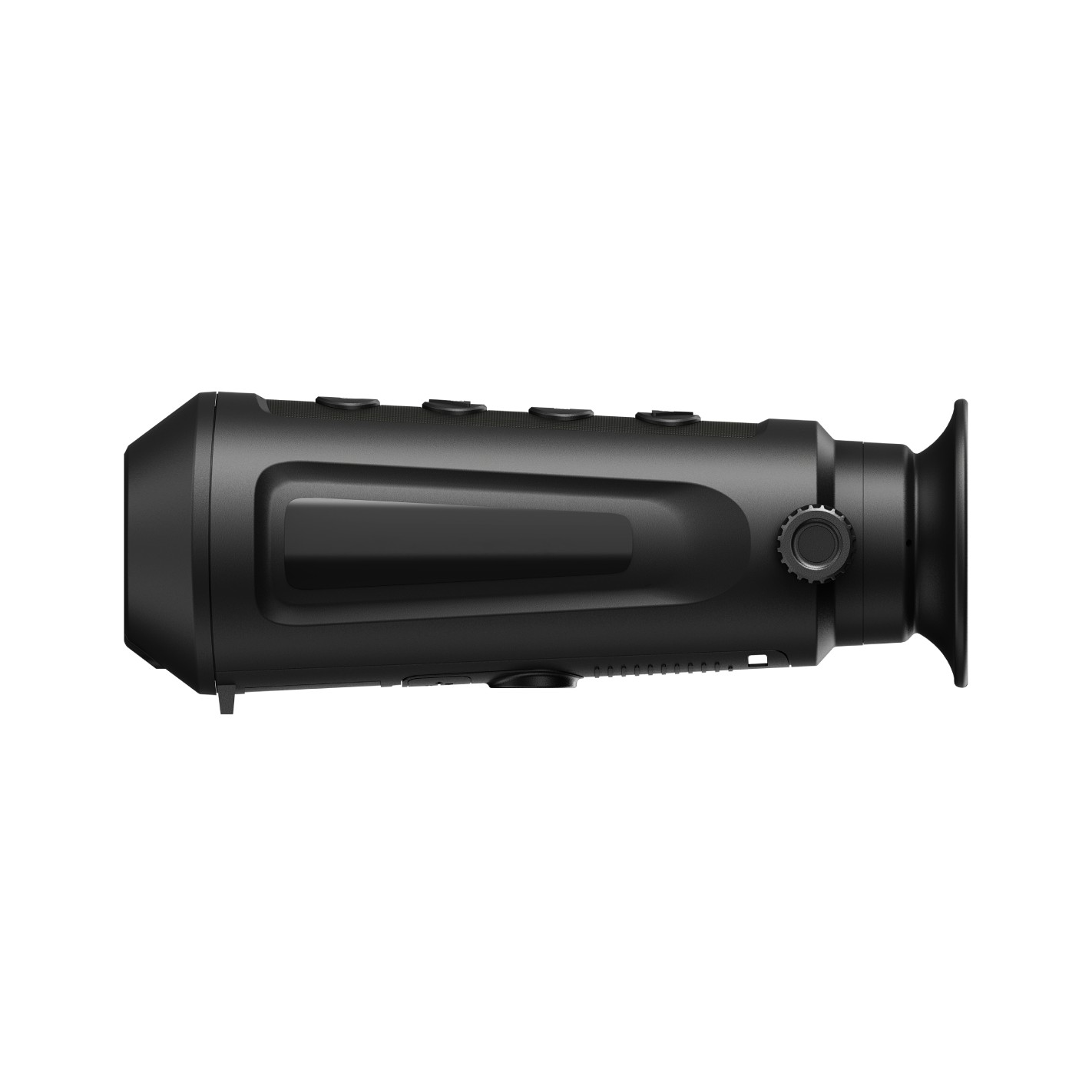

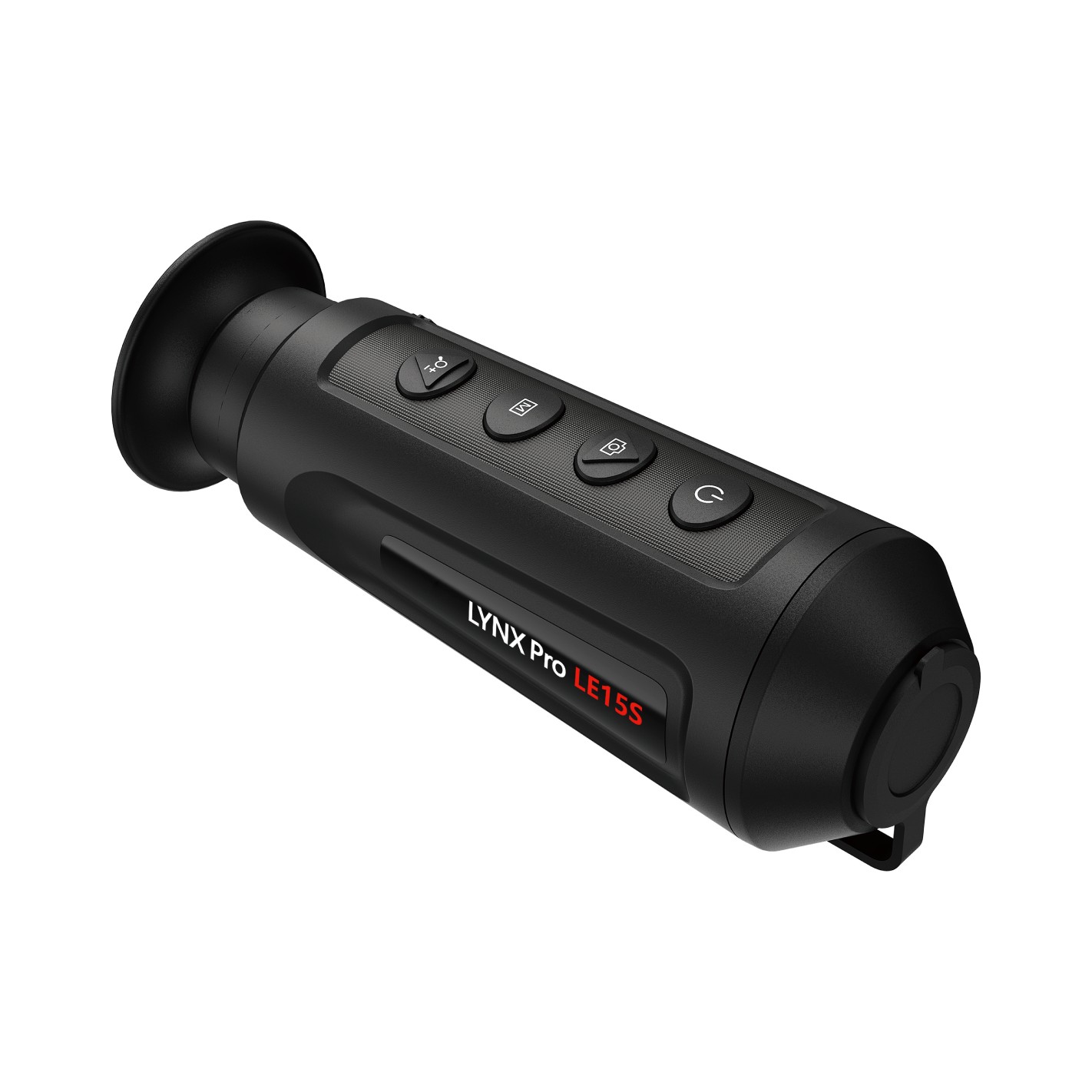

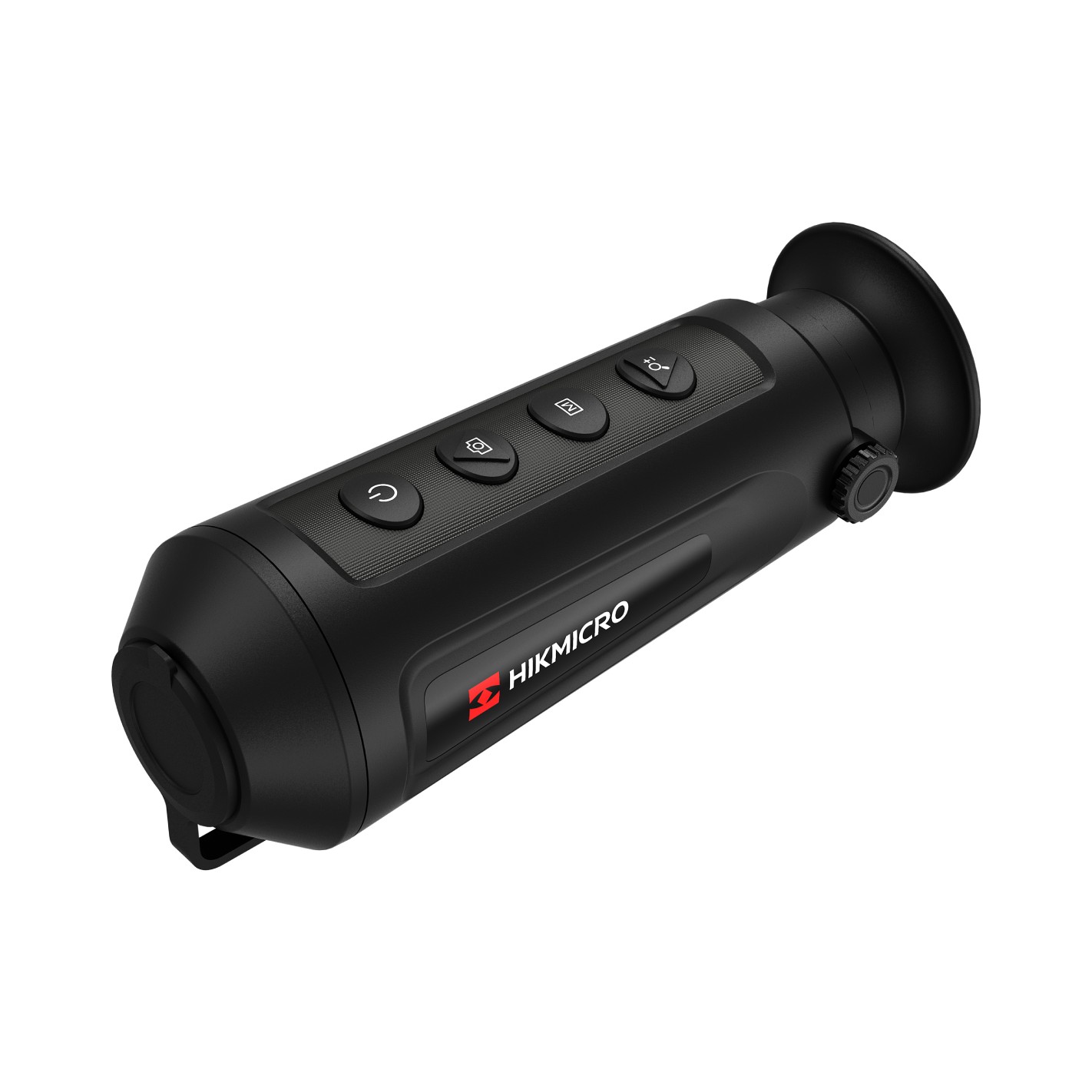

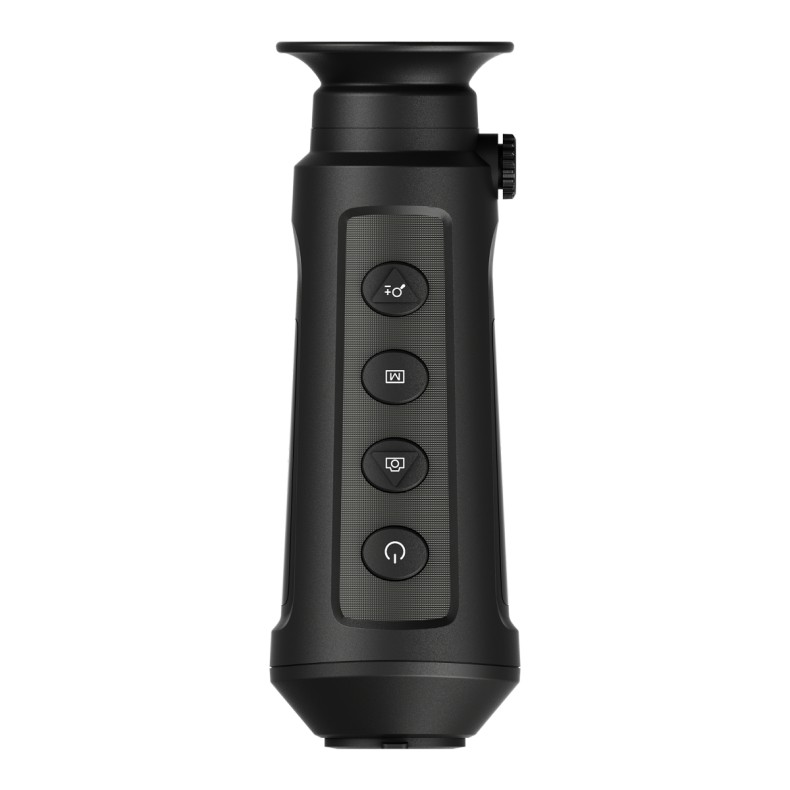

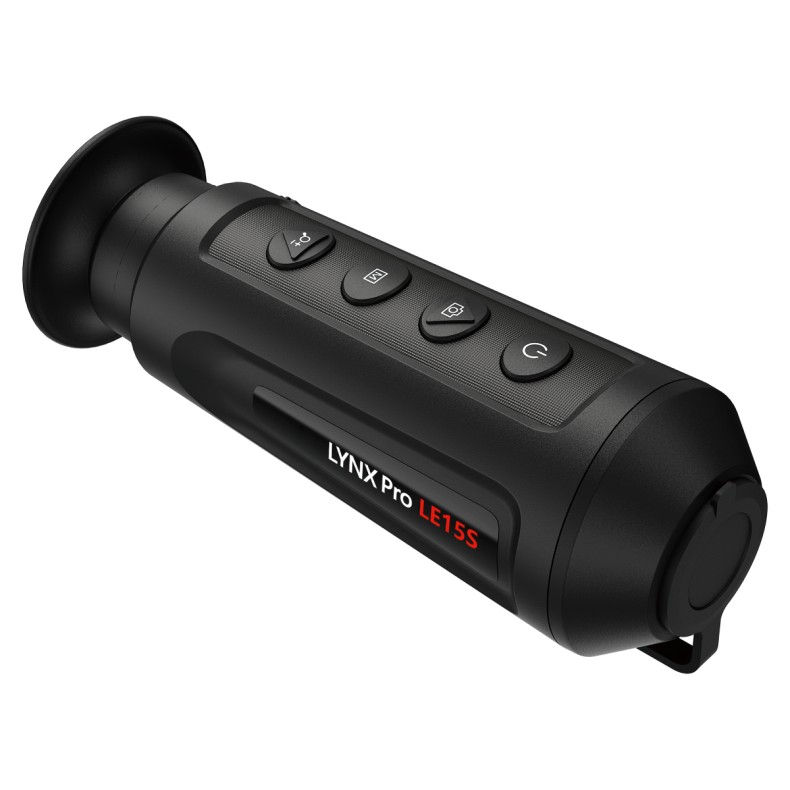

Thermal Monocular LYNX Pro LE15S HIKMICRO

The HIKMICRO LYNX Pro LE10S thermal monocular is equipped with a 256 × 192 infrared detector and an 800 × 600 OLED display. It supports observation, distance measurement and hotspot functions. The high-sensitivity thermal detector provides a clear view even in total darkness. The Hikmicro Lynx Pro LE10S thermal monocular is suitable mainly for scenarios such as hunting, hiking, search and rescue.

Main features

• 256 × 192 resolution, 12 μm, high sensitivity detector
• NETD below 35 mK (@25°C, F# = 1.0)
• Adaptive AGC, DDE, 3D DNR
• 0.32-inch OLED display with 800 × 600 resolution
• Built-in rechargeable lithium battery
• Up to 8 hours of continuous operation
• Hotspot support

Specifications

Thermal module

• Image Sensor: VOx Uncooled focal plane arrays
• Max. resolution: 256 × 192
• Frame rate: 50 Hz
• Pixel spacing: 12 μm
• Waveband response: 8 μm to 14 μm
• NETD: Less than 35 mK (@25°C, F# = 1.0)
• Lens (focal length): 9.7 mm, F1.0
• Focusing mode: Free focus
• Detection range: 500 m
• Min. focusing distance: 4 m
• Magnification: 1.5× to 12.0× (8×)
• Field of view (H × V), Degrees / m @100 m: 18.0° × 13.6° / 31.7 m × 23.8 m

Image Display

• Display: 800 × 600, 0.32 inches, OLED
• Palettes: Warm Black, Warm White, Warm Red, Fused
• FFC (Flat Field Correction). Mode: Auto, Manual, External correction
• Exit pupil: 20 mm
• Eye relief: 6 mm
• Diopters (Range): -5D to +4D
• Brightness adjustment: Yes
• Tint Adjustment: Cool, Warm
• Contrast Adjustment: Yes

System

• Video Recording: Yes
• Snapshot Capture: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Storage: Built-in memory module (8 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance measurement: Yes

Power supply

• Battery Type: Rechargeable lithium battery
• Battery operating time: 8 hours continuous operation with hotspot feature off (@25°C). 6 hours continuous operation with access point function on (@25°C)
• Type-C power supply: DC 5 V/2 A
• Supports external power supply

General

• Protection level: IP67
• Dimensions: 158.3 mm × 61 mm × 57 mm
• Operating temperature: - 20°C to 55°C (-4°F to 122°F)
• Weight: 260 g

Box Contents

• Lynx LE10S
• Dust cloth
• USB cable
• Protective pouch
• Wrist lanyard
• User manual

HIKMICRO SIGHT App for IOS & Android

Download the HIKMICRO SIGHT APP to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were operating it from the device itself. You will also be able to download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the APP HIKMICRO SIGHT. Compatible with all models of HIKMICRO thermal monoculars.

HIKMICRO Sight App for Android

HIKMICRO SIGHT App for IOS
