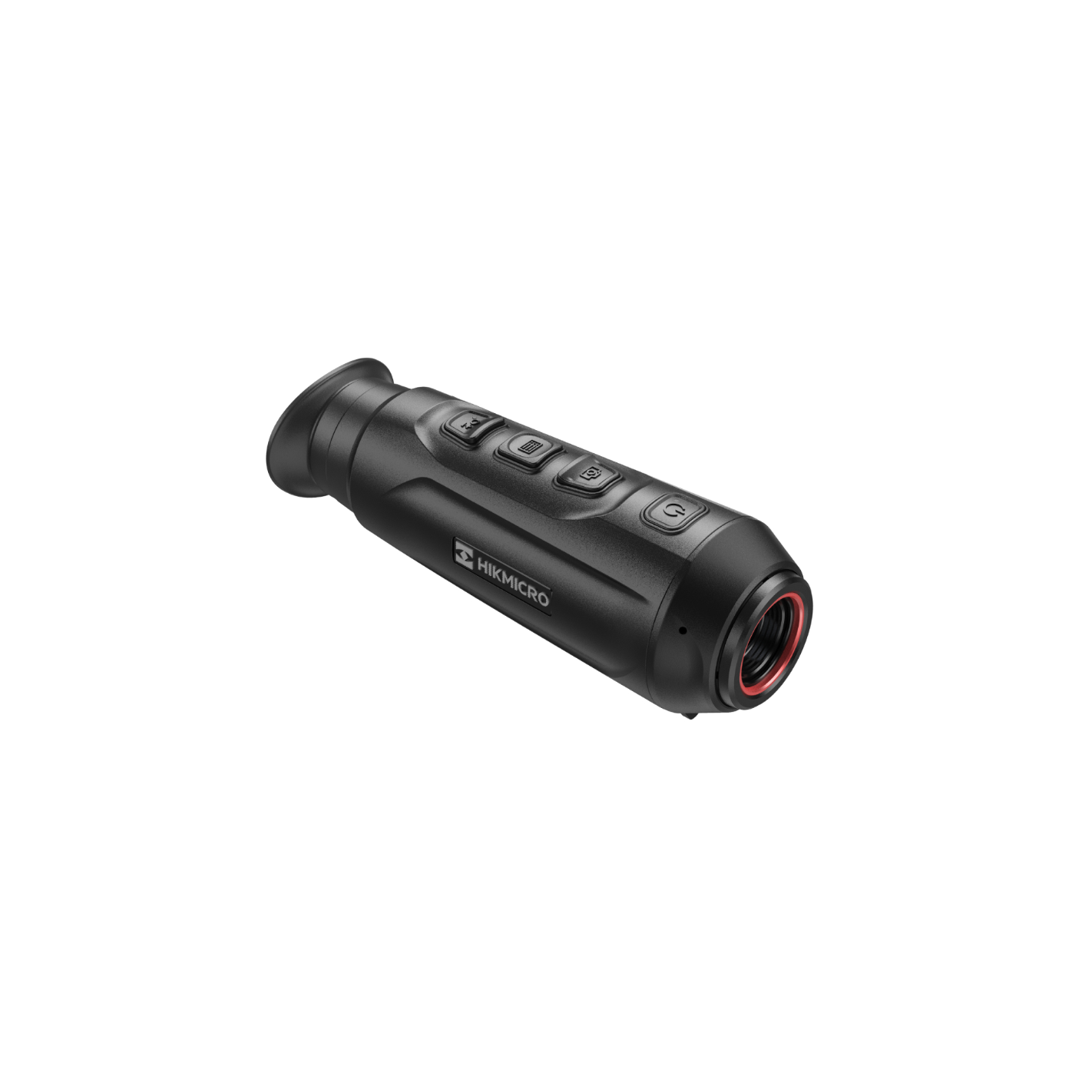

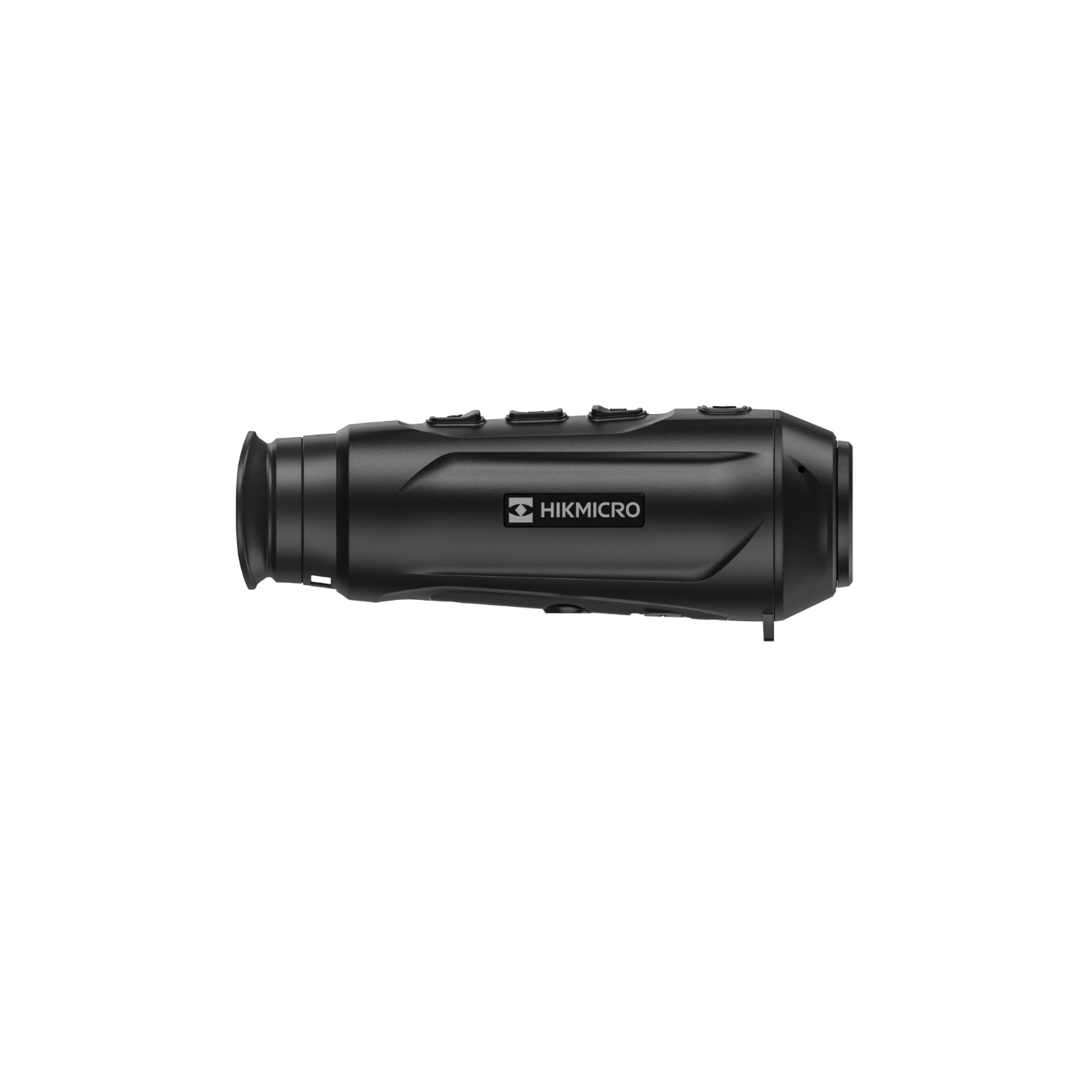

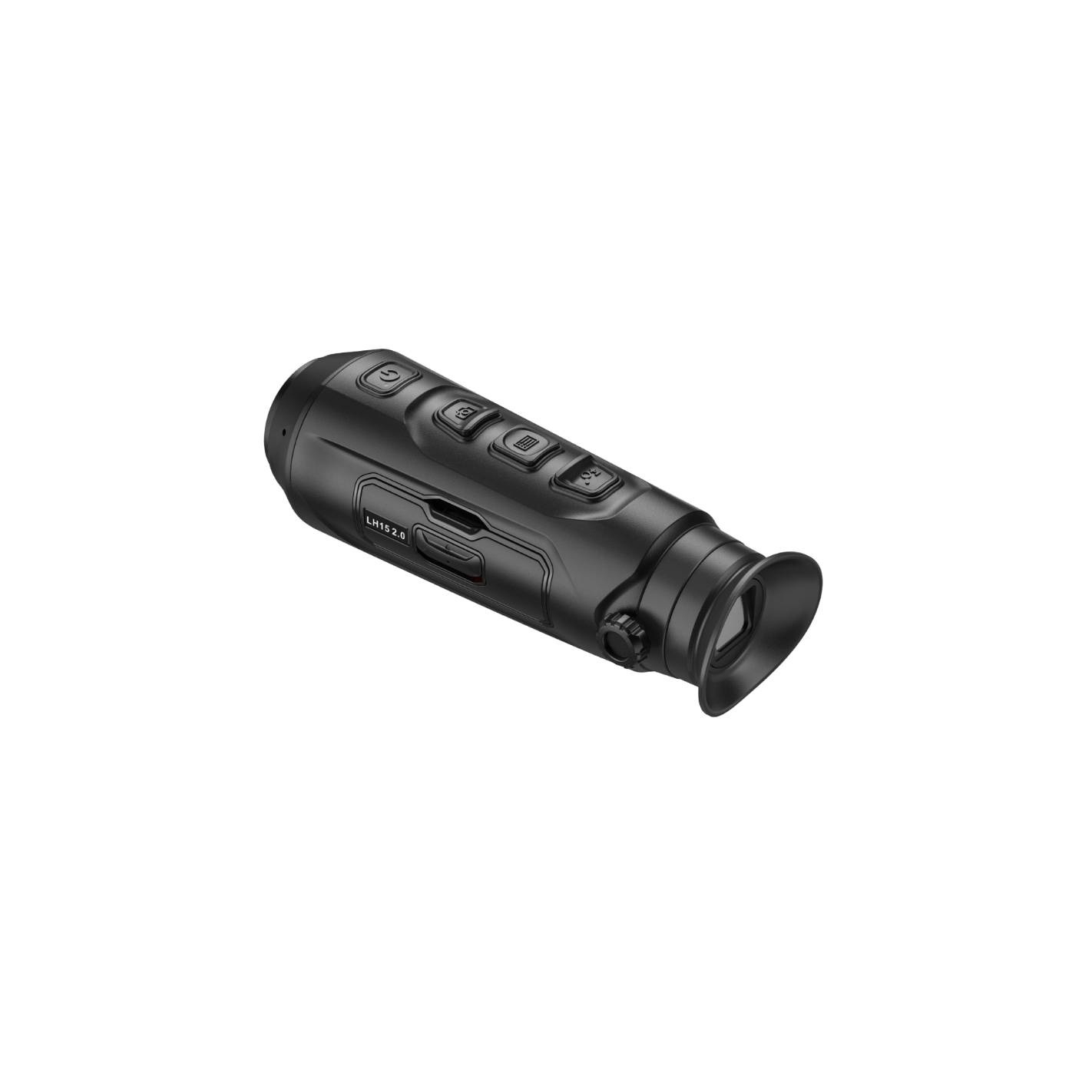

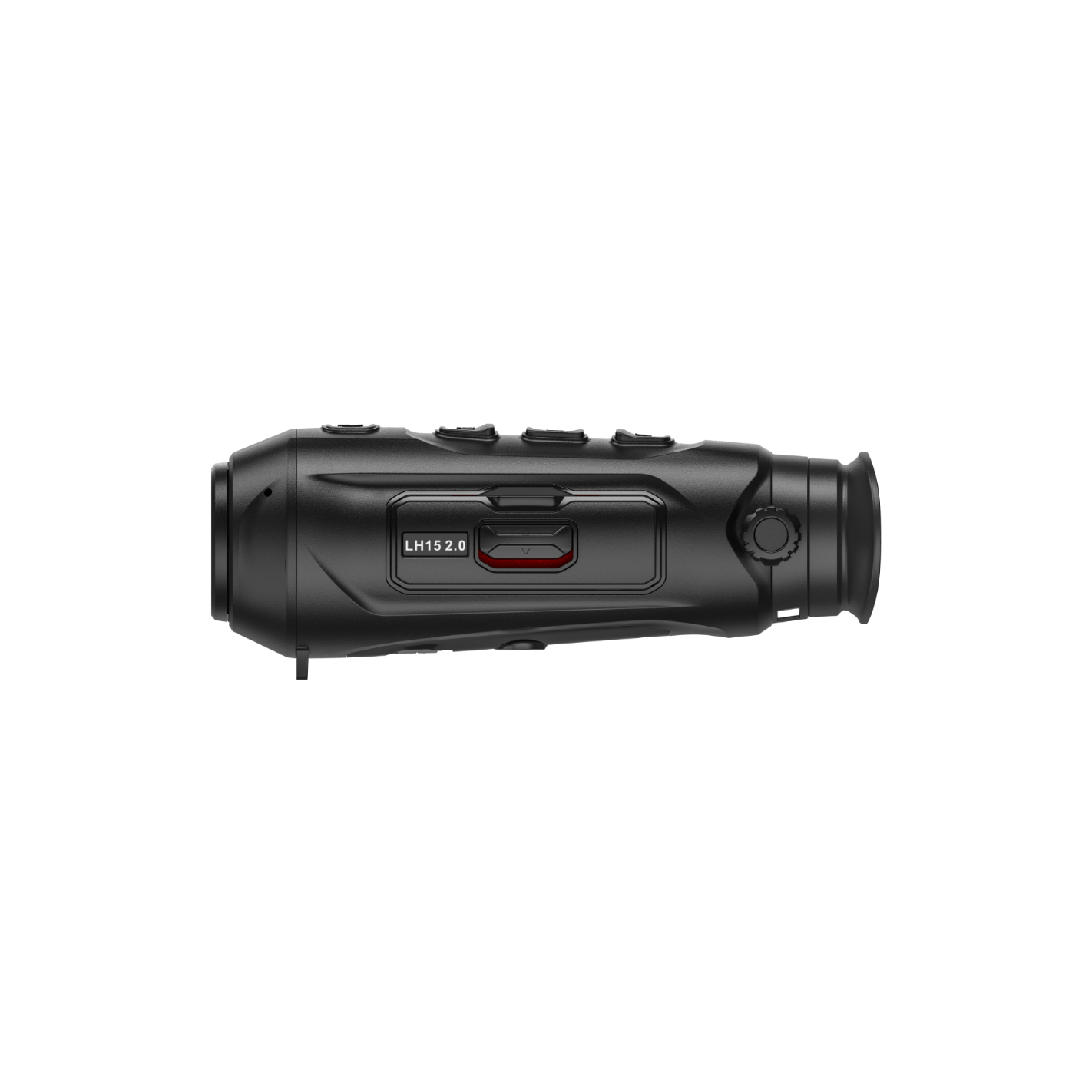

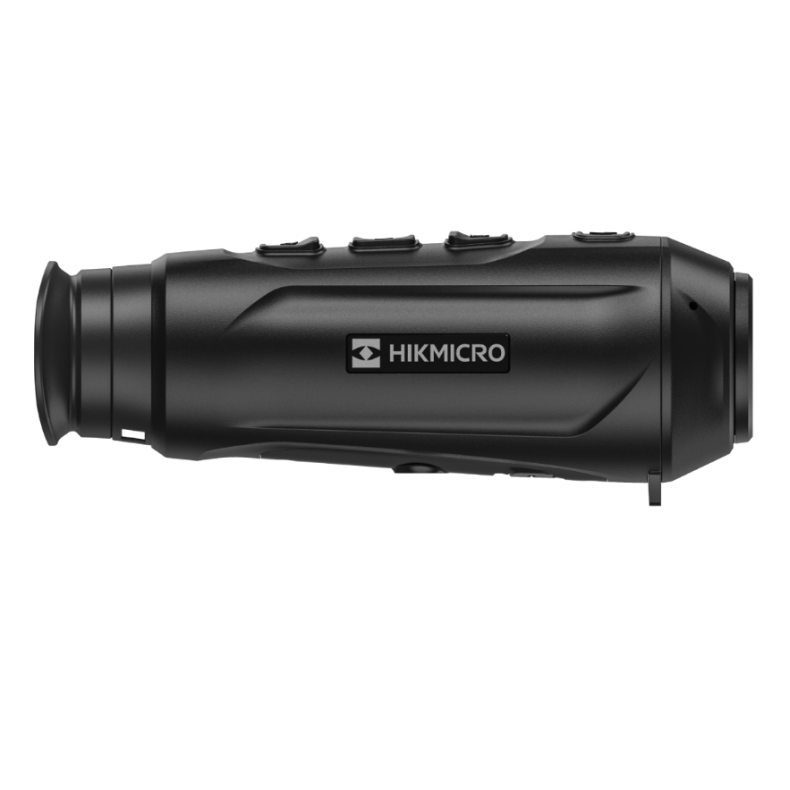

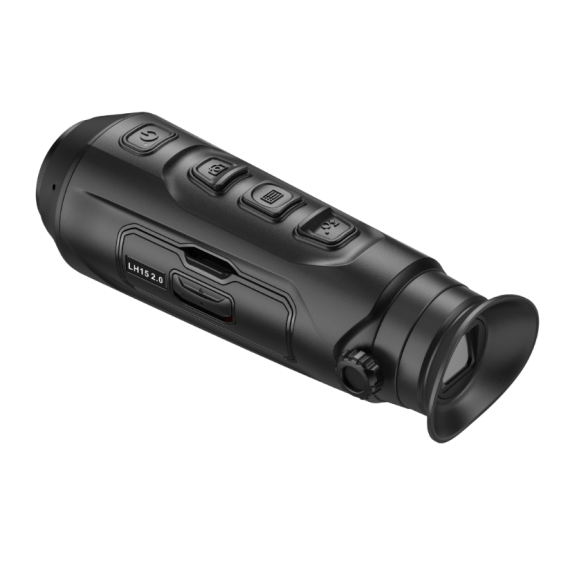

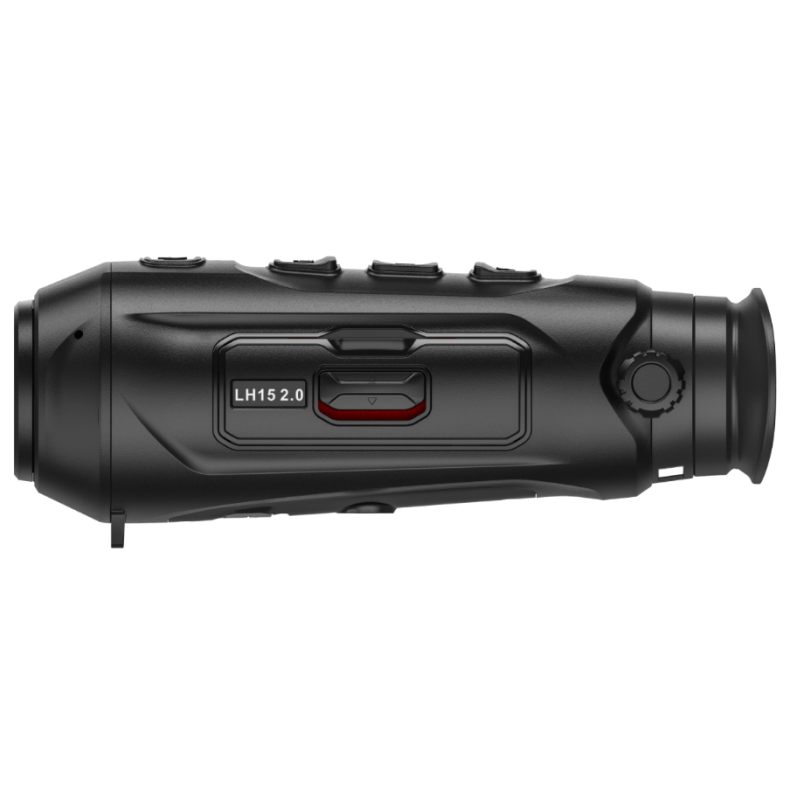

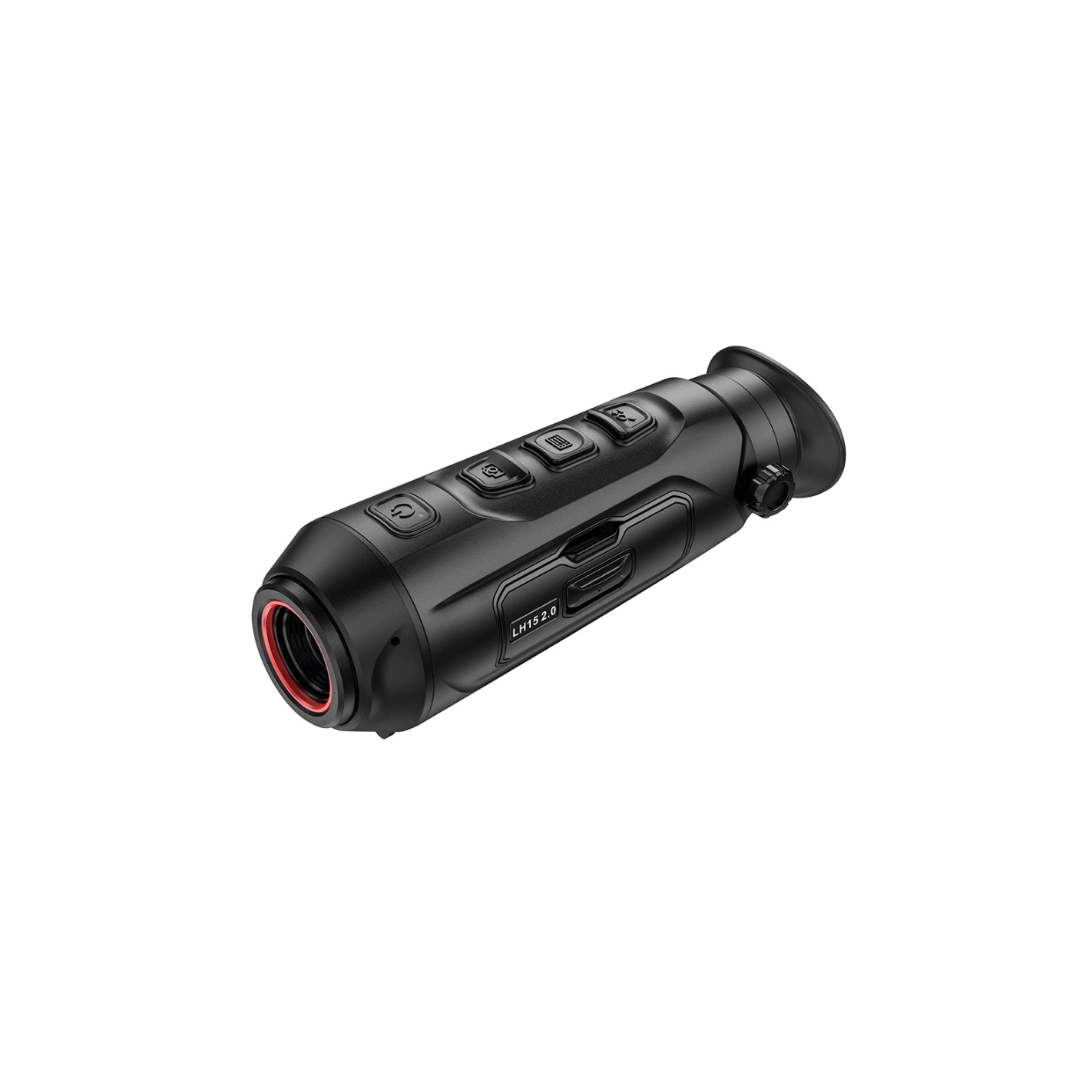

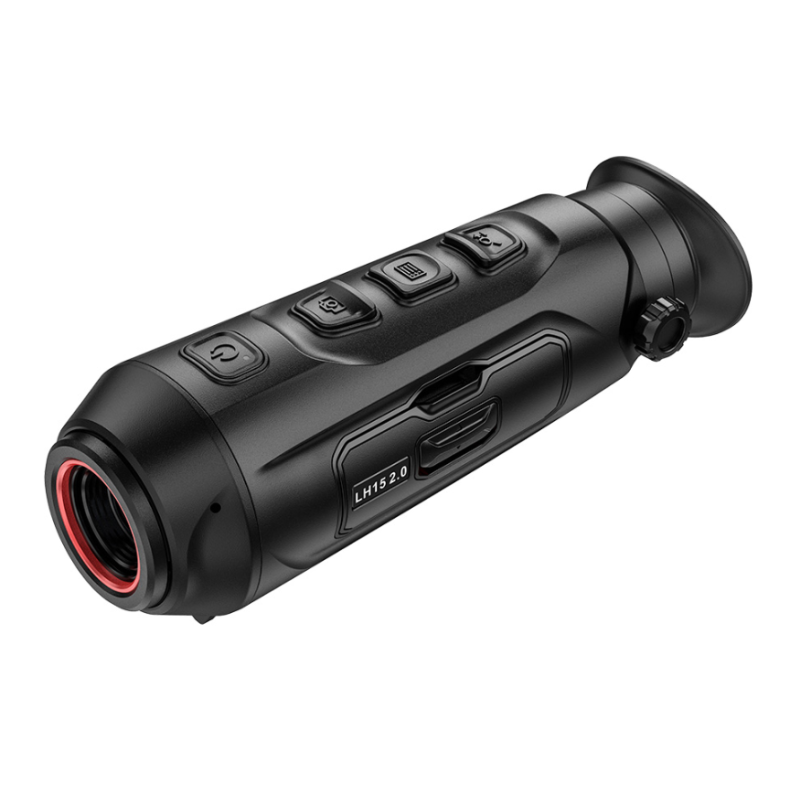

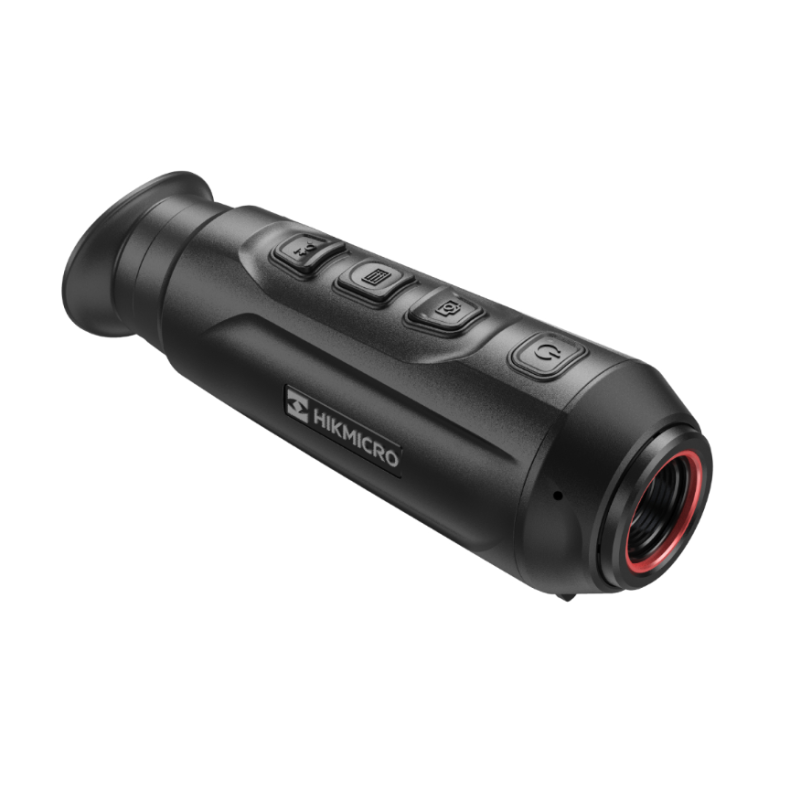

With an impressive 43-meter field of view, 384 sensors and a pixel pitch of 12 micrometers, the Hikmicro Lynx LH15 2.0 thermal monocular is designed to elevate the observing experience through its manual focus function. In addition, it features NETD thermal sensitivity
The Hikmicro Lynx Pro thermal monocular's outstanding detection range of 750 meters also makes it the ideal choice for field observation, delivering exceptional performance.
Key Features
- High sensitivity NETD thermal module
- 384 × 288 resolution with 12μm detector
- 0.39-inch OLED display with 1024 × 768 resolution
- Replaceable and rechargeable lithium ion battery
- Lightweight 270 g, with a compact and ergonomic design
- Up to 6.5 hours of continuous operation
Specifications
Thermal module
- Image sensor: Uncooled VOx focal plane arrays
- Resolution: 384 × 288
- Frame rate: 50 Hz
- Pixel spacing: 12 μm
- Waveband response: 8 μm to 14 μm
- NETD: Less than 20 mK (@25°C), F# = 1.0
- Lens (focal length): 15 mm, f1.0
- Detection range: 750 m
- Min. focusing distance: 1.5 m (5 ft)
- Magnification: 1.4x to 11.2x (8x)

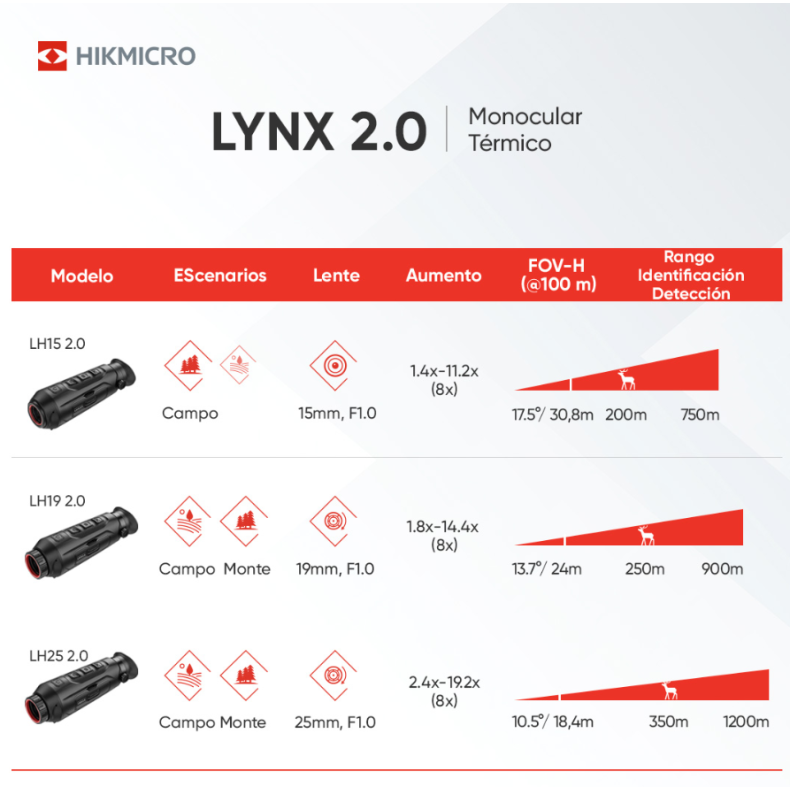

- Field of view (H × V), Degrees / m @100m: 17.5° × 13.1°/30.8 m × 23.0 m
Display image
- Display: 1024 × 768, 0.39 inches, OLED
- Palettes: Warm Black, Warm White, Warm Red, Fusion
- FFC (Flat Field Correction) mode: Auto, Manual, External correction
- Exit Pupil: 6 mm
- Eye relief: 20 mm
- Diopter (range): -5 D to +3 D
- Brightness Adjustment: Yes
- Tint Adjustment: Cool, Warm
- Contrast Adjustment: Yes System
- Video Recording: Yes
- Snapshot Image Capture: Yes
- Audio Recording. Yes
- Standby mode: Yes
- Storage: Built-in EMMC (16 GB)
- PIP: Yes
- Hotspot: Yes
- Hot Track: Yes
- Distance measurement: Yes
Power
- Battery type: Replaceable and rechargeable lithium-ion battery
- Battery operating time: 6.5 hours continuous operation with CVBS and hotspot function disabled (@25°C)
- Power Supply Type-C: 5VDC, 2A External Power Supply Supported
General
- Protection level: IP67
- Dimensions: 164.0 mm × 56.0 mm × 60.8 mm
- Weight: 272 g without battery
- Operating Temperature: -30°C to +55°C (-30°C to +55°C)
Box Contents
- LYNX Pro LH15 2.0.
- USB cable
- Dust cloth
- Protective pouch
- Wrist strap
- Charger
- 2 batteries
- User manual
HIKMICRO SIGHT App for IOS and Android
Download the HIKMICRO SIGHT APP to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were operating it from the device itself. You will also be able to download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the APP HIKMICRO SIGHT. Compatible with all models of HIKMICRO thermal monoculars.
