High-performance technology

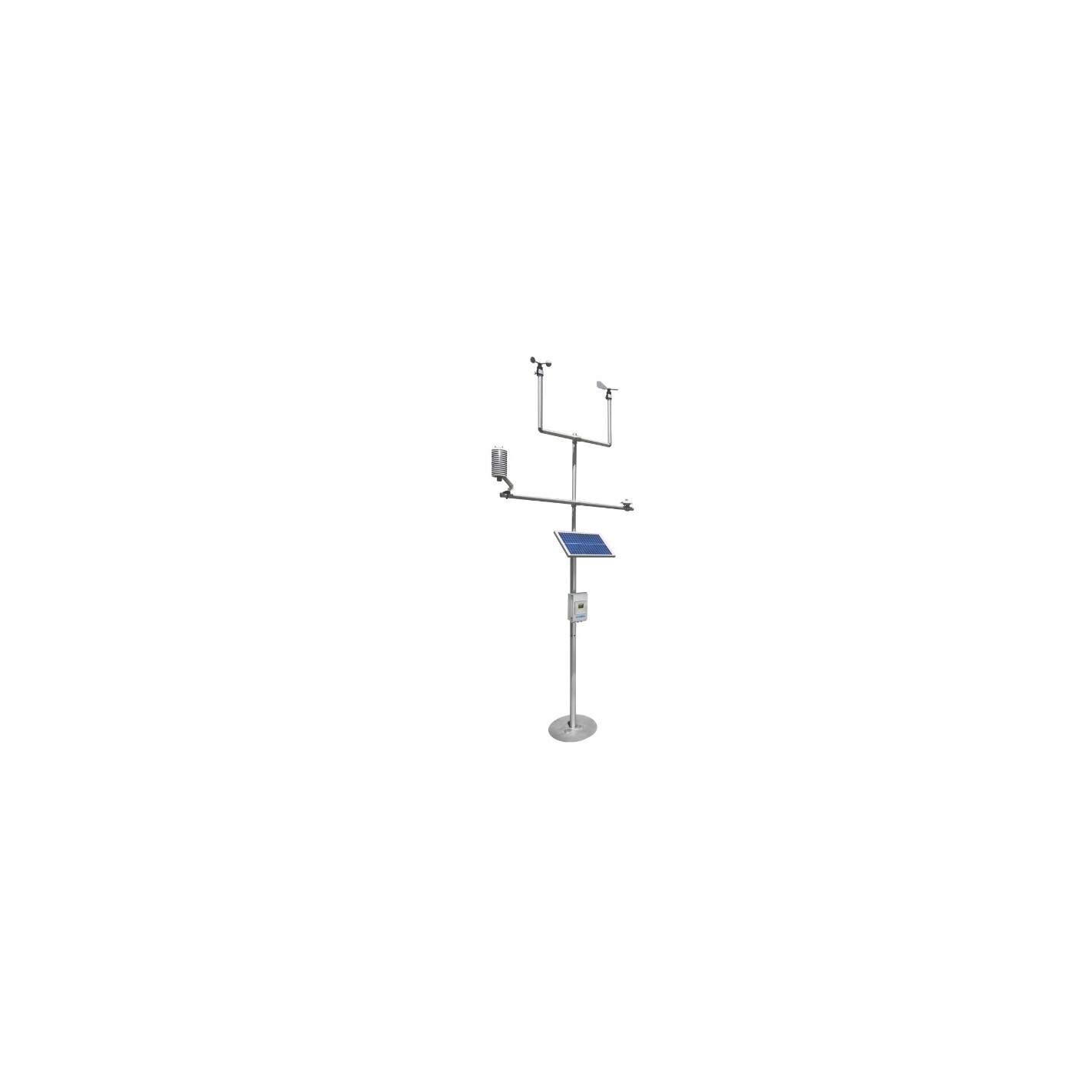

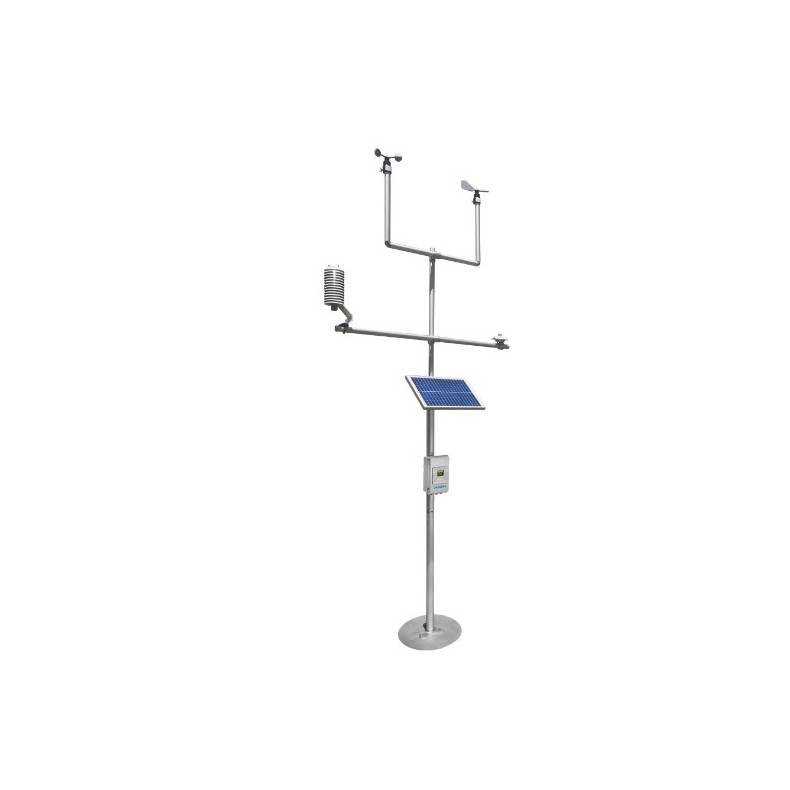

The automatic weather station (EMA) is designed for monitoring environmental conditions in all types of professional applications. The station consists of a high-capacity datalogger that acts as the central unit of the entire system, feeding each sensor individually and capturing the data they provide for subsequent storage, download, processing and visualization through the included software. The datalogger also allows statistical calculations to be made from the data obtained by the sensors. The LCD display shows different system parameters, such as active channels, memory configuration, battery charge, etc.

Measurements included

• Wind speed and direction.
• Temperature and humidity.
• Dew point.
• Atmospheric pressure.
• Rainfall and rainfall intensity.

Additional measurements

• Solar and UV radiation.
• Evaporation.
• Snow depth or water level.
• Visibility and present weather.
• Air and water quality.
• Lightning detection.

Compact and weather-resistant design

The station has a compact design and is made entirely of corrosion-resistant materials to ensure high weather resistance. The watertight enclosure is double sealed to ensure maximum protection of the circuitry from dust, moisture and other external agents. The optional heater for certain sensors is automatically activated at temperatures around 4°C, preventing ice and snow accumulation and enabling accurate measurements at low temperatures or during and after snowfall.

Maximum connectivity

The station has several communication options and allows data to be sent to the Internet from remote locations without their own communication system or on-site personnel. In addition, it can be powered by a solar panel and a battery for total autonomy.

Endless applications

Its incredible versatility makes it ideal for all types of applications in a multitude of fields, including:

• Meteorology and climatology.
• Hydrology.
• Ports and marinas.
• Stadiums and sports centers.
• Universities and research centers.
• Wind, solar and mining exploitations.
• Railway safety.
• Civil protection.
• Military applications.

Technical specifications

Data logger specifications

• Capacity: 1 year
• Protocol: ASCII, NMEA, MODBUS-RTU, MODBUS-TCP, HTTP, FTP and email

Electrical specifications

• Supply voltage: 10 to 30 VDC
• Consumption: 350 mA (max.)
• Input signal: 12 x analog, 5 x digital, 5 x serial (RS-232, RS-422 and RS-485) and SDI-12 (expandable)
• Signal output: RS-232, RS-422, RS-485, USB, Ethernet, Wi-Fi and 4G

Mechanical specifications

• Operating temperature: -30ºC to 70ºC
• Material: gray or white lacquered steel
• Dimensions: 300 x 400 x 220 mm
• Weight: 15 Kg
