USB Cameras - PRO Series
Cameras have become indispensable today and OPTIKA offers a line of outstanding digital imaging solutions for the most demanding users and professional use. The OPTIKA PRO series includes a wide range to meet virtually every application demand: from routine cameras to high-end monochrome or color cooled cameras, with CMOS or CCD sensors. The world-renowned, first-class SONY sensors ensure you capture your sample in beautiful true colors, delivering incredibly accurate colors just as you see them. For special applications, which require different observation methods, large sensor cameras are preferred for their high sensitivity offering high signal-to-noise ratio (low noise is achieved by cooling) and wide dynamic range. The OPTIKA Pro Cooled cameras provide excellent sensitivity: Peltier-cooled (cooling to 45 °C below ambient temperature), with scientific-grade CMOS sensor, they guarantee excellent low-light performance, ultra-long exposure time and impressive and reliable color fidelity. All major operating systems such as Windows, IOS, Linux are supported - feel free to ask us for custom cameras if you need something tailored to your needs!
CAPTURES YOUR SAMPLE IN BEAUTIFUL TRUE COLORS, DELIVERING INCREDIBLY ACCURATE COLORS JUST AS YOU SEE THEM
The OPTIKA PRO cameras feature professional sensors and are designed to capture all the vivid colors and high contrast for stunning images. The incredible capabilities of the OPTIKA software packages, designed to exceed the expectations of experienced and professional users, provide the opportunity to utilize advanced features such as black/white balance, multi-channel fluorescence, pixel shift, HDR, EDF, stitching and tiling, metering and Custom Report Generator.
PROFESSIONAL CAMERAS WITH HIGH SENSITIVITY, LOW NOISE AND IMPRESSIVE CAPABILITIES IN SPECIAL APPLICATIONS (IN DIFFERENT OBSERVATION METHODS)
When operating in critical conditions, especially related to low light conditions, cameras with large sensor size, high sensitivity and wide dynamic range are needed for good results. Some of the PRO cameras from OPTIKA come with all these features, allowing you to choose between the traditional CCD sensor or the state-of-the-art scientific grade CMOS sensor. In case you are looking for maximum performance and unmatched quality, what you need is a Peltier-cooled camera, preferably monochrome.
HIGH-SPEED LIVE VIEW CAMERAS WITH USB3.0 DATA TRANSFER FOR INCREDIBLY SMOOTH RESULTS ALSO AT HIGHEST RESOLUTION
USB 3.0 is the latest generation of USB technology and offers several key performance benefits for microscopy. USB 3.0 transfers data up to ten times faster than USB 2.0, resulting in faster transfer of large image or video files and increased workflow efficiency, making it ideal in various fields, from research laboratories to industrial applications and educational purposes.
These versatile cameras offer various resolutions, but always ensure significant speed.

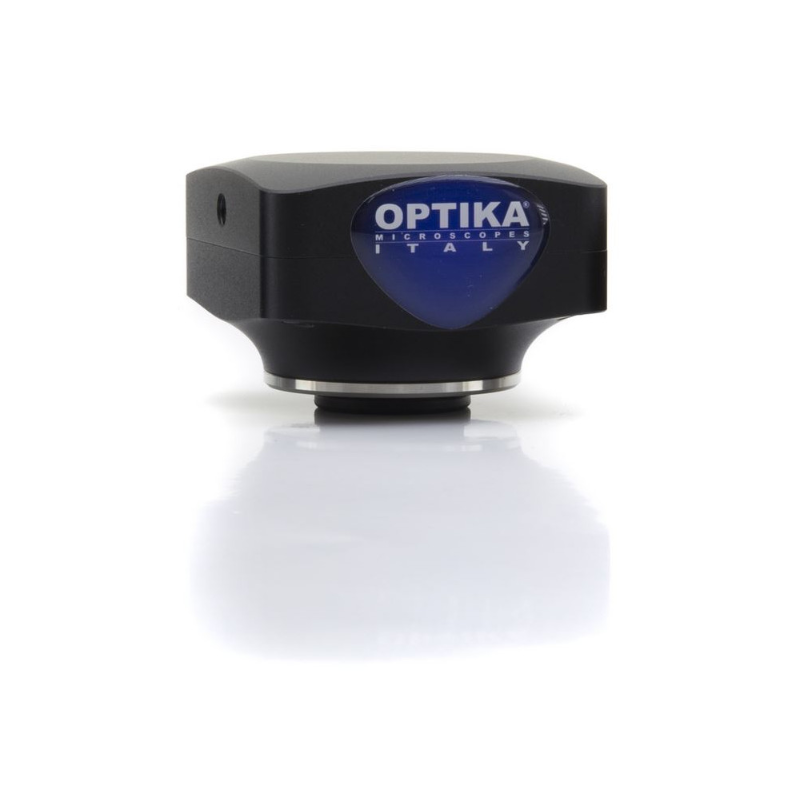

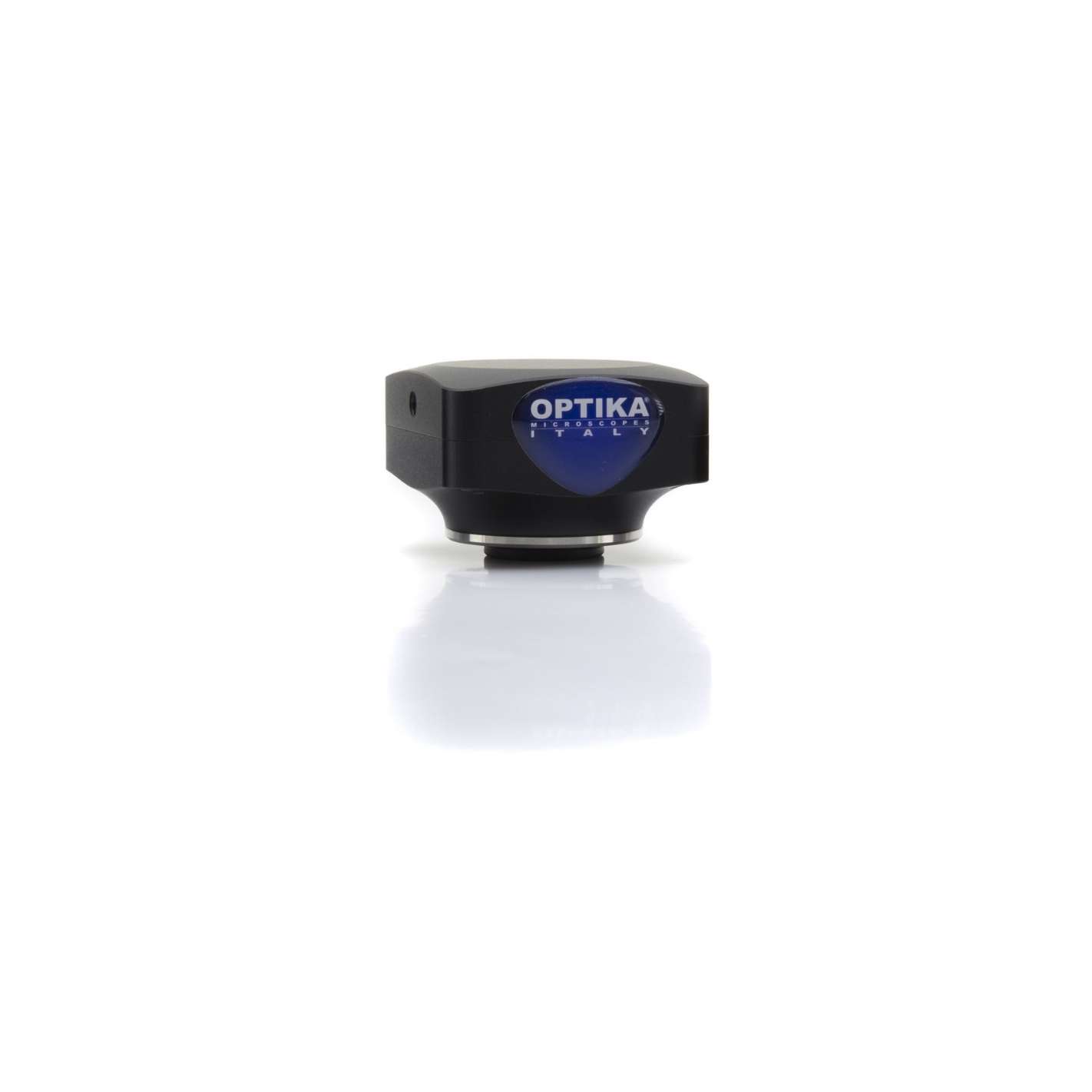

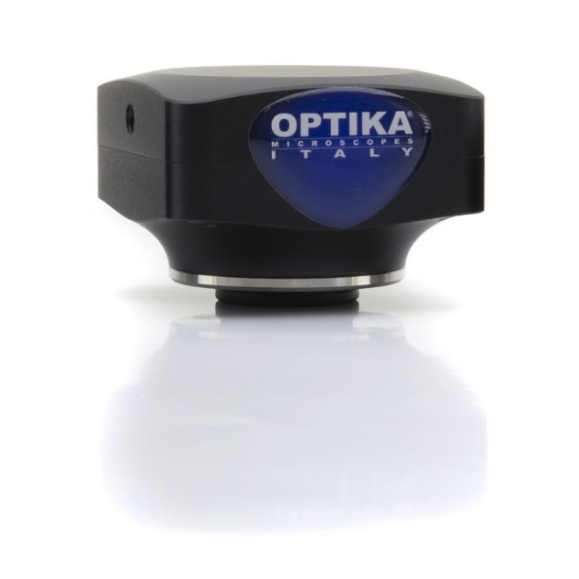

C-P6
Type: CAMERA - PRO SERIES
Description: USB 3.0 C-mount microscope camera
CAMERA SPECIFICATION
Digital Camera Resolution: 6.3 MP (3072 x 2048)
Signal output: USB 3.0
Sensor size: 1/1.8"
Sensor technology: CMOS
Sensor type: SONY EXMOR CMOS
Image format: 3/2
Pixel size: 2.4 x 2.4 µm
Full frame rate resolution: 30 fps (3072 x 2048)
Frame rate in other resolutions: 38 fps (1536 x 1024)
Sensitivity: 425 mV at 1/30 sec.
Dark signal: 0.15 mV at 1/30 sec
ADC conversion: 8 bits - 12 bits
Color Depth: 1 bit; 4 bits; 8 bits; 24 bits
Exposure time: 0.1 ms - 15 sec
Grouping: 1x1; 2x2
IR filter: 380-650 nm (IR cut filter)
Camera power supply: PC USB
C-mount: YES

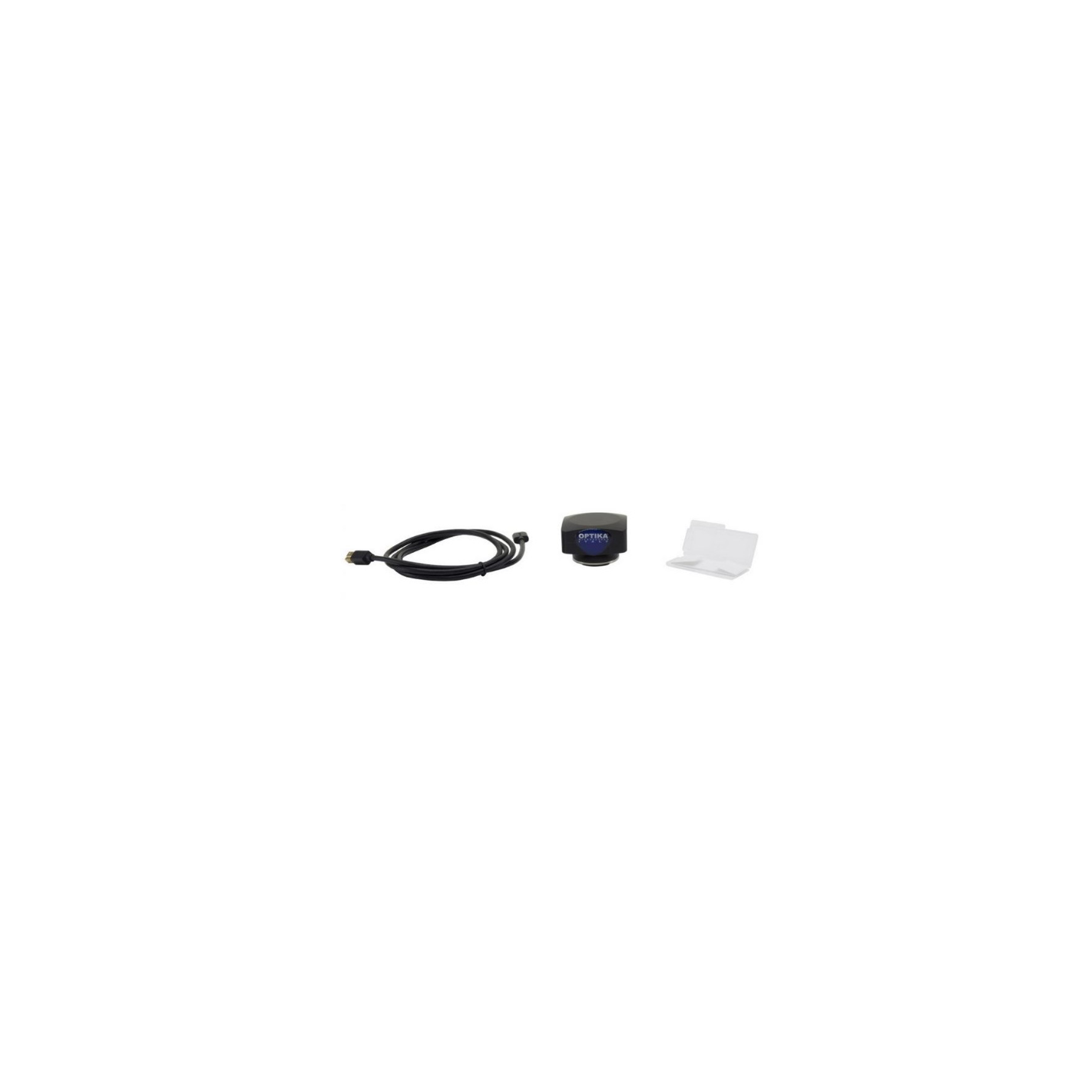

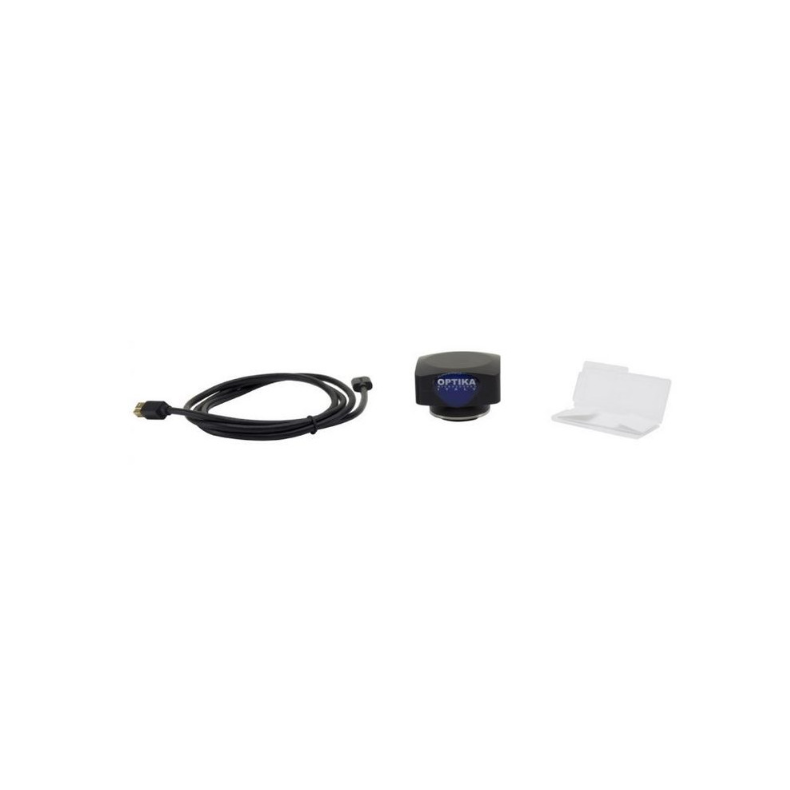

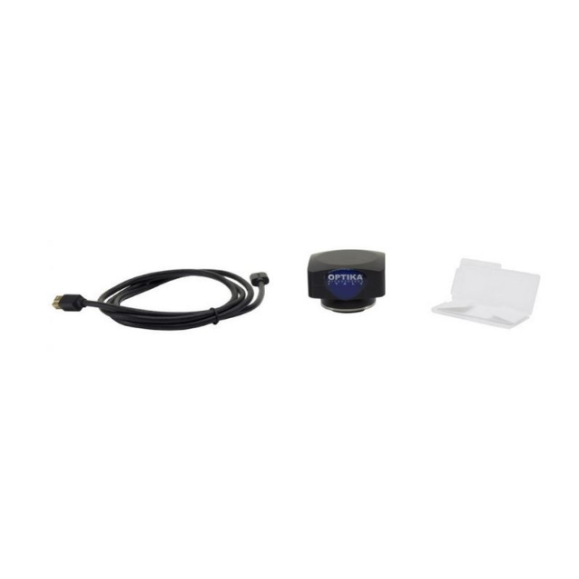

ACCESSORIES
- Calibration slide
- 1.5 meter USB cable
ENVIRONMENTAL SPECIFICATION
Operating temperature: -10 to +50°C (-10 to +50°C)
Storage temperature: -20 to +60°C (-4 to +60°F)
Relative humidity: 30% to 80%
Storage humidity: 10% to 60%
Dimensions: 68 x 68 x 46,4 mm
Weight: 0.265 kilograms
SYSTEM REQUIREMENTS
Operating System Win XP / Win Vista / Win 7 / Win 8 / Win 10 (32 or 64 bit) OSx (Mac OSx) from 10.7.5 and above Linux
PC requirements CPU: Equal to Intel Core2 2.8 GHz or higher RAM: 2 GB or more USB port: USB 2.0, at least two ports
