Rotator TS-Optics 360° and quick exchanger - M54x0.75 - 10mm length

Quick and rotating changer TS-Optics M54x0.75 with only 10.5 mm length

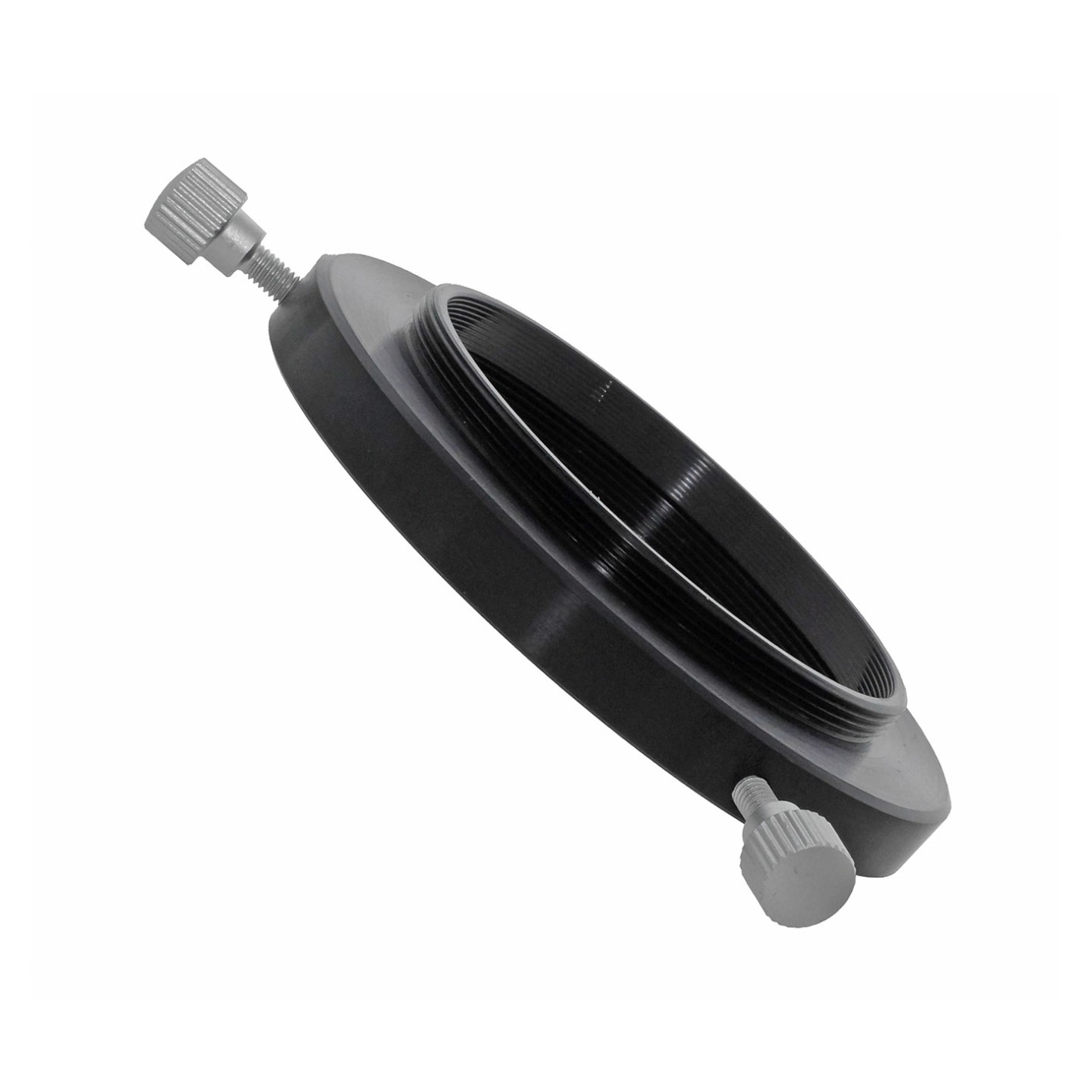

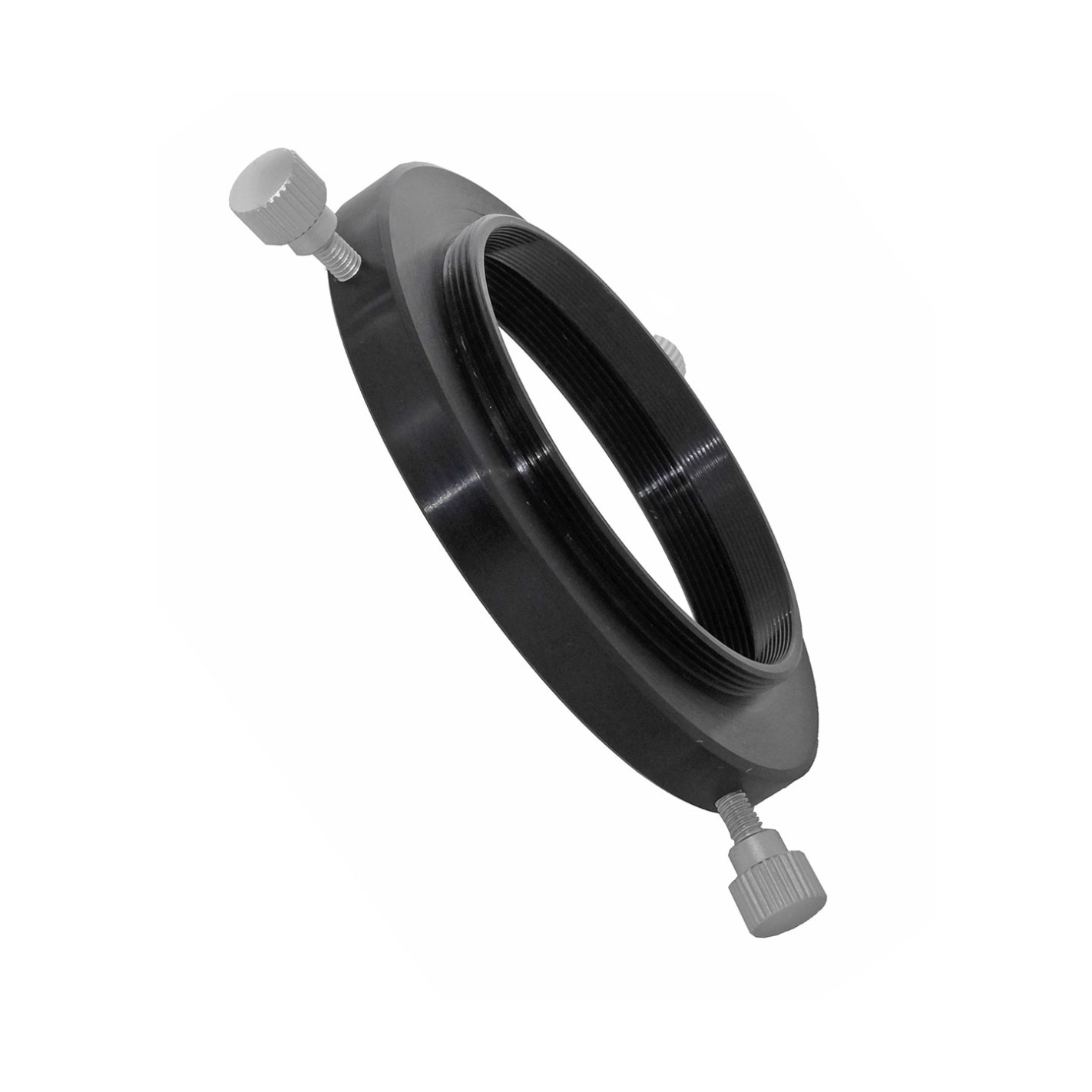

This adapter is a real problem solver from Teleskop-Service for all astrophotographers working with large cameras with M54x0.75 connection. The adapter provides quick changeover and 360° rotation with minimum length. The non-slip knurled head screws allow handling even when wearing gloves.

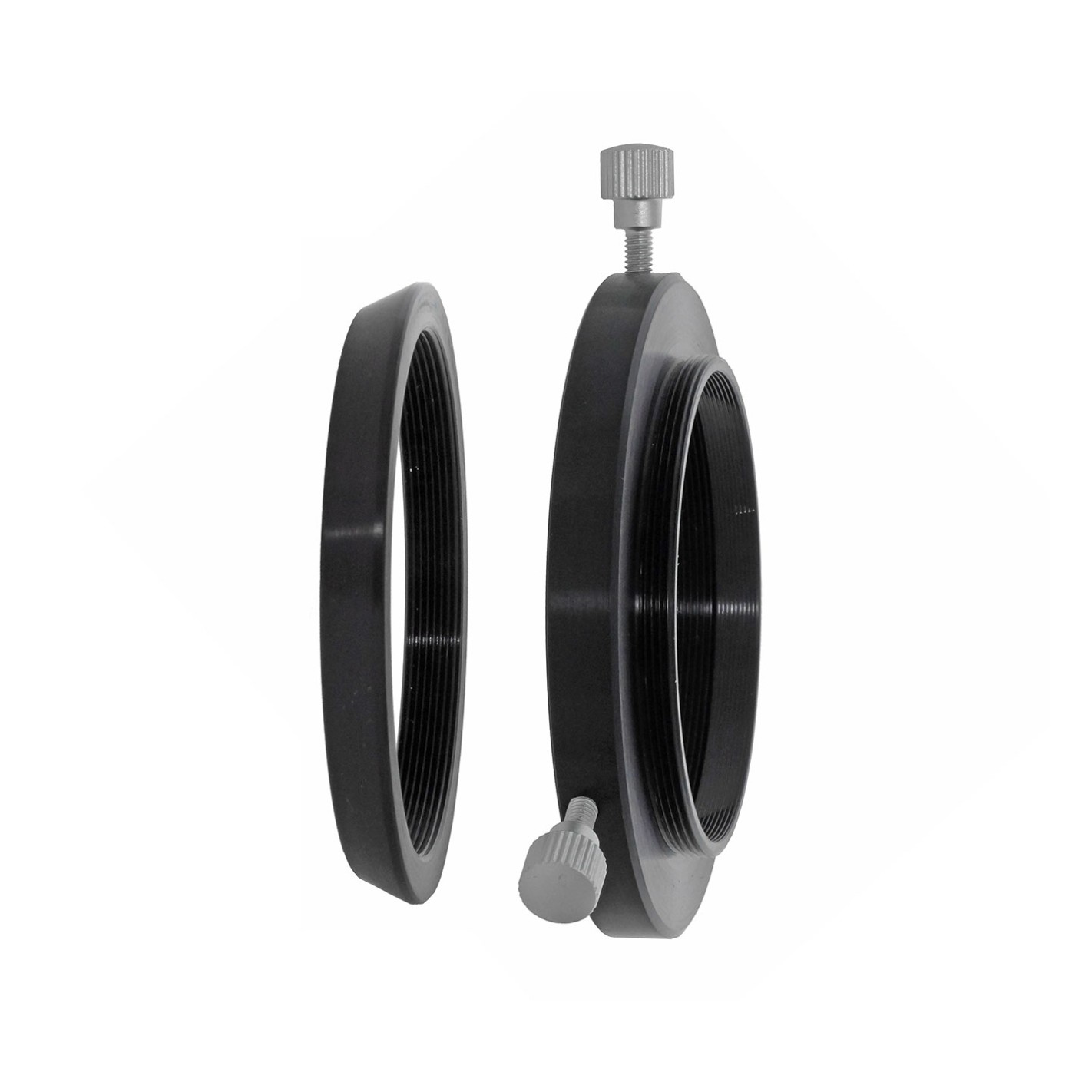

The rotation adapter consists of two parts. The inner, tapered adapter establishes the connection to the telescope or corrector. The outer adapter holds the connection adapter with three screws and establishes the connection to the camera.

The advantages of the TSM54ROTK adapter:

♦ Only 10 mm optical travel - ideal for short adaptations.

♦ Perfect centering - the inner ring of the adapter is always in the center - when clamped, it tightens automatically.

♦ The free inner diameter is 51 mm, so the adapter offers free passage for 2" shots - for example when a corrector is screwed to the focuser and must be rotatable.

The application fields of the TSM54ROTK adapter:

♦ Quick changer: ... you can disassemble the camera in a matter of seconds, e.g. to remove dust from the sensor. Unscrewing is avoided, cables cannot get tangled.

♦ 360° rotation: ... you can rotate the camera 360°, thus achieving optimal positioning of the object on the camera sensor.

♦ Enhanced search for a guide star when using an off-axis guider: ... if you insert the TSROTM54K in front of the off-axis guider, you can rotate the guider and have a wider field to find a bright guide star.

Technical specifications:

• Telescope side connection thread M54x0.75 (female) - length 8 mm
• Camera side connection thread: M54x0,75 (male) - length 3,5 mm
• Optical pitch: 10 mm (without male thread M68x1)
• Free inner diameter: 51 mm

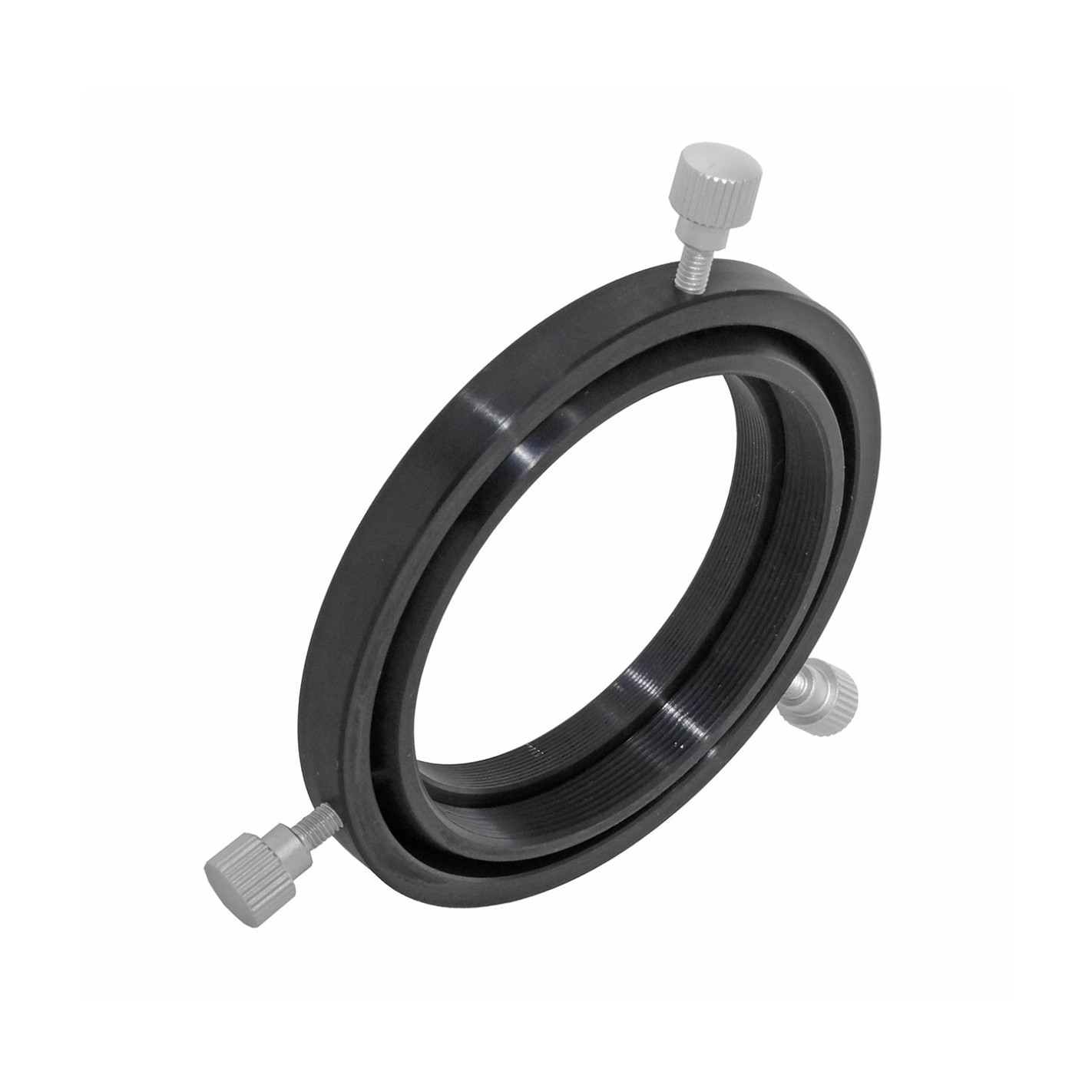

• Mounting: Locking of adapter position by 3 knurled M4 screws
