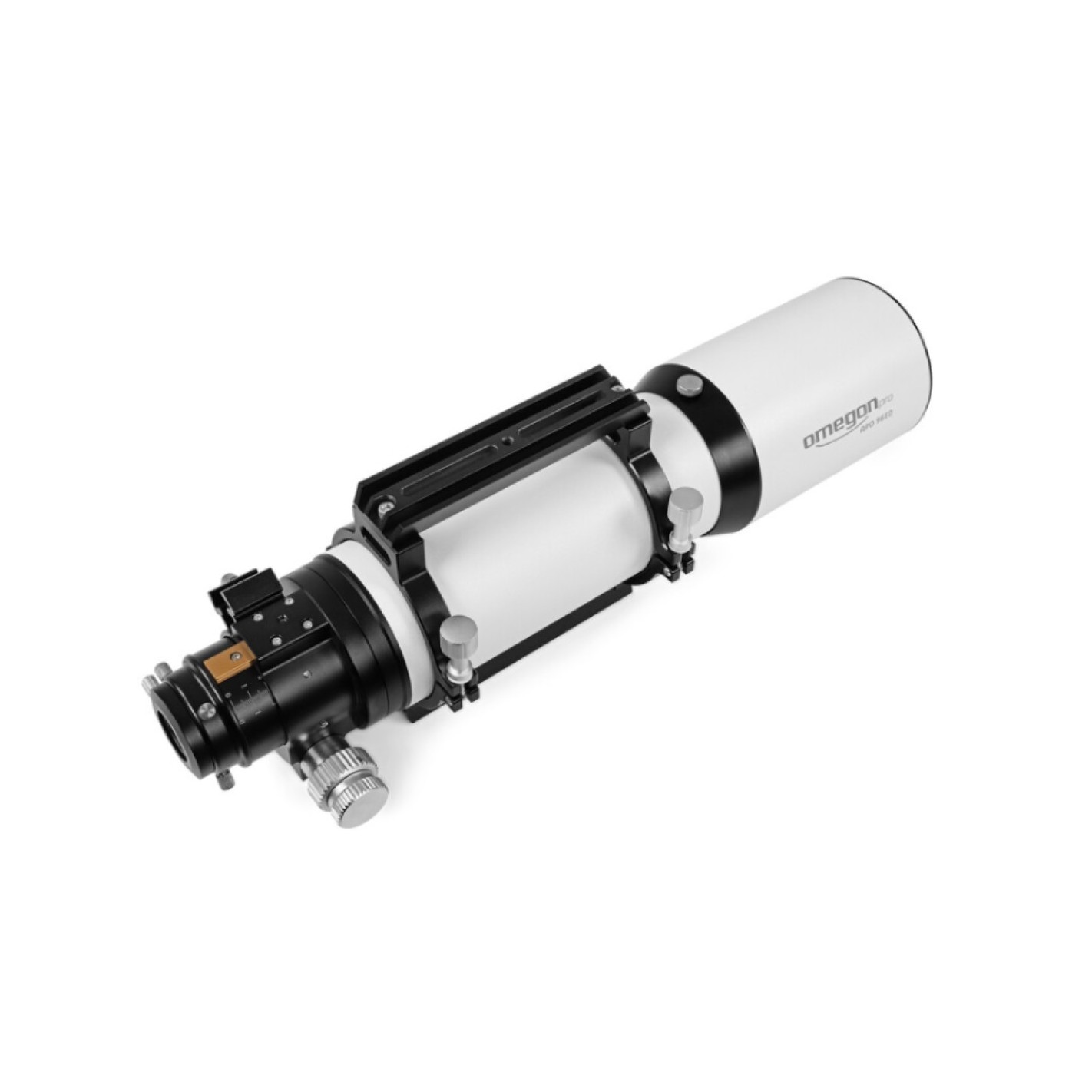

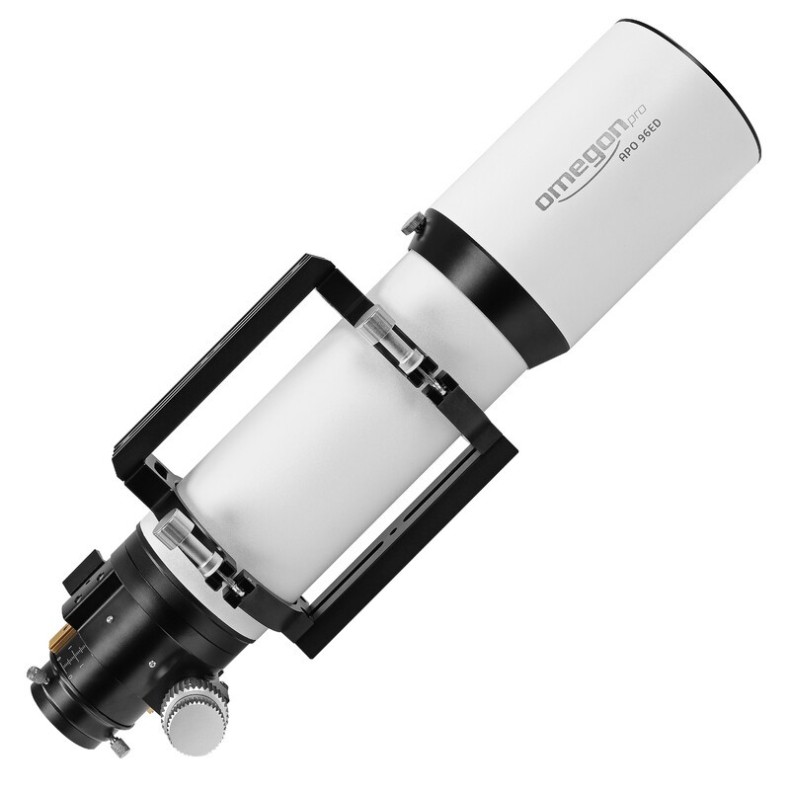

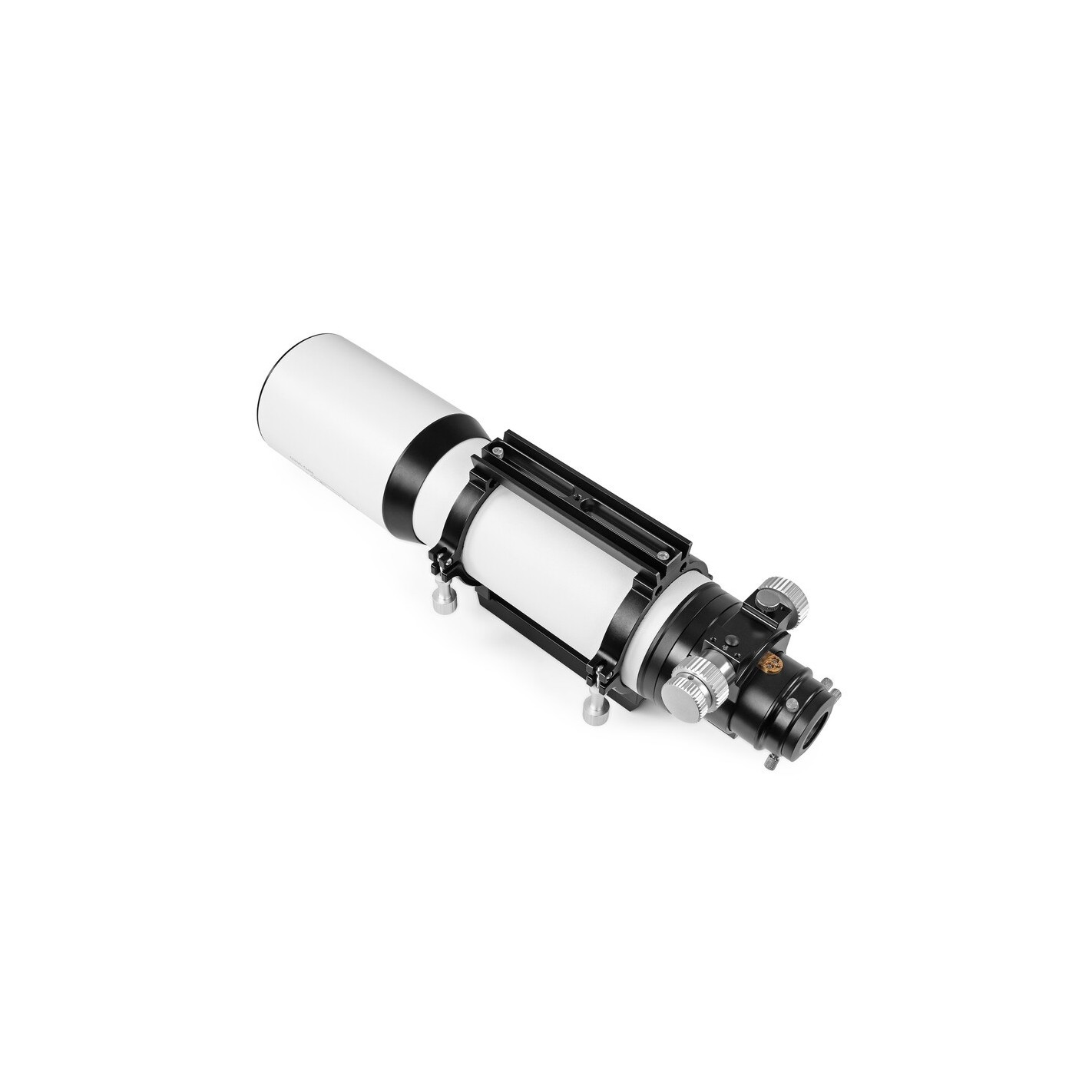

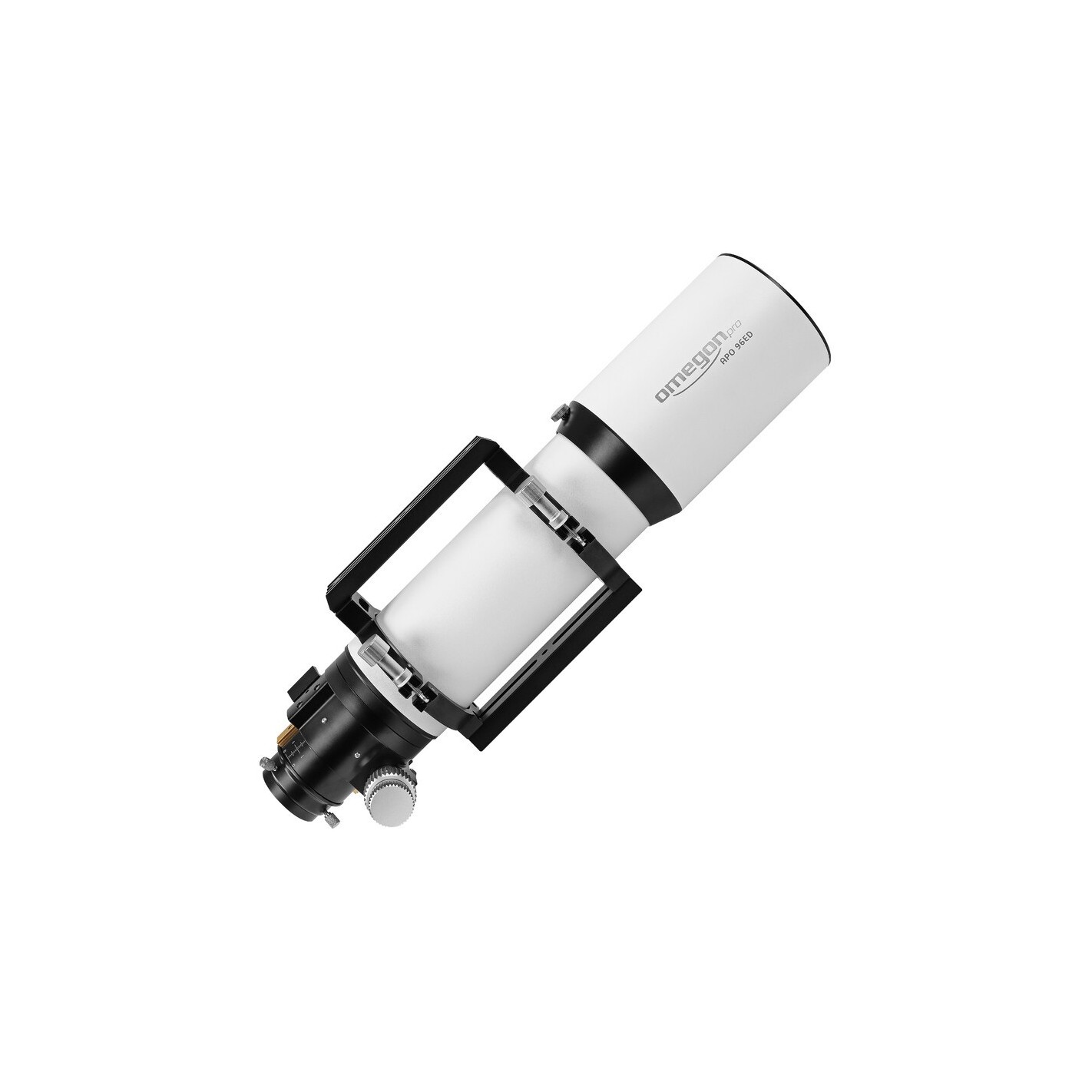

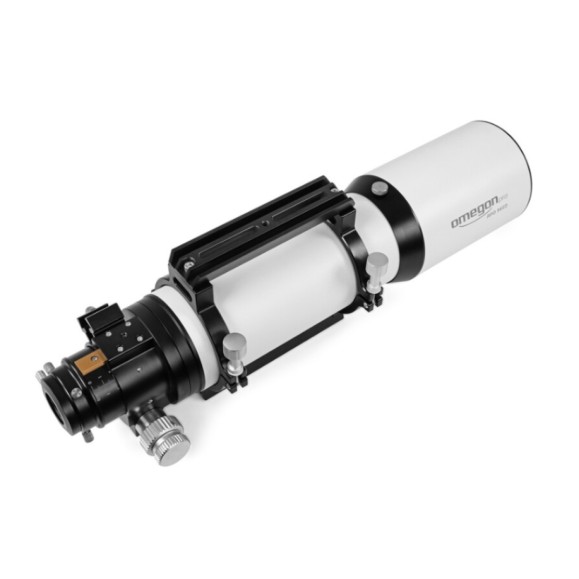

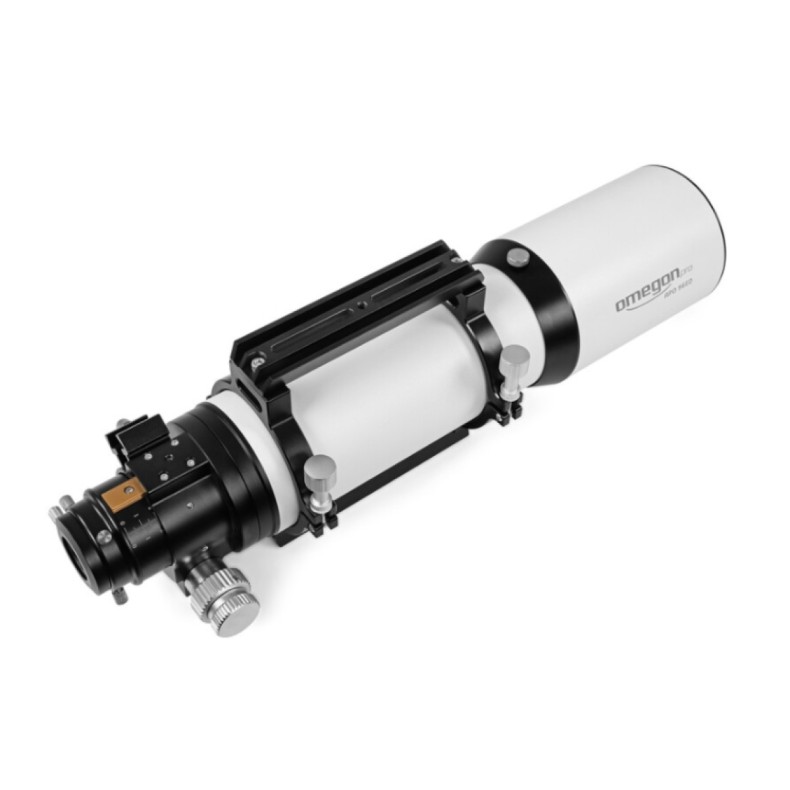

Apochromatic refractor tube Omegon Pro AP 96/575 Triplet ED FCD-100
This 96 mm aperture apochromatic offers excellent optics and high quality mechanics. Its aperture of more than 10 cm and good resolution make it attractive for astrophotographers and visual observers alike.
Carrier | Description | Estimated Delivery | ||
---|---|---|---|---|
Home delivery - International | Home delivery - International |
Monday, 16 December - Monday, 23 December |
Home delivery - International
Home delivery - International
Estimated delivery:
Monday, 16 December - Monday, 23 December
A compact apochromatic for formidable images
Thanks to the high-quality triple lens system, this telescope is one of the best in its class. In part, this is due to the use of the Japanese-made Hoya ED FCD100 glass and its exceptionally low dispersion.
Main features:

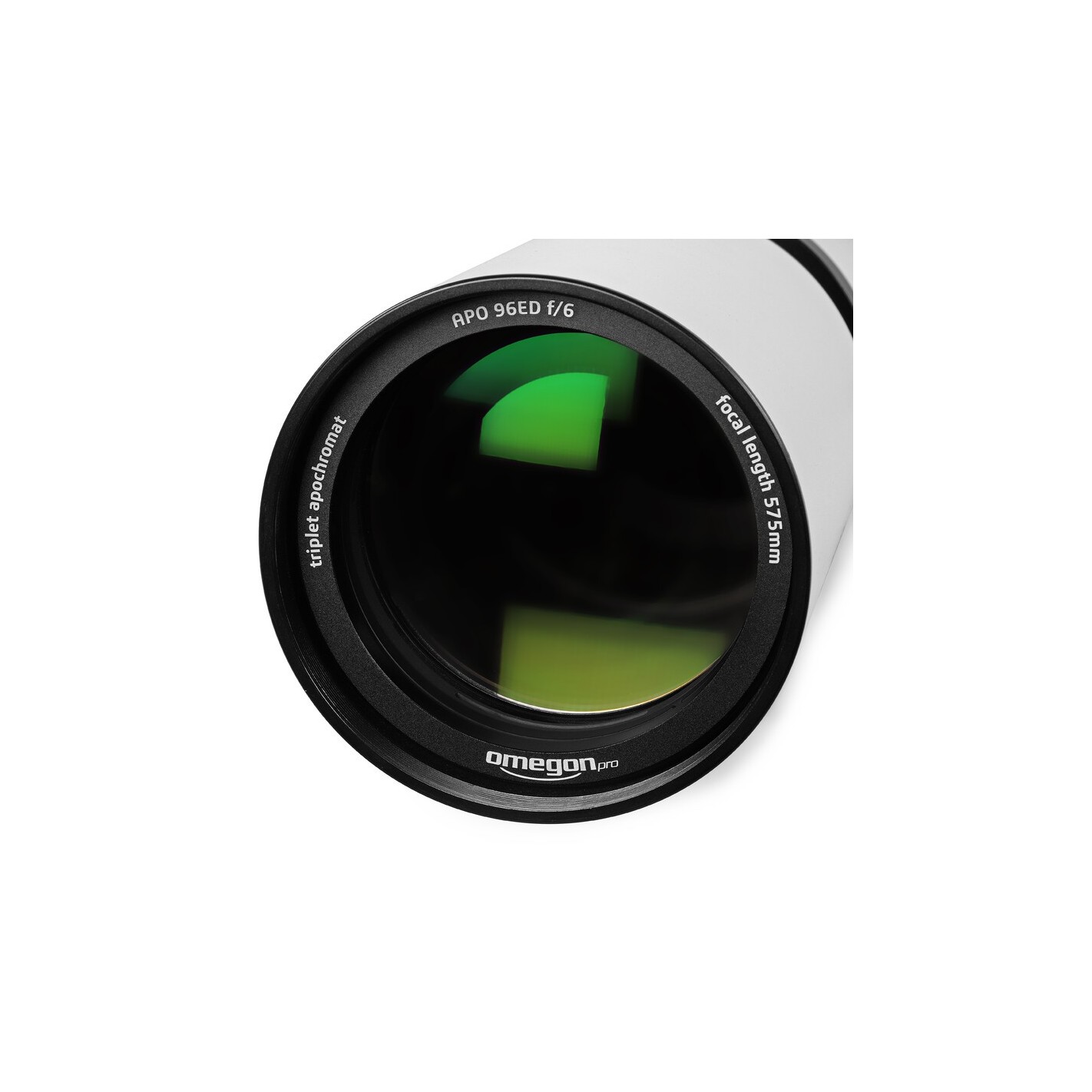

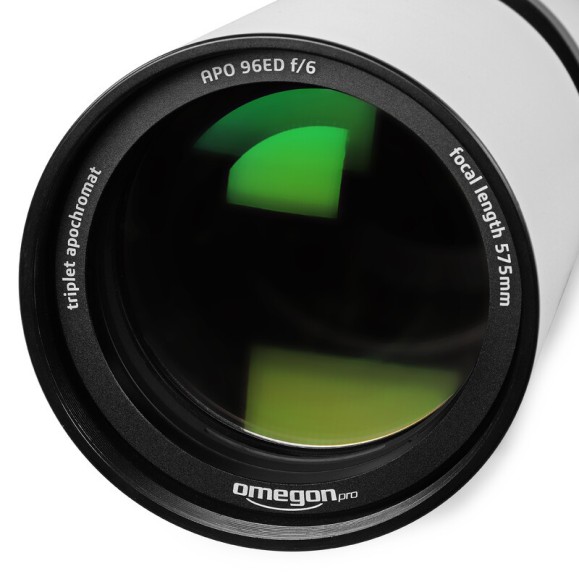

- Triple apochromatic lens with FCD-100 ED lens: high quality apochromatic lens, for pure color and high contrast images
- Internal anti-reflective diaphragms, for even better contrast in observation and astronomical photography
- 2.5" hybrid focuser with 1:10 reduction, so you can attach even heavy accessories up to 10 kg (33 lbs)
- Two-in-one carrying handle and rail: for transporting and mounting additional accessories such as a guide tube
- It's all thought out: this telescope comes with CNC tube clamps, GP mounting rail, finder shoe and extendable dew cap - it's a telescope to get you started in astronomical photography!
Made for perfect astronomical photography
Thanks to the triple ED apochromatic air-gap apochromatic lens, it focuses an image with high contrast and pure colors. At the heart of its astronomical photography machine is the FCD-100 glass from Hoya in Japan, known for its low chromatic aberration. It makes it possible to observe nebulae and planets even at very high magnification and still obtain clear, sharp images.
A telescope for all astronomy enthusiasts who value high quality images.
More information about the FCD-100:
Thanks to technological innovation, Hoya has successfully optimized the series production of the FCD-100. An optical glass with extremely low dispersion, even approaching fluorite. By combining it with a high refractive index optical glass, it has been possible to achieve unprecedented chromatic aberration correction.

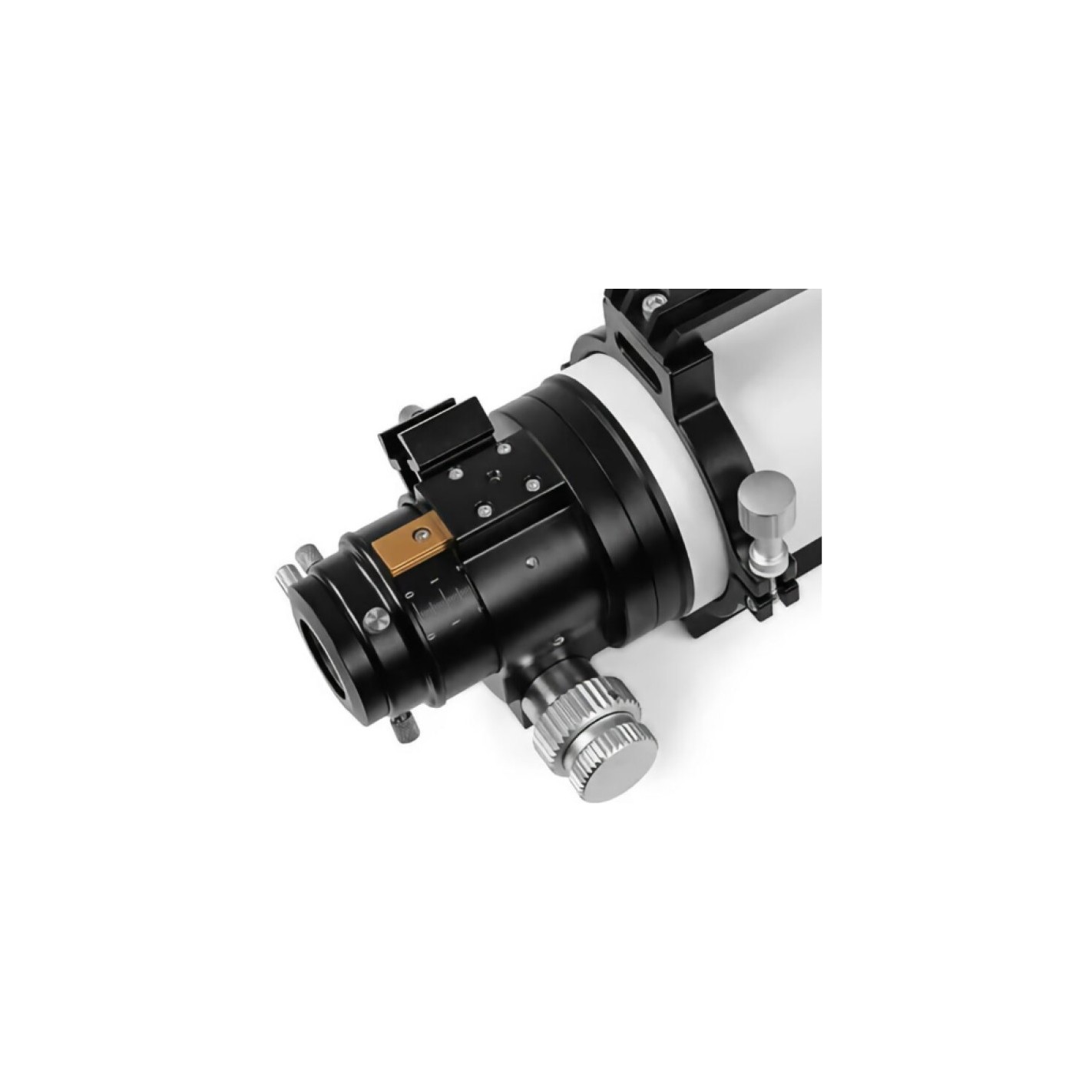

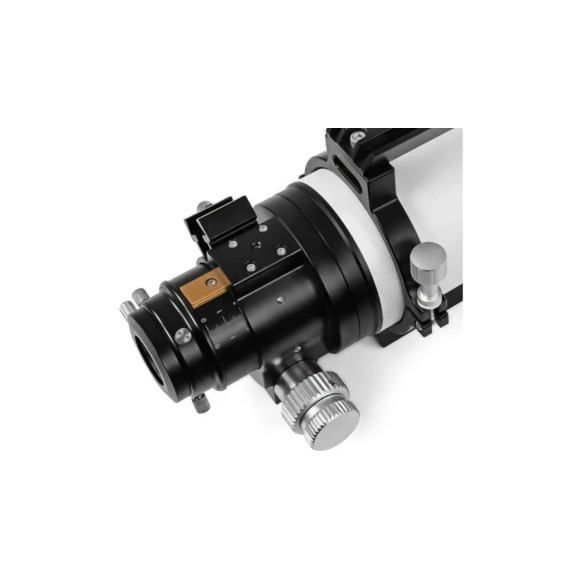

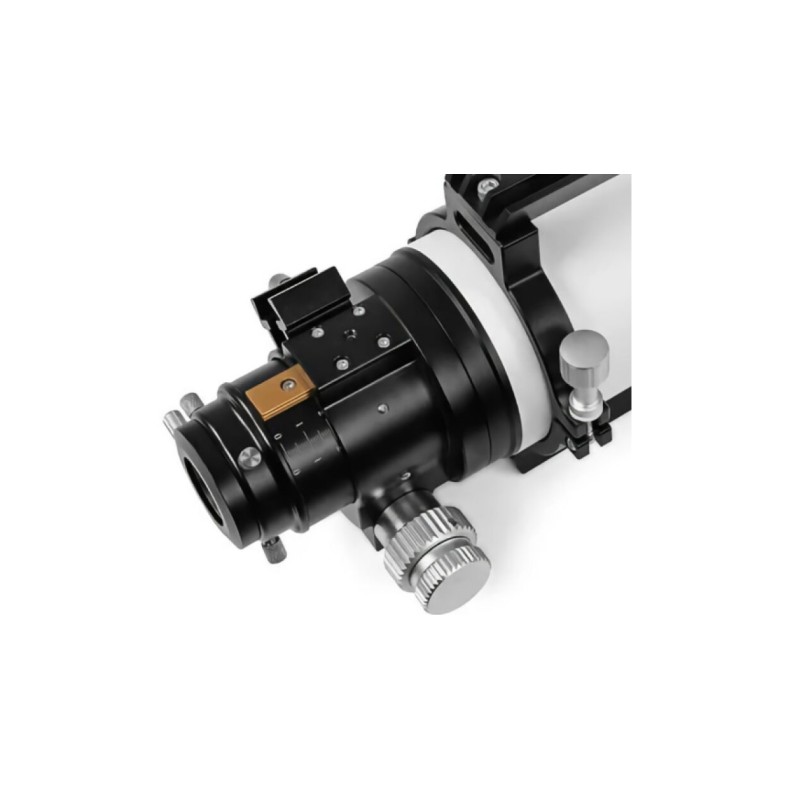

Large, precise and stable 2.5" focuser
The improved 2.5" hybrid focuser makes observation and photography even more comfortable and precise. This focuser is based on the Crayford principle, but has an additional guide rail in the form of a rack and pinion with inclined slots. The combination of these techniques gives the focuser great precision and stability.
Easily attach any accessory, from adapters to large eyepieces or heavy camera equipment: the apochromatic can handle equipment with a total weight of up to 10 kg. Once the focus is set, it stays in place with every movement of the telescope.
Rotates 360 degrees: the focuser can be rotated and locked, making it easy to align with the object you want to photograph.
M63 threaded connection (internal): in addition to the classic 2" connection (with 1.25" reducer adapter) for eyepieces and cameras, this instrument also offers a 63 mm thread, so you can attach a flattener or reducer easily and stably.

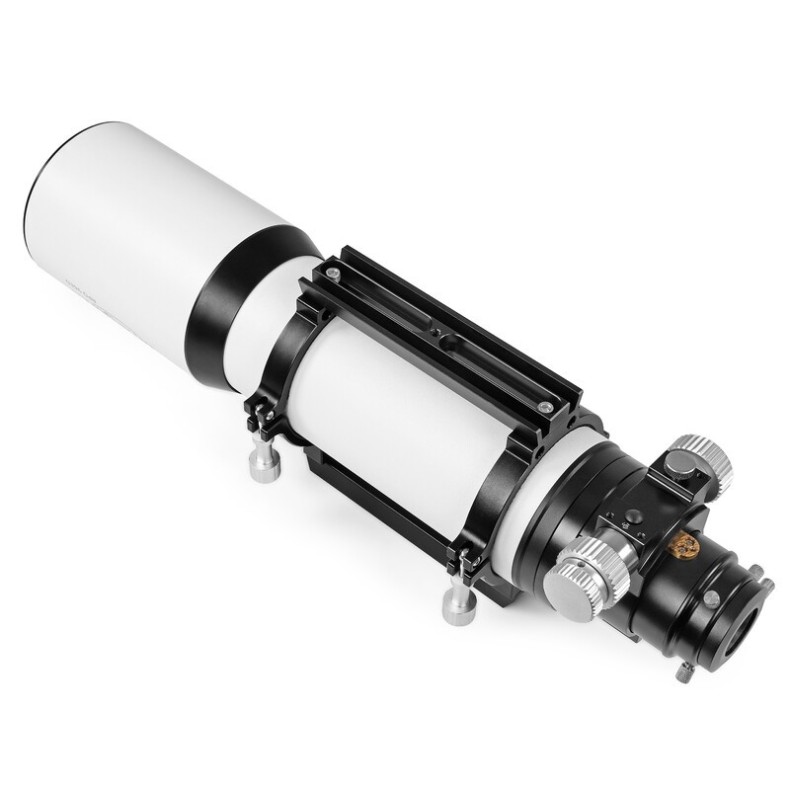

The dual-purpose handle
Simply clever: with the practical carrying handle, you always have your apochromatic at hand. Both during transport and when attaching it to the mount. In addition, the handle also serves as a mounting rail for parallel-mounted accessories. So everything has its place: use, for example, a guide tube and a guiding camera.
Product supplied:
- Apochromatic 96/575 in triple design with Hoya ED glass in adjustable lens mount
- CNC machined tube clamps with ¼ inch photographic thread.
- Extendable dew cap tube (145 mm outer diameter)
- Telescope adapter with finder
- 2"/1.25" reducer adapter.
SPECIFICATIONS
- Type: Refractor
- Construction type: Apochromatic
- Aperture (mm): 96
- Focal Length (mm): 575
- Aperture ratio (f/): 6
- Resolution capability: 1.2
- Cut-off value (mag): 11.7
- Light gathering capacity: 190
- Maximum useful magnification: 192
- Optical design: Triplet
- Glass material: HOYA FCD-100
- Tube weight (kg): 5
- Tube length (mm): 500
- Tube material: Aluminum
- Bonus: FMC
- Scattered light deflectors on tube: yes
- Diameter of sunshield cover (mm): 122
- Type of construction: rack and pinion
- Connection (eyepiece side): 2
- Connection thread (on the camera): M63x1 (f)
- Ring fixation: yes
- Load capacity (kg): 10
- Reduction: Fine movement 1:10
- Mount type: unmounted
- Accessories included:
Corrector: none
Dovetail plate: Vixen-Style
Carrying handle: yes
Carrying cases: no
Finder shoe: Vixen/Skywatcher Level
Clamps: yes
- Series: Pro APO
- Applications:
Astrophotography: yes
Moon and planets: yes
Nature observation: not recommended
Nebulae and galaxies: yes
Sun: no (only with appropriate solar filter)
