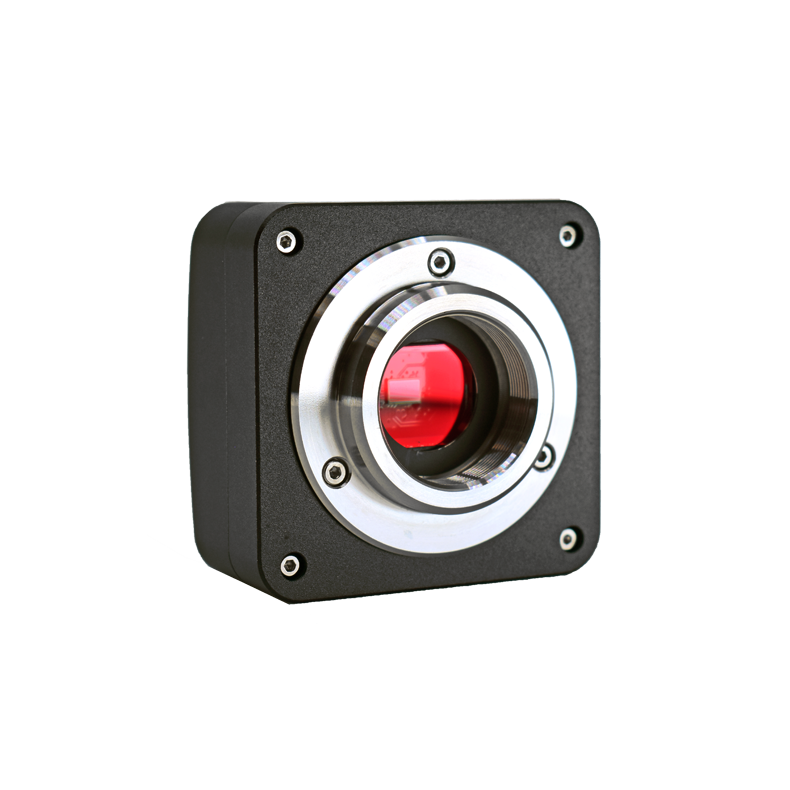

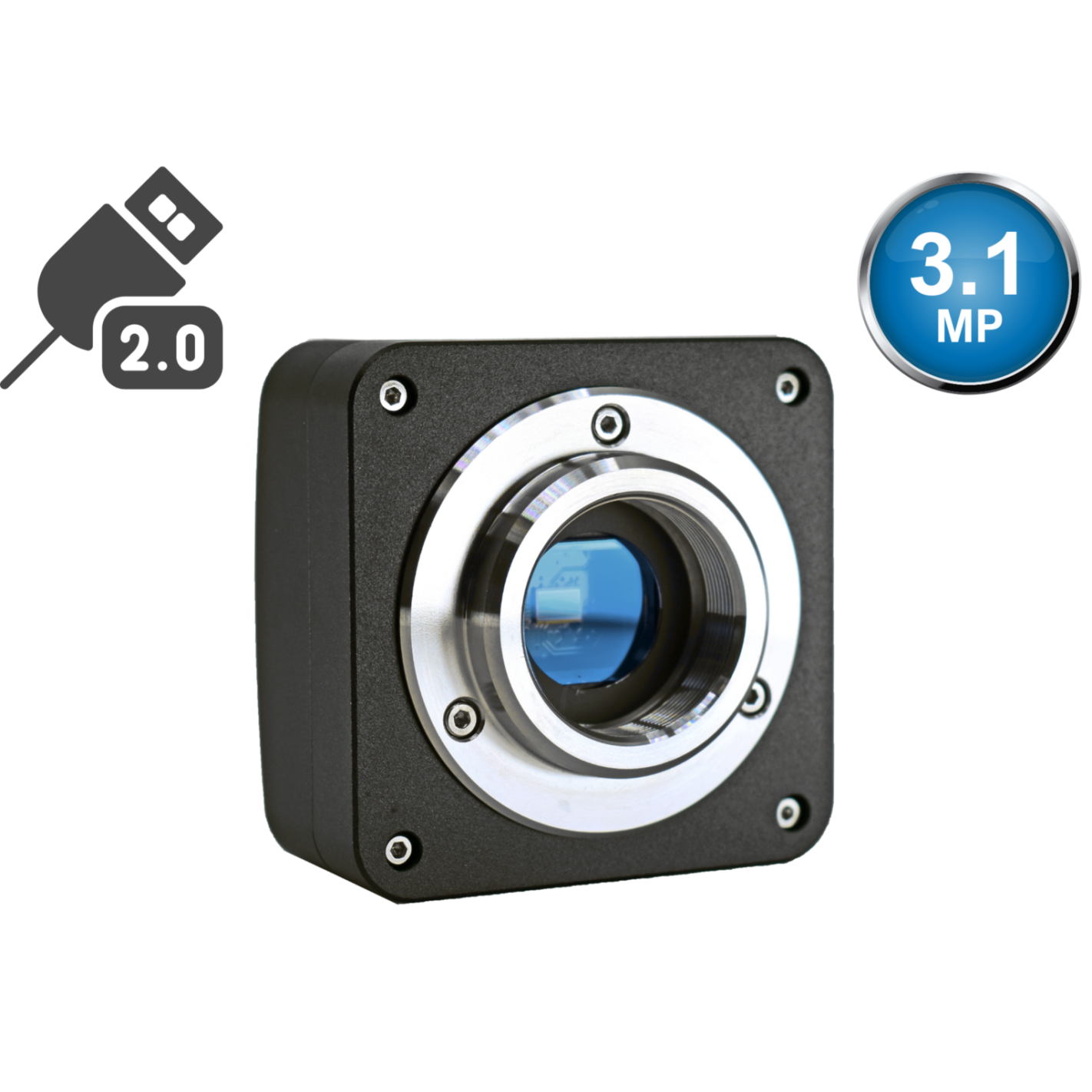

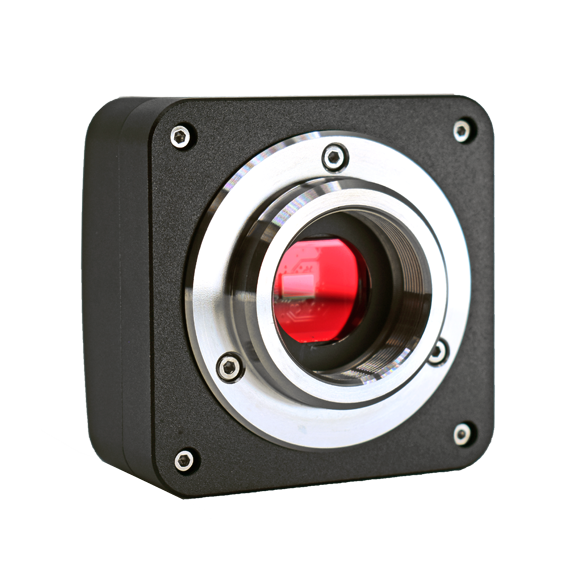

USB2.0, CMOS 3.1MP camera kit 766603100AK15

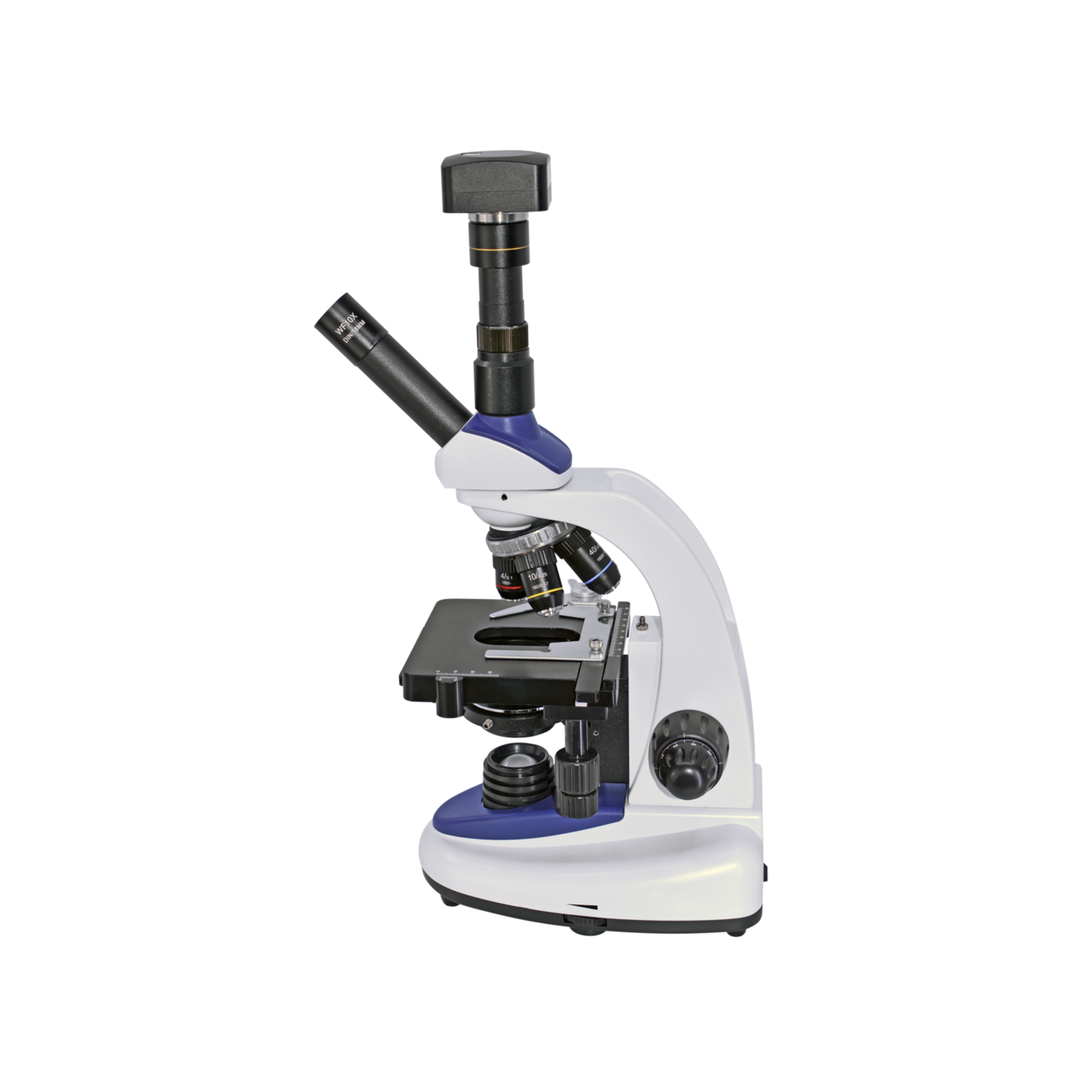

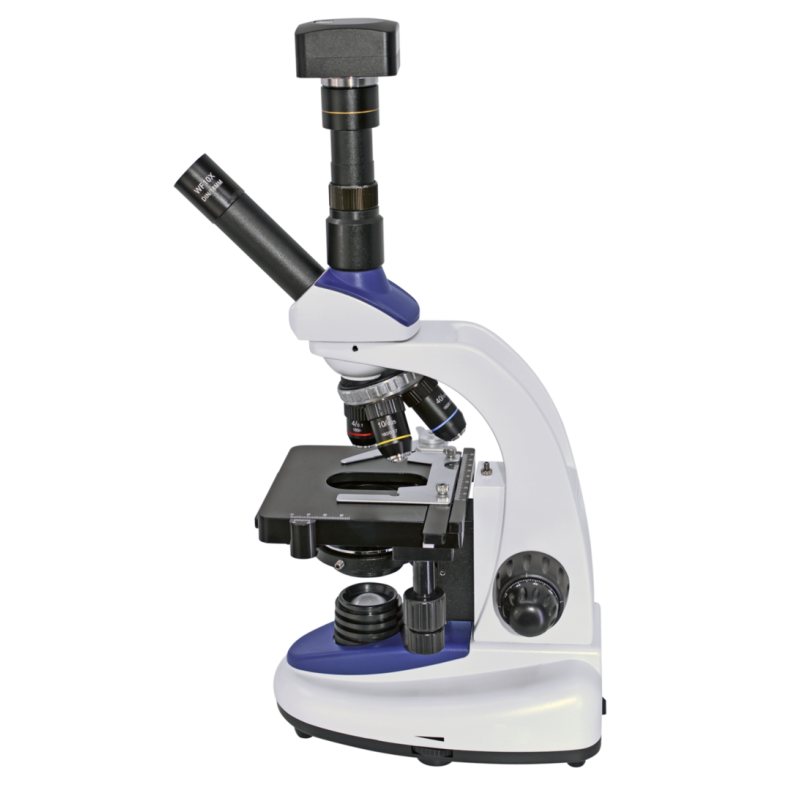

This 3.1 MP digital camera BMS for microscopes is designed to capture still images as well as stream and record live video on Windows, Mac and Linux computers. The easy-to-use standalone software for Windows XP/Vista/7/8/10 offers advanced features, including stitching, EDF (extended depth of focus), video recording and measurement functions. It allows you to make notes, shapes, watermarks and precise measurements with ease. Preview and capture resolutions can be set independently, allowing you to simultaneously view live high-speed and low-resolution video while capturing higher resolution images or video. Software for Linux and Mac allows you to capture still images and record video, as well as control color and exposure.

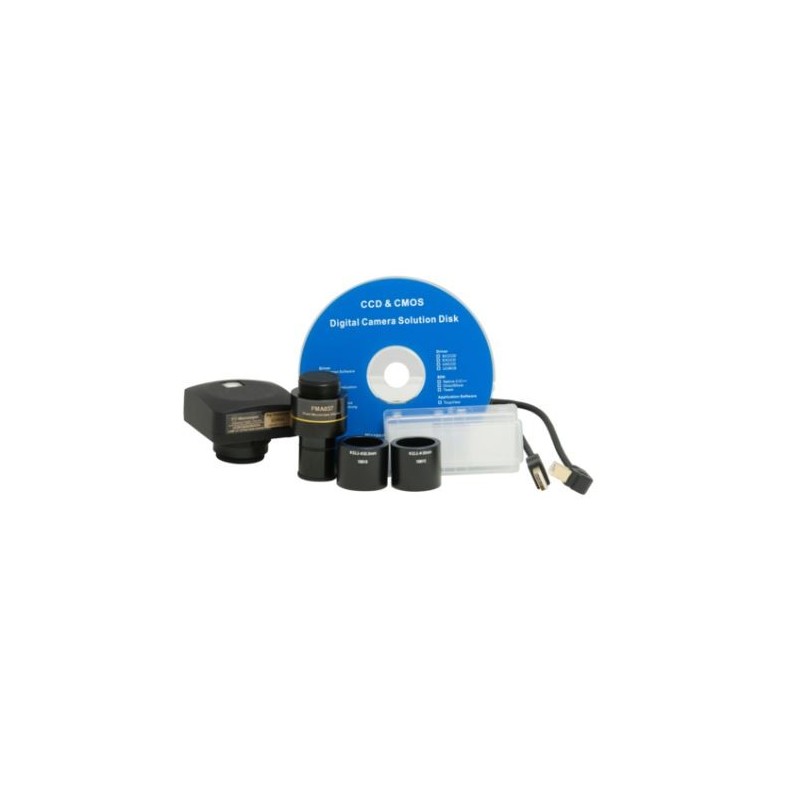

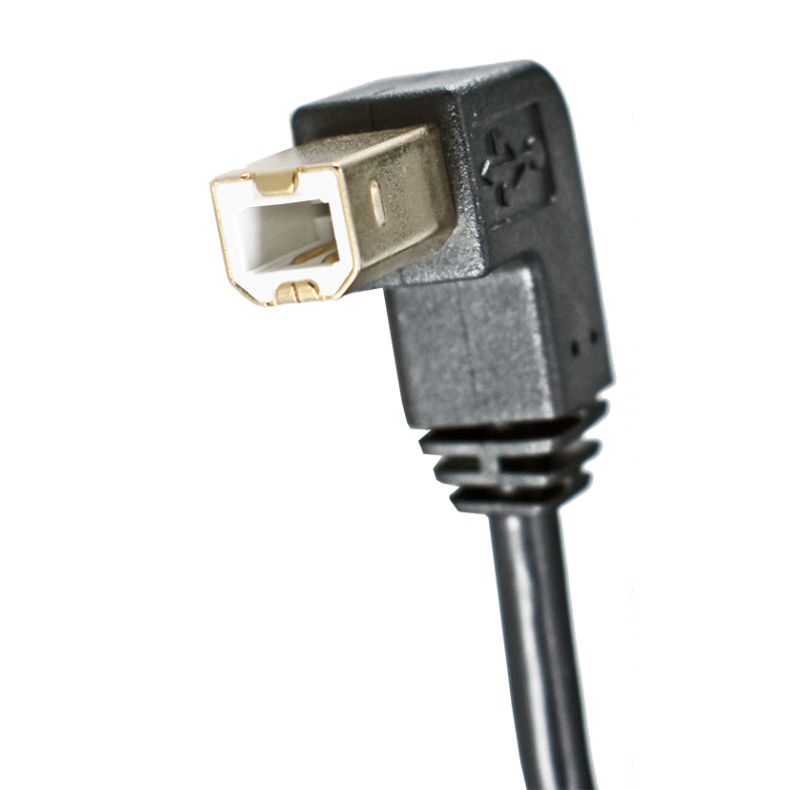

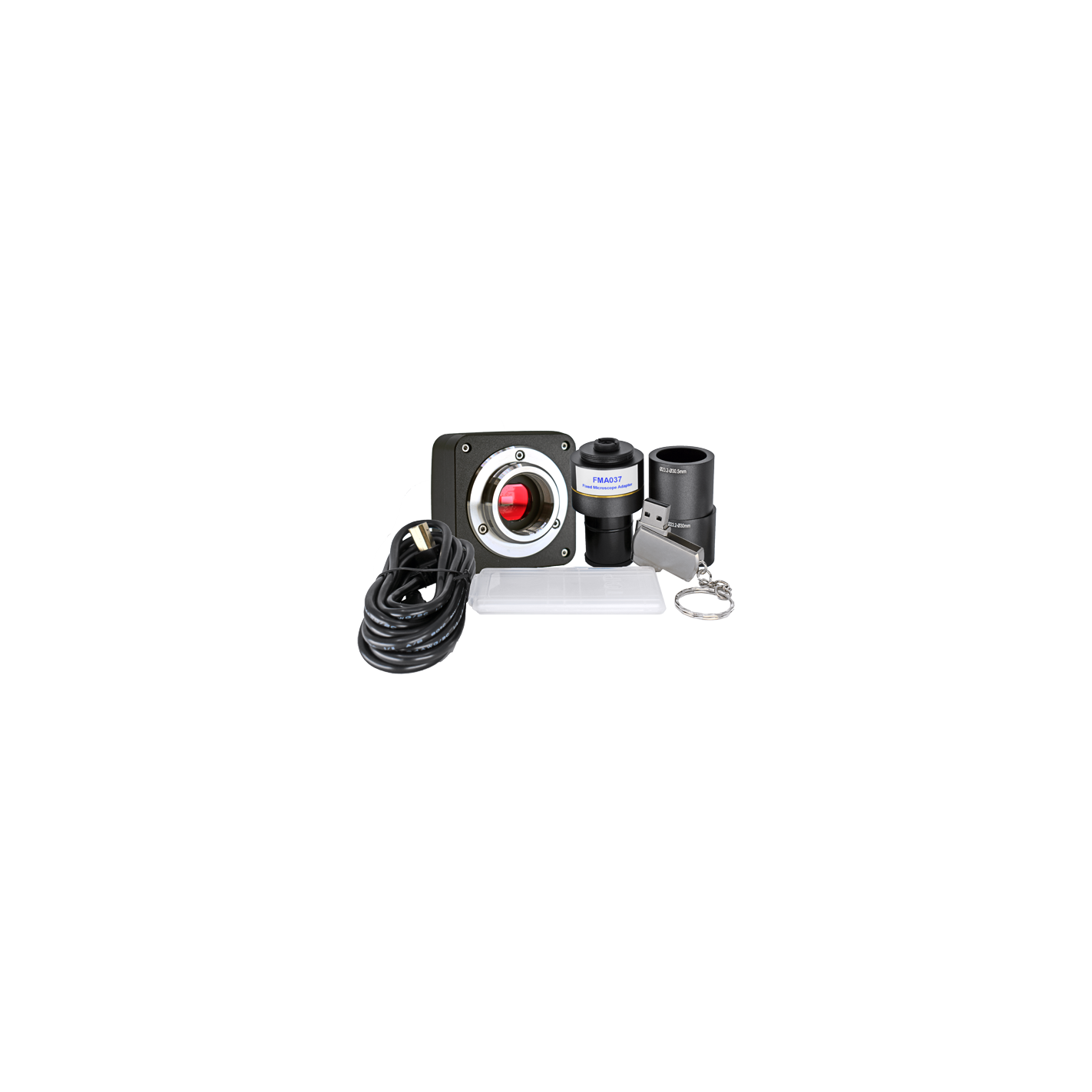

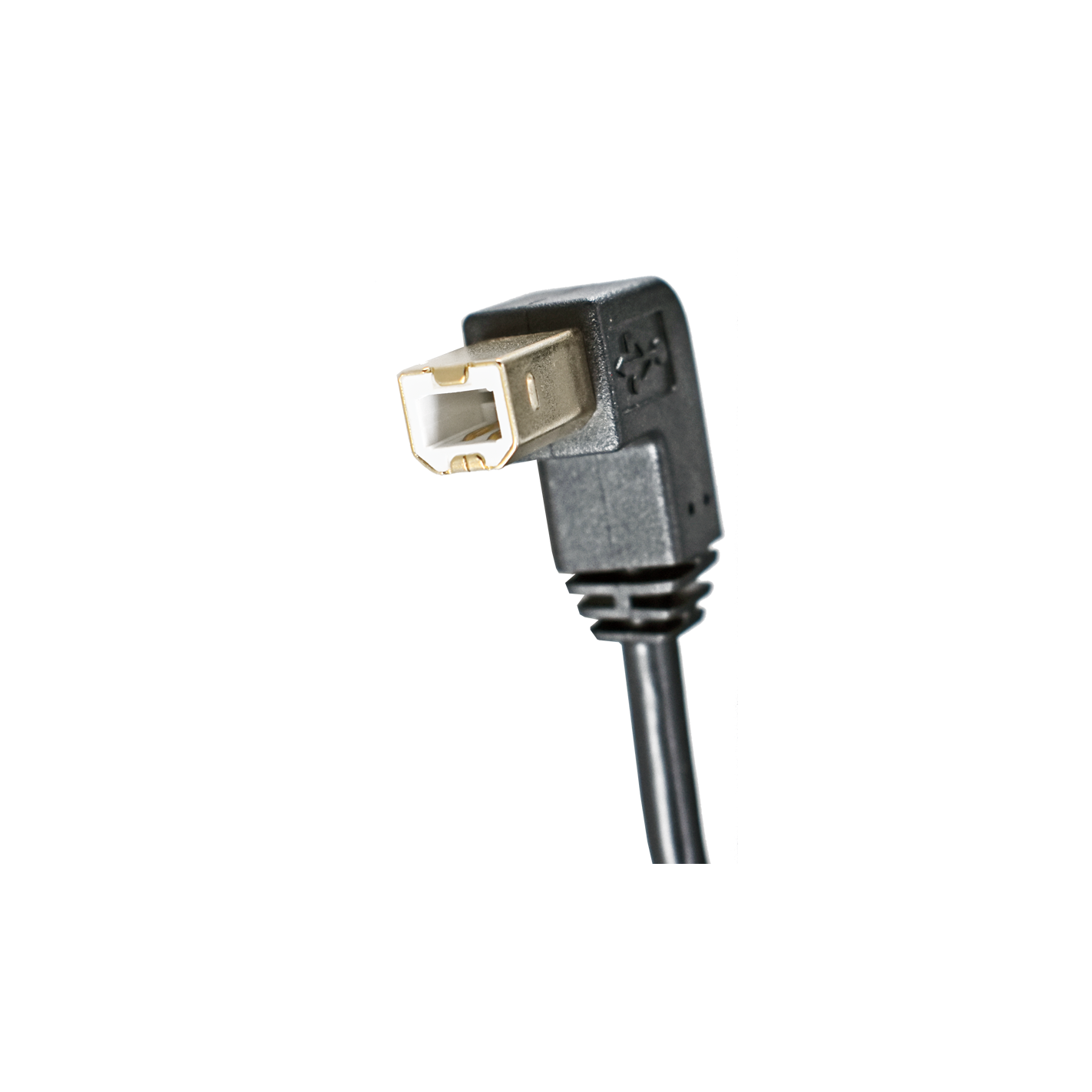

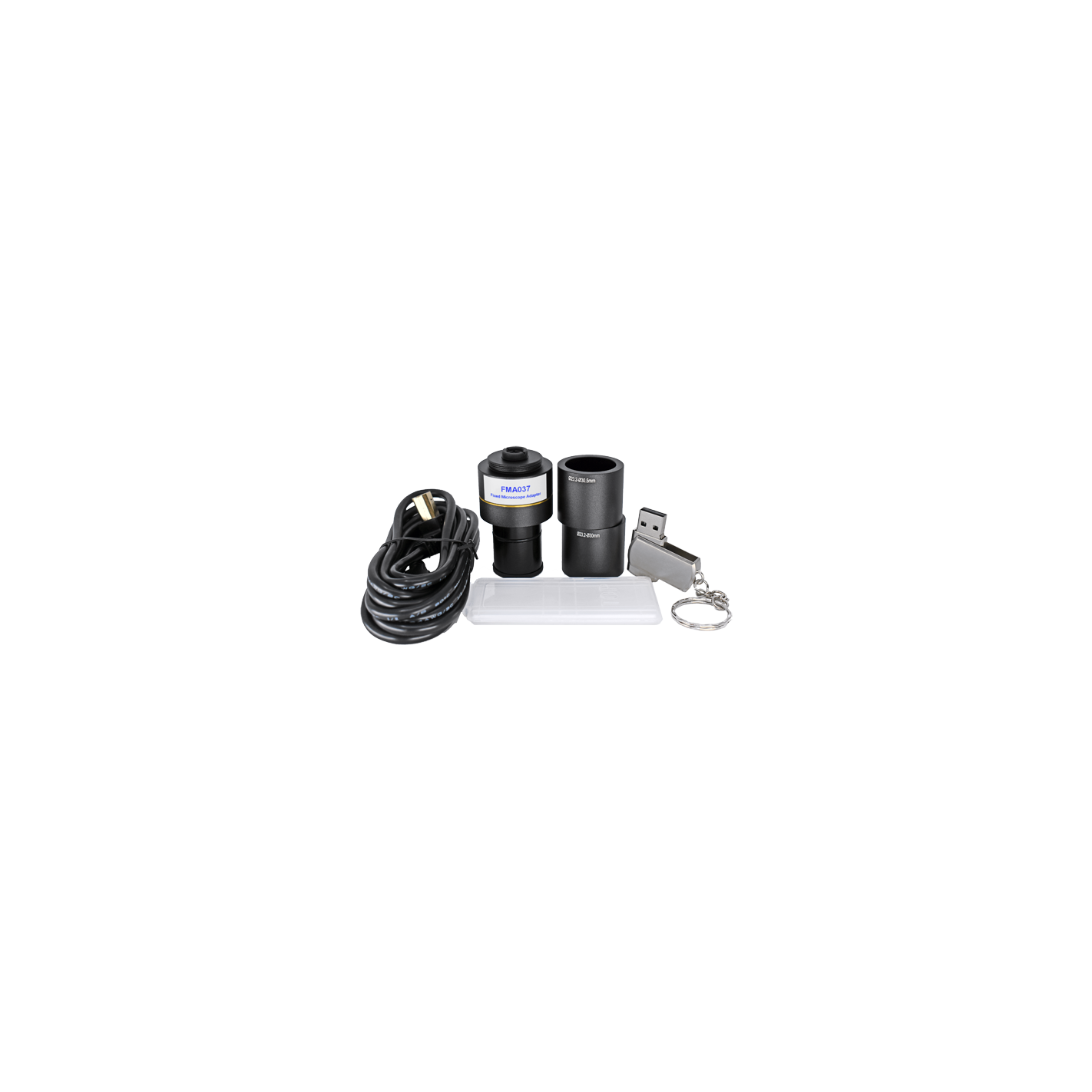

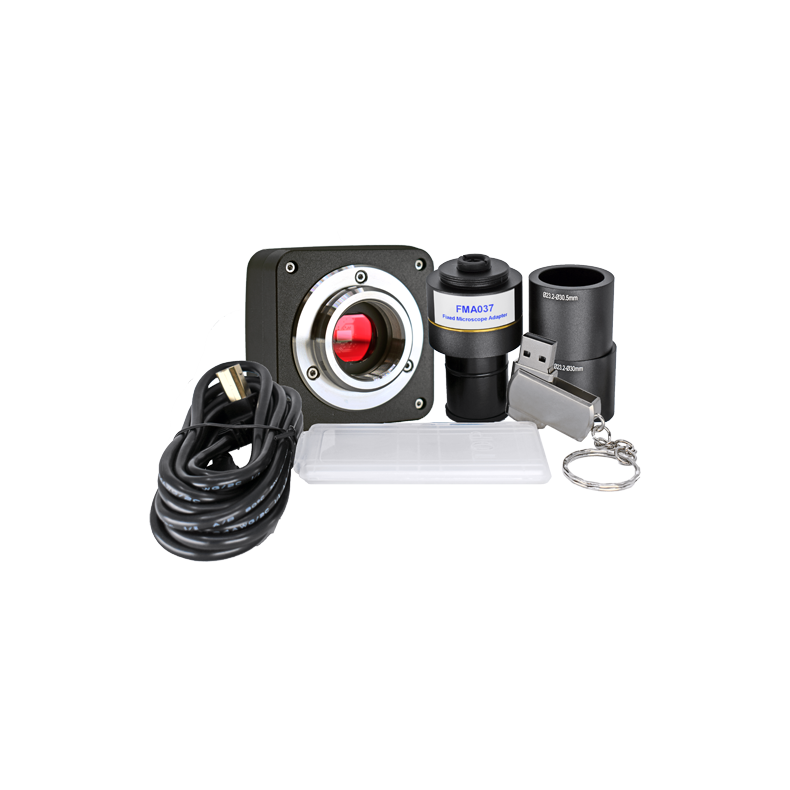

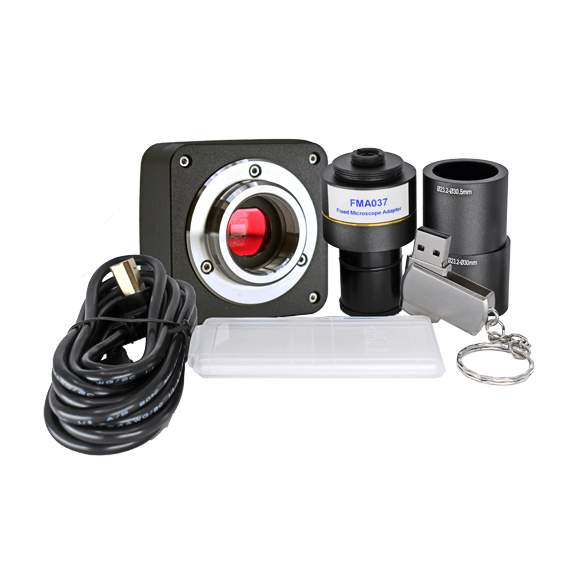

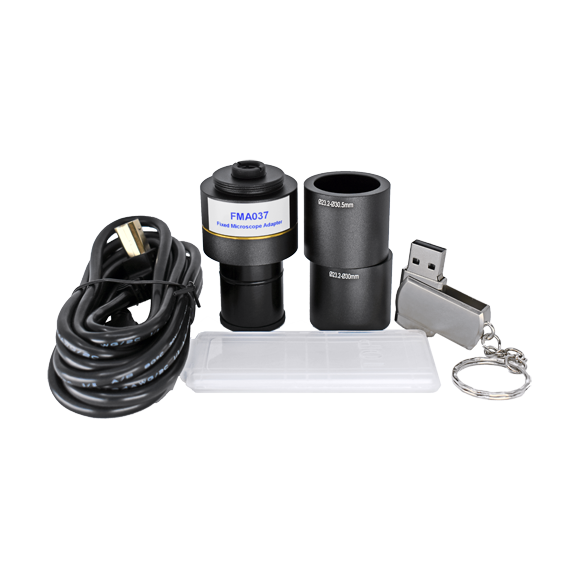

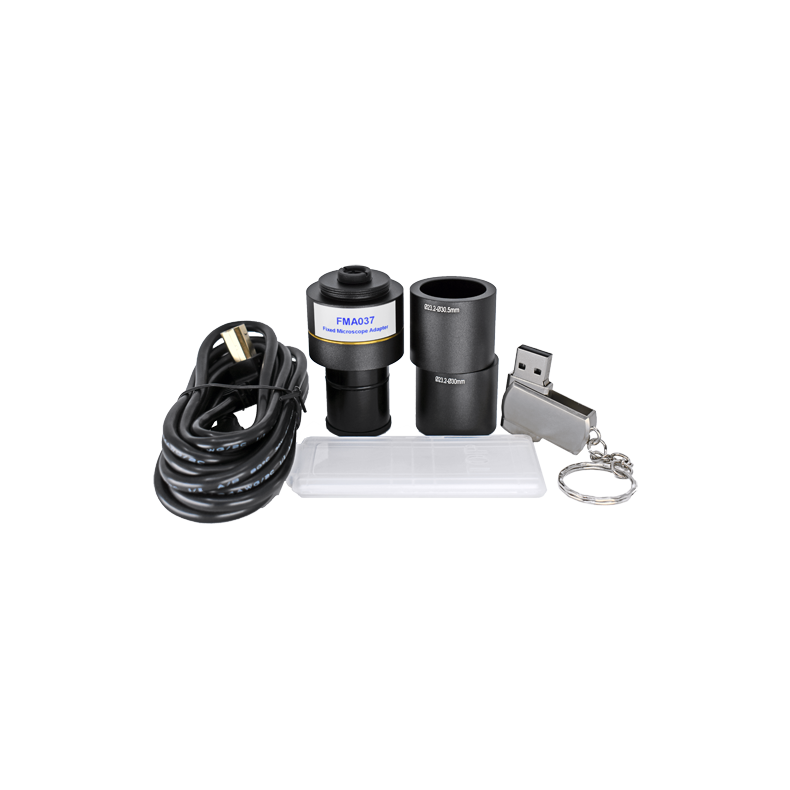

Designed with the C-mount standard, the camera with the included reduction lens and two size adapters can be adapted to 23mm, 30mm and 30.5mm photo ports and eye ports. The reduction lens increases the field of view to better match what is seen through the eyepieces. Using a standard USB 2.0 connection, the camera is easy to install. Drawing power from the USB connection, no additional connections are needed. The included calibration slide allows you to take accurate measurements in software by creating reference measurements at multiple magnifications.

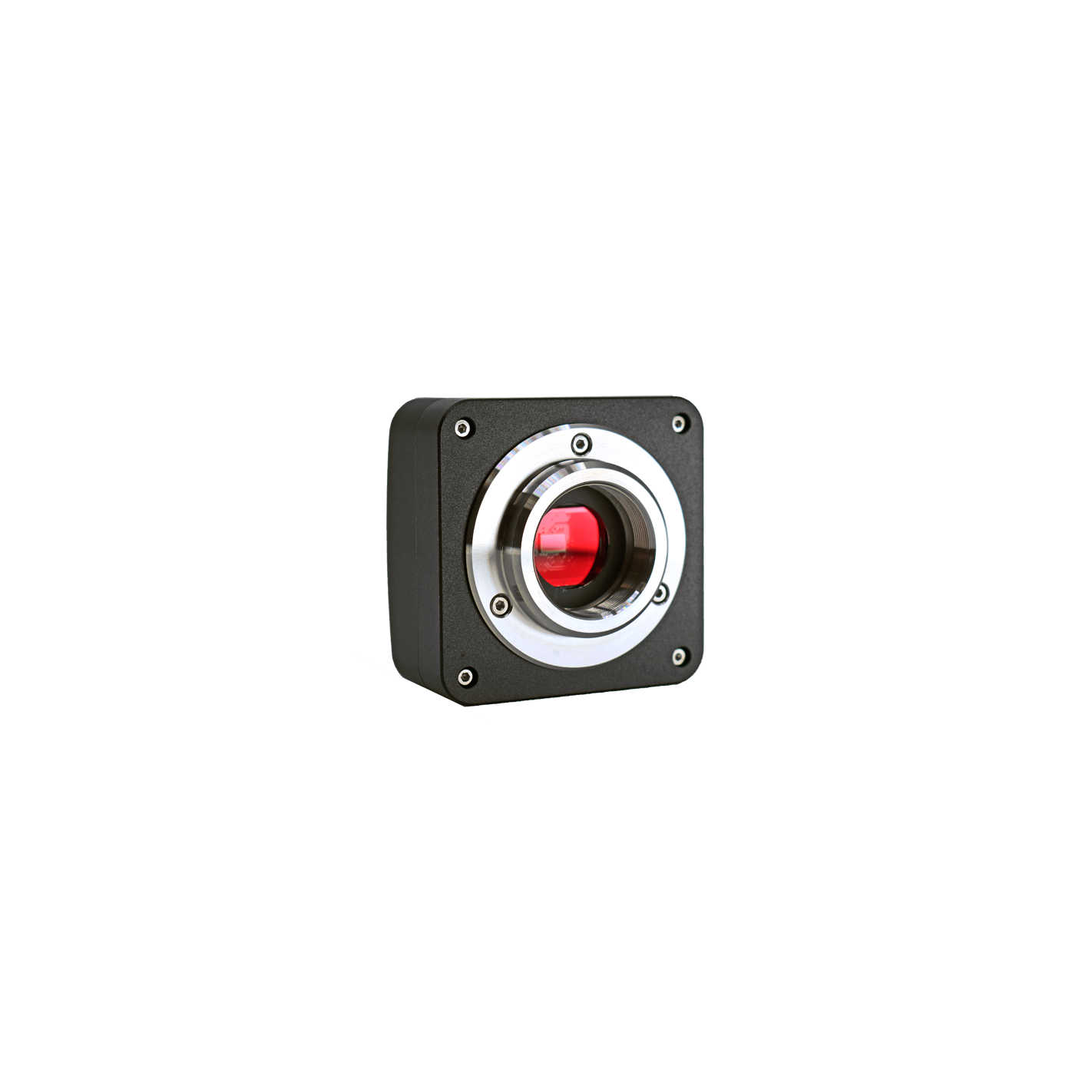

Camera specifications:
Sensor: Aptina MT9T001 CMOS (color)
Sensor size: 1/2"" (6.55 mm (H) x 4.92 mm (V), diagonal 8.19 mm)
Reduction lens: 0.5x
Resolution: 2048 x 1536 (approx. 3.2 MP)
Pixel size: 3.2 µm x 3.2 µm
G sensitivity: 1.0 V/lux-sec (550 nm)
SN ratio: 43 dB
Dynamic range: 61 dB
Scan mode: Progressive
Grouping: 1x1, 2x2, 3x3
Frame rate: 43 fps @ 680x510, 22 fps @ 1024x768, 8 fps @ 2048x1536
Exposure: 0.128~2000 ms, auto and manual ROI
A/D converter: 12-bit parallel, R.G.B 8-bit to computer
Spectral range: 380-650 nm (with IR filter)
White balance: ROI White balance/Manual temperature and tint adjustment
Color reproduction technique: ultra-fine color engine
Capture/control API: Native C/C++, C++, Directshow, Twain, Labview
Recording system: still image and film
Cooling system: Natural
Operating temperature: -10 °C ~ 50 °C
Storage temperature: -20 °C ~ 60 °C
Operating humidity: 30 ~ 80% RH
Storage humidity: 10 ~ 60% RH
Power supply: DC 5 V via USB port
Operating system: Windows XP/Vista/7/8/10 (32 and 64 bit), Mac OS X, Linux
PC requirements: CPU equal to Intel Core2 2.8 GHz or higher, Memory: 2 GB or more, USB 2.0 port
Advanced BMS_pix3 software for Windows:
- offers stitching, EDF, video recording and measurement functions
- performs measurements of lengths, angles, arcs, areas, etc.
- saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
- edit and process microscopy images similar to PhotoShop
- live video and still image capture can be set up in different resolutions simultaneously
