BMS SyncCam 12 MP for inspection and 3D object viewing

BMS SyncCam 12 MP for inspection and 3D object viewing

The 12Mp camera BMS SyncCam not only makes it possible to study a variety of different 3D documents and objects but also structures and textures of botanical and zoological samples at high magnification level when connected to a microscope.

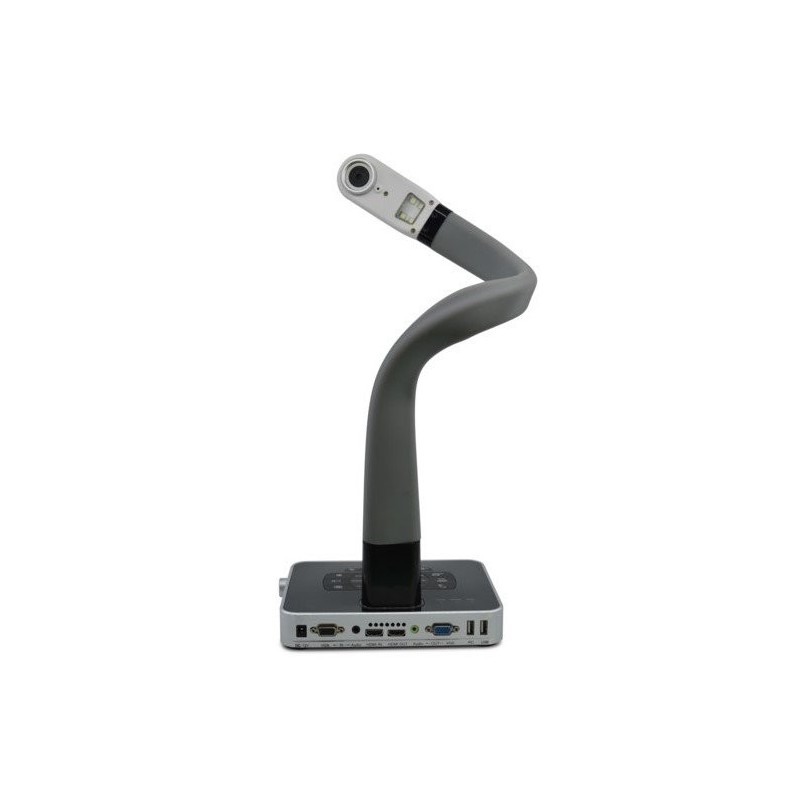

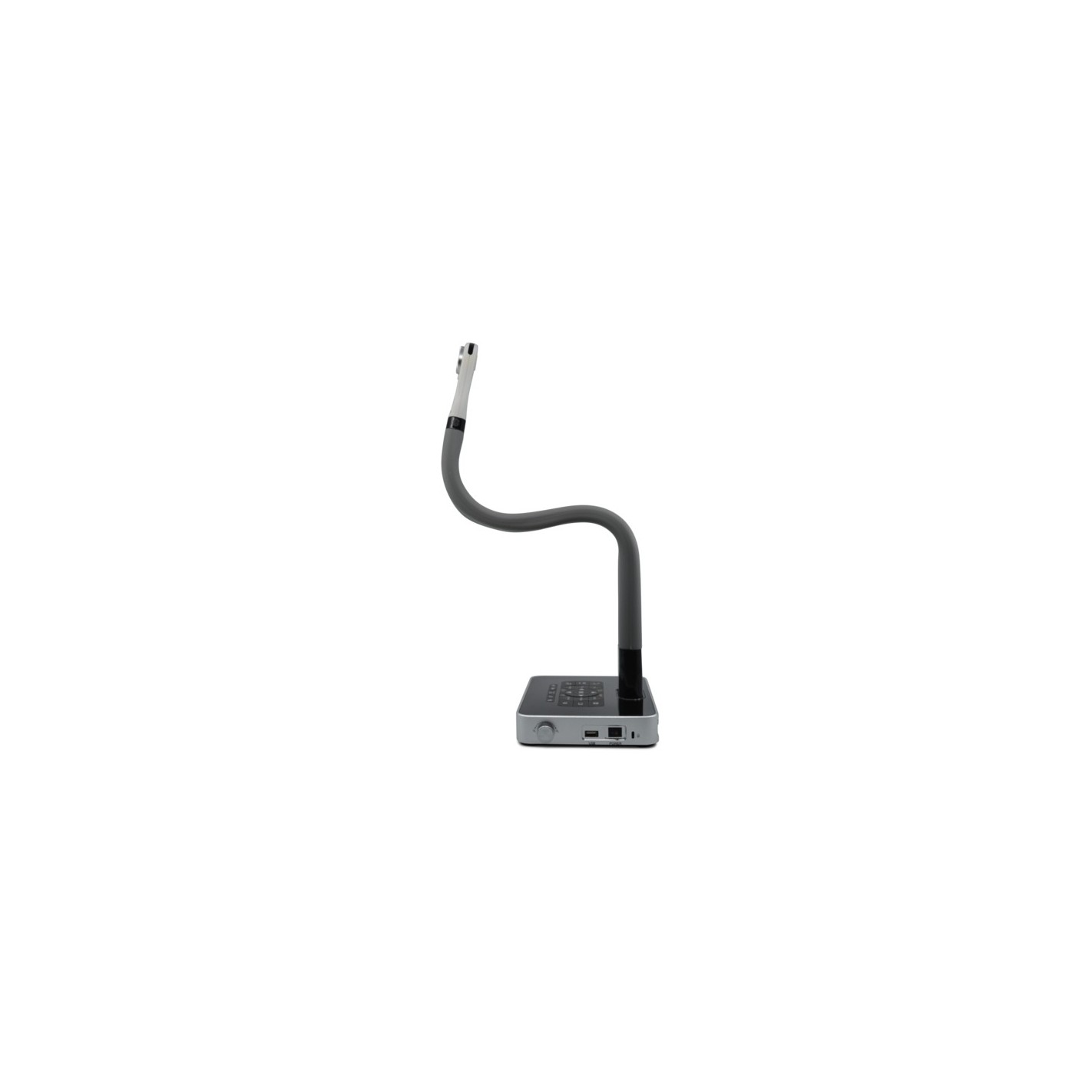

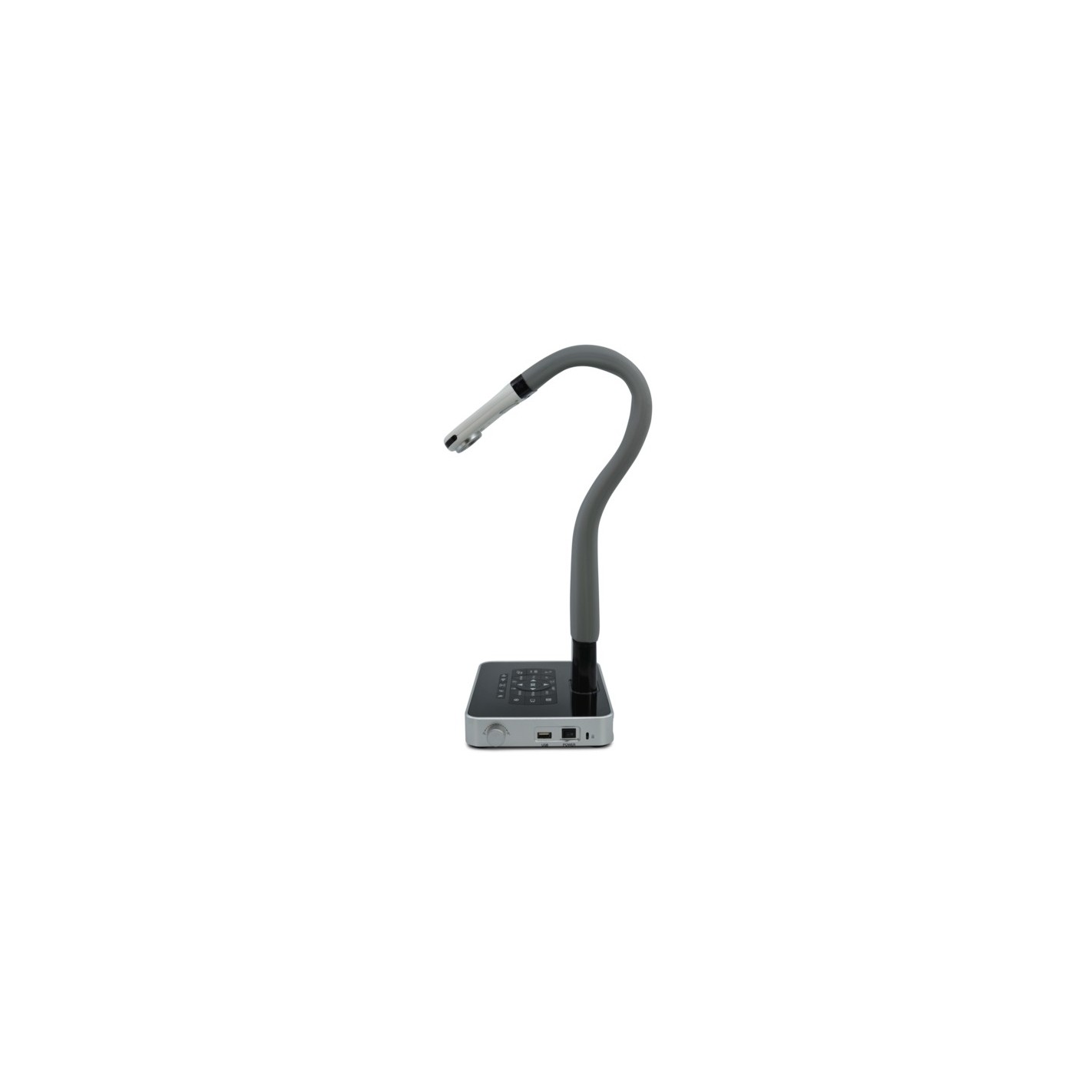

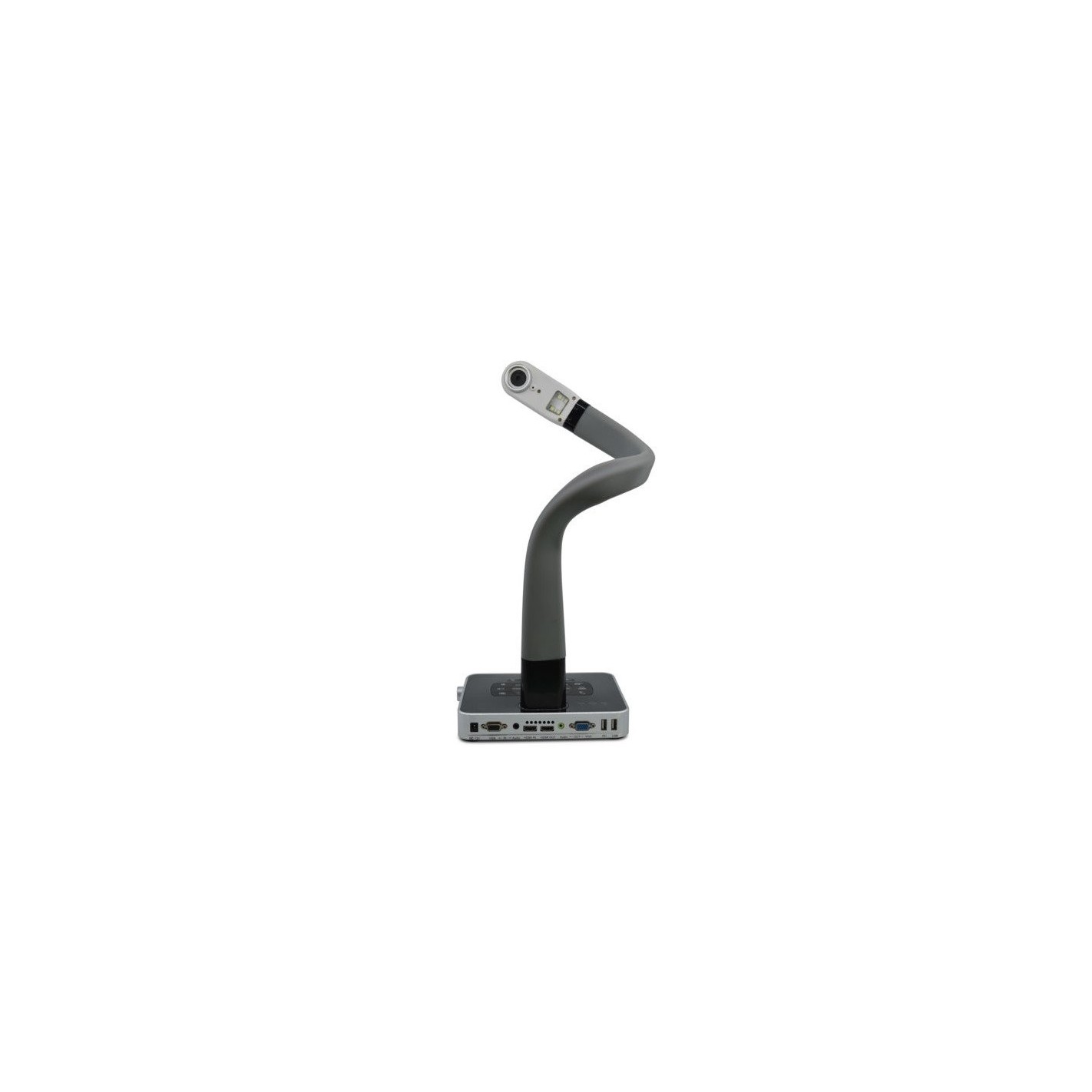

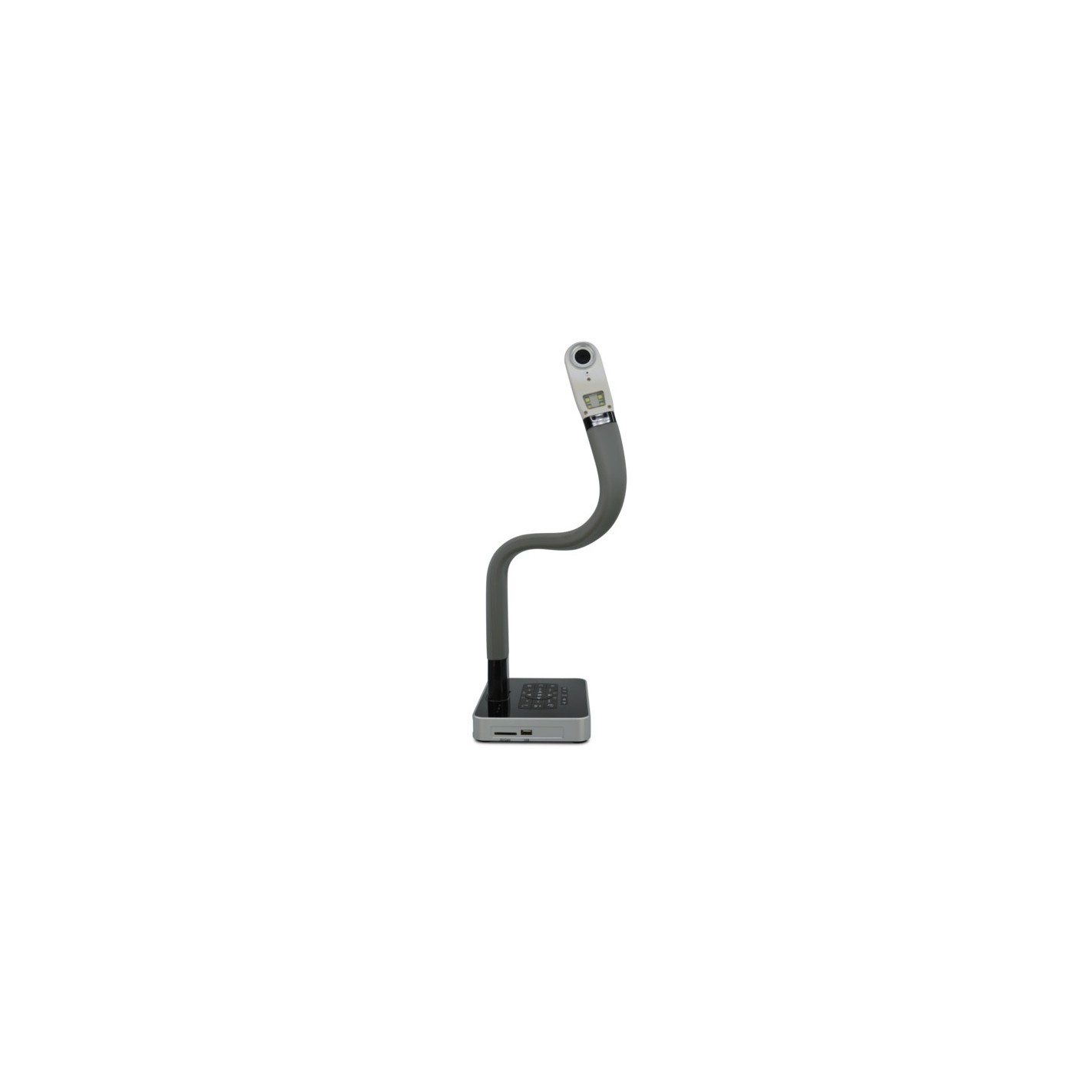

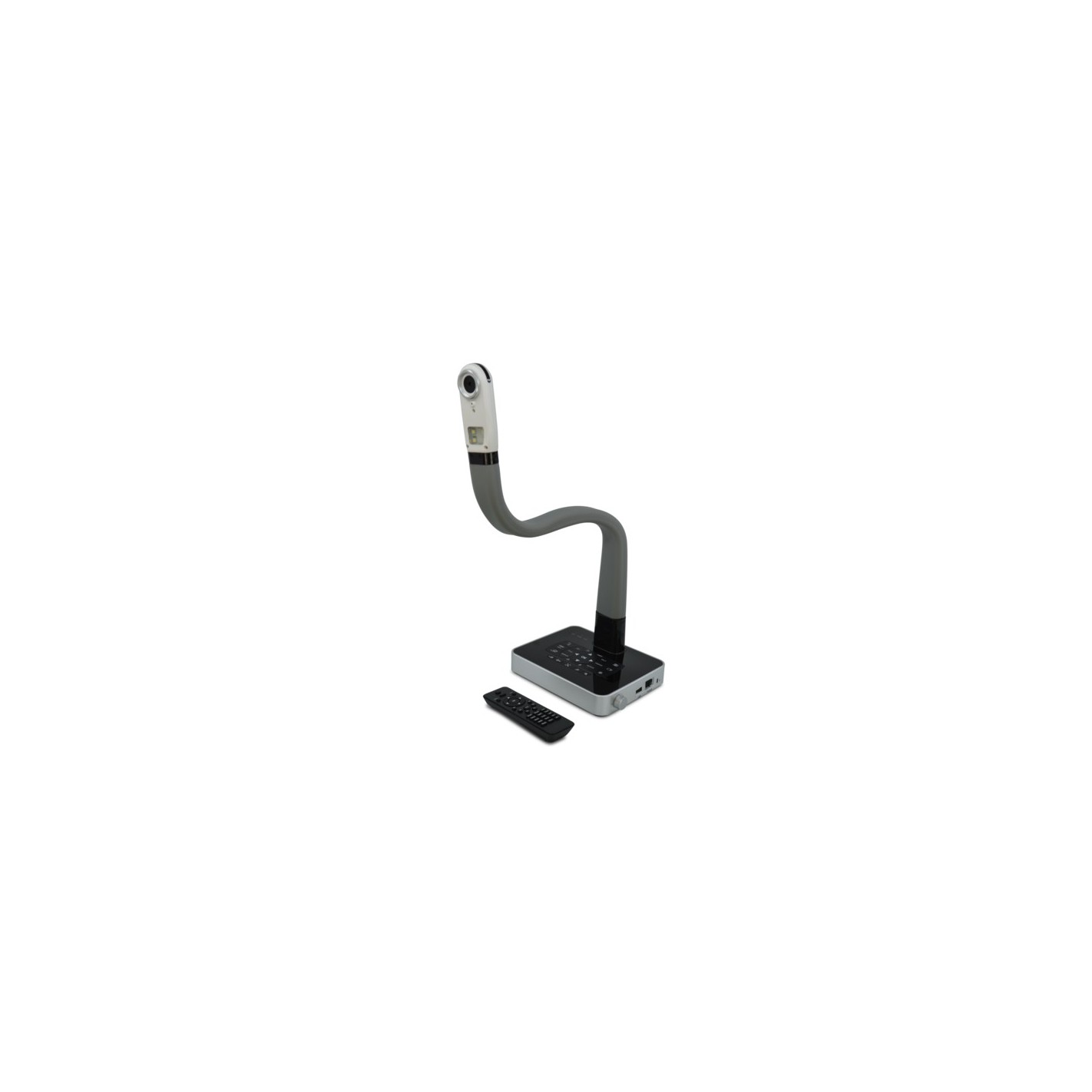

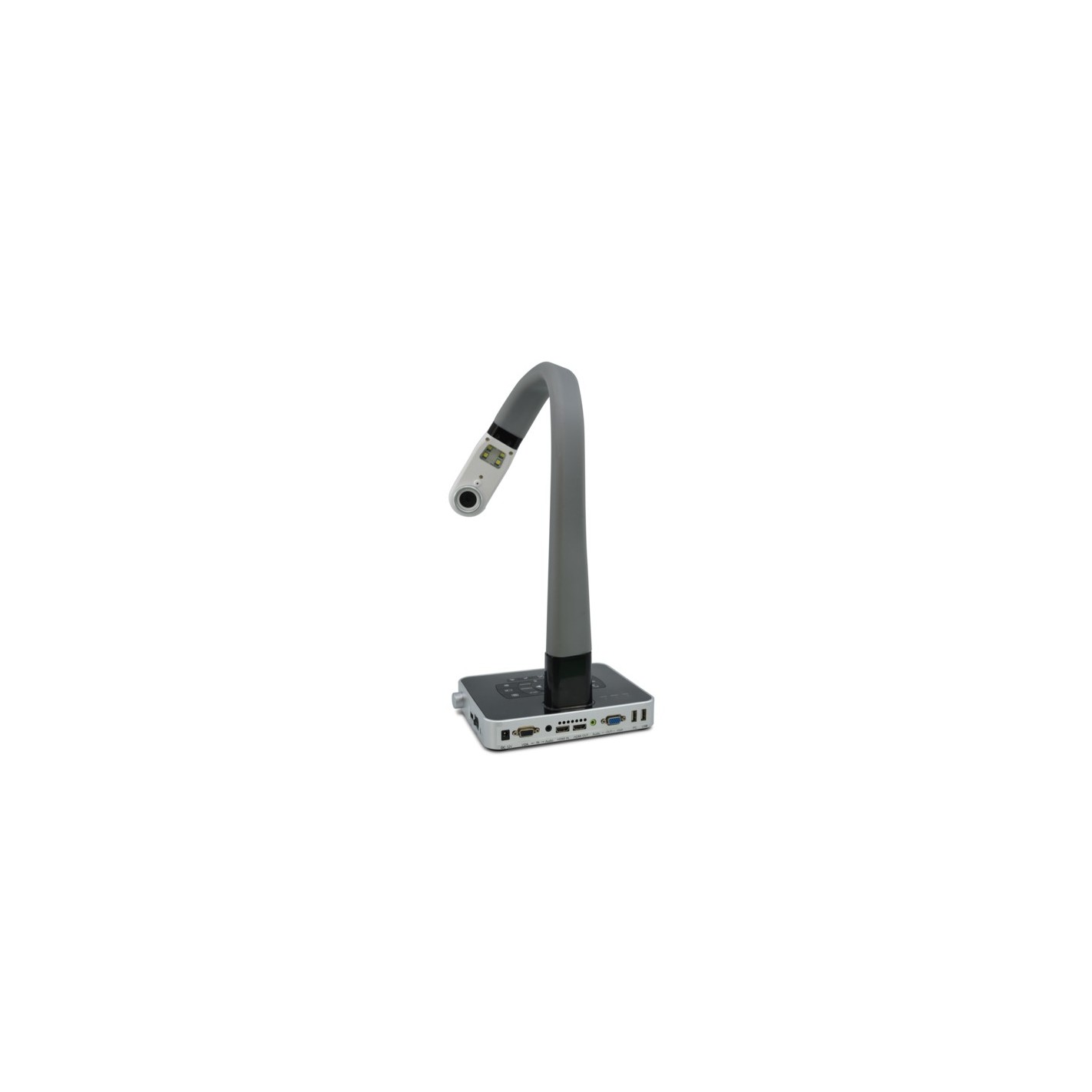

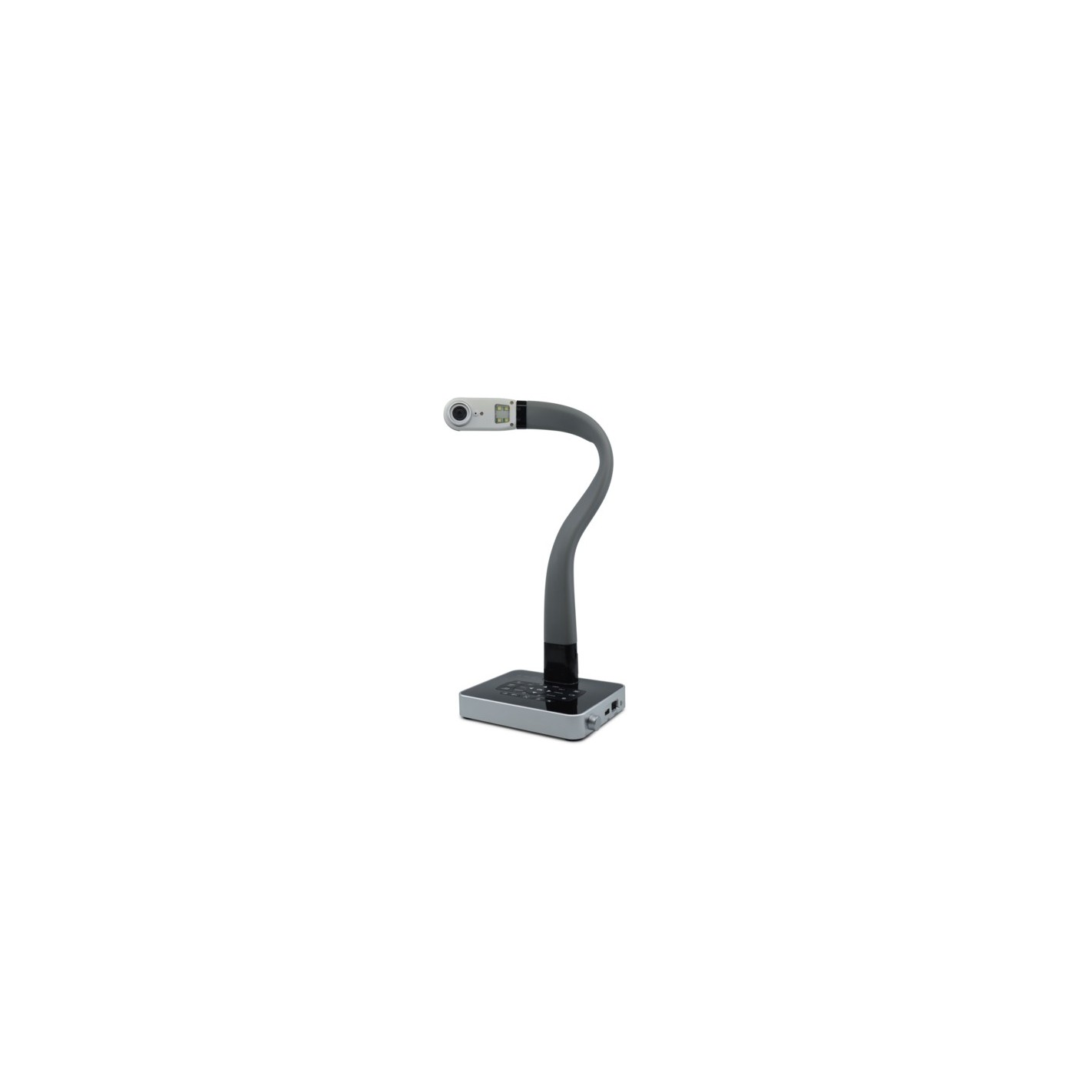

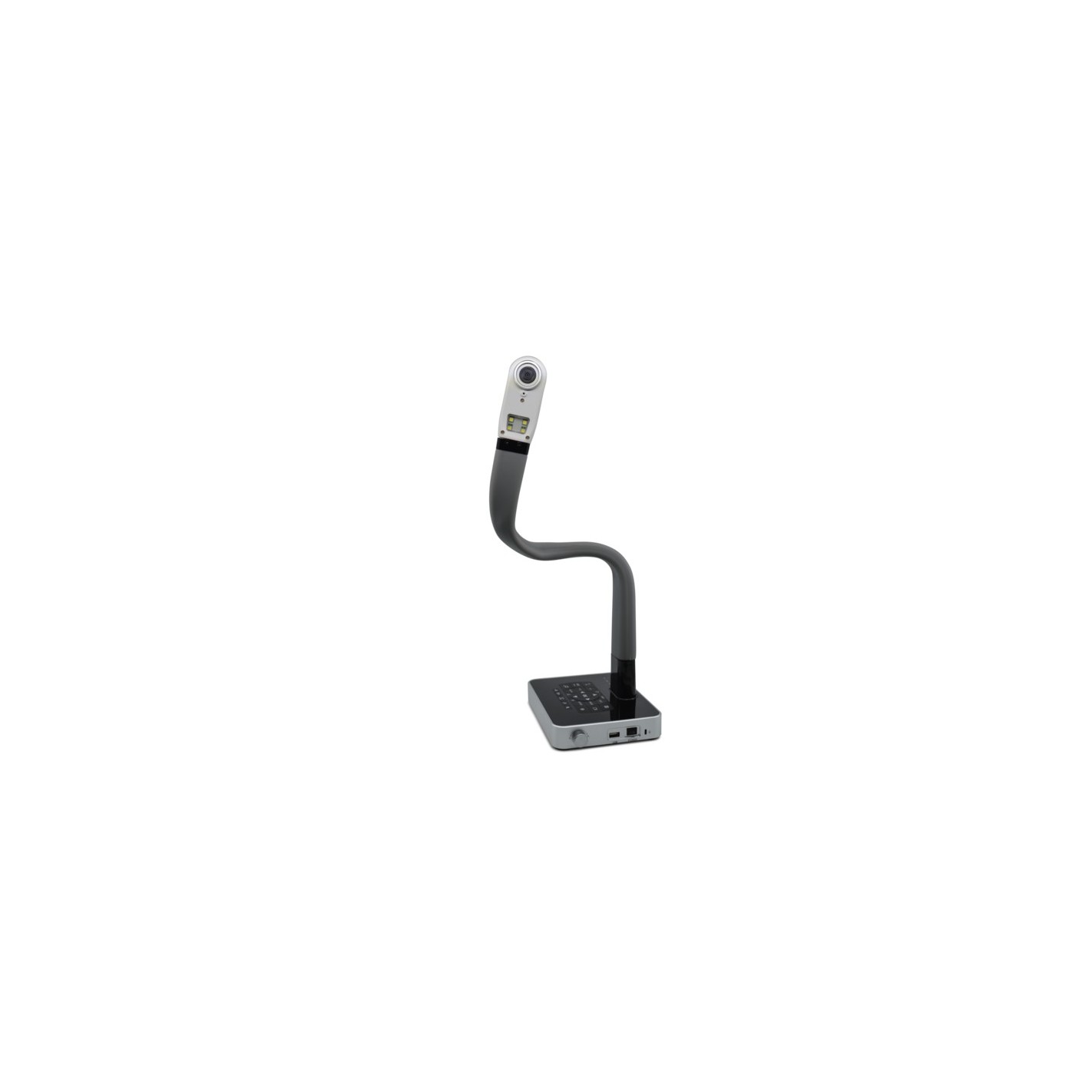

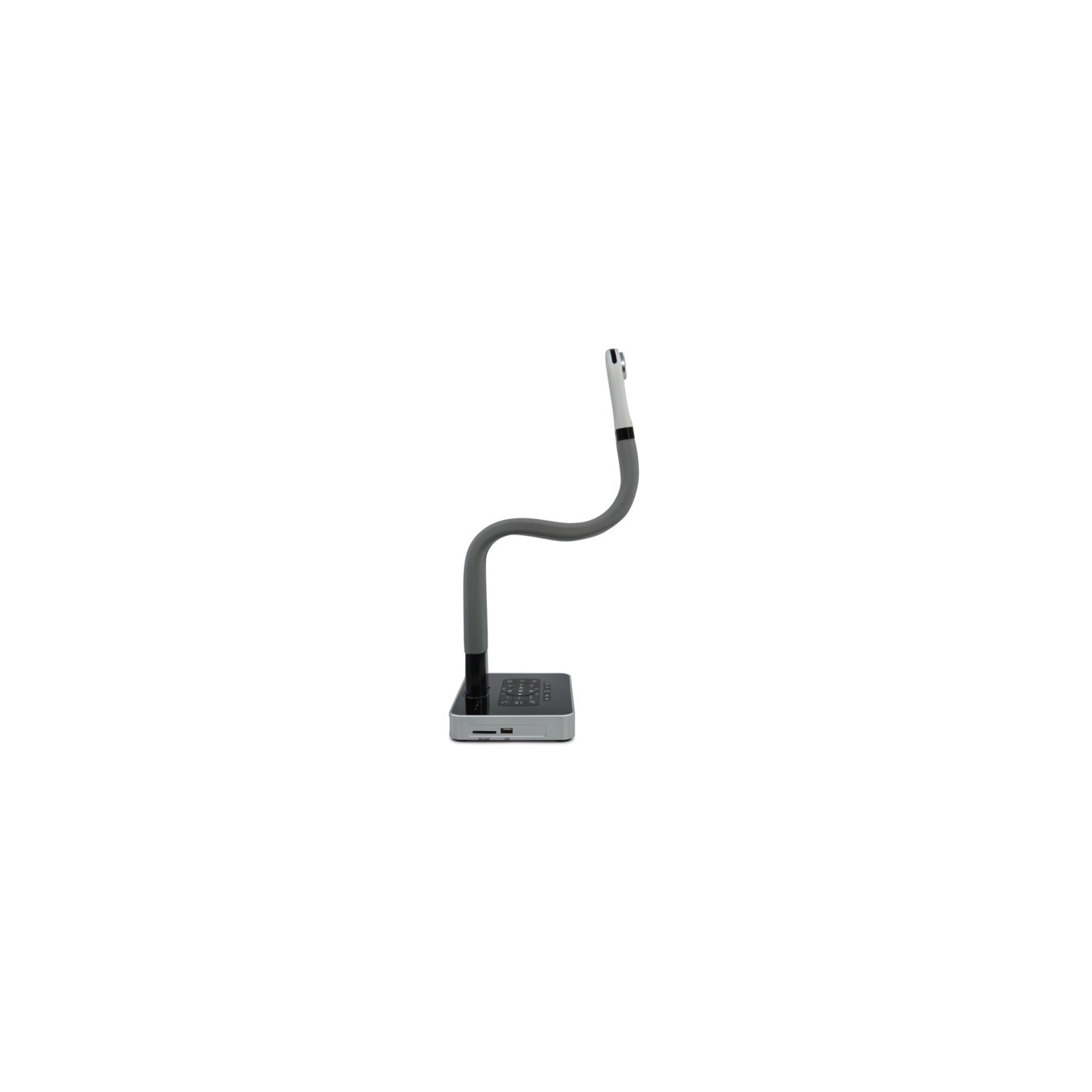

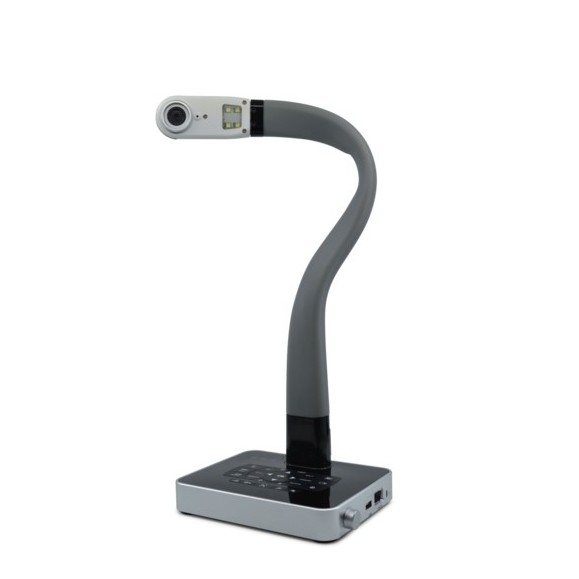

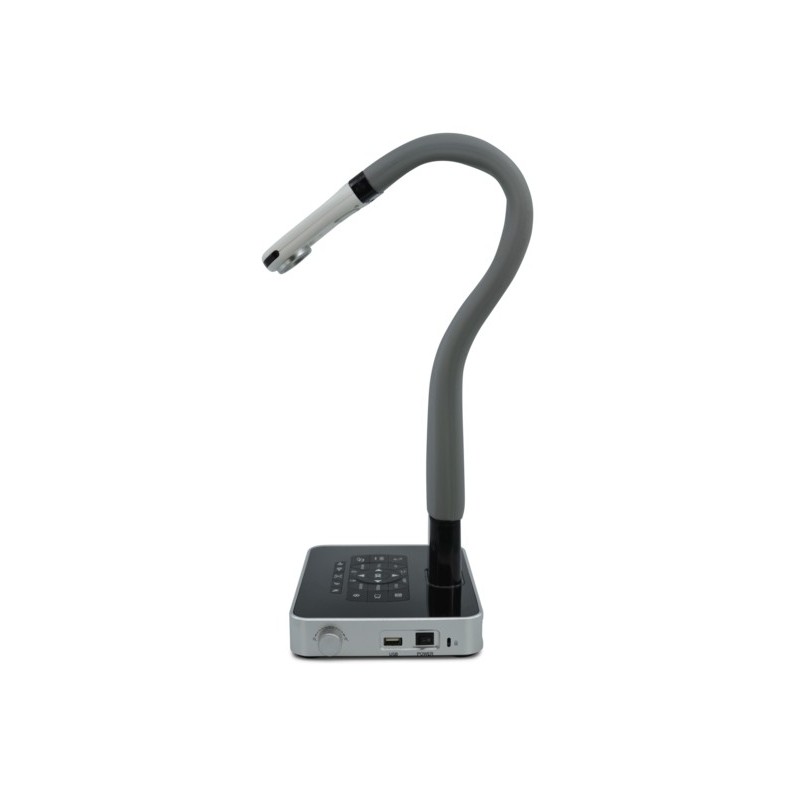

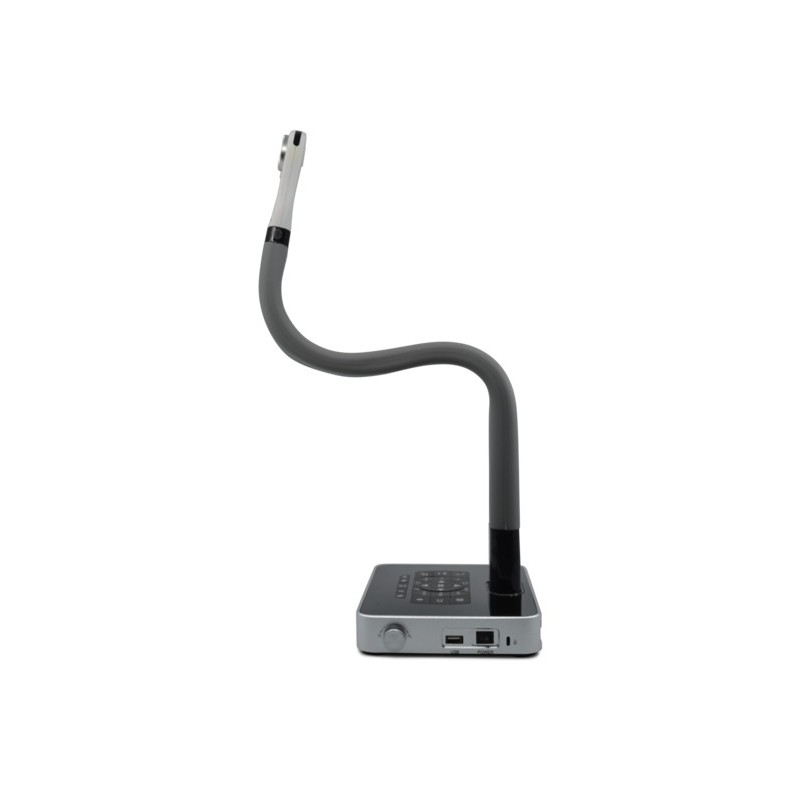

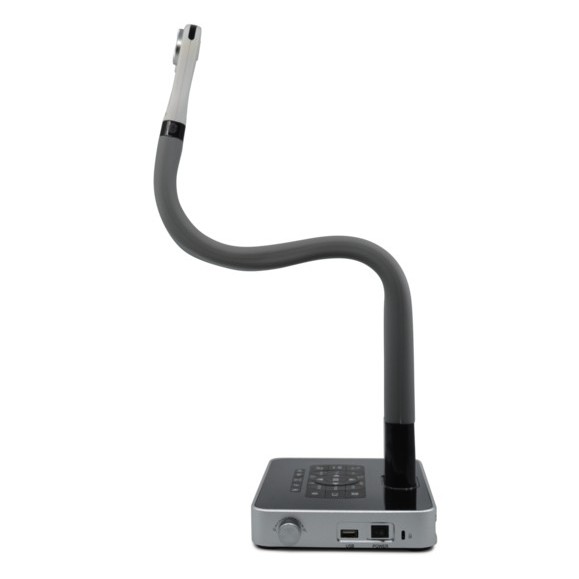

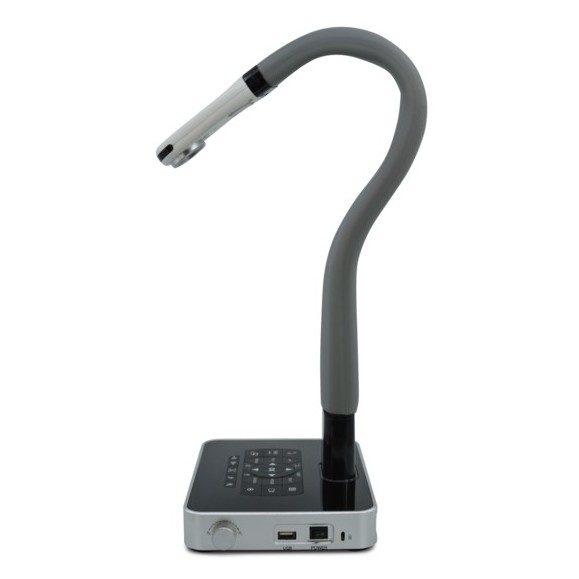

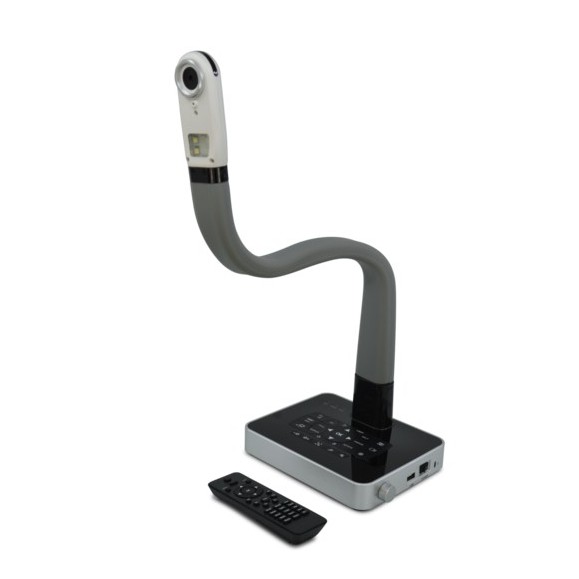

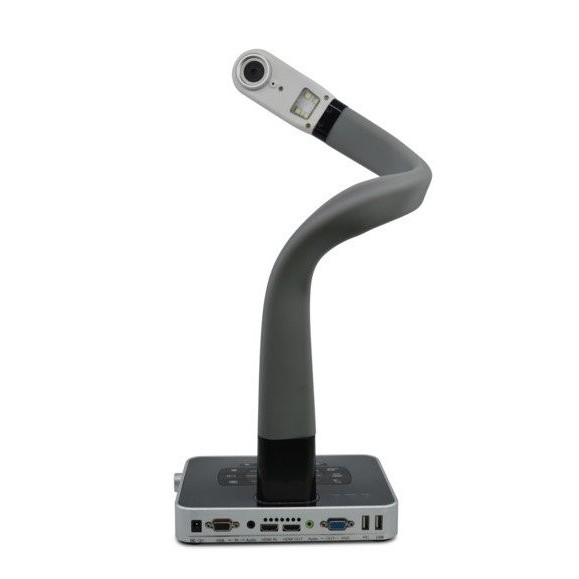

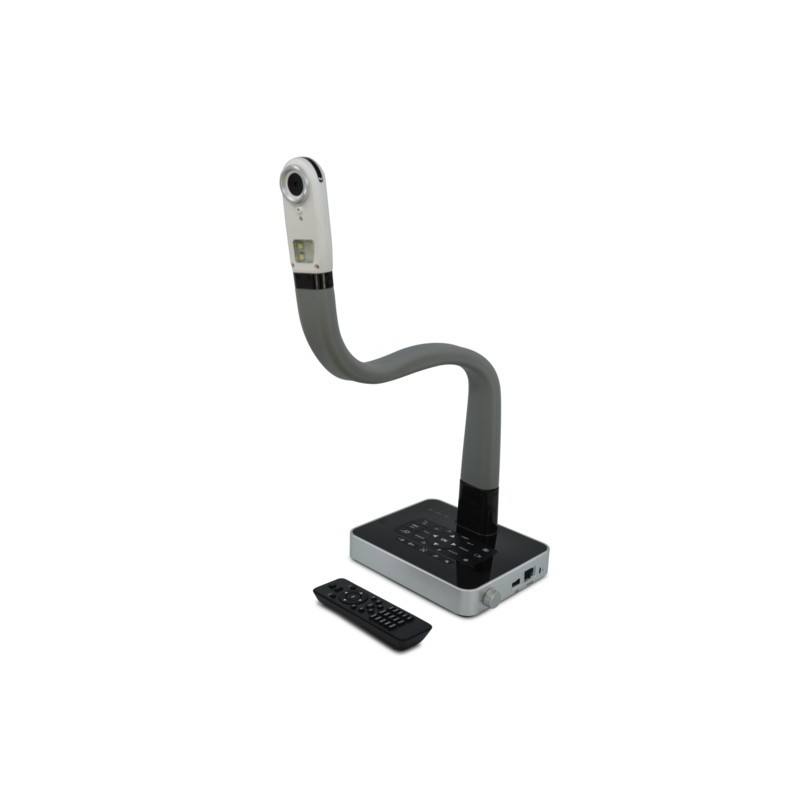

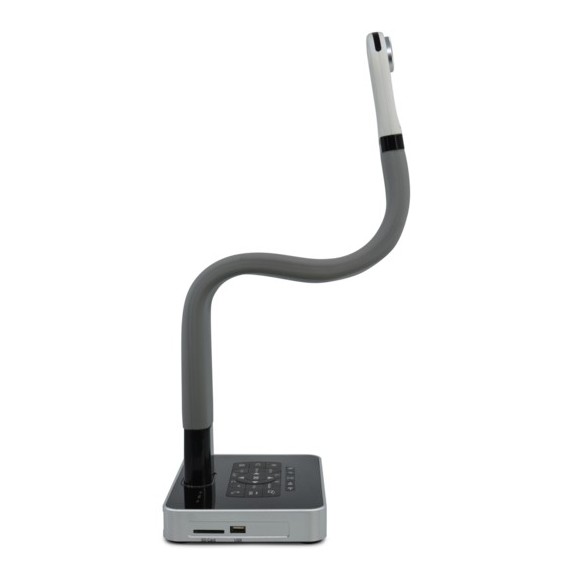

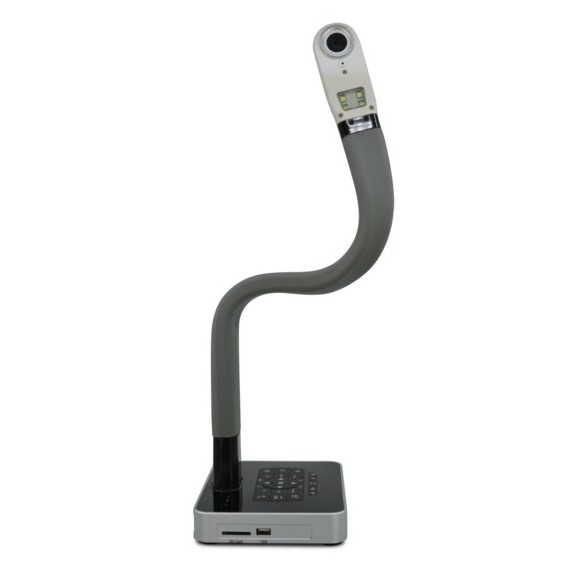

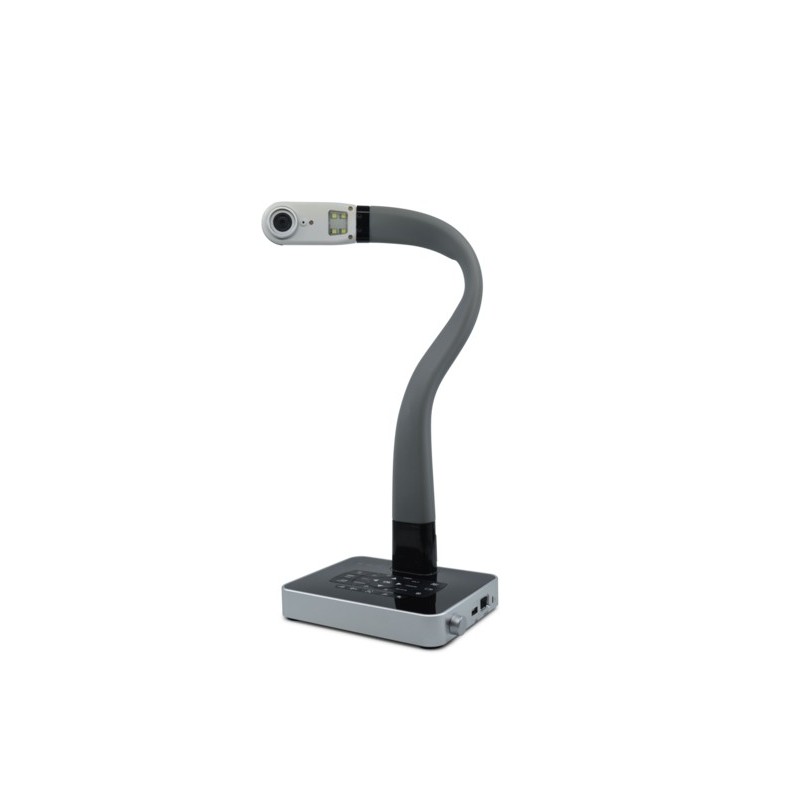

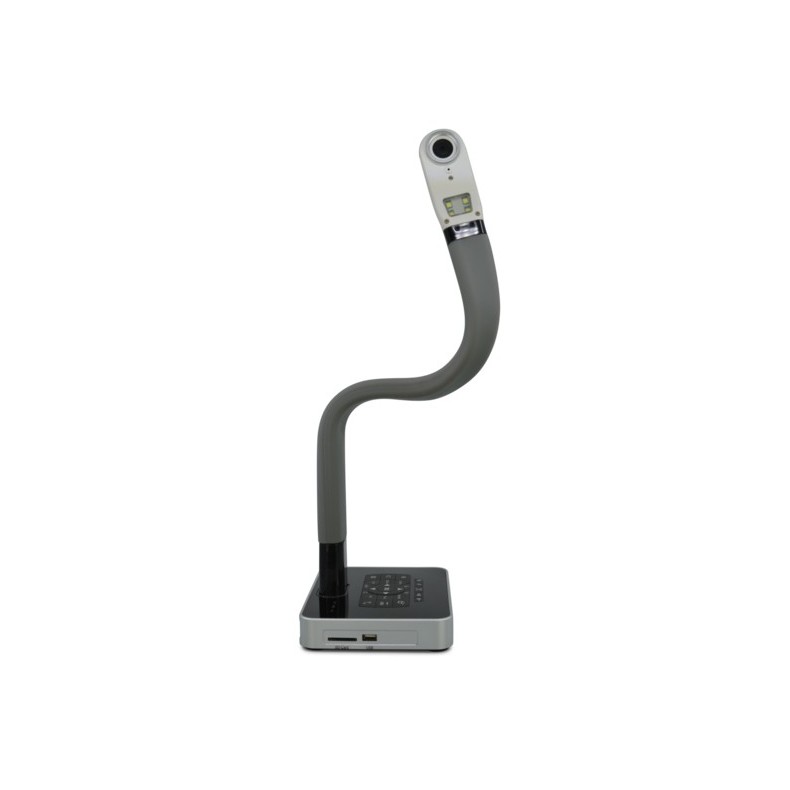

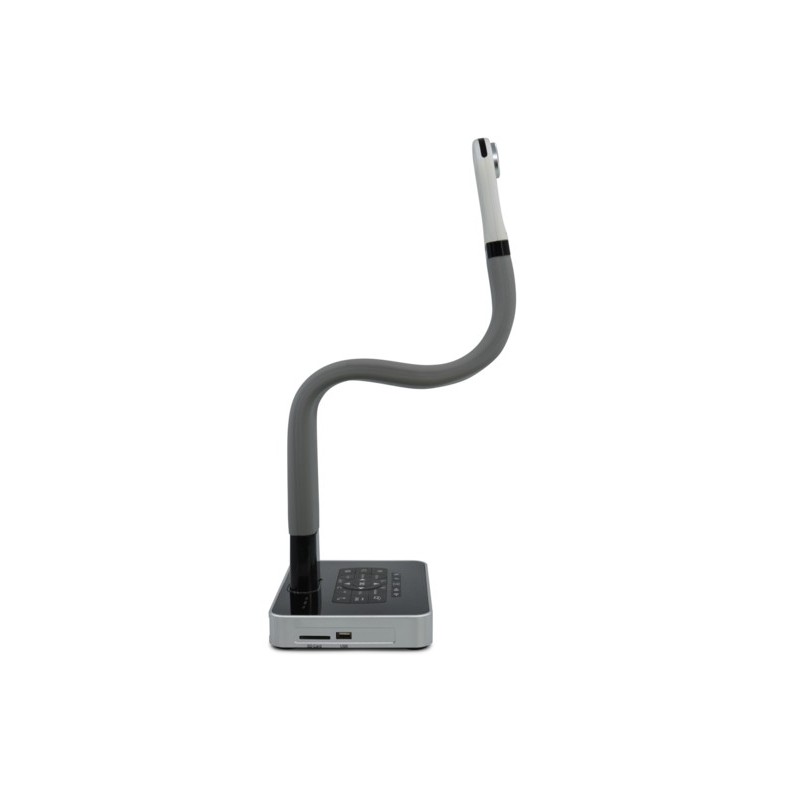

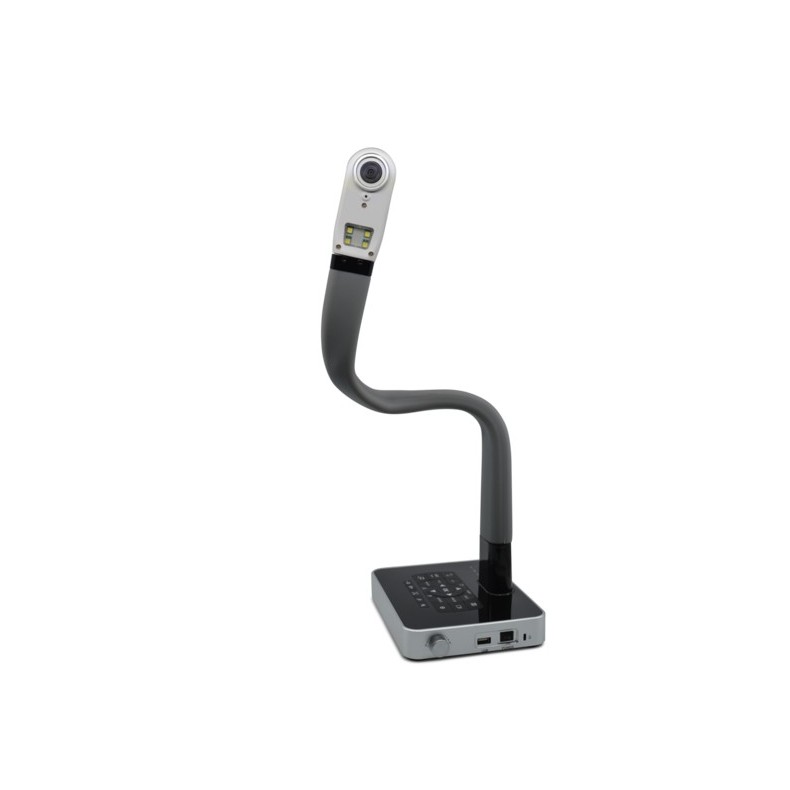

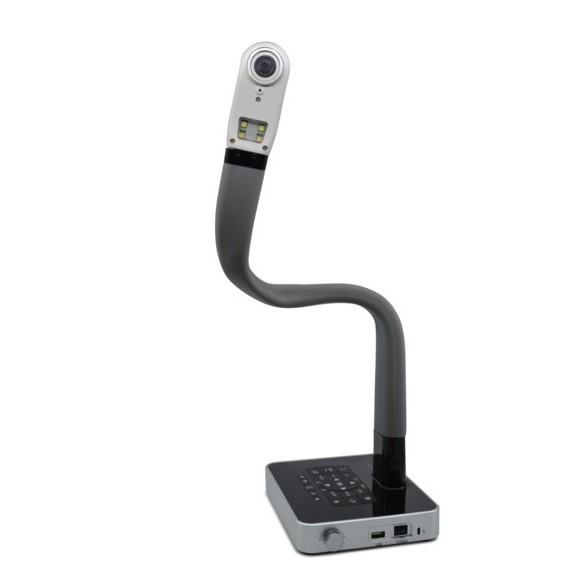

With its extra long gooseneck, the BMS SyncCam is very flexible. You can easily position the camera pointing at the most interesting area, so you can examine documents, minerals, circuit boards, etc...

Therefore, it is a versatile camera that can be used in combination with a microscope as well as for industrial inspection

Technical specifications of the synchronized camera:

• Model: BMS SyncCam
• Total pixels: 12Mp
• Zoom: 4x optical, 10x mechanical and 12x digital
• Image sensor: 1/3" CMOS
• Lens: f=3.37mm, F=2.8
• Viewing surface: A2
• Focus: auto/manual
• Output Signal: XGA, SXGA, 720P, 1080P
• Resolution (Horizontal): ≥ 1000 TV lines
• White balance: automatic/manual
• Color adjustment: red+/-, blue+/-
• Sharpness adjustment: yes
• Brightness adjustment: yes
• Still image: 4208(H)x3120(V)
• Frame rate: 30 fps
• Video recording: one-touch on-board recording
• Image effect: mirror, rotate, split, freeze, black and white, negative
• Annotation: on-board annotation
• OSD: yes
• internal software: UVC

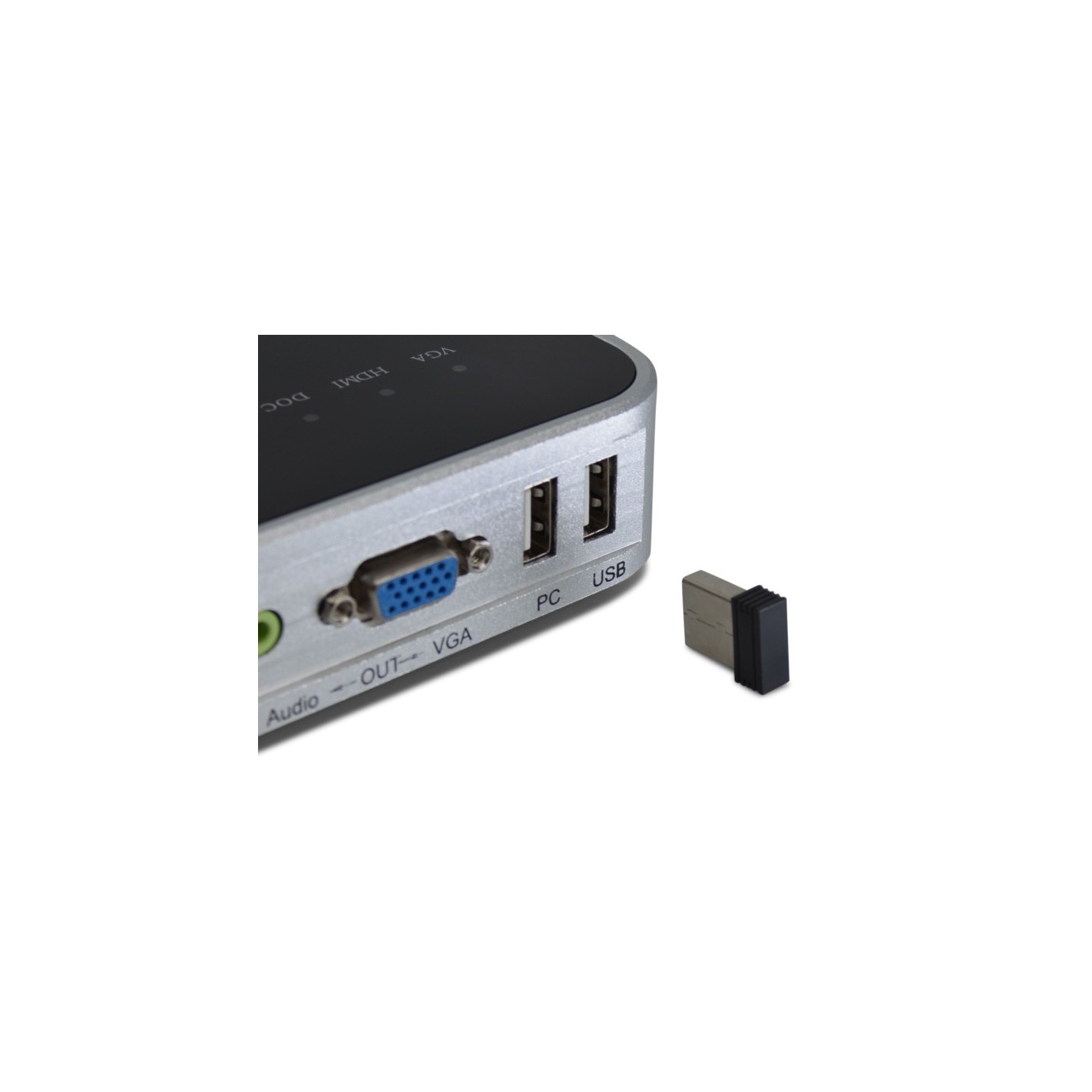

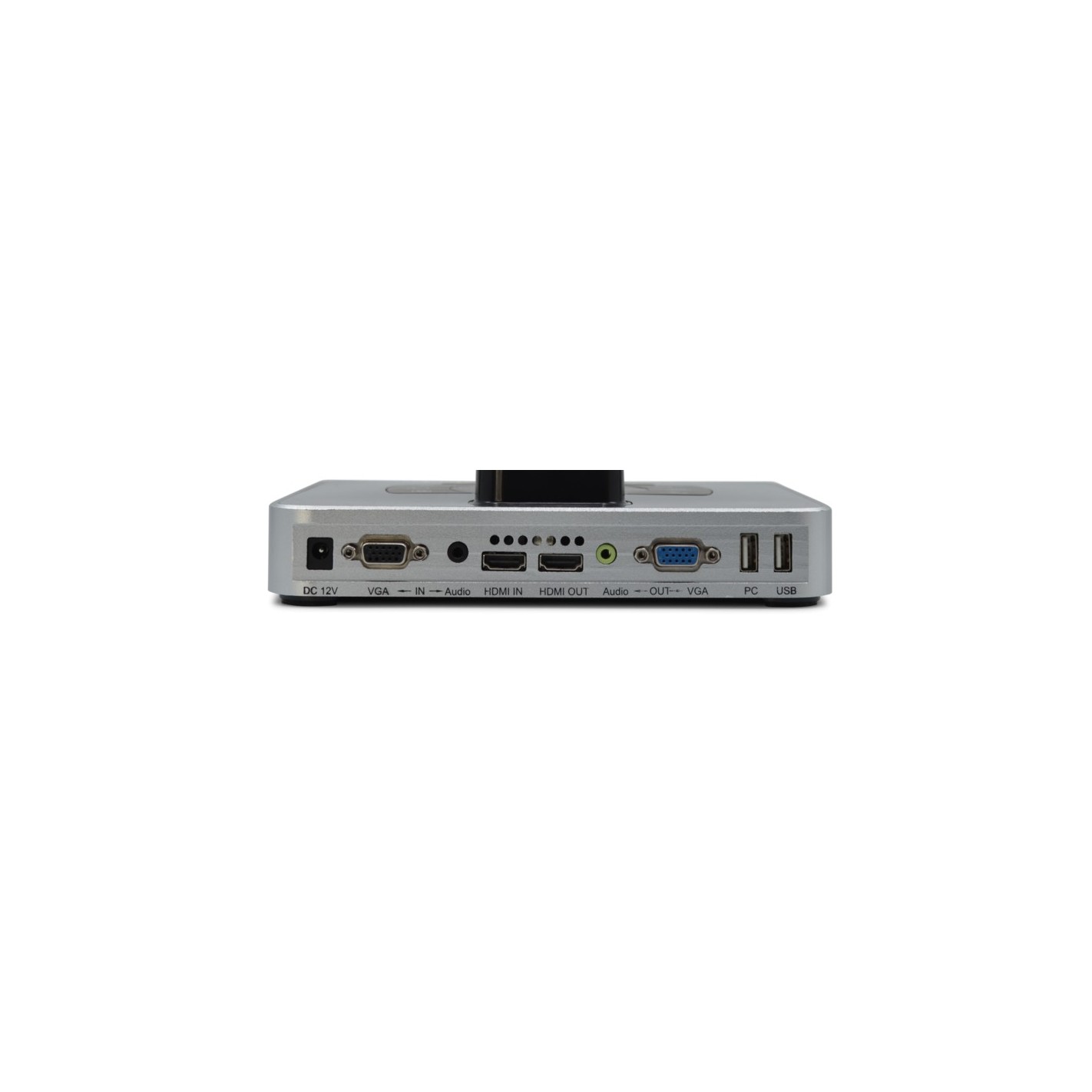

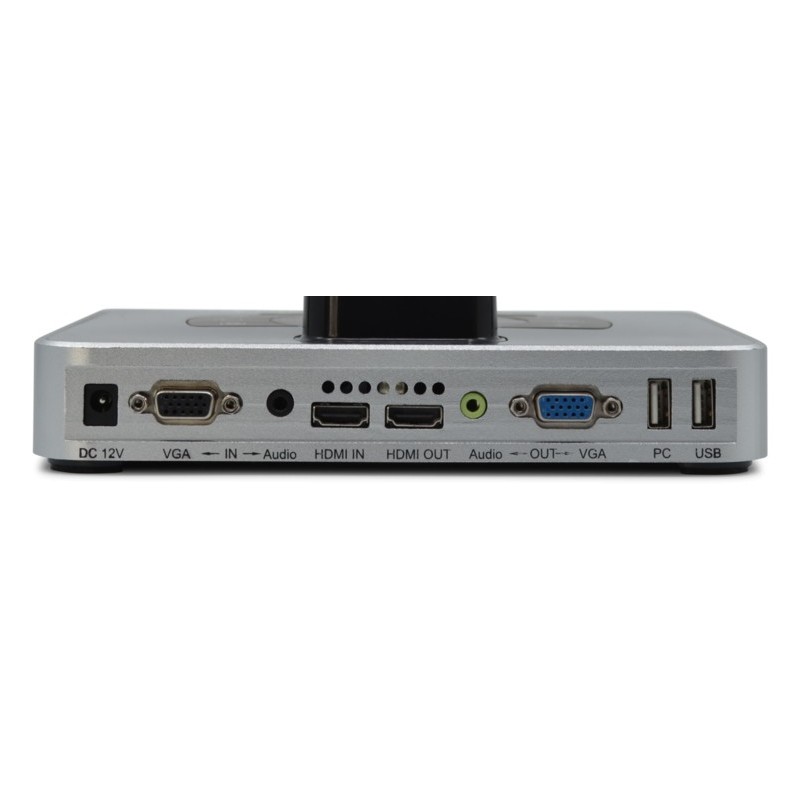

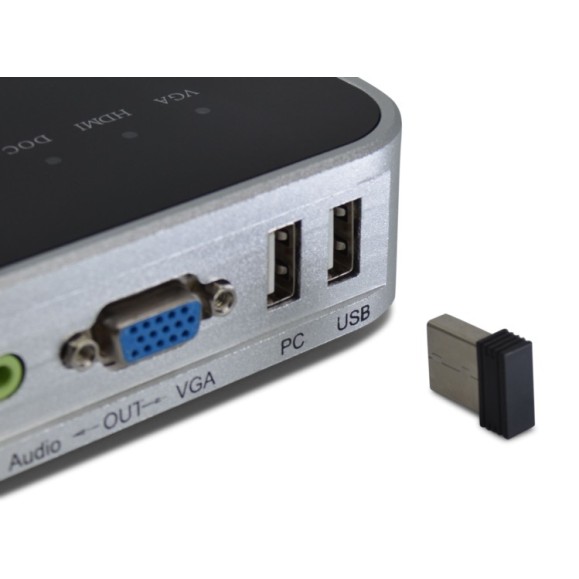

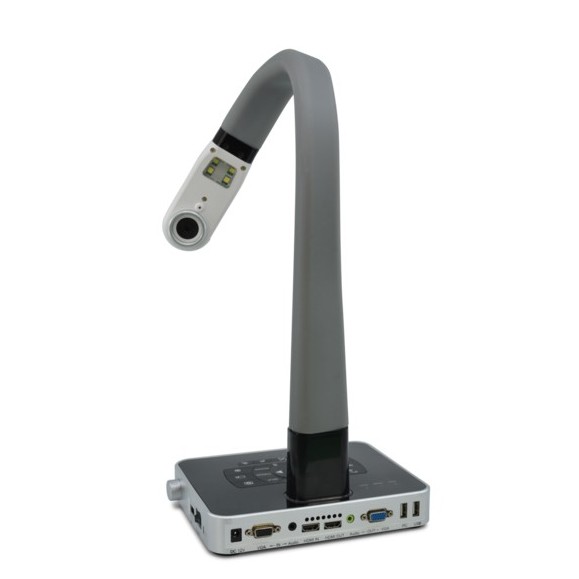

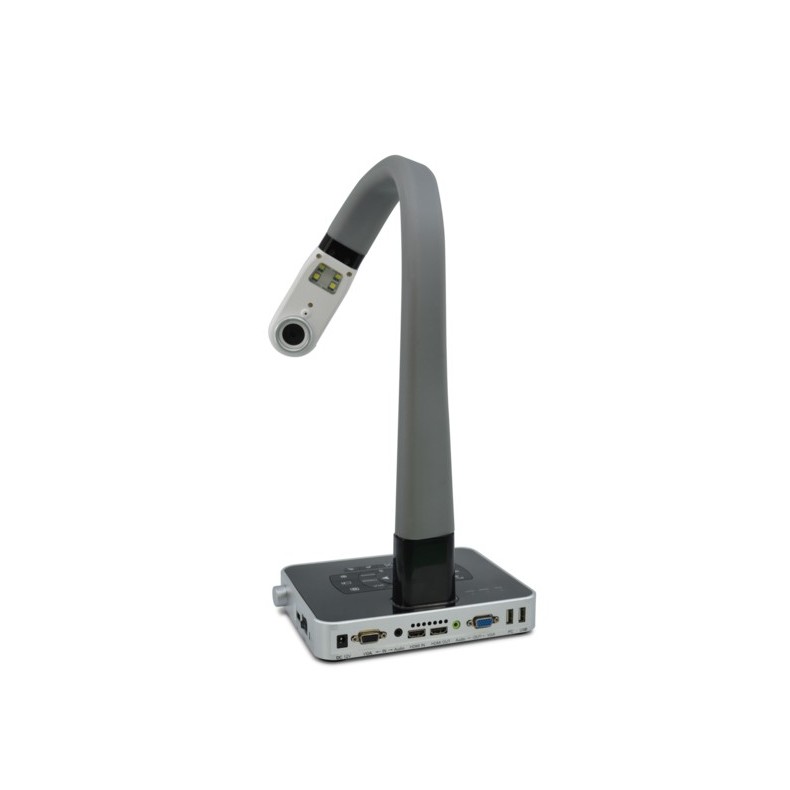

• Inputs: VGAx1, HDMIx1, Audiox1, Built-in microphone

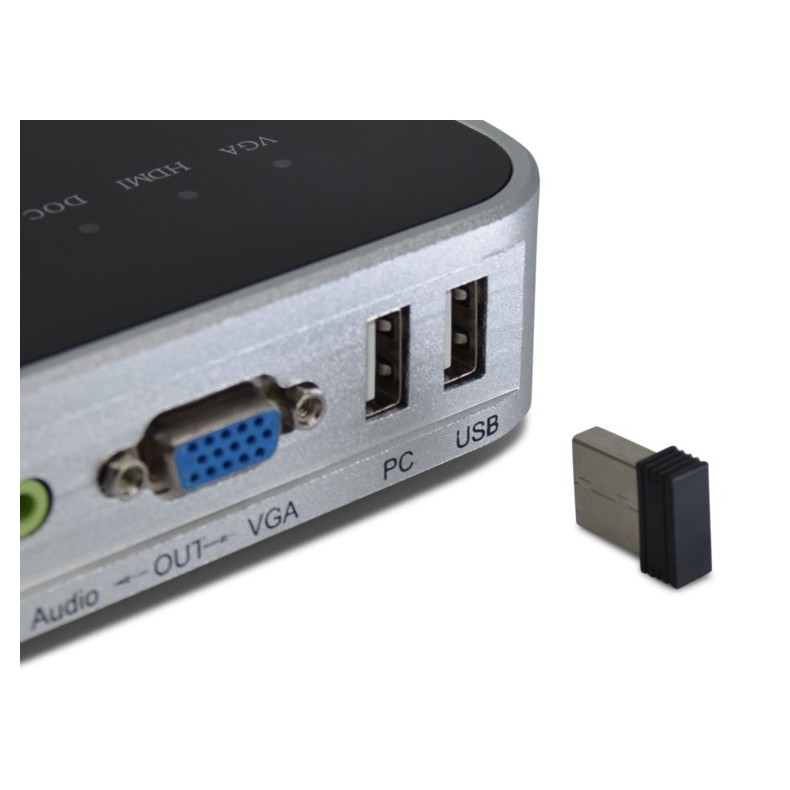

• Outputs: VGAx1, HDMIx1, Audiox1

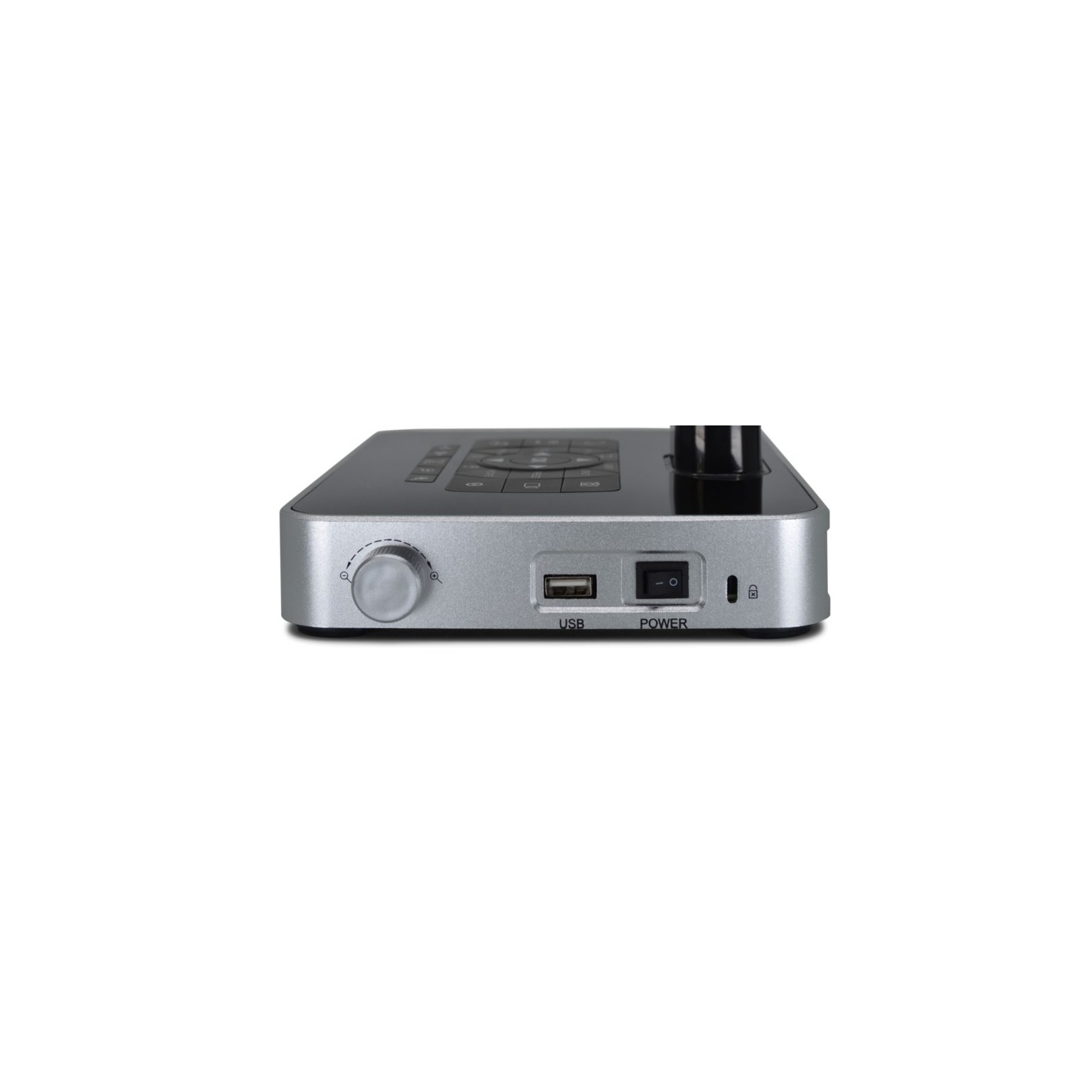

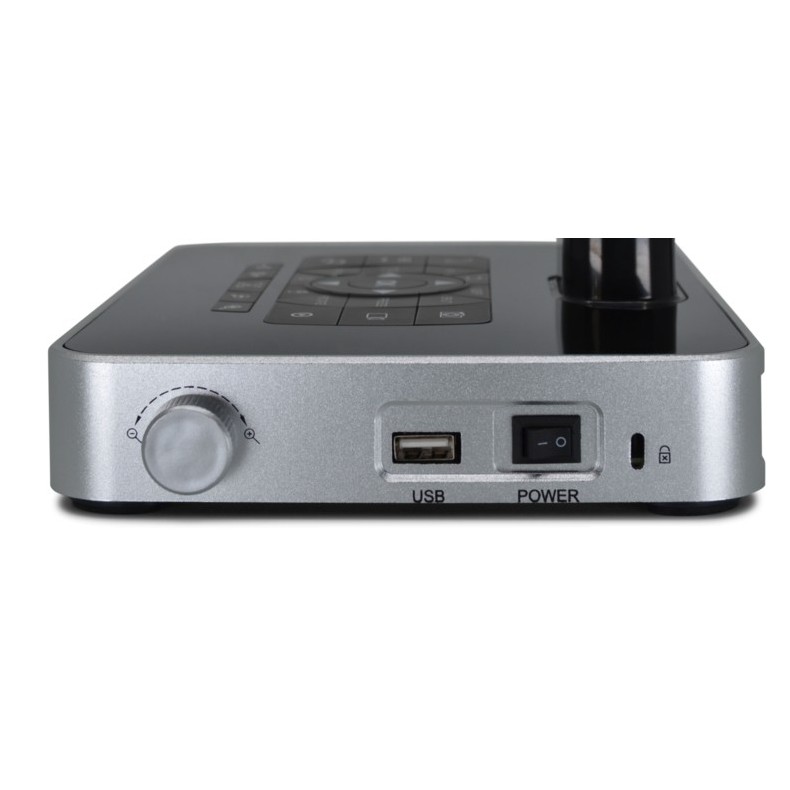

• USB2.0: slave × 3

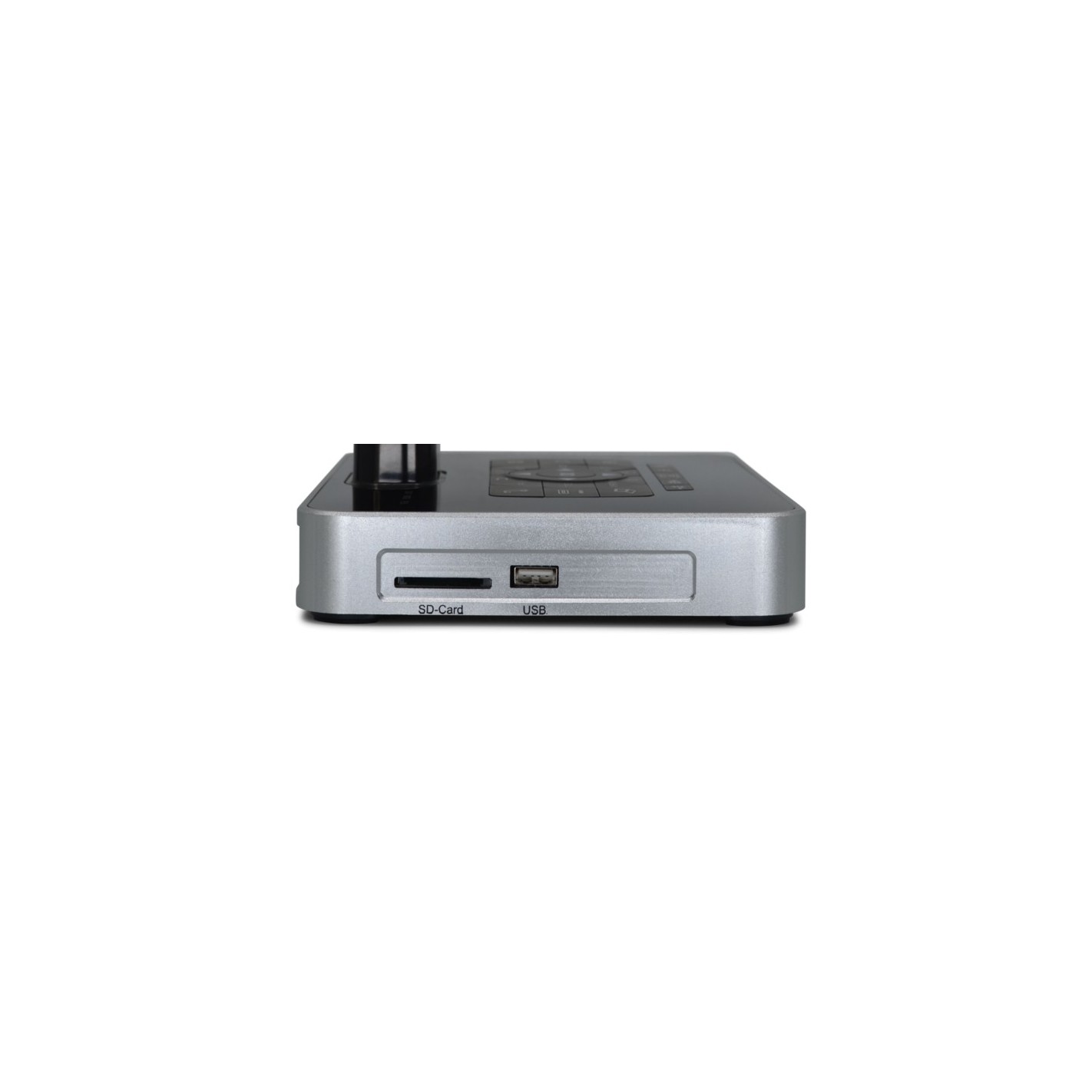

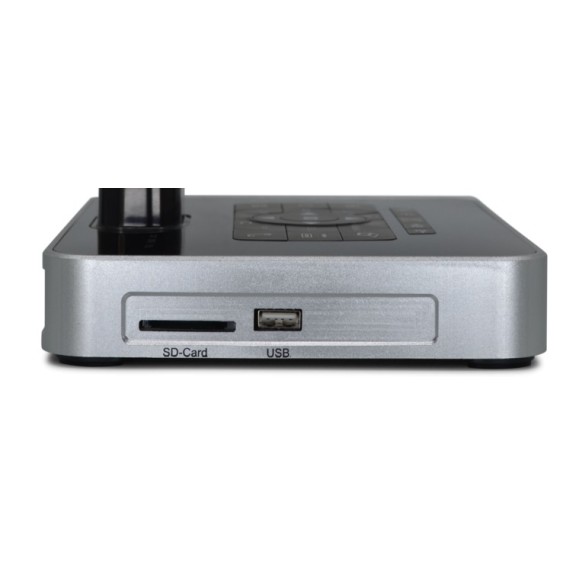

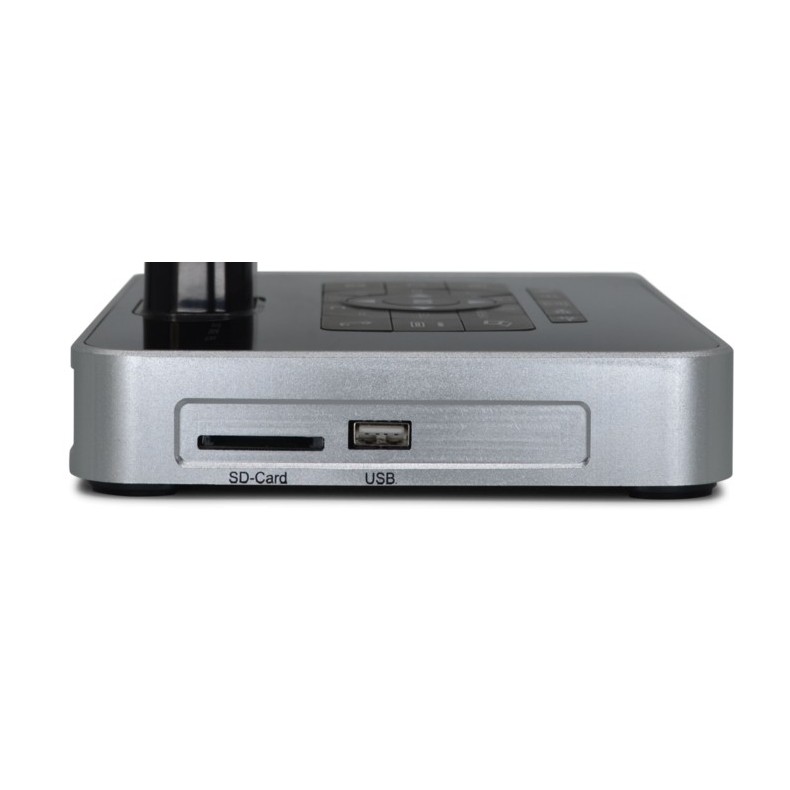

• SD card: yes (32 gb max.)
• lCD display: yes
• USB driver and software: Windows 8 and 10 (only suitable for Windows connection)
• Mobile application connection: no
• Remote control: yes

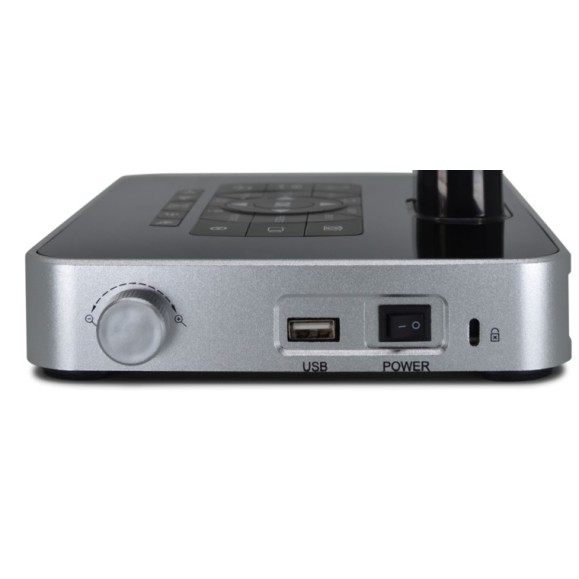

• Kensington lock: yes

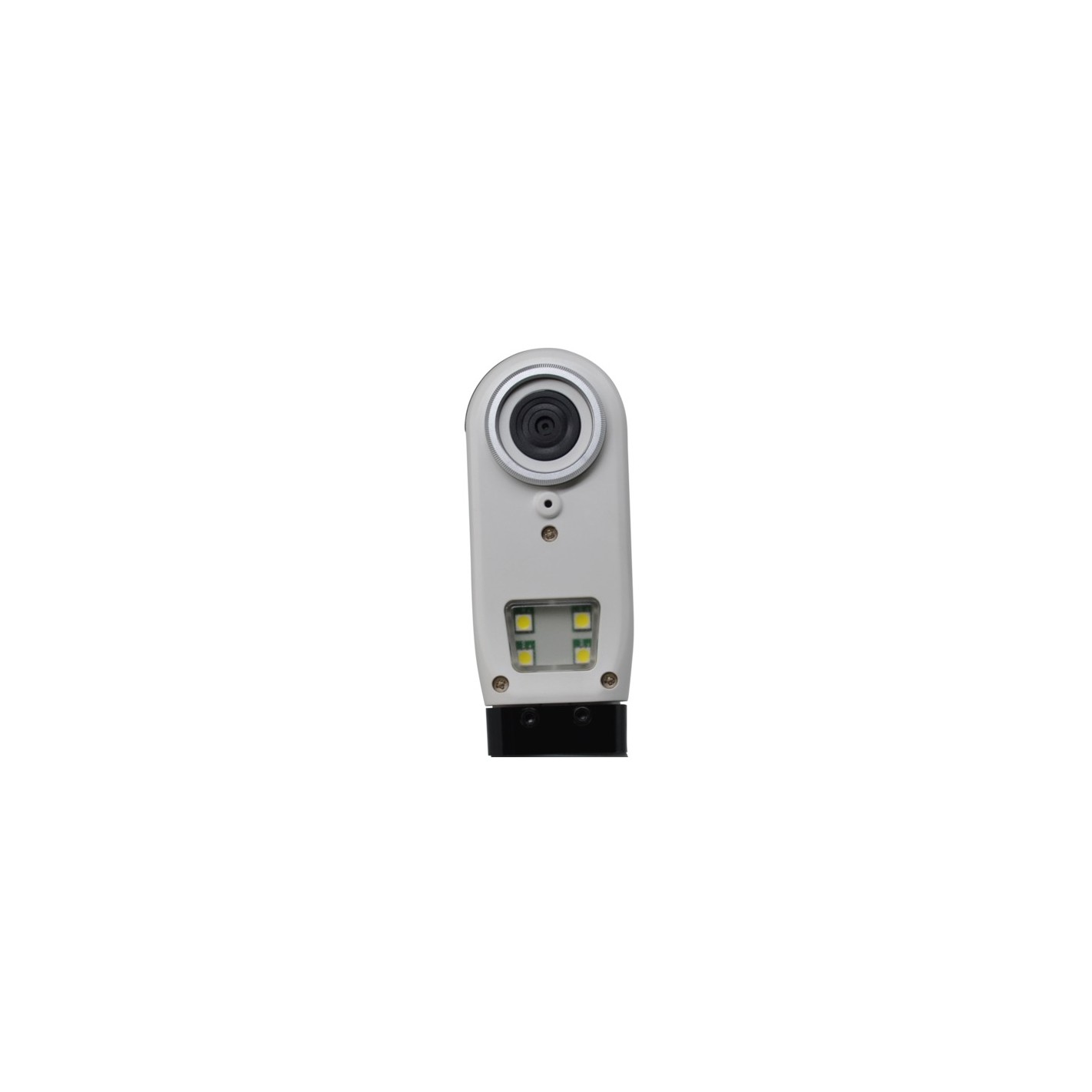

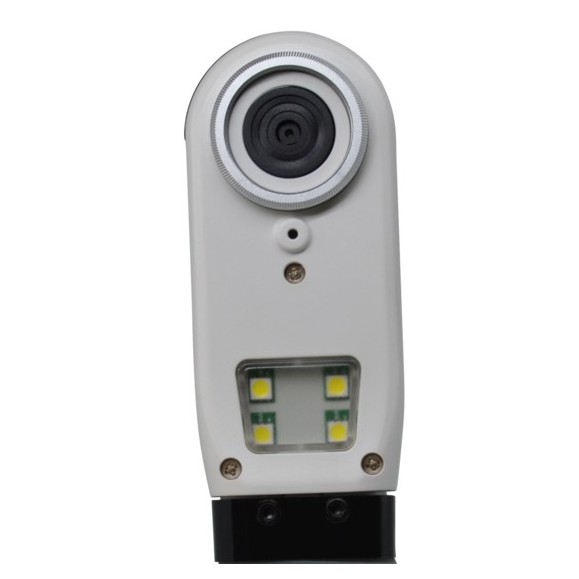

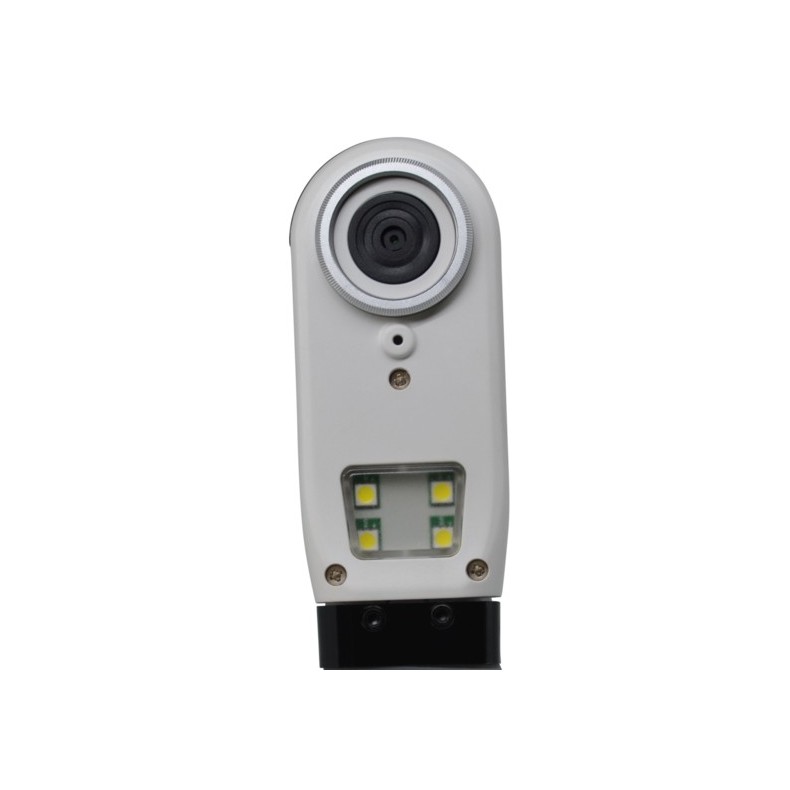

• LED illumination: Arm light × 1
• Power: 5V/2A
• Weight: 2kg

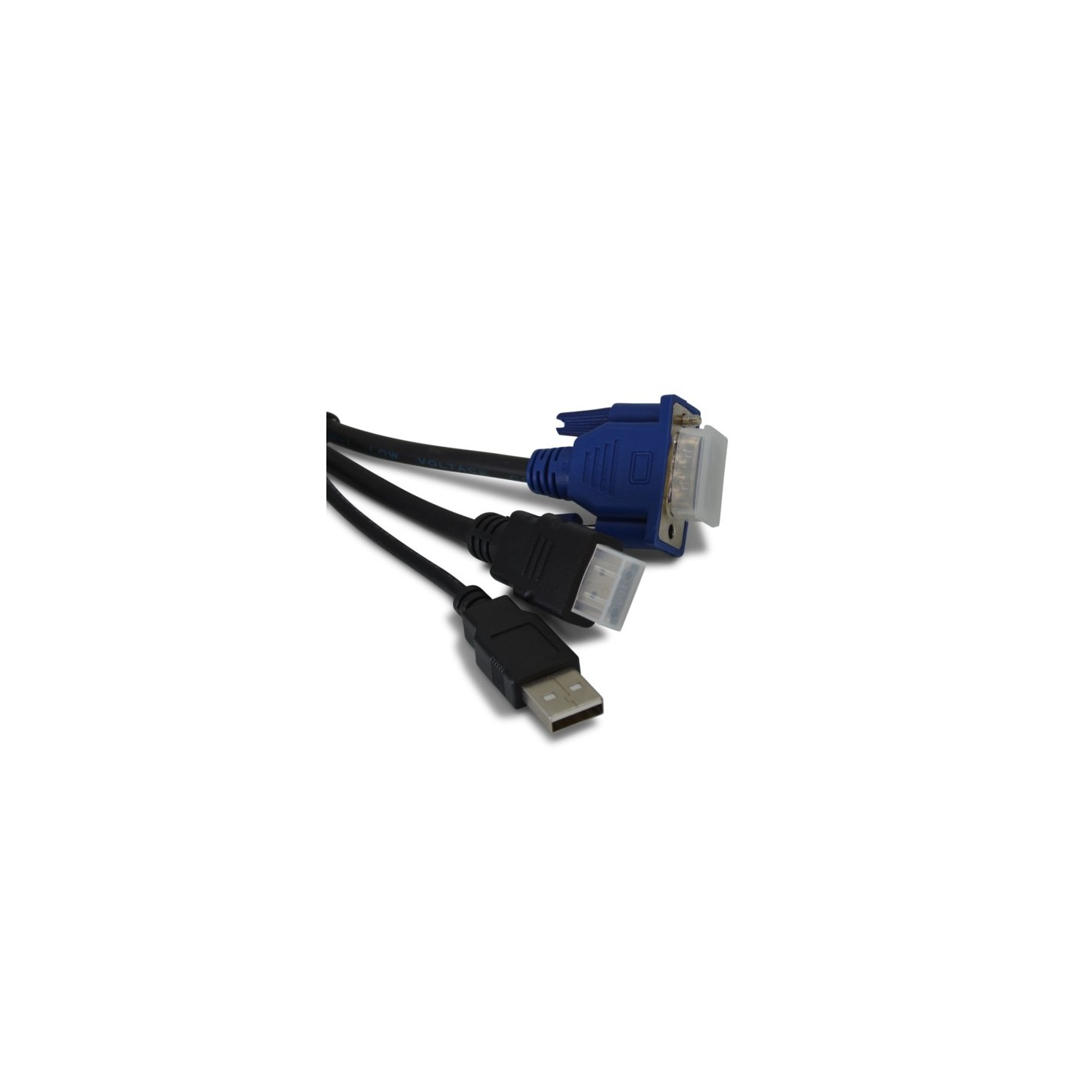

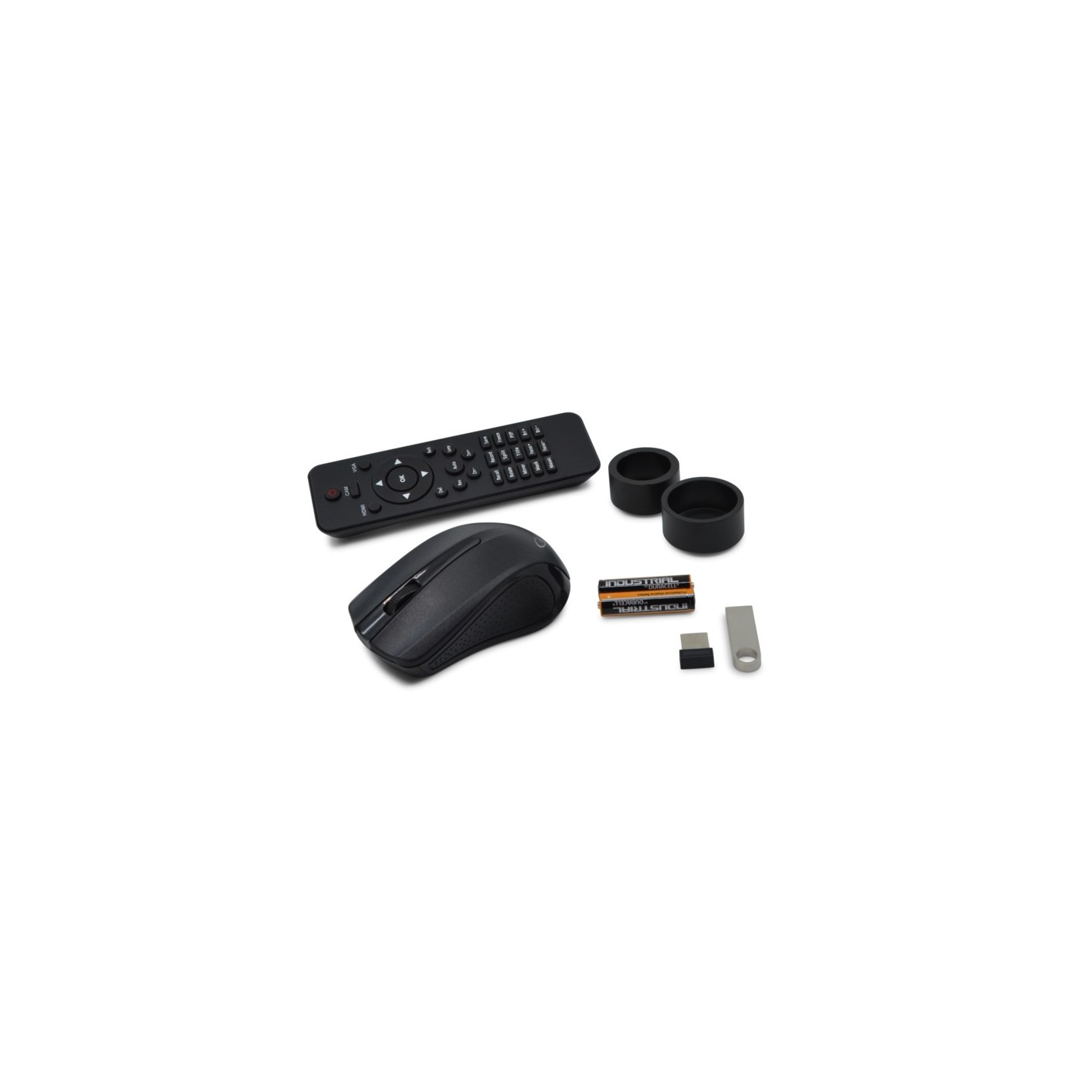

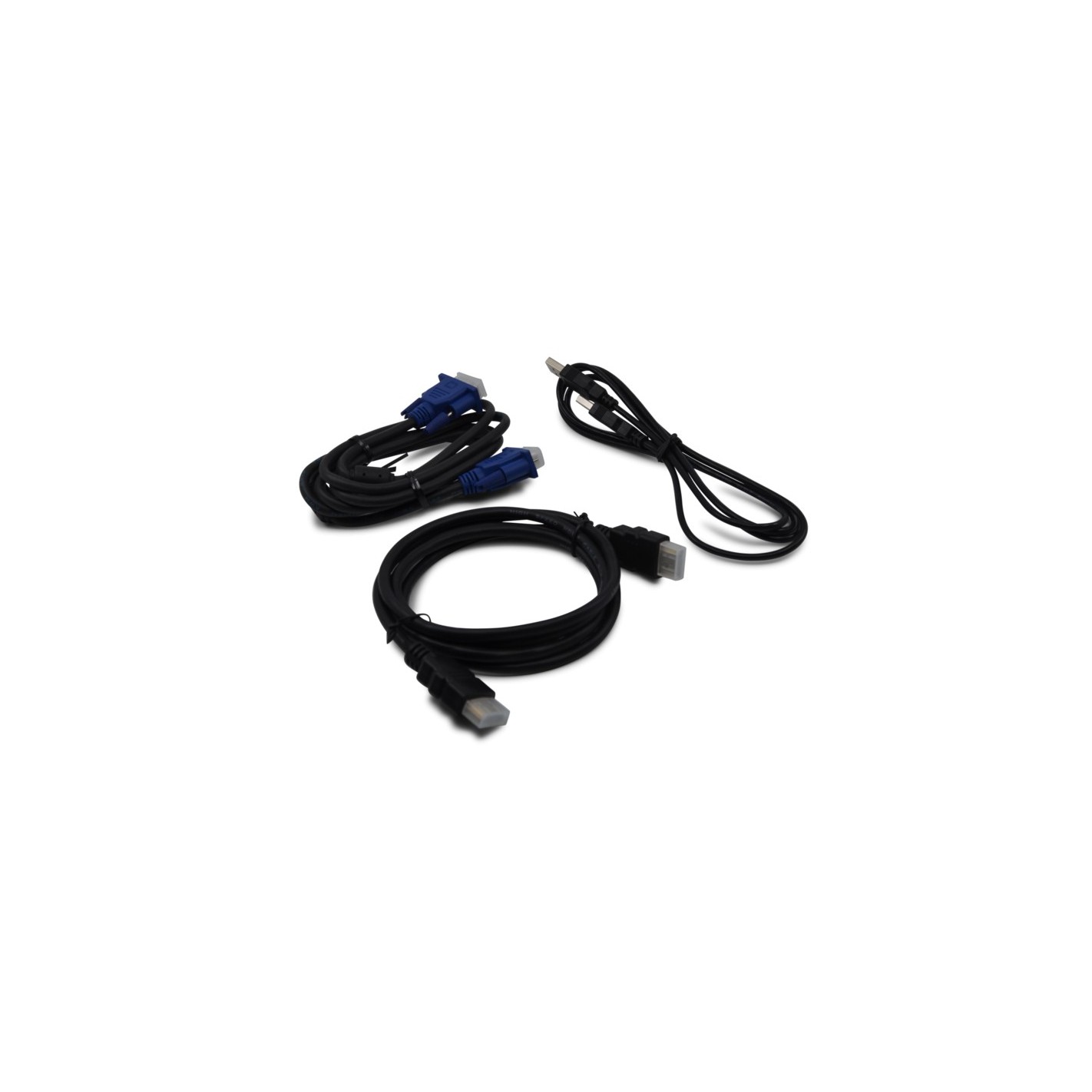

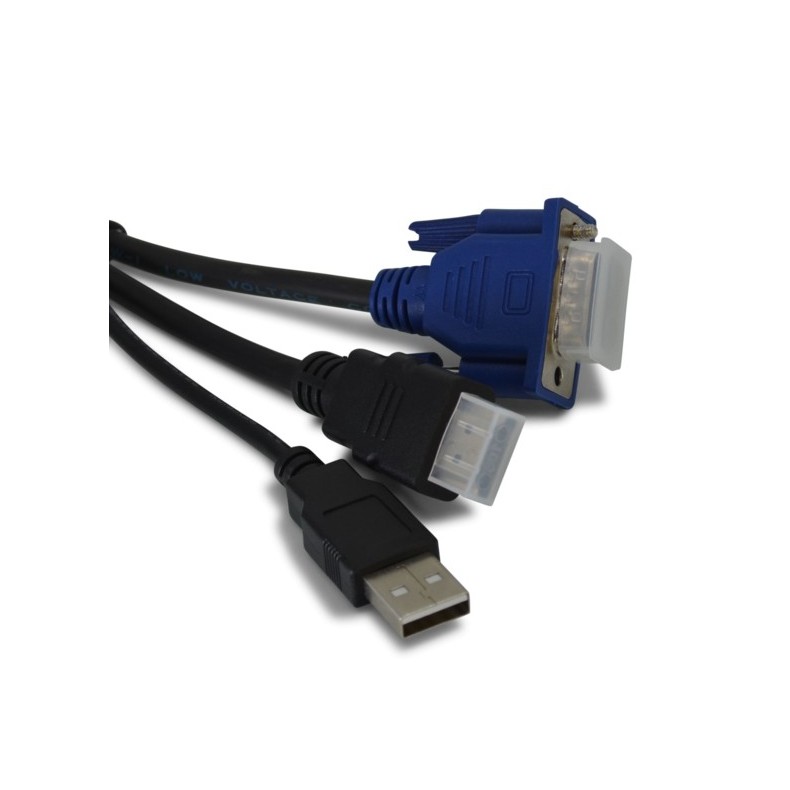

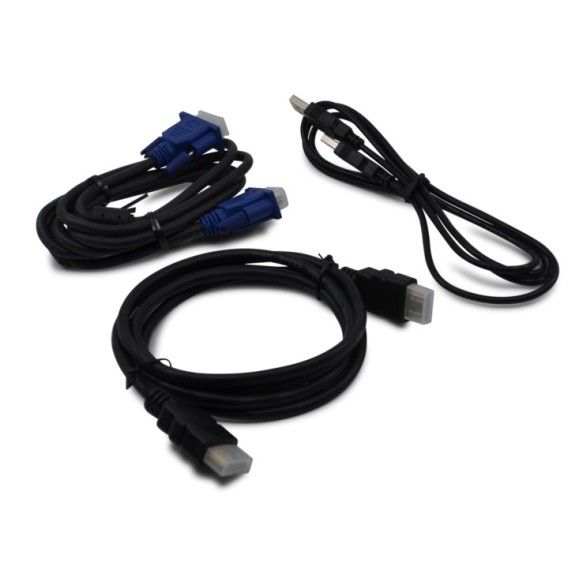

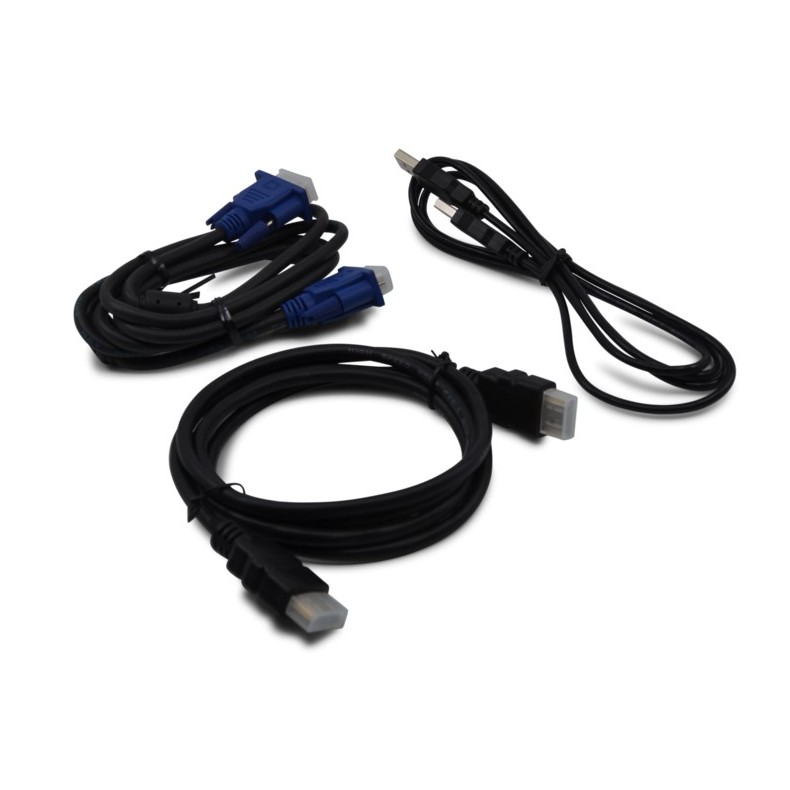

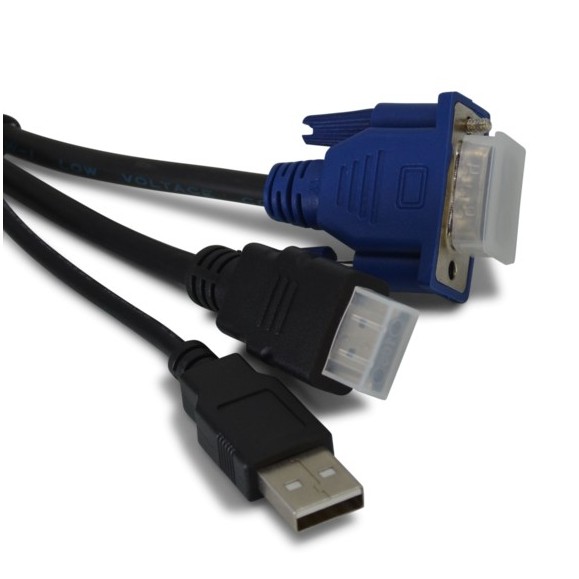

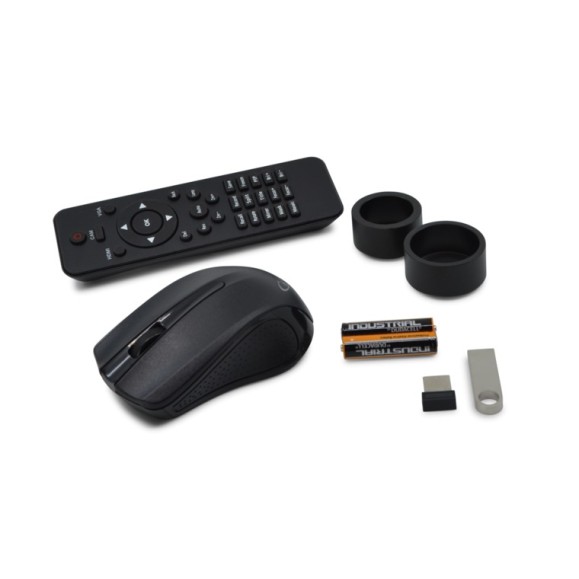

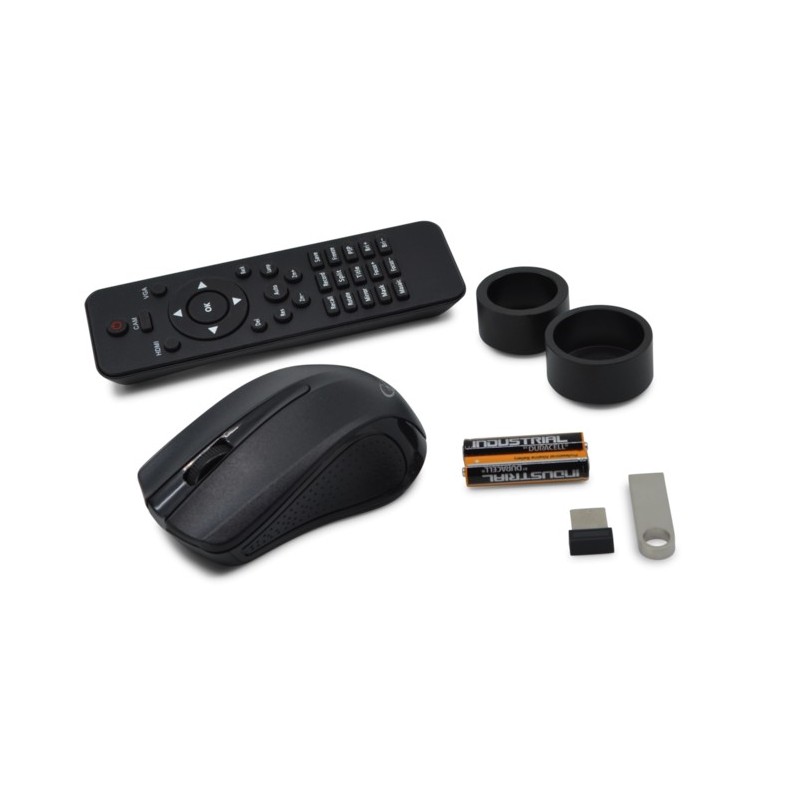

• Package contents: USB cable, VGA cable, HDMI cable, remote control unit, power adapter and wireless optical USB mouse
