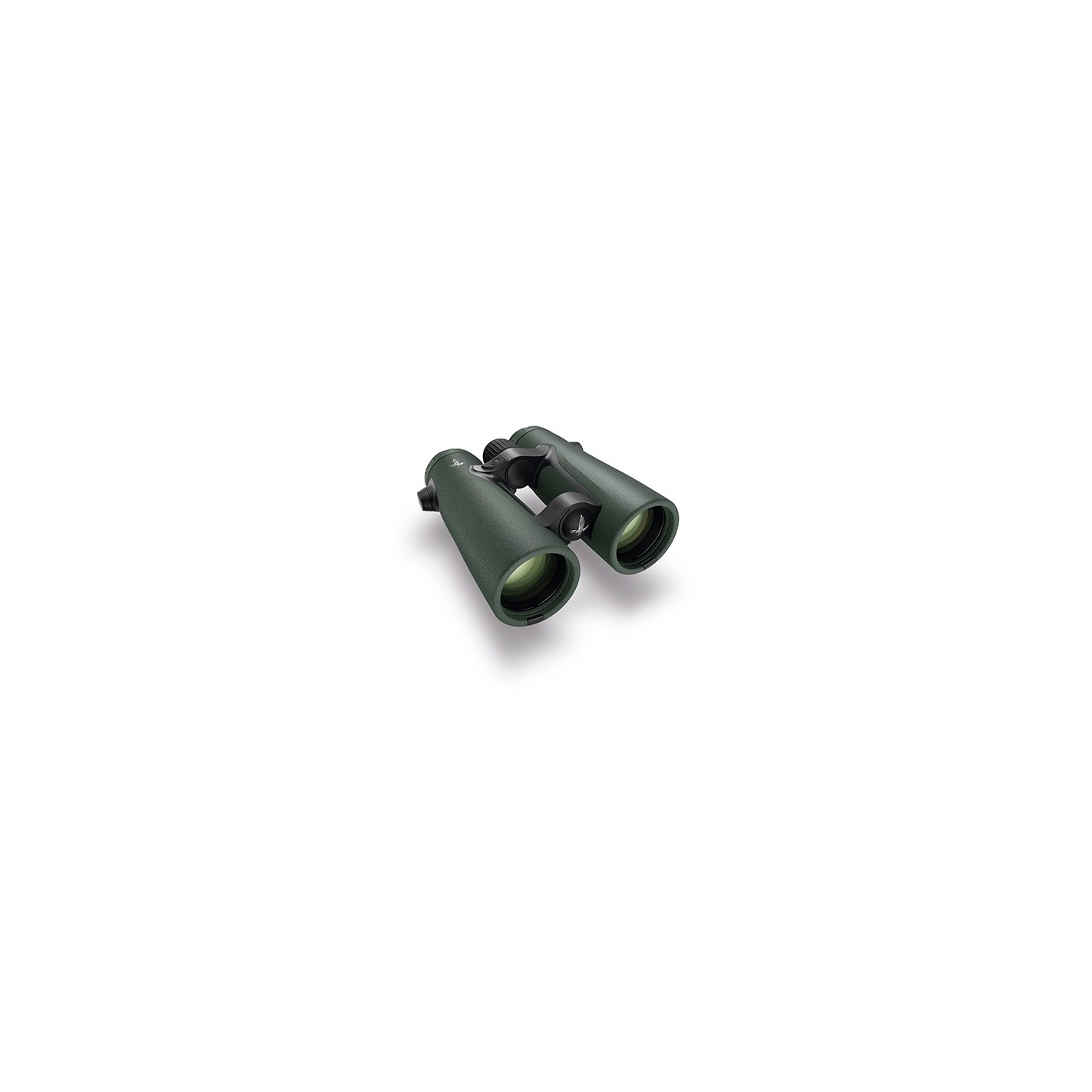

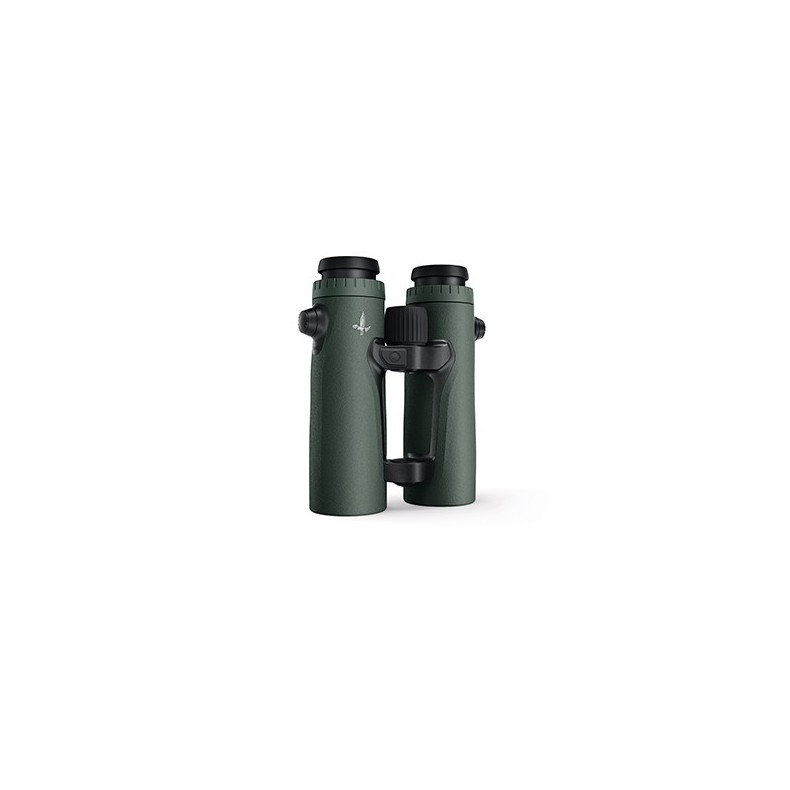

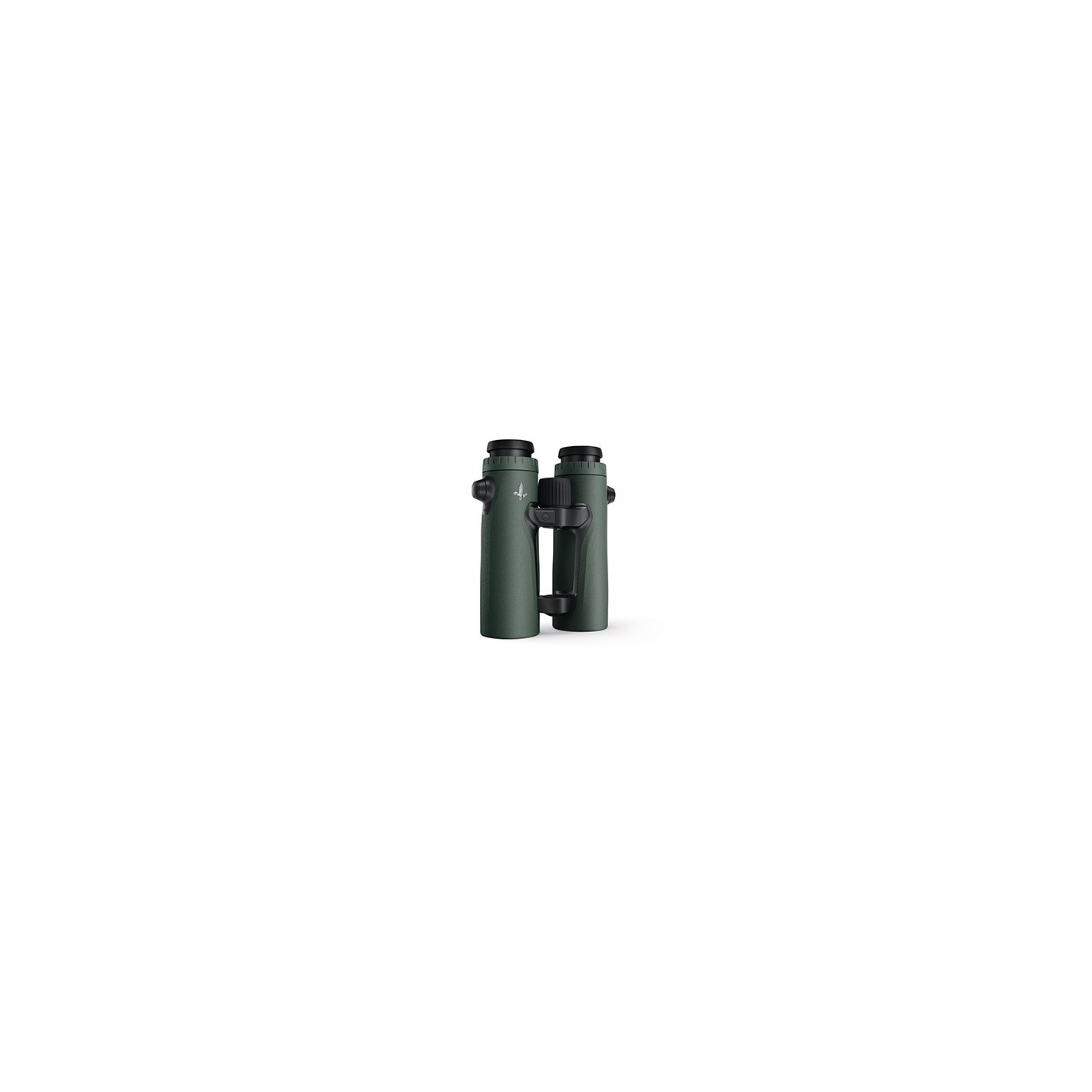

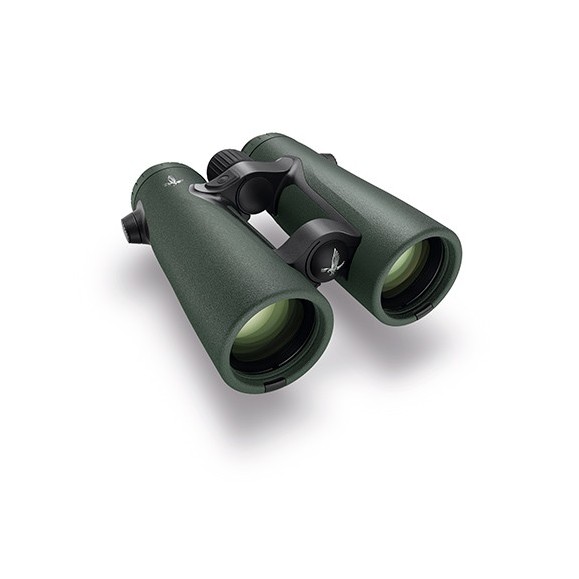

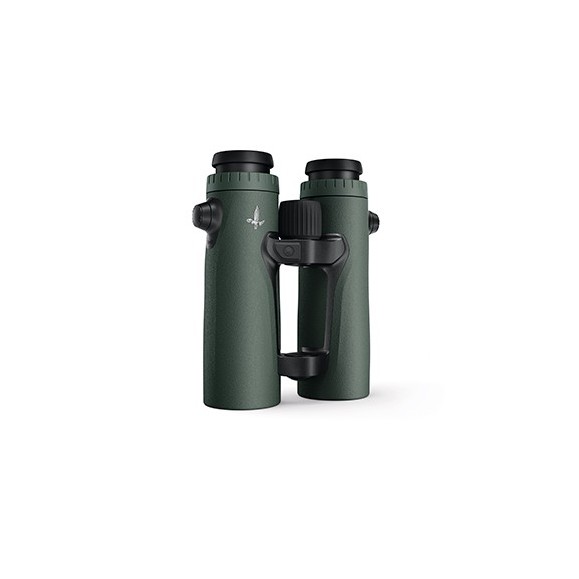

Binocular binoculars Swarovski EL Range Tracking Assistant 10x42 W B
TELEMETER
MEASUREMENT

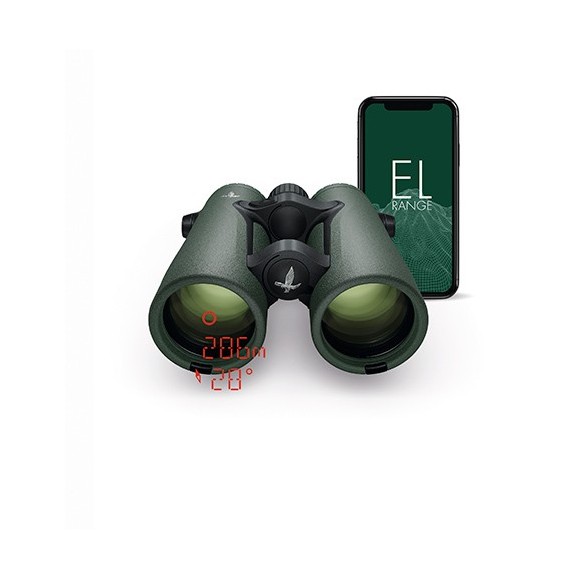

The binoculars combine state-of-the-art optics with precise measuring functions. The integrated tilt indicator with a unique shooting angle program shows the corrected distance or shooting angle. The EL RANGE gives you accurate measurements from a distance of 10 meters.
CUSTOMIZED BALLISTICS
AIM
Use the smartphone app to configure the binoculars according to your specific needs and personal ballistic data. Based on this and atmospheric data such as air pressure and temperature, it helps you shoot more accurately because, along with the set shooting distance, it also provides you with the required number of clicks for your scope.
TRACKING ASSISTANT
FIND
The integrated Tracking Assistant Program makes it easy to follow your prey by guiding you to where you last shot. You can choose to use this program via your smartphone or EL Range.
ACCURACY IN EVERY SENSE
EL Range WITH TRACKING ASSISTANT
EL Ranges can be configured to meet your specific needs and you can transfer your own ballistics data, allowing you to make an accurate assessment of each hunting situation.
FOCUS ON PERFECTION
EL RANGE WITH TRACKING ASSISTANT
In every hunting situation, you can detect prey quickly and accurately thanks to the precision and edge-to-edge sharpness of SWAROVISION technology.
INNOVATIVE INTELLIGENCE
THE RANGE WITH TRACKING ASSISTANT
The innovative Tracking Assistant helps you narrow down the area in which your last shot hit the target.
SWAROVSKI OPTIK
EL RANGE CONFIGURATION APP

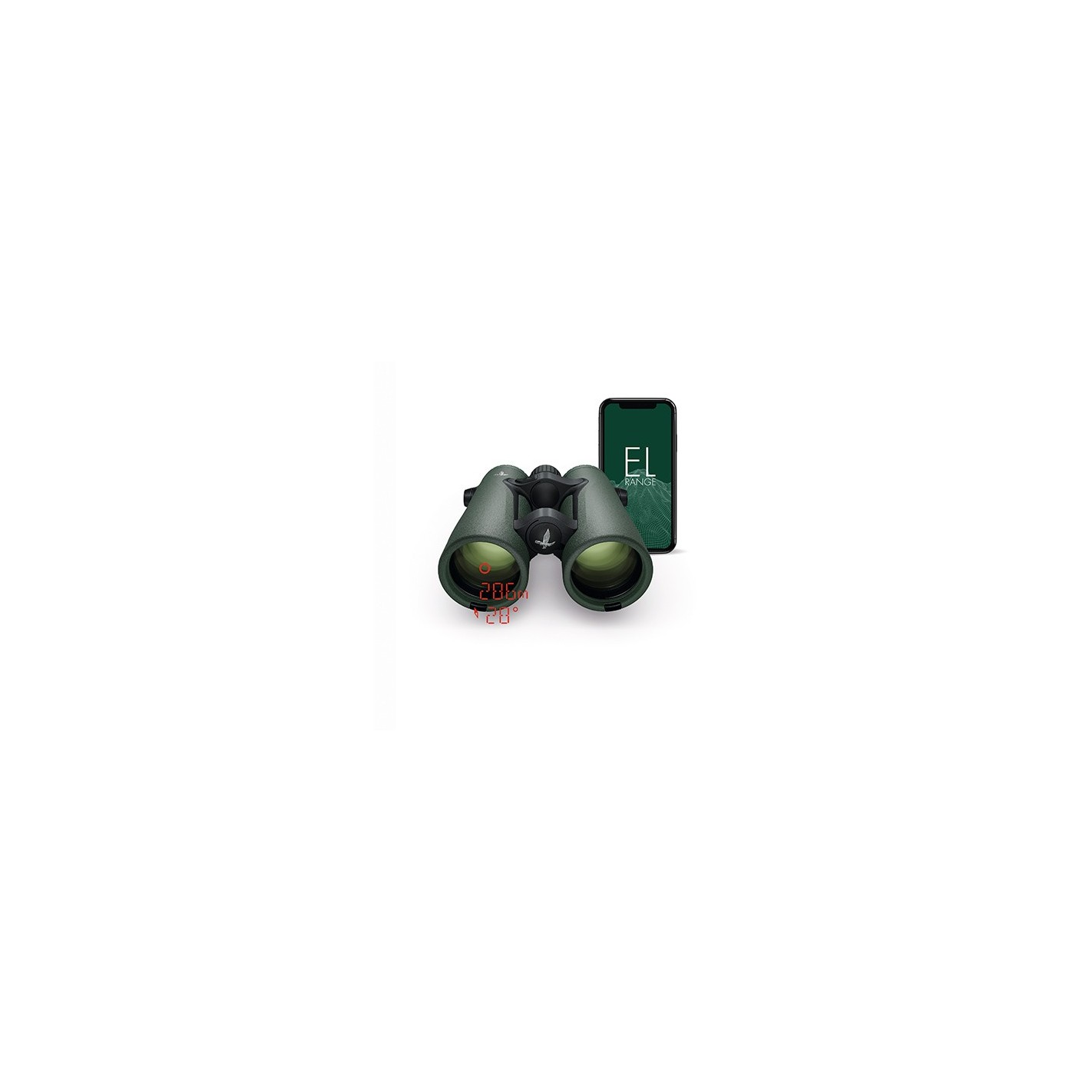

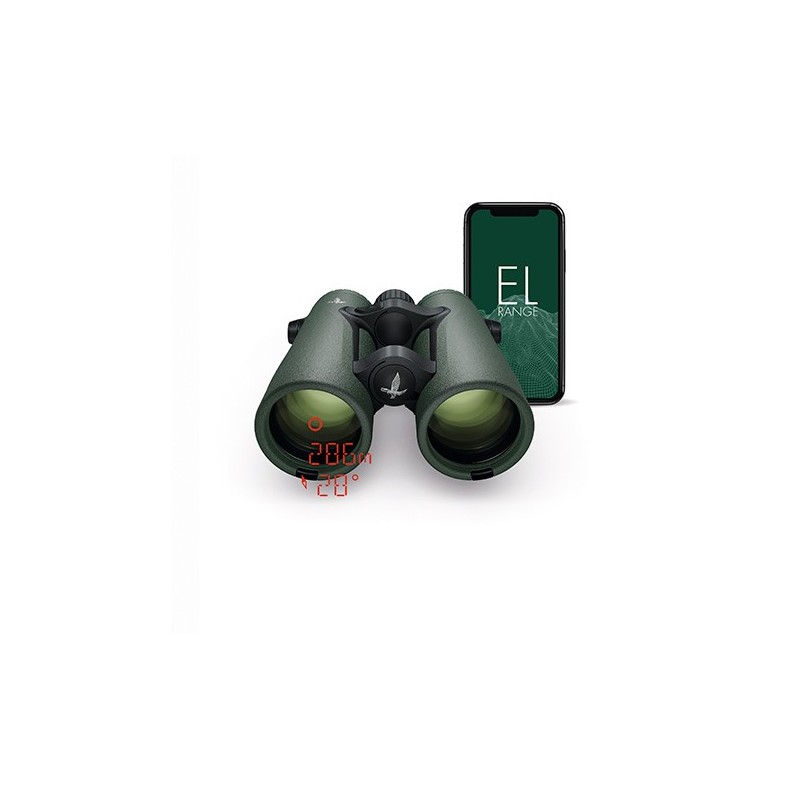

Customizing your EL Range binoculars with Tracking Assistant is easy. Transfer your personal ballistic data directly via the app, and you can even use it on your smartphone.
TECHNICAL CHARACTERISTICS:
Optics
|
Type of construction |
Pentagonal |
Magnification |
10 |
Front lens diameter (mm) |
42 |
Exit pupil (mm) |
4,2 |
Interocular distance (mm) |
19,0 |
Rubber eyepieces |
rotatable |
Dioptric compensation |
+/-5 |
Pupillary distance (mm) |
56-74 |
Lens bonus |
Multi-phase and full phase bonus |
High performance optics |
SWAROBRIGHT, SWARODUR, SWAROTOP, SWAROCLEAN |
Focusing system |
Central focusing |
Special features
|
Zoom function |
- |
Eyepieces for spectacle wearers |
yes |
Image stabilizer |
- |
Compass |
- |
Rangefinder |
yes |
Splash water proof |
yes |
Protective bag |
yes |
Tripod connection thread |
- |
Field of view
|
True field of view (°) |
6.8 |
Apparent field of view (°) |
61 |
Field of view at 1,000 m (m) |
120 |
Minimum focusing distance (m) |
5,0 |
Light transmission |
90% |
Twilight factor |
20,5 |
Rangefinder
|
Range (m) |
10-2000 |
Measuring time |
≤ 0.5 s |
Angular measurement |
+/- 90º |
Measurement accuracy (m) |
+/- 1 |
Meter-yard conversion |
yes |
Laser |
Class 1 EN/FDA |
Life cycle / Batteries |
2.000 measurements / CR2 |
General
|
Surface material |
Rubber armor |
Color |
green |
Length (mm) |
172 |
Width (mm) |
136 |
Height (mm) |
79 |
Weight (g) |
930 |
Series |
EL Range TA |
Applications
|
Astronomy |
environment |
Hiking |
well |
Birdwatching |
good |
Hunting |
outstanding |
Travel |
good |
Sports |
well |
Sailing |
medium |
Theater |
- |
