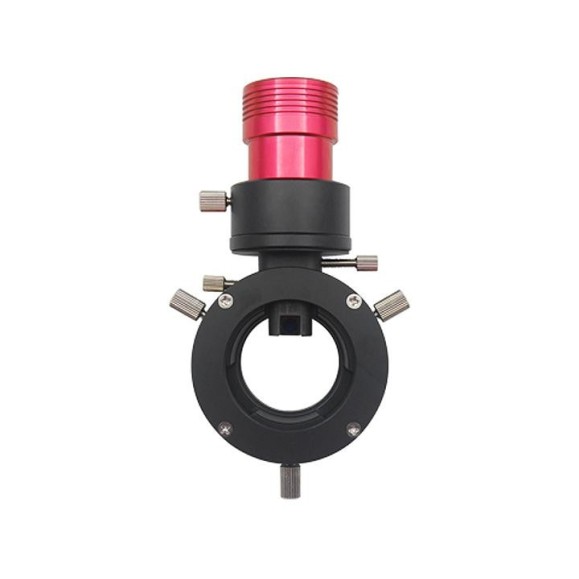

CMOS camera ZWO ASI 174 Mini

Name: CMOS camera ZWO ASI 174 Mini
Brand: ZWO
SKU: ZWOASI174MINI
Price: 355.36 EUR
Availability: PreOrder

Reference ZWOASI174MINI

Stock at Supplier

355.36 495.04 -139.68

VAT excluded Shipping 5/7d

CCD camera ZWO ASI 174 Mini

Buy it now and receive it between on Tuesday, 7 January and Tuesday, 14 January with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Tuesday, 7 January - Tuesday, 14 January

Home delivery - International

Estimated delivery:
Tuesday, 7 January - Tuesday, 14 January

✖

Description
Product Details

CCD camera ZWO ASI 174 Mini.

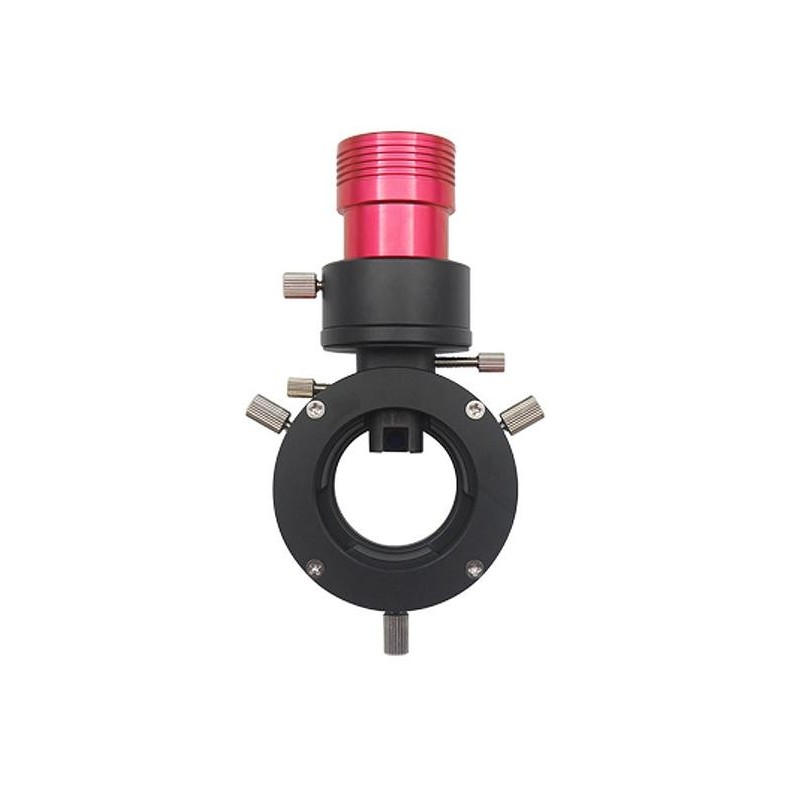

In a continuing effort to meet the demands of astrophotographers, the Chinese company ZWO (Zhen Wang Optical) now offers miniature autoguider cameras with its new range called "Mini".

The ASI174 Mini guiding camera is equipped with a 2.3 million pixel (1936 x 1216px) IMX174LLLJ/IMX174LQJ monochrome sensor with a pixel size of 5.86μ.

With the shape and size of almost a traditional eyepiece, this camera can also be used as a planetary camera.

Technical Specifications:

- - - - Sensor format: 1936 x 1216 pixels
      - Pixel size: 5.86 μ
      - A / D converter: 12 bits
      - Read noise: 3.5e
      - Quantum efficiency: 77%
      - Minimum exposure time: 32μs
      - Max. exposure time: 300 seconds, 18.4fps
      - Max. frames/second: 18.4 img/s (1936 x 1216 12bits)

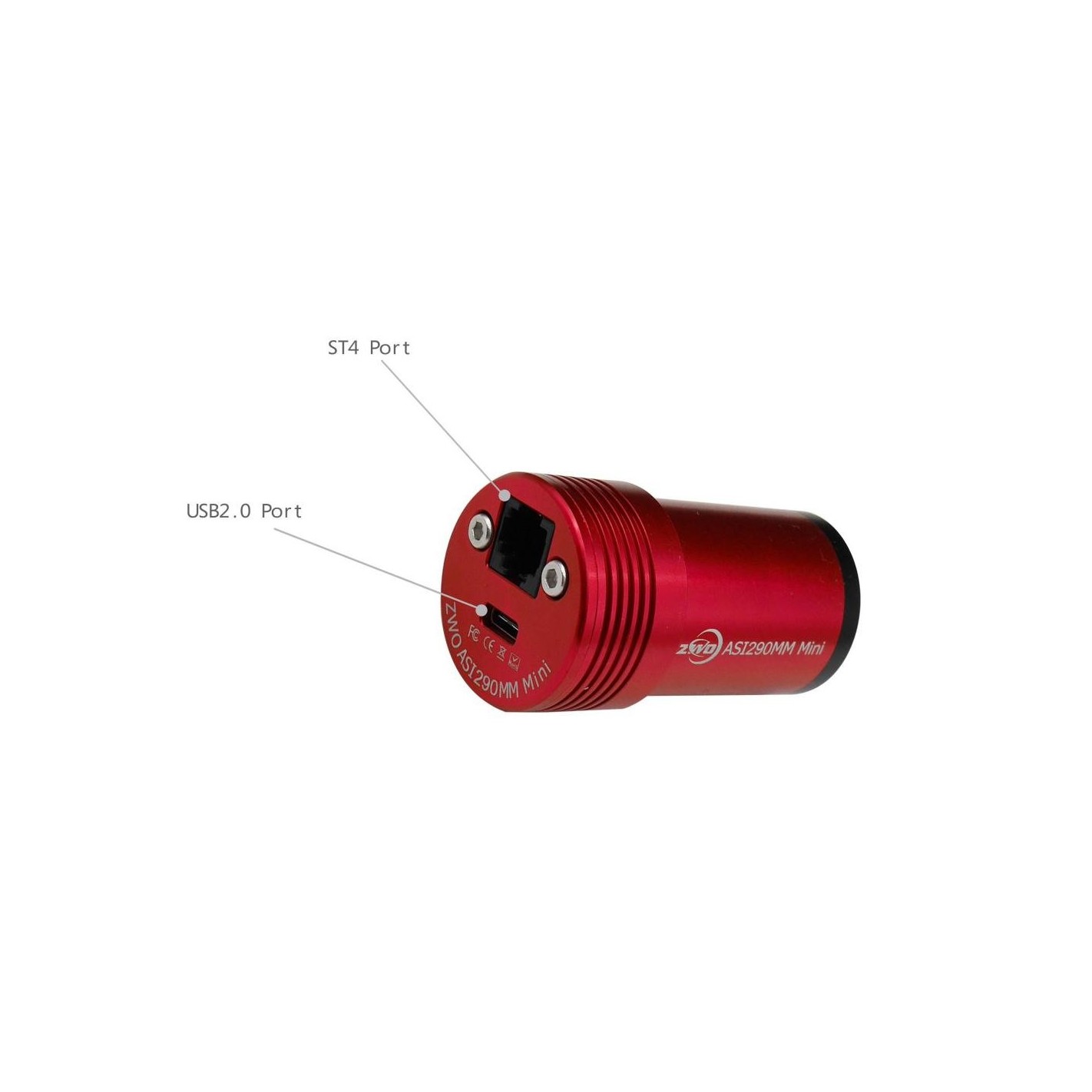

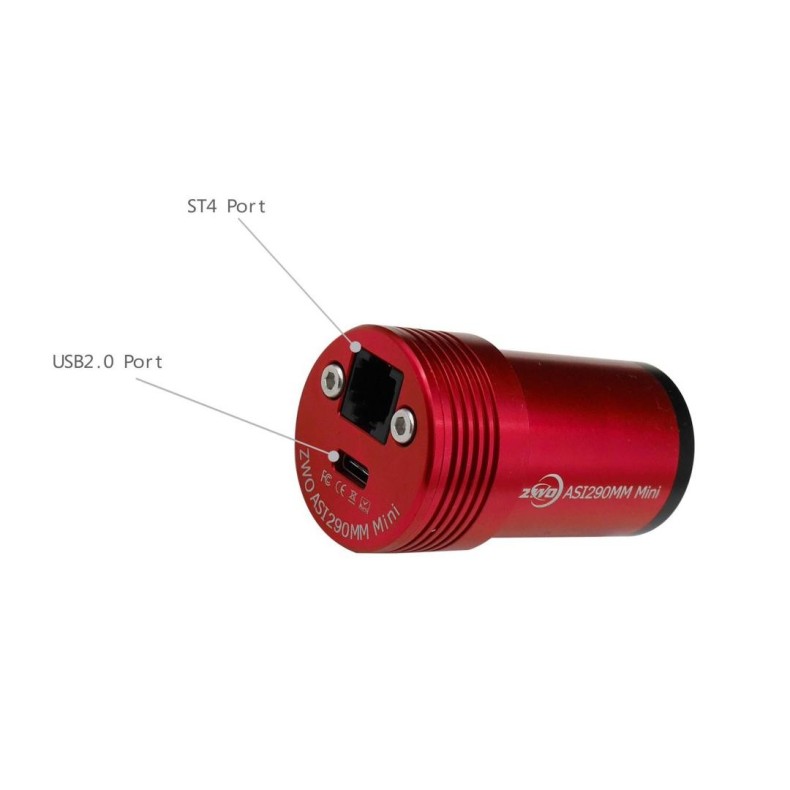

      - Interface: USB 2.0
      - Guided ST4
      - Power supply: via USB

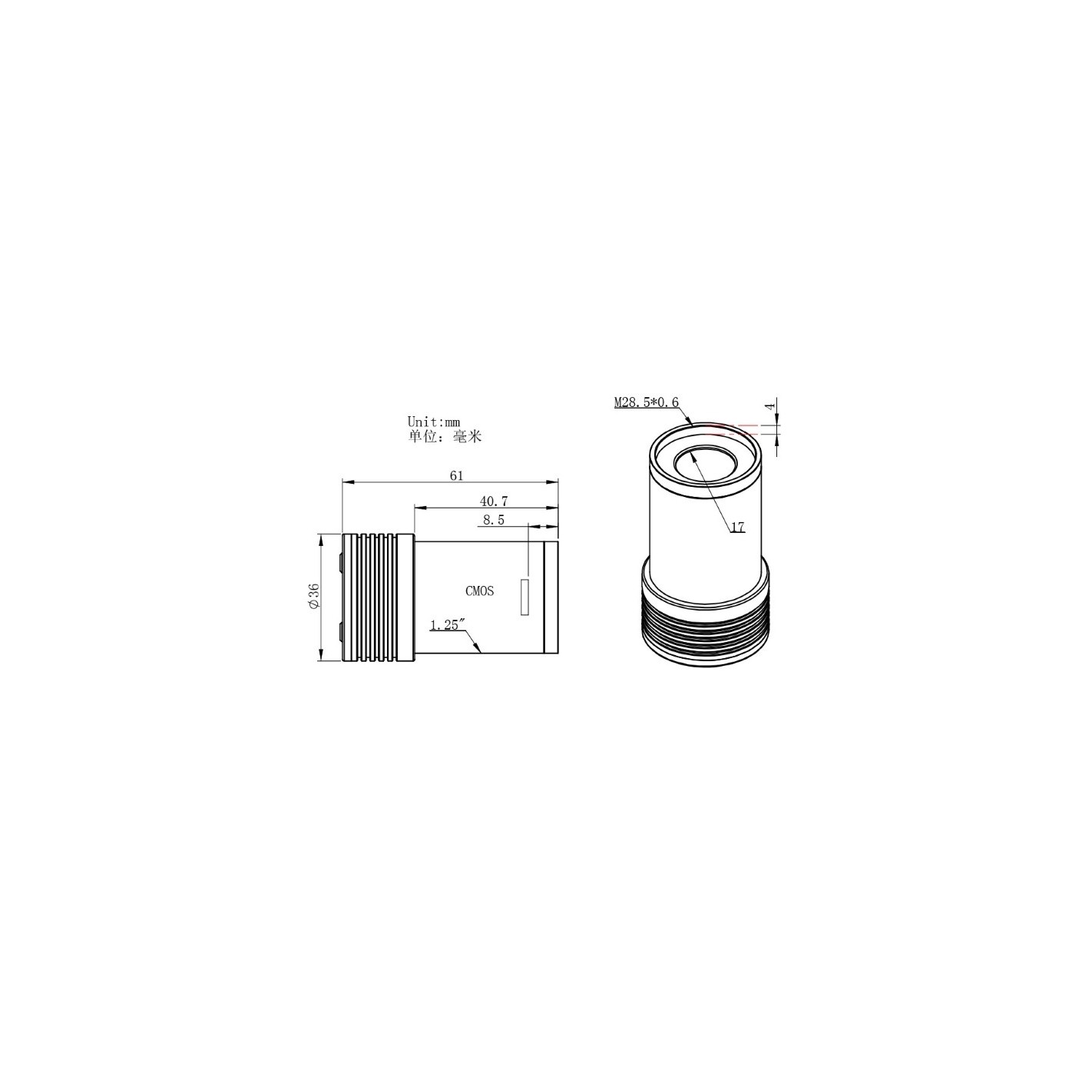

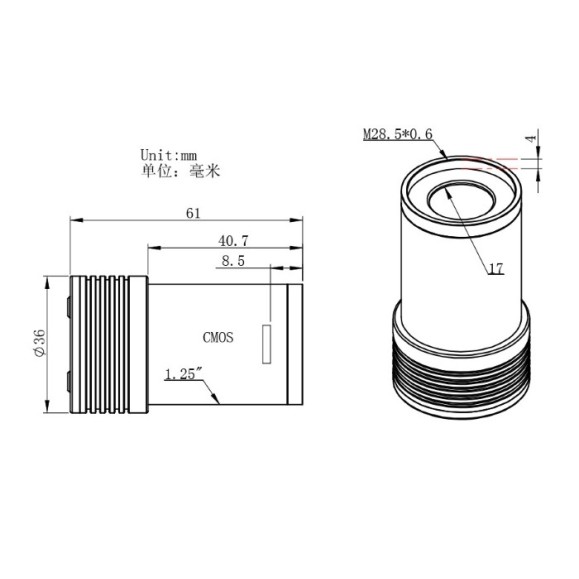

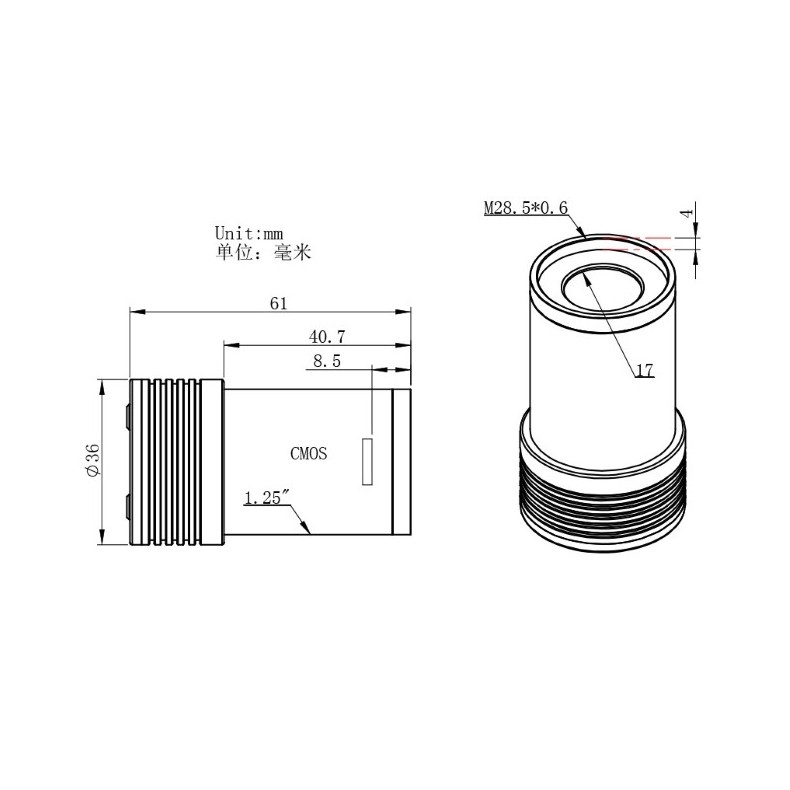

      - Backfocus: 8.5mm
      - Weight: 60g

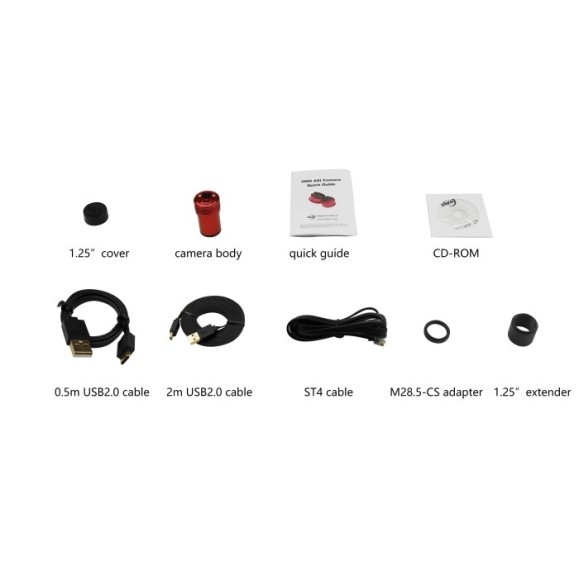

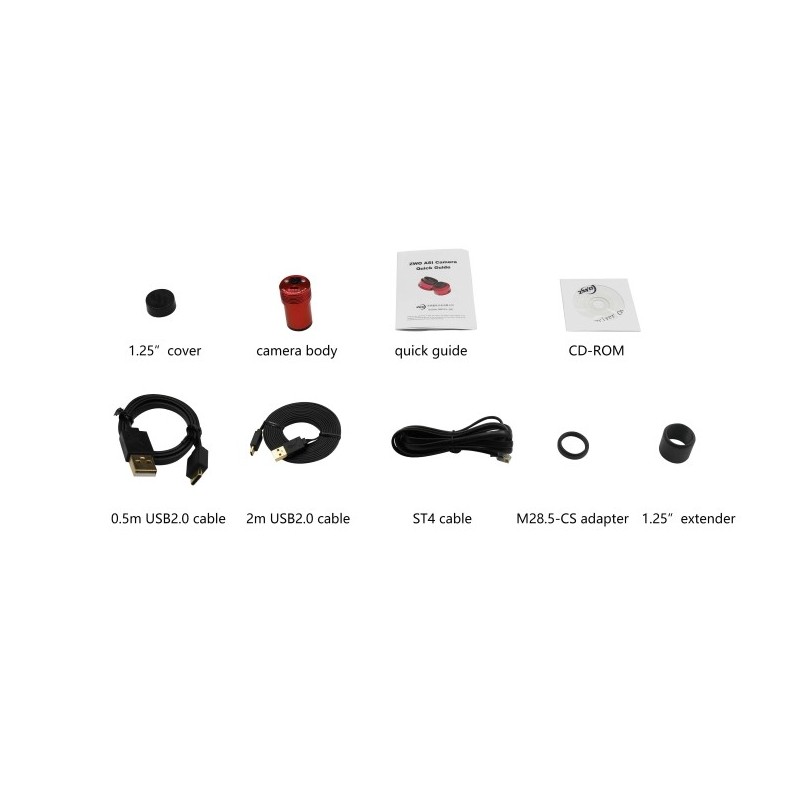

      - Connection: 31.75mm + M28.5 + CS Adapter

Drivers, image acquisition software and user manual (in English) are available for download from the ZWO website.

The ASI174 Mini camera is compatible with Windows, Linux, Arm-linux, Mac OSX. An ASCOM driver is also available. However, it requires prior installation of the Software Development Kit (SDK) from ZWO, freely downloadable from their website.

For planetary video acquisition, the FireCapture software, offered free of charge by Torsten Edelmann, is fully compatible and recommended for use with the cameras ZWO.

CCD camera ZWO ASI 174 Mini.

Customers who bought this product also bought:

Other accessories for astronomical telescopes

Parasol Celestron DX flexible for C6 and C8 94018

CEL94018

48.72 56.98 -8.26 VAT excl.

Sunshade Celestron DX flexibel for C6 and C8 94018

In stock

Deliver it 8/15 days

Filters for astronomical telescopes

Set of 2" LRGB filters Optimized for CMOS of Baader Planetarium

BAD2961613

409.09 VAT excl.

Set of LRGB filters Ø 2" Optimized for CMOS of Baader Planetarium

Stock at Supplier

Deliver it 12/19 days

Eyepiece holders and adapters

M54 male to M54 male ring for OAG 2mm

SKWOU031

37.15 41.32 -4.17 VAT excl.

Male thread M54x0.75 to male thread M54x0.75, thickness 2 mm. This conversion ring is designed for mounting Atik cameras with M54x0.75 female input thread to M54 thread Takahashi (CA-35 thread). The OU031 ring is compatible with the Atik OAG optical splitter due to its thinness and low height.

Stock at Supplier

Deliver it 16/23 days

Wifi remote control adapters

Sky-Watcher SynScan to USB Adapter

SKWSW0449

27.23 VAT excl.

Sky-Watcher SynScan to USB Adapter. This adapter allows you to connect your Sky-Watcher mount to your PC. It is possible, after downloading the ASCOM PC / Windows SynScan Pro driver, to control your mount easily and wirelessly with the SynScan driver.

Stock at Supplier

Deliver it 16/23 days

Eyepiece holders and adapters

35 mm extension tube Kepler GSO 1.25'' 1.25'' extension pipe

KE291

18.14 VAT excl.

35mm extension tube Kepler GSO 1.25''. This small 35mm extension tube Kepler is especially useful to help you achieve focus on instruments equipped with a 31.75mm eyepiece holder. It is equipped with a knurled screw ring clamp, which provides uniform locking around the circumference of the accessories and does not mark the barrels

Stock at Supplier

Deliver it 16/23 days

Single CCD cameras

Camera ZWO ASI2600MM Pro Monochrome

ZWOASI2600MM-P

1,818.17 2,057.85 -239.68

VAT excl.

New model ZWO ASI2600MM mono cooled. Incorporates new Sony IMX571 back-illuminated CMOS sensor that improves sensitivity and offers significant noise reduction. Resolution of 6248 x 4176, with 26.1 million pixels. Ultra-high dynamic range of 14 stops, ultra-low read noise of 1.0e, and all with a quantum efficiency (EQ) of up to 91%

Stock at Supplier

Deliver it 16/23 days

Filters for astronomical telescopes

Baader Narrowband filter set 6.5nm 2" optimized for CMOS (H-alpha / O-III / S-II)

BAD2961653

544.63 VAT excl.

New set of BAADER PLANETARIUM narrow band filters in 2" diameter optimized to work with CMOS sensors

Deliver it 8/15 days

Pegasus Astro

PegasusAstro stepper motor cable RJ45 to DB9 for UPB and DMFC

PEG-CMOT-RJ45DB9

14.88 18.18 -3.31 VAT excl.

PegasusAstro Stepper Motor RJ45 to DB9 Cable for ULTIMATE POWERBOX and Dual Motor Focus Controller

Stock at Supplier

Deliver it 22/29 days

Off axis guides (OAG) for CCD cameras

Large OAG-L off-axis radial guide from ZWO with 12x12mm prism

ZWOAG-L

198.30 206.61 -8.31 VAT excl.

OAG-L has a large prism size of 12 * 12 mm, much larger than M68 OAG. The larger clear aperture provides a wider field of view when guiding. It is easy to use and suitable for users interested in long focal length photography.

Deliver it 8/15 days

Accessories for astronomical telescopes

ASKAR M54-M48-M42 OAG off-axis radial guide FF compatible

ASKAS-M54OAG

198.31 206.57 -8.26 VAT excl.

This off-axis guide from Askar convinces with its versatile adaptability for almost all telescopes and cameras, usable up to full format.

Stock at Supplier

Deliver it 24/31 days

8 other products in the same category:

CCD cameras

Moravian

MORAVIAN G1-0800C CCD CAMERA WITH SONY ICX204 AK COLOR CCD SENSOR

MORG1-0800C

524.00 VAT excl.

The G1 Moravian cameras with state-of-the-art CCD are the best price/quality option for astrophotography of the Solar System and bright deep sky objects; they work in low light conditions with very high sensitivity, very low noise, fast image download, electronic shutter and integrated autoguider port to guide the telescope mount in astrophotographyX

Stock at Supplier

Deliver it 21/28 days

Single CCD cameras

Omegon

Astronomy Camera Omegon veLOX 287 M Mono

OME61043

420.66 VAT excl.

The Pro veLOX 287 from Omegon is a high-speed astronomical camera ideal for photographing planets, the Moon and the Sun, as well as for autonomous guidance. With large pixels, this camera is particularly sensitive and perfect for combination with long focal lengths.

Stock at Supplier

Deliver it 14/21 days

CCD cameras

Moravian

MORAVIAN G1-1200C CCD CAMERA WITH SONY ICX445 AQA CCD COLOR SENSOR

MORG1-1200C

515.00 VAT excl.

The G1 Moravian cameras with the latest CCD technology are the best price/quality choice for astrophotography of the Solar System and bright deep sky objects; they work in low light conditions with very high sensitivity, very low noise, fast image download, electronic shutter and integrated autoguider port for guiding the telescope mount in astrophotography.

Stock at Supplier

Deliver it 21/28 days

Single CCD cameras

ATIK

CCD Camera Atik 490EX ATK0110 Mono

ATK0110

2,608.76 2,662.00 -2% VAT excl.

Stock at Supplier

Deliver it 14/21 days

Single CCD cameras

Omegon

Astronomy camera Omegon veLOX 224 C Color

OME61037

238.80 271.86 -33.06 VAT excl.

The Pro veLOX 224 from Omegon is a high-speed astronomical camera, ideal for photographing planets, the Moon and the Sun. It can also be used as a stand-alone guidance system.

Stock at Supplier

Deliver it 14/21 days

CCD cameras

Moravian

MORAVIAN G1-0301C CCD CAMERA WITH SONY ICX414 AQ COLOR CCD SENSOR

MORG1-0301C

550.00 VAT excl.

Stock at Supplier

Deliver it 21/28 days

Single CCD cameras

Omegon

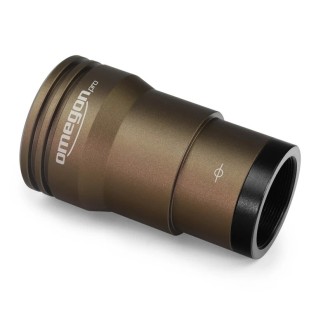

Astronomy Camera Omegon GUIDE 2000 M Mono
