Telescope Celestron CGX 800 EDGE HD SCHMIDT-CASSEGRAIN 12055

Telescope Celestron CGX 800 EDGE HD SCHMIDT-CASSEGRAIN 12055.

THIS ITEM REQUIRES A CUSTOM QUOTE. ASK FOR PRICE AND AVAILABILITY

CELESTRON OPTICAL TUBESCHMIDT-CASSEGRAIN 8".

Theoptical tubes CelestronSchmidt-Cassegrain 8" EDGE HD tubes are manufactured to the same standards applied to the higher end tubes.

Each optical surface of theOptical tubes CelestronIs coated with the highly efficient multi-layer treatmentStarBright XLT® StarBright XLT. All tubes are equipped with the same dovetail adapter platform used in the seriesAdvanced GTYCGEMSo that it is easy to attach them to a variety of mounts.

Observes the universe in atelescope CelestronCGX EdgeHD. It is a fantastic Schmidt Aplanatic designed to provide aberration-free images over a wide field of view and photographic field of view. The optical system was designed to reduce not only the off-axis coma effect, but also to provide a totally uniform photographic focal plane over the entire field of view.

True astrographic quality. Many self-described "astrographic" quality optical designs actually produce point stars along a curved focal plane. While this may be acceptable in visual observations, stars will appear out of focus at the edges when using flat CCD sensors of digital cameras. The EdgeHD optics of thetelescope CelestronProduce a focal plane three times more uniform than that offered by classic Schmidt-Cassegrain telescopes and radically flatter than other coma-free designs. This ensures that the user will obtain perfectly sharp images across the entire field of the largest CCD sensors currently available.

Even when the object is perfectly defined in the center of the field of view, a curved focal plane will produce out-of-focus images at the edges. The wider the field of view the more pronounced the defects.

Design featuresEdgeHDNot only provide timely and pleasing images, but also improve resolution and magnitude limit relative to other telescopes of similar apertures. The high-definition optics of Celestron allow small angular sizes to be resolved over the entire field, revealing fine details and high contrasts.

The EdgeHD optics of thetelescope CelestronProvide smaller (more concentrated) stars that create brighter images and allow fainter magnitudes to be achieved relative to other telescopes of similar size. Poor image quality at the edges can widely scatter the starlight to match its luminosity with that of the sky background, making the stars undetectable to the eye or a camera. With opticsEdgeHDThe user will be able to capture the faintest galaxies in the entire sensor field of his camera.

Each optical surface of the telescopes Celestron is coated with XLT treatment. The models of theEdgeHDOffer maximum light transmission over the entire field of view and photographic spectrum.

In addition to the new, optimized optical design, the tubes of theEdgeHDHave been redesigned to offer the best possible performance for each observation thanks to the following features:

• • • • • Mirror support- Flexible tension clutches hold the mirror in position and reduce image wobble as the tube rotates around the mount. The flexible rods hold the mirror in position without exerting any pressure or force on the mount, keeping the image centered in the eyepiece (or chip).
        • Tube vents- Two vents at the rear of the tube allow hot air to be expelled from the primary mirror. Each vent has an integrated 60-micron micro-mesh filter that allows the air to be expelled without letting dust particles fall inside.
        • Fastar Versatility- The seriesEdgeHDIncludes the most versatile telescopes available today. With the classic f/10 the user can obtain the image scale needed to capture the smallest deep sky objects. With an optional dedicated reducer it is possible to increase the field of view without sacrificing optical performance. A barlow lens provides the added magnification needed for high resolution planetary, lunar and solar imaging. In addition, all optical tubesEdgeHDAre compatible with the Fastar system for ultra-fast wide-field imaging - f/2. Each tube is supplied with a removable secondary mirror and is opto-mechanically aligned on a laser optical bench to ensure that they are axially symmetrical in any configuration.
        • Simple collimation- With their high-precision mechanical parts and the spherical secondary mirror, the opticsEdgeHDCan be easily and accurately collimated so that the user can take advantage of the tremendous potential that these instruments possess.
        • The new Schmidt flattened optical designProduces aberration-free images over the entire field of view. The tube incorporates tension knobs that hold the primary mirror in position avoiding image shift effect.

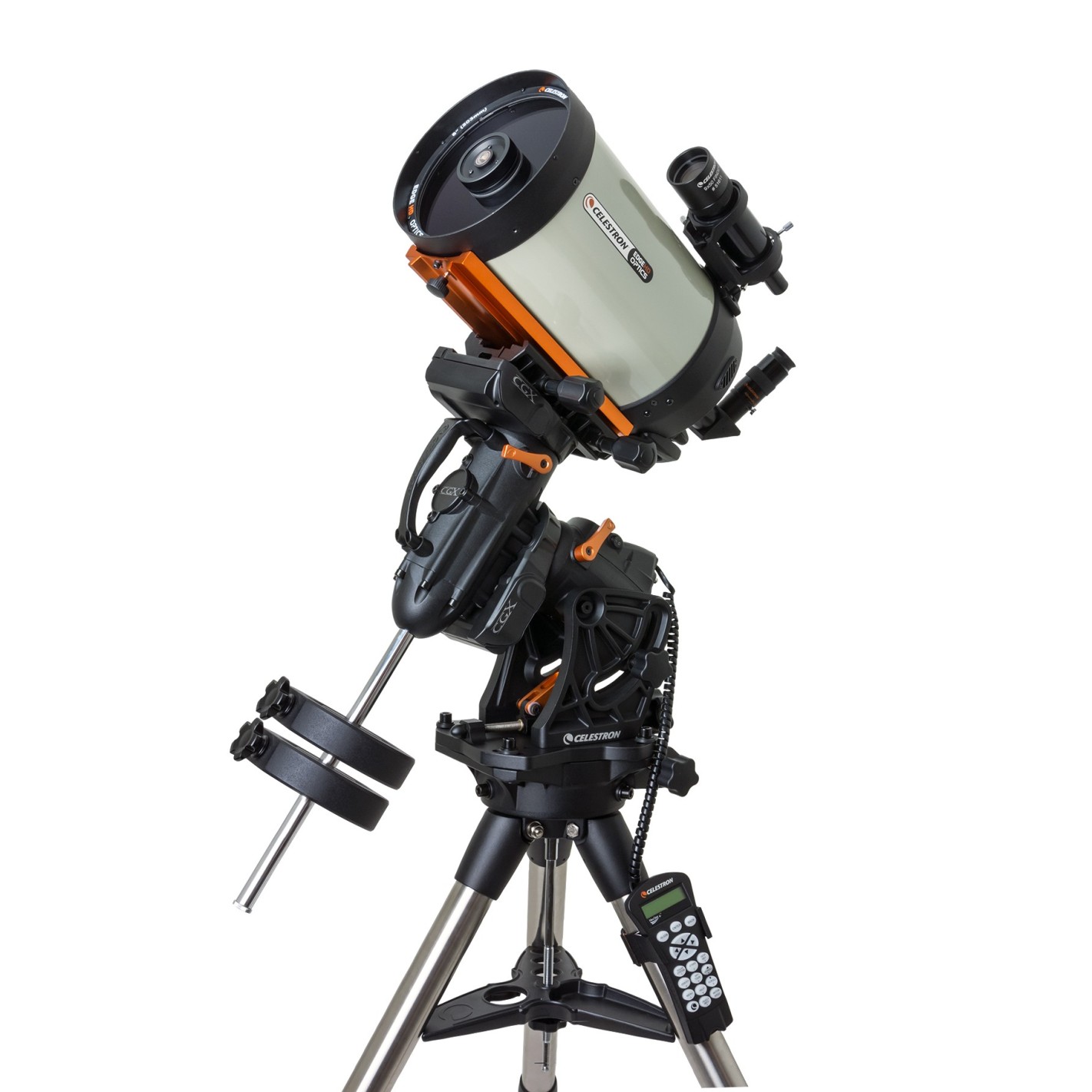

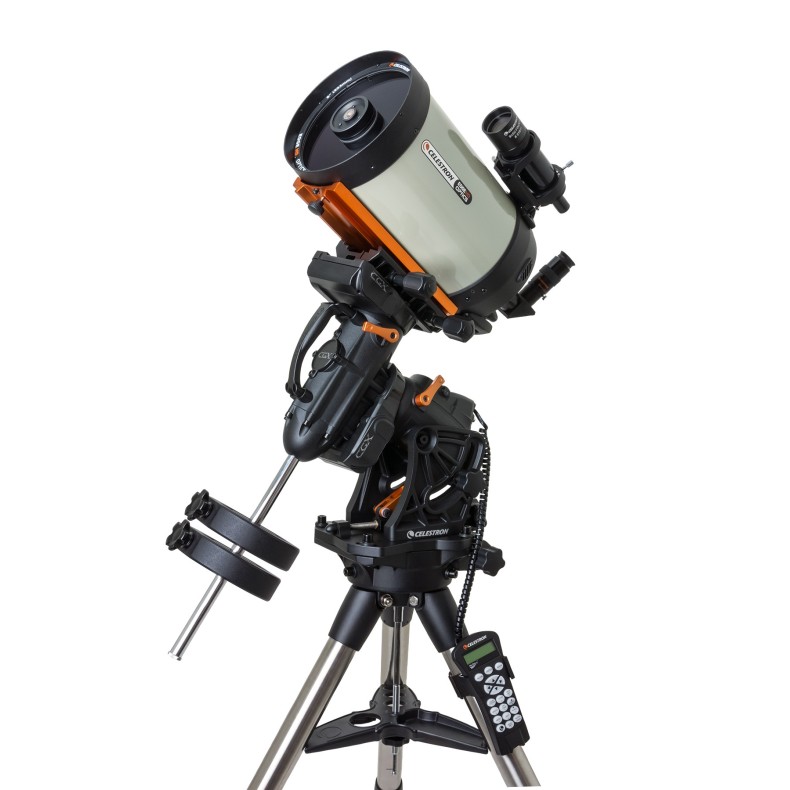

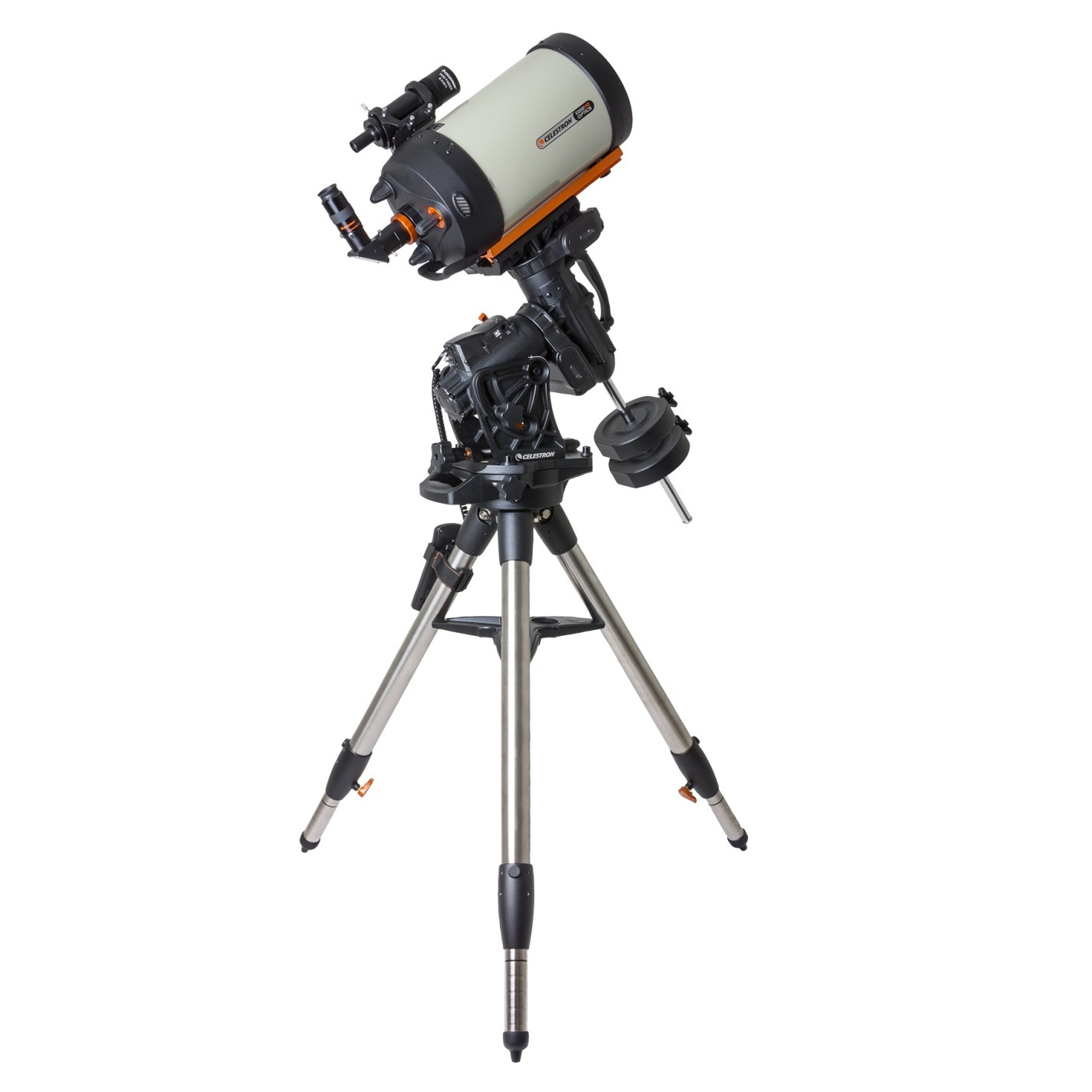

The telescope Celestron CGX 800 EDGE HD features StarBright XLT coated optics of Celestron and the newly designed CGX computerized mount. This is the most compact of the SC models from Celestron EDGE HD equipped with CGX. This telescope is specially designed for fantastic planetary observations and also performs extraordinarily well in the deep sky. With its 8-inch aperture and premium StarBright XLT treatments, the CGX 800 EDGE HD gives you more than 800 times the light gathering power of the unaided eye.

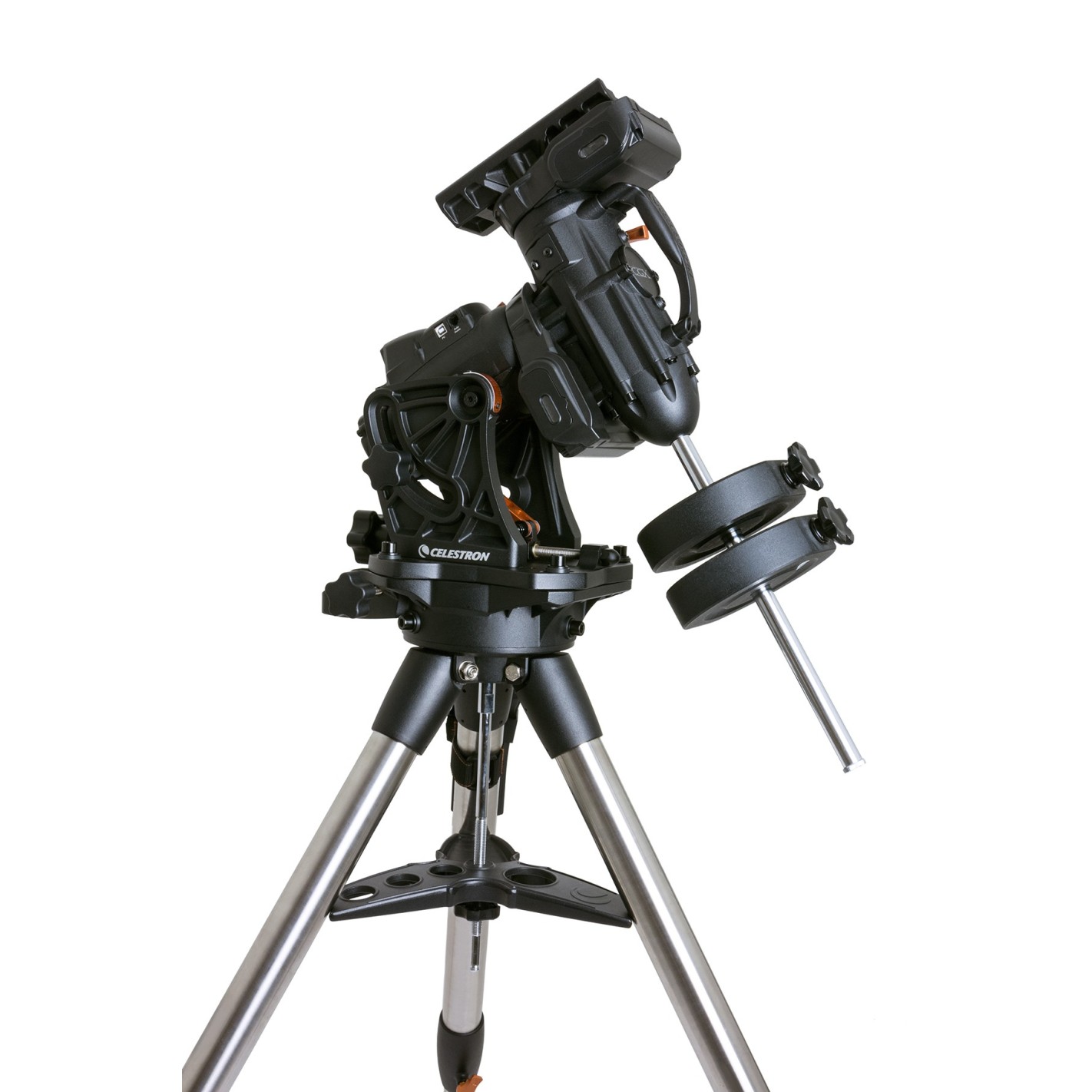

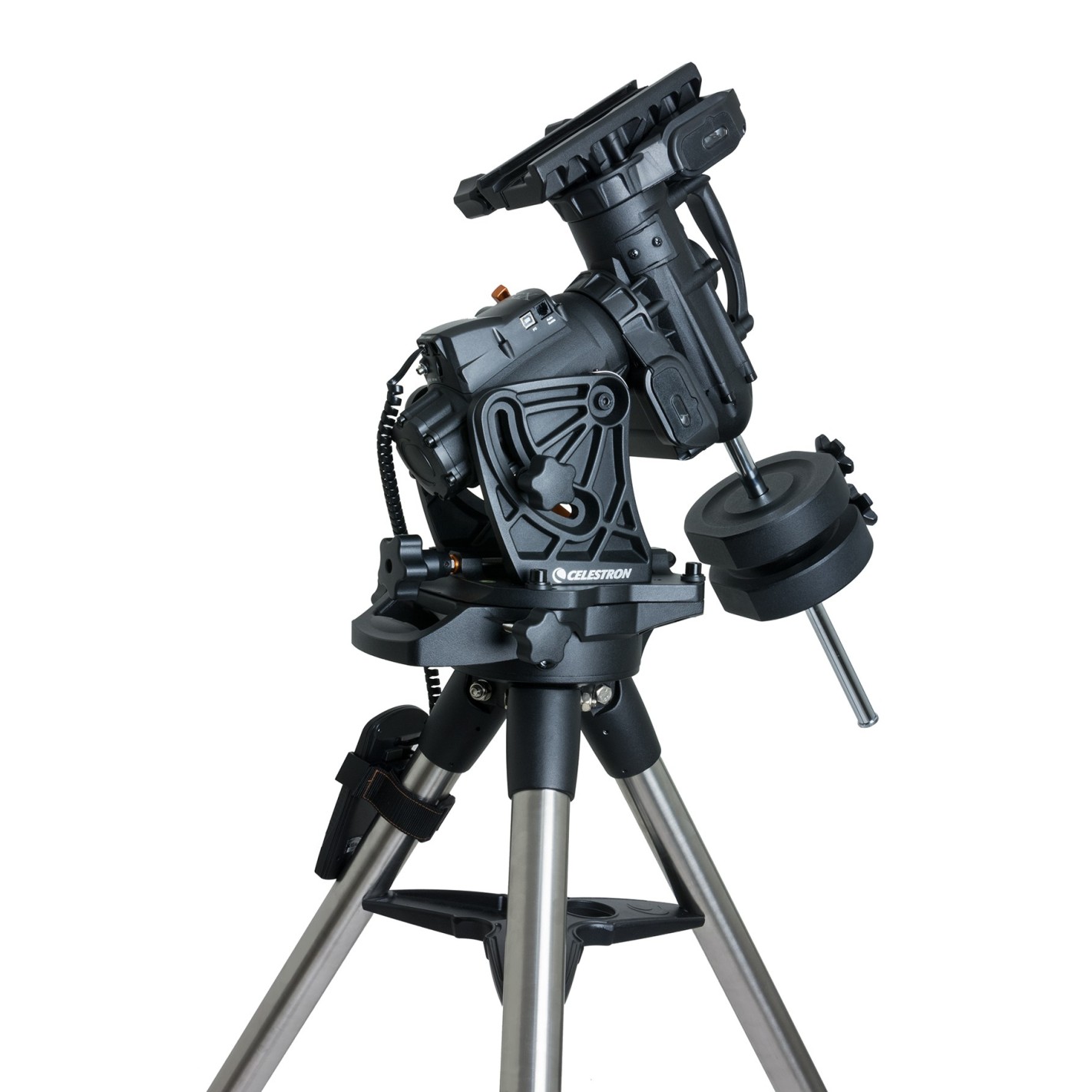

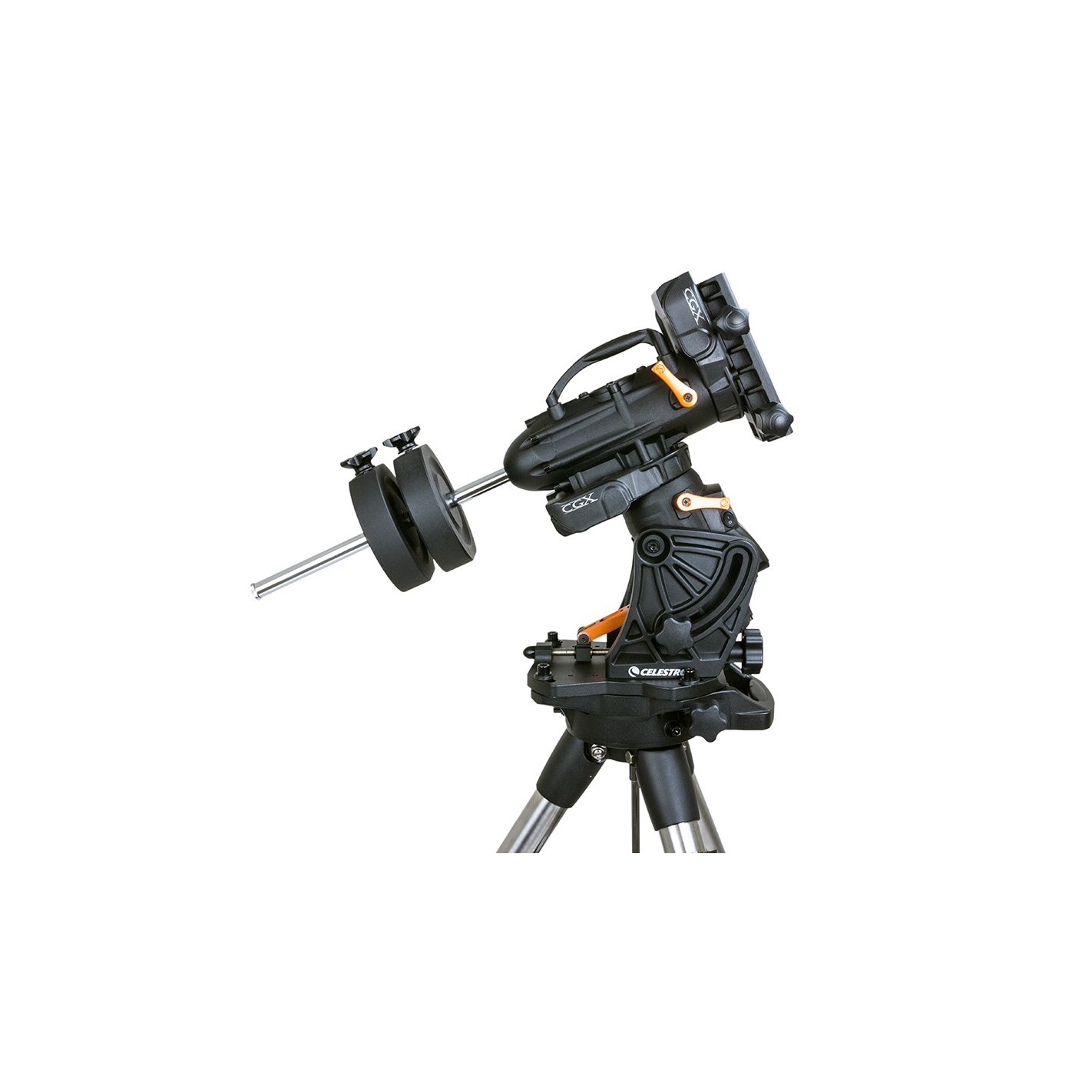

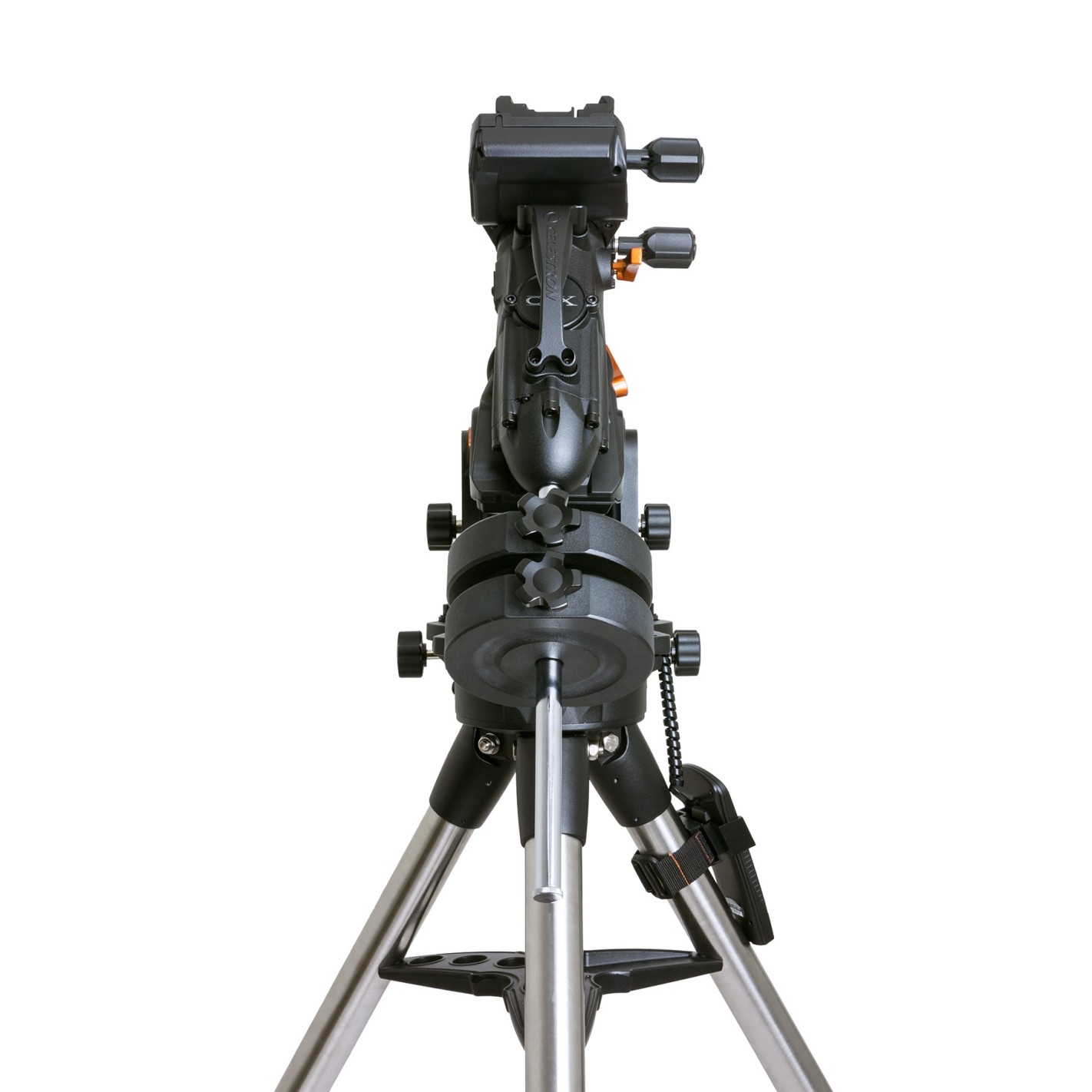

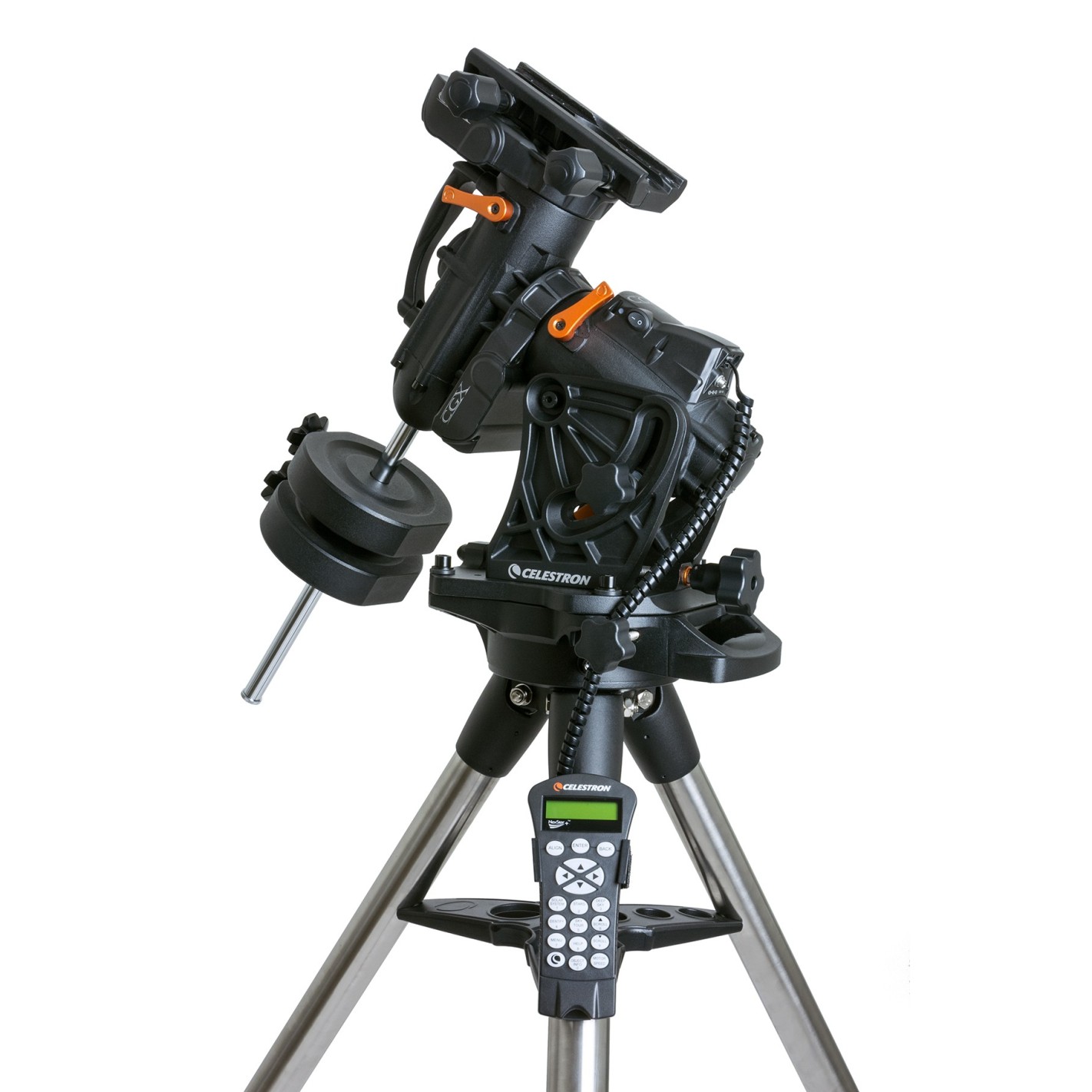

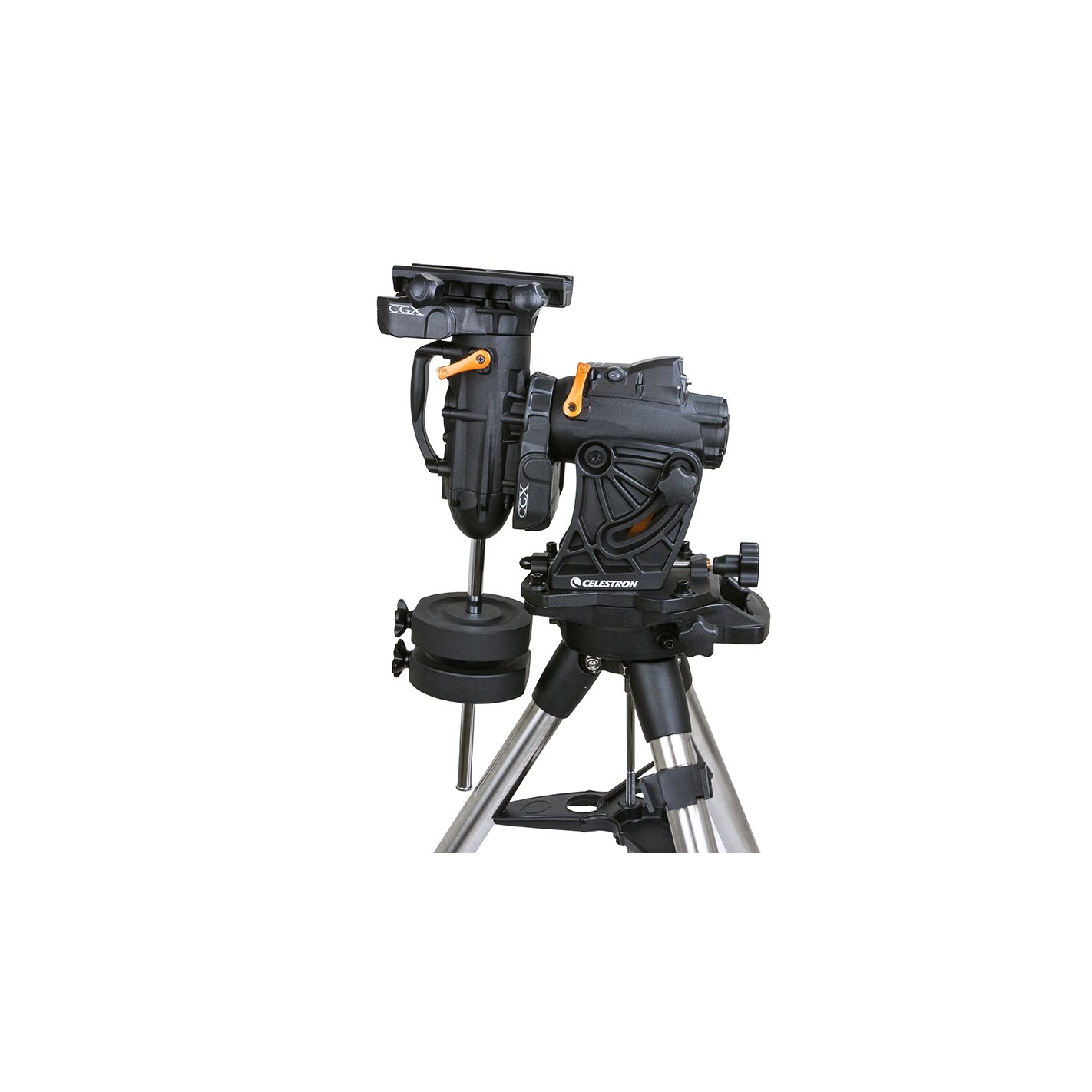

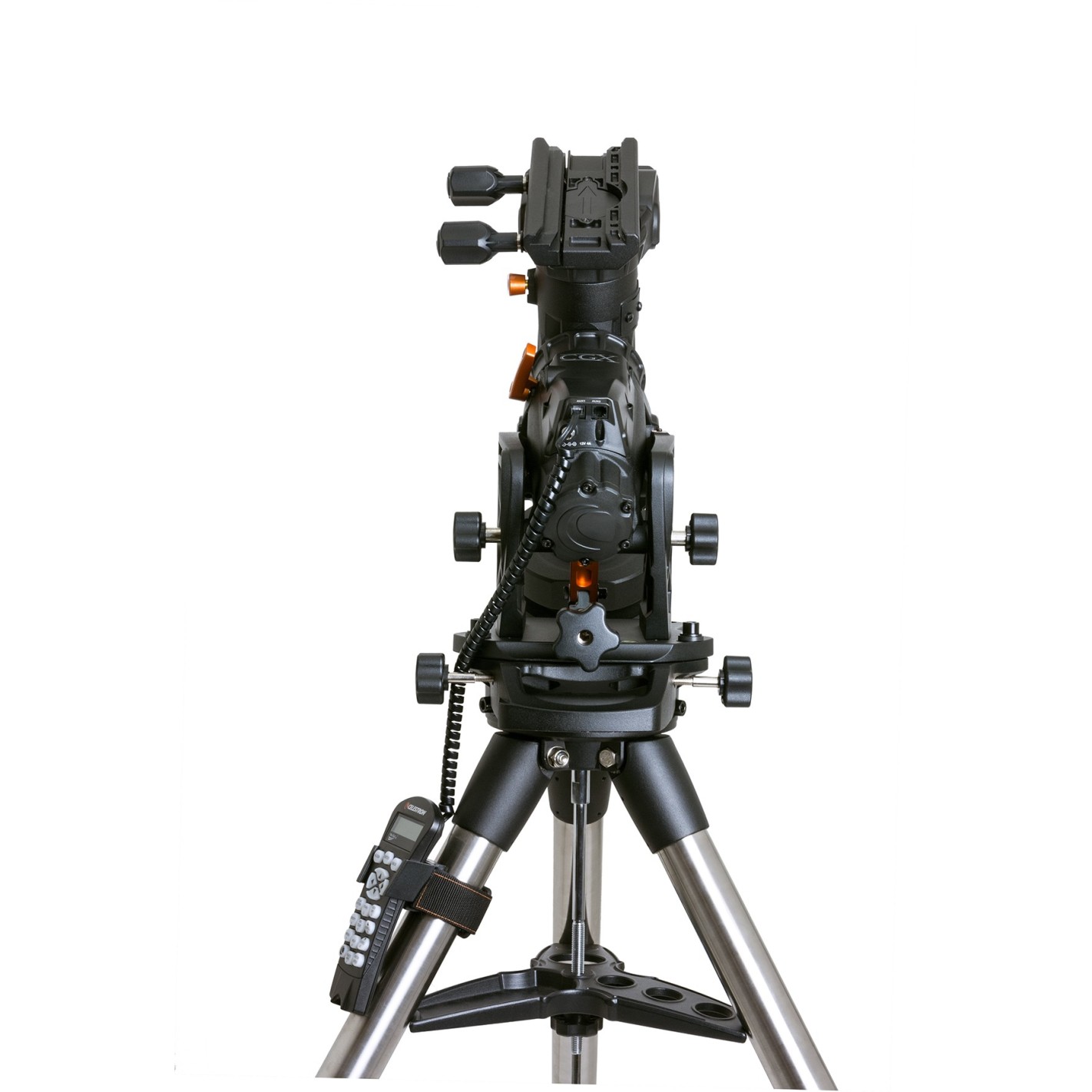

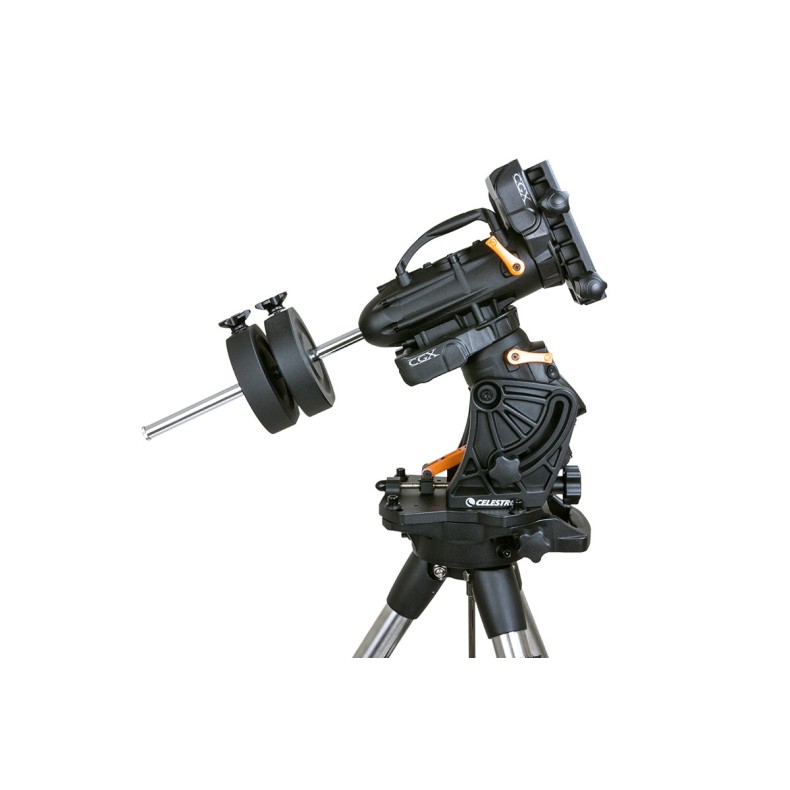

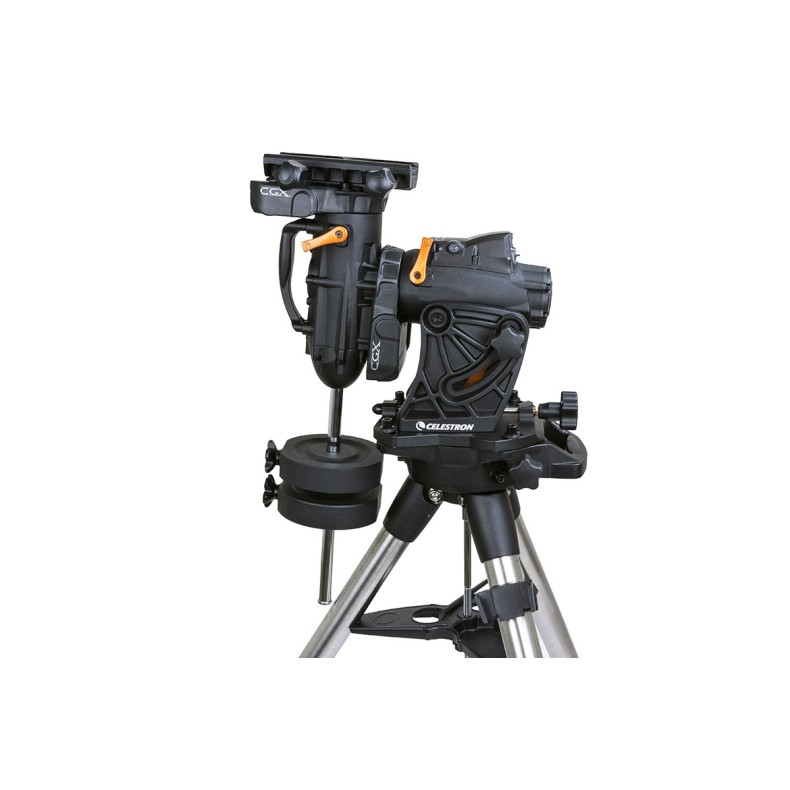

CELESTRON CGX EQUATORIAL MOUNT.

For eight years, CGEM's CGEM mounts from Celestron have been the backbone of German equatorial mounts for telescopes ranging from 6 to 11 inches in aperture. Since that time, astronomical and especially astrophotographic observing technology has evolved tremendously. So the engineering team at Celestron has applied its years of experience in German equatorial frame design to the new CGX EQ, a culmination of all the recent advances in technology, ergonomics, attractive design and ease of use.

The new Celestron The CGX telescope we offer at Telescopiomania has been designed to better support your telescope in both visual and astrophotographic configurations. Key objectives of the new design include a lower profile equatorial head, which provides a much more compact and therefore more stable configuration; an improved drive system; secure remote operation through stable "home" positions and visual limits; easier adjustments for polar alignment; and improved cable management. In addition to all this, many mechanical and ergonomic improvements have been introduced to make the mount much more robust, easier to use, and more agile in transport. The CGX mount is the new equatorial backbone to support a wide range of telescopes.

ITS MAIN NOVELTIES ARE:

• • • • • Completely new design. More robust and stiffer with faster damping time.
        • Load capacity increased to 25 kg.
        • Improved motors provide more torque, better operation and tracking under heavy loads.

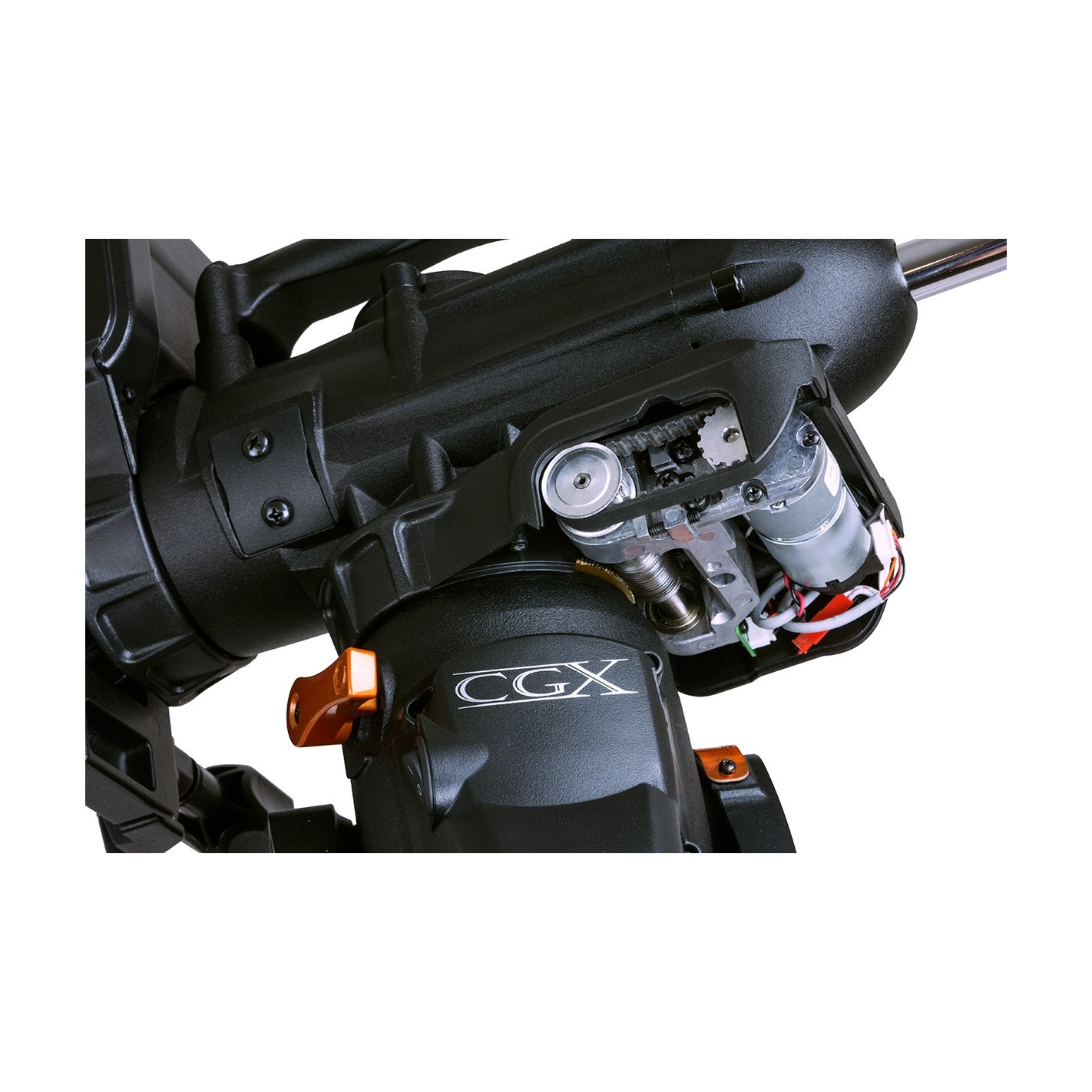

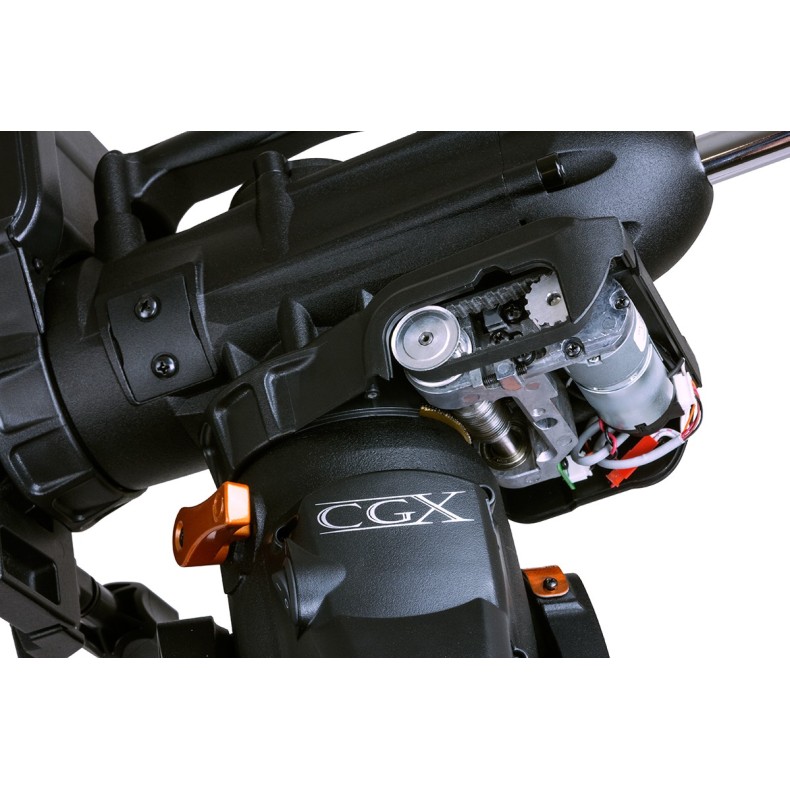

        • The belt drive system minimizes backlash while providing smooth motor operation under heavy loads.
        • Improved cushioning.
        • Stainless steel helical gears reduce friction and provide optimum meshing.
        • Internal cabling for worry-free remote operation. Power and accessory input ports remain stationary while the mount moves smoothly.
        • Internal stops for both axes prevent cable and tripod strain.
        • Mechanical movement stops.
        • Internal optical sensors on both axes for simple and safe remote operation.
        • Sensors for home position and observation limits. The "home" sensors allow the mount to always start working at the reference position regardless of orientation before a power restart. Limit sensors automatically turn off the slewing or tracking before the safe stop is reached.
        • New control software developed in conjunction with PlaneWave Instruments for professional level imaging and control operation.
        • The software includes multipoint mount modeling for extremely accurate pointing precision and many additional features for remote astrophotography.
        • Wider tripod position for improved equipment stability.

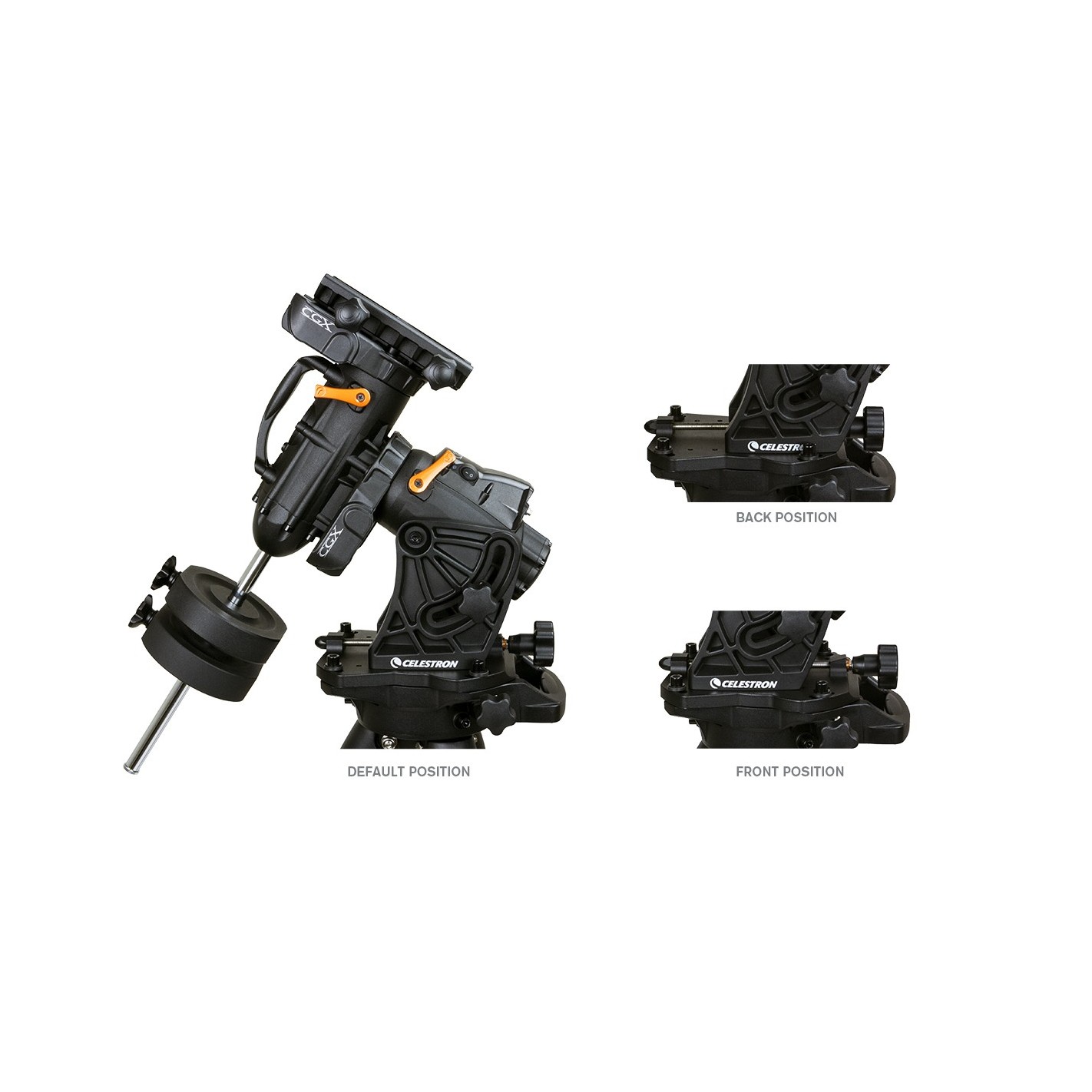

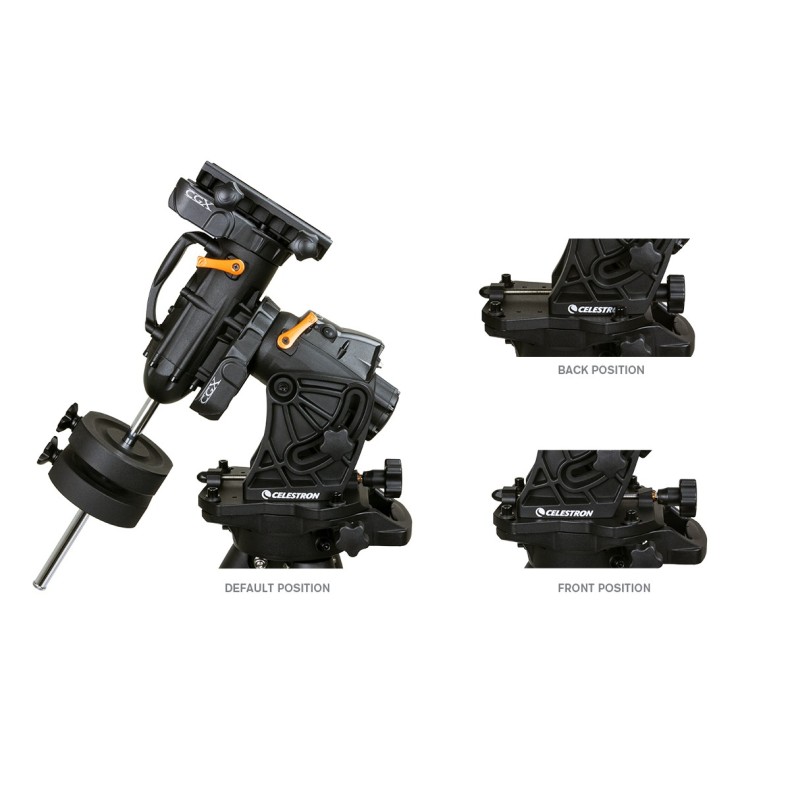

        • Adjustable position of the mount head to optimize the center of gravity on the tripod and take full advantage of the latitude range from 3° to 65°.
        • Head with double dovetail, for dovetail CG-5 / Vixen and CGE / Losmandy.

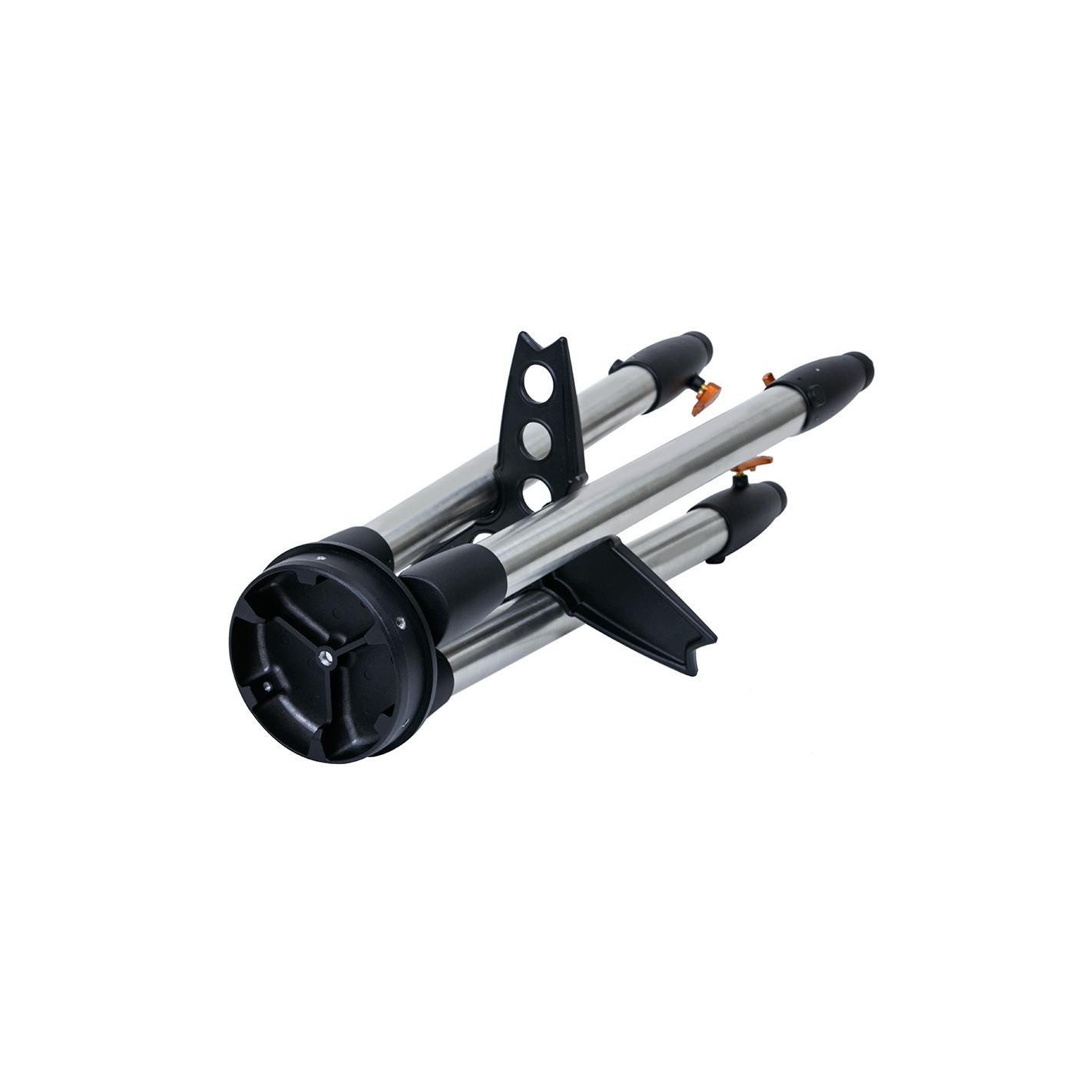

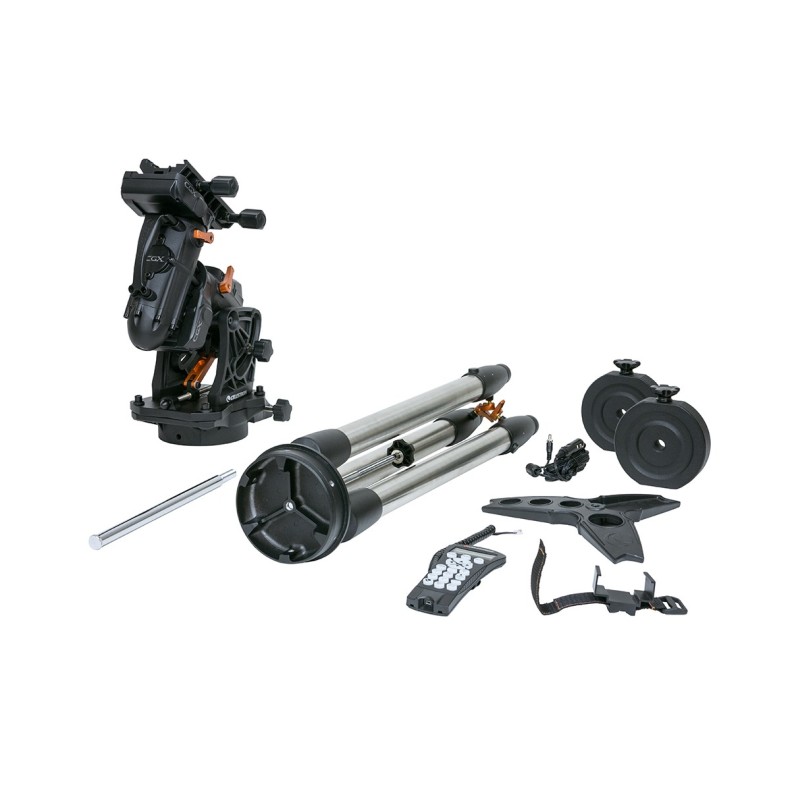

UPGRADED TRIPOD INCLUDES:

• • • • • 2" steel feet with height index marks for quick leveling.
        • Accessory tray that can hold three 1.25" eyepieces, two 2" eyepieces, your smartphone or other accessories.
        • + 20º of additional tracking beyond the meridian on both sides.

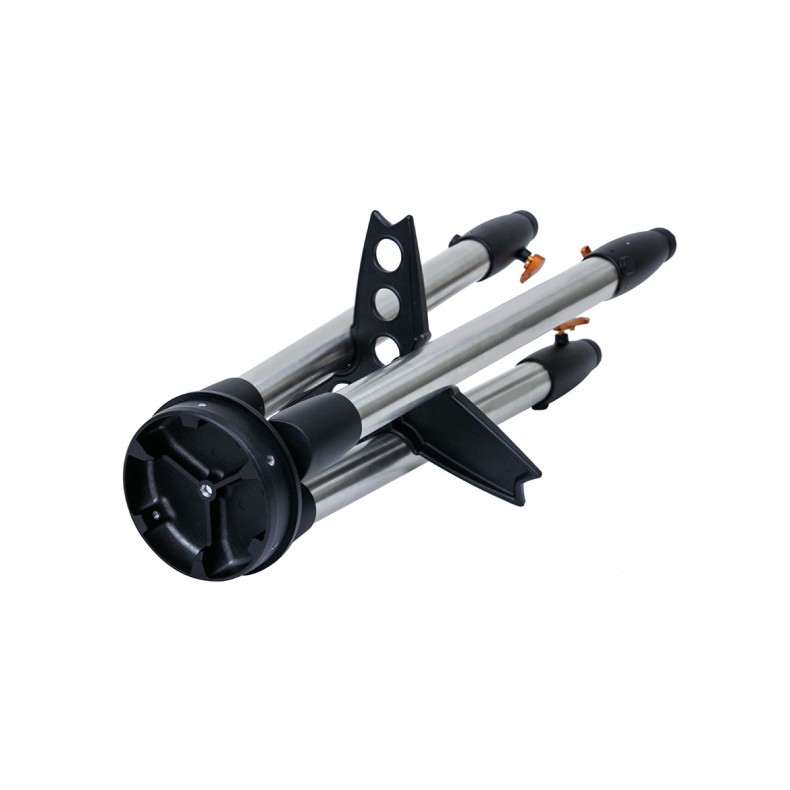

        • The tripod legs can be collapsed with the accessory tray installed for faster setup and transport.

IMPROVED ERGONOMICS:

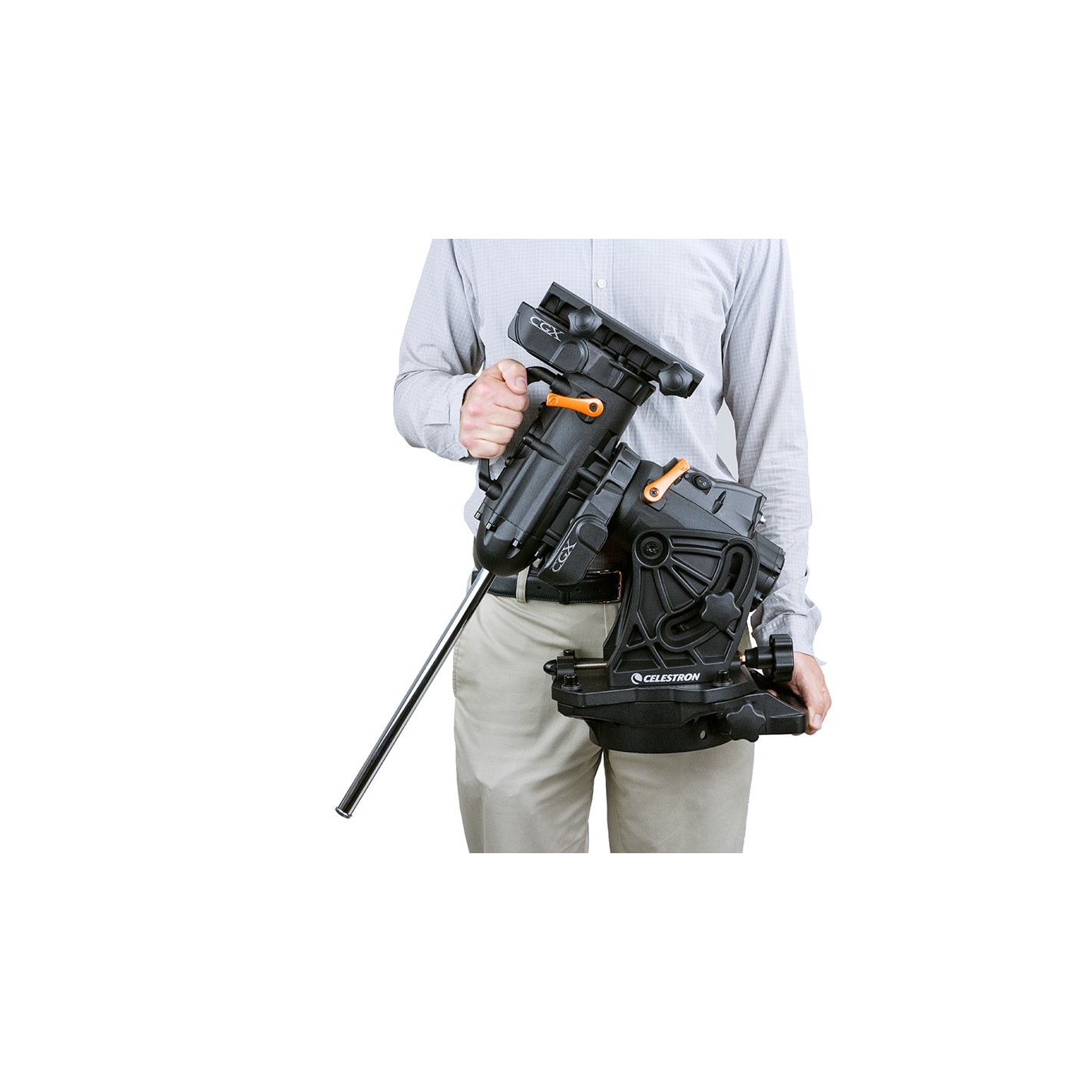

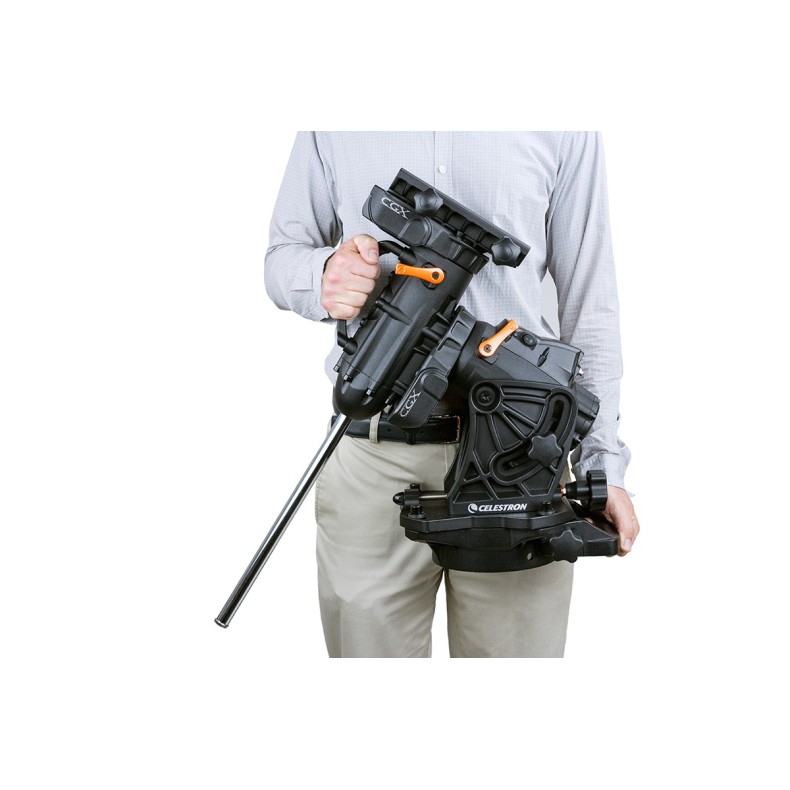

• • • • • Two ergonomic carrying handles for easy pick-up, operation and transport.
        • New ergonomically designed dovetail clamping handles.
        • Innovative, simplified and improved polar alignment adjustment system.
        • New ergonomic latitude adjuster for smooth and easy adjustment under heavy loads.
        • Optional polar finder (available soon).

ELECTRONICS:

• • • • • New NexStar+ control unit with USB port.
        • Two AUX auxiliary ports to support wireless and WiFi alignment and operation with StarSense AutoAlign and SkyPortal WiFi accessories (sold separately).
        • USB 2.0 port, used to connect directly to the PC with the included software.
        • Self-guiding port, prepared for PPEC.
        • Threaded 12VDC power input connector.
        • Internal real time clock (stores the time and information of your observation site).

TECHNICAL SPECIFICATIONS:

• • • • • German equatorial mount
        • Load capacity: 25 kg
        • Tripod height adjustment range: from 120 to 196 cm including EQ head
        • Diameter of tripod legs: 2"
        • Latitude adjustment range: 3º to 65º
        • Tripod weight: 8.71 kg
        • Weight of EQ head: 19.96 kg
        • Maximum rotation speed: 5º / second (4º / second is the default value)
        • Tracking speeds: sidereal, solar and lunar
        • Number of auxiliary ports (for manual control and accessories): 2
        • Self-guided port: Yes
        • USB port: Yes
        • New telescope control software for PCs
        • Multi-purpose accessory tray

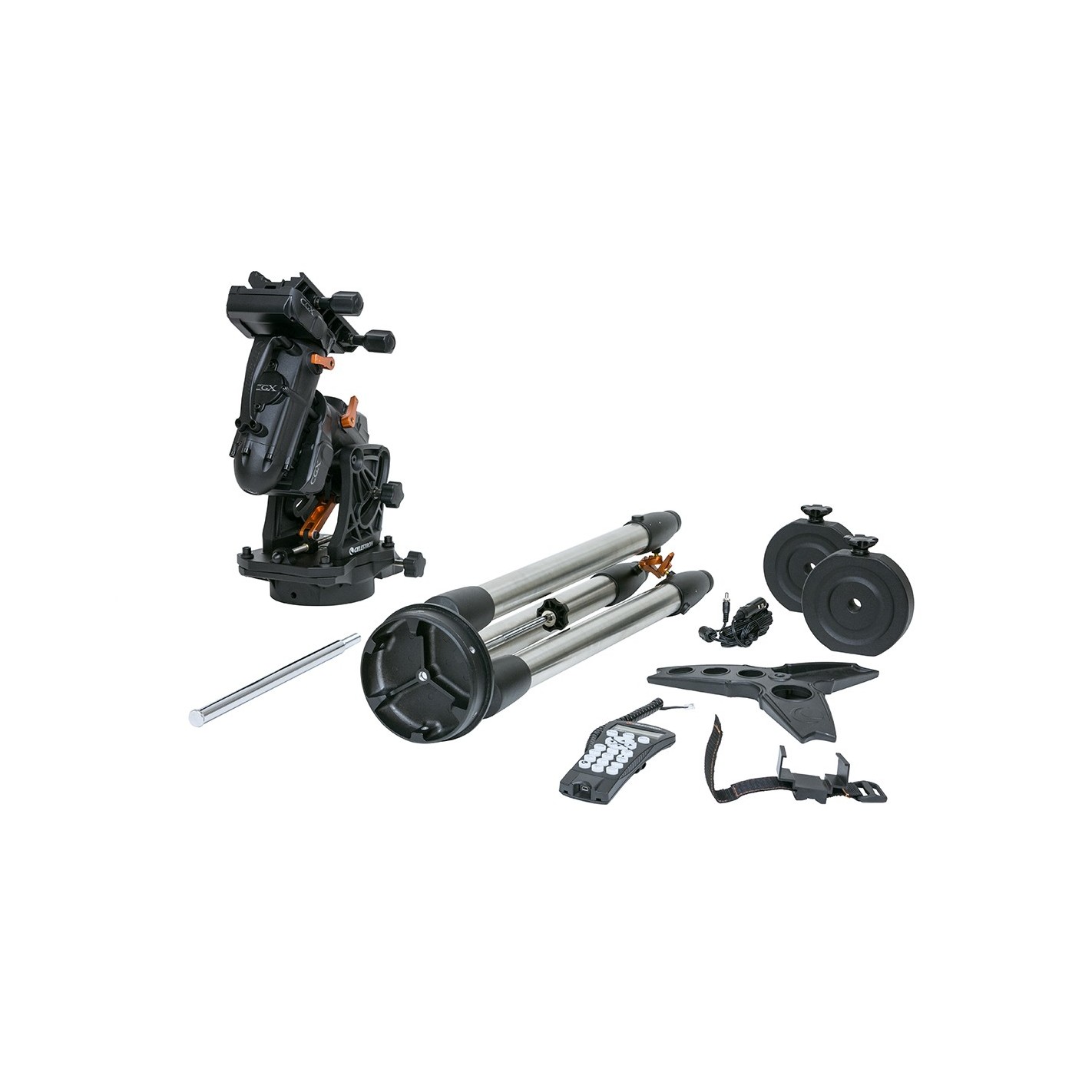

        • Counterweight of 2 x 5 kg
        • Controller: NexStar +
        • DC power cable (car cigarette lighter connector)

Telescope Celestron CGX 800 EDGE HD SCHMIDT-CASSEGRAIN 12055.
