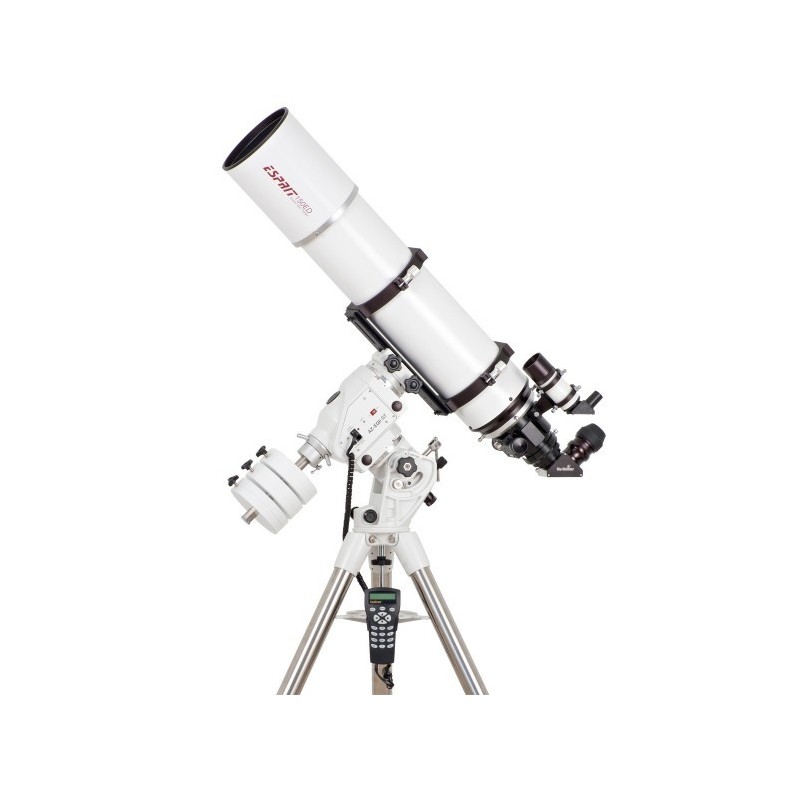

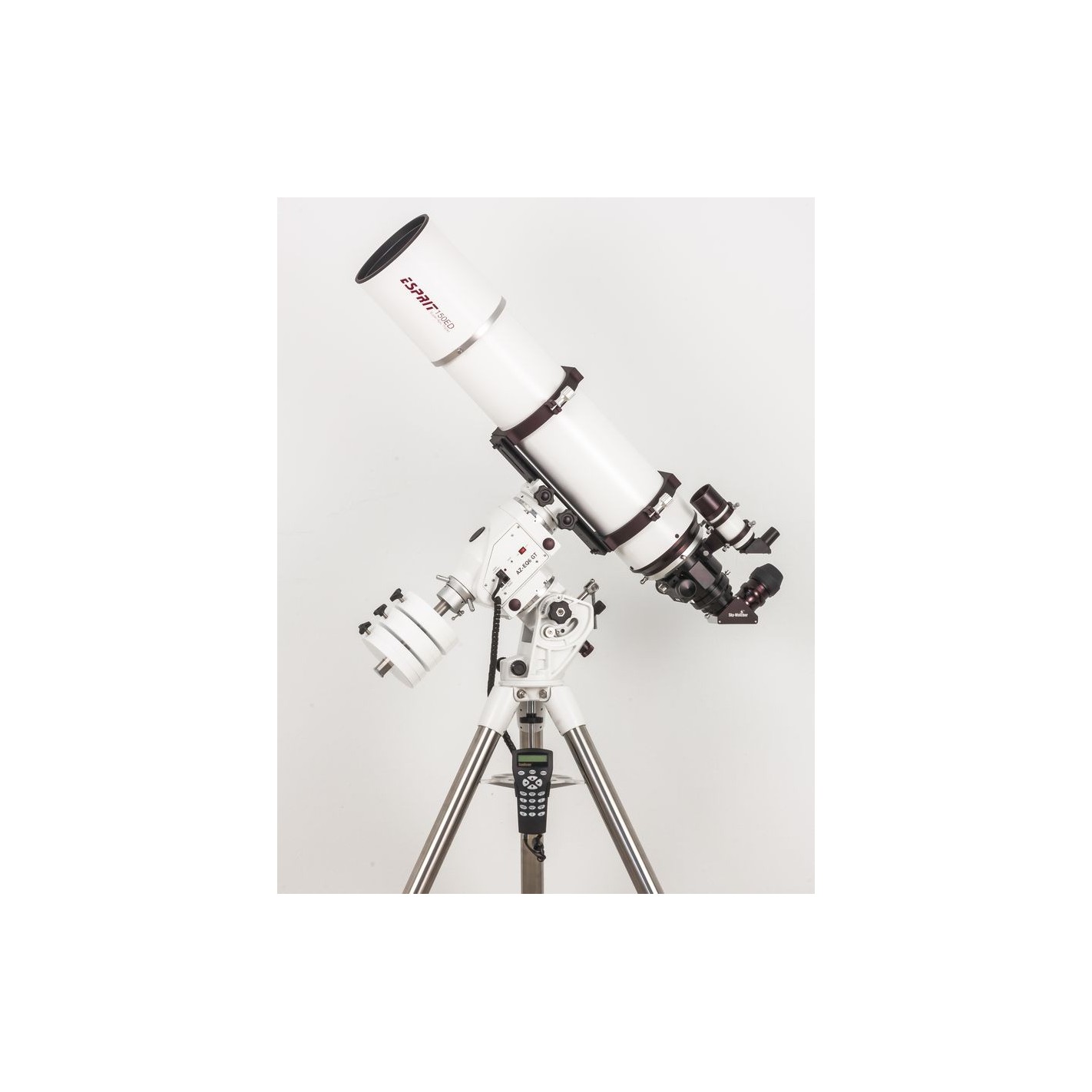

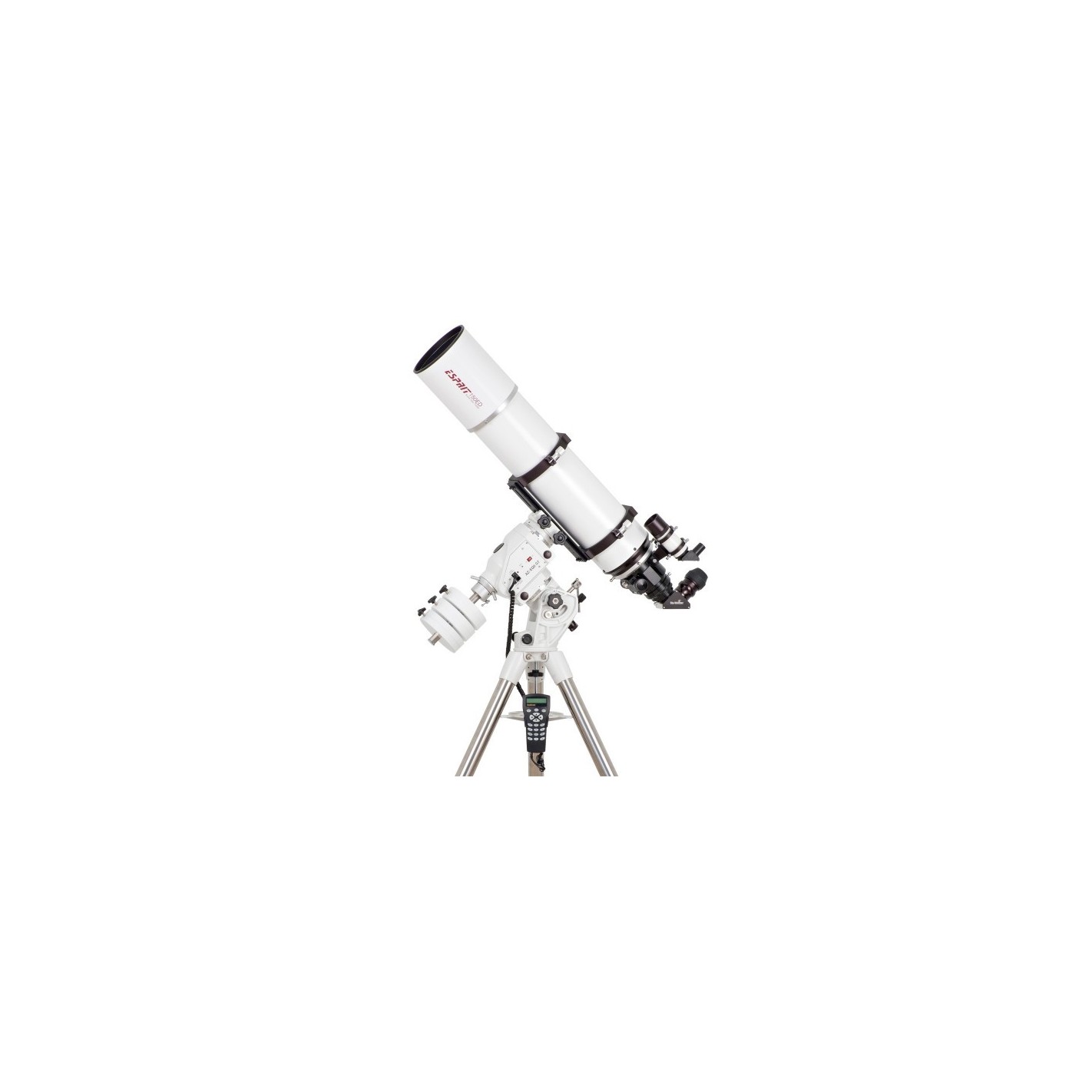

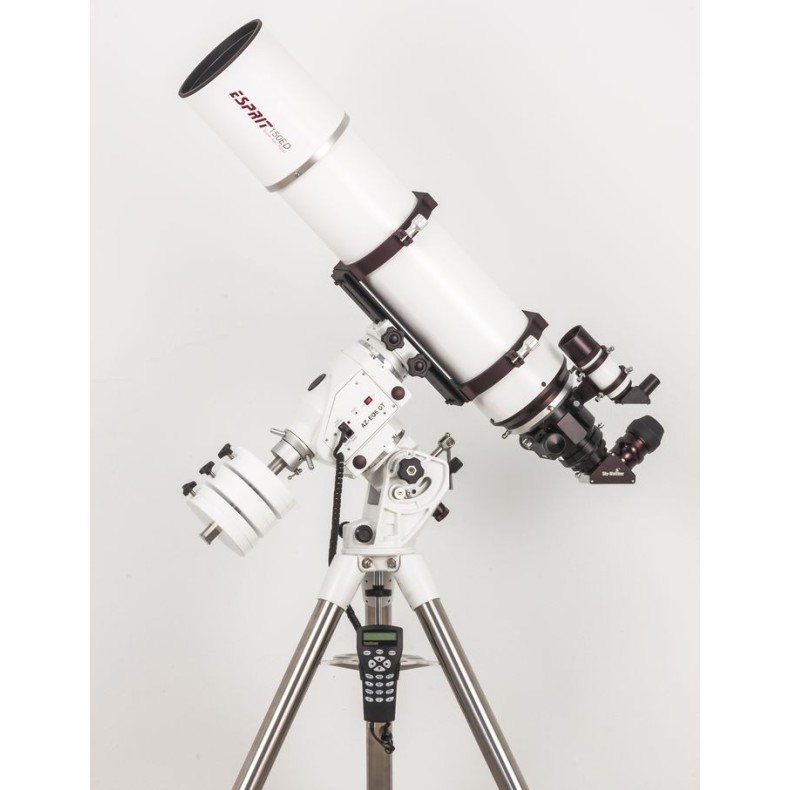

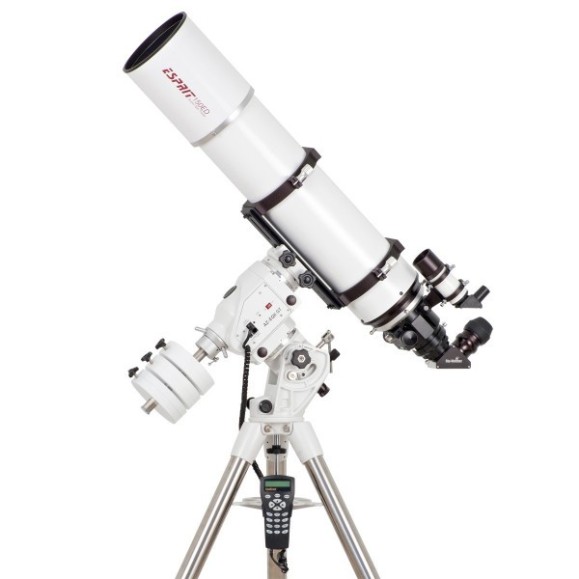

Sky-Watcher Esprit 150ED Pro triplet apochromatic refractor telescope on AZ-EQ6 Pro Go-To.
Large refractor telescopes are a dream for many people who want to obtain stunning planetary observations in addition to inspiring deep sky images. The absence of central obstruction, the resulting image sharpness and the significant field of view, attract more and more of the amateur astronomy community to this optical configuration, valid for both observing and astrophotography.

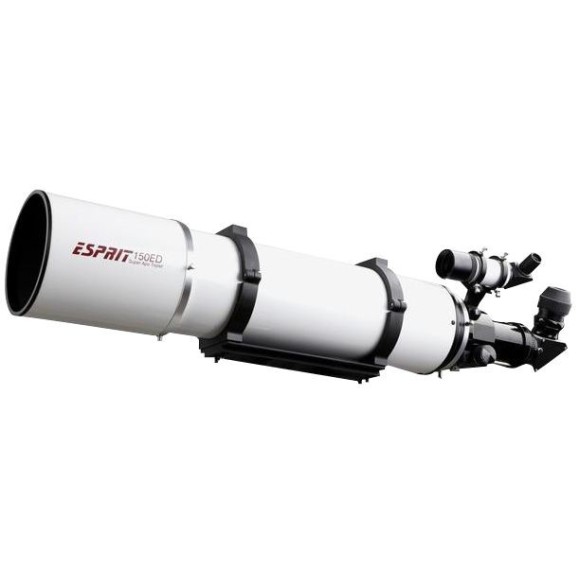

To satisfy the most demanding users this new product line includes a high quality ED triplet. With an Ohara FPL-53 center element and two Schott lenses, Sky-Watcher has turned to the high quality of the Esprit to offer high optical performance in planetary and deep sky imaging.
Designed for the advanced amateur astronomer, with its unique three-lens air-spaced design, chromatism is completely under control, image delivery is spectacular thanks to exceptional contrast.

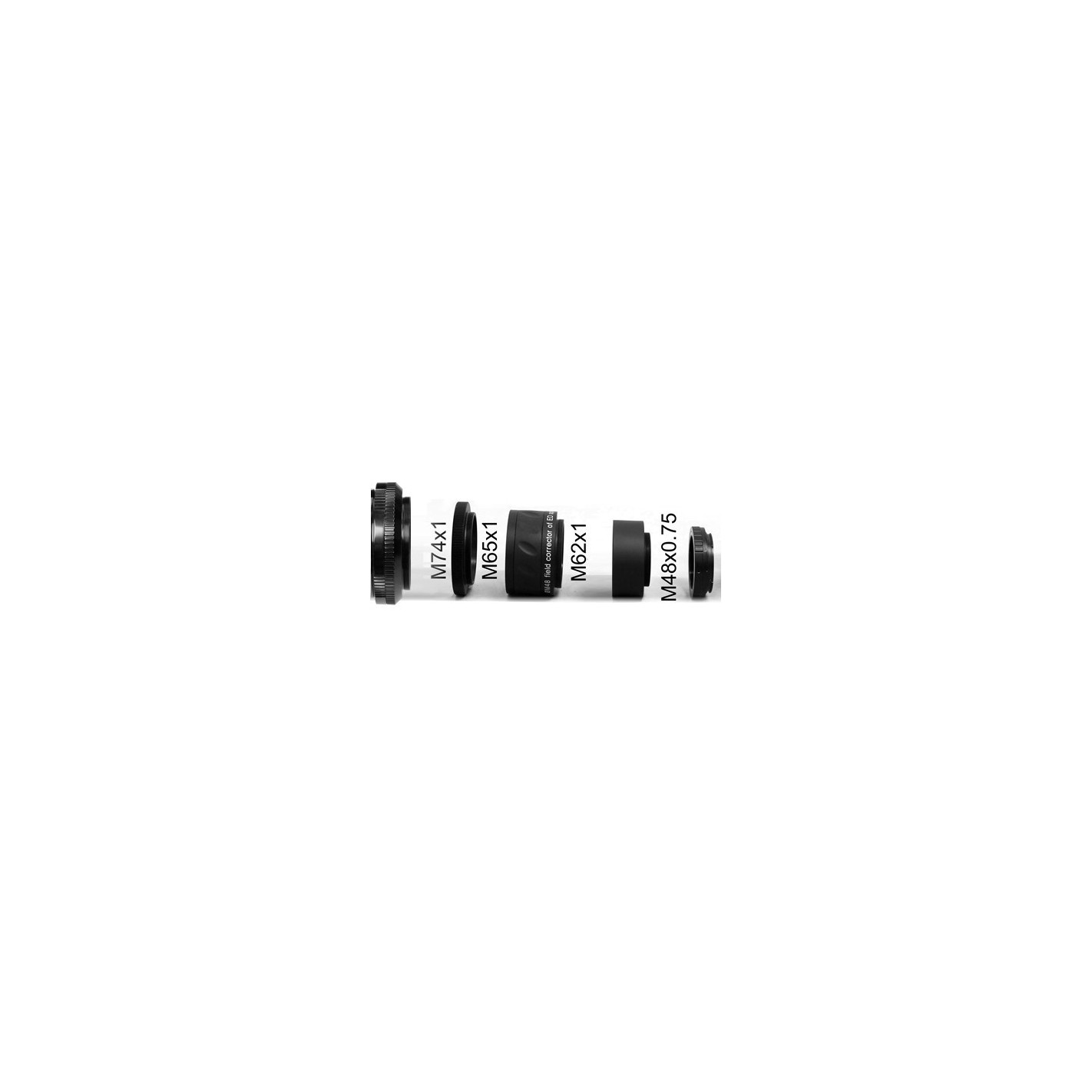

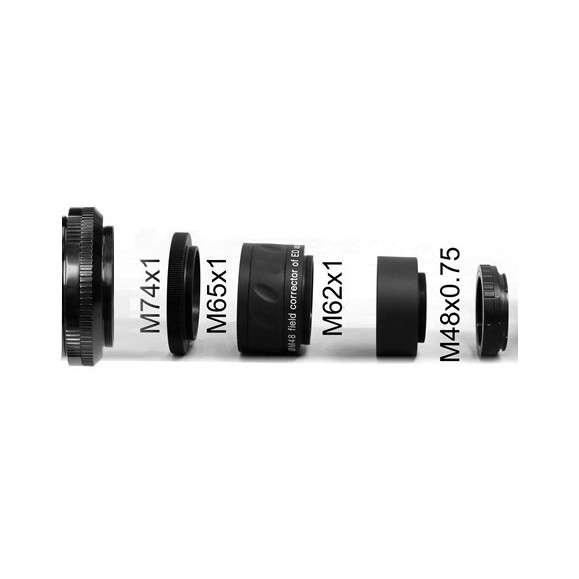

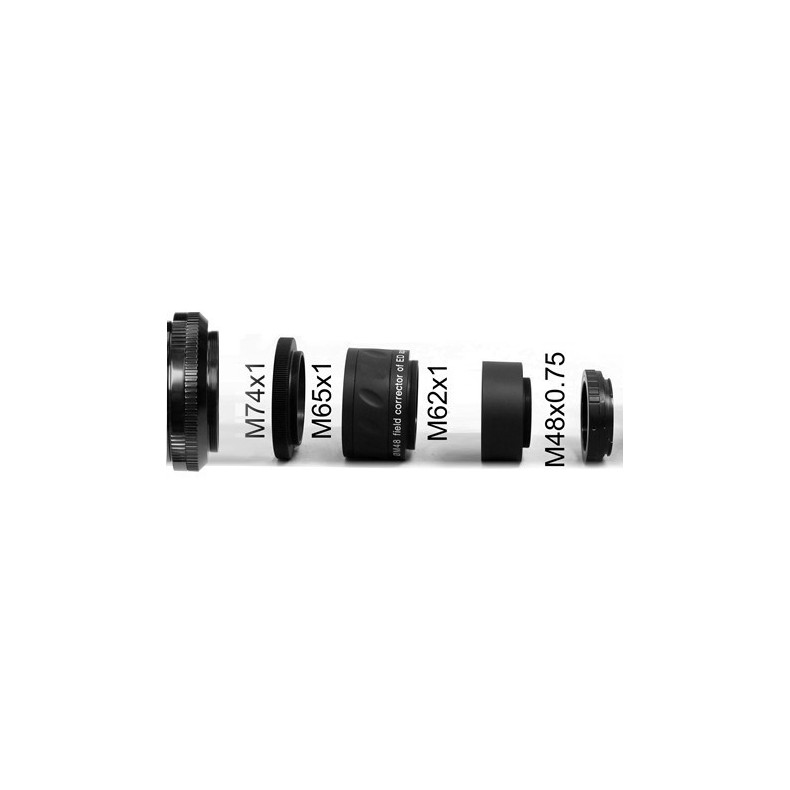

The field corrector with two 48 mm lenses offers a perfectly flat field with a diameter of 44 mm. Its oversized lenses offer a wider and clearer aperture and have no internal reflection.
With this equipment you can enjoy the giants Jupiter and Saturn like never before, rediscover the Moon, and with its large diameter, you can photograph the most beautiful nebulae with the stars well spotted even at the edges of the field. With the 150 diameter you won't miss anything in the deep sky (this tube is 2.25 times larger than an 80 mm diameter instrument).
The absence of chromatic aberration, the focal ratio of 7 and the field flattener will allow you to obtain amazing results with an APS-C format sensor.
The telescope mounts a Crayford dual-speed 01:10 linear power focuser. To exploit this focuser to the fullest Sky-Watcher has designed a new 3'' eyepiece of patented design. The focuser is of CNC construction and its 01:11 development is smooth and precise, indispensable for obtaining a sharp image at high magnifications in visual or astronomical photography. The eyepiece holder is rotatable, which will greatly facilitate your framing to give your shots a unique touch.

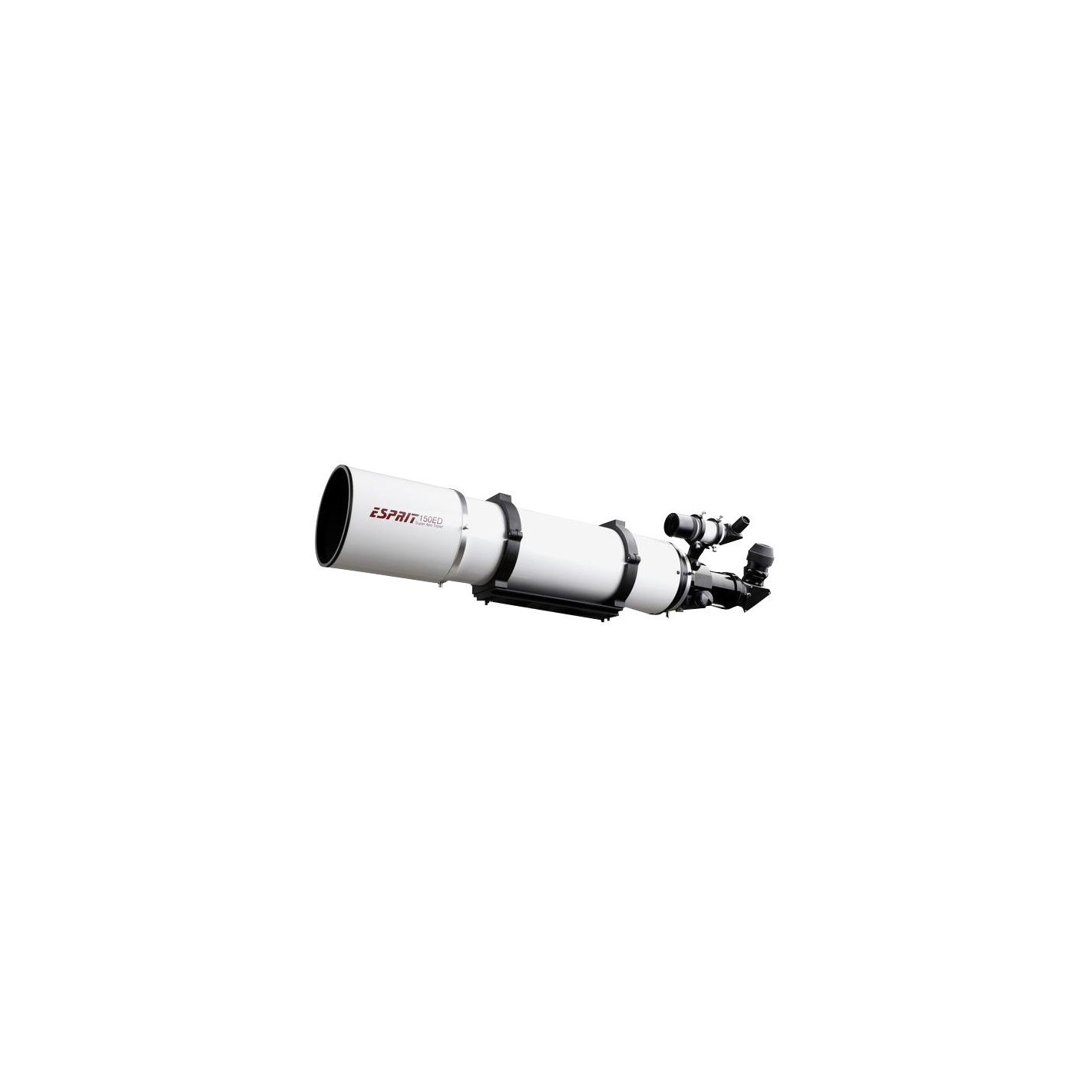

The optical tube is machined from aluminum, with retractable spray shield to make it more compact, and the interior is specially designed to reduce stray light. As a high quality detail, the lenses have a very high light transmission rate thanks to various metal deposits.

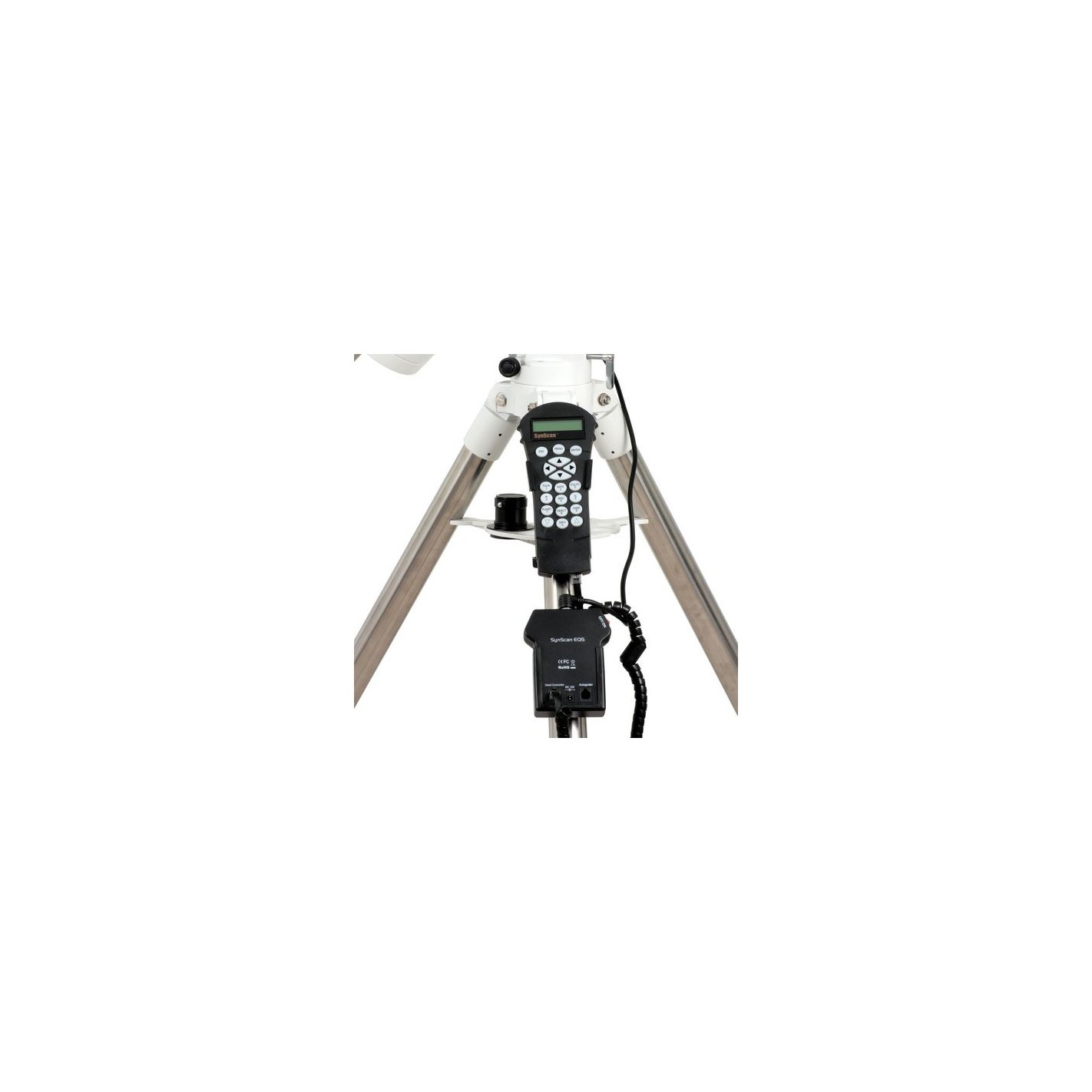

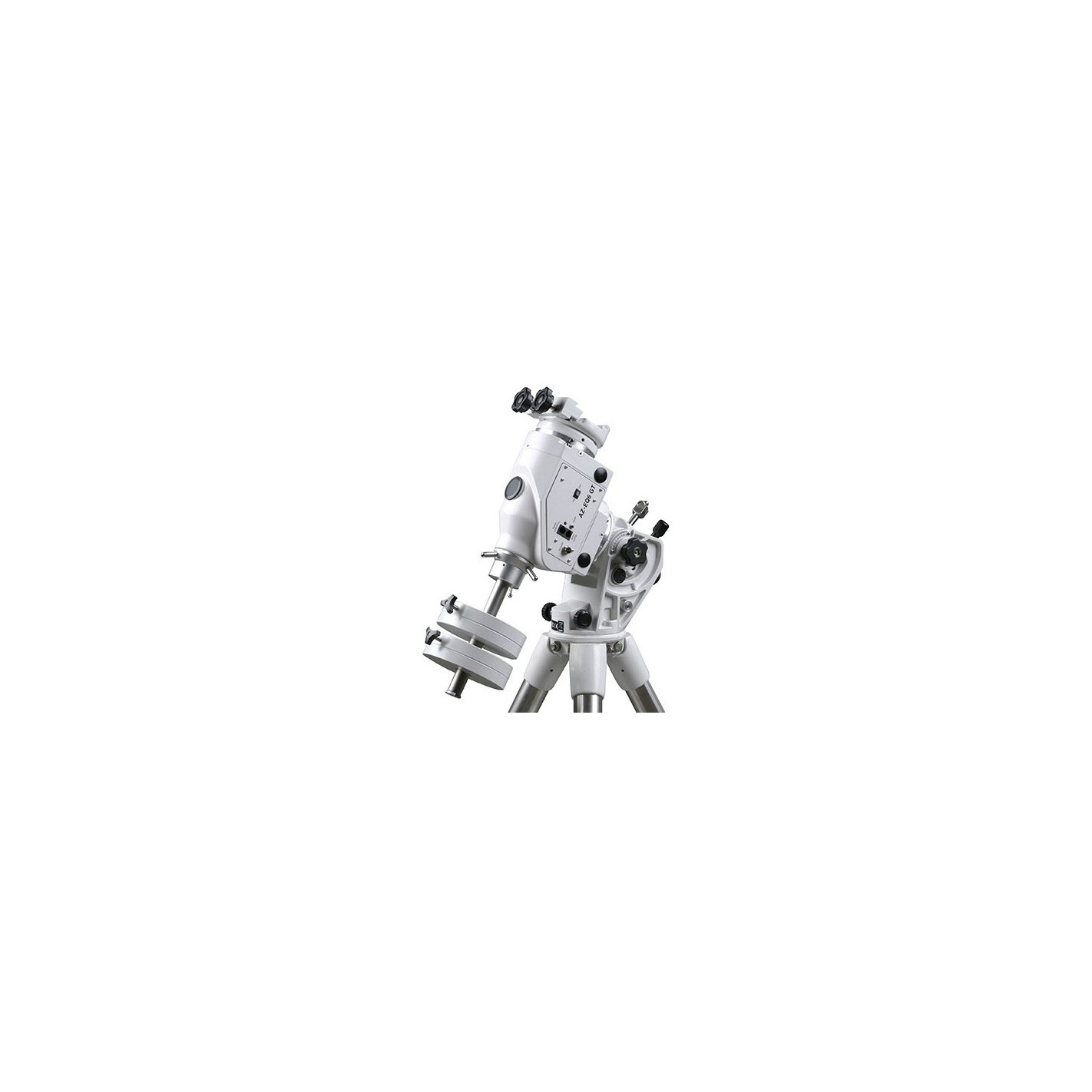

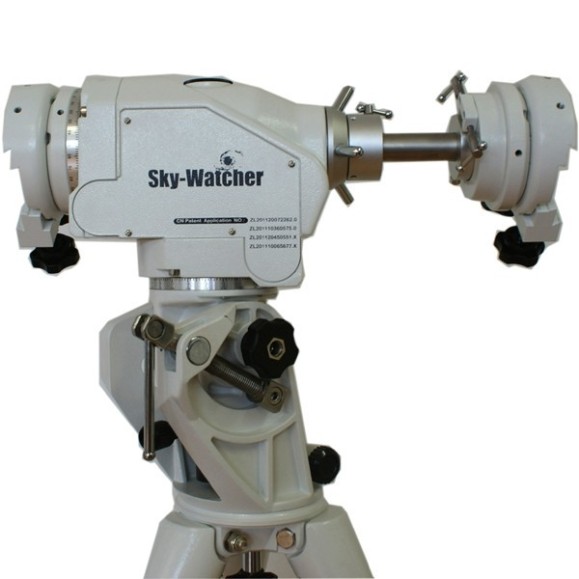

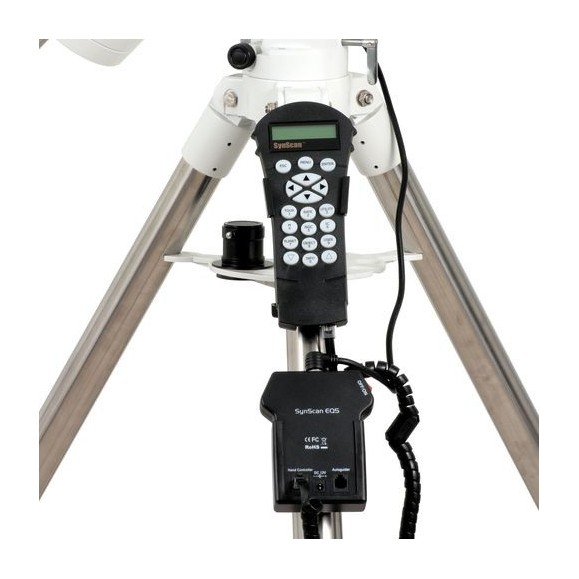

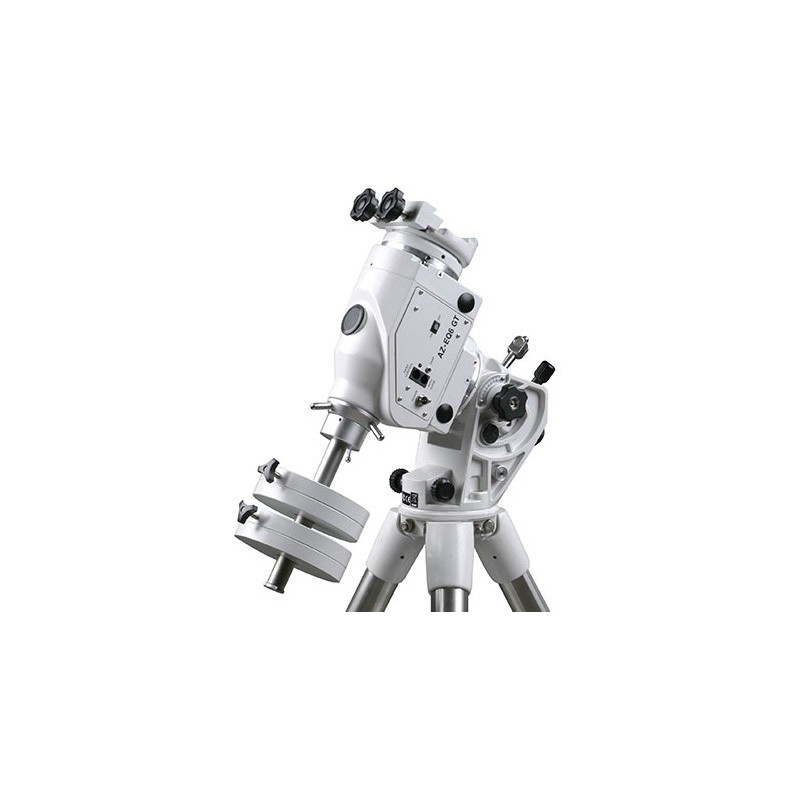

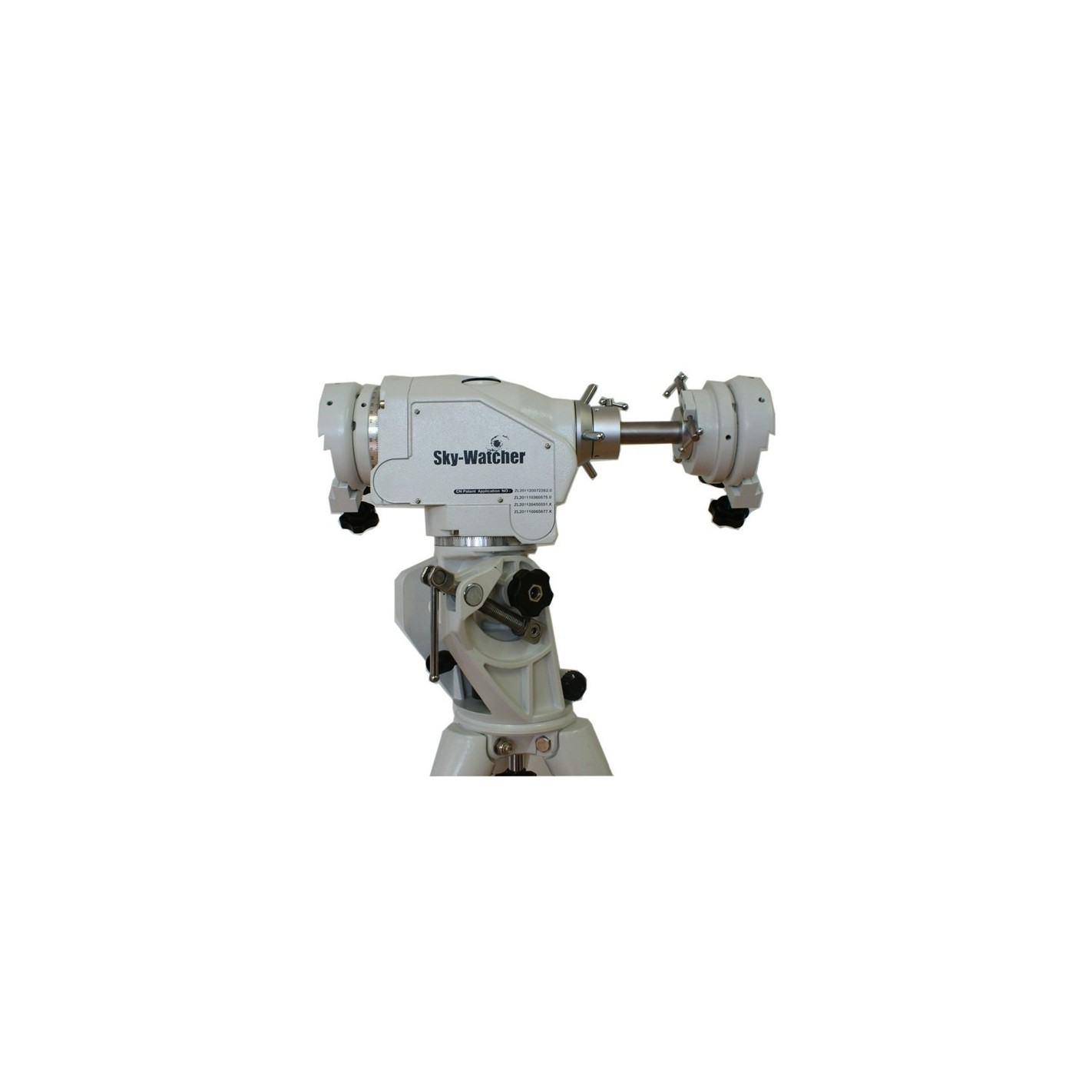

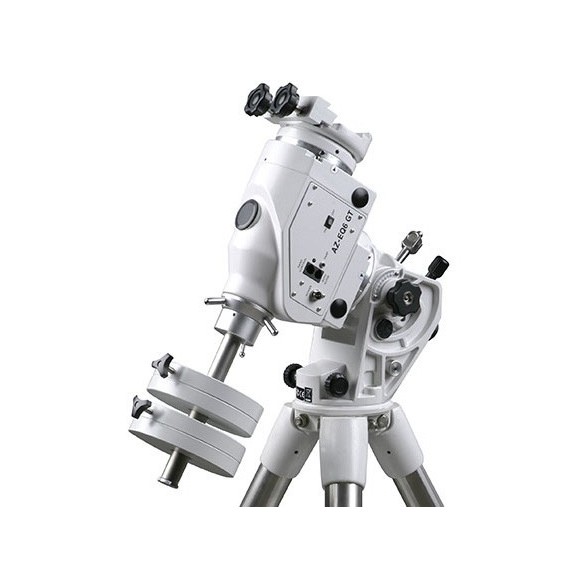

The new SKYWATCHER AZ-EQ6 SYNSCAN mount offers optimum stability and pointing precision for a wide range of heavy professional photo and video equipment. It is a hybrid mount with the possibility to work in Altazimuthal format for general use and also in Equatorial format for astrophotography. The SKYWATCHER AZ-EQ6 SYNSCAN mount is supplied with the SYNSCAN control knob that includes dual firmware for both AZ and EQ formats. It can track and locate more than 42,900 celestial objects stored in its database.
The SKYWATCHER AZ-EQ6 SYNSCAN mount has the capability to carry heavy professional photographic or video equipment. It is also a very easy to transport and efficient mount because it weighs only 15Kg and has a load capacity of 25Kg (excluding counterweight).
Tracking made easy -- Freedom Find™
With the patented FREEDOM FIND (dual-encoder) technology the telescope can be moved either manually or electronically, on both axes and without losing information about its position or alignment. After moving to a new object, the telescope will automatically start tracking the new object precisely. There will be no need to re-align the telescope during the entire observing session. This technological feature is very positively valued by Telescopiomania as it incorporates a functionality that until now was only available to users with professional mounts.
New features:

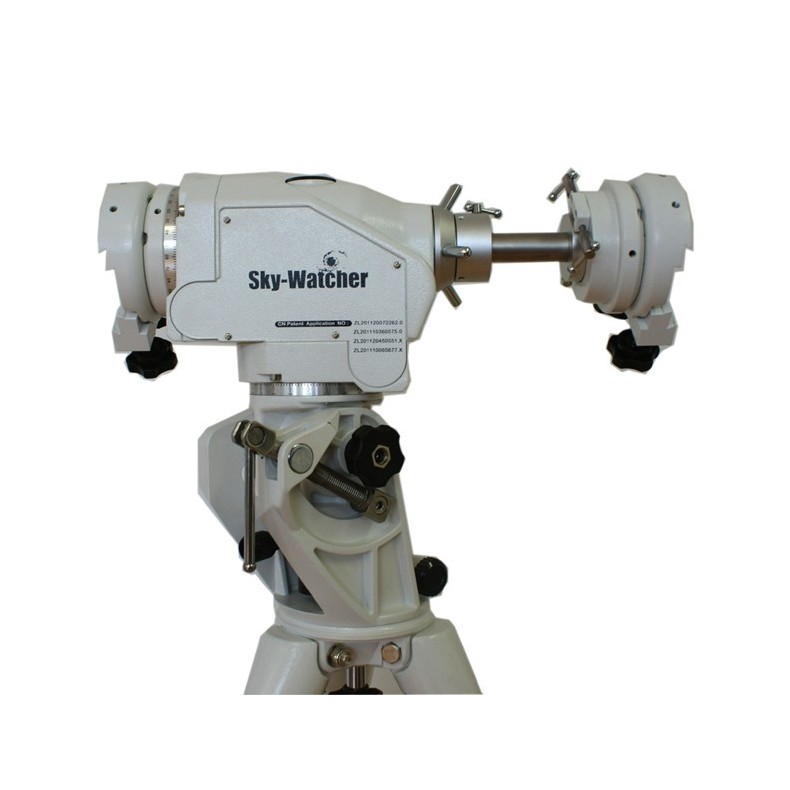

- German Equatorial/Altacimutal dual mode mount.
- Permanent Periodic Error Correction (PPEC). PPEC can be calibrated with an Autoguider or via PC.
- Improved and more reliable power connector.
- Encoder on both axes allows the position of the mount to be known at all times. Users can disengage and move the mount without losing the correct alignment of the mount.
The best innovations according to Telescopiomania:
- Displacement of the axes driven by belts.
- Very smooth movement minimizing the Periodic Error.
- Practically no backlash.
- Quieter than other mounts in its class.
- Programmable shutter control for DSLR cameras.
- Motor controller board that offers greater torque and precision.

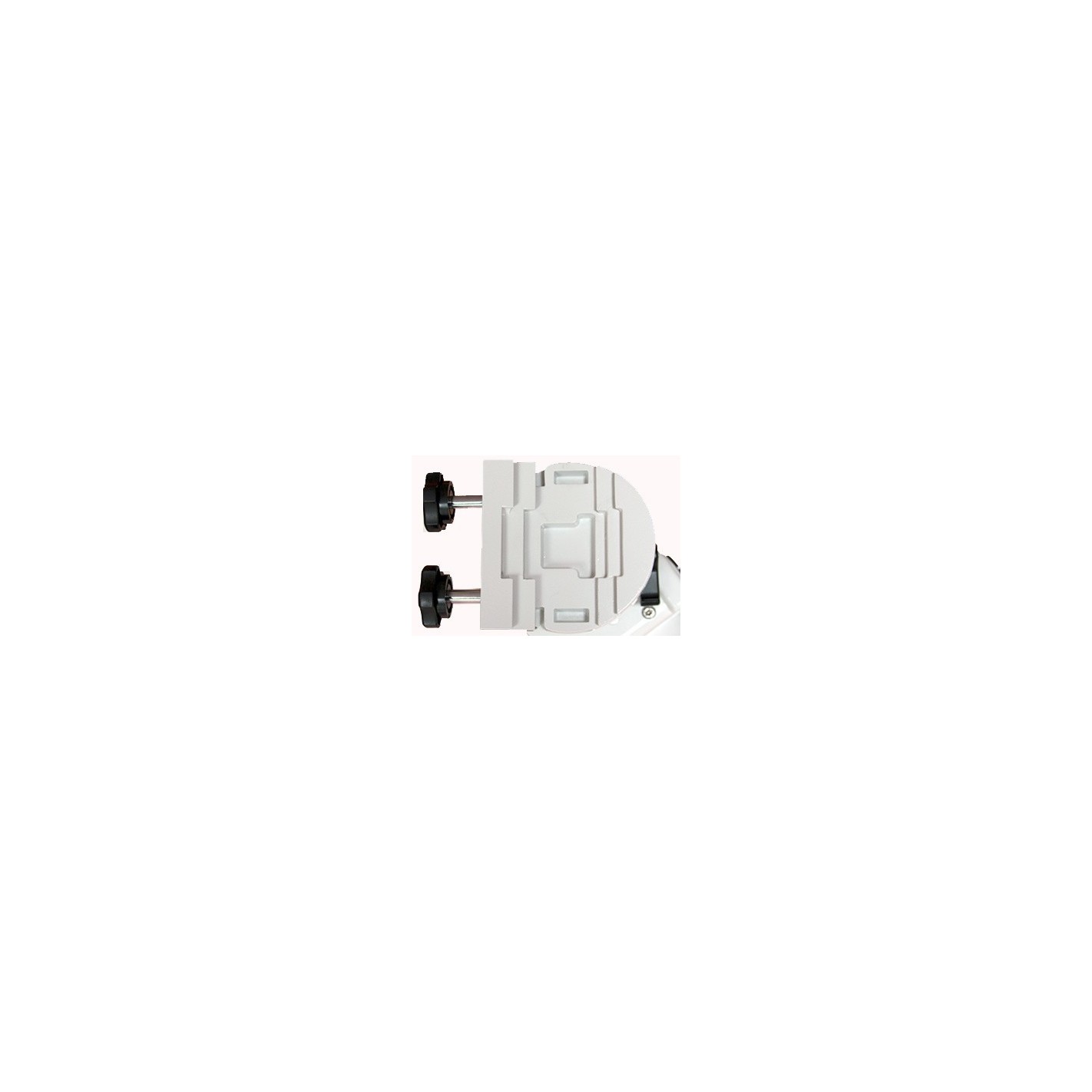

- Mount head prepared to accept VIXEN and LOSMANDY type dovetails (45/75mm)
- Illuminated polar finder included as standard.
Also featured:
- Motion resolution: approximately 0.14 arc seconds.
- Includes electronic shutter control port for DSLR.
- Autoguiding port.
- PEC control in EQ mode.
- Polar alignment facilitated by the included illuminated polar finder.
- Alignment methods: 1, 2 or 3 stars (EQ) / alignment to 2 stars or brightest star (AZ)

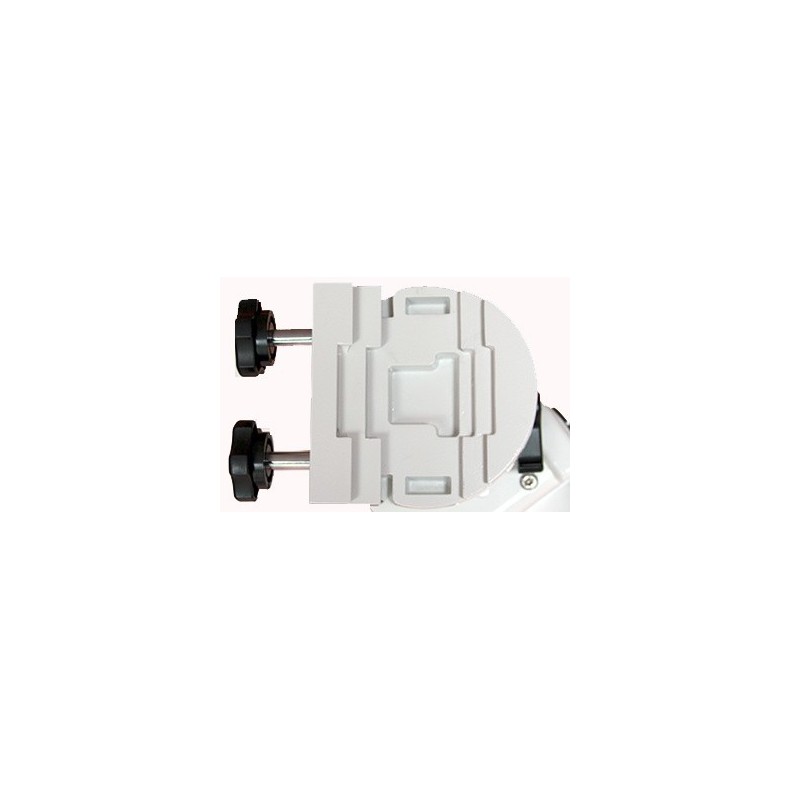

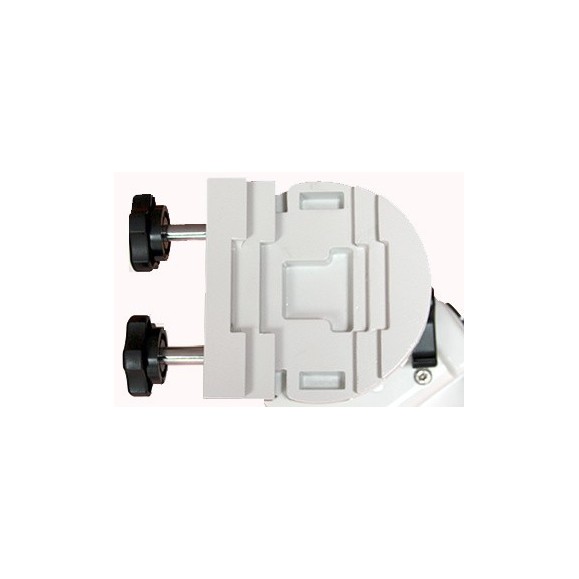

- Connection to the telescope: 2 clamps are supplied that accept VIXEN and LOSMANDY type dovetails.
- AR/DEC crowns: D=92.5mm, 180 teeth, made of brass.
- AR/DEC shafts: D=40mm, made of steel.
- Latitude adjustment range: 10º to 70º (EQ), 90º (AZ)
- Azimuth adjustment range: about ± 90º
Special applications of NEQ6 PRO and AZEQ6 PRO mounts:
Telescopiomania would like to point out that the SKYWATCHER NEQ6 PRO and AZEQ6 PRO mounts are not simple GOTO mounts whose application is reduced to the astronomical field. Some customers also use GOTO mounts of this type as a stable and precise platform to perform specific positioning or to follow the rotational motion of the Earth (installation of solar panels, oil extraction platforms, etc).
Technical specifications of the mount:
- Mount Type: Dual EQ/Alt-Az Mode
- Counterweights: 2 x 5Kg
- Motors: Hybrid stepper 1,8º

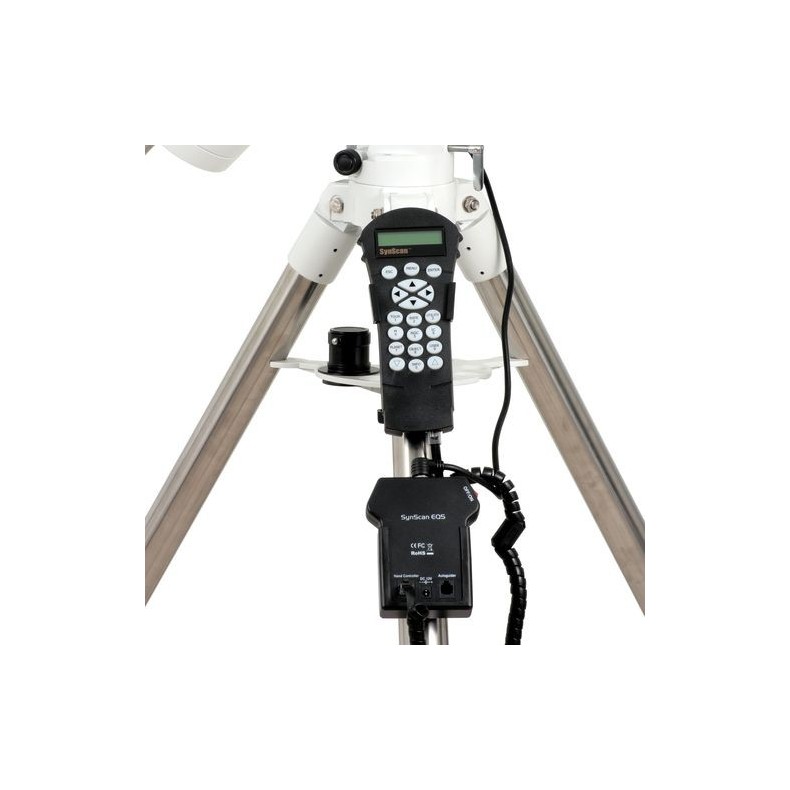

- GOTO: SYNSCAN control knob
- Tripod height: 127cm
- Tripod weight: 7,5Kg; steel tripod with 2" legs
- Weight of the cases: 21Kg + 15Kg
- Dimensions of cases: 117x28x21cm3; 100x50x50x50 cm3
- Power supply: DC11 16V 4th
- Load capacity: 25Kg (excluding counterweight)
- Tracking modes: Altacimutal / Equatorial
- Tracking speeds: Sidereal / Solar / Lunar
- GOTO speeds: up to 4.2°/second (800x sidereal speed)
- Guidance speeds: from 0.125x, 0.25x, 0.5x, 0.75x, 1x
Technical specifications equipment:

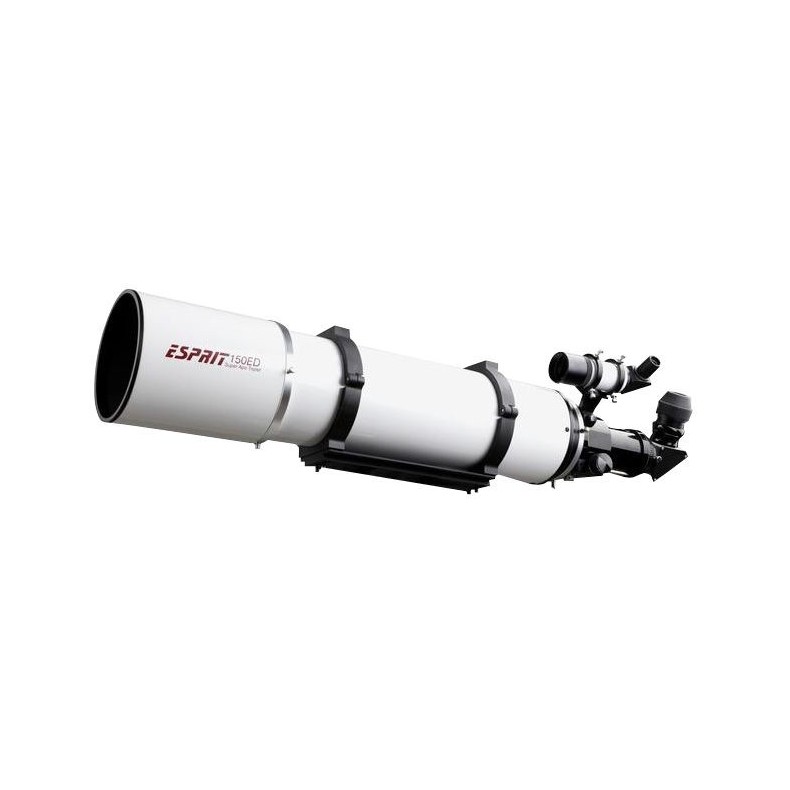

- Sky-Watcher Esprit 150ED refractor features
- Mount: AZ-EQ6 Pro Go-To
- Optical tube: aluminum.
- Lens design: 3-element air-spaced APO type objective lens
- Focal length: 1050 mm
- Focuser: 01:11 linear power Crayford eyepiece holder with rotation collar built into the tube
- Tube weight: 15 kg
- Length: 920 mm tube length (spray shield retracted)
- Magnification limit: 13.4
- Magnification 625x
- Visual back focus: 170 mm
- Back focus behind field corrector: 96 mm
- Field of view: 44mm
- Sky-Watcher EQ6 Pro AZ-Go-To mount, equatorial and altazimuthal
- Two-axis motorization with Go-To
- Stepper motor
- Resolution: 0.8 arc/sec
- Traverse speed up to 3.4°/sec
- 800x 0.125x capture of fixed periodic errors (PEC)
- Gears (AR/DEC) 92.5mm diameter, 180 teeth
- Steel screws
- Integrated illuminated polar finder
- 19 kg load capacity
- Optimal loading capacity for astrophotography: 16kg
- Latitude adjustment: 10° to 70° (equatorial), 90° (azimuth)
- Azimuth adjustment: +/- 9°
- Go-To SynScan with 42,900 celestial objects from common catalogs
- Tracking mode: sidereal, lunar or solar
- Counterweights: 3 x 5 kg
- Height-adjustable tubular steel tripod (85 cm to 147 cm)
- Tripod: 7.5 kg
- Car cigarette lighter power cord 12V DC
- Can optionally be used connected to the mains power supply via transformer or battery
what is included in the box?
- LET 28mm (50.8) Eyepiece
- 9x50 angled finder
- Dielectric diagonal 50.8/31.75mm
- Field flattener
- Deluxe rings as dovetail type Losmandy
- Crayford Linear Power 3" (can be rotated)
- Retractable sunshield
- Aluminum case with foam
