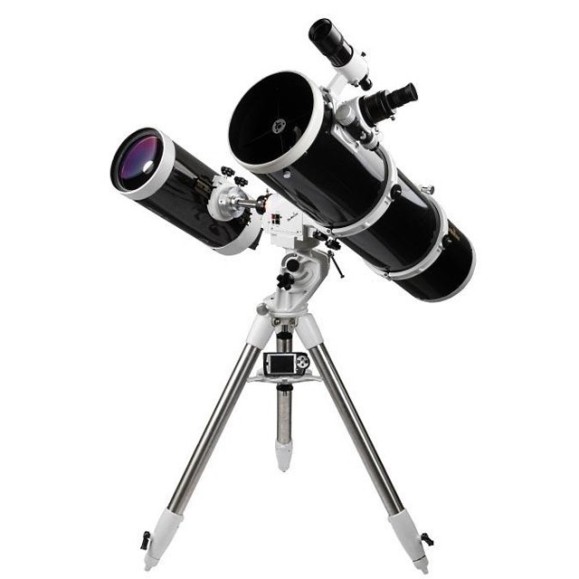

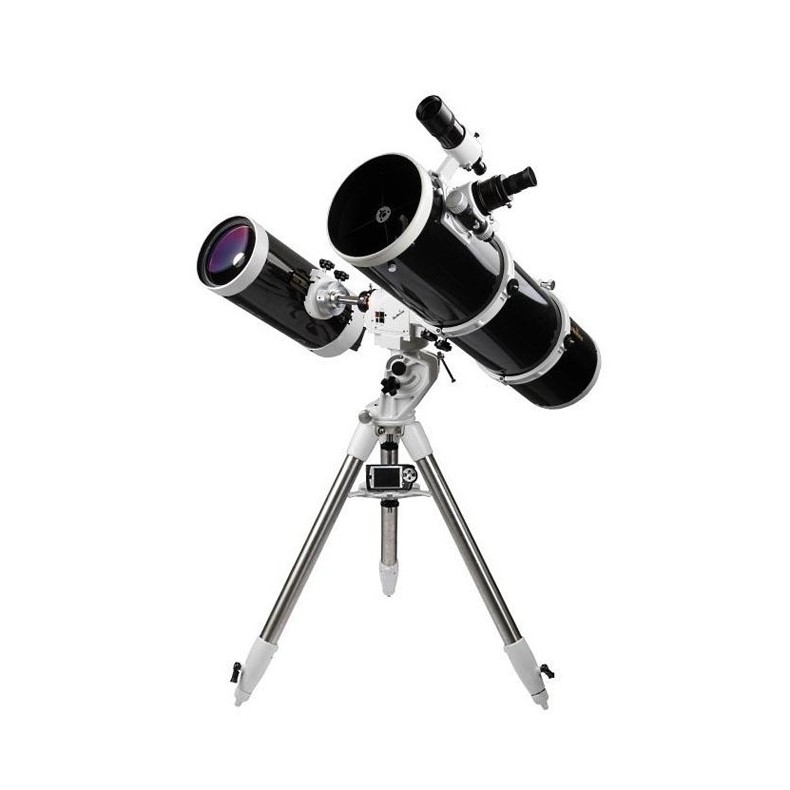

SkyWatcher Black Diamond 200 800 DUAL SPEED SkyWatcher Reflector Telescope on AZQ6 Pro Goto Mount

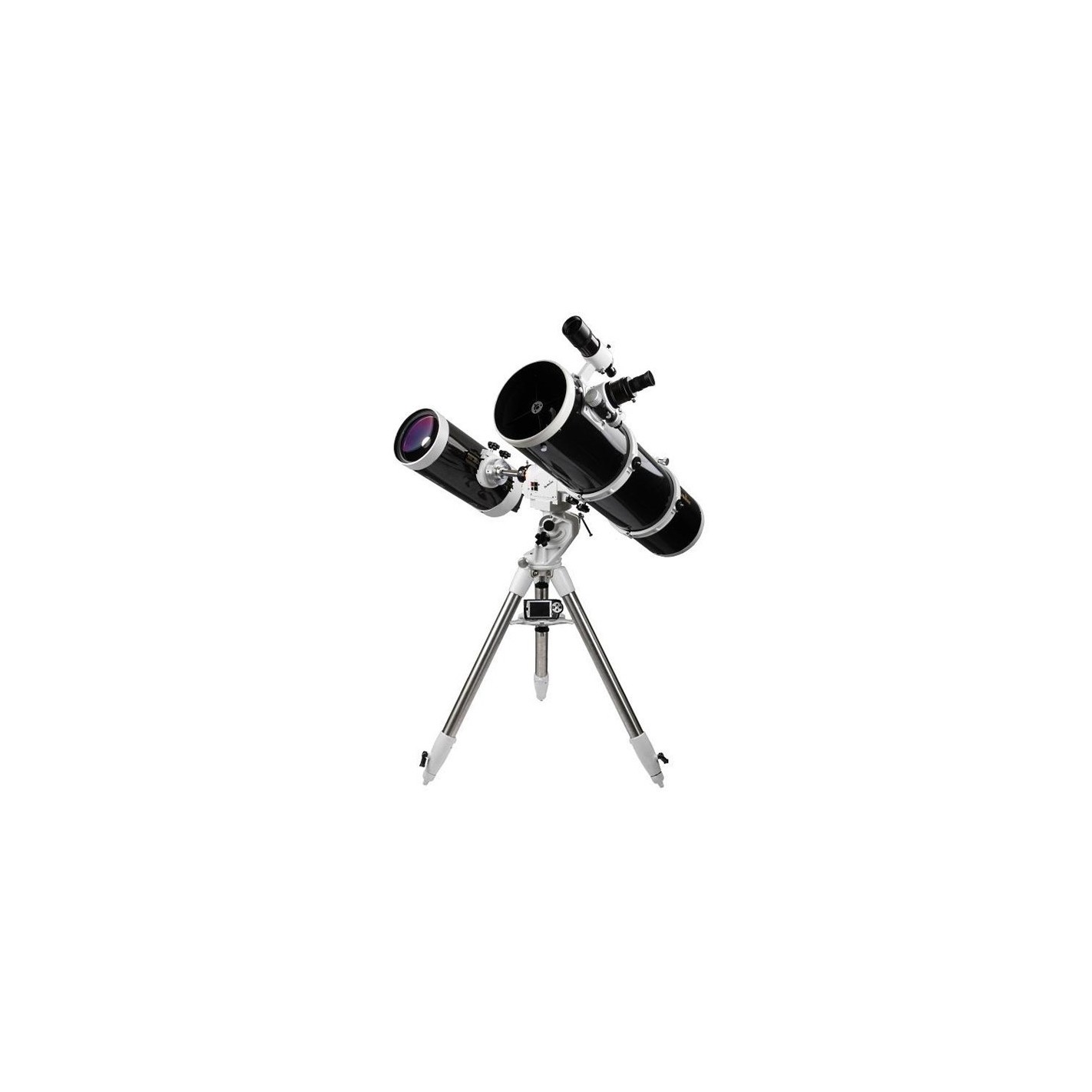

SkyWatcher Black Diamond 200 800 DUAL SPEED SkyWatcher Reflector Telescope on AZEQ6 Pro Goto mount.

SKYWATCHER's new WIDEPHOTO reflector telescopes take the traditional parabolic mirror systems typical of conventional reflectors to the next level.

The SKYWATCHER modelWIDEPHOTO 200/800The lens presented here has been designed so that the optical system offers a faster focal ratio of F/4, whose extraordinary brightness will allow us to make shorter exposures and at the same time achieve images of higher quality/brightness.

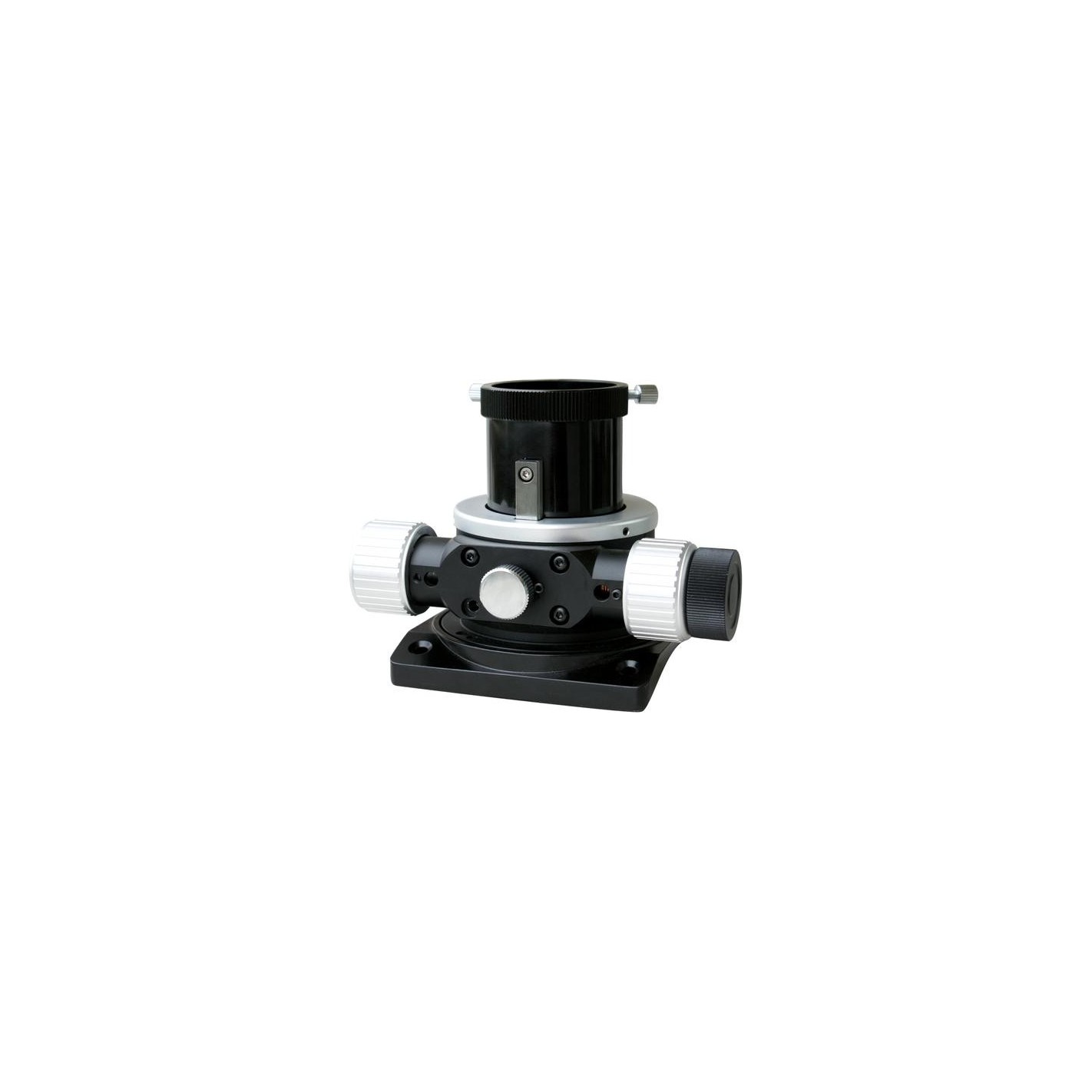

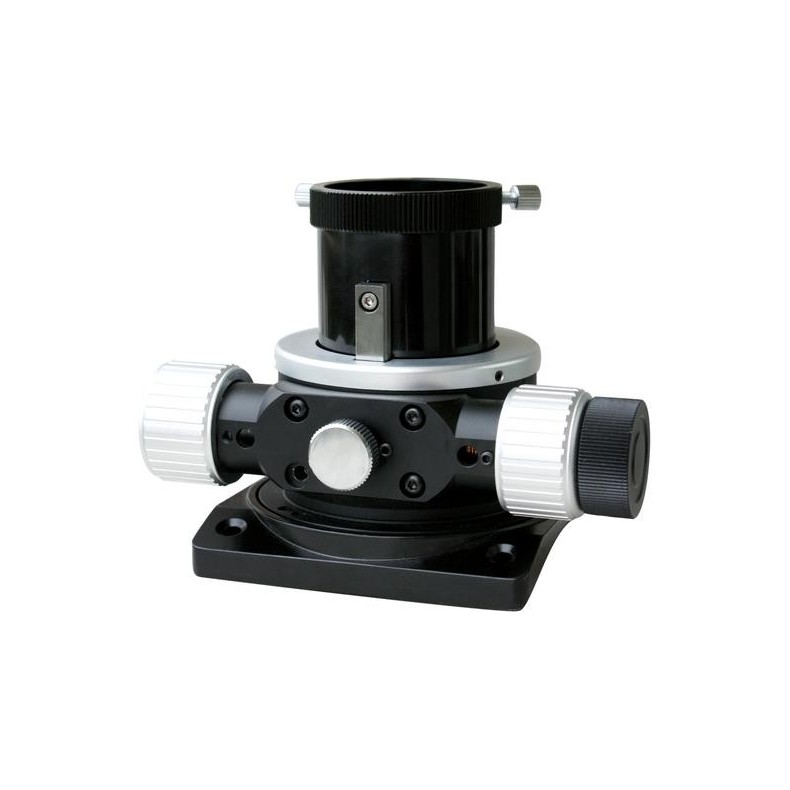

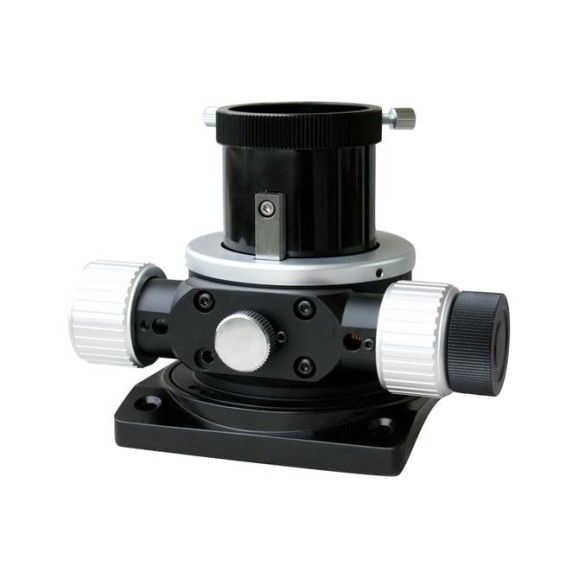

The SKYWATCHER telescope WIDEPHOTO 200/800 also comes standard with the powerful focuser DUAL SPEED (macro and micro focus) of 2". This focuser is capable of carrying important weights without suffering variations in its position, thus achieving a smooth and precise focusing process. The SKYWATCHER telescope WIDEPHOTO 200/800Is not only excellent photographic equipment, it is also ideal for visual observation.

For astrophotography Skywatcher has designed a special range of carbon instruments (200/254mm) equipped with a short focal ratio. To offer better deep sky imaging performance, Sky-Watcher reduces the focal range of the "classic" Black Diamond to f / 4 to provide a wider range and a much higher photographic speed. At equal exposure times, a shorter focal ratio provides a better signal-to-noise ratio. In addition, the tube size is reduced, which also means less wind resistance.

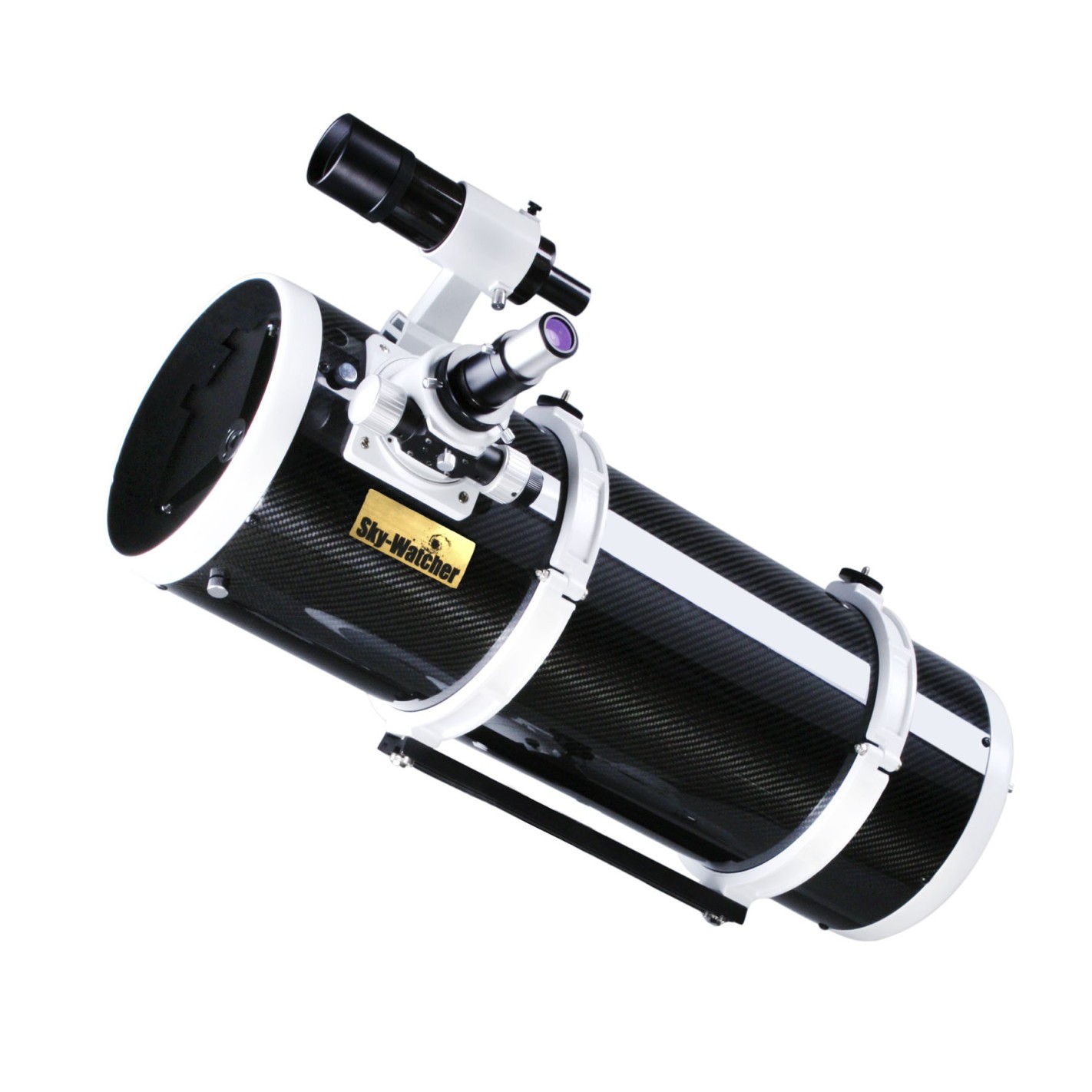

Another important aspect is the use of a carbon fiber tube. The tube is stiffer and lighter while offering better thermal stability. Temperature-related expansion is lower for carbon compared to aluminum tubes.

Without a doubt, the SkyWatcher NEQ6 PRO II equatorial mount with SynScan (GOTO) is the jewel in SkyWatcher's crown. With unmatched reliability and robustness, the NEQ6 equatorial mount is the guarantee to start doing deep sky photography with guarantees and at the most economical price possible.

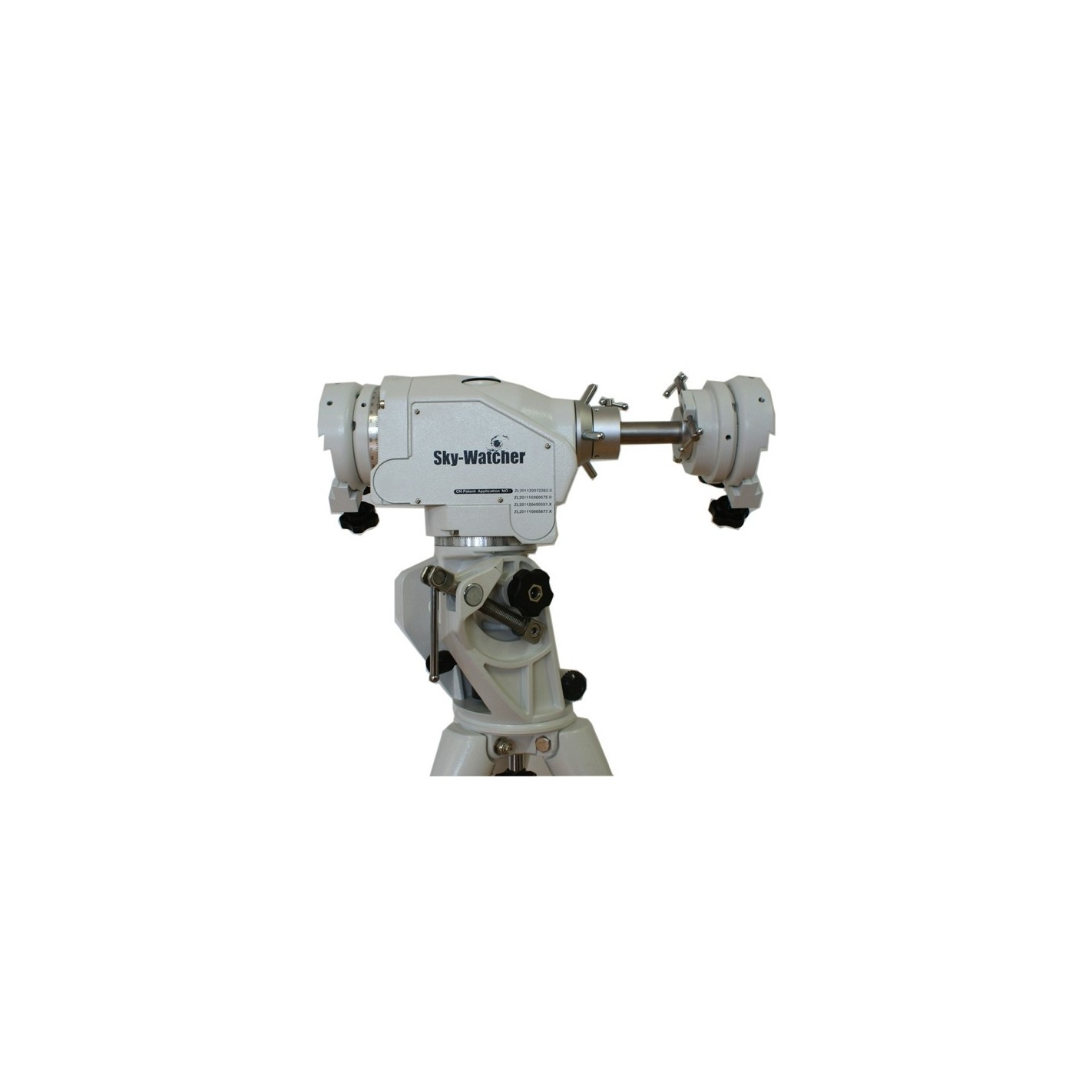

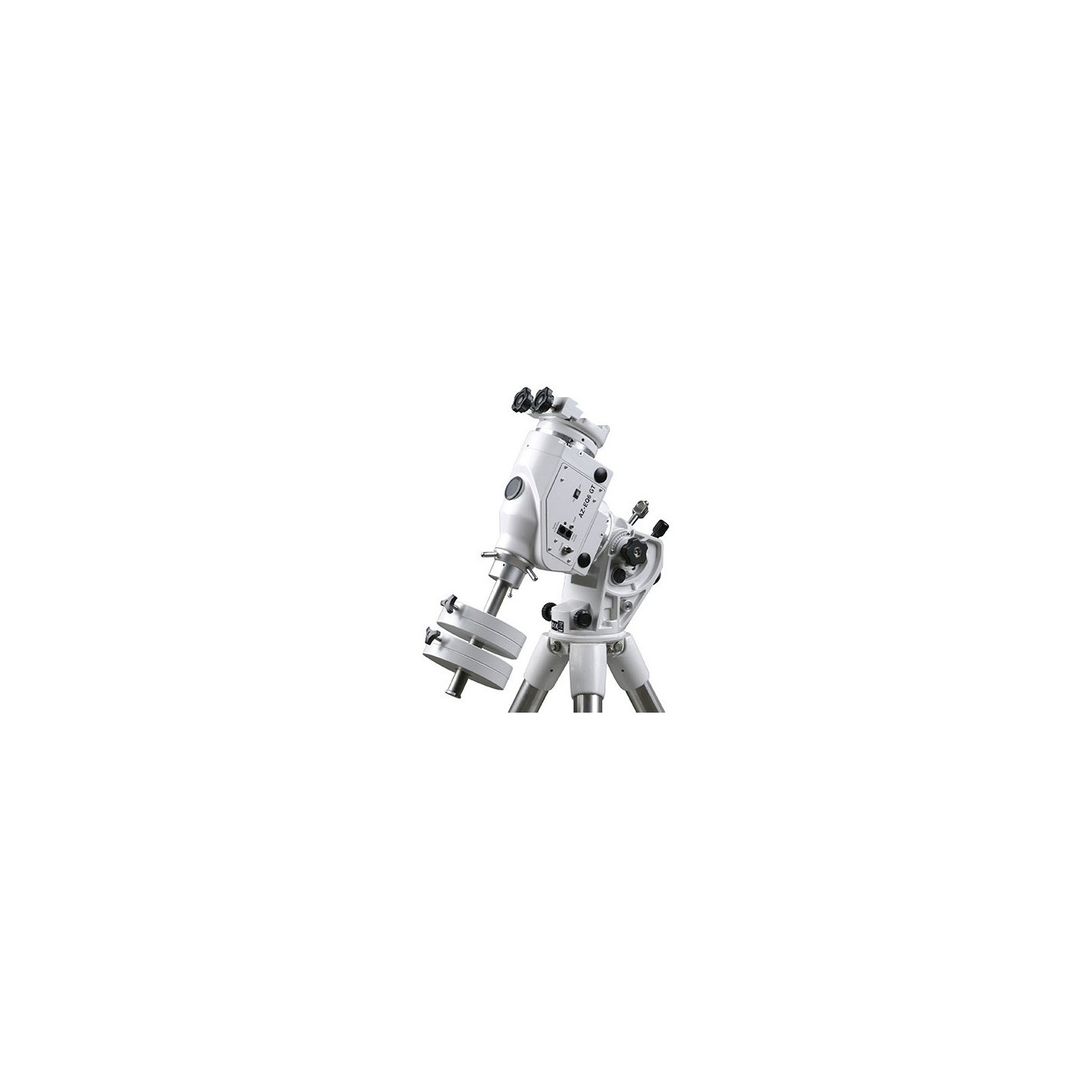

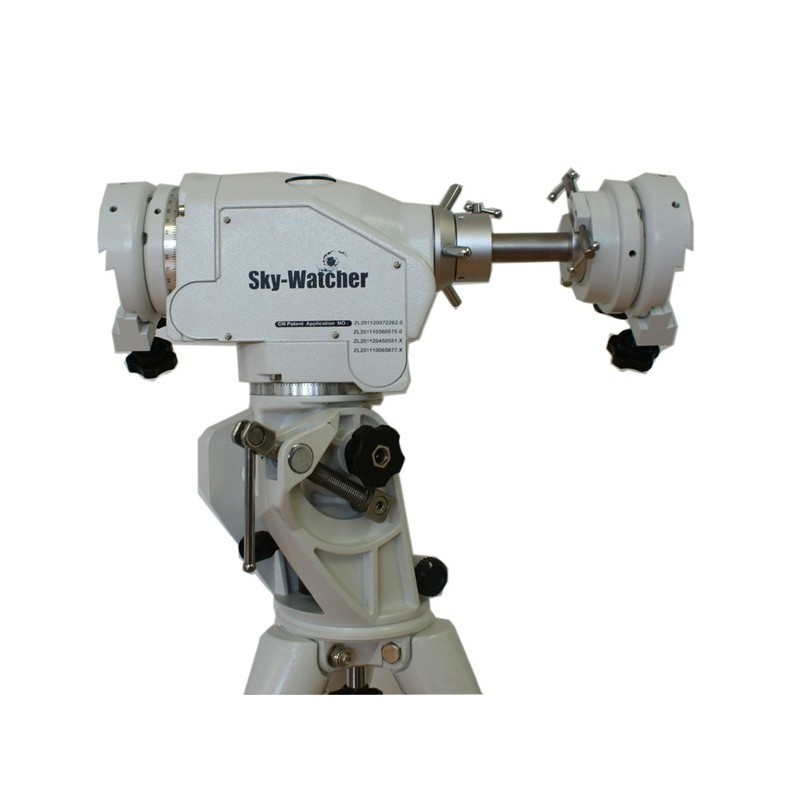

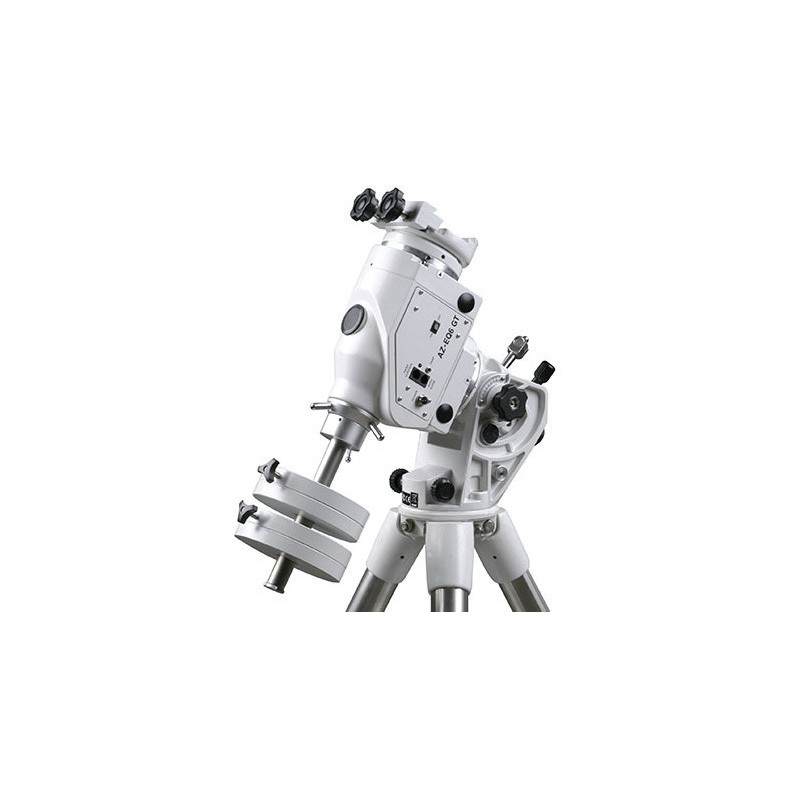

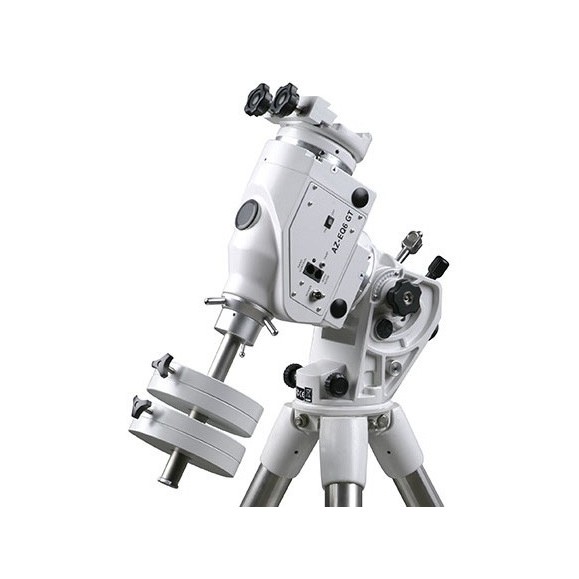

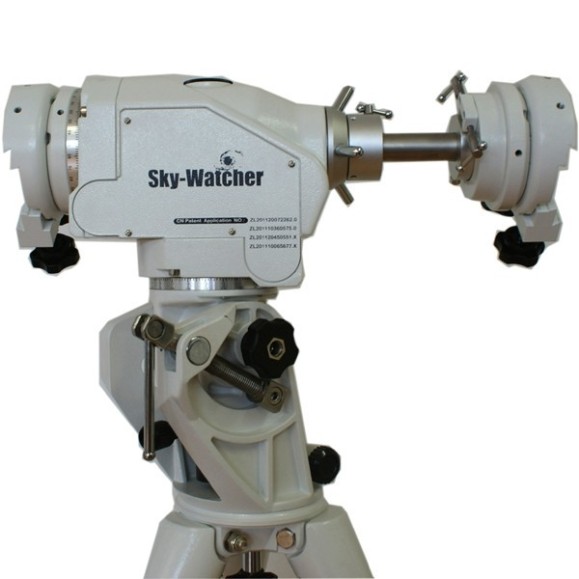

The new frameSKYWATCHER AZ-EQ6 SYNSCANOffers optimal stability and pointing precision for a wide range of heavy professional photographic and video equipment. It is a hybrid mount with the possibility of operating in Altazimuthal format for general use and also in Equatorial format for astrophotography. The mountSKYWATCHER AZ-EQ6 SYNSCANIs supplied with the control unitSYNSCANWhich includes dual firmware for both AZ and EQ format. It can track and locate more than 42,900 celestial objects stored in its database.

The saddleSKYWATCHER AZ-EQ6 SYNSCANHas the capacity to carry heavy professional photographic or video equipment. It is also a very easy to transport and efficient mount because it weighs only 15Kg and has a load capacity of 25Kg (excluding counterweight).

Tracking made easy -- Freedom Find™

With patented technologyFREEDOM FIND (dual-encoder)The telescope can be moved either manually or electronically on both axes without losing information about its position or alignment. After moving to point a new object, the telescope will automatically start tracking the new object precisely. There will be no need to re-align the telescope during the entire observing session. This technological feature is highly appreciated by Telescopiomania as it incorporates a functionality that until now was only available to users with professional mounts.

New features:

• German Equatorial/Altacimutal dual mode mount.
• Permanent Periodic Error Correction (PPEC). The PPEC can be calibrated with an Autoguider or via PC.
• Improved and more reliable power connector.
• Encoder on both axes that allows the position of the mount to be known at all times. Users can disengage and move the mount without losing the correct alignment of the mount.

The best innovations according to Telescopiomania:

• Belt-driven shaft displacement.
• Very smooth motion minimizing Periodic Error.
• Practically no backlash.
• Quieter than other mounts in its class.
• Programmable shutter control for DSLR cameras.
• Motor controller board offering higher torque and precision.
• Saddle head prepared to accept VIXEN and LOSMANDY type dovetails (45/75mm)
• The illuminated polar finder is included as standard.

We also highlight:

• Motion resolution: approximately 0.14 arc seconds.
• Includes electronic shutter control port for DSLR.
• Autoguiding Port.
• PEC control in EQ mode.
• Polar alignment facilitated by the included illuminated polar finder.
• Alignment methods: 1, 2 or 3 stars (EQ) / alignment to 2 stars or to the brightest star (AZ)
• Connection to the telescope: 2 clamps are supplied to accept VIXEN and LOSMANDY type dovetails.
• AR/DEC crowns: D=92,5mm, 180 teeth, made of brass.
• AR/DEC shafts: D=40mm, made of steel.
• Latitude adjustment range: 10º to 70º (EQ), 90º (AZ)
• Azimuth adjustment range: over ± 90

Special applications of NEQ6 PRO and AZEQ6 PRO mounts:

Telescopiomania would like to point out that the SKYWATCHER NEQ6 PRO and AZEQ6 PRO mounts are not simple GOTO mounts whose application is limited to the astronomical field. Some customers also use GOTO mounts of this type as a stable and precise platform to perform specific positioning or to follow the rotational motion of the Earth (installation of solar panels, oil extraction platforms, etc).

Technical Specifications frame:

• Frame type:Dual EQ/Alt-Az mode
• Counterweights:2 x 5Kg
• Engines:Hybrids step by step 1.8º
• GOTO:SYNSCAN control unit
• Tripod height:127cm
• Tripod weight:7,5Kg; steel tripod with 2" legs
• Weight of boxes:21Kg + 15Kg
• Box dimensions:117x28x21cm3; 100x50x50cm3; 100x50x50cm3
• Power supply:DC11 16V 4TH
• Load capacity:25Kg (excluding counterweight)
• Tracking modes:Altacimutal / Equatorial
• Tracking speeds:Sidereal / Solar / Lunar
• GOTO speeds:up to 4.2°/second (800x sidereal speed)
• Guiding speeds:from 0.125x, 0.25x, 0.5x, 0.75x, 1x

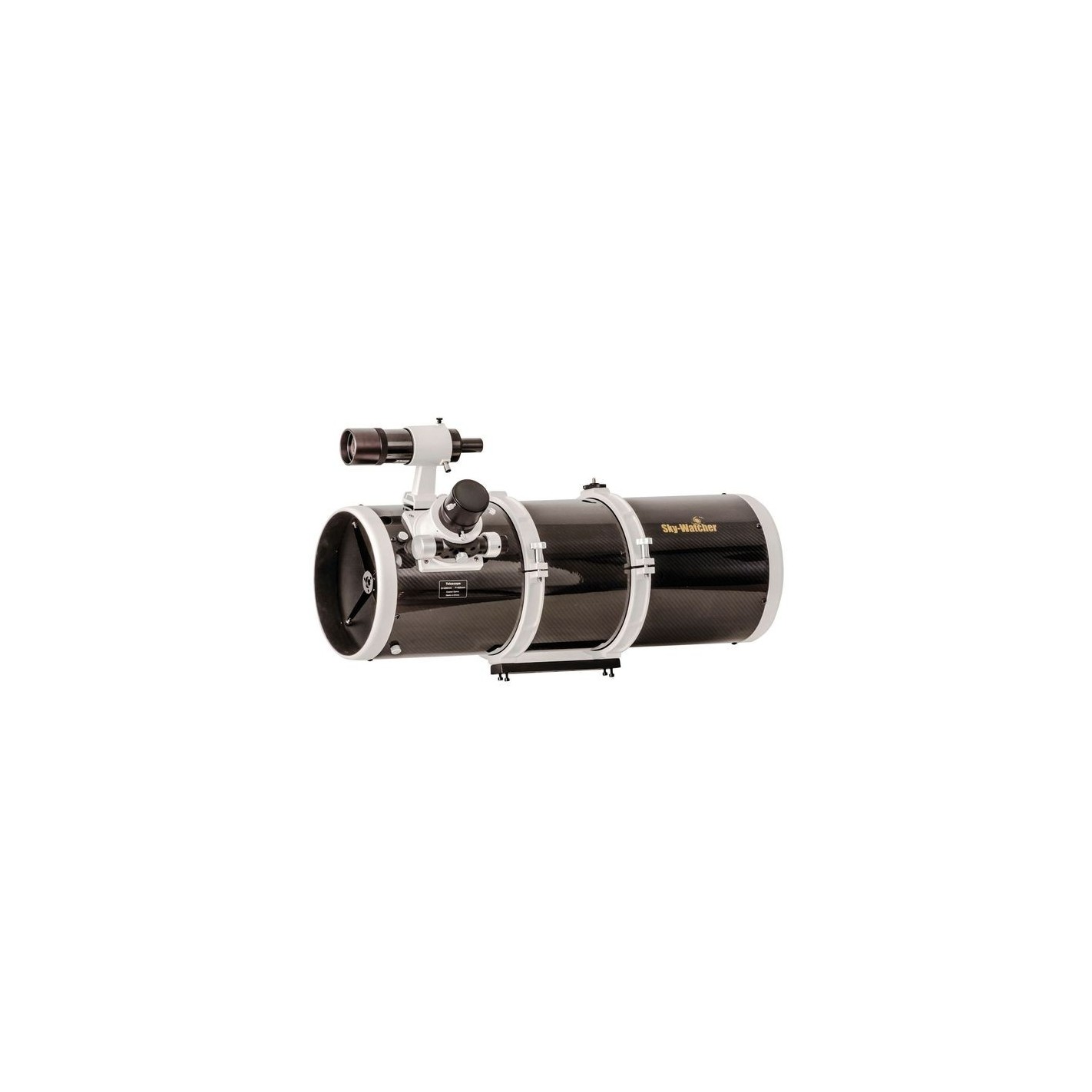

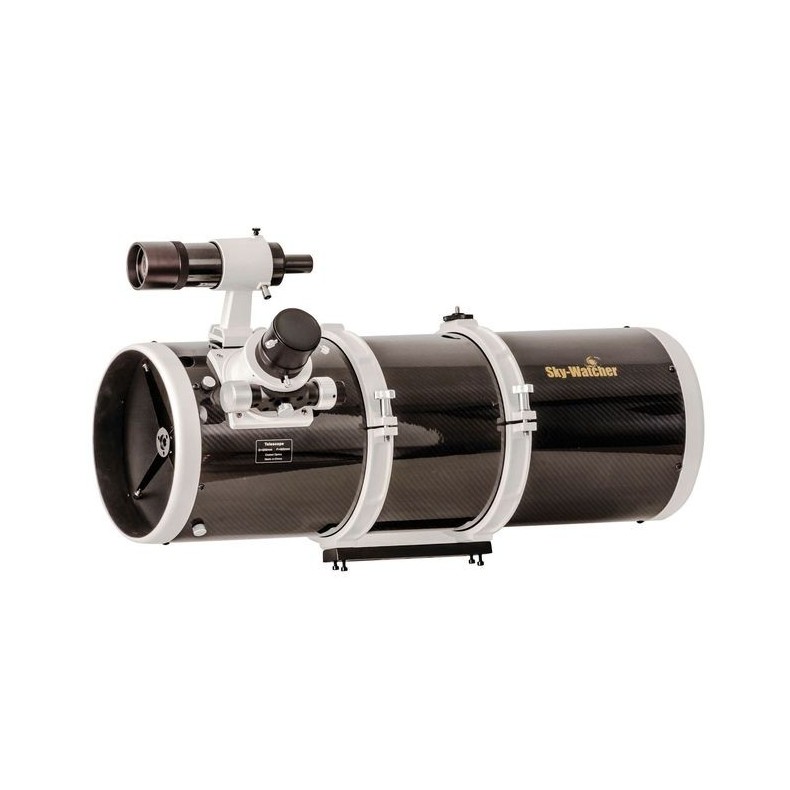

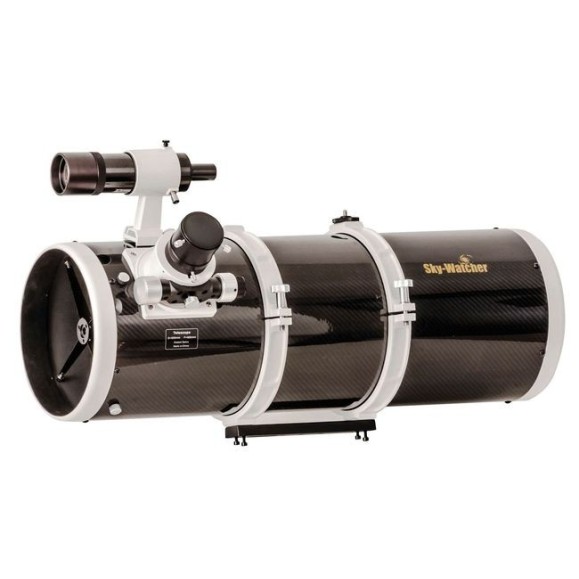

Technical Specifications tube:

• Optical Design: Newton reflector with parabolic mirrors.
• Diameter: 200mm
• Focal length: 800mm
• Focal ratio: F/4
• Maximum useful magnification: 410x
• Limit magnitude: 13.6
• Resolving power: 0.6 arc seconds
• Seeker: 9x50mm
• Eyepiece holder: 2" with 1.25" adapter
• Eyepieces: PL25 and LET35T
• Dimensions: 285x920mm
• Tube weight: 8 Kg.
• Weight of the box: 10,9Kg
• Box dimensions: 285mm x 920mm

SkyWatcher Black Diamond 200 800 DUAL SPEED SkyWatcher Reflector Telescope on AZEQ6 Pro Goto mount.
