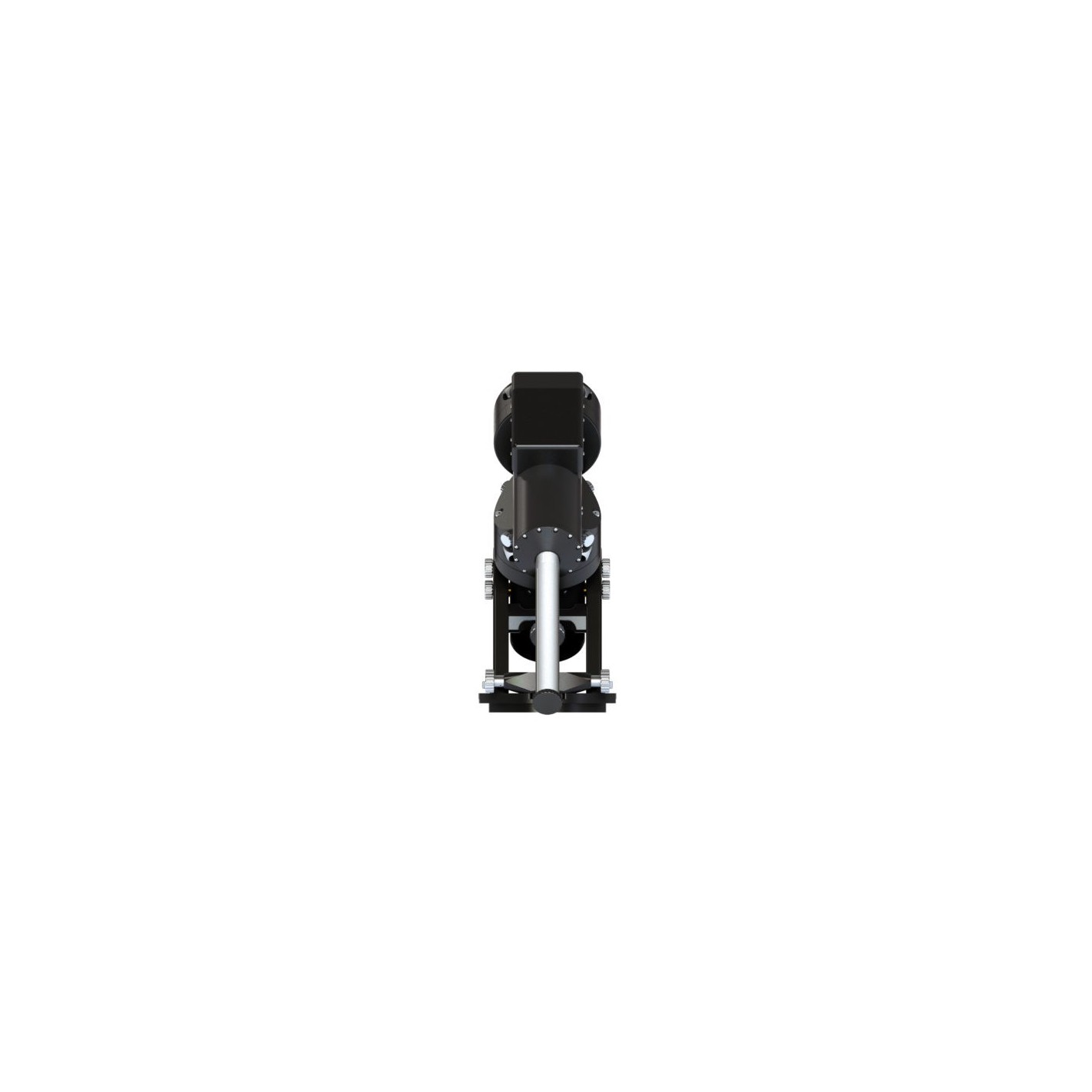

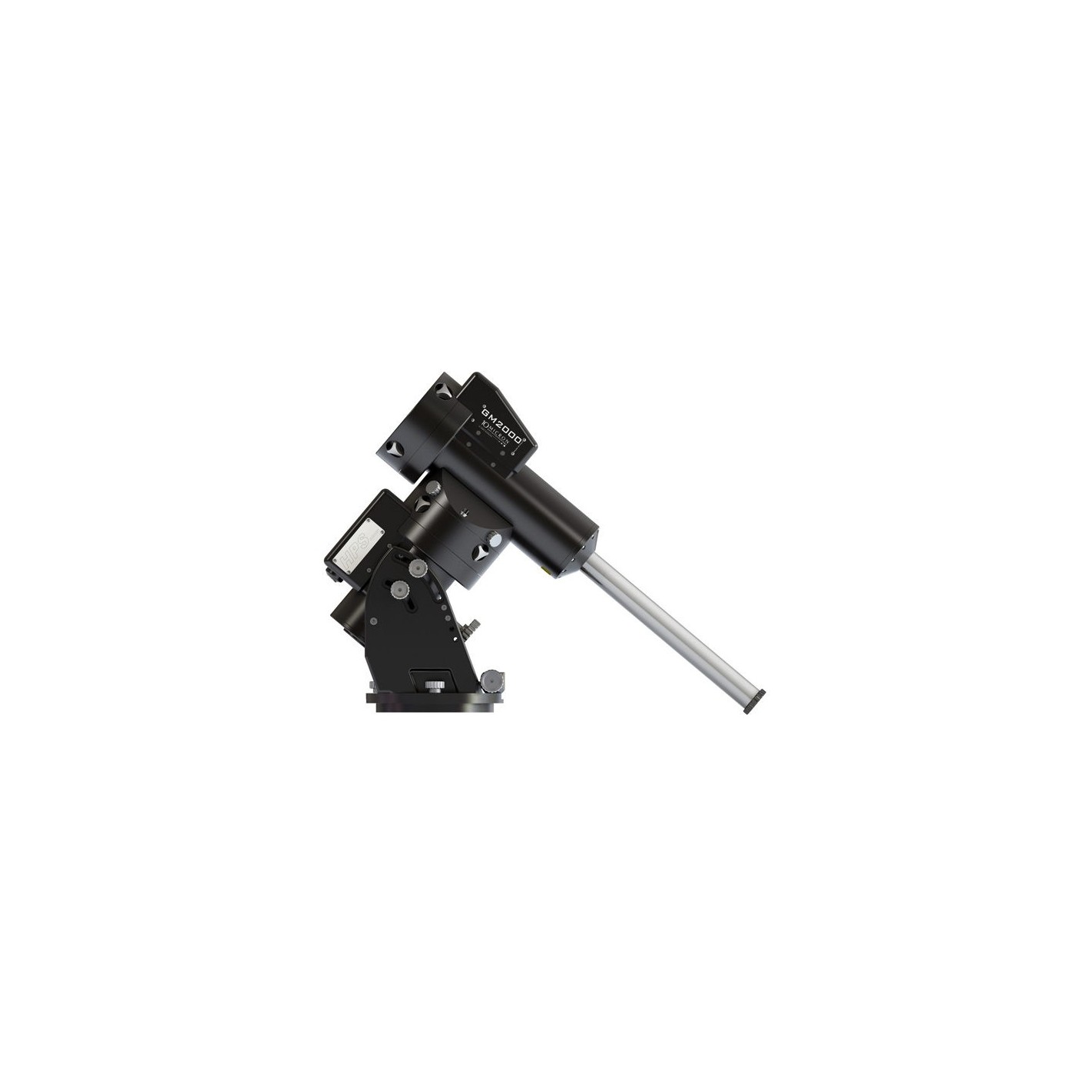

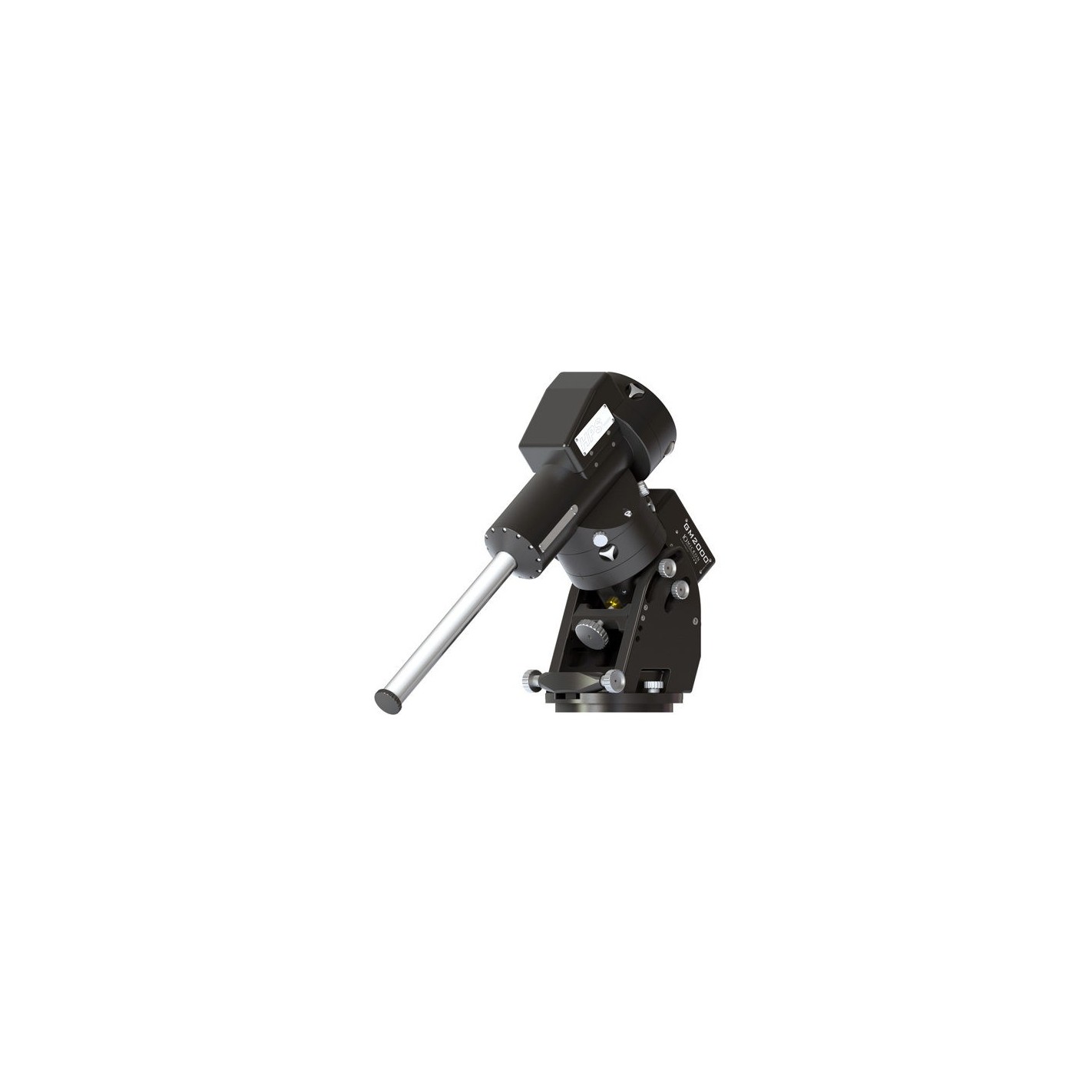

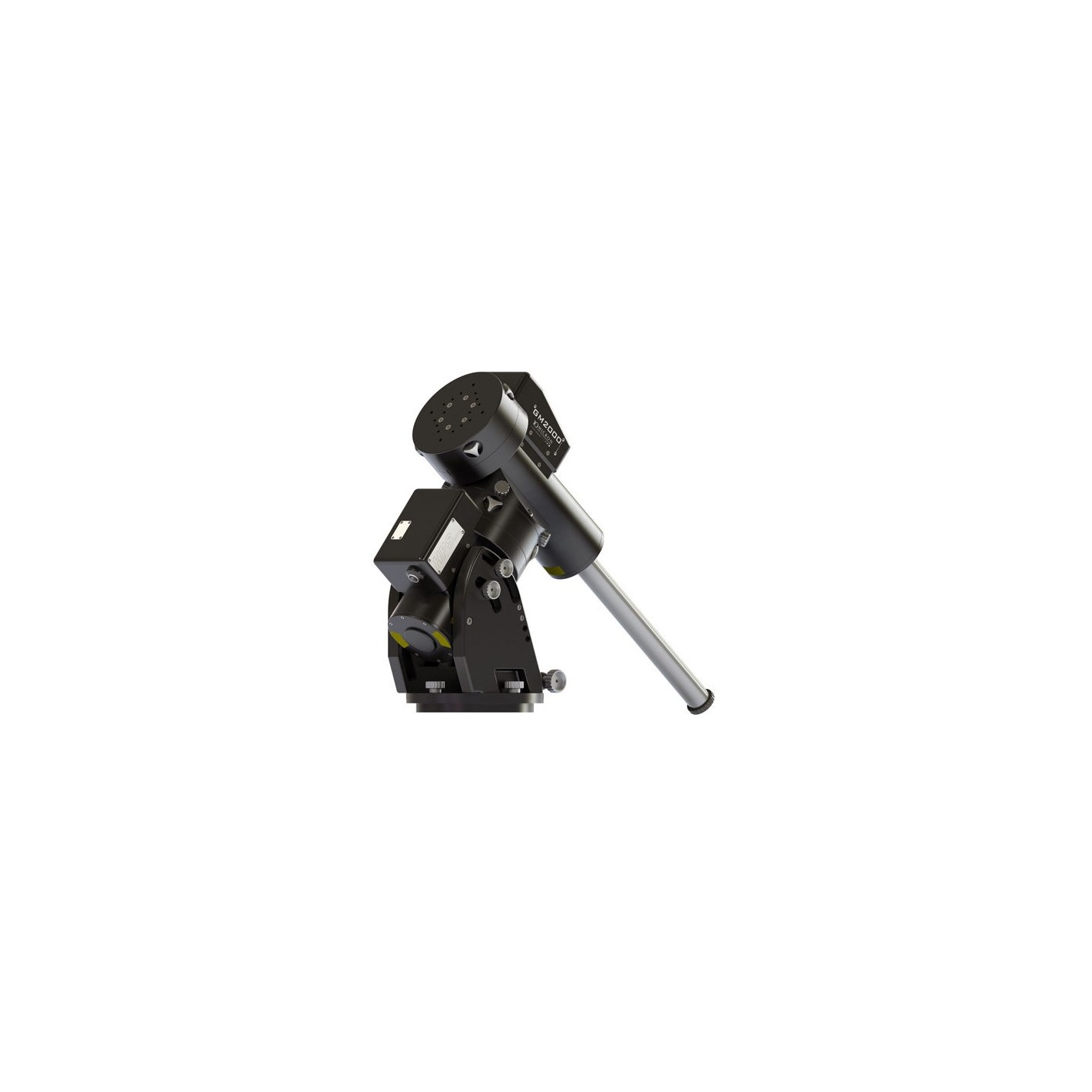

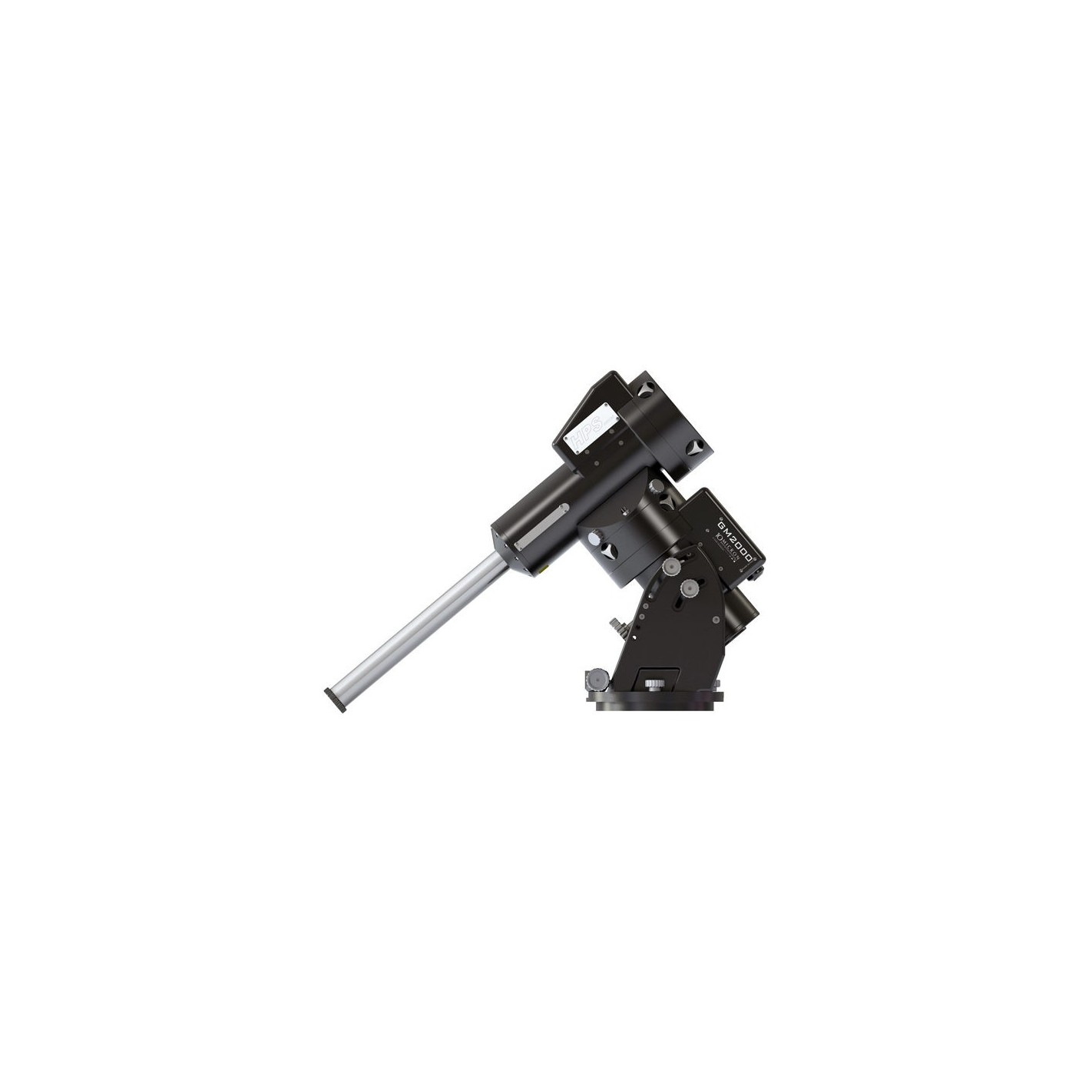

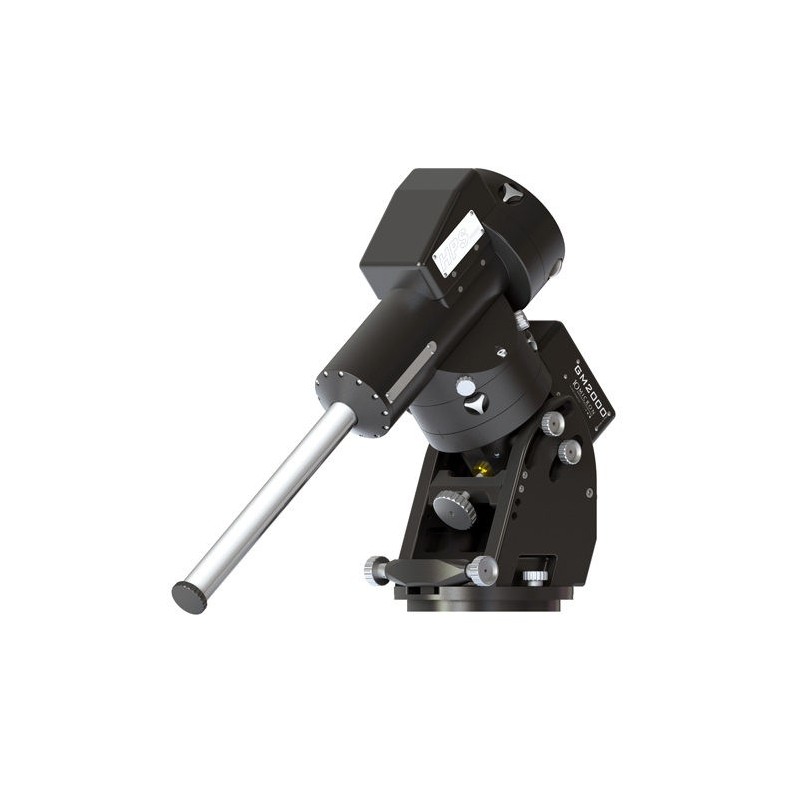

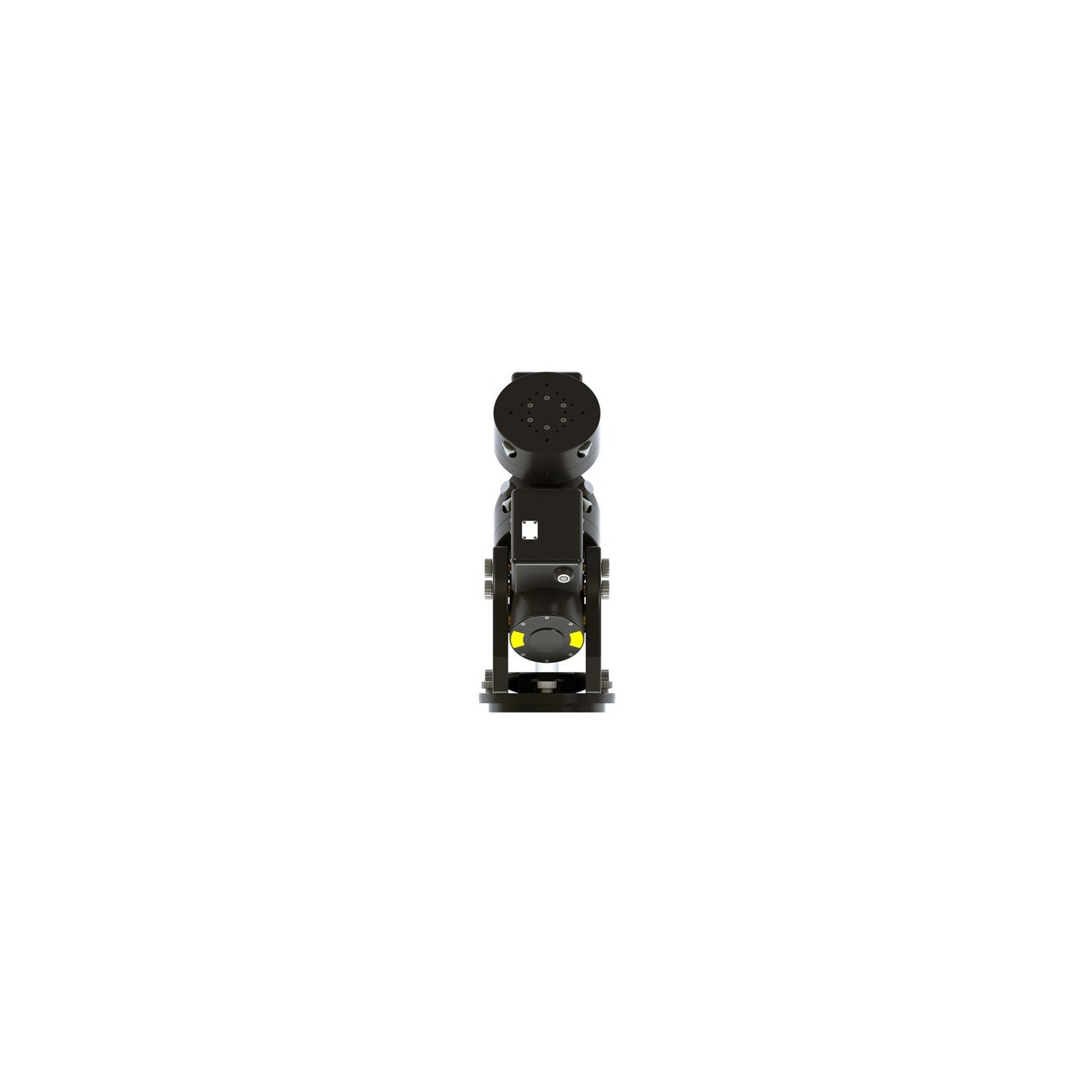

Mount 10Micron GM 2000 HPS II Combi

Mount 10Micron GM 2000 HPS II Combi

The 10MICRON HPS mounts are fast and among the most accurate mounts on the market but are smaller in size than their QCI predecessors and designed with portability in mind. The 10MICRON HPS mounts have an accuracy equivalent to that of direct drive mounts because they integrate a high precision encoder system in their axes.

The 10MICRON 2000 HPS II mount model has a highly engineered motion technology that provides extremely accurate tracking, with a guaranteed average error of

. The electronic control system of the HPS II mount is realized with the QCI system. 10Micron is one of the few mount manufacturers that allows its mounts an independent electronic system to replace the computer or laptop:

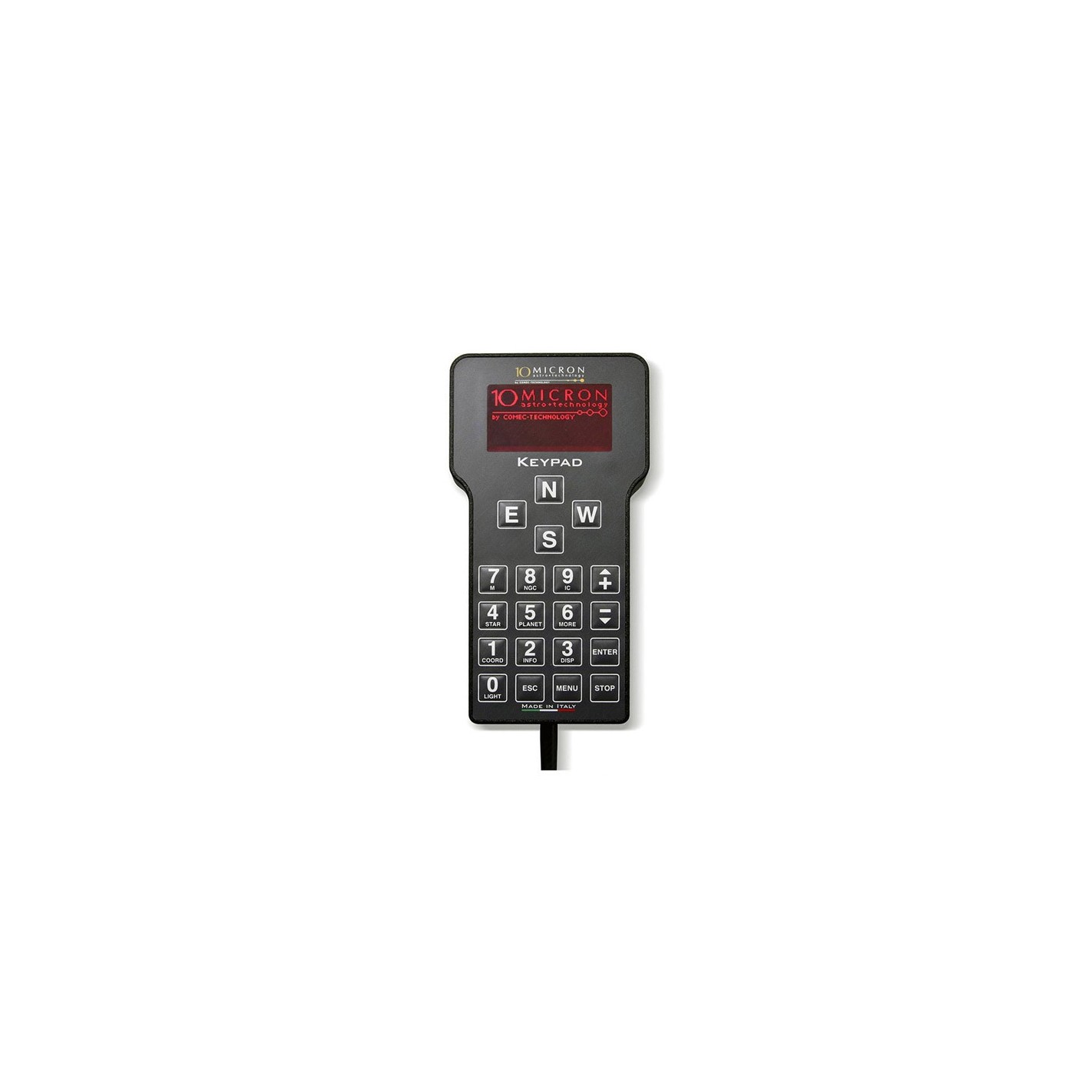

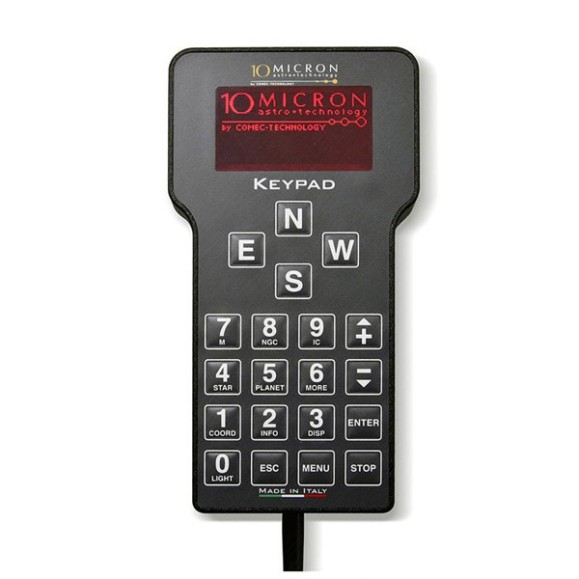

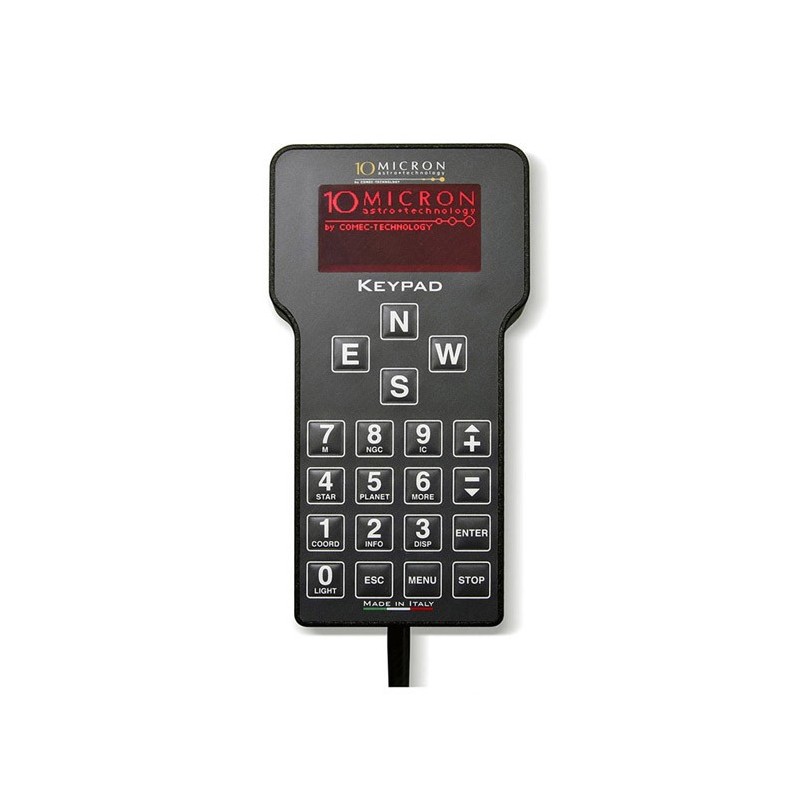

- Carries control with AMD Microprocessors through a Linux firmware, offering a very large hand controller functionality. It includes a sky modeling functionality as an extreme positioning accuracy function, with a final accuracy of a few arcseconds. It also allows locating comet positions and satellite orbits, to calculate and track - without the need for a computer.

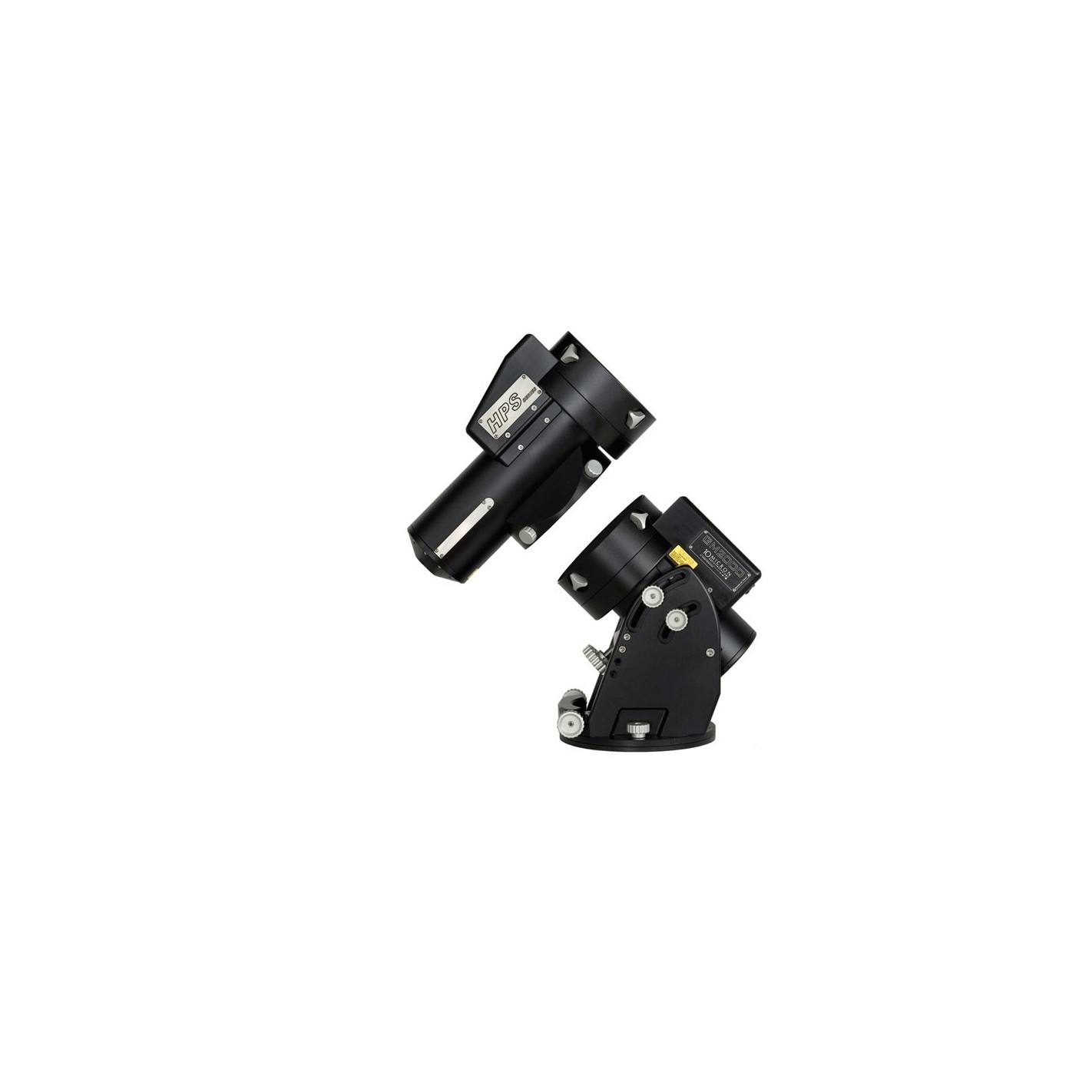

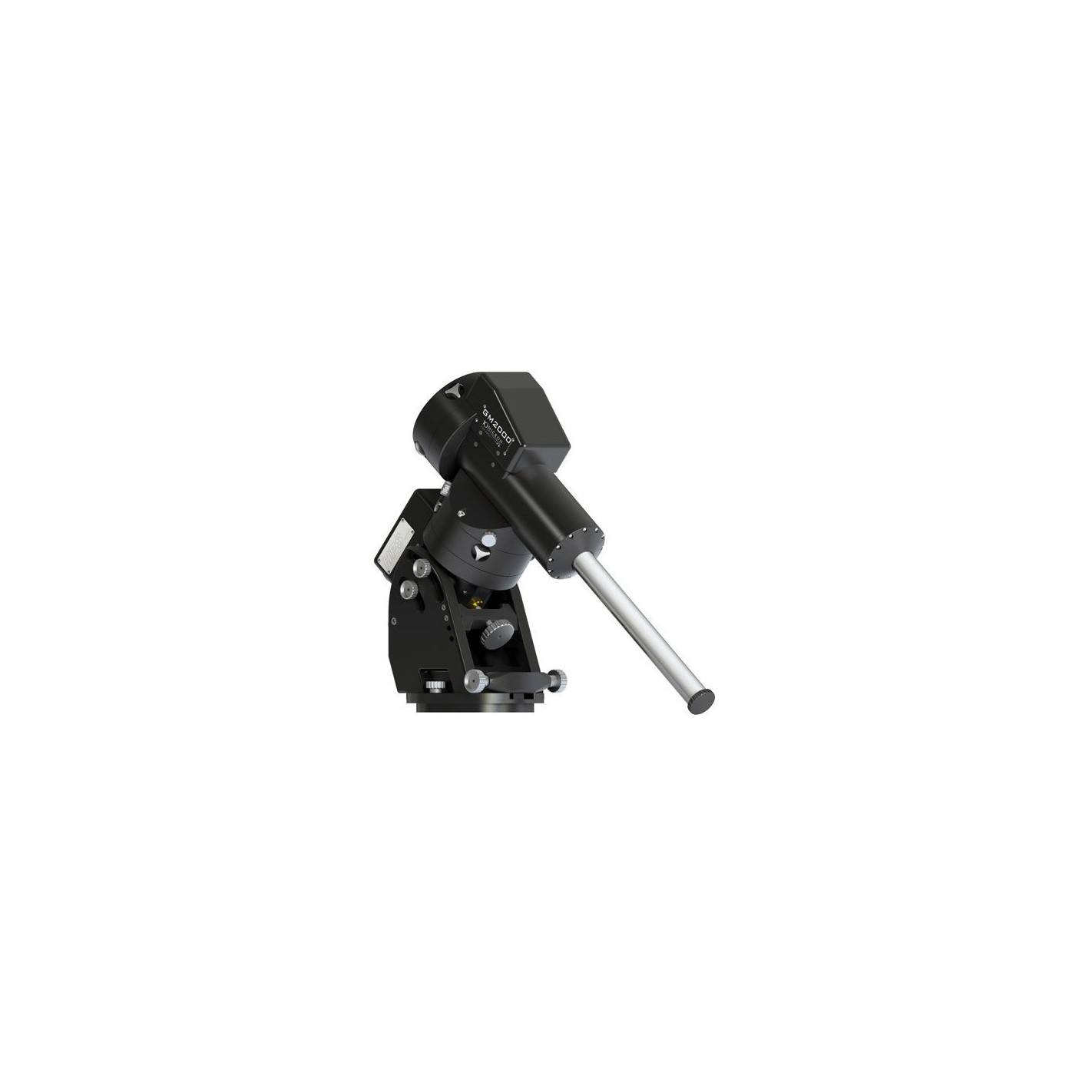

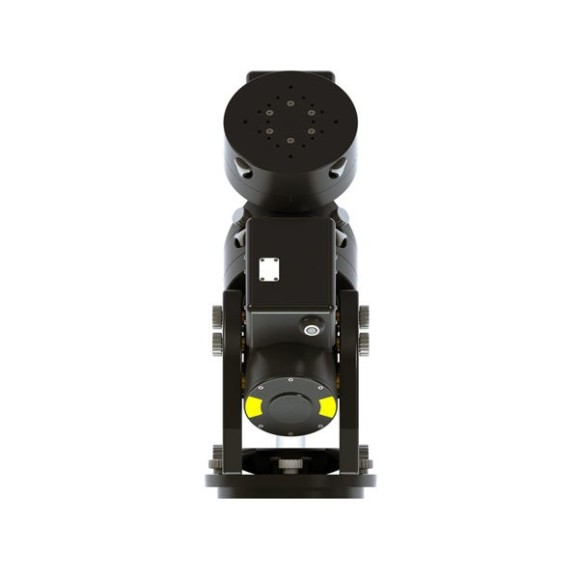

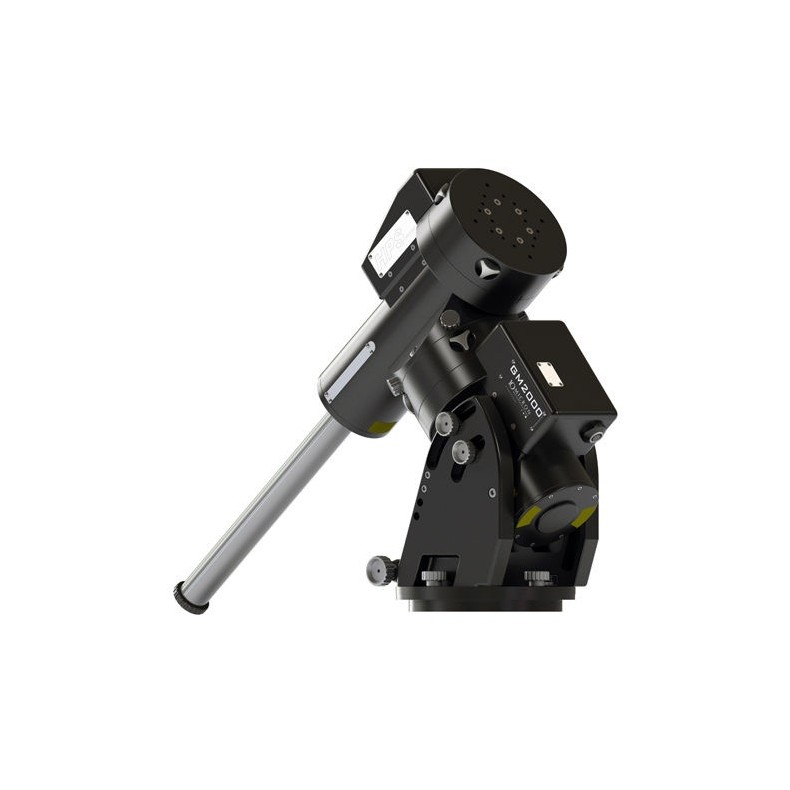

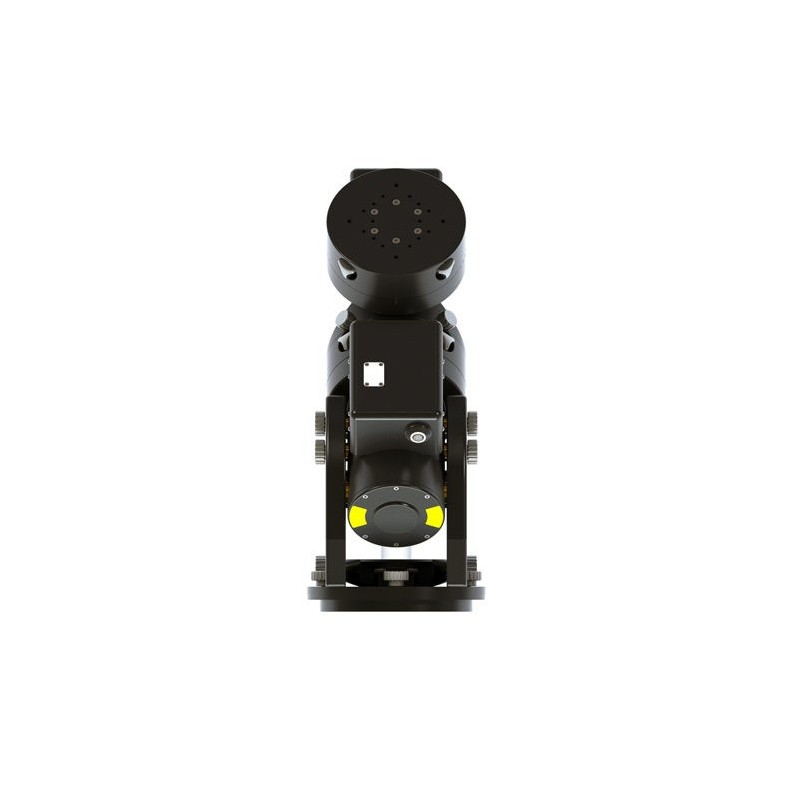

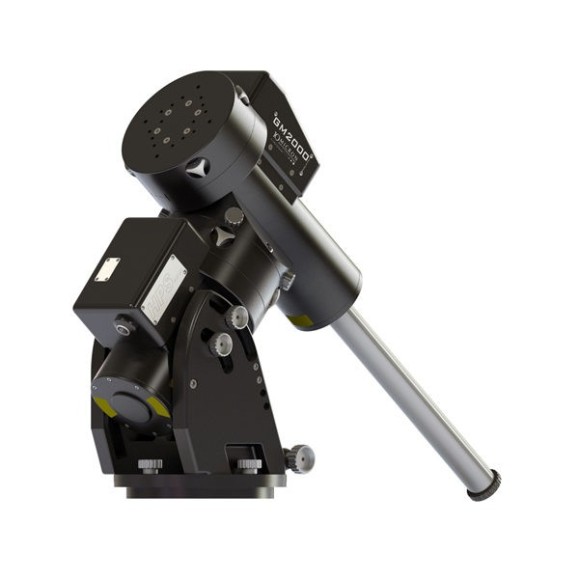

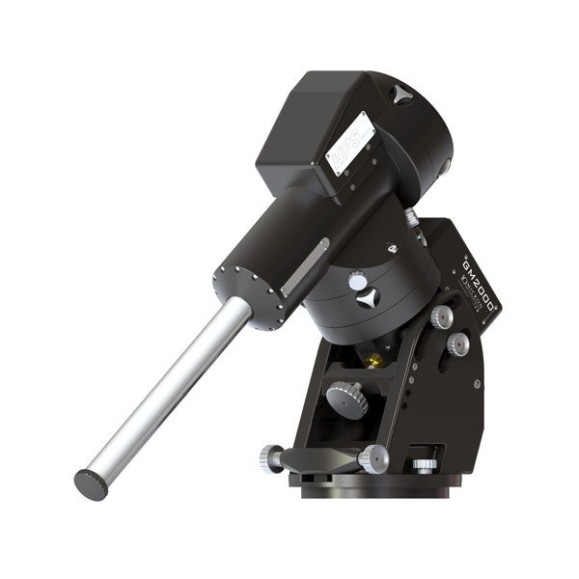

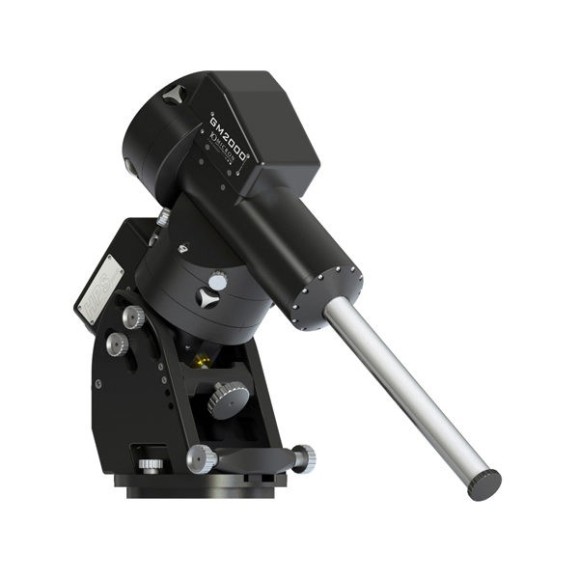

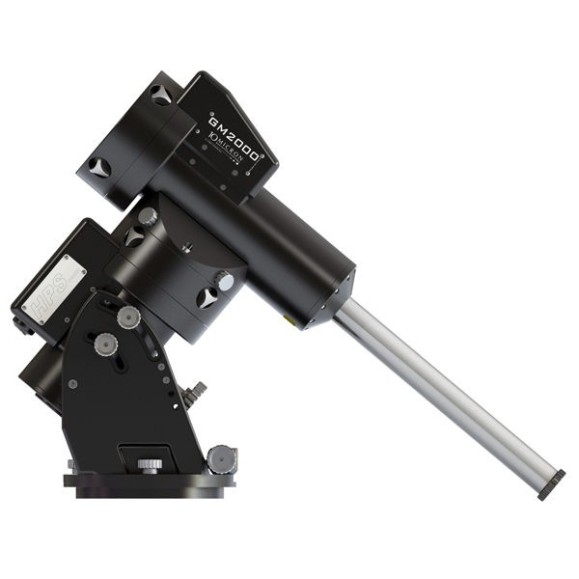

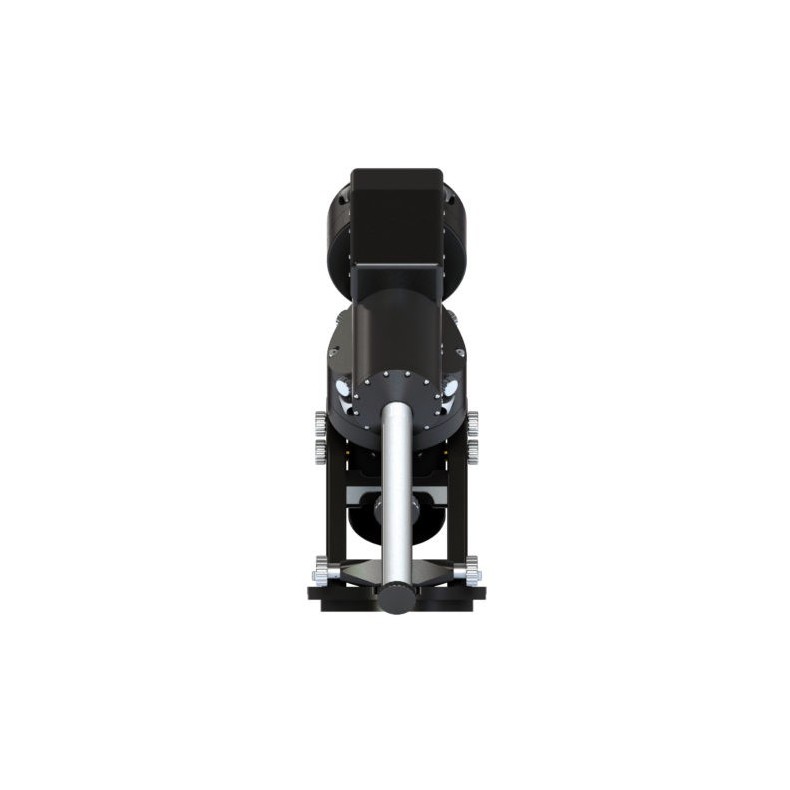

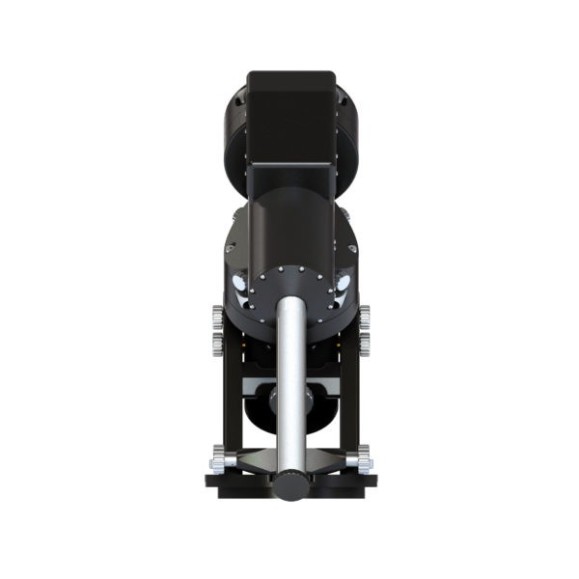

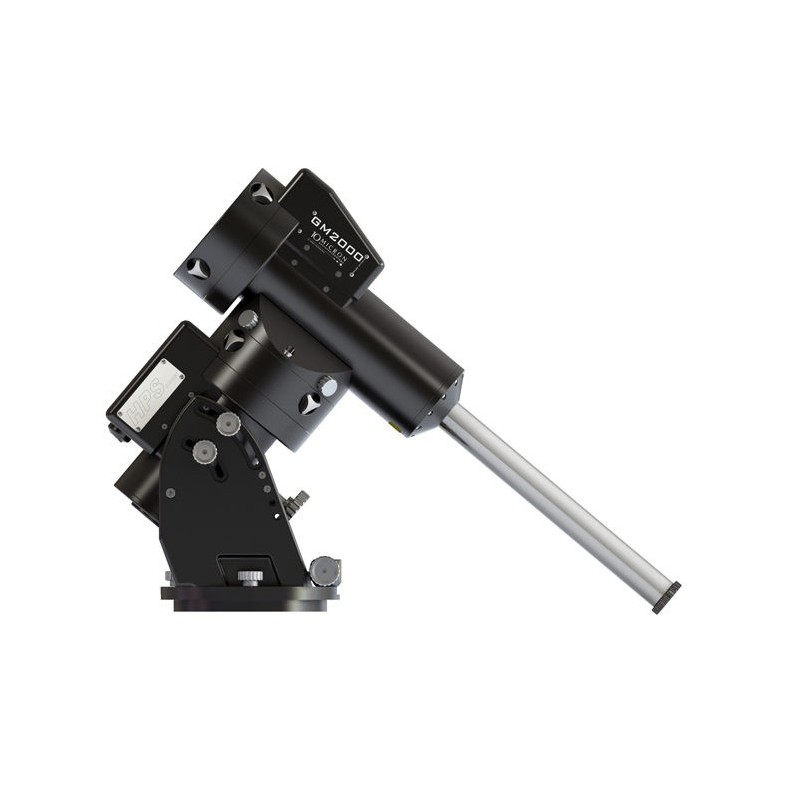

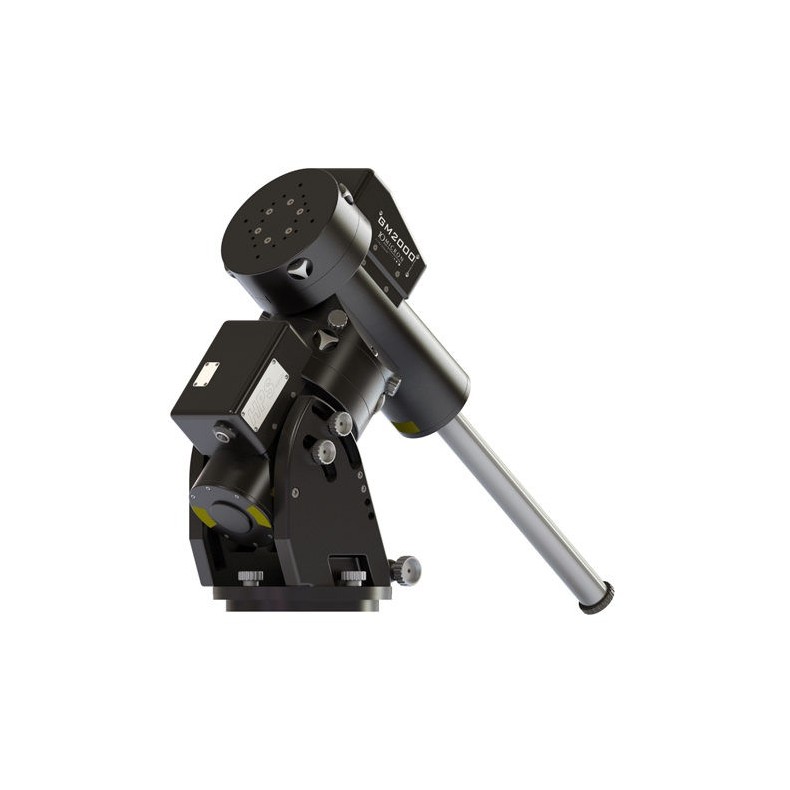

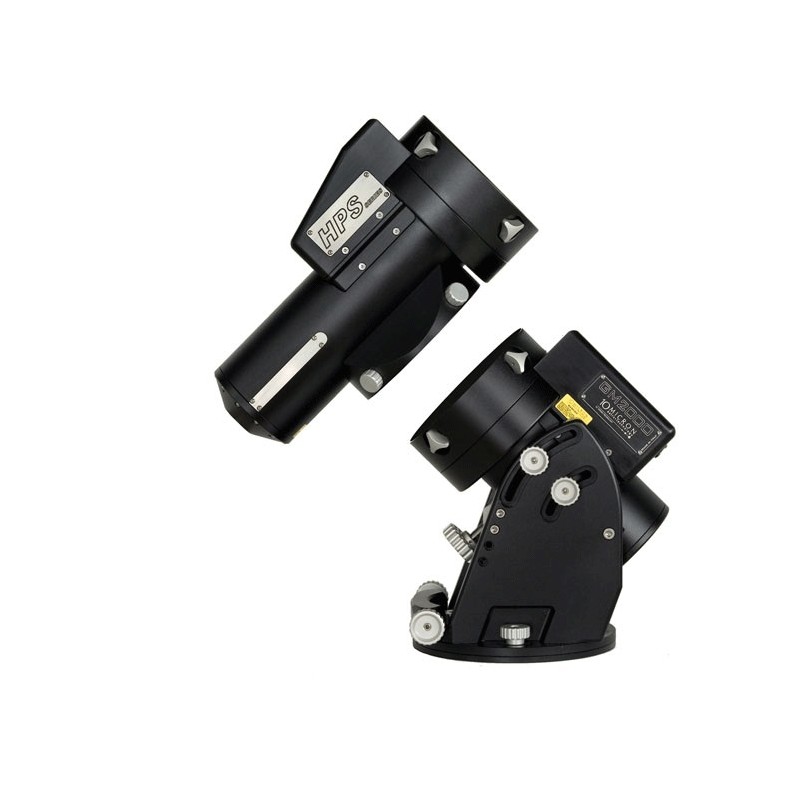

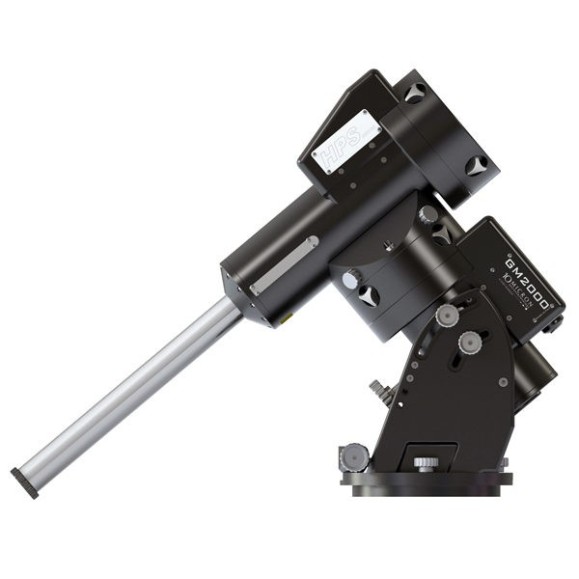

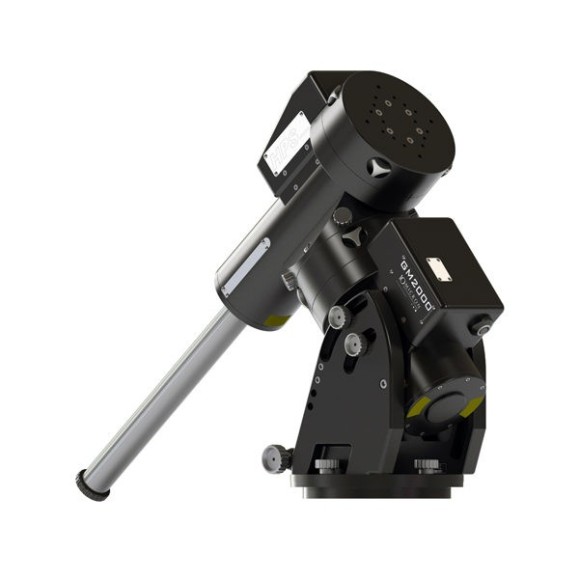

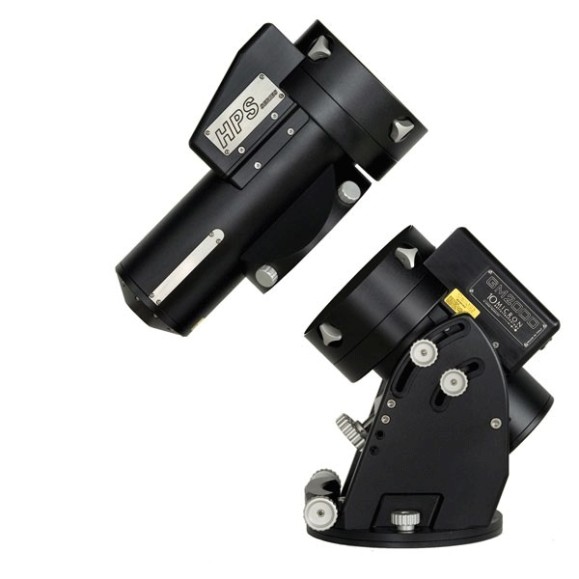

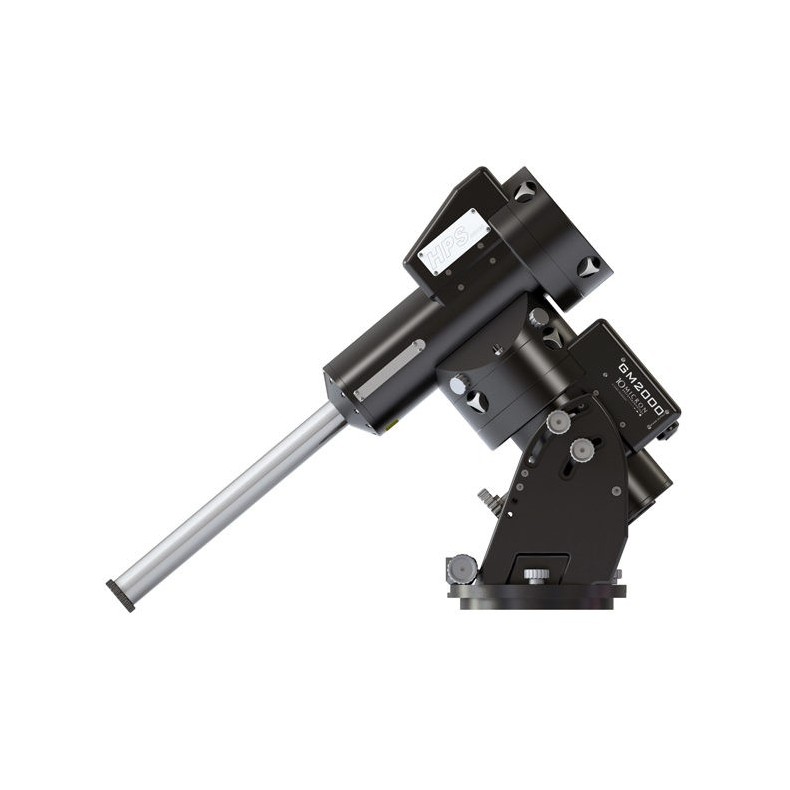

The German 10MICRON GM2000 HPS II equatorial mount has TWO REMOVABLE AXES so it is designed to be easily assembled and disassembled allowing easy transport to the observation site.

The counterweights, clamps and dovetail are not included as standard but can be purchased as an option depending on the final configuration.In Telescopiomania we can advise you on what is needed.

Technical features:

• Motors: Brushless servomotors on both axes.
• Backlash-free belt drive system
• Height adjustable in AR: 22° - 66°
• GPS: Optional GPS module available

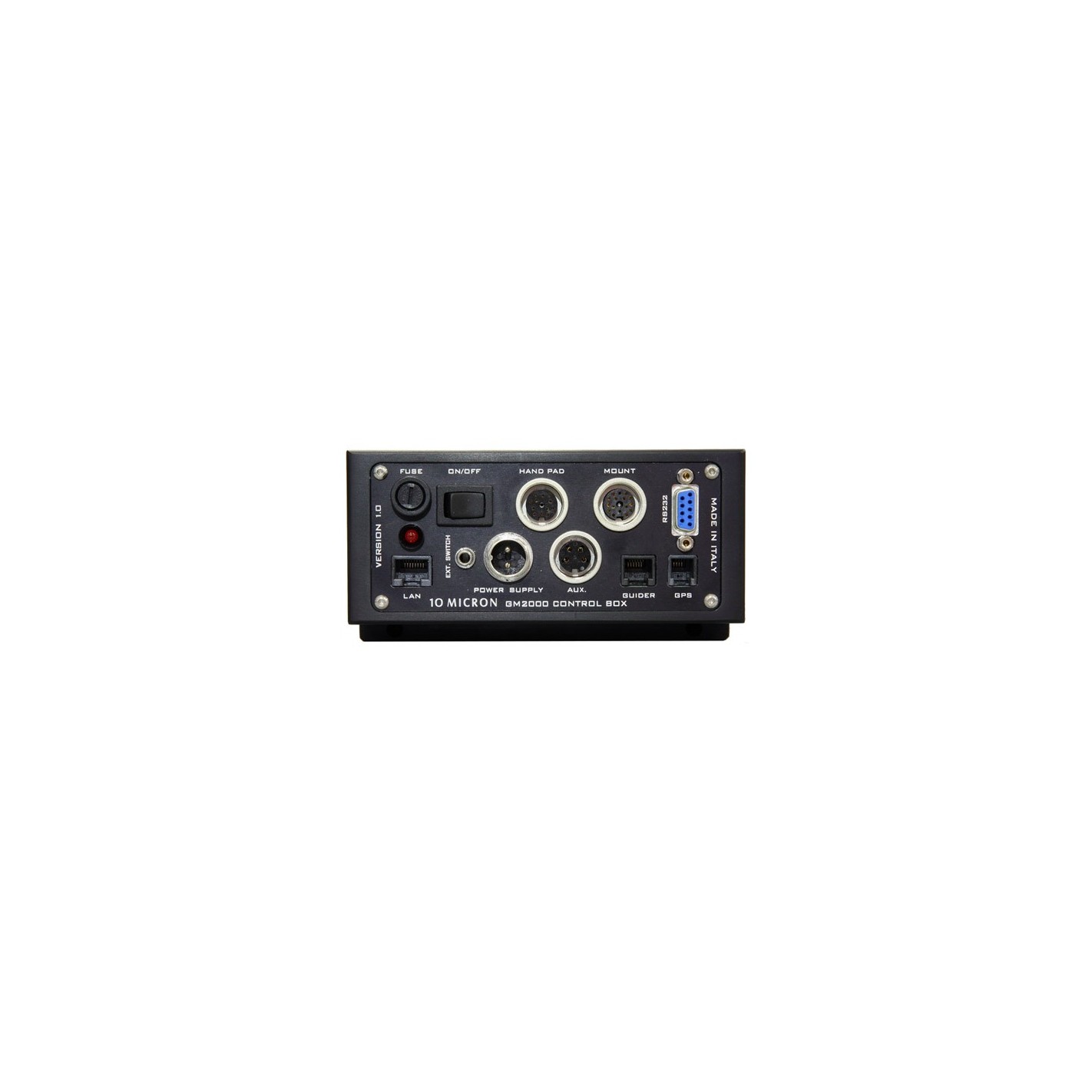

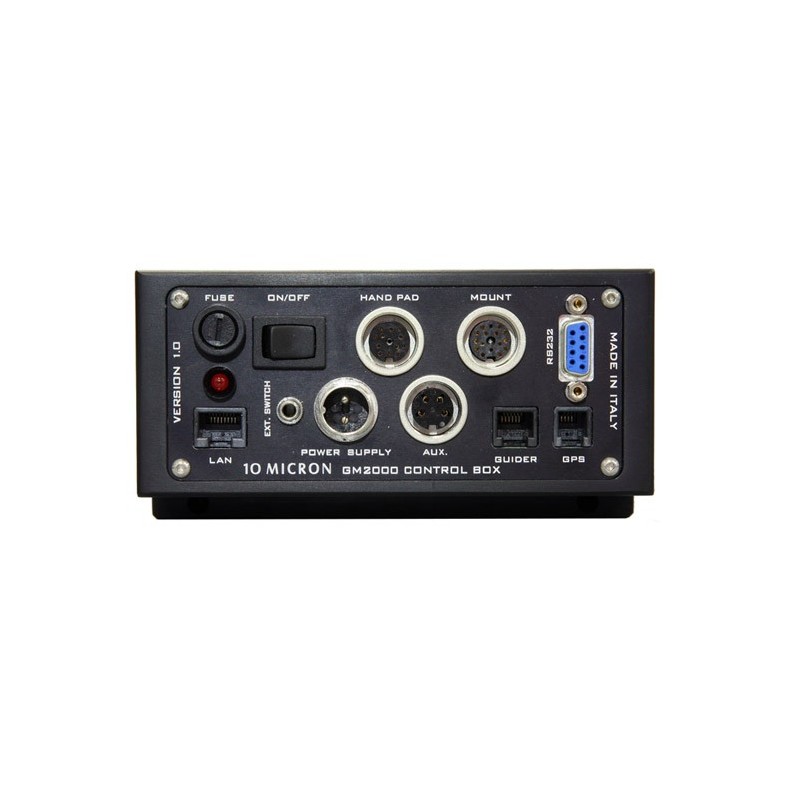

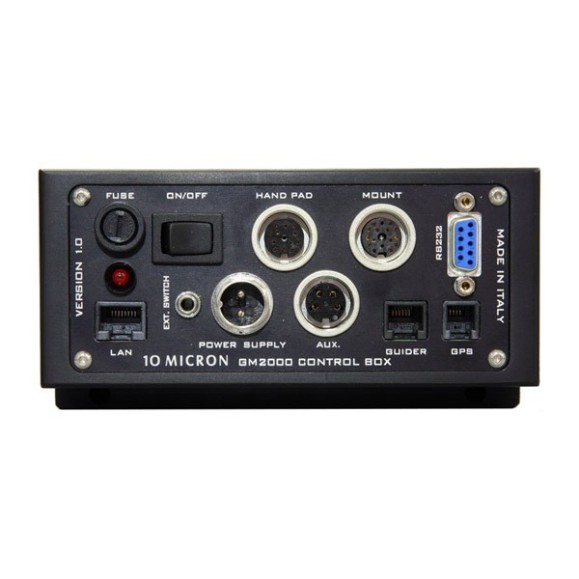

• Connection to computer available via RS232, Ethernet 10/100/1000 ports
• Guidance port type ST4

Technical specifications:

• Maximum load capacity: 50 kg
• Total weight: 33 kg (without counterweights)

• Counterweight bar: Diameter 40 mm, 4 kg
• Counterweights: 6 kg and 12 kg available
• Accuracy: + / - 1" (PEC is possible)
• Absolute encoders on both axes, allowing better pointing and tracking accuracy than the QCI model without encoders.
• The encoder system allows manual movement of the mount without loss of position.
• Shafts: Ø 50 mm, steel
• Helical gears: aluminum base, bronze crown B14 and 215 teeth, diameter 172 mm
• Bevel gears: Ø 24 mm steel,
• Guiding speed: 0.5 x (fixed)
• Maximum speed: up to 20° / sec adjustable. Allows tracking of satellites.
• Optional Tripod: Centaur steel (25 kg) or carbon (about 16 kg), 100 kg load
• Power supply: 24 V / max. 1.7A (0.6 A in sidereal tracking)
• Carrying case: optional
