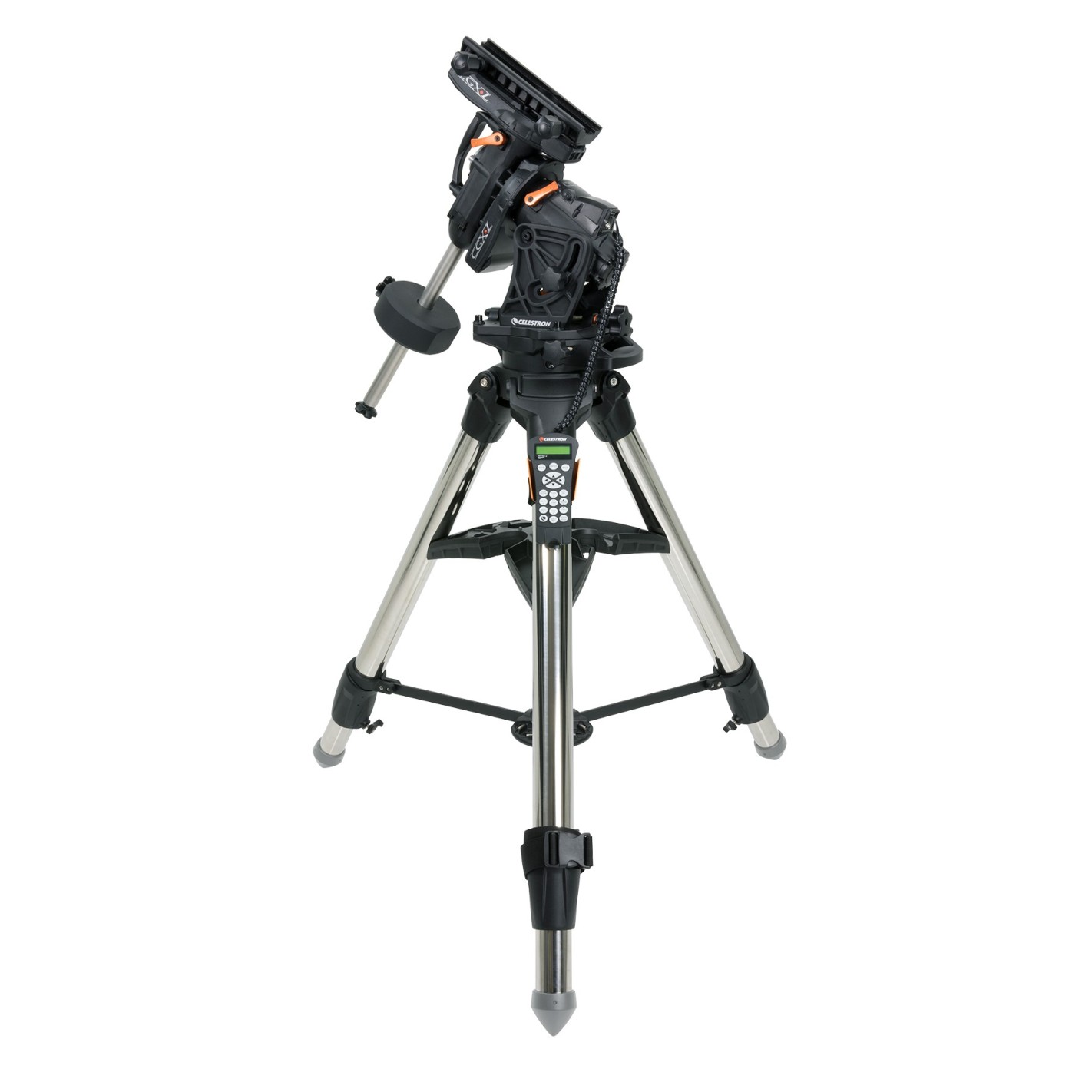

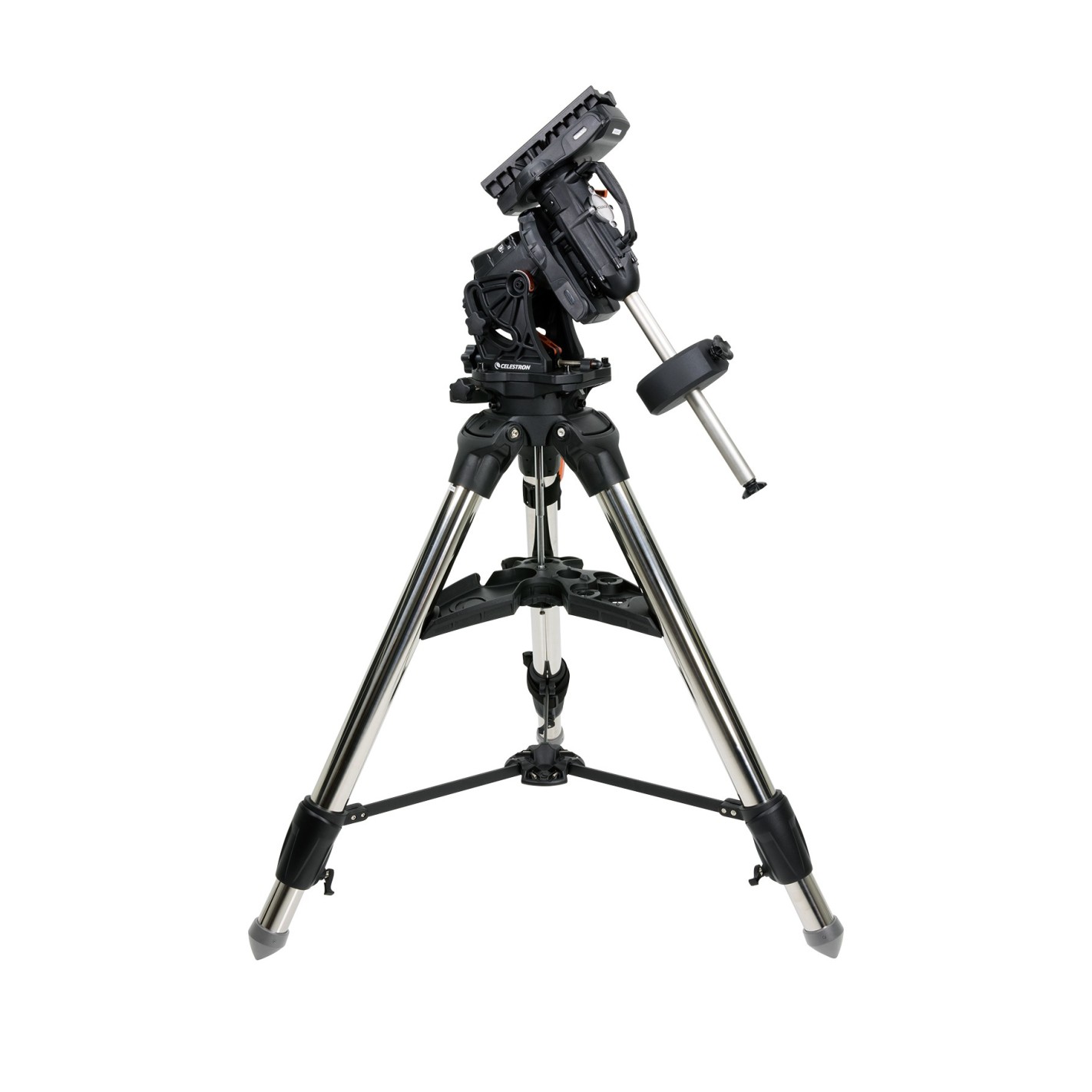

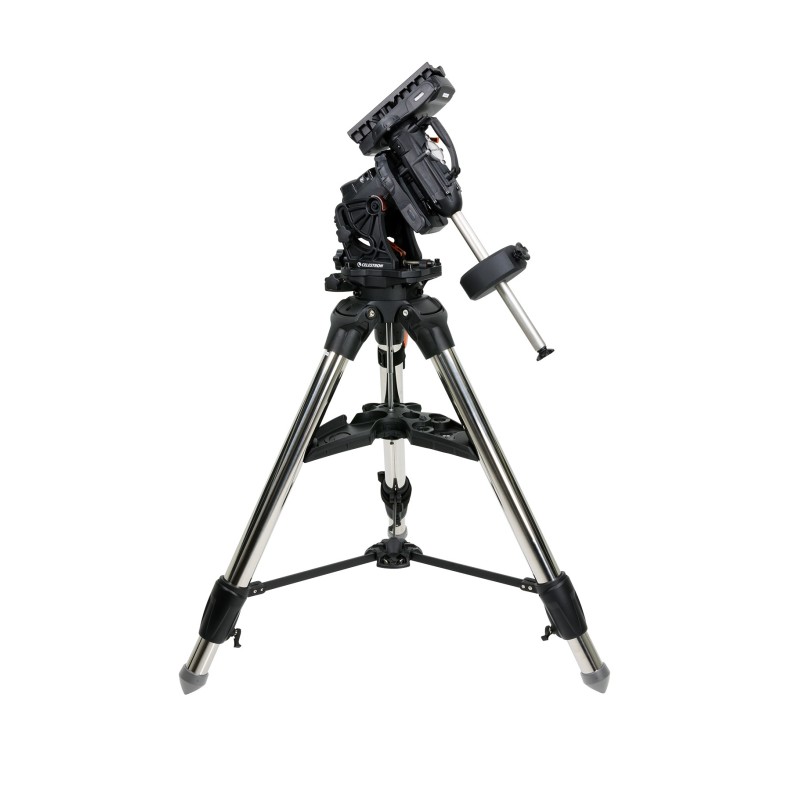

Equatorial mount Celestron CGX-L 91531.
Celestron introduces the newly designed CGX-L equatorial mount, the latest addition to its series of fully computerized equatorial mounts.
Capable of supporting the largest optical tubes from Celestron with ease, the CGX-L is designed for demanding users who want maximum precision from transportable equipment and who are looking for an exceptional load capacity versus mount weight ratio. All of this is achieved through its new, highly compact design with innovative features that support large telescopes, astrophotographic configurations and the latest in wireless technology.
The primary goals of the designers at Celestron included larger, 144 mm diameter gears that provide smoother operation and can more accurately move heavier loads. The mount incorporates a dovetail base of more than 270 mm to support larger optical tubes, precision remote operation features such as "home" position and motion limits triggered by optical sensors, and better overall cable management to prevent interlocking. In addition to all this, mechanical and ergonomic improvements have been introduced in the CGX-L mount offered by Telescopiomania to make this fantastic equipment more robust, easier to use and easier to transport.
Its outstanding features are:
-
-
-
-
- Increased load capacity of 34 kg. Exceptional weight/load ratio
- Additional auxiliary port and autoguide port on Dec axle for better cable management
- Large 144 mm diameter gears for more precise shifting of heavier loads
- 270 mm dovetail socket to better support larger optical tubes
- Massive 70 mm stainless steel tripod legs with more open position for improved stability under heavy loads

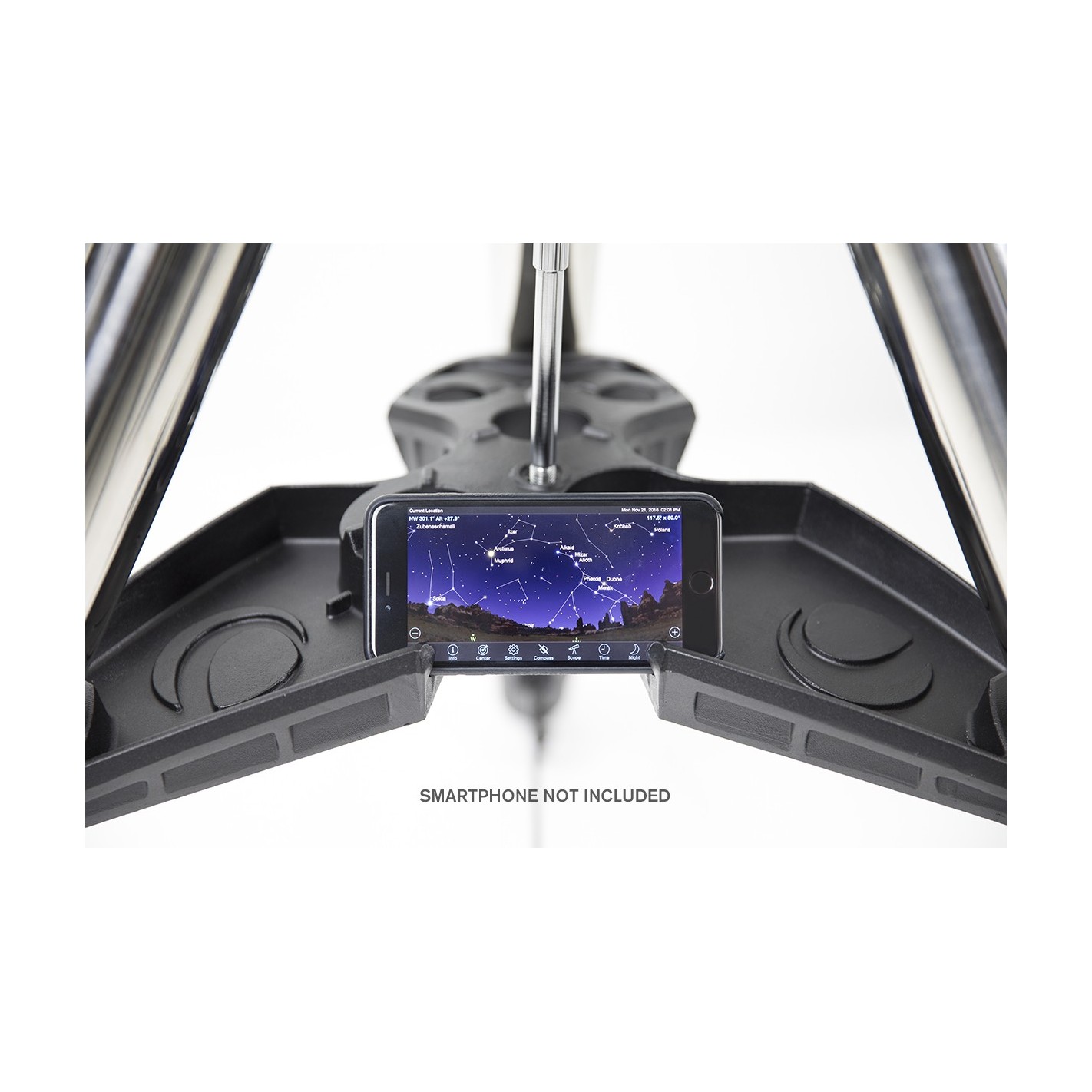

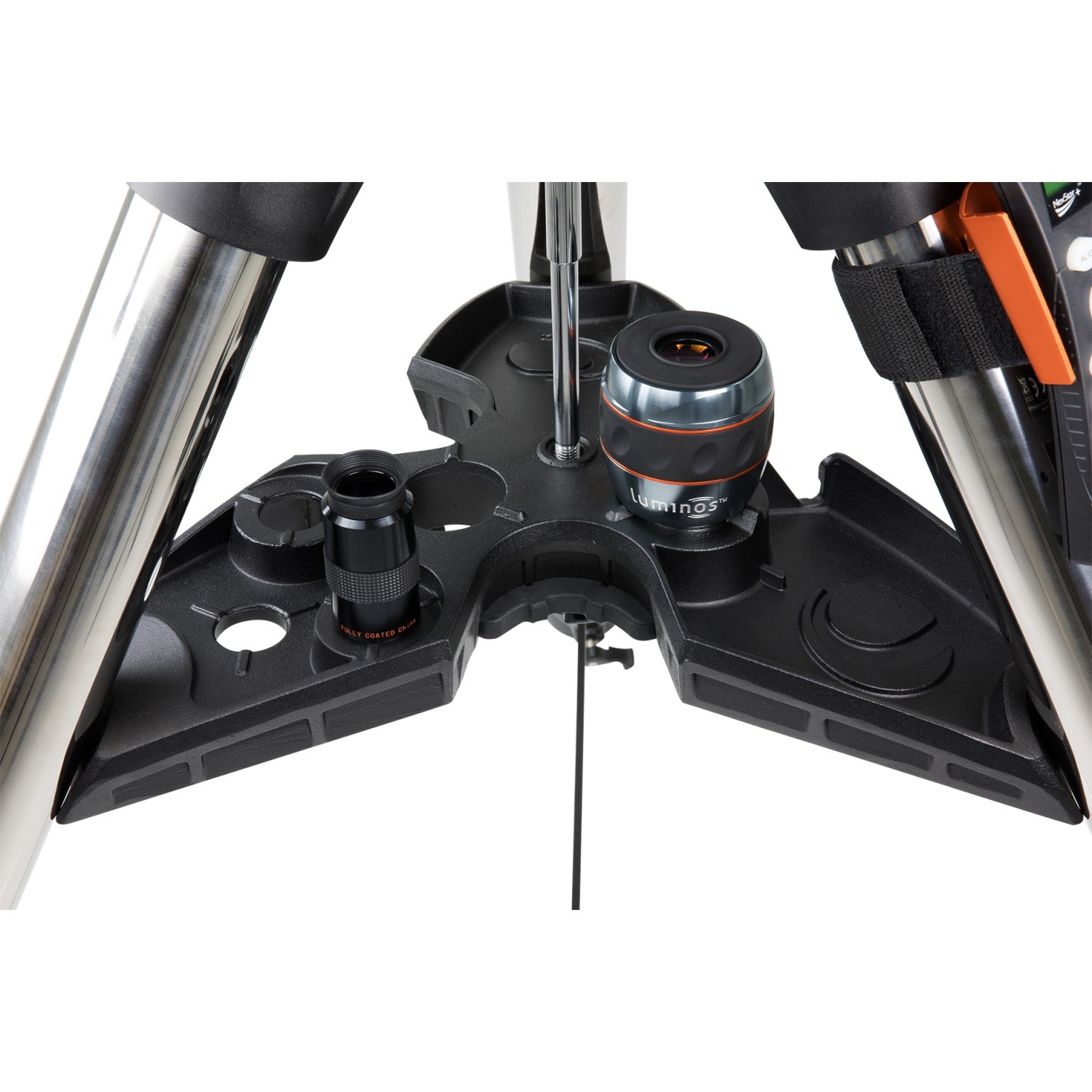

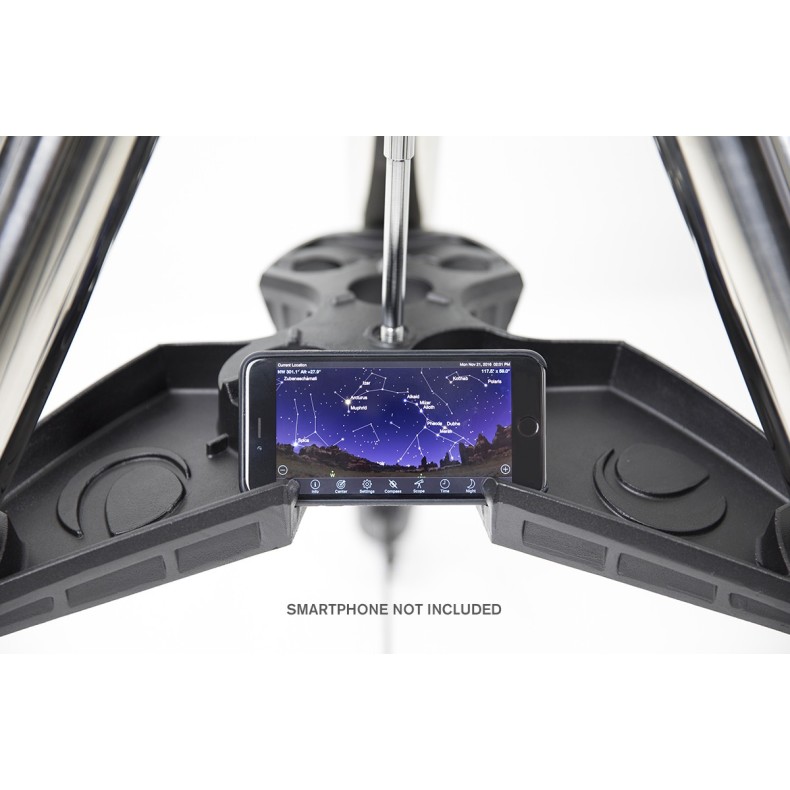

- New accessory tray can accommodate three 1.25" and two 2" eyepieces, also with vertical mount for your smartphone or tablet
- Heavy-duty 31.5 mm stainless steel counterweight shaft to support additional counterweights
- Optional polar finder module designed for CGX and CGX-L

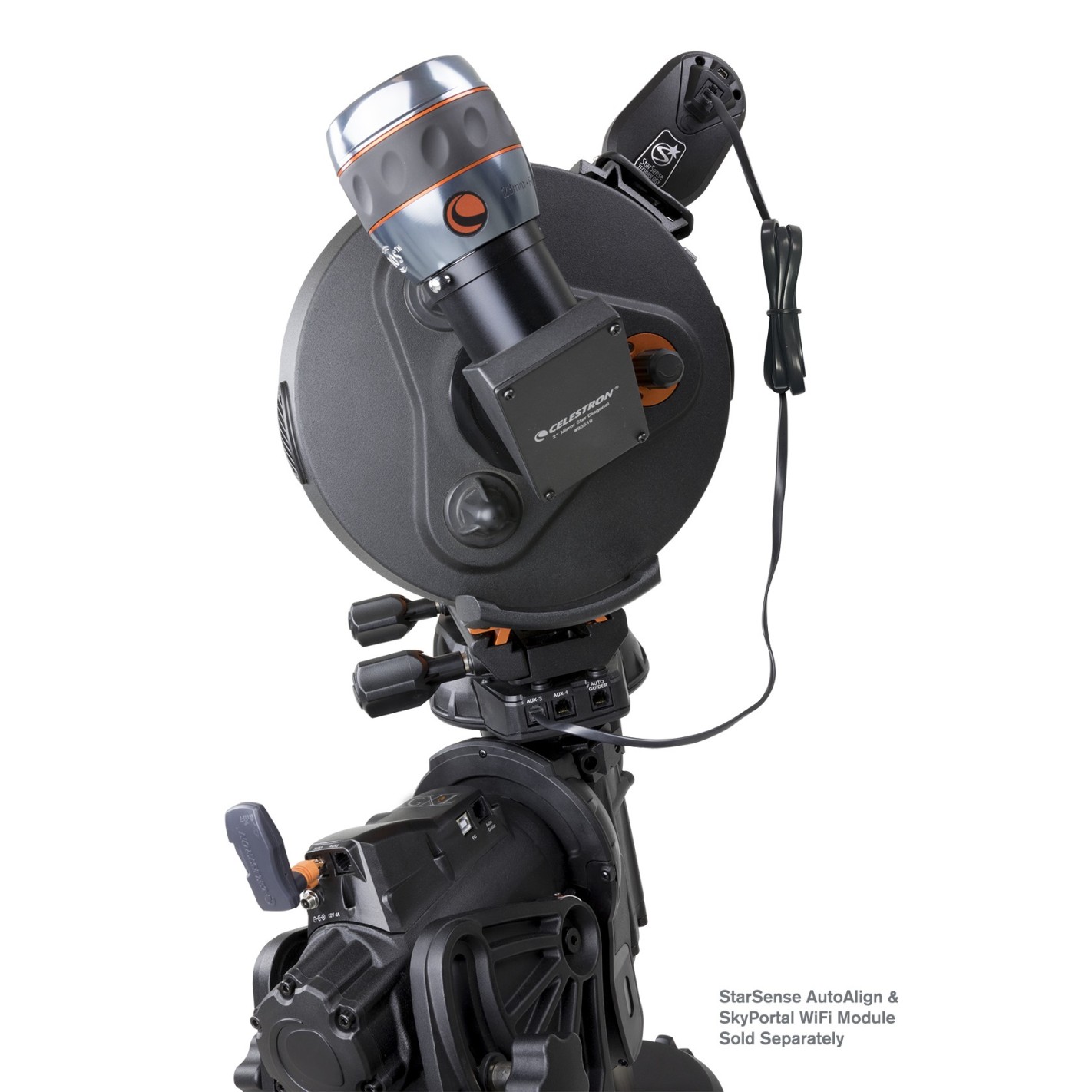

- Compatibility with optional wireless operating accessories, such as StarSense AutoAlign and SkyPortal WiFi (sold separately)
- Compact, low-profile equatorial head provides greater stability and portability. Stronger and stiffer with faster damping time
- Improved motors provide more torque, better handling and tracking under heavy loads
- Belt drive system minimizes backlash while providing smooth motor operation at full capacity
- Windows built into motor covers can be easily removed so pulleys and belts can be monitored
- Internal wiring for worry-free remote operation. Power inlet and lower accessory ports remain stationary while the bracket moves to prevent unwanted interlocking and snagging
- Internal stops for both axes prevent strain on cabling
- Internal optical sensors on both axes for simple and safe remote operation
- Home position sensor allows the mount to always start at the indicated position regardless of orientation prior to a reconnection of the mount power supply
- Includes the new PWI telescope control software from Celestron, co-developed by PlaneWave Instruments. The software features multi-point mount modeling for outstanding pointing accuracy
- The "All-Star Polar Alignment" alignment software enables fast and highly accurate polar alignment. Aligns on any bright star without extra polar alignment accessories, applications or other assistance
- Adjustable equatorial head position to optimize the center of gravity on the tripod and take full advantage of the latitude range from 3° to 65°

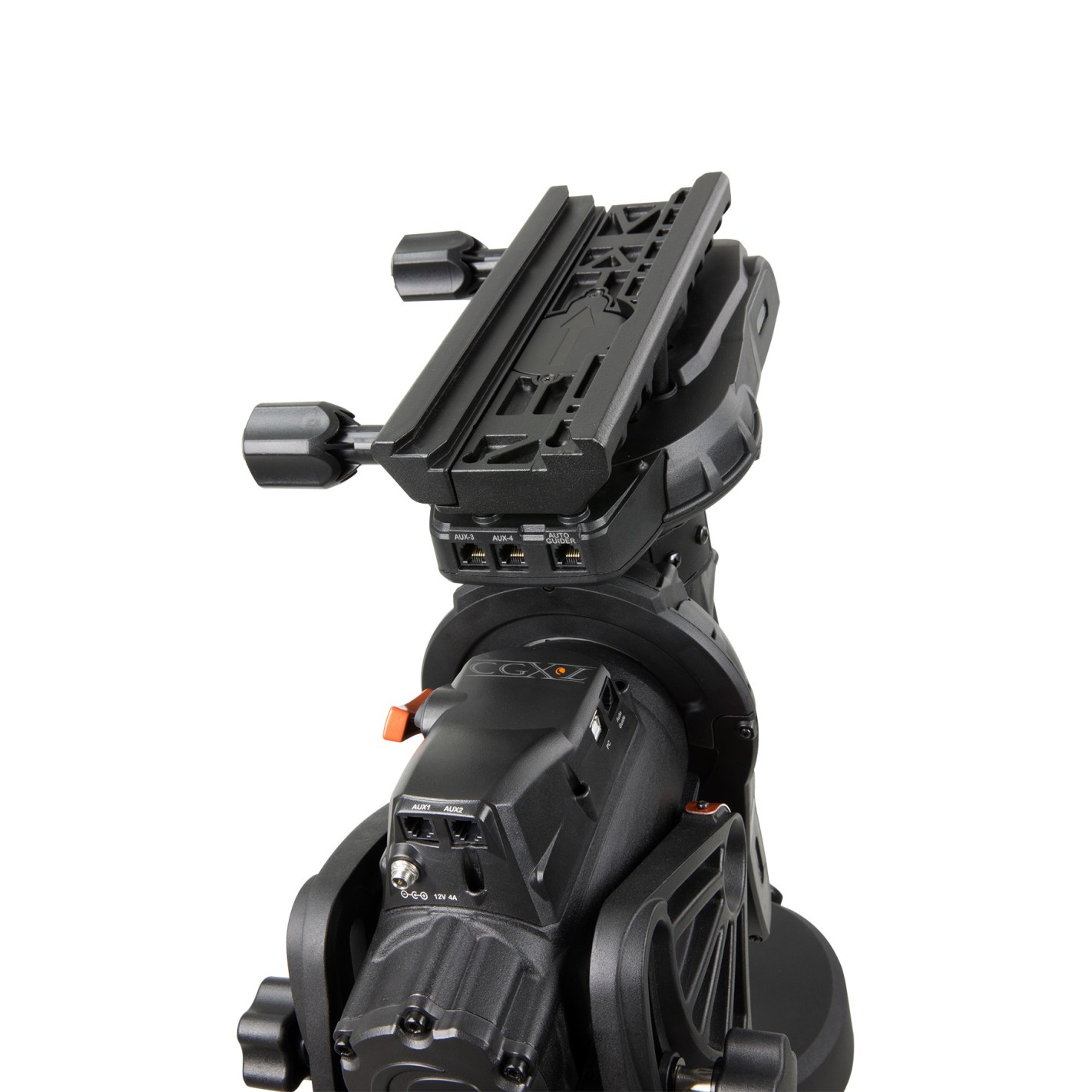

- Dual dovetail socket Vixen / CG-5 and Losmandy / CGE
- Over 20º of additional tracking beyond the meridian on both sides
- The redesigned tripod has a wider span for greater stability. Minimum tripod height has also been reduced for increased observing comfort

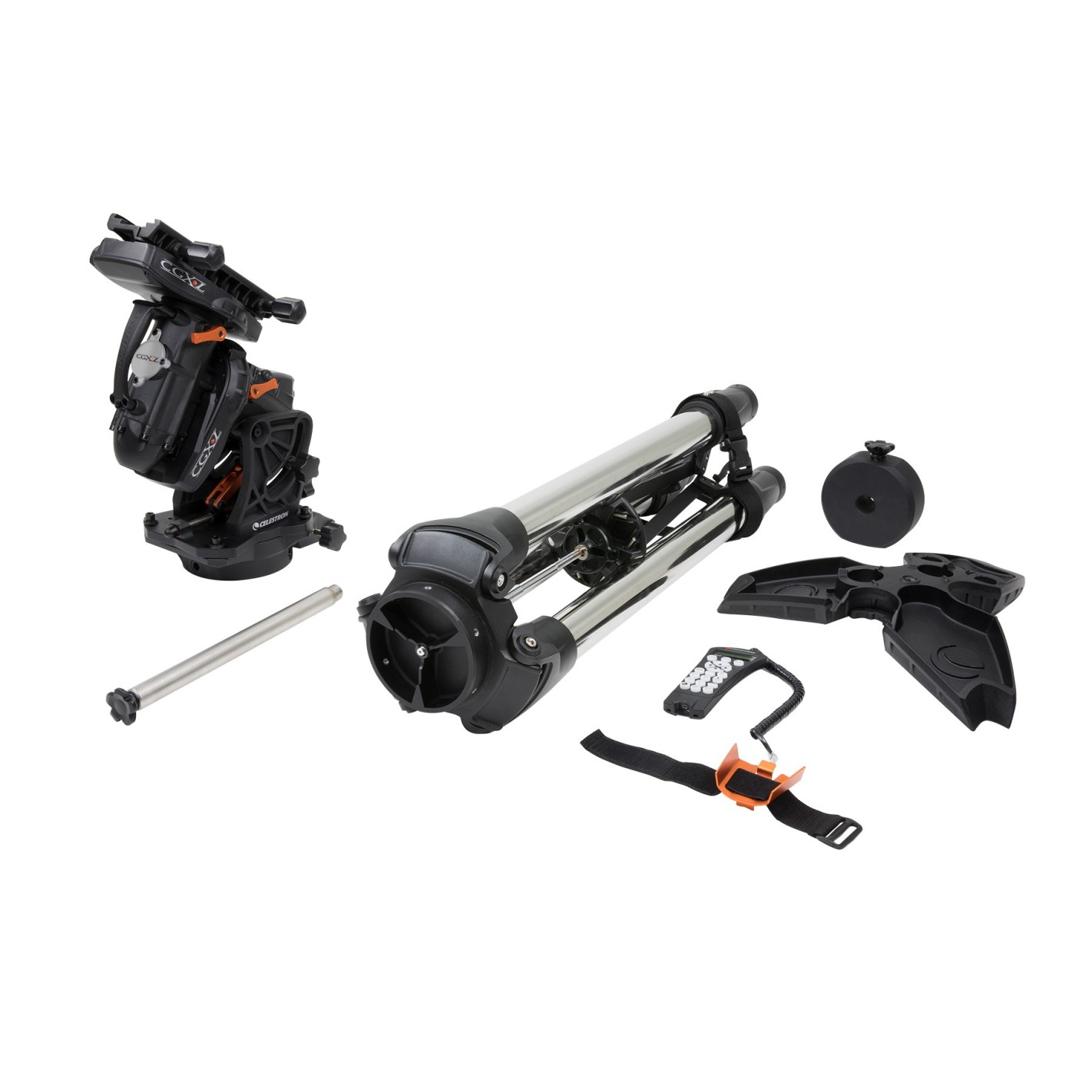

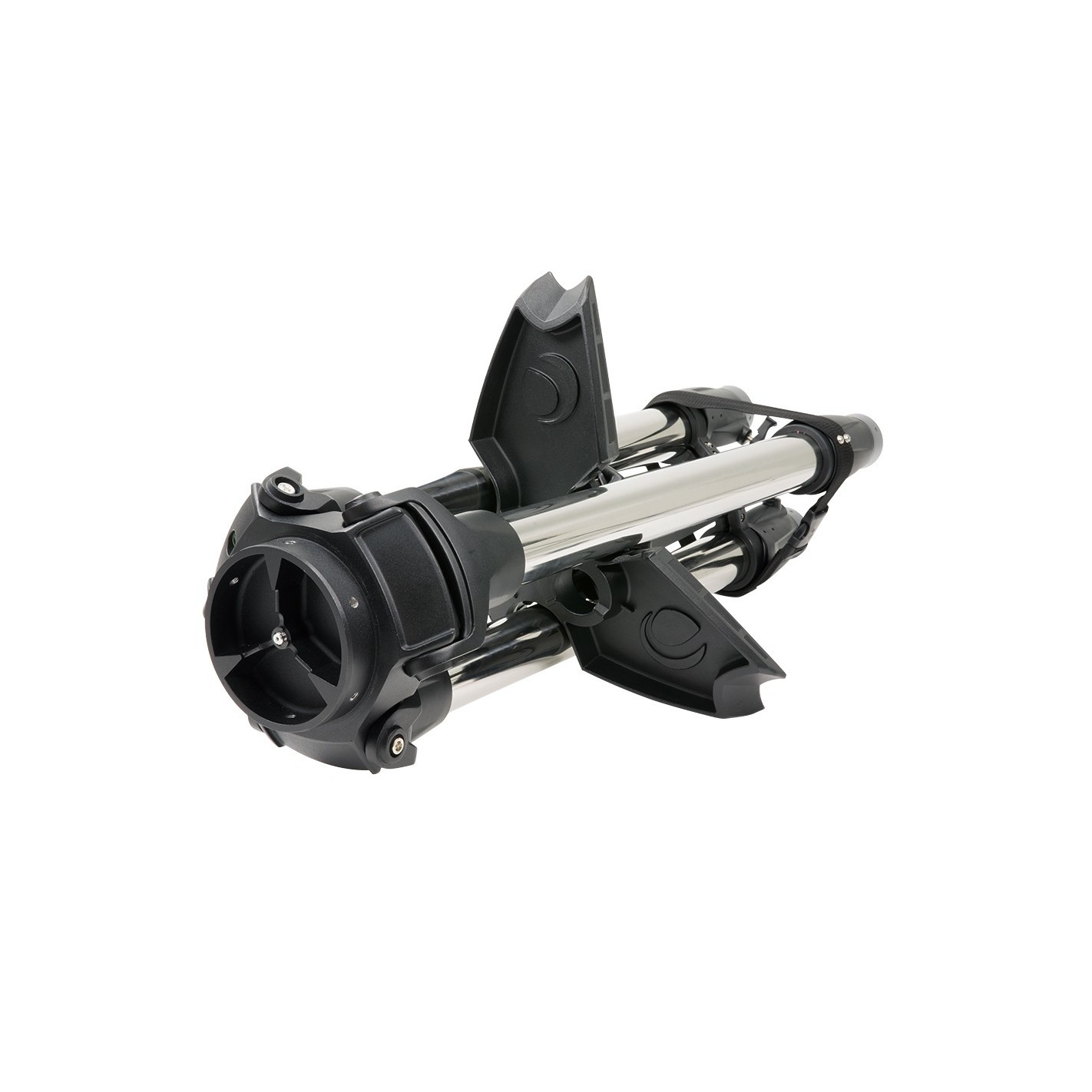

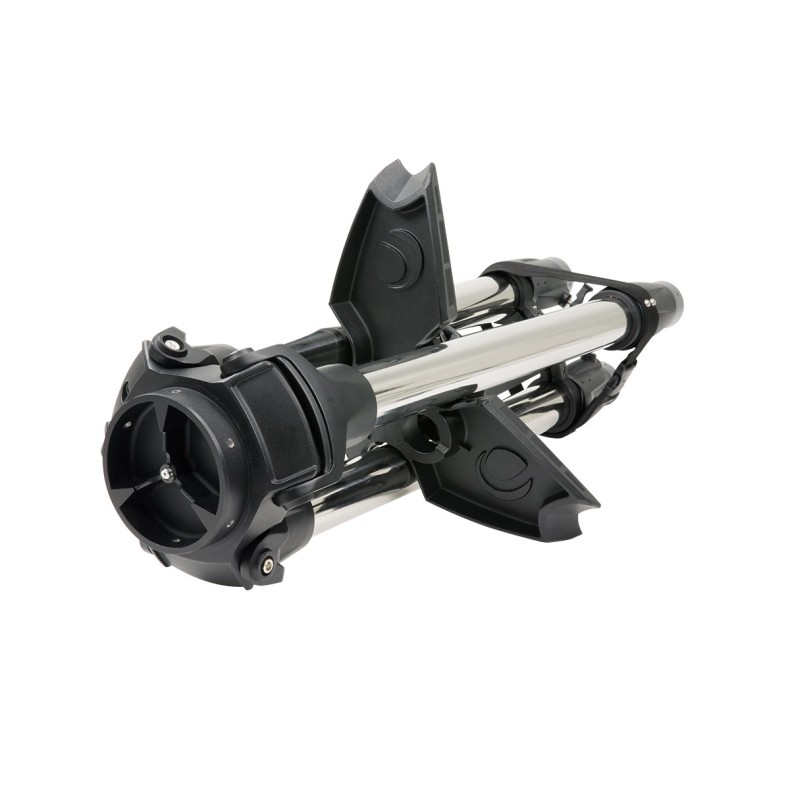

- Tripod legs can be collapsed with the accessory tray already installed for faster set-up and transportation

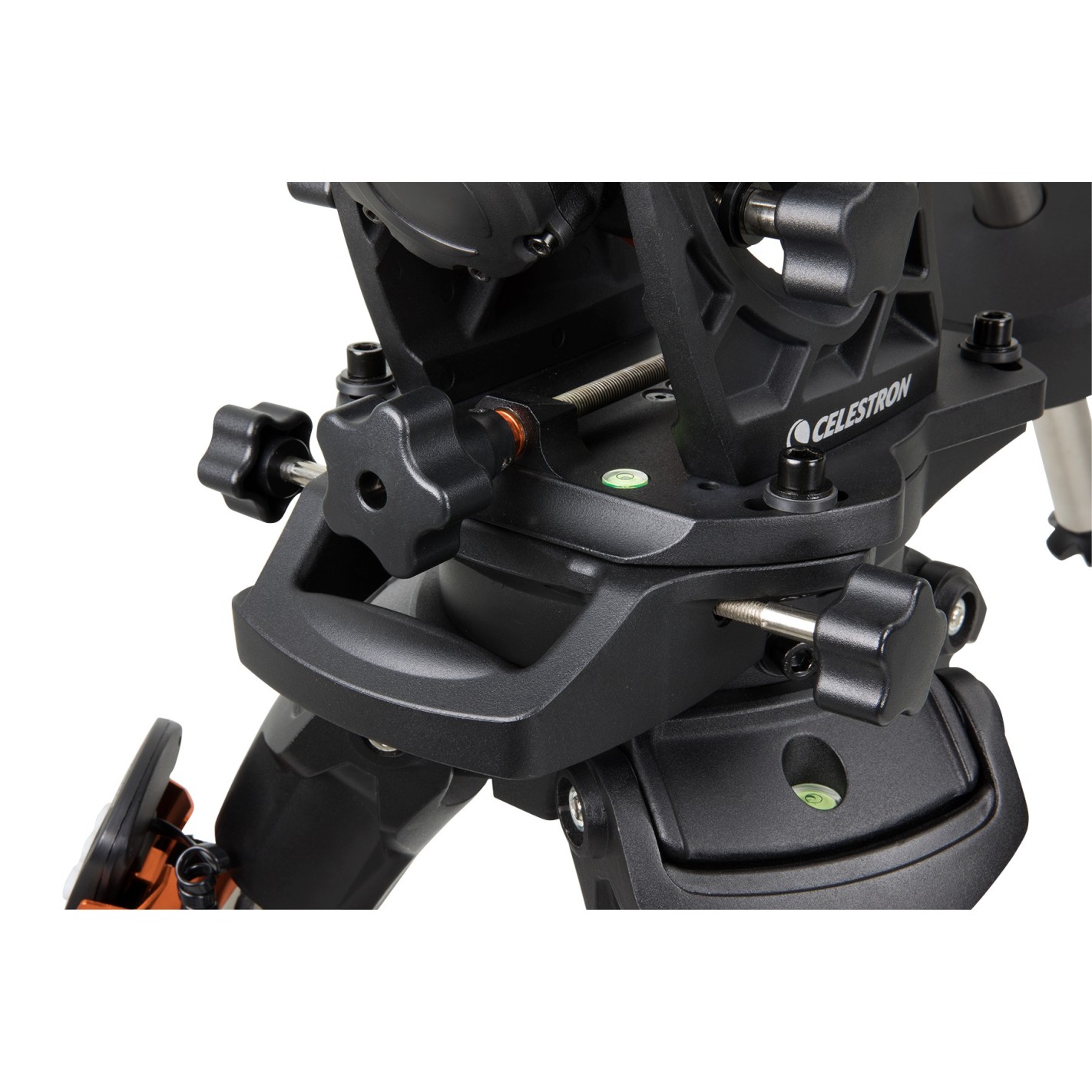

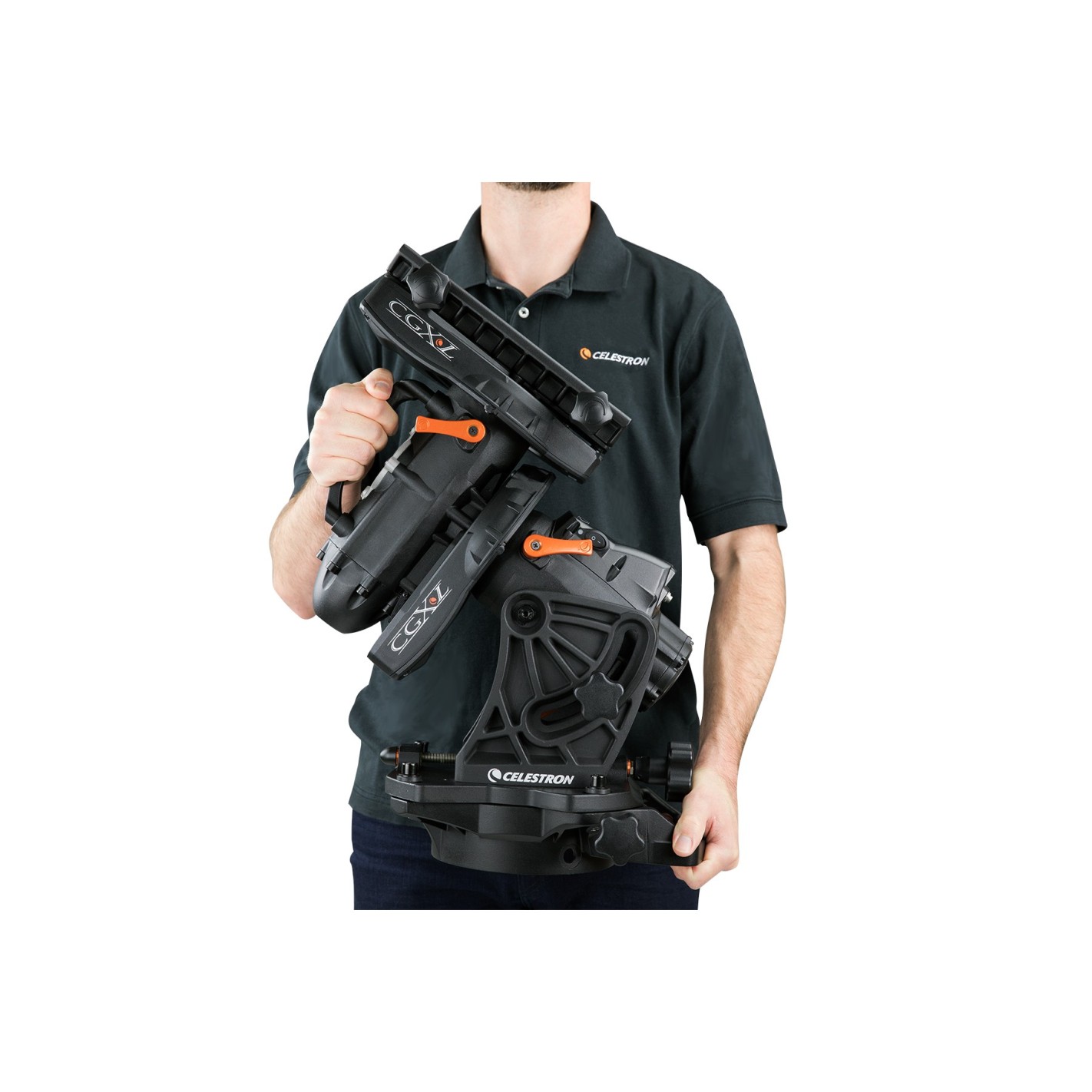

- Integrated handles for easy carrying and portability
- New ergonomically designed dovetail grip handles

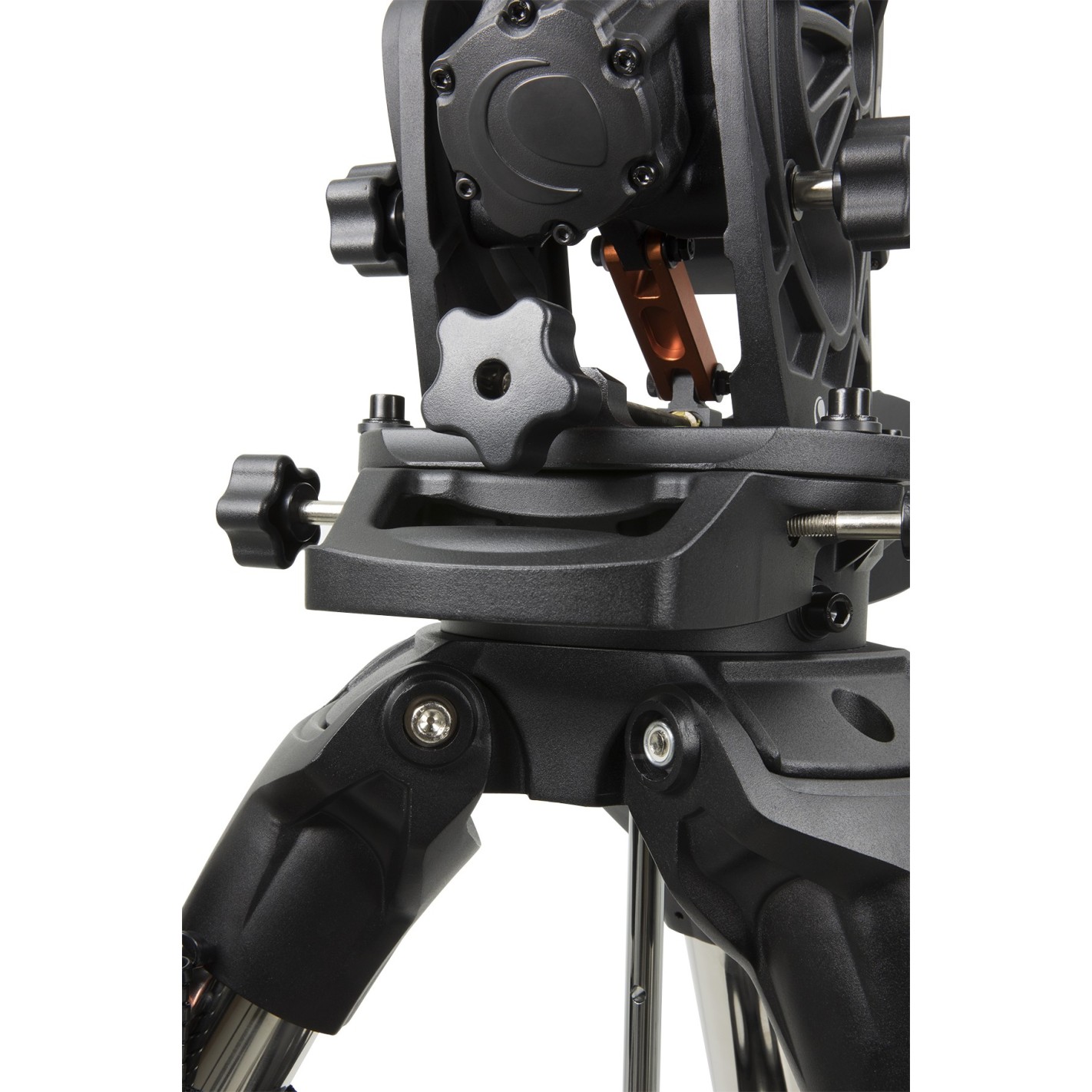

- Innovative and improved polar alignment adjustment system
- New ergonomic adjustment knobs with reduced friction for smooth and easy positioning under full loads, thanks to low-friction Teflon bearings for easy adjustments under full load

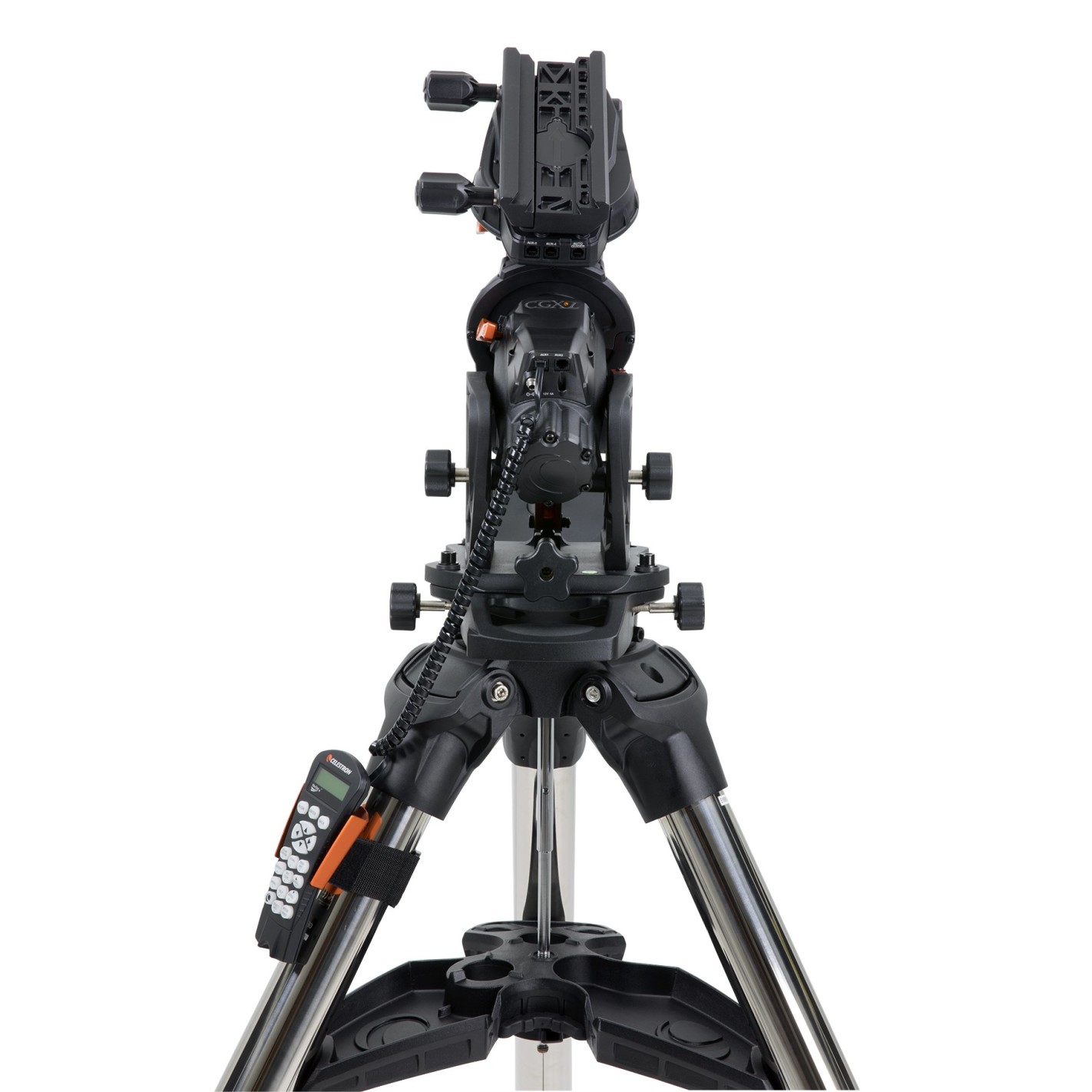

- NexStar+ control knob with USB 2.0 port used to connect directly to PC with PWI software
- 2 auxiliary ports and autoguide available for optimal cable management
- PEC and PPEC sensors
- 12VDC screwed power input connector
- Internal real time clock (retains time and observation site information)
- Red LED on/off rocker switch
Technical features:
-
-
-
-
- Mount Type: German equatorial
- Tripod: steel tripod with 2" legs with graduated markings on the lower section to facilitate quick leveling
- Double dovetail socket: connects directly to the dovetails Vixen/CG-5 and Losmandy/CGE
- Payload capacity: 34 kg
- Latitude range: 3° - 65°
- Power requirements: 12 VDC, 3,2 amps
- Ports: 1x control handle port, 1x auxiliary port, 1x auto guidance port, 1x USB 2.0 port (on control handle) for direct link to a PC via ASCOM software.
- Drive motor: small diameter DC servomotors
- Rotation speeds: 9 speeds
- Tracking Speeds: Sidereal, Solar and Lunar
- Tracking Modes: EQ North and EQ South
- Alignment procedures: AutoAlign, 2-star alignment, Fast alignment, 1-star alignment, Last alignment, Solar alignment
- Dual-line computer control, 16-character liquid crystal display; 19 LED buttons with fiber-optic backlight, USB 2.0 port for PC connection
- Database: + 40,000 objects, 100 user-defined objects. Enhanced information on more than 200 objects
- Mount weight: 24 kg
- Tripod weight: 20.81 kg
- Counterweight weight: 10 kg
- Total equipment weight: 54 kg
