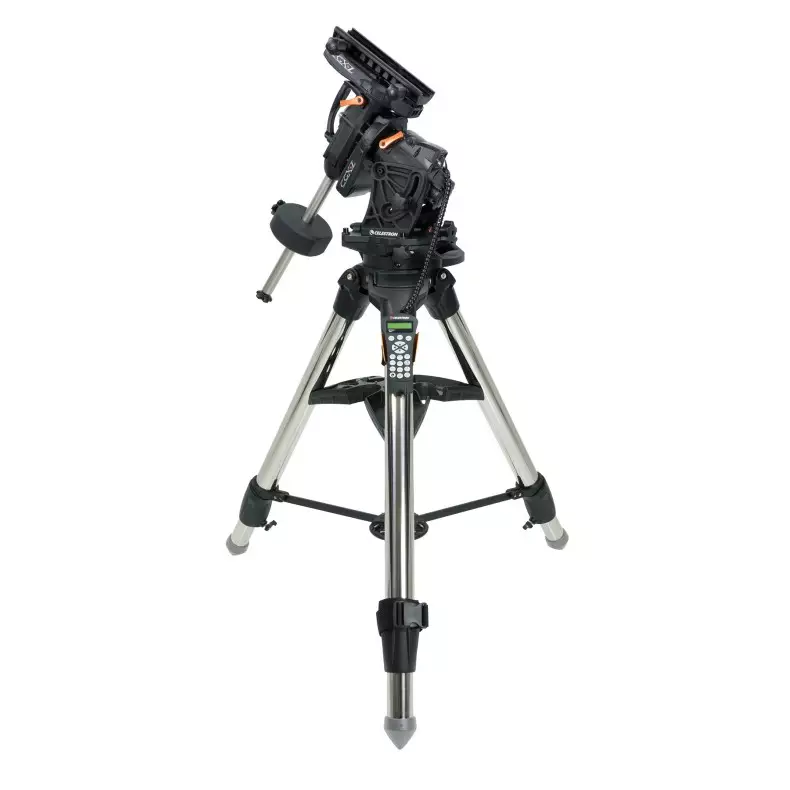

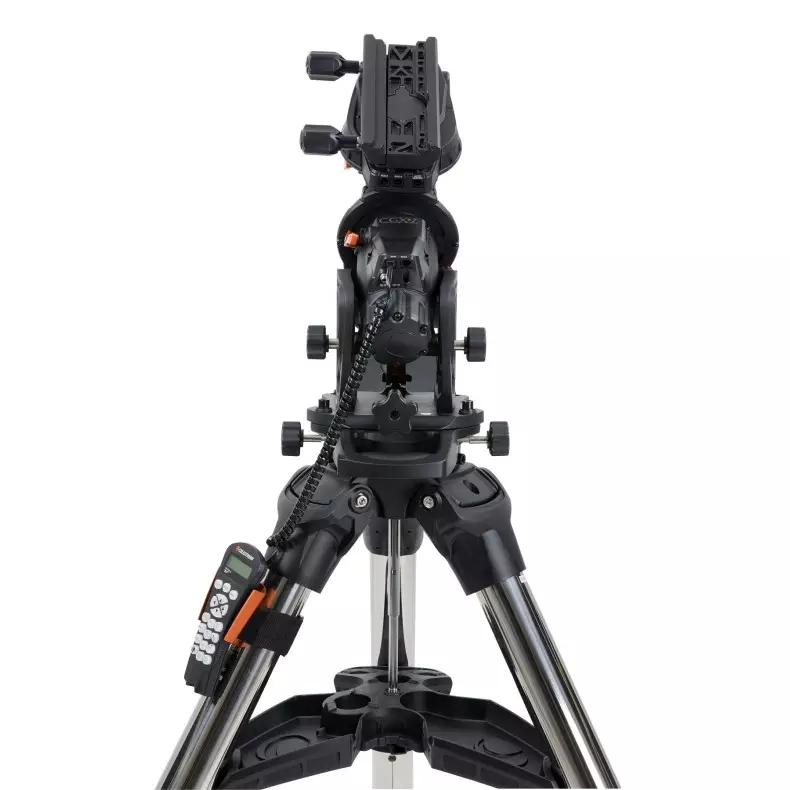

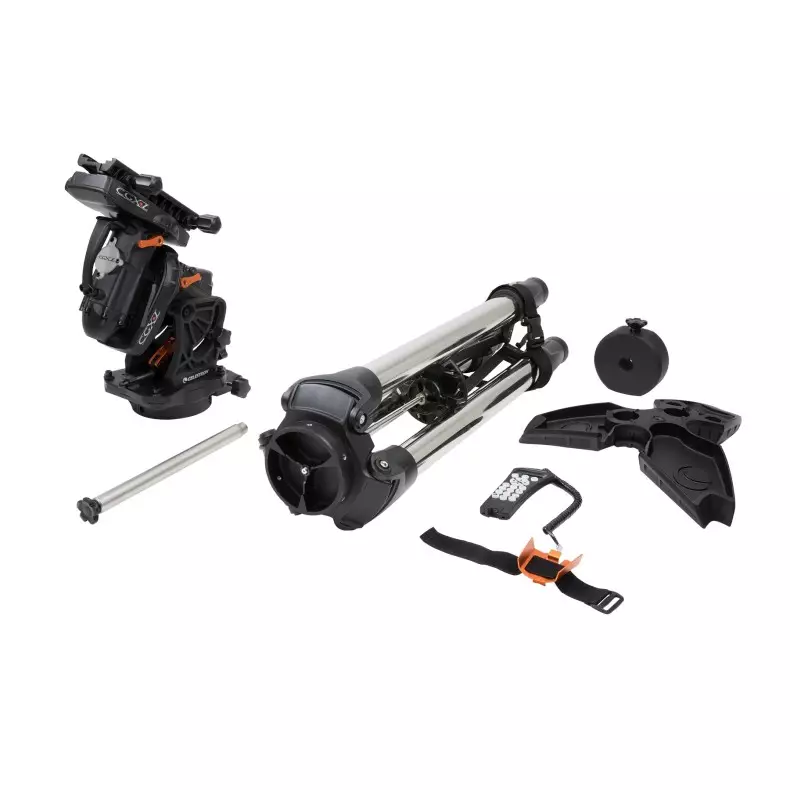

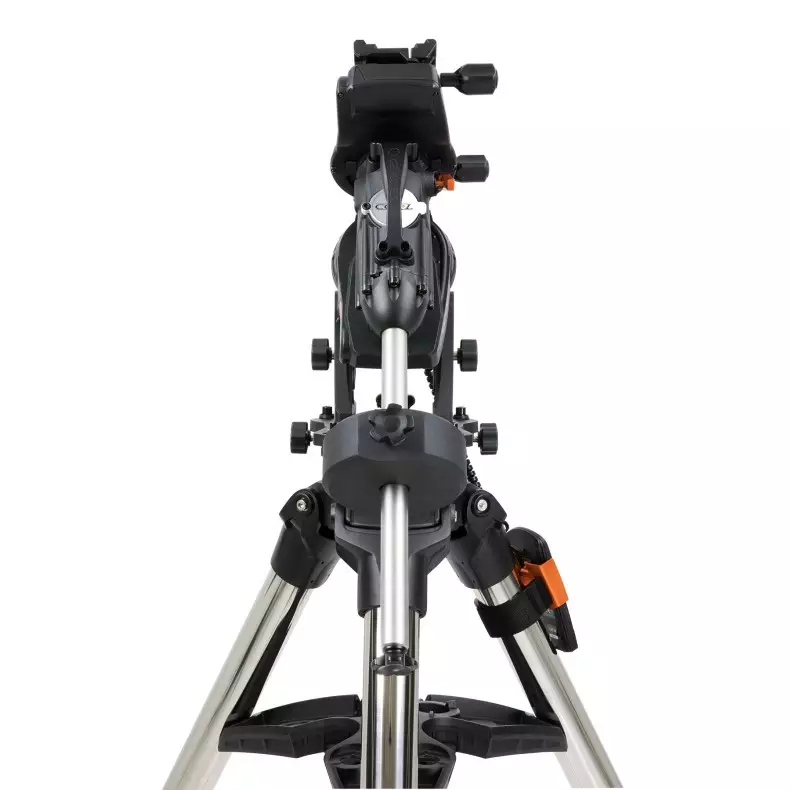

Equatorial Mount Pack Celestron CGX-L 91531 with customized introductory course for saddles
IN TELESCOPIOMANIA WE OFFER YOU NOW TOGETHER WITH YOUR MOUNT, OUR PERSONALIZED COURSE OF INITIATION OF MOUNTS FOR ASTRONOMICAL AND PHOTOGRAPHIC OBSERVATION.

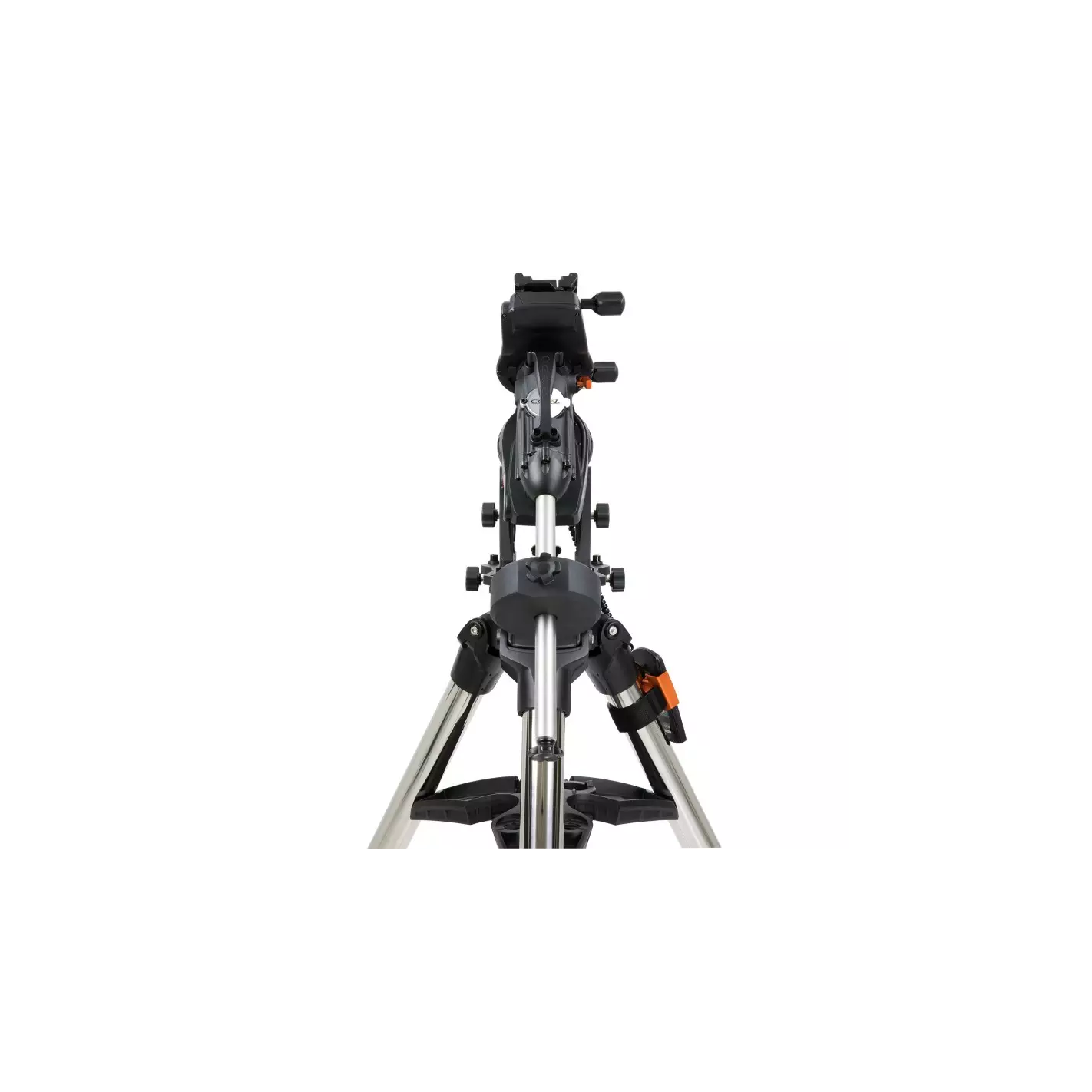

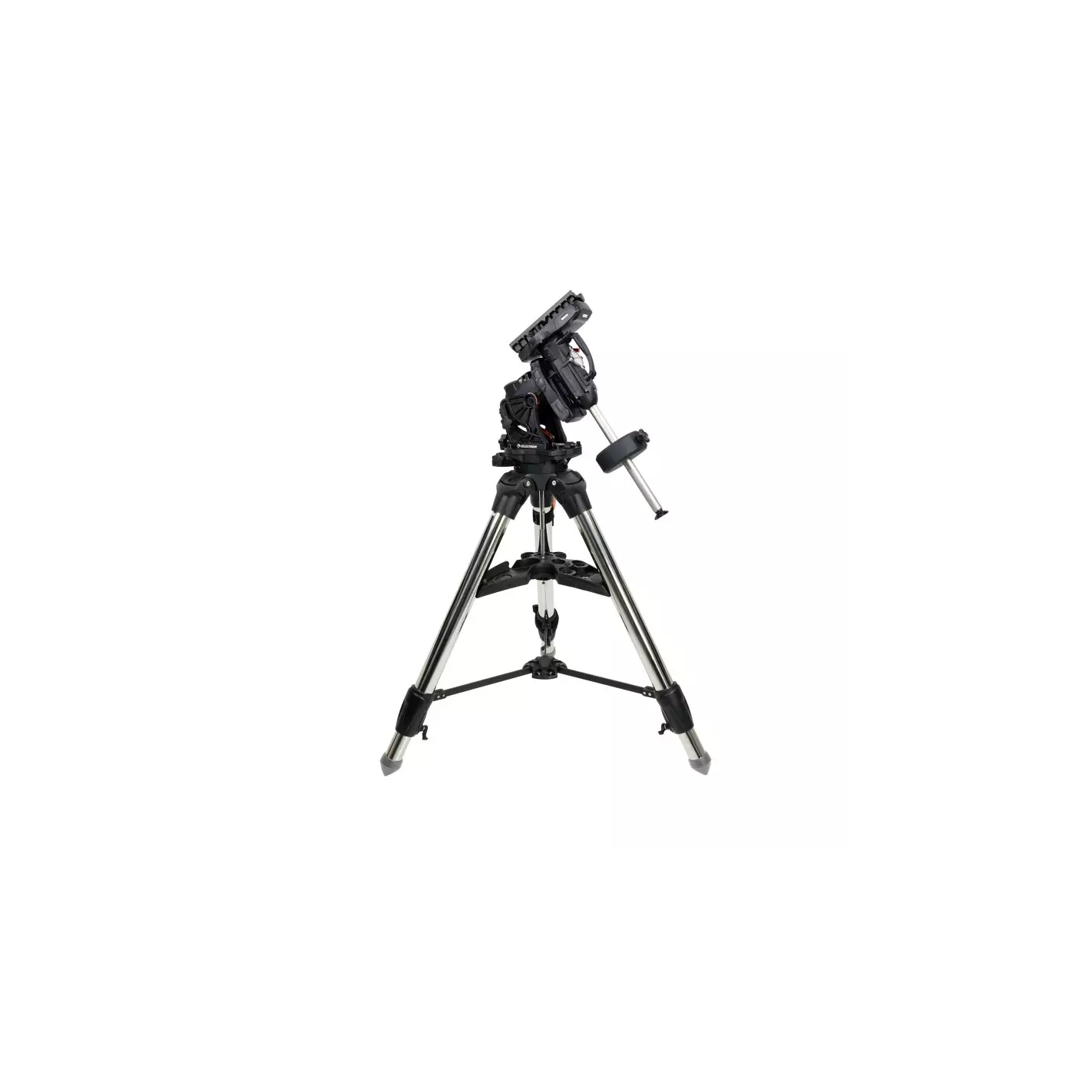

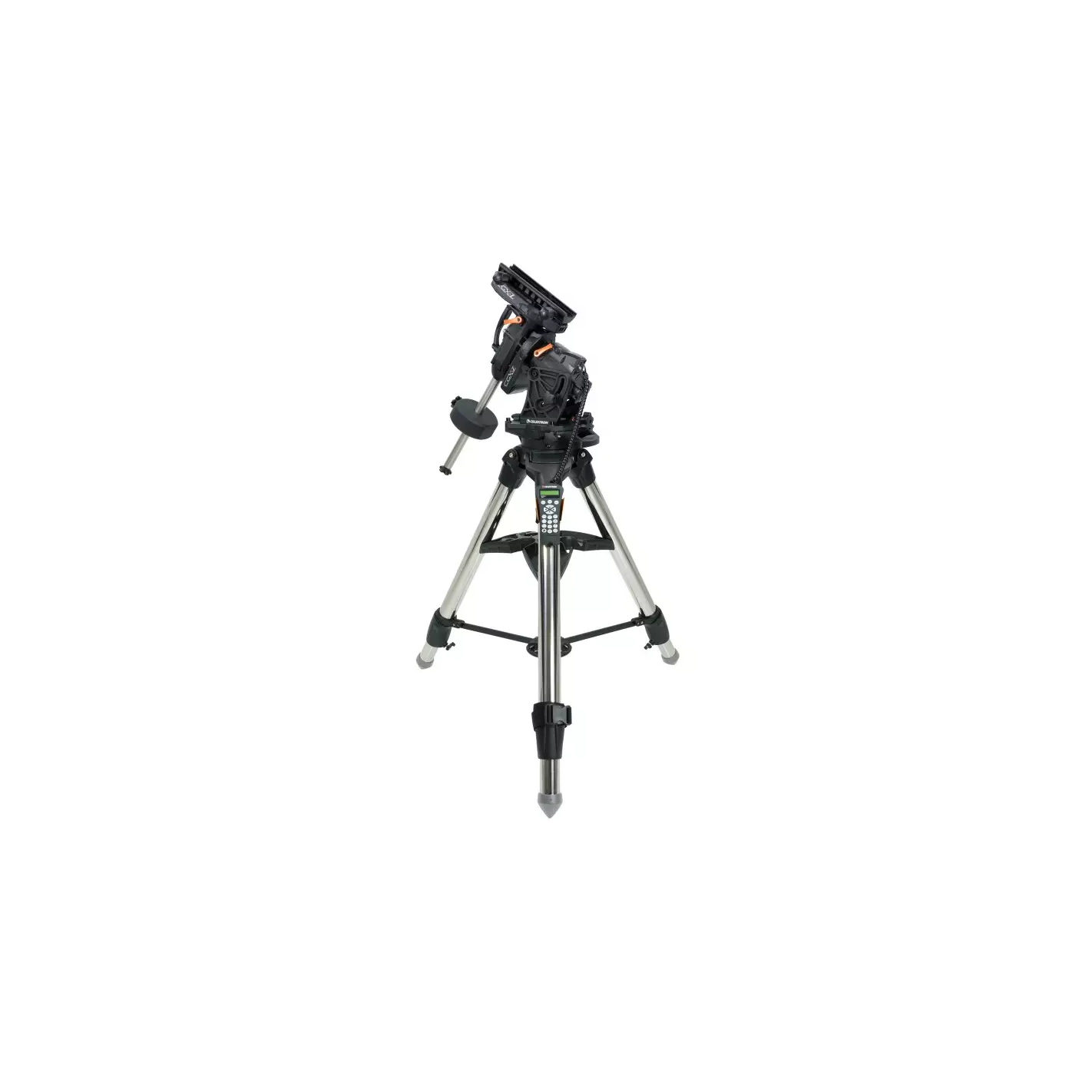

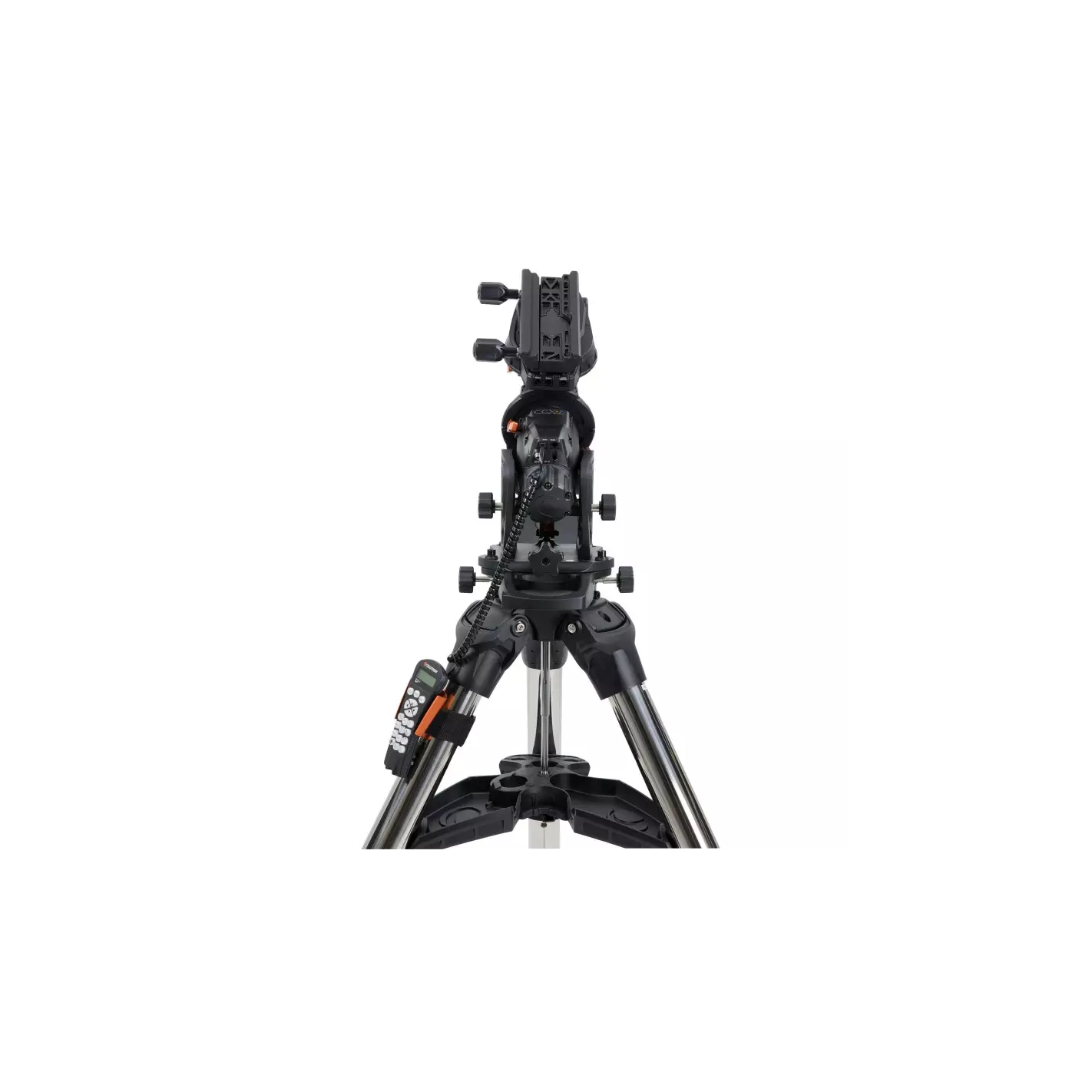

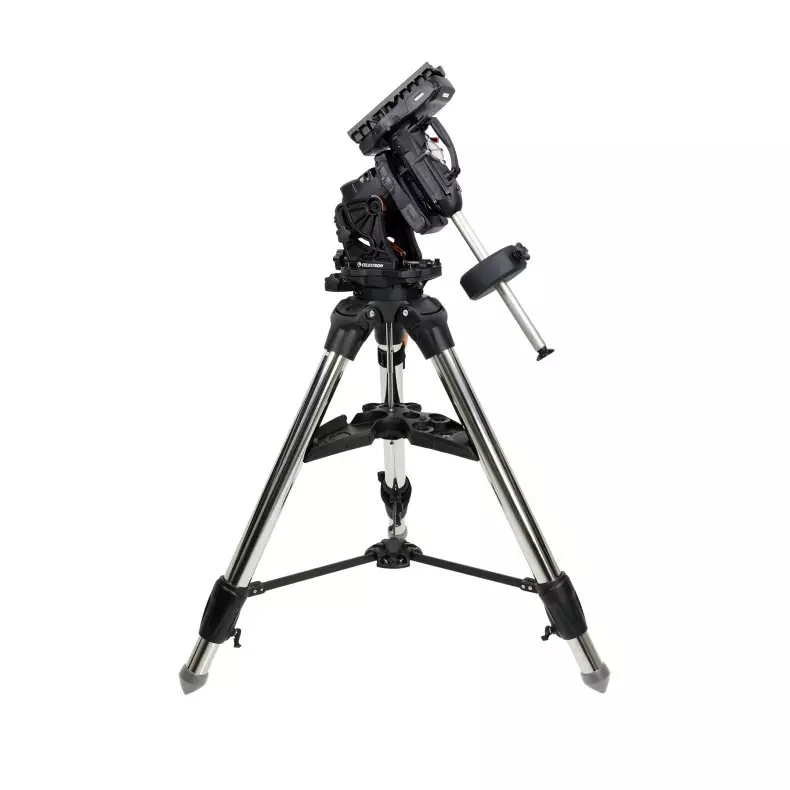

Celestron introduces the newly designed CGX-L equatorial mount, the latest addition to its series of fully computerized equatorial mounts.
Capable of supporting the largest optical tubes in the world Celestron with ease of use, the CGX-L is designed for demanding users who want maximum accuracy in a transportable package and who are looking for an exceptional load capacity to mount weight ratio. All this is achieved through its new, highly compact design with innovative features that support large telescopes, astrophotographic configurations and the latest in wireless technology.
The main objectives of the designers of Celestron included larger, 144 mm diameter gears that provide smoother operation and can more accurately move heavier loads. The mount incorporates a dovetail base of over 270 mm to support larger optical tubes, precision remote operation features such as "home" position and motion limits triggered by optical sensors, and better overall cable management to prevent interlocking. In addition to all this, mechanical and ergonomic improvements have been introduced in the CGX-L mount offered by Telescopiomania to make this fantastic equipment more robust, easier to use and easier to transport.
Its outstanding features are:
- Increased load capacity of 34 kg. Exceptional weight/load ratio

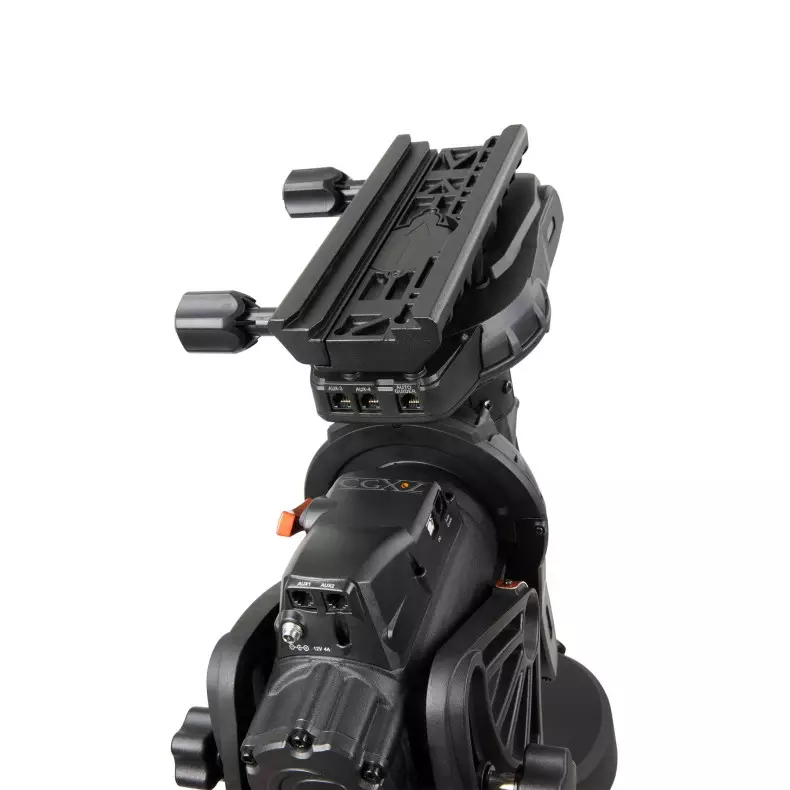

- Additional auxiliary port and auto routing port on the Dec axis for better cable management
- Large 144 mm diameter gears to move heavier loads with greater precision

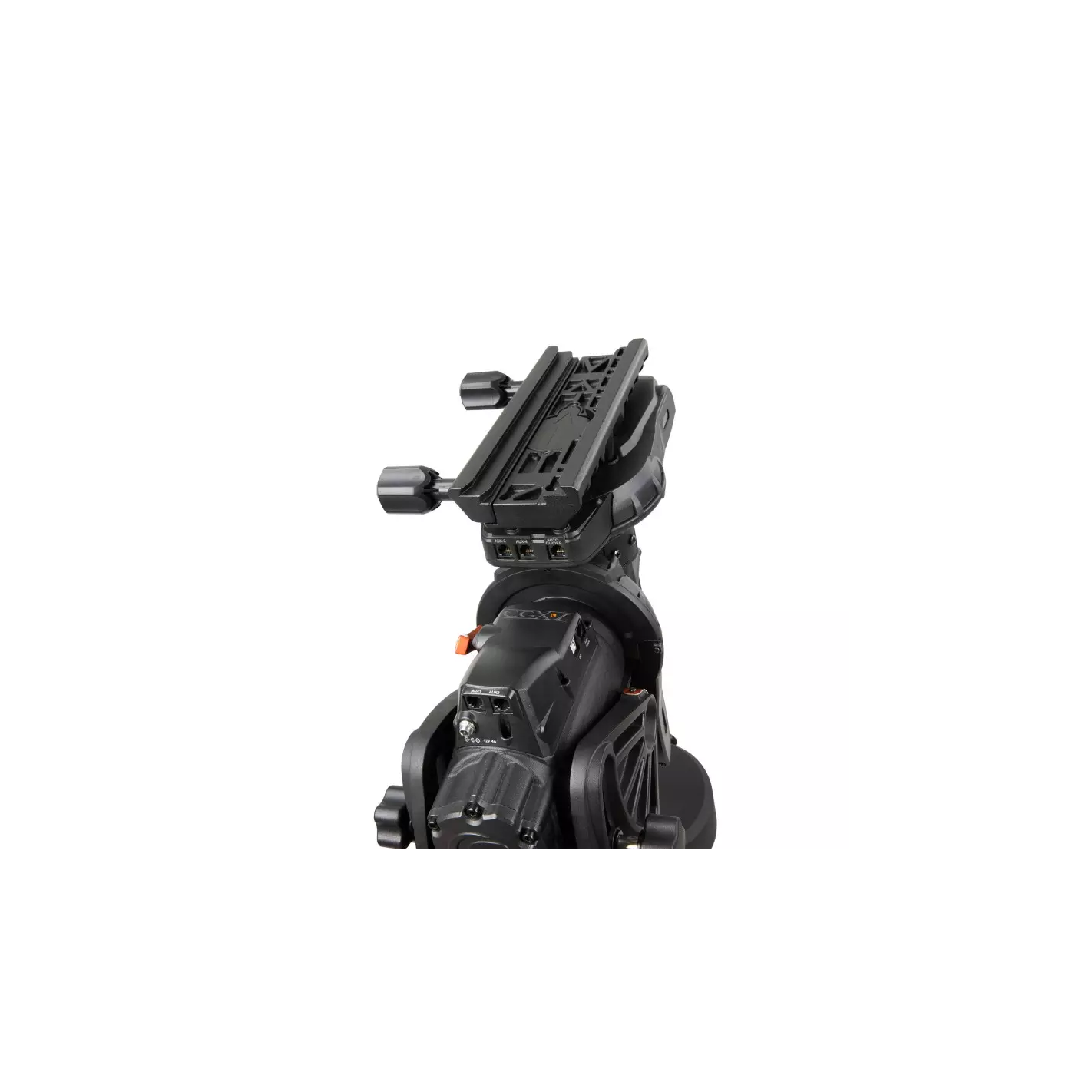

- 270 mm dovetail socket to better support larger optical tubes
- Massive 70 mm stainless steel tripod legs with more open position for improved stability under heavy loads

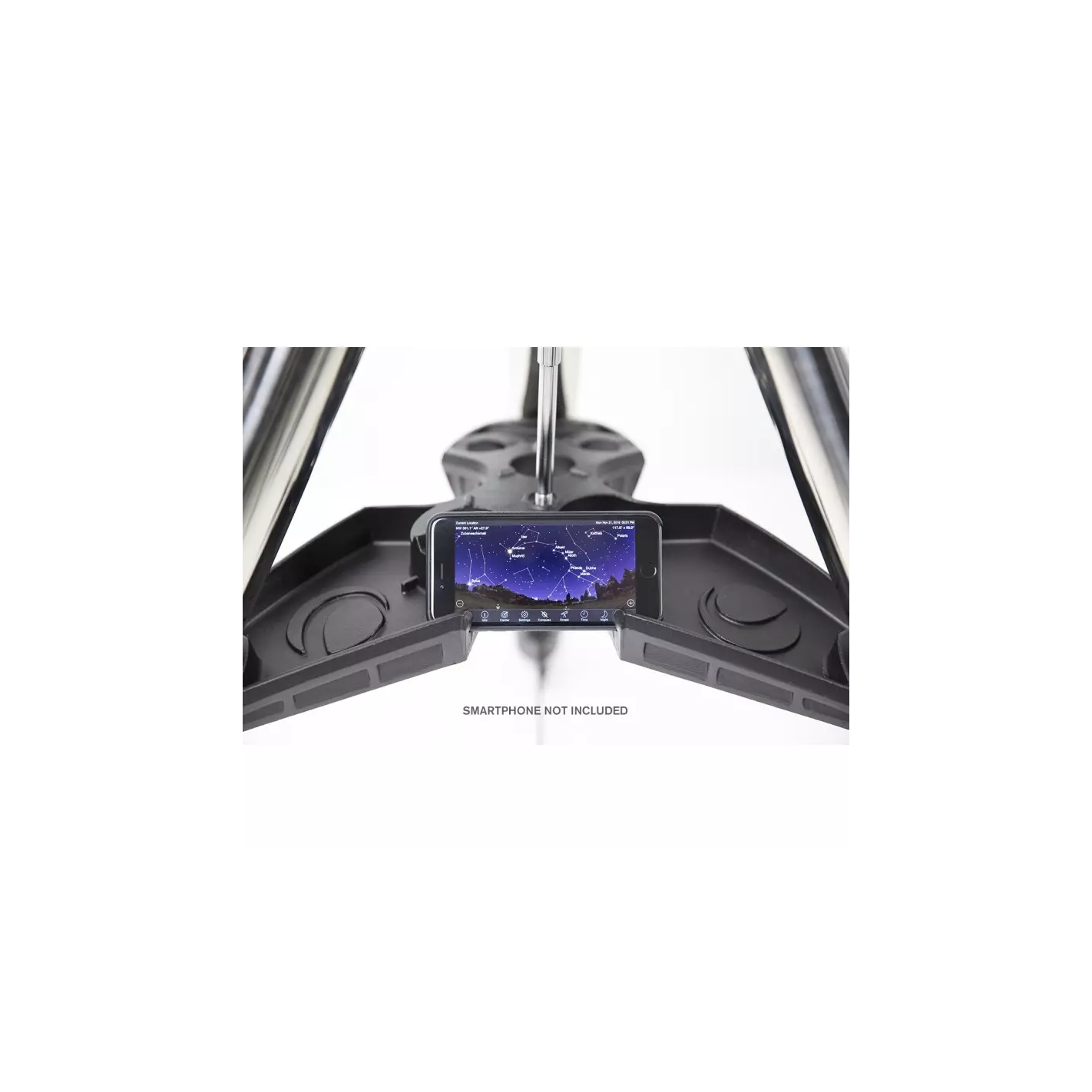

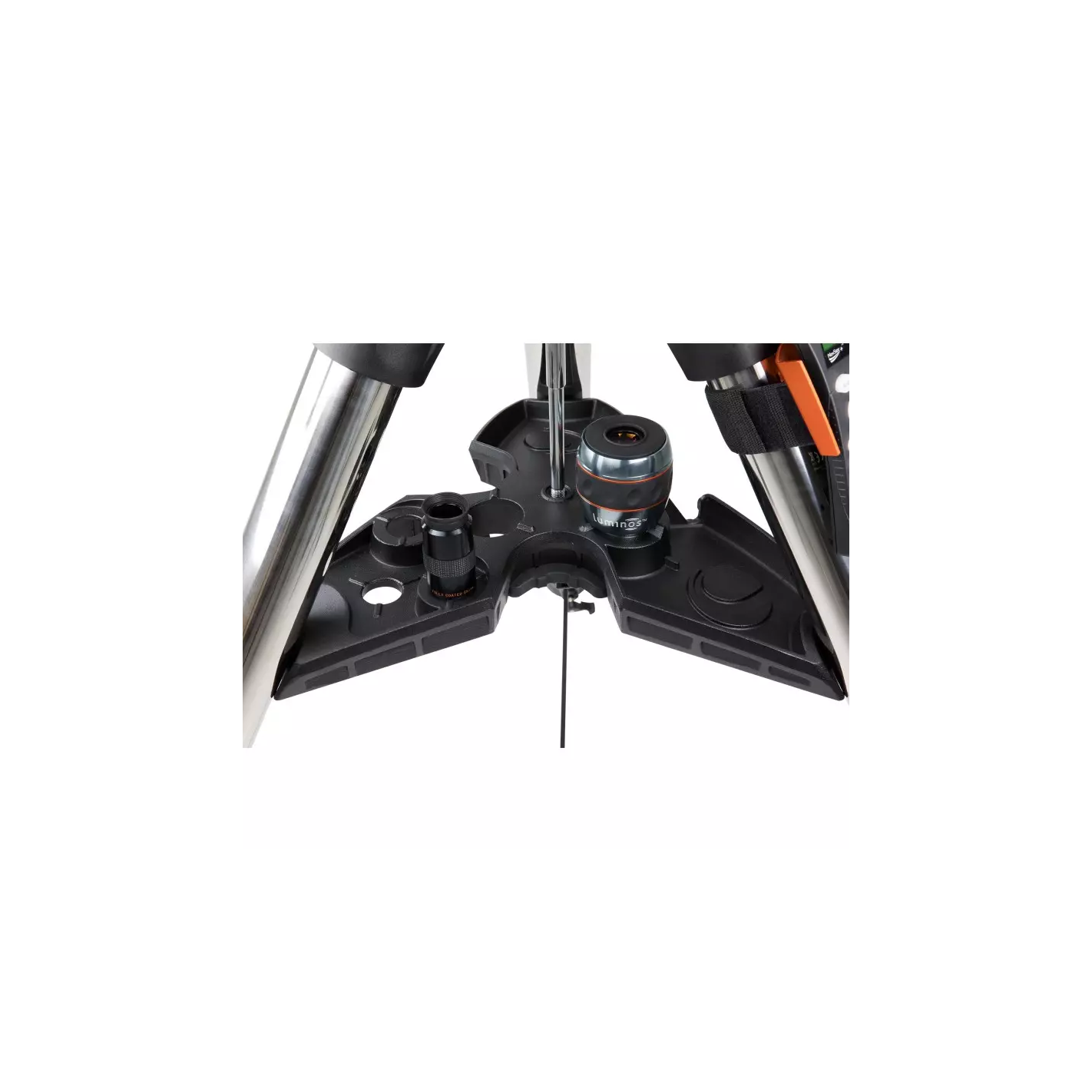

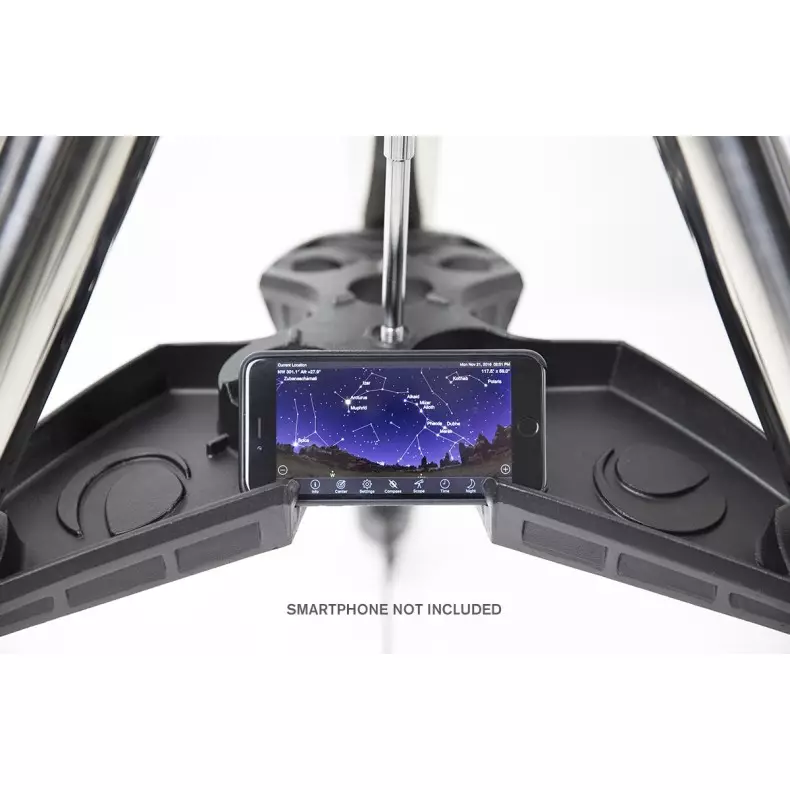

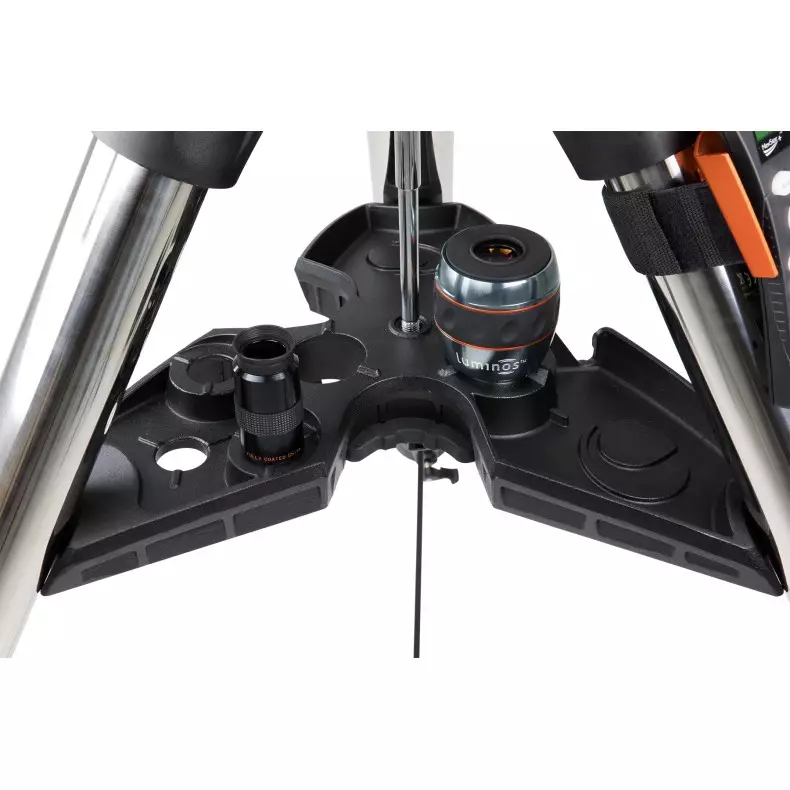

- The new accessory tray can accommodate three 1.25" and two 2" eyepieces, also with vertical support for your smartphone or tablet
- 31.5 mm stainless steel counterweight shaft, heavy-duty to support additional counterweights
- Optional polar finder module designed for CGX and CGX-L

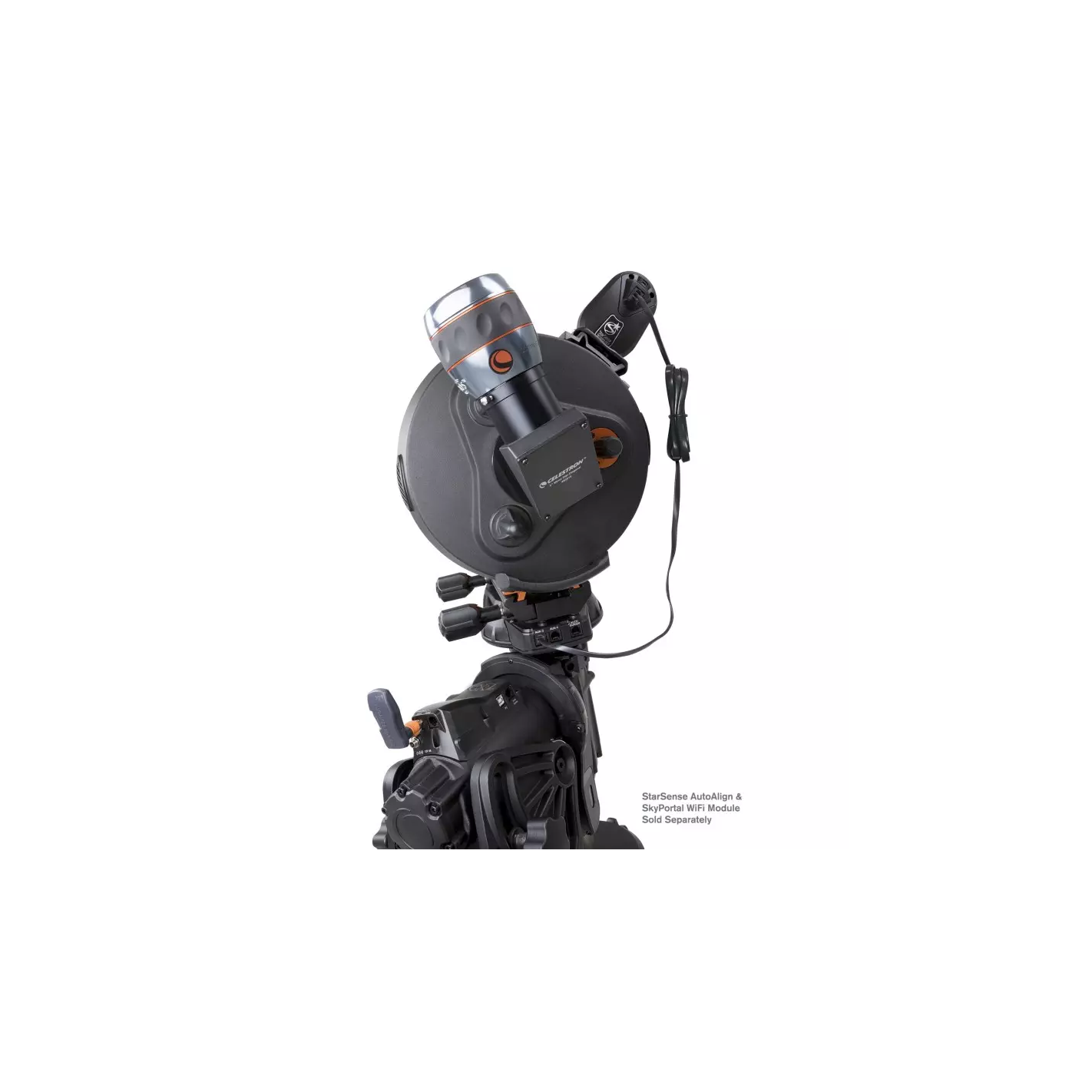

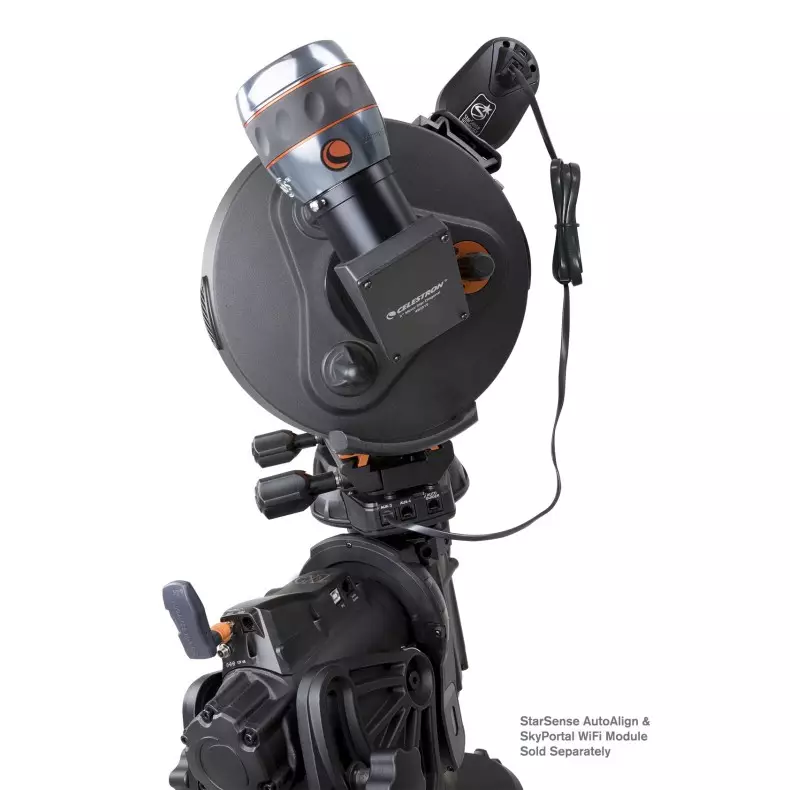

- Compatibility with optional wireless operating accessories such as StarSense AutoAlign and SkyPortal WiFi (sold separately)
- Compact, low-profile equatorial head provides greater stability and portability. More robust and stiffer with faster damping time
- Improved motors provide more torque, better handling and tracking under heavy loads
- Belt drive system minimizes backlash while providing smooth engine operation at full capacity
- Windows built into the motor covers can be easily removed so that pulleys and belts can be monitored
- Internal cabling for worry-free remote operation. Power inlet and lower accessory ports remain stationary while the bracket moves to prevent unwanted entanglement and snagging
- Internal stops for the two shafts prevent strain on the wiring
- Internal optical sensors on both axes for simple and safe remote operation
- The "home" position sensor allows the mount to always start in the indicated position regardless of the orientation before a reconnection of the power supply to the mount
- It includes the new PWI telescope control software from Celestron, co-developed by PlaneWave Instruments. The software features multi-point mount modeling for outstanding pointing accuracy
- The "All-Star Polar Alignment" alignment software enables fast and highly accurate polar alignment. Align on any bright star without extra polar alignment accessories, applications or other assistance

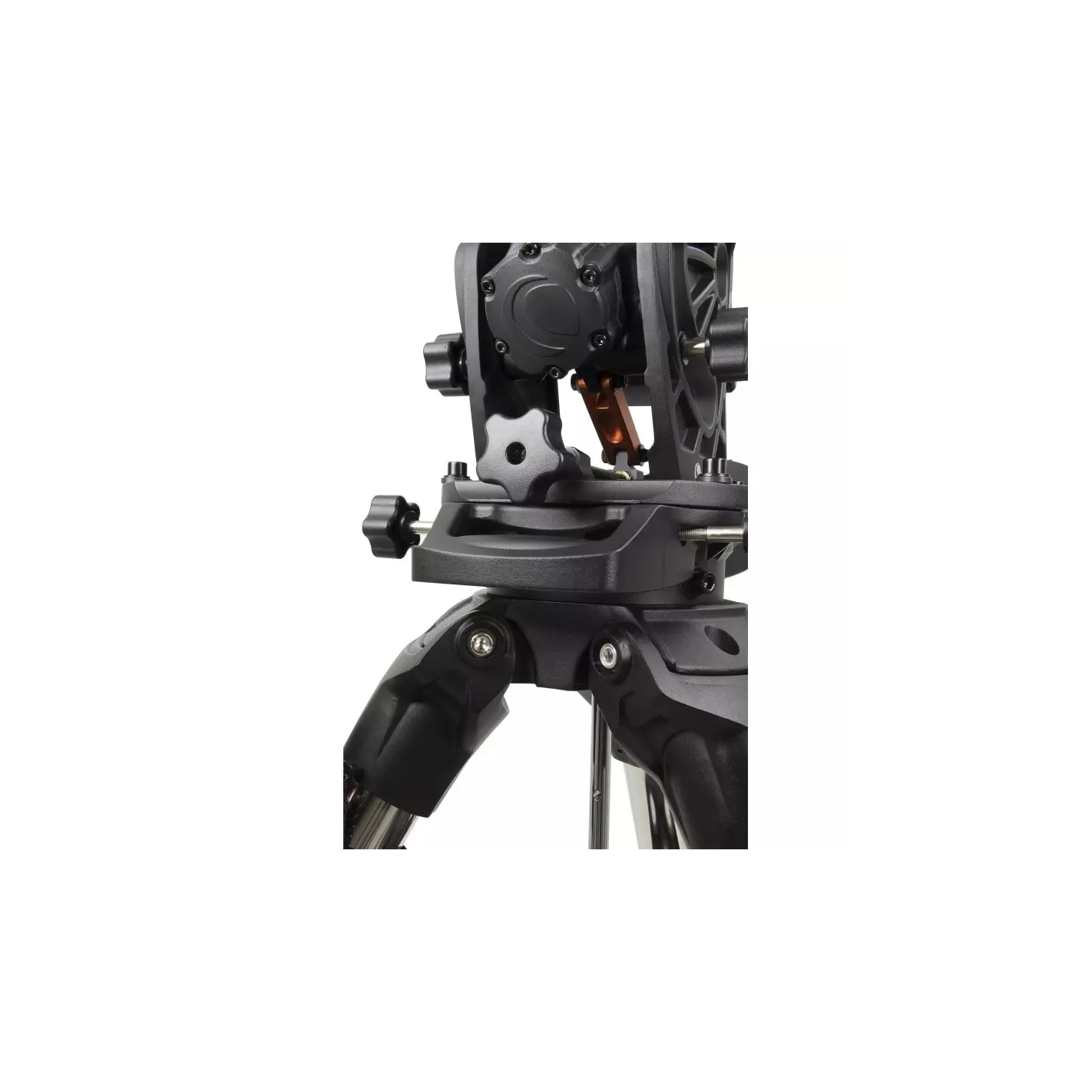

- Adjustable equatorial head position to optimize the center of gravity on the tripod and maximize the latitude range from 3° to 65°
- Double dovetail lace Vixen / CG-5 and Losmandy / CEM
- More than 20º of additional tracking beyond the meridian on both sides
- The redesigned tripod has a wider span for greater stability. The minimum tripod height has also been reduced to increase viewing comfort

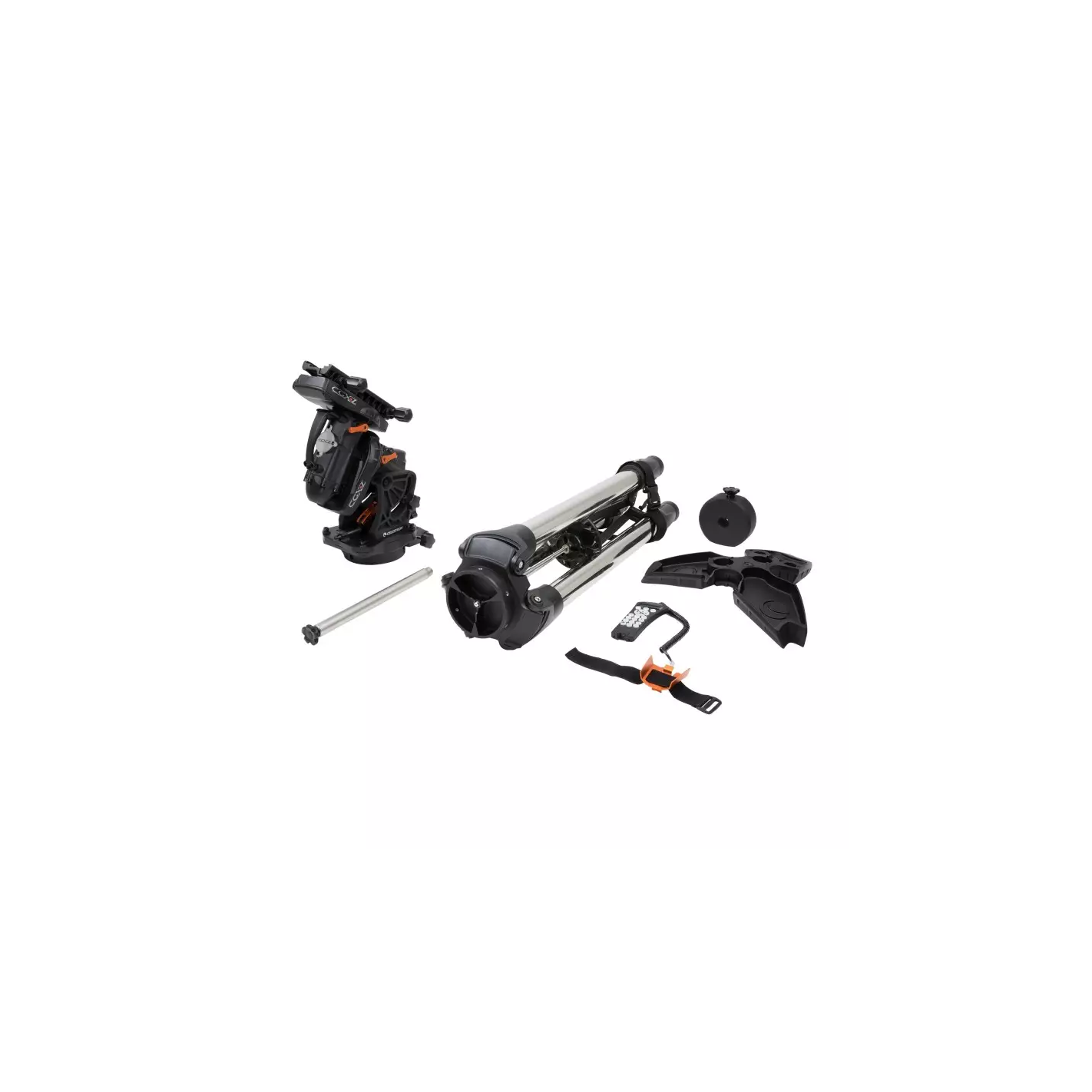

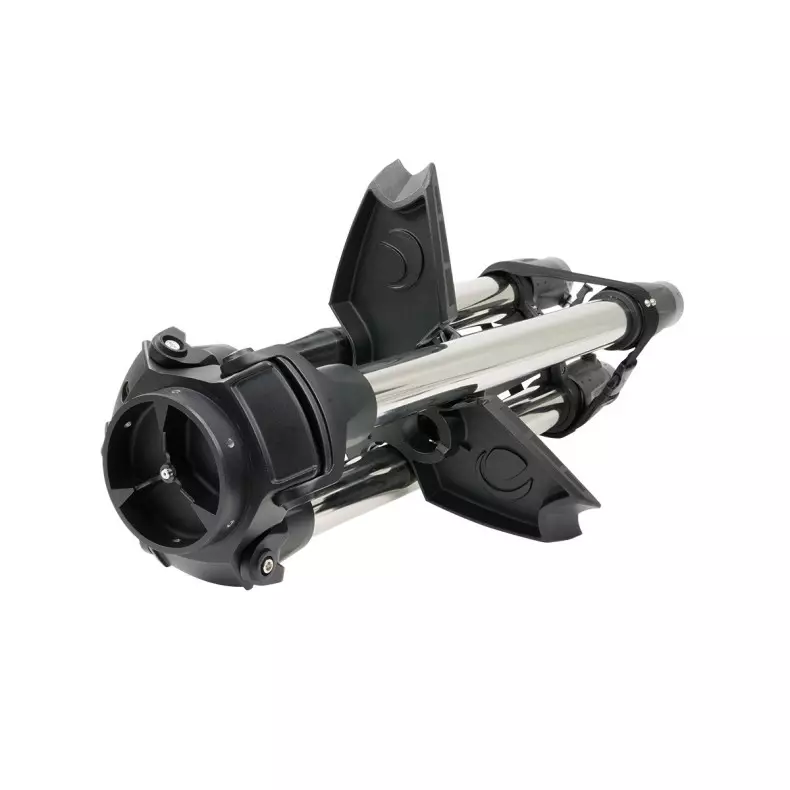

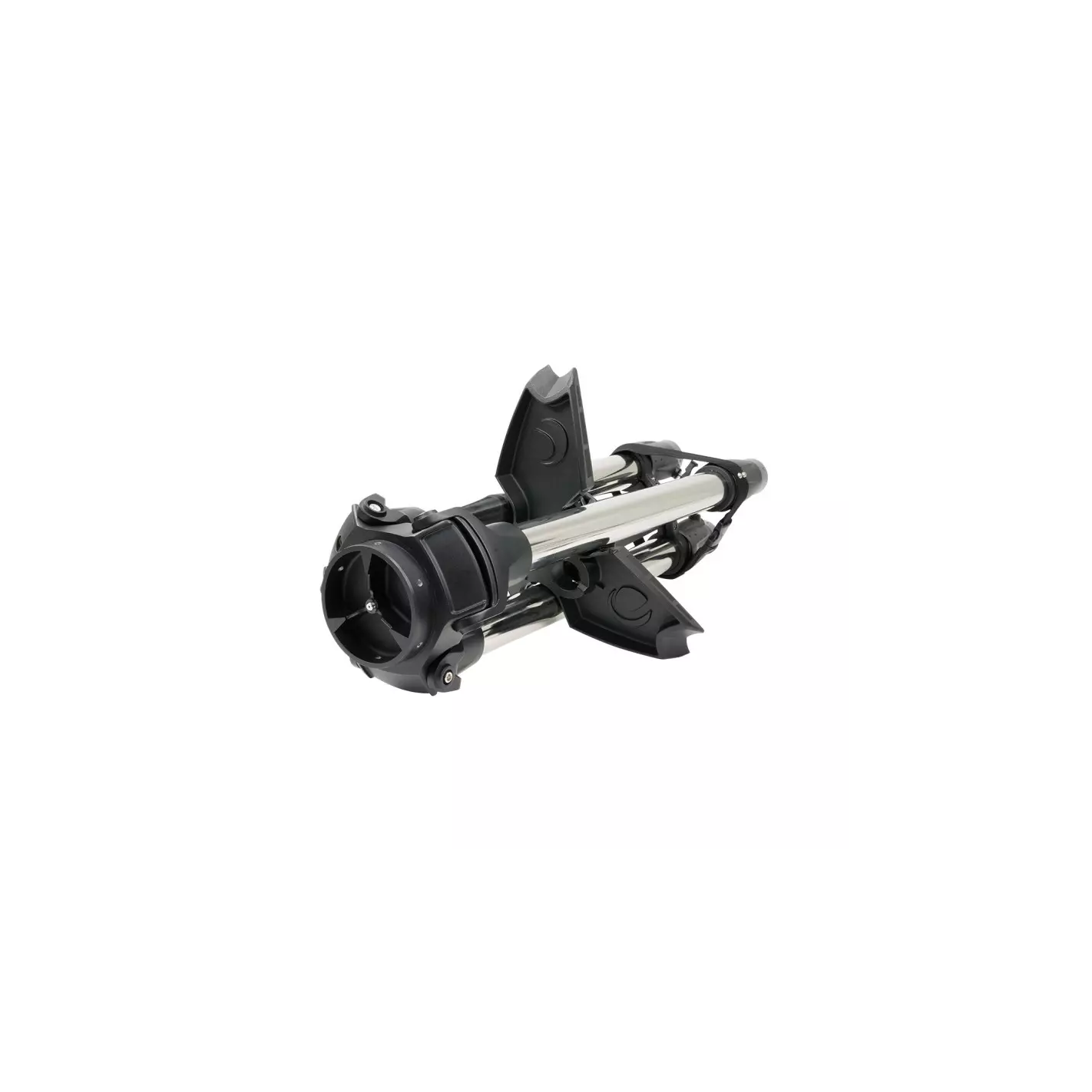

- Tripod legs can be collapsed with the accessory tray already installed for faster set-up and transportation

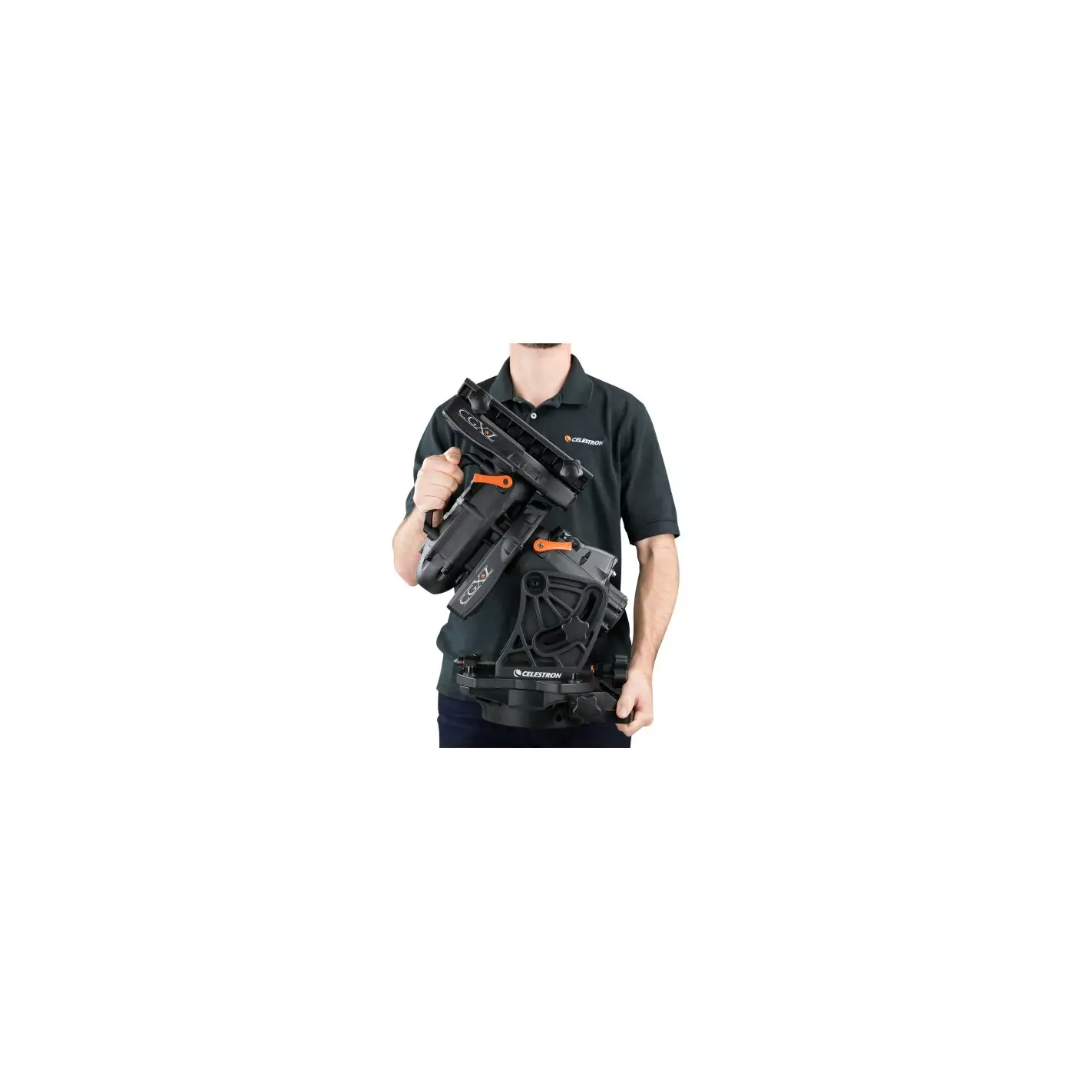

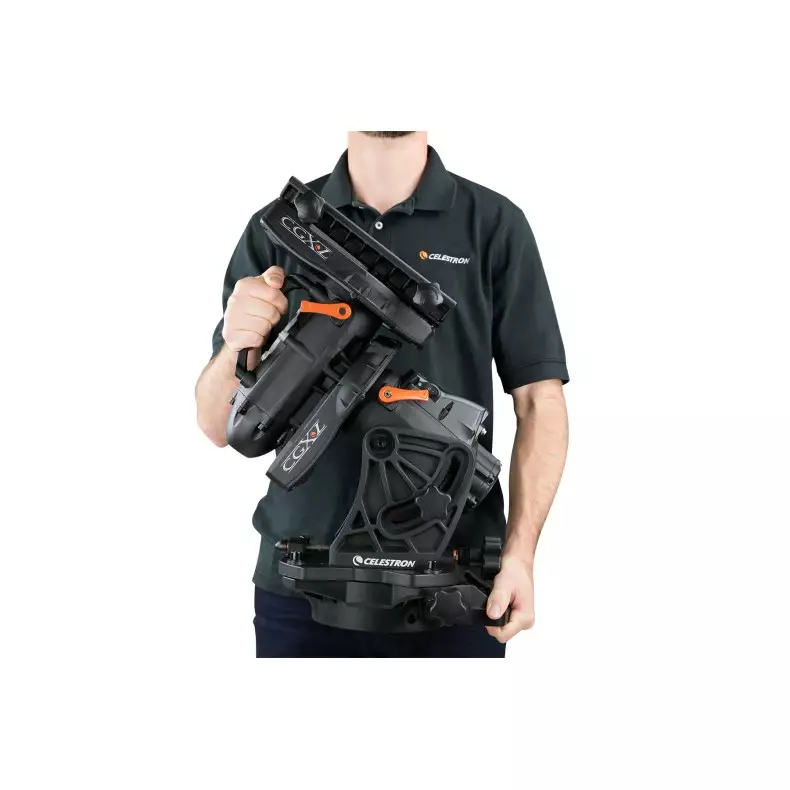

- Integrated handles for easy carrying and portability
- New ergonomically designed dovetail clamping knobs

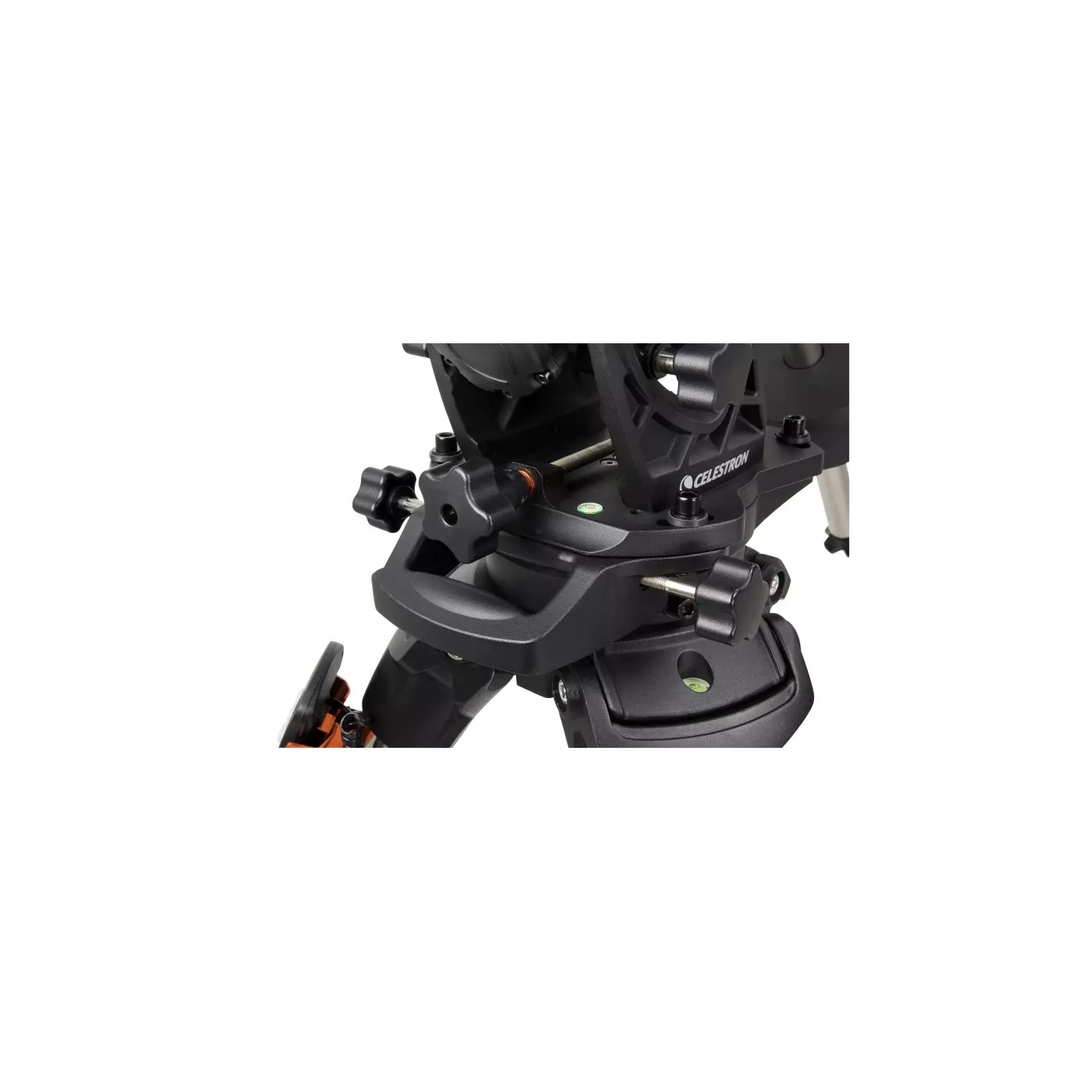

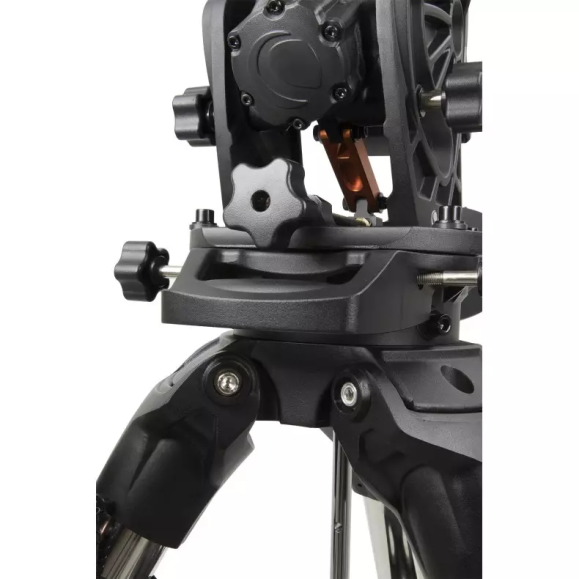

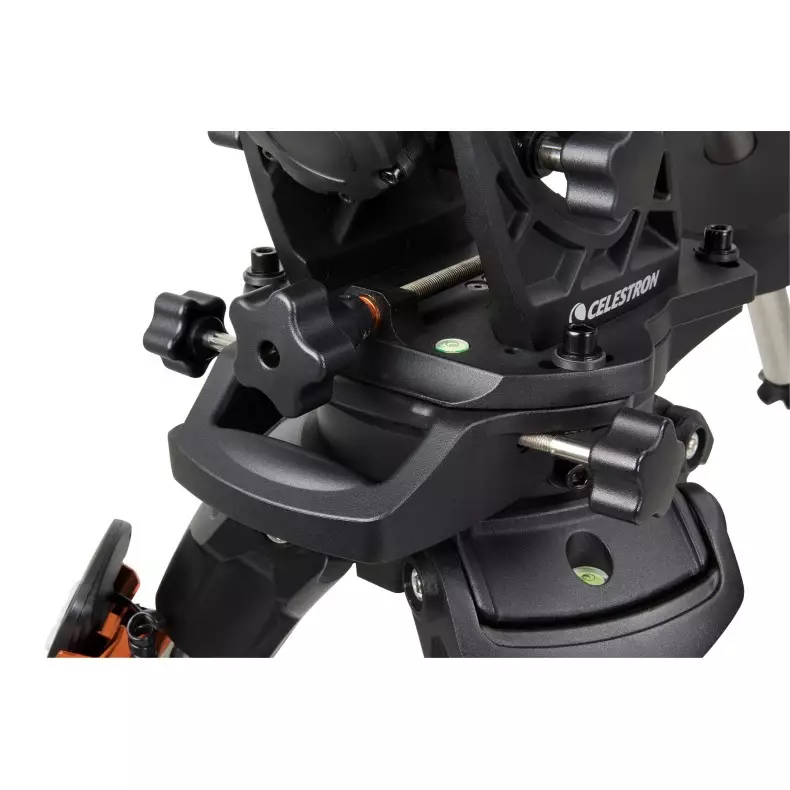

- Innovative and improved polar alignment adjustment system
- New ergonomic adjustment knobs with reduced friction for smooth and easy positioning under full loads, thanks to low-friction Teflon bearings for easy full-load adjustments
- NexStar+ control unit with USB 2.0 port used to connect directly to PC with PWI software
- 2 auxiliary ports and autoguide available for optimal cable management
- PEC and PPEC sensors
- 12VDC threaded power input connector
- Internal real time clock (retains time and observation site information)
- On / off rocker switch with red LED
Technical characteristics:
- Frame type: German equatorial
- Tripod: steel tripod with 2" legs with graduated markings on the lower section to facilitate quick leveling
- Double dovetail socket: connects directly to dovetails Vixen/CG-5 and Losmandy/CGE
- Payload capacity: 34 kg
- Latitude range: 3º - 65º
- Power requirements: 12 VDC, 3.2 amperes
- Ports: 1x control command port, 1x auxiliary port, 1x auto guidance port, 1x USB 2.0 port (on the control command) for direct link to a PC via ASCOM software.
- Drive motor: small-diameter DC servomotors
- Rotation speeds: 9 speeds
- Tracking Velocities: Sidereal, Solar and Lunar
- Tracking modes: EQ North and EQ South
- Alignment procedures: AutoAlign, 2-star alignment, Quick alignment, 1-star alignment, Last alignment, Alignment with solar system
- Dual-line computerized control unit, 16-character liquid crystal display; 19 LED buttons with fiber-optic backlighting, USB 2.0 port for PC connection
- Database: + 40,000 objects, 100 user-defined objects. Enhanced information on more than 200 objects
- Saddle weight: 24 kg
- Weight of tripod: 20.81 kg
- Counterweight weight: 10 kg
- Total weight of equipment: 54 kg
COURSE OFFER DETAIL:
You will learn the following concepts:
- Basic concepts in Astronomy, know the sky, objects and movements.
- Altacimutal mounts
- Equatorial mounts
- How to increase equipment performance with accessories
- Align the telescope and look for the first objects
- How to organize an observation night
- Visual observation
- Photographic observation
- Get to know books, celestial chart applications and apps
GIFT INCLUDED of this magnificent book:https://www.telescopiomania.com/astronomy-books/7932-astronomy-books-learn-how-to-use-your-telescope-9788426727039.html
This course will be personalized for all attendees and will be conducted via zoom or in person at our headquarters in Girona with the possibility of making all the necessary consultations to expand the knowledge acquired, these courses are done with a certain frequency in time where we offer different dates so you can adapt to the one that best suits your needs, we will inform you in advance of the calendar to make the reservation.
The people teaching the course are experts in Astronomy with more than 30 years of experience using astronomy equipment and performing outreach activities where they will be able to share with you their experiences with their equipment and the night skies.
ALL THE TRAINING WE OFFER IS PROVIDED LIVE BYwww.astroxperiences.comWITHOUT ANY MEANS OF RECORDING WHERE YOU CAN INTERACT WITH THE EXPERT TO SOLVE YOUR DOUBTS
Duration 2,5h
Via zoom or live in person at our Girona store
It is recommended that you have your own equipment to start practicing
This training can be extended with field observation practices (not included in this course)
