Product description:
Following the success of the equatorial center-balanced mount iOptron CEM60, CEM70 series mounts are the new standard mounts for equatorial mounts in the 70-pound payload segment. The mounts are packed with advanced features, however, the CEM70G is the first of its kind with an on-board optical guidance system that increases tracking accuracy while simplifying components, resulting in a more portable imaging configuration.
Maintaining the inherent properties of the center-balanced design, these relatively compact, medium payload mounts deliver what astronomers expect from an efficient and accurate portable mount. With precise GOTO pointing and accurate tracking, the CEM70EC offers solid performance for both observers and imagers.
Innovative operational features, such as the iPolar internal electronic polar viewfinder, easy operation of the locking gears (levers large enough to use with gloves), an advanced cable management system for the mount, iPolar, guiding and camera, and a host of others, assure users that the CEM70 has been designed with their needs in mind.
Characteristics:
- A newly designed center-balanced equatorial mount (CEM) for maximum payload with natural stability
- Ideal for both visual observation and astrophotography
- Payload of 31.8 kg (70 lbs) with a saddle weight of 13.6 kg (30 lbs)
- Easy-to-use and reliable gear clutches
- Precise adjustment of altitude and azimuth.
- Precision stepper motor with 0.07 arcsecond accuracy for precise GOTO and accurate tracking
- IPolarTM electronic polar indicator
- Go2Nova® 8410 controller with advanced GOTO technology GOTONOVA® with built-in heater
- High-accuracy tracking with low periodic error (PE
- Real-time periodic error correction (RPEC)
- 32-channel Global Positioning System (GPS)
- USB3.0 powered connection
- Integrated ST-4 autoguiding port
- Advanced cable management system with more options
- Double saddle Vixen/Losmandy 8" spring loaded
- Integrated Wi-Fi connectivity
SPECIFICATIONS
- Name: CEM70 ECW
- Maximum additional load (kg): 31.8
- Saddle weight (kg): 13.6
- Counterweight(s): 1 (9.5kg)
- Interfaces: ST-4 & USB 3.0
- Power supply: 12V
- Language: English
- Pole height adjustment (°): 0-65
- Azimuth precision adjustment (°): +/- 4
- Operating temperature: -10 bis +40
- Motor speeds: 1x, 2x, 8x, 8x, 16x, 64x, 128x, 256x, 512x, max ~3.75º/sec
- Saddle stand: Losmandy & Vixen
- DEC ball bearing diameter (mm): 80
- AR ball bearing diameter (mm): 80
- DEC worm wheel diameter (mm): 151
- AR worm wheel diameter (mm): 151
- Sprocket (DEC): 248
- Toothed wheel (RA): 248
- Encoder: yes
- Tracking accuracy: 0.07
- AR helical shaft diameter (mm): 55
- DEC helical shaft diameter (mm): 55
- Counterweight bar diameter (mm): 28
- Worm wheel material: Steel
- Motor type: Stepper motors (128 micro-steps)
- Cable routing: internal
- GoTo system: yes
- GPS: yes
- Manual control device: yes

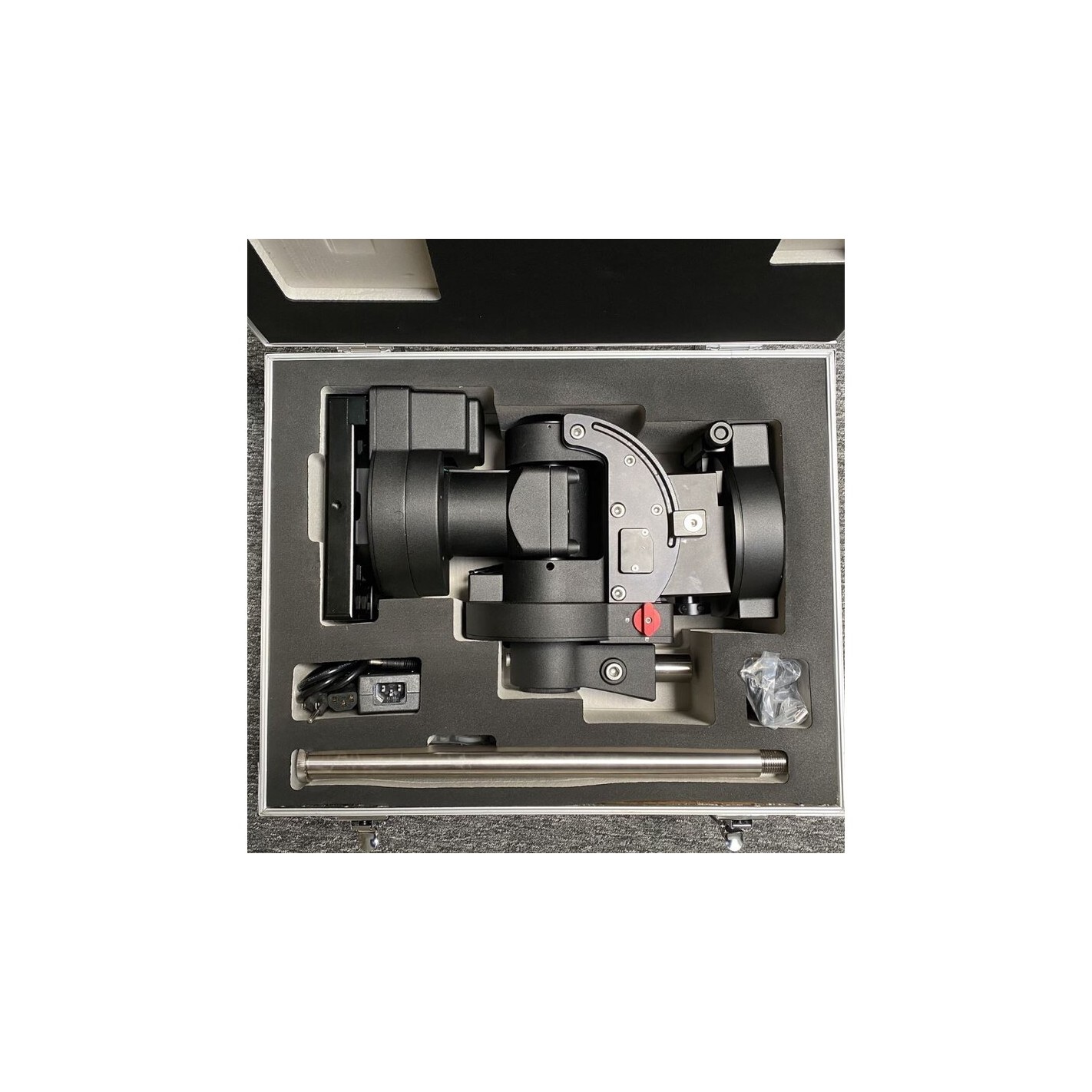

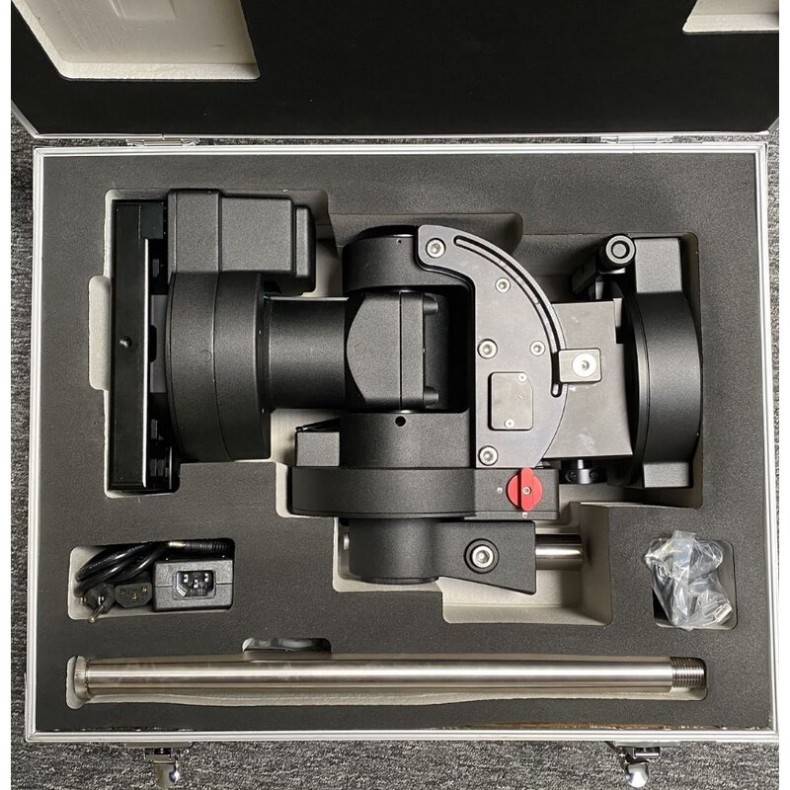

- Transport boxes: yes
- Tripod: no tripod
- Pole finder: yes
- Energy source: yes
- Counterweights: 1
- Total weight (kg): 24
- Series: CEM
- Type: Saddle
- Type of construction: equatorial
- Suitable for photographic purposes: yes
- For visual use: yes
- GPS: yes
- With remote control: yes
- Wi-Fi: yes
- Interfaces: Autoguider, USB
- Autoguiding: yes
- PEC correction: yes
- polar alignment: iPolar
- GoTo system language: English
