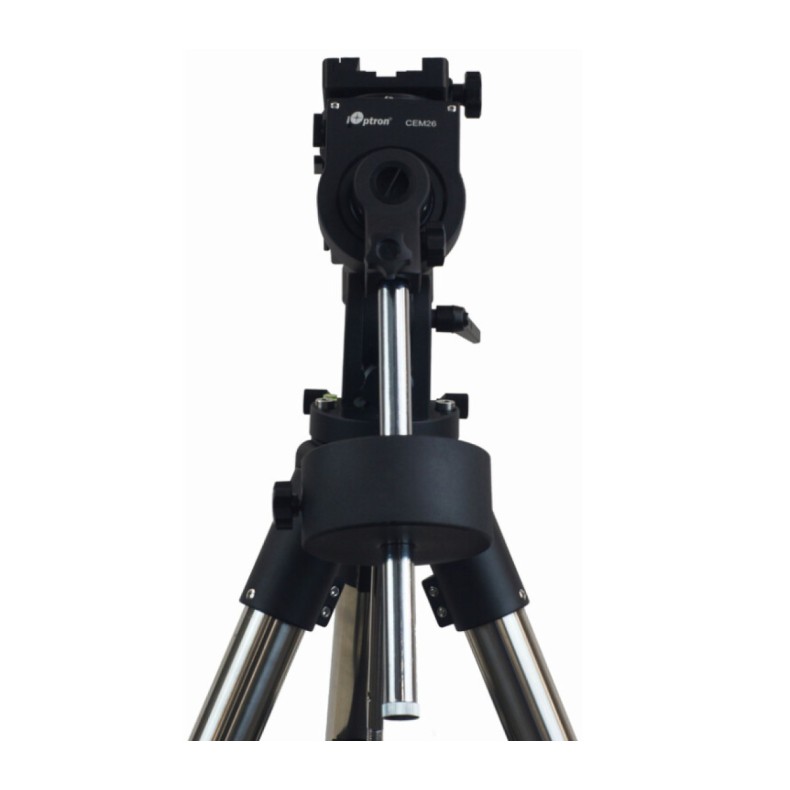

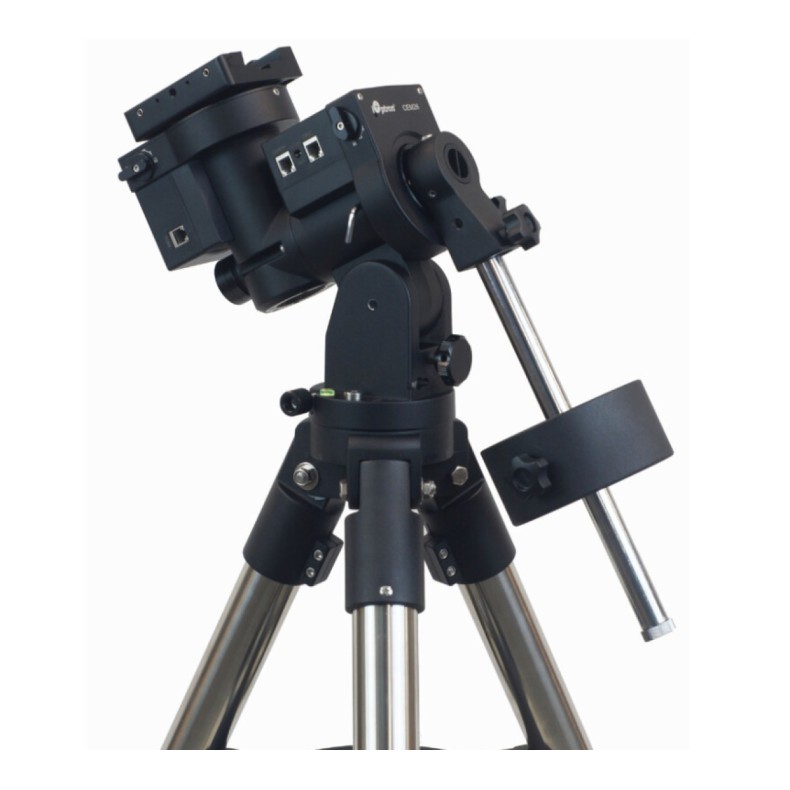

Product description:

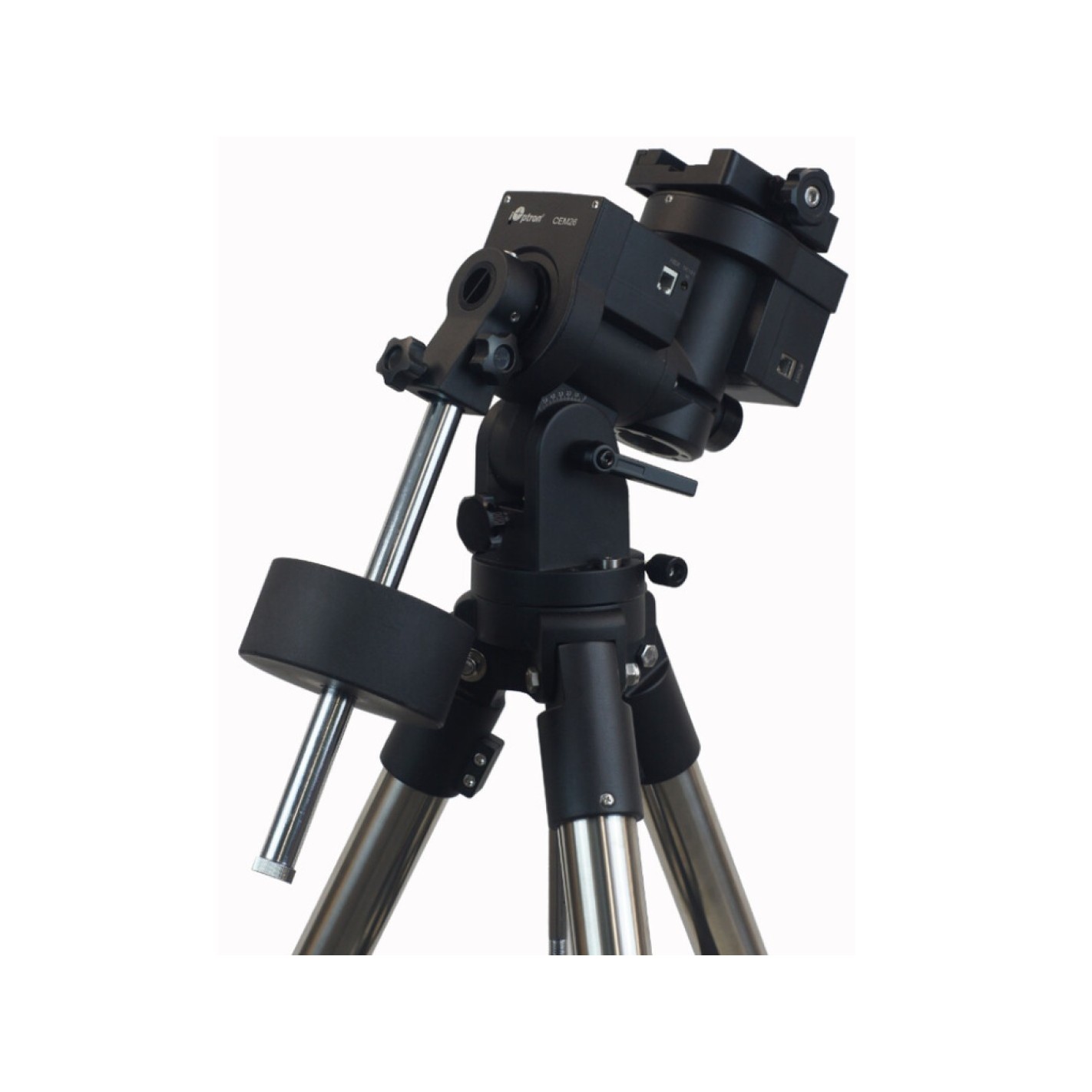

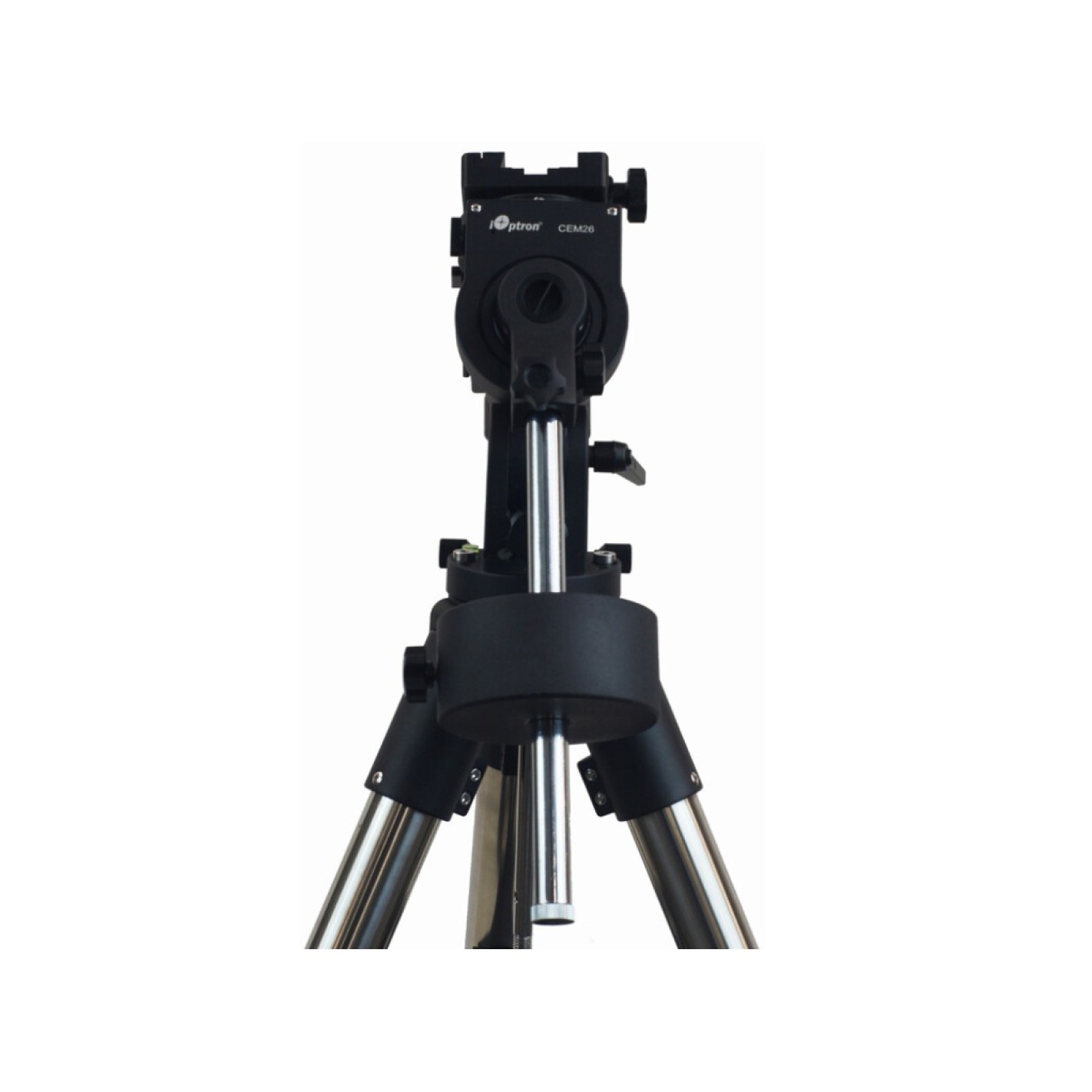

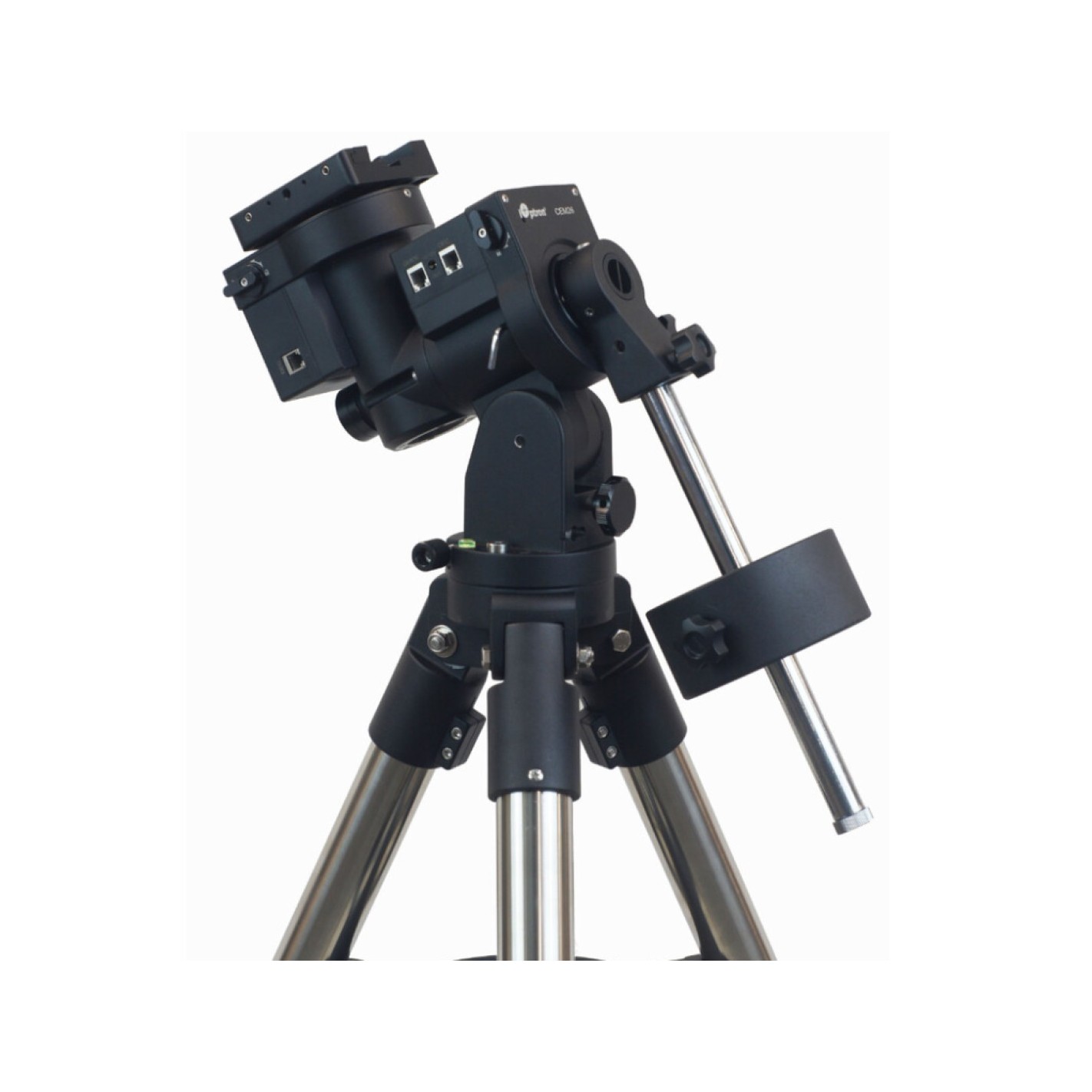

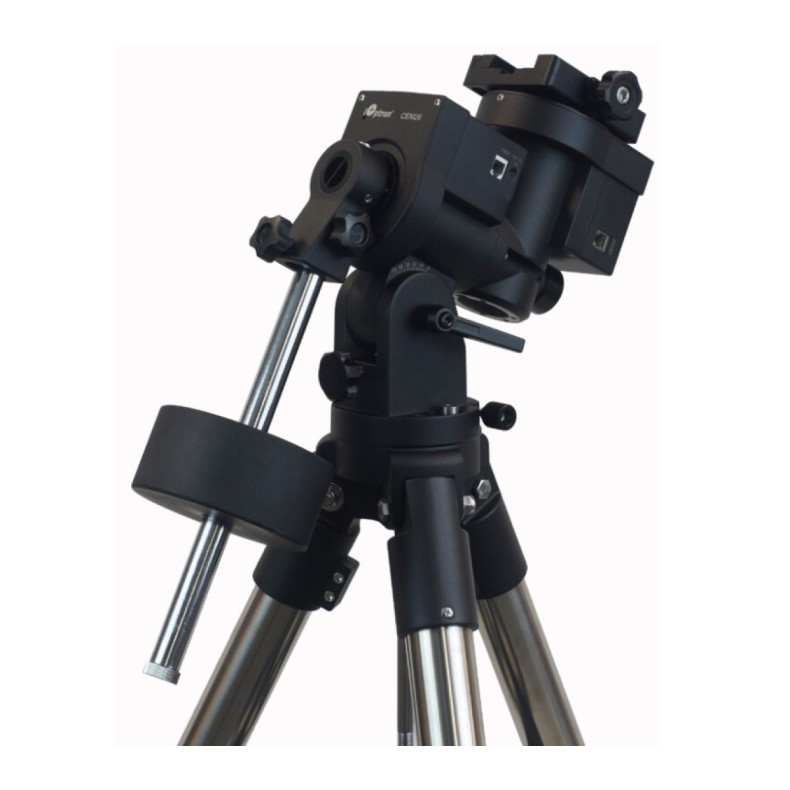

The key to this optimized version is the "CEM design",Center-Balanced Equatorial Mount. This design, developed by iOptron, directs the weight of the mount and payload directly to the center of the tripod to create a natural center of gravity.
Based on the experience of creating previous CEM models, additional features have been added to the new CEM26 to ensure maximum comfort during use.
An integrated wifi system is now included, as well as a permanentperiodic error correction (PEC).
In terms of functionality, the CEM26 offers precise approach and very accurate tracking of selected objects.
The center-balanced mount design places the weight of the payload in the central area, allowing for greater natural stability. This is a great advantage for astronomical photography.
Another feature of the CEM26 is a counterweight bar whose length can be adjusted to prevent it from hitting the tripod legs when used very close to the horizon.
The CEM26 is also equipped with the latest Go2Nova® technology, making it one of the most powerful and accurate GoTo mounts available on the market today.

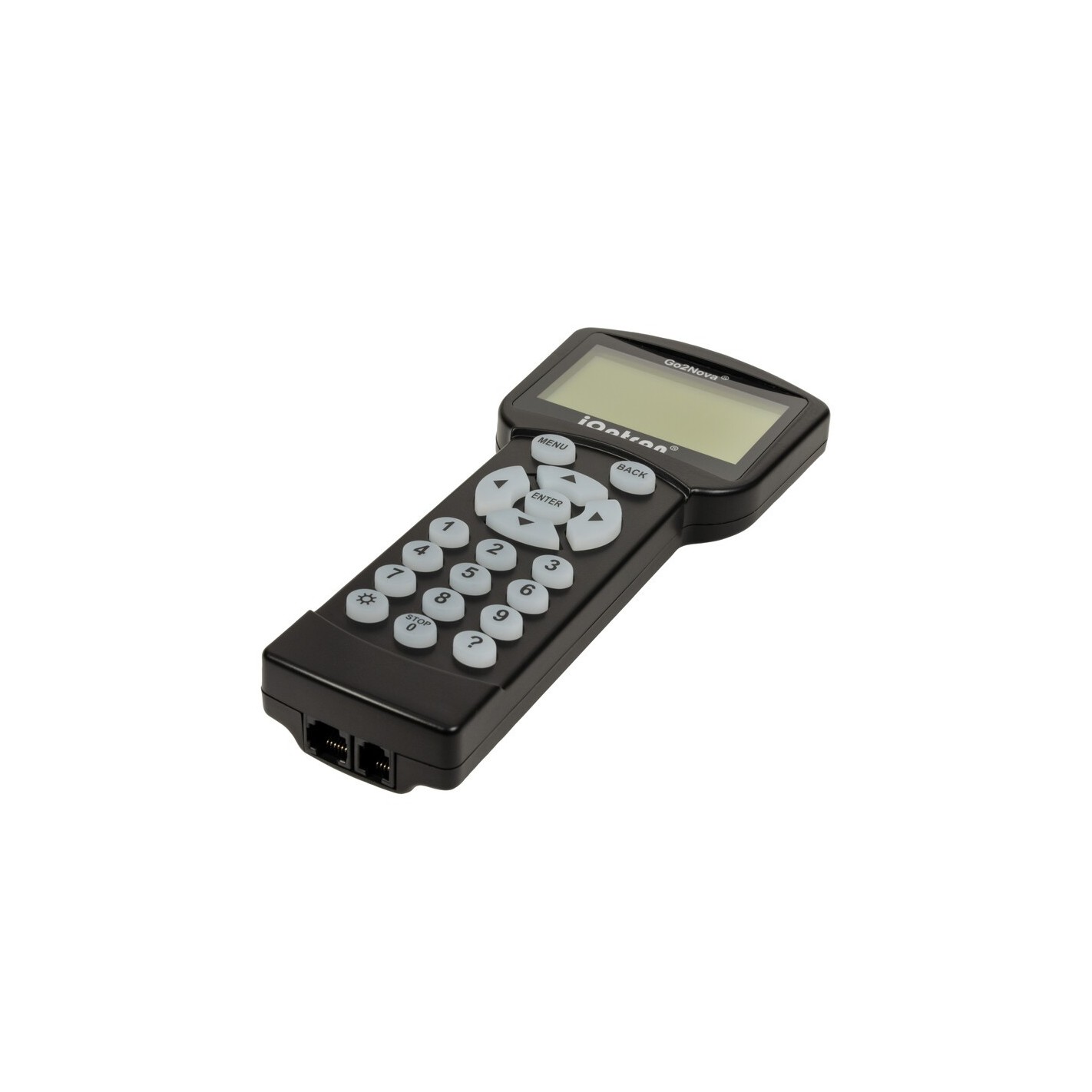

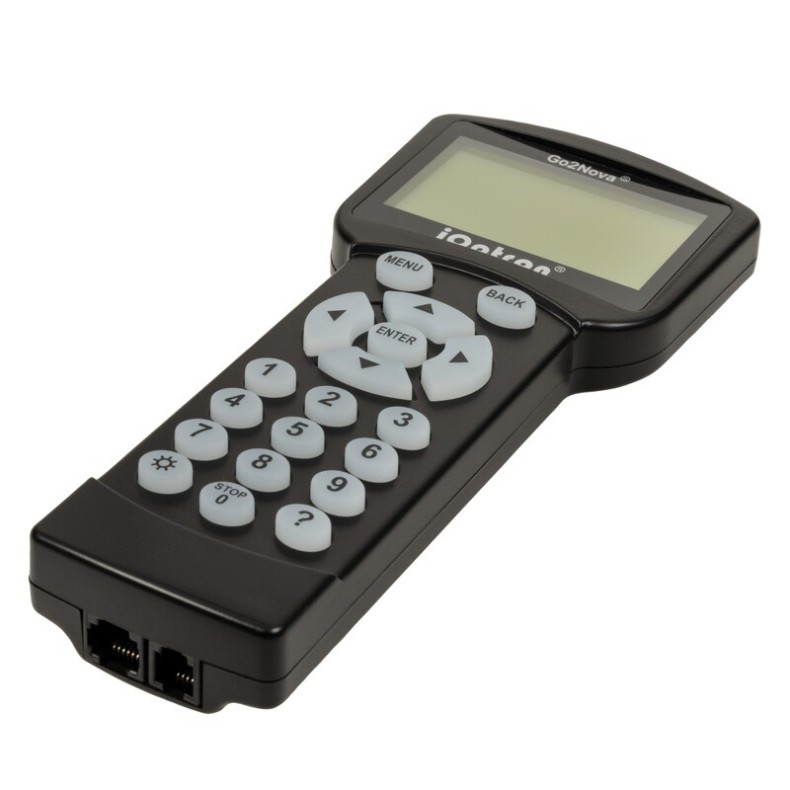

The GoTo software database contains more than 212,000 objects. Operation of the Go2Nova® control unit is intuitive and the large four-line LCD display makes it easy to locate objects, even in complete darkness.
The CEM26 comes with the proven LiteRoc stainless steel tripod and a robust aluminum carrying case.
Features:
- Lightweight, uniquely designed center-balanced equatorial mount with minimal weight but maximum payload
- Ideal for visual observation and astronomical photography
- Low periodic error (
- 4.5 kg mount weight with up to 12 kg payload capacity
- CNC machined cast metal
- Large, easy-to-use rotary knobs
- Adjustable counterweight bar for 0° latitude operation
- Energy efficient stepper motors
- AccuAlign Optical Polar Finder from iOptron
- Easy Polar Alignment" procedure for when you can't see the North Star
- Go2Nova® control unit with the latest GoTo® technology
- Integrated ST-4 auto guidance port
- Integrated Wifi
- USB port for firmware update and control via PC/laptop/tablet
- LiteRoc stainless steel tripod with anti-vibration pads (tripod weight: 7.5 kg)
- Tripod with central cast metal fixation and a practical accessory tray

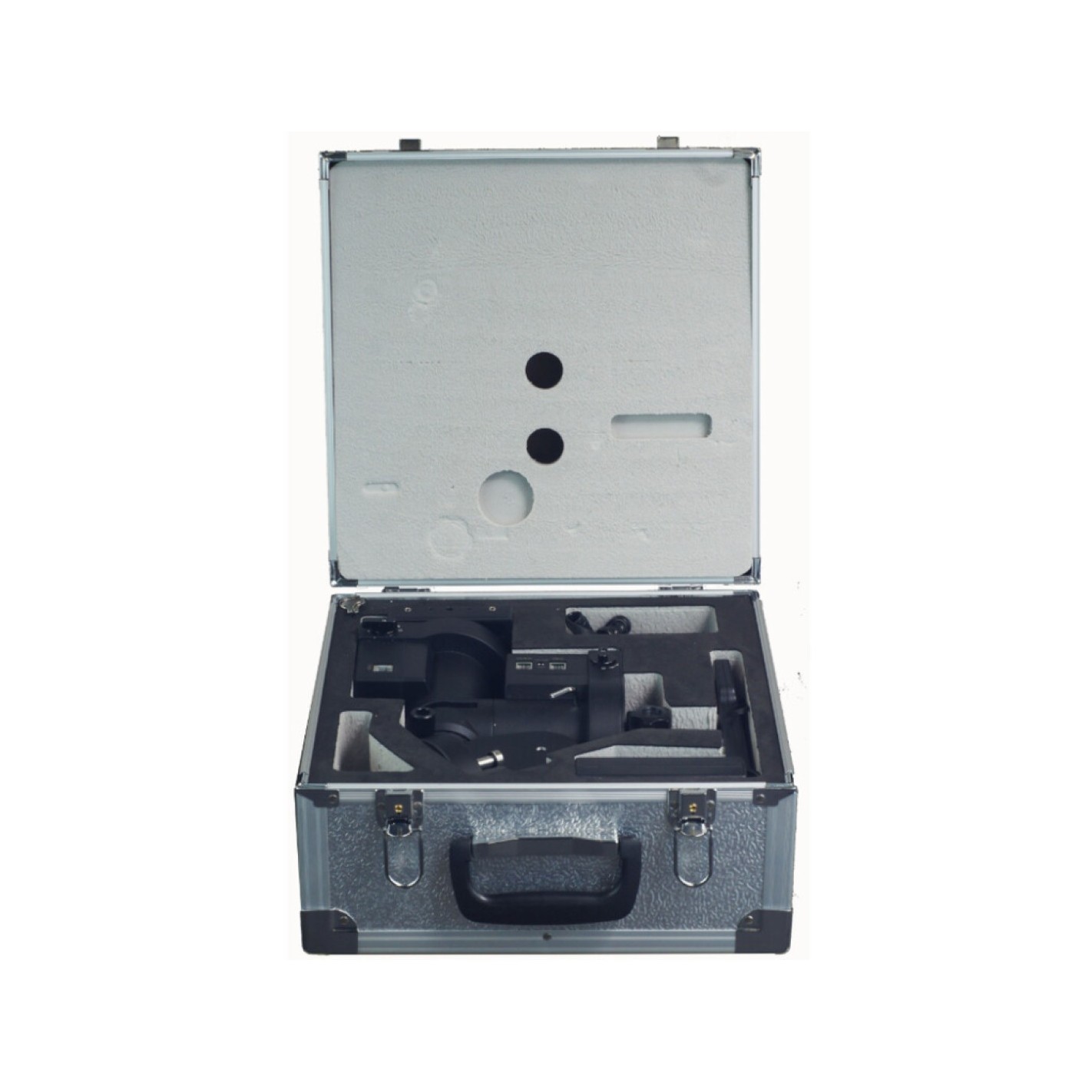

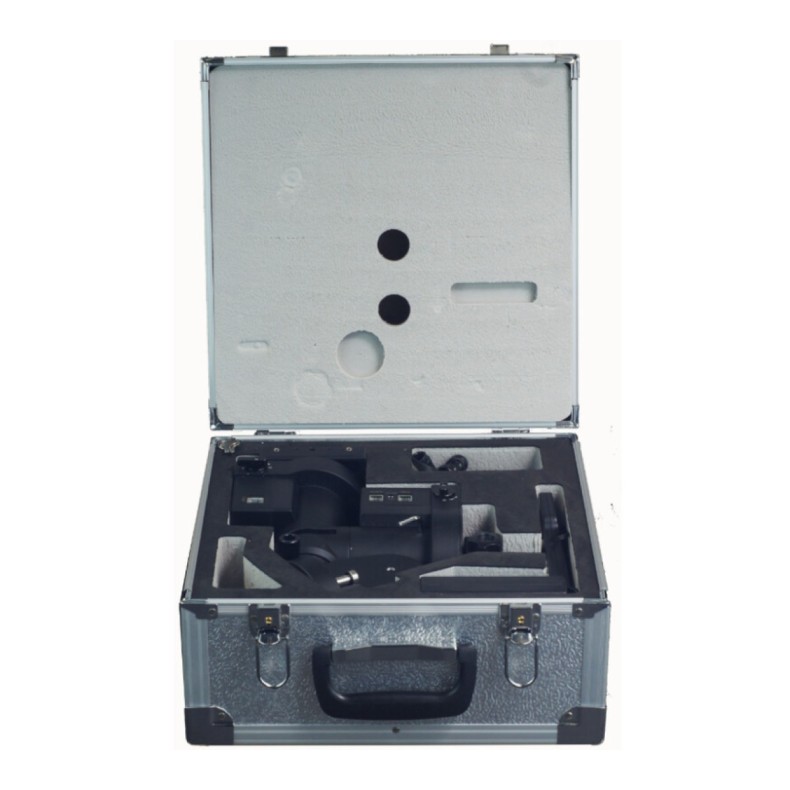

- Carrying case with foam lining to fit the parts
- Optional 32-channel expandable GPS
- Optional iGuider automatic guidance system
SPECIFICATIONS
- Maximum additional load (kg): 12
- Pole height adjustment (°): 0-60
- Motor speeds: 1x, 2x, 8x,16x, 64x,128x, 256x, 512x (Stepper motor)
- Position accuracy: 0.17
- Tracking accuracy: +/-6
- Worm wheel material: Brass
- Worm wheel material: Aluminum
- Sprocket (RA): 144 (Aluminum)
- Counterweight(s): 1
- Material of counterweight(s): Steel
- Counterweight bar diameter (mm): 20
- Software: Go2Nova
- Screen: 2.17 x 0.8 (backlit LCD display)
- Database: 212,000
- Connection to control unit: USB and ST4 cable
- Interfaces: ST-4, USB, HBX
- Cable routing: internal
- Operating temperature: -10°C to 40°C
- Power supply: 12 (DC)
- Power consumption with open system (mA): 0.8
- Pole height scale: yes
- Connection for prism bar: yes (Vixen)
- PEC correction: yes (permanent)
- GoTo system: yes
- GPS- (optional)
- Can be controlled via PC: yes (ASCOM)
- Can be upgraded via internet: yes
- Accessory support: yes
- Transport cases: yes
- Pole finder: yes
- Power supply: yes
- Cable: USB
- Tripod: yes
- Tripod material: Stainless steel
- Tripod weight (kg): 7.5
- Total weight (kg): 18.5
- Series: CEM
- Wi-Fi: yes
- Alignment process: 3-Star Alignment, 2-Star Alignment, 1-Star Alignment
- Autoguiding: yes
- PEC correction: yes
- Tracking speeds: sidereal, solar, lunar
- Polar Alignment: Easy Polar Alignment
