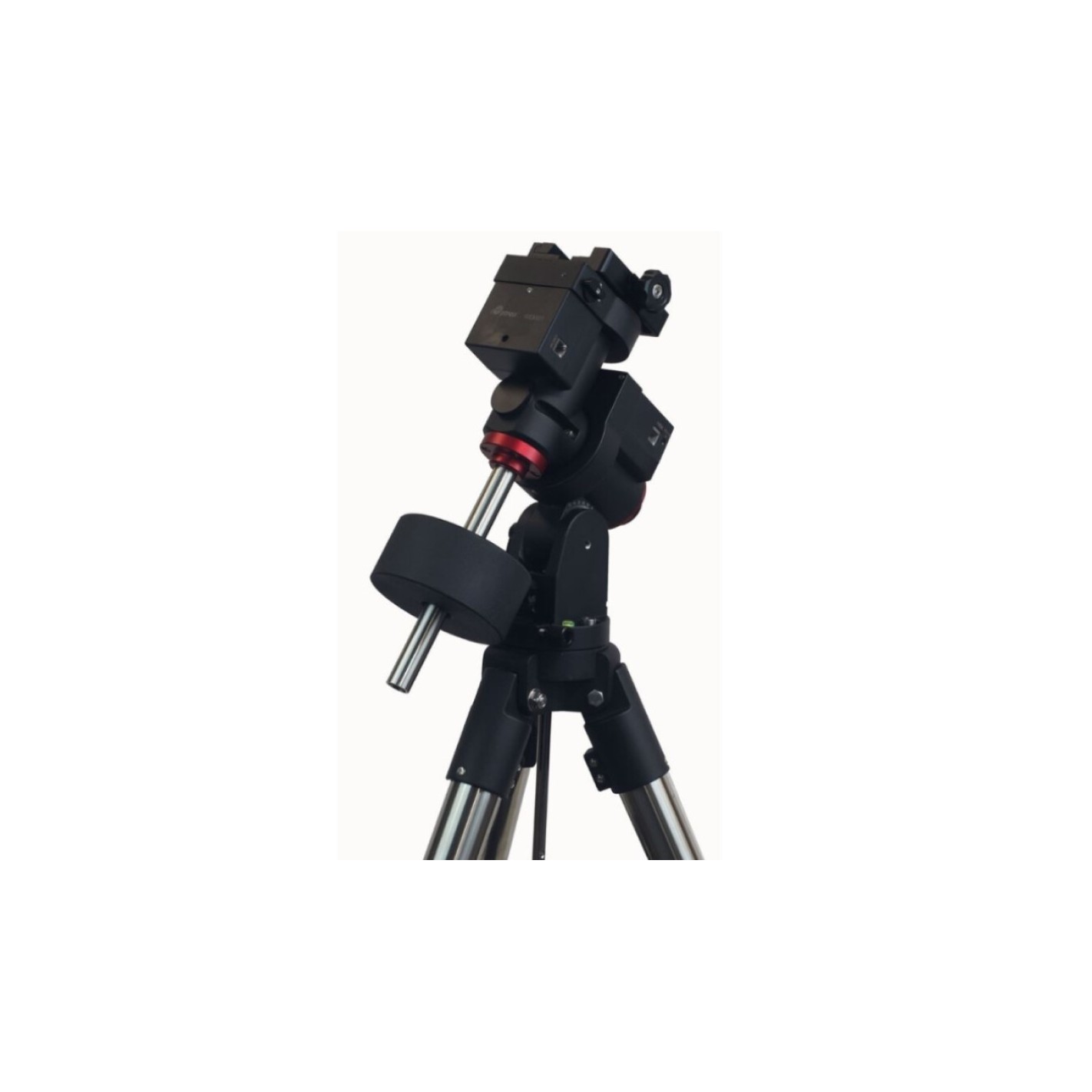

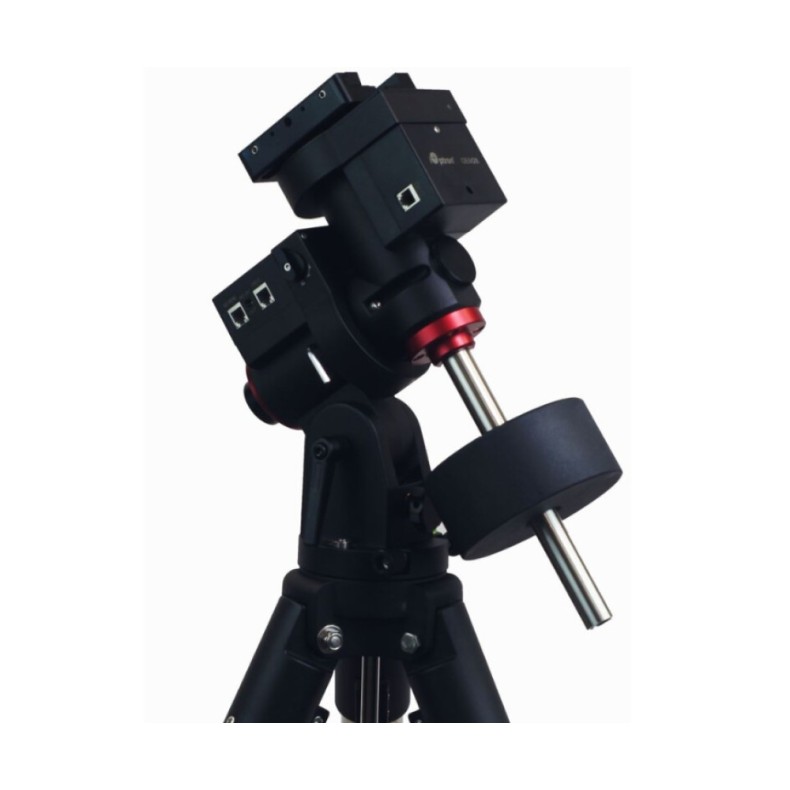

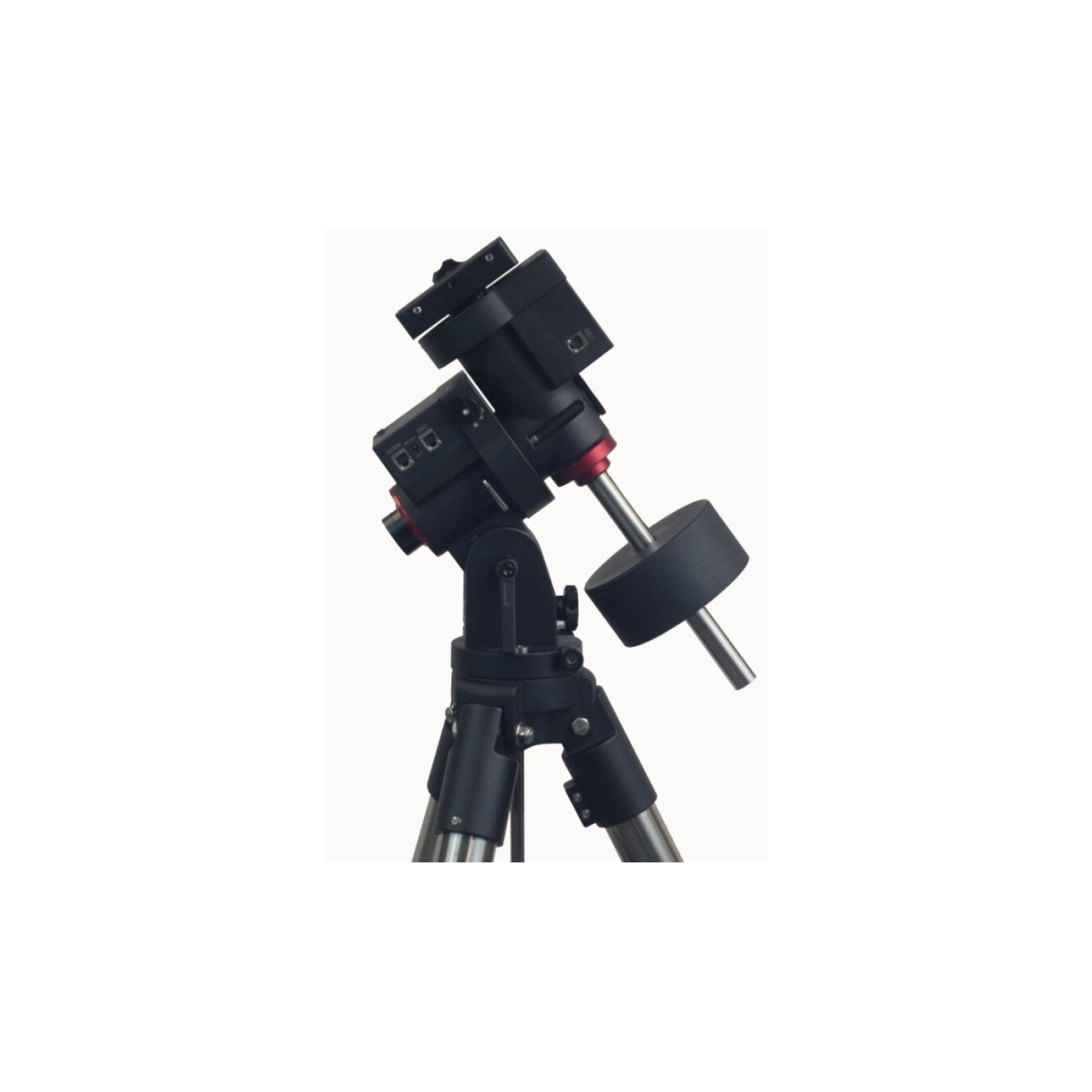

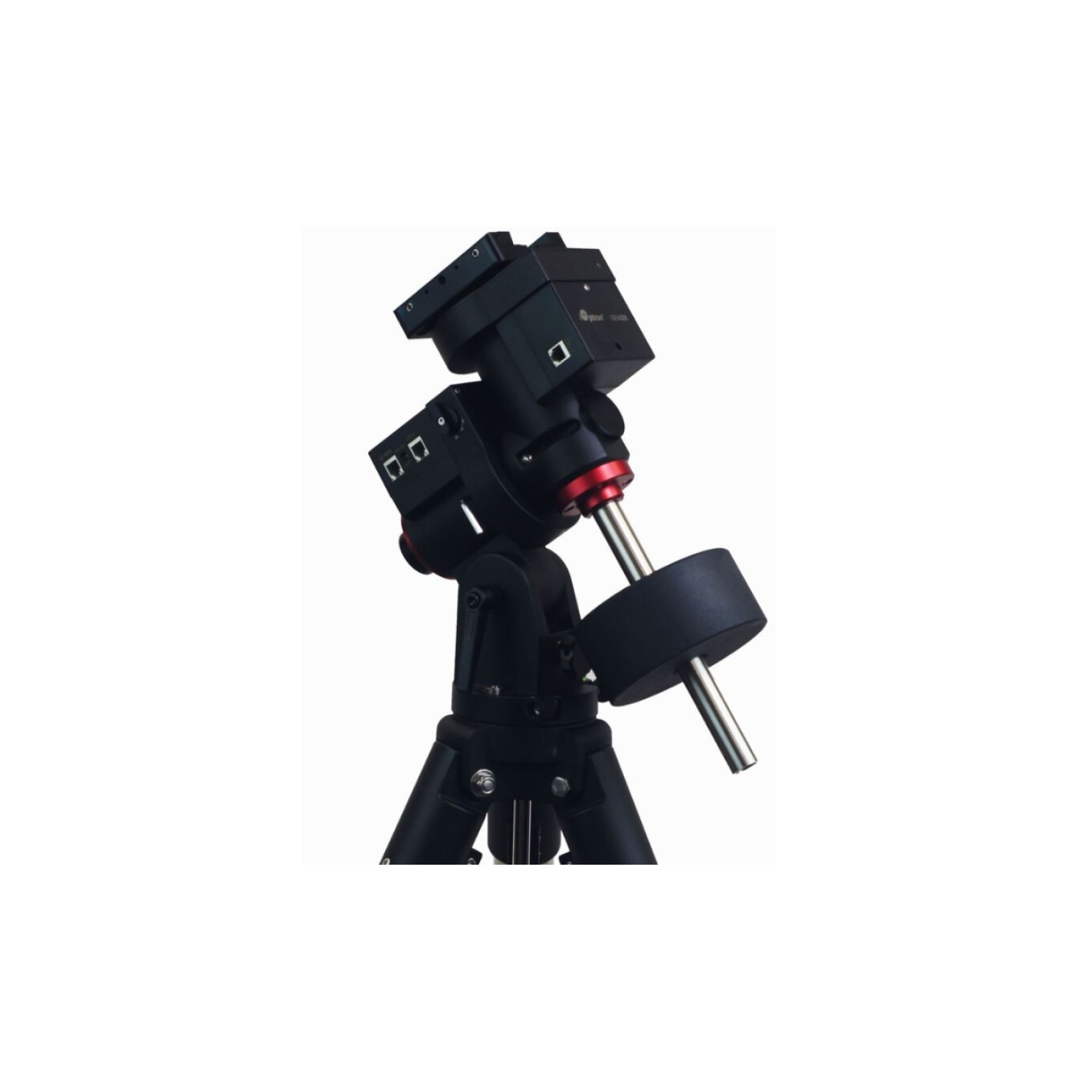

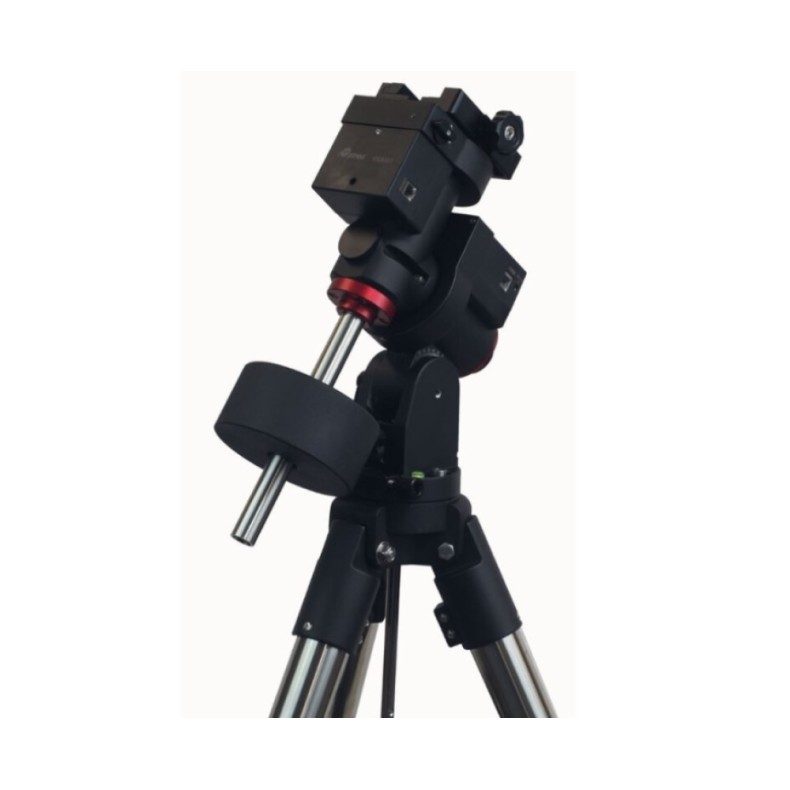

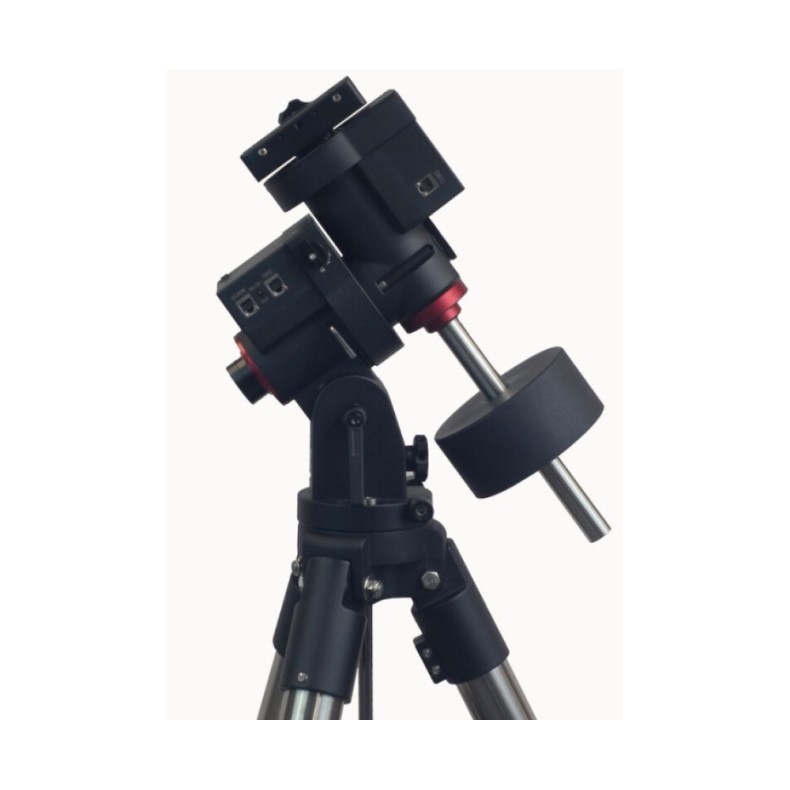

IOptron GEM28 iPolar 1.5" IOptron GEM28 iPolar mount with LiteRoc tripod

The mount can carry a payload of up to 12.7 kg and offers an optimal payload to weight ratio (2:8).

This ratio allows a fairly high payload with a low mount weight: these are ideal conditions for your astronomical photography and observation outings.

In the new GEM28, iOptron has incorporated additional useful features for more comfortable use and advanced functionality.

With a built-in wifi system (easy to use even when wearing gloves) and an integrated WLAN, this model records the periodic error permanently (PPEC protocol).

In terms of functionality, the GEM28 offers precise approach and very accurate tracking of objects.

The GEM28 is also equipped with the latest Go2Nova® technology, making it one of the most powerful and accurate GoTo technologies on the market.

The database of 212,000 objects ensures that you will never run out of targets in the sky.

Operation of the Go2Nova® control knob is intuitive and the large four-line LCD display makes it easy to set up the mount and locate objects.

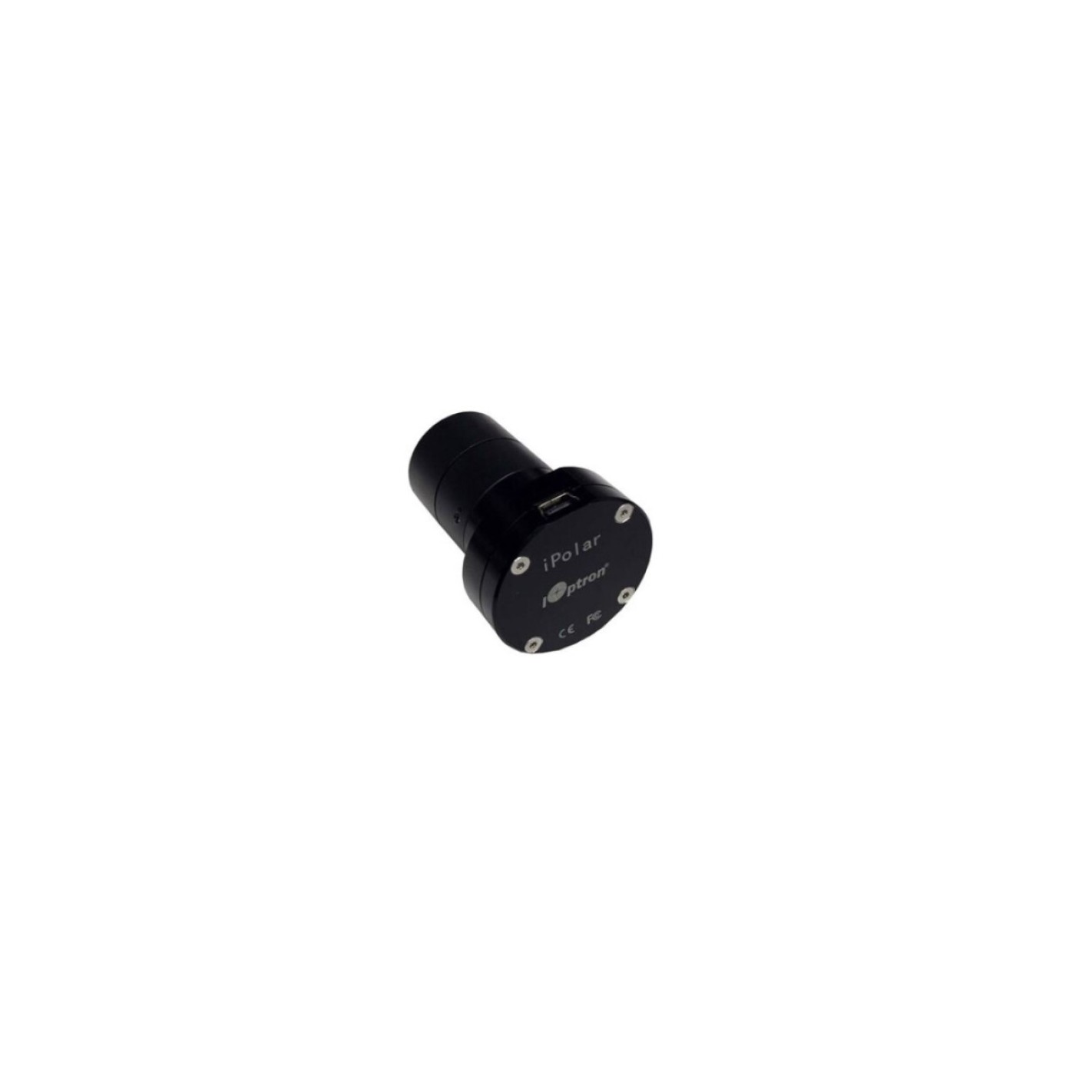

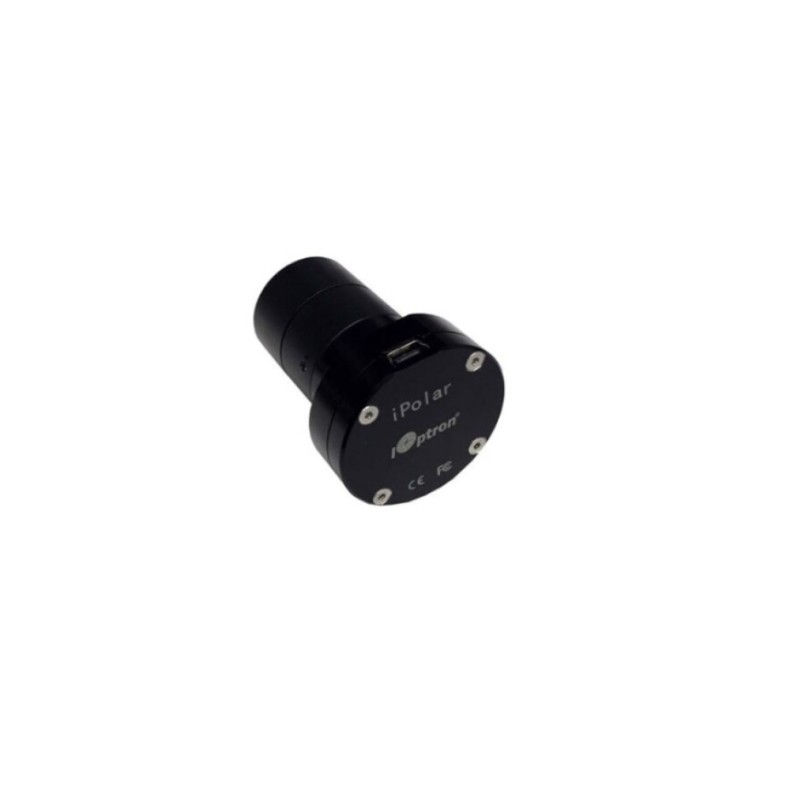

The GEM 28 is equipped with either the optical "AccuAlign" or electronic "iPolar" Polar finder.

Summary of main features:

• Latitude range from 10° to 70°
• Ideal for visual observation and astronomical photography
• Low periodic error (
• 4.5 kg weight mount for a payload of up to 12.7 kg
• Made of CNC-machined cast metal
• Large, easy-to-use quick couplings
• Low power consumption stepper motors
• Calibrated AccuAlign® Polar Finder
• Easy Polar Alignment procedure for when you can't see the North Star
• Go2Nova® control unit with advanced GoTo® technology
• Integrated ST-4 auto guidance port
• Integrated WLAN
• USB port for firmware update and PC control
• LiteRoc stainless steel tripod (7 kg)
• Tripod with cast metal center mount and accessory tray
• Optional 32-channel GPS
• Optional iGuider automatic guidance system

SPECIFICATIONS

• Maximum additional load (kg): 12.7
• Pole height adjustment (°): 10° - 70
• Motor speeds: 1x, 2x, 8x, 8x, 16x, 64x, 128x, 256x, 512x
• Position accuracy: +/-6
• Tracking accuracy: 0.17
• Worm wheel material: Aluminum
• Worm wheel material: Brass
• Sprocket (RA): 144 (Aluminum)
• Counterweight(s): 1
• Material of counterweight(s): Steel
• Counterweight bar diameter (mm): 20
• Software: Go2Nova
• Screen: 2.17 x 0.8 (backlit LCD display)
• Database: 212,000
• Connection to control unit: USB & ST-4 Kabel
• Interfaces: ST-4, HBX, USB, DEC
• Cable routing: internal
• Operating temperature: -10° bis +40°
• Power supply: 12V DC, 5A
• Power consumption (mA): 0.9
• Pole height scale: yes
• Connection for prism bar: yes (Vixen)
• PEC correction: yes (permanent)
• GoTo system: yes
• GPS- (optional)
• Can be controlled via PC: yes
• Can be upgraded via internet: yes
• Accessory holder: yes
• Carrying cases: no
• Pole finder: yes
• Power supply: yes
• Cable: USB
• Tripod: yes
• Tripod material: Stainless steel
• Tripod weight (kg): 5
• Total weight (kg): 20
• Series: GEM
• Wi-Fi: yes
• Alignment process: 3-Star Alignment, 2-Star Alignment, 1-Star Alignment
• Autoguiding: yes
• PEC correction: yes
• Tracking speeds: sidereal, solar, lunar
• Polar Alignment: Easy Polar Alignment
