Summary of main features:
- Harmonic Drive technology
- Payload up to 13.5 kg with only 3.7 kg own weight of the mount
- Provensoftware iOptron Go2Nova with control knob and a database of 212,000 objects
- No cable tangle
- Double mount Vixen and Losmandy
- Automatic shutdown in case of unplanned power failure
- Excellent tracking, even without guidance.

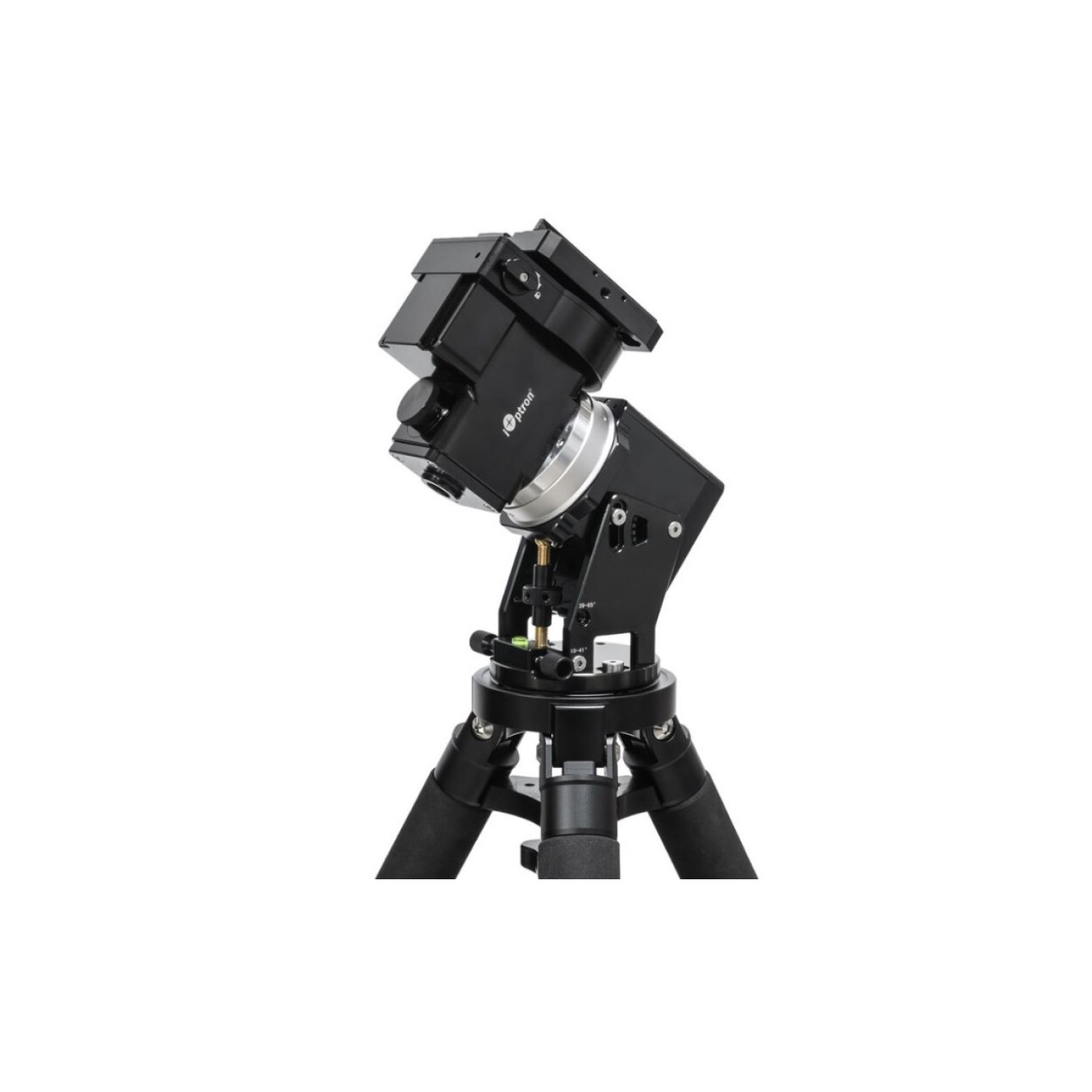

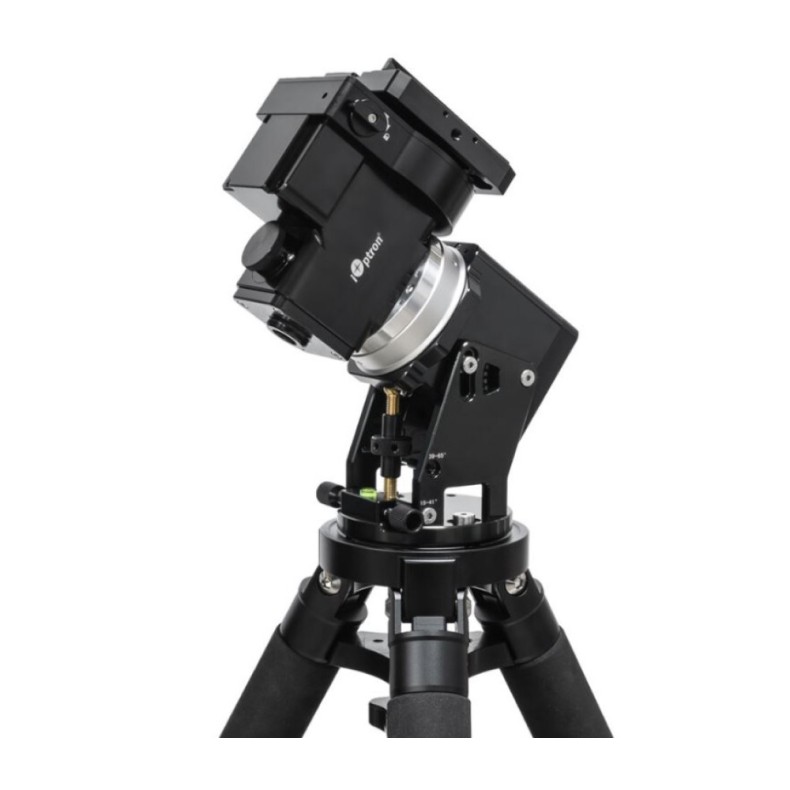

The HEM27 mounts from iOptron offer the excellent characteristics of a "large" equatorial mount and do not require counterweights/counterweight bar thanks to Harmonic Drive technology.
They weigh only 3.7 kg, but can carry a maximum payload of up to 13.5 kg. Thus, the HEM mounts have an excellent weight to payload ratio and also offer great features, such as permanentPeriodic Error Correction, automatic mount shutdown in case of power failure without the need to re-align when back in operation, tracking accuracy (even without guidance), internal cable management, a double prism clamp for rails Vixen and Losmandy and high quality CNC-machined and anodized materials. In addition, they feature proven iOptron Go2Nova 8409 software, integrated wifi and the ultra-quiet drive typical of mounts from iOptron.
SPECIFICATIONS
- Max. additional load (kg): 13.5
- Interfaces: USB cable and ST4
- Language: English
- Pole height adjustment (°): 15 - 65
- Mounting bracket: Losmandy & Vixen
- Mount weight (kg): 3.7
- Azimuth accuracy adjustment (°): +/- 5
- Input voltage: 12V
- Amperage (A): 5
- Cable routing: internal
- Encoder: no
- Declination shaft material: Aluminum
- Straight ascent shaft material: Aluminum
- GoTo system: yes
- Manual control device: yes
- Level: yes
- Tripod: no tripod
- Pole finder: yes
- Additional contents: Power supply

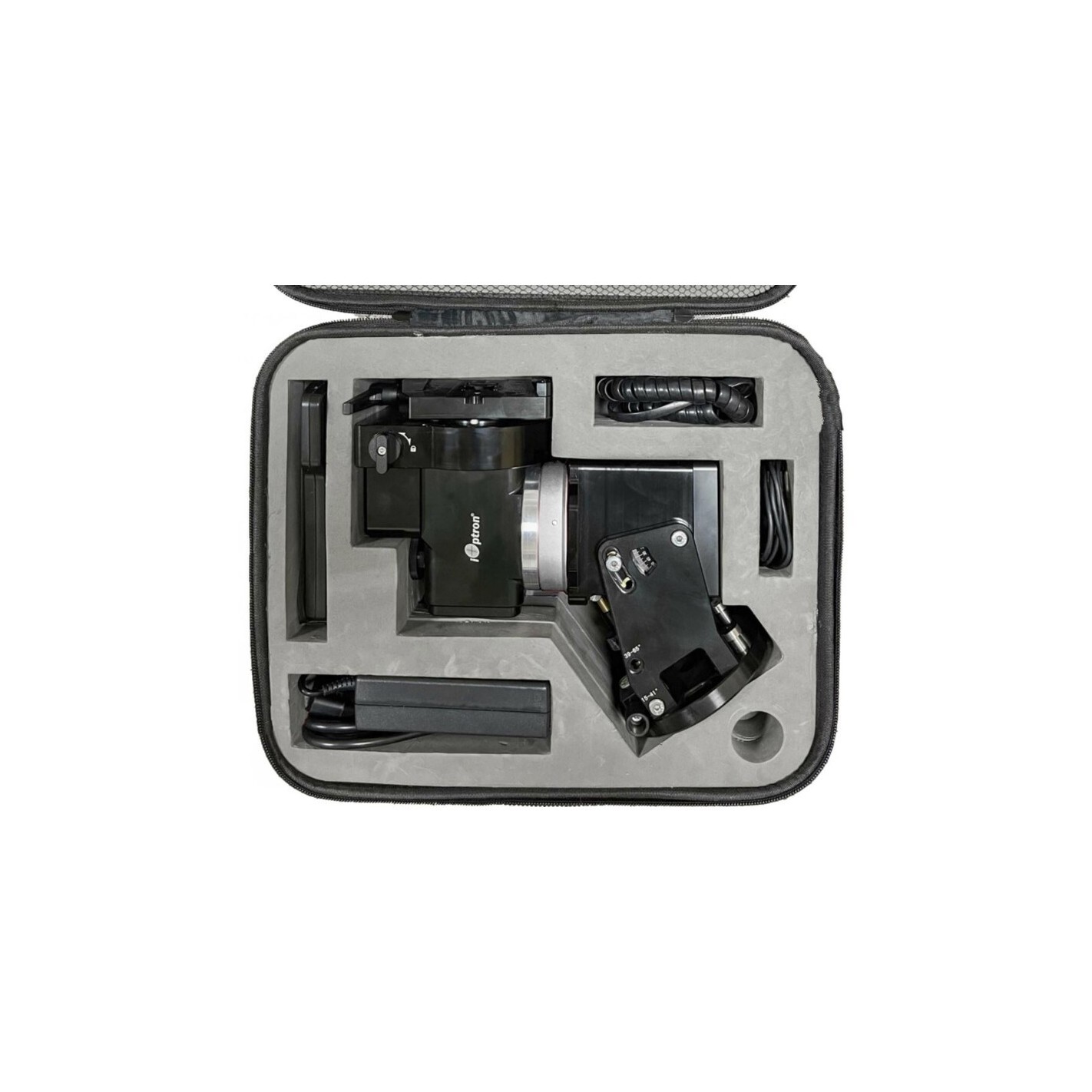

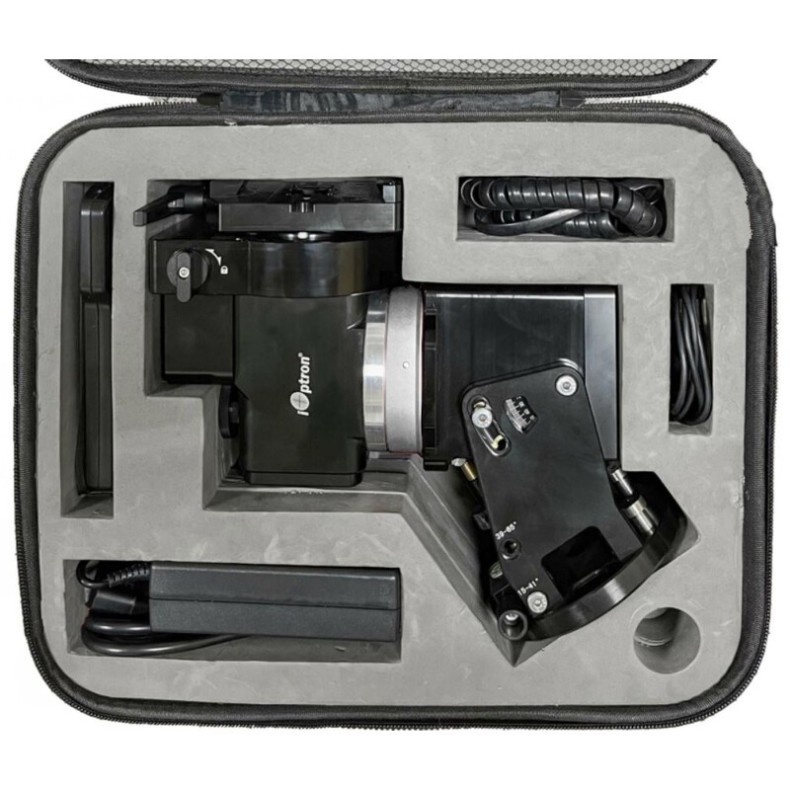

- Carrying bag: yes
- Series: HEM
- Type: Mount
- Construction type: Equatorial GoTo
- GPS: no
- Wi-Fi: yes
- PEC Correction: yes
- Polar Alignment: Easy Polar Alignment
- GoTo system language: English
- Software: Go2Nova 8409
- Autoguiding: yes
- Interfaces: Autoguider, USB
- Database: 212,000
