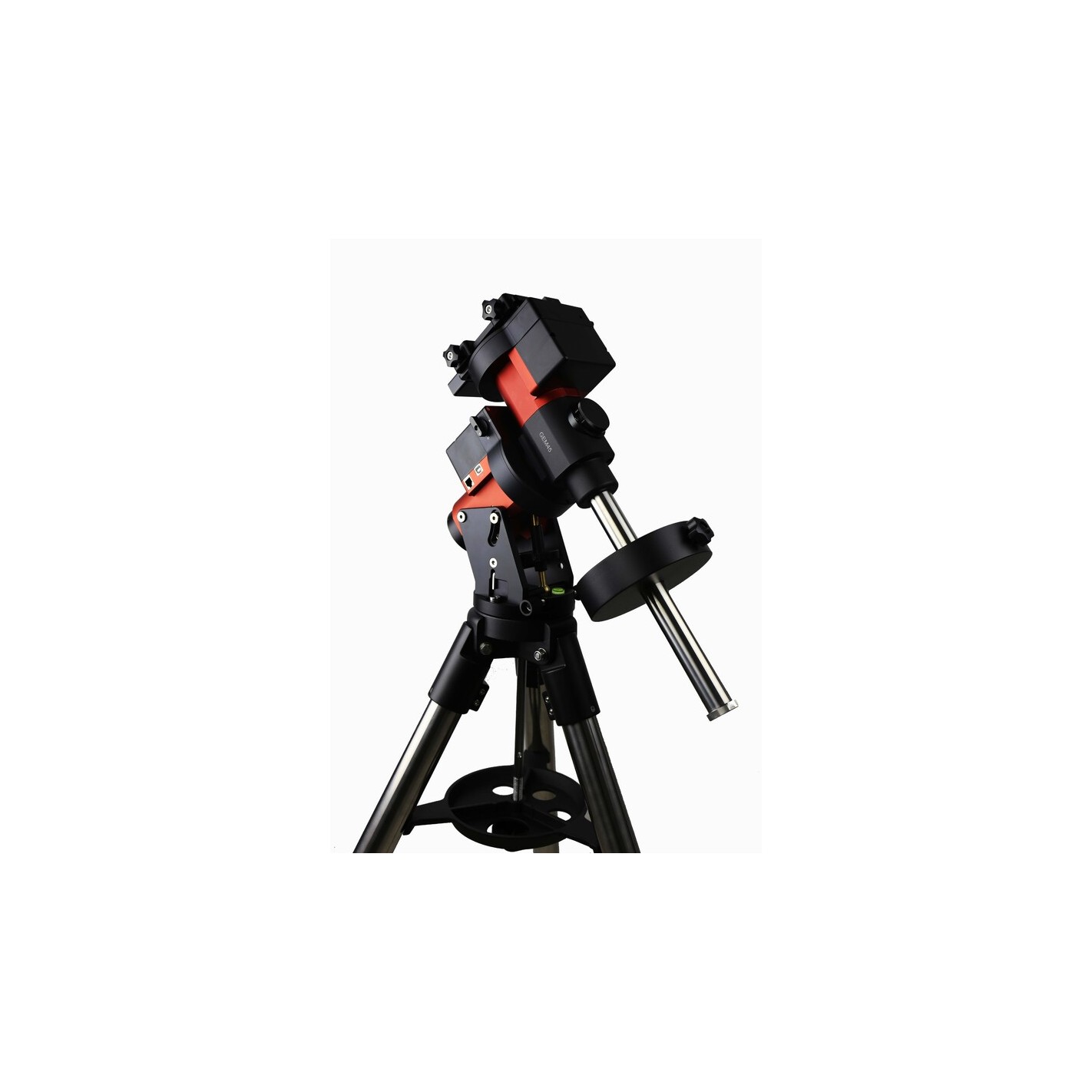

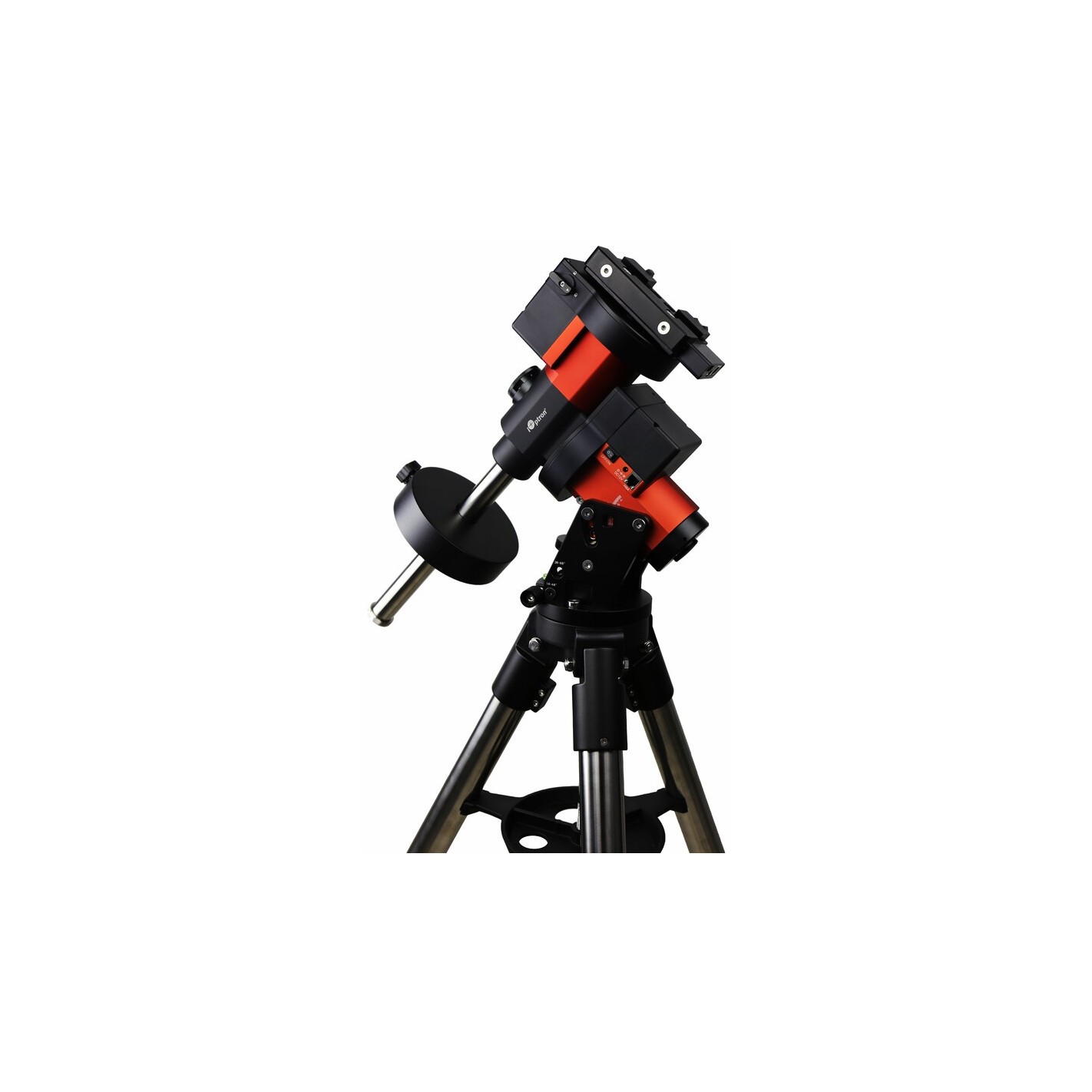

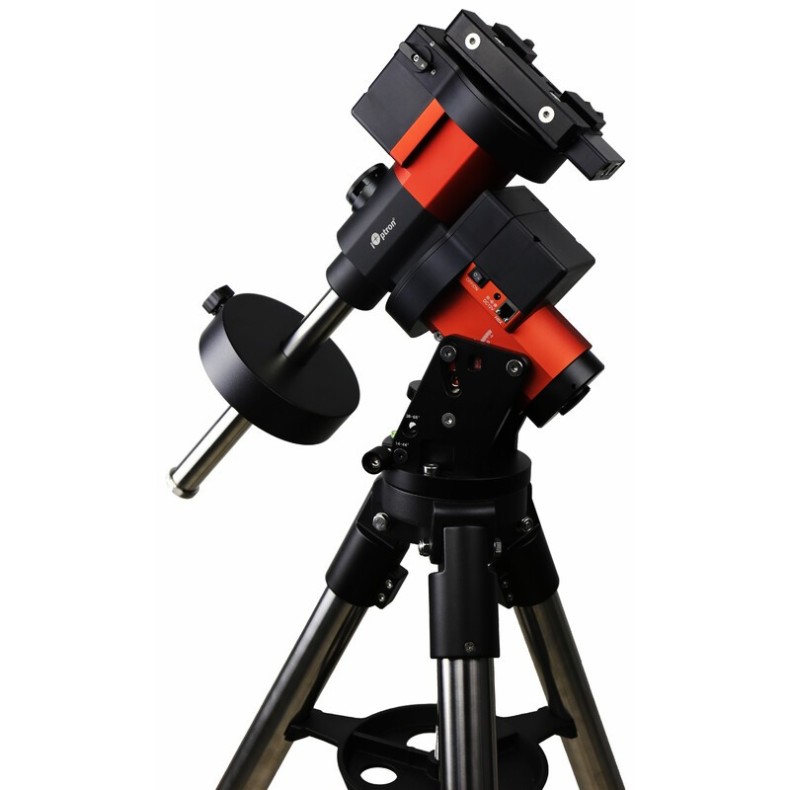

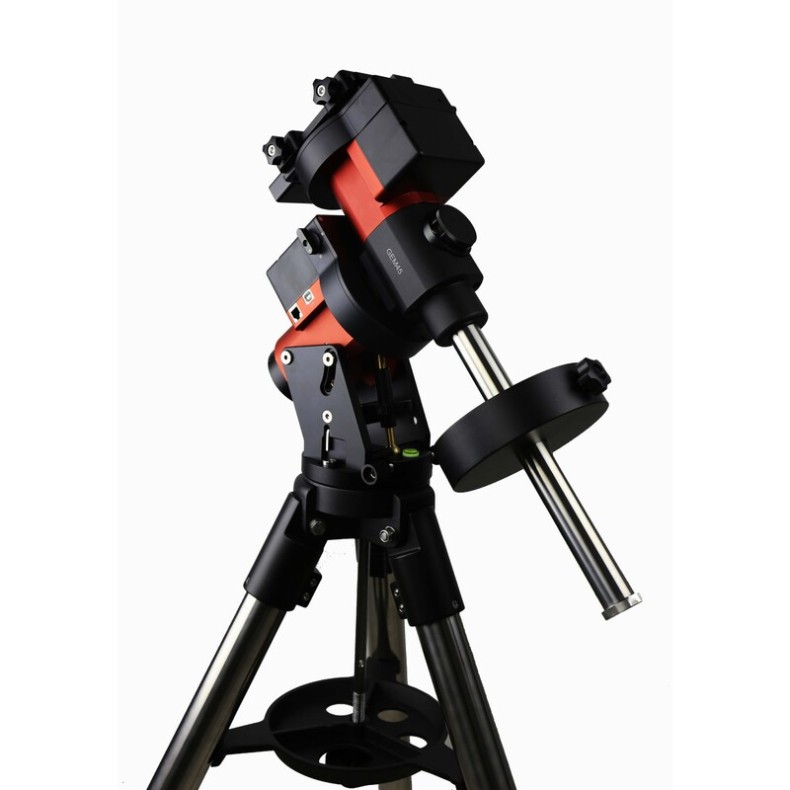

IOptron GEM45 GoTo mount with LiteRoc tripod
IOptron GEM45 GoTo mount with LiteRoc tripod
IOptron GEM45 GoTo mount with LiteRoc tripod

IOptron GEM45 GoTo mount with LiteRoc tripod

IOP63385
Stock at Supplier
3,049.55 3,202.07 -152.52
VAT excluded Shipping 5/7d

Buy it now and receive it between on Friday, 10 January and Friday, 17 January with Home delivery - International

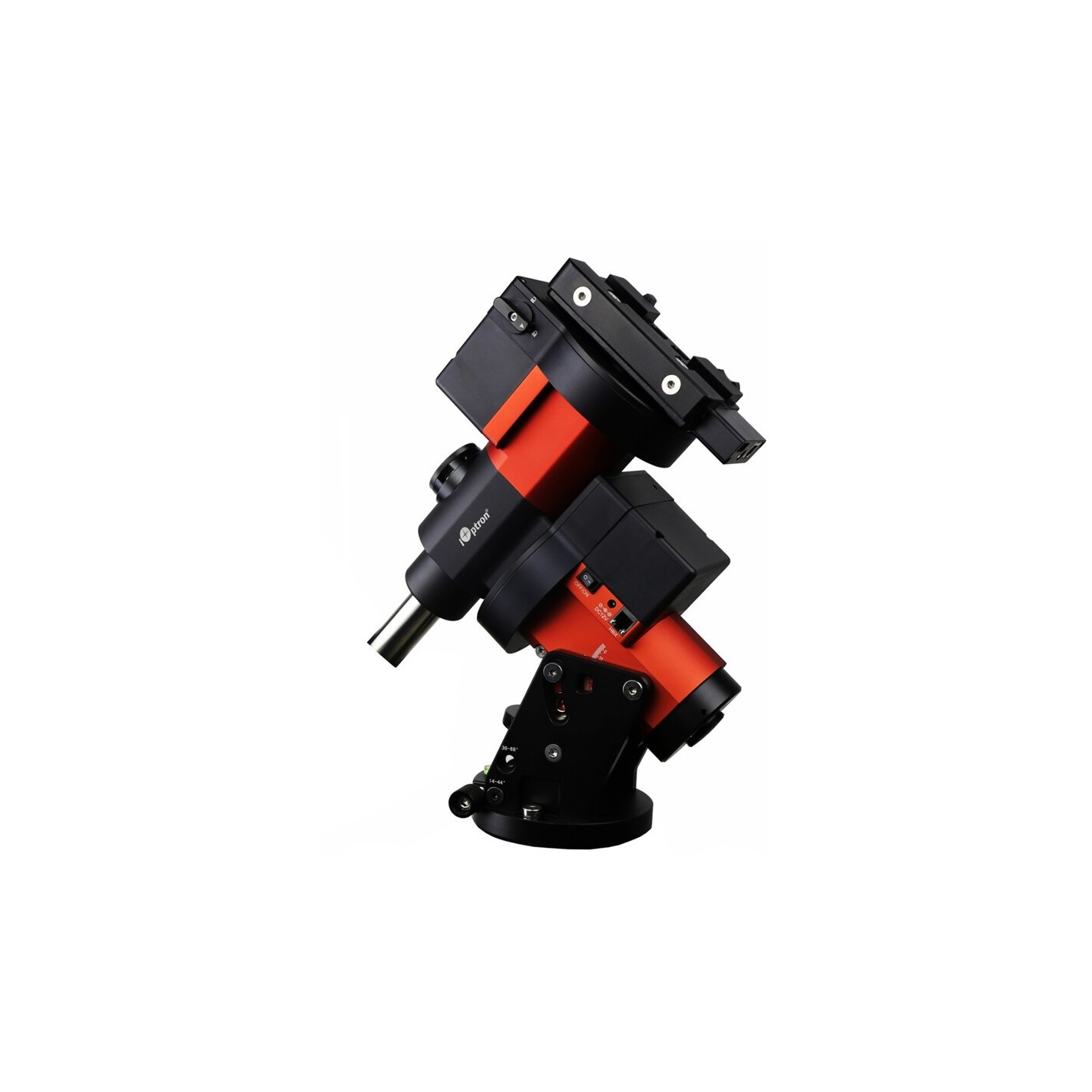

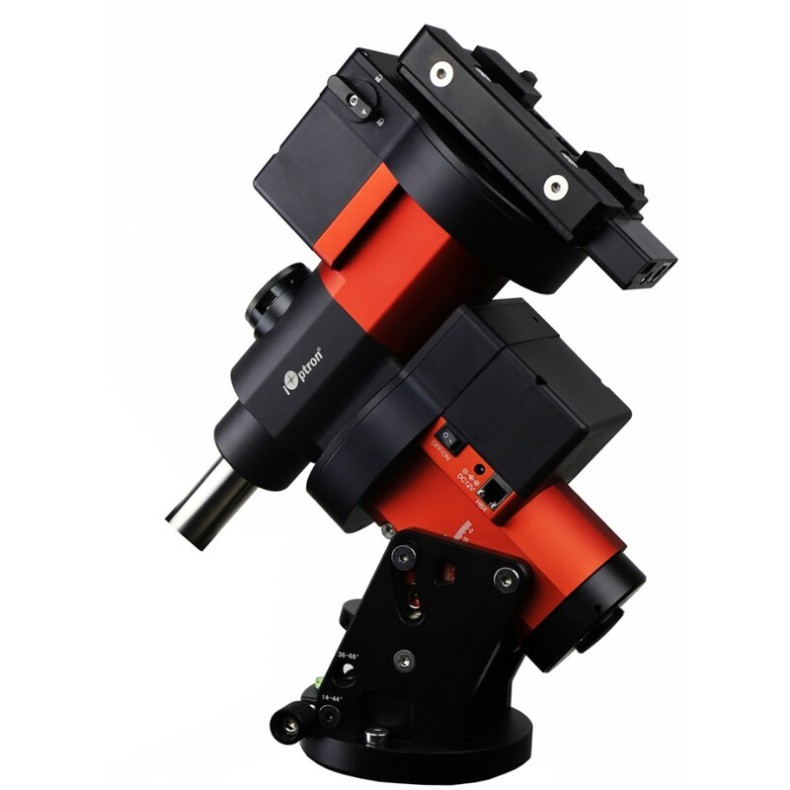

GEM45 from iOptron, the new generation of German frames, with CNC machined housing that makes the GEM45 a first class frame, both in form and function.

Delivery Options
Carrier Description Estimated Delivery
Home delivery - International Home delivery - International

Friday, 10 January - Friday, 17 January

Home delivery - International

Home delivery - International

Estimated delivery:
Friday, 10 January - Friday, 17 January


PRODUCT DESCRIPTION

Main characteristics:

  • Its design gives you an incredible 2.8 weight-to-load capacity ratio. This compact 7 kilogram mount accurately and safely carries a 20 kilogram optic with accessories
  • With the built-in electronic Polar finder (iPolar), correct alignment of the mount is very easy, even when the North Star is not visible.
  • Thanks to the large clamping levers of the quick-lock system, it can be easily released or attached even when wearing gloves. The internal cable management system prevents cables from tangling or breaking.
  • It features a new patent-pending universal self-centering plate (USCS) compatible with standard prism rails type Losmandy and Vixen.
  • The GEM45 mount uses a reliable, energy-efficient stepper motor drive system.
  • A database of over 212 000 objects with star identification, integrated GPS, a large control knob and optional wifi (requires an iStarFi adapter) are just some of the advanced GoTo system features of this mount.

The LiteRoc tripod is a recent development from iOptron. It is as light as possible but with the necessary stability. Therefore, it is well suited for transportable mounts for observers and astrophotographers outings.

Compared to the previous version, the LiteRoc tripod has a more stable support for the extendable legs and larger clamping levers.

The upper part of the tripod legs has a diameter of 45 mm (1.75") and the lower section of 38 mm (1.5"). This makes the extendable legs as strong as the previous 2" tripod legs.

Thanks to a narrower top design, the LiteRoc is lighter.

SPECIFICATIONS

  • Maximum additional load (kg): 20
  • Counterweight(s): 1 (5kg)
  • Interfaces: USB
  • Language: English
  • Pole height adjustment (°): 14 - 68
  • Mounting bracket: Losmandy & Vixen
  • Diameter of DEC ball bearing (mm): 68
  • AR Ball Bearing Diameter (mm): 68
  • Worm wheel diameter DEC (mm): 110
  • Worm wheel diameter AR (mm): 110
  • Toothed wheel (DEC): 216
  • Toothed wheel (RA): 216
  • Worm shaft diameter DEC (mm): 17
  • Diameter of worm shaft AR (mm): 17
  • Diameter of straight ascension shaft (mm): 45
  • Diameter of the declination shaft (mm): 45
  • Counterweight rod diameter (mm): 28
  • Length of counterweight rod (mm): 280
  • Mount weight (kg): 7.2
  • Azimuth precision adjustment (°): +/- 6
  • Input voltage:12V
  • Amperage (A): 5
  • Motor type: Stepper motors (1.8°/128 micro-steps)
  • Cable routing: Internal
  • GoTo system: yes
  • Manual control device: yes
  • Level: yes
  • Transport boxes: no
  • Pole finder: yes
  • Power source: yes
  • Tripod: yes
  • Diameter of tripod legs (mm): 45
  • Tripod material: steel
  • Series: GEM
  • Type: Mount
  • Construction type: Equatorial GoTo
  • Accuracy: +/- 7
  • GPS: yes
  • Wi-Fi: optional
  • PEC correction: yes
  • polar alignment: iPolar
  • GoTo system language: English
  • Software: Go2Nova 8407
  • Autoguiding: no
  • Interfaces: Autoguider, USB
  • Database: 212,000
