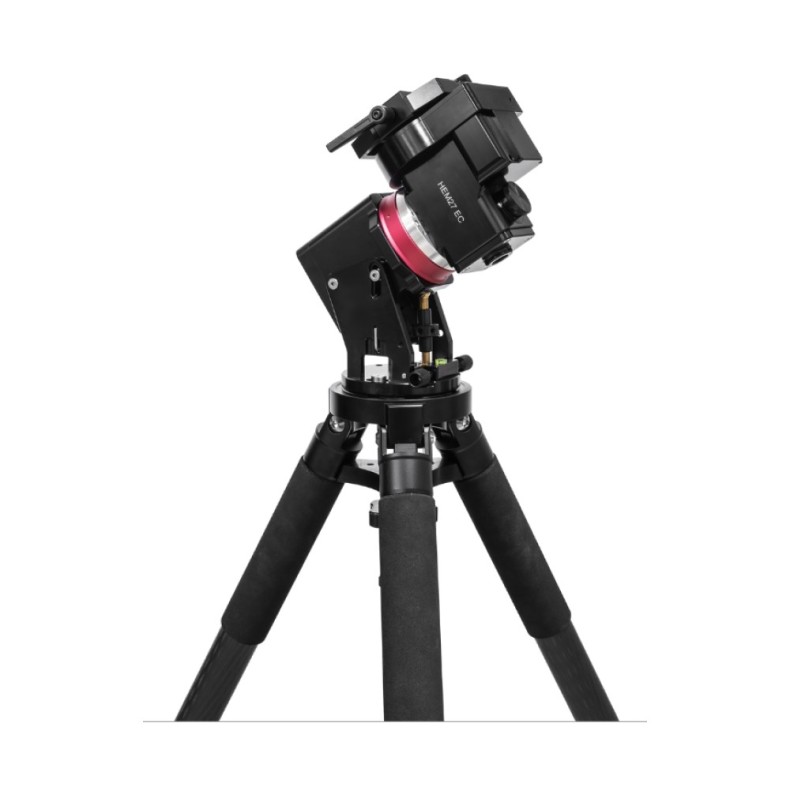

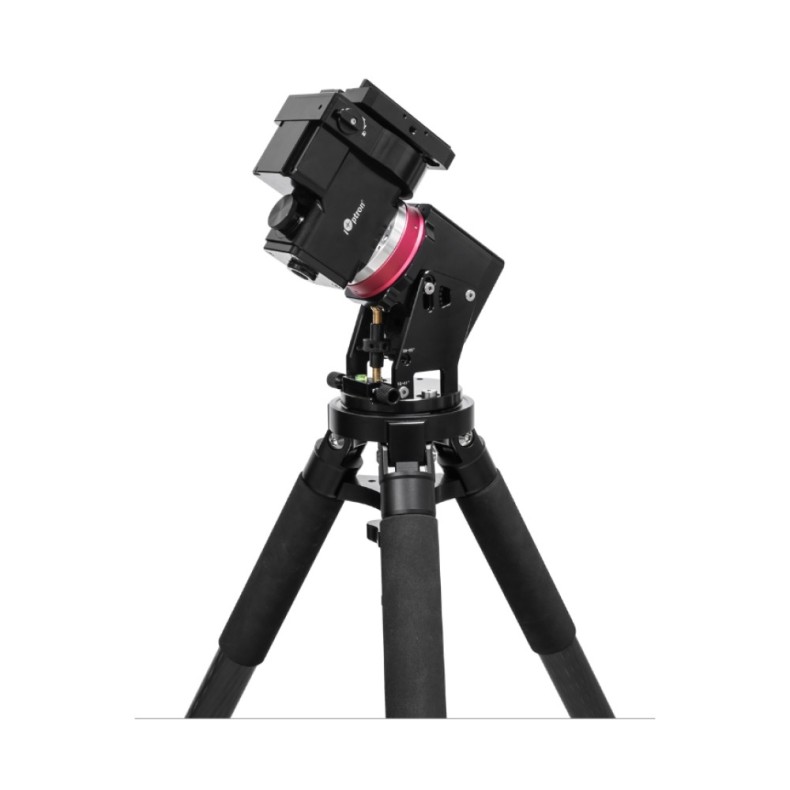

IOptron HEM27 EC mount

Light weight and high payload, provides an astronomical experience like never before. A mount head weighing 8.15 pounds with a payload capacity of 29.74 pounds, without the need for a cumbersome counterweight or axle.

Utilizing the most advanced tension wave drive technology for RA motion coupled with the backlash-free DEC worm gear/belt drive design, the HEM27s offer unprecedented weight and payload efficiency.

Their CNC machined black anodized metal body provides a robust platform that will perform at the highest level for many years to come.

Exclusive features such as electronic friction braking and shutdown memory allow the mount to safely stop and resume a GoTo turn or continue tracking even after a sudden loss of power (no need to realign and start from the beginning).

A HEM27 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third-party INDI driver for MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App such as SkySafari; or a Raspberry Pi device via an INDI driver.

The HEM27EC features a high precision RA-axis encoder that offers incredible tracking accuracy, enough for many to choose to take images "without" guidance.

SPECIFICATIONS

• Maximum additional load (kg): 13.5

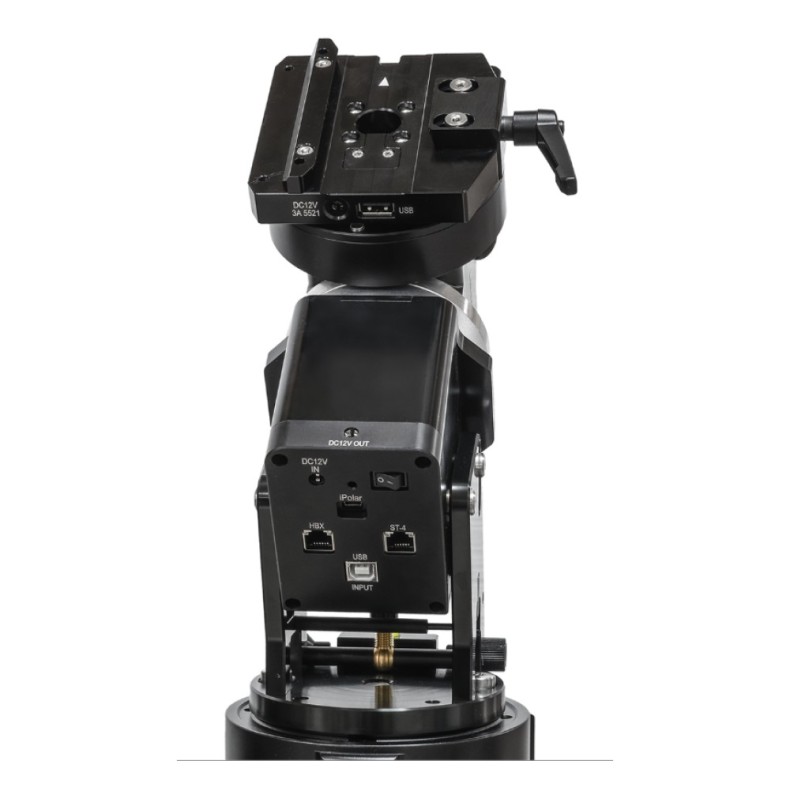

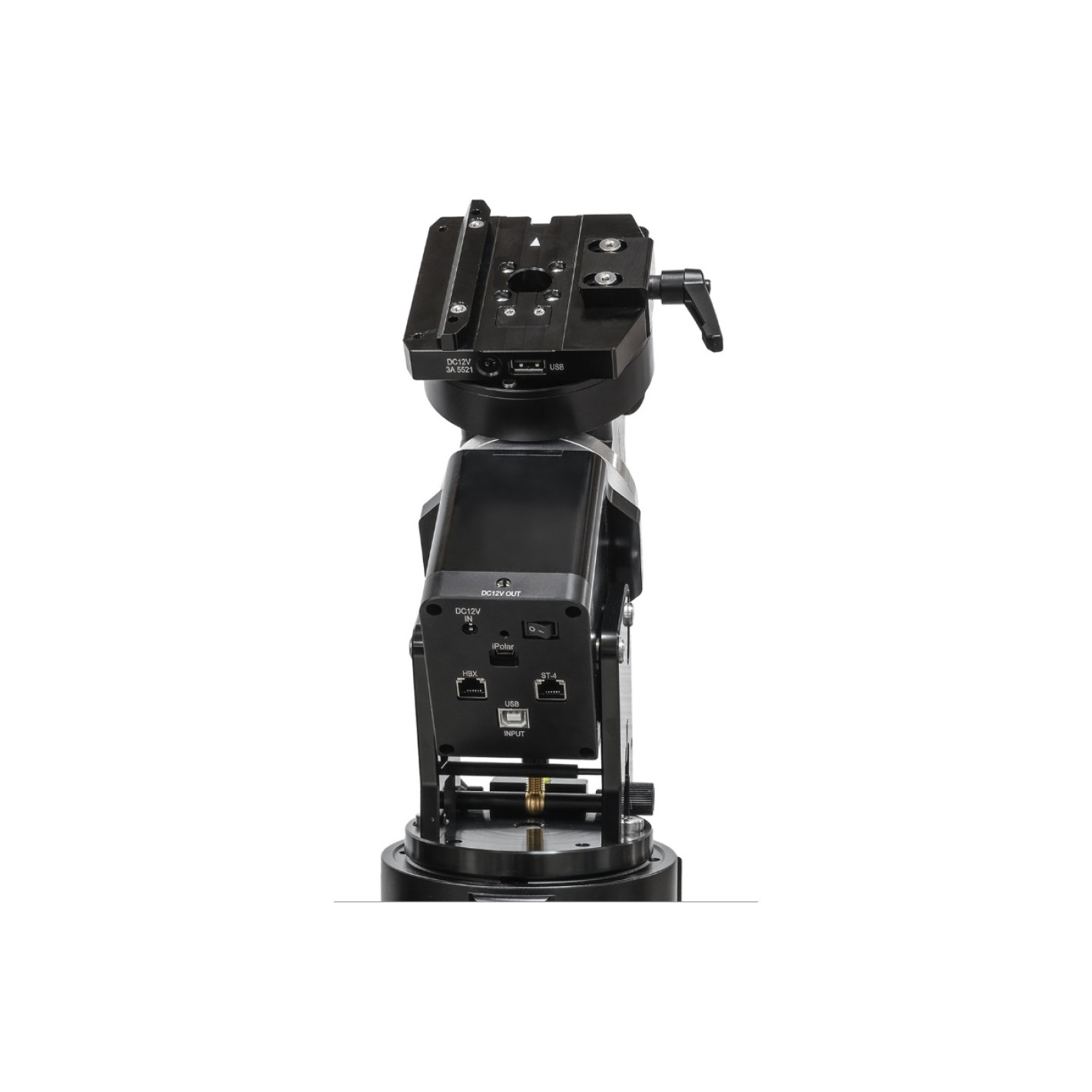

• Interfaces: USB cable and ST4
• Language: English
• Pole height adjustment (°): 15 - 65
• Mounting easel: Losmandy & Vixen
• Mounting weight (kg): 3.7
• Azimuth accuracy setting (°): +/- 5
• Input voltage: 12
• Amperage (A): 5
• Cable routing: internal
• Encoder: yes
• Declination shaft material: Aluminum
• Straight ascent shaft material: Aluminum
• GoTo system: yes
• Manual control device: yes
• Level: yes
• Tripod: no tripod
• Pole finder: yes
• Additional contents: Power supply

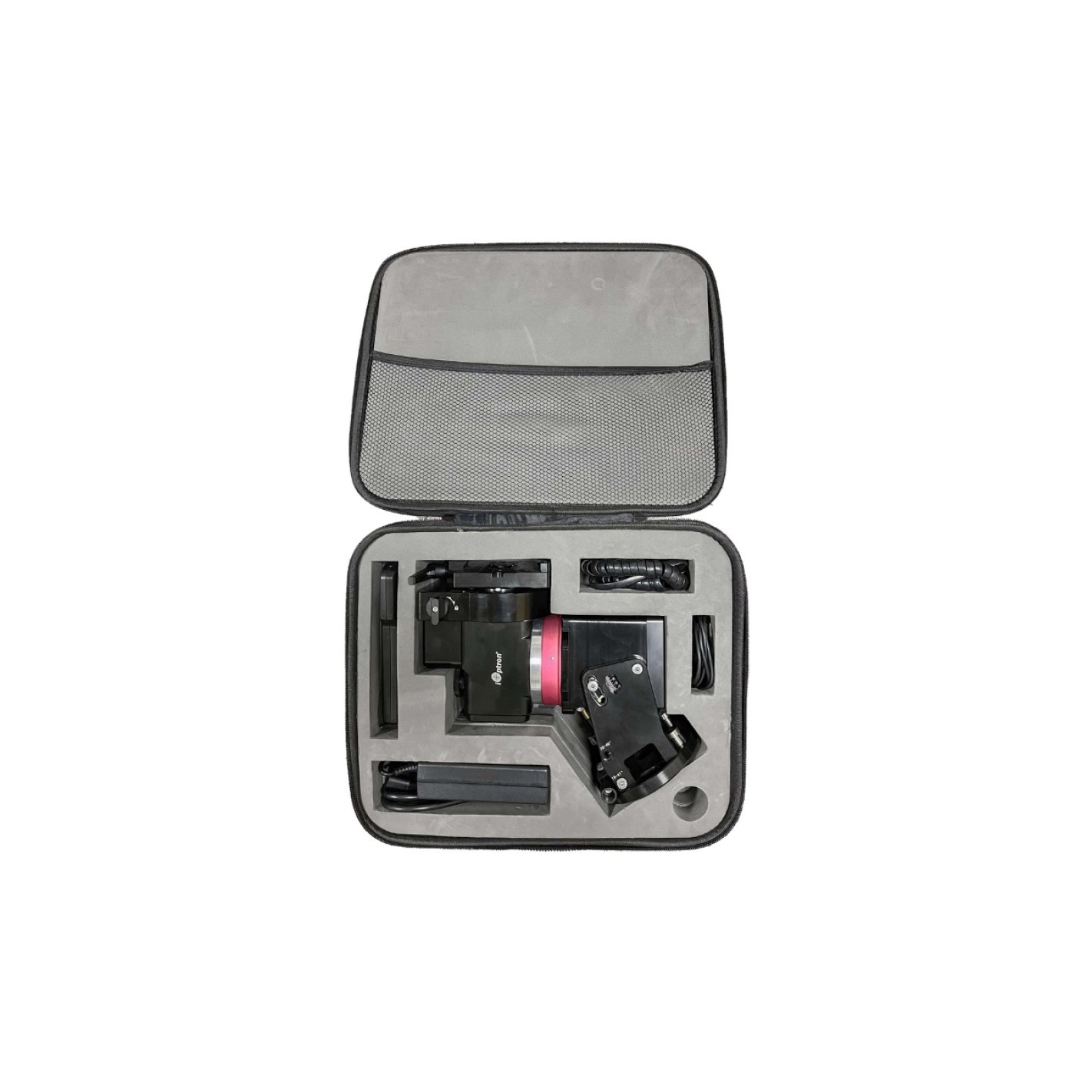

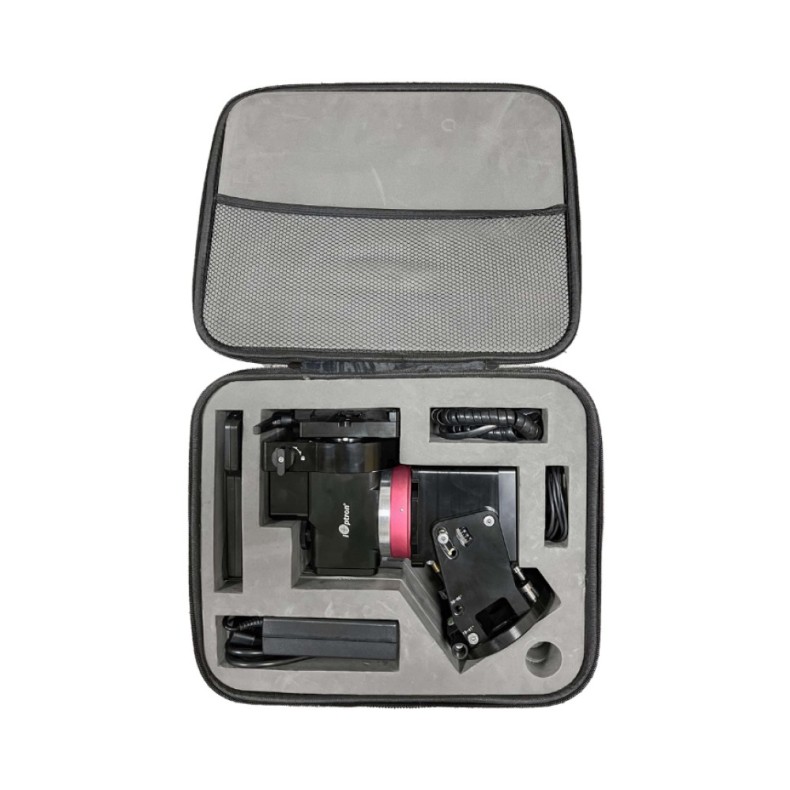

• Carrying bag: yes
• Series: HEM
• Type: Mount
• Construction type: Equatorial
• GoTo: GPSno
• Wi-Fi: yes
• PEC correction: yes
• polar alignment: iPolar
• GoTo system language: English
• Software: Go2Nova 8408
• Autoguiding: yes
• Interfaces: Autoguider, USB
• Database: 212,000
