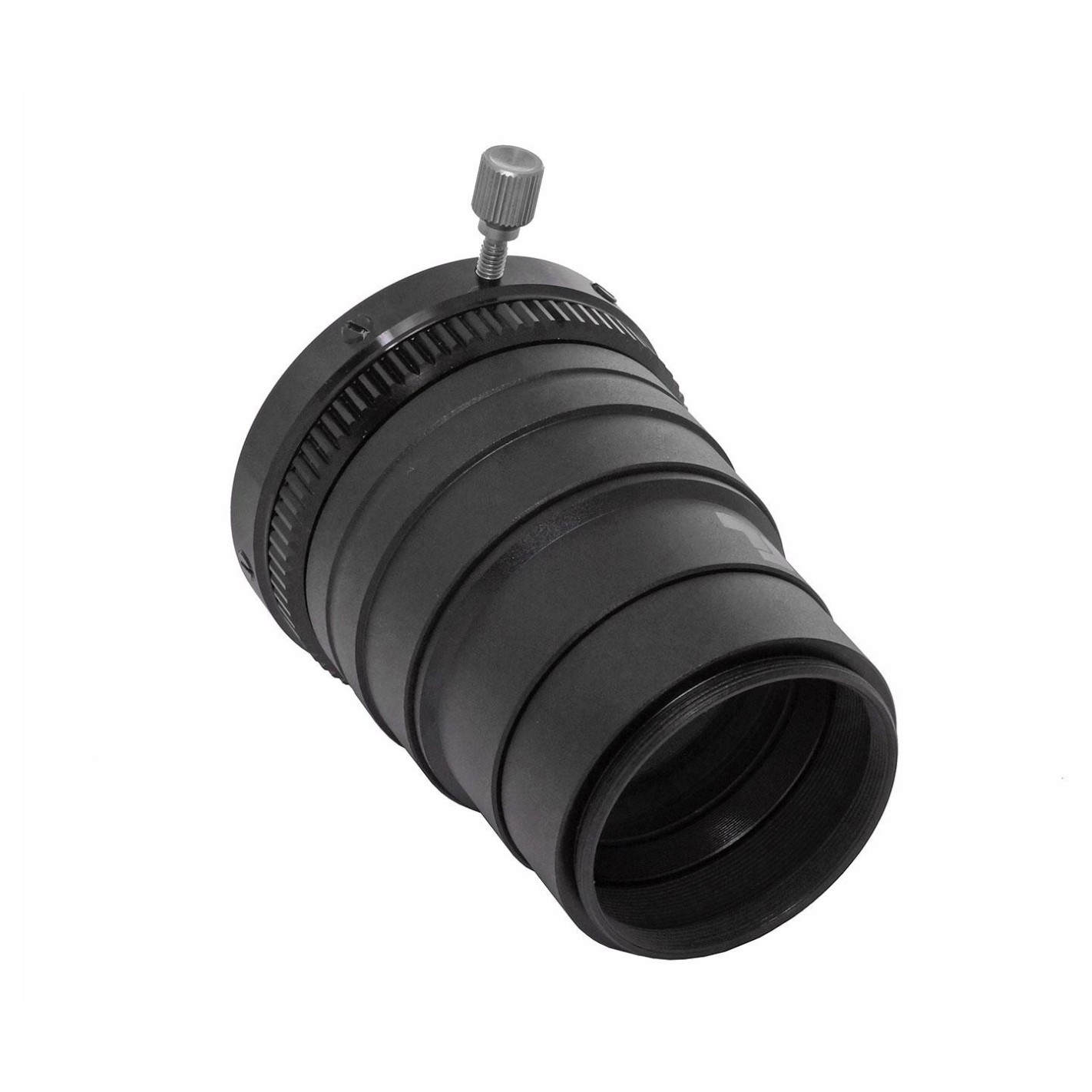

Flattening device TS-Optics 1.0x for ED and APO refractors with aperture between 60 and 65 mm

Flatteners TS-Optics 1.0x for ED and APO refractors with apertures between 60 and 65 mm

• Designed for PhotoLine APO refractor telescopes with an aperture of 60 mm for optimal and sharp astro-images.
• Connection on the telescope side via M54x0.75 thread: optimum precision via screw connection. The corrector fits directly onto the female thread of the focuser. No push adjustment and therefore no tilting of the optical train.
• Comes with a 360° rotation system for optimum camera positioning.
• Connection on the camera side via M48x0.75 thread This type of connection provides 15% better illumination than a T2 type and also allows the (limited) use of full frame size sensors.
• 55 mm working distance from the M48 thread: with a suitable T-adapter and a DSLR camera, it is automatically at the optimum focusing distance. Removing the extension tube increases the working distance to 70mm to accommodate any astro camera.
• Uniform illumination without vignetting and field correction almost to the edges of a full frame sensor.
• The focal length of the telescope is not altered.
• The corrector is fully multi-layer. In addition, the absolute absence of reflections is achieved through a matte black internal anti-reflection coating. Therefore, the image offers a very high contrast which is also useful in daylight photography (landscape, birds, etc.)
• The corrector is especially suitable for fast and compact apochromatics, providing optimum results with these telescopes:

- TS-Optics PhotoLine 60 mm f / 5.5 Apo
- TS-Optics PhotoLine 60 mm f / 6 Apo

• Corrector length: 66 mm
• CAA 360º rotator length: 19.5 mm

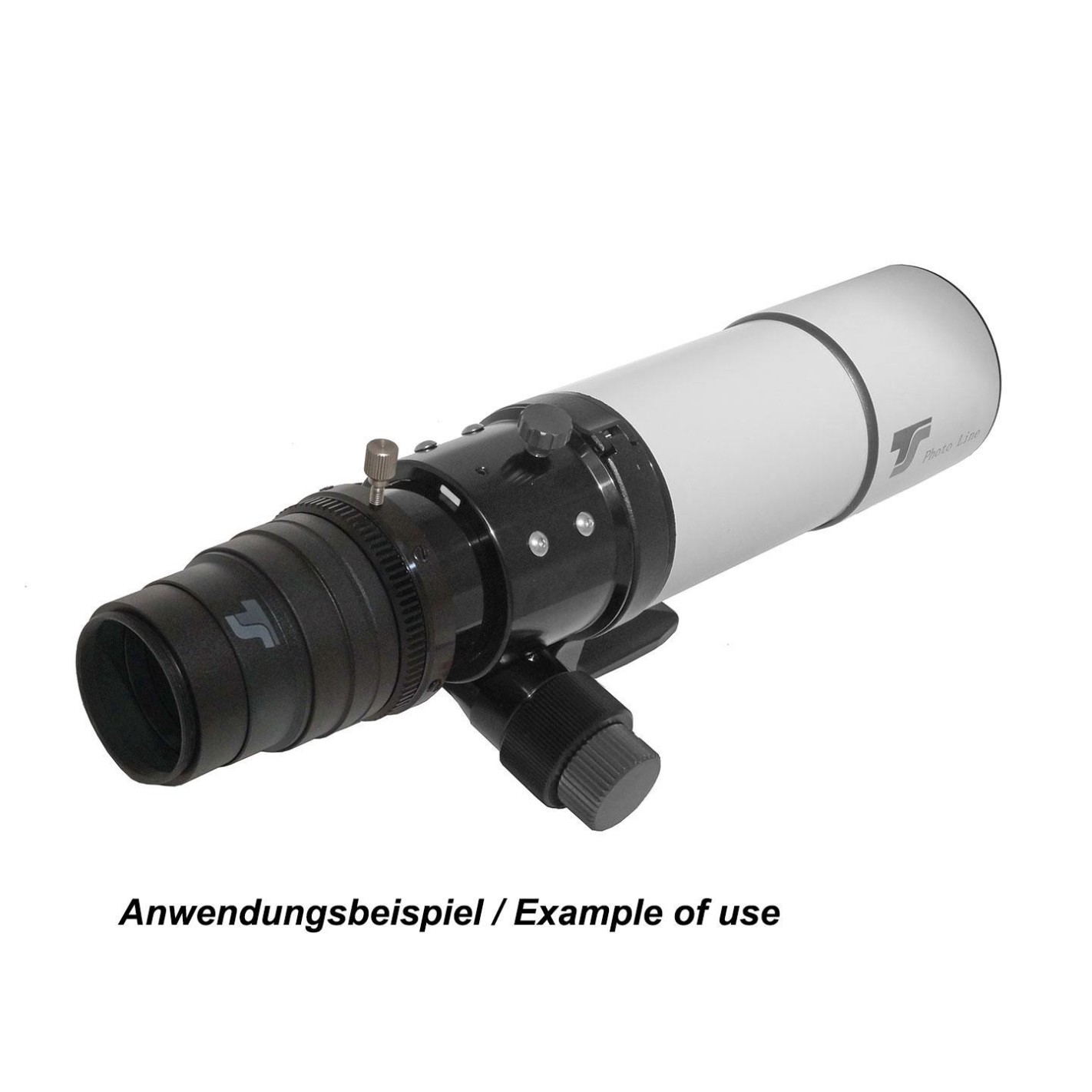

NOTE: The telescope shown in the images is not included in the price. It is included only for a better description of how to assemble theflattener - corrector to the telescope output .

Flattener TS-Optics 1.0x for ED and APO refractors with aperture between 60 and 65 mm
