The corrector flattens the image field and improves the light intensity of astrophotography refractors. Can be plugged or screwed on.
♦ Suitable for all refractors with 2" or larger focuser.
♦ Ideal for cameras with sensors up to 30 mm diameter
♦ Connection on the telescope side via a 2" cylinder with filter thread or via the female thread M54x1 on the corrector.
♦ Connection adapters are available for screw adaptations, e.g., to M48, M54x0.75, M63 or M68
♦ Connection thread on the camera side via T2 male thread and M55x0.75 male thread
♦ Working distance from the T2 thread is 55 mm and from M55x0. 75 thread is 62.5 mm

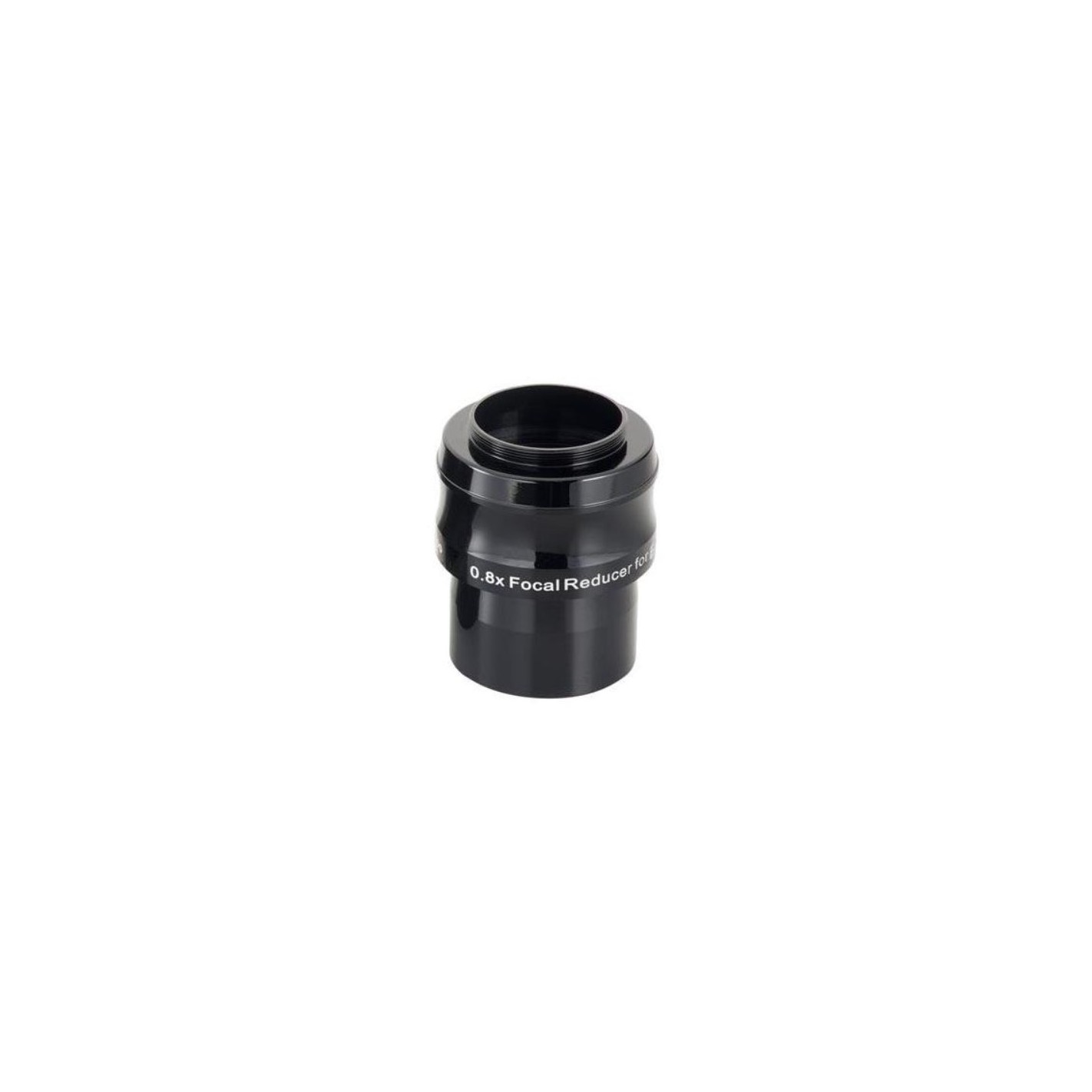

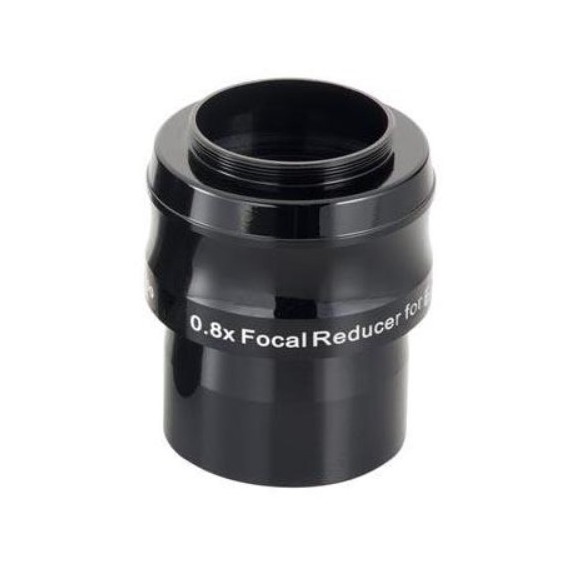

Corrector TS 0.8x for astrophotography through refracting telescopes
The corrector provides good illumination and correction for sensors with APS-C format or for astronomical cameras up to approx. 30 mm sensor diameter .It is suitable for all refracting telescopes and offers a simple 2" cylinder with filter thread.

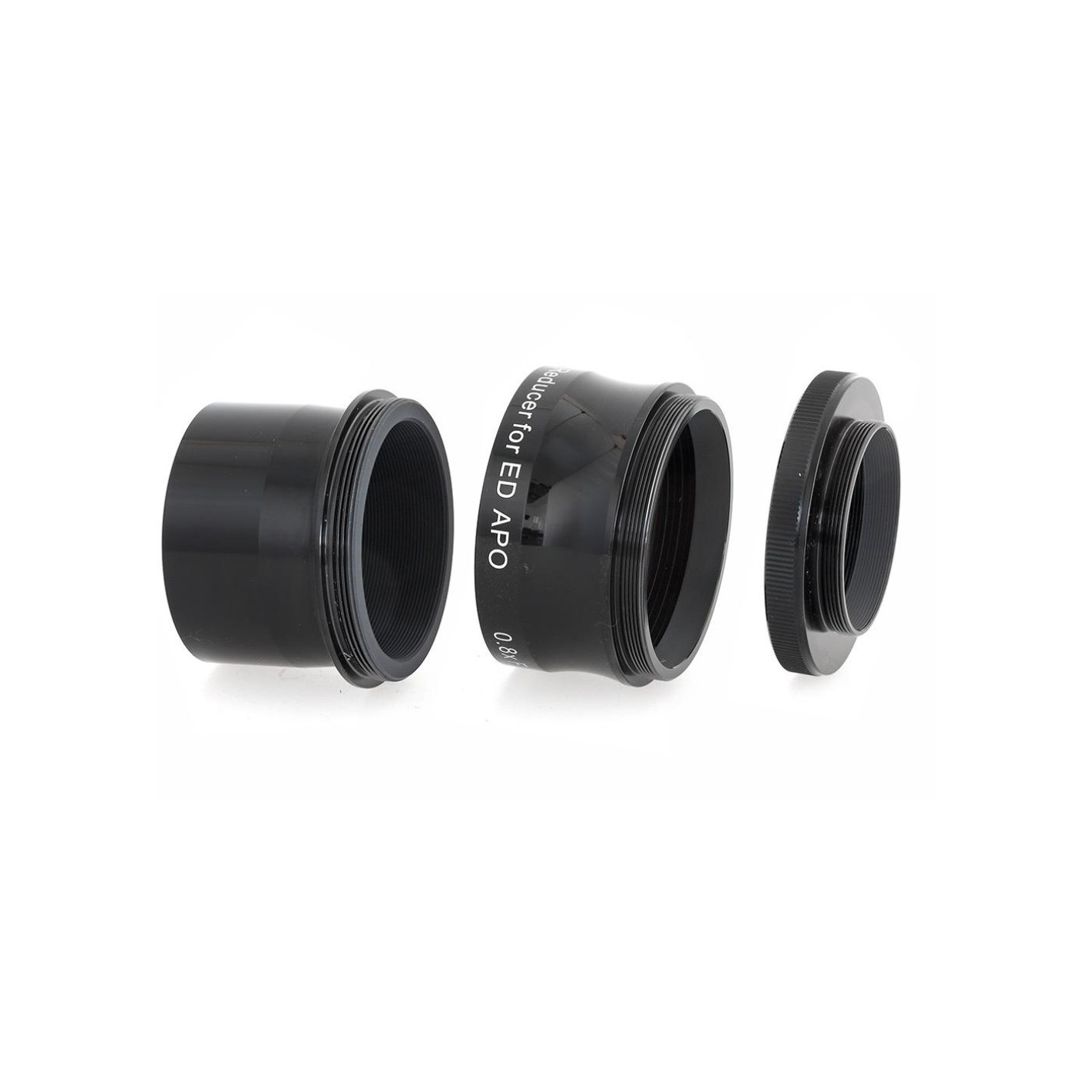

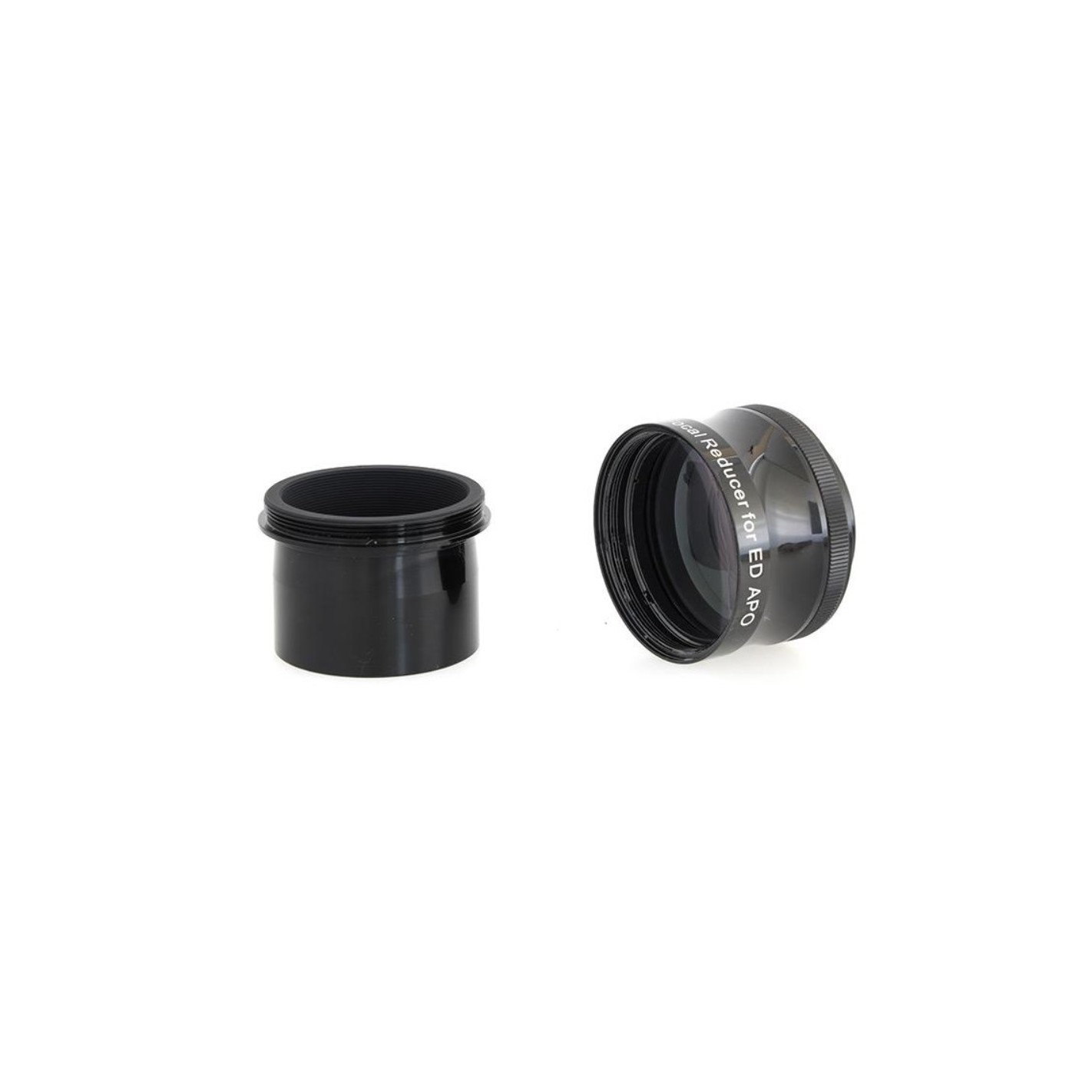

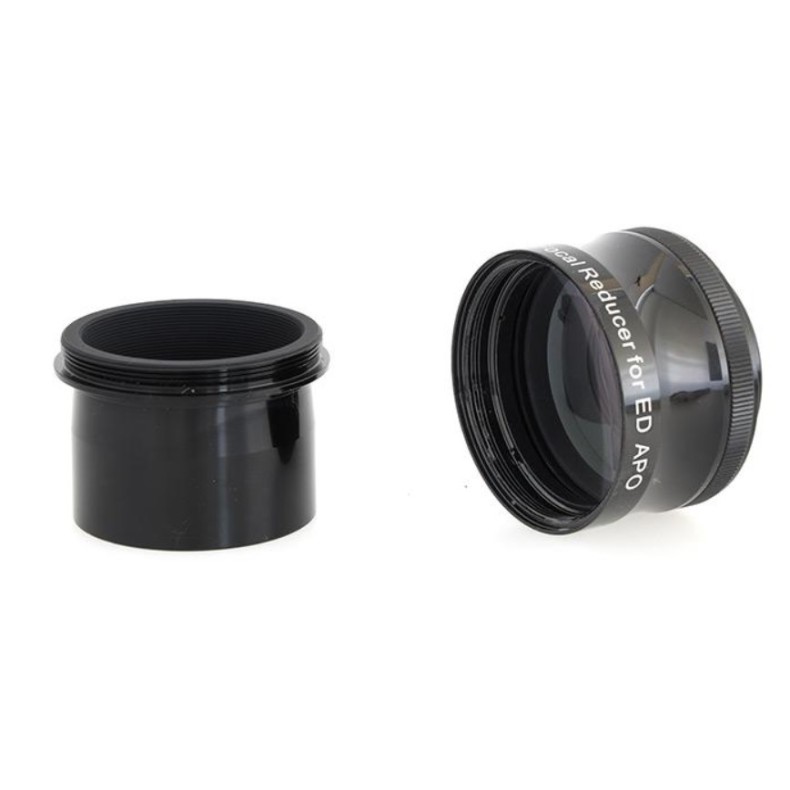

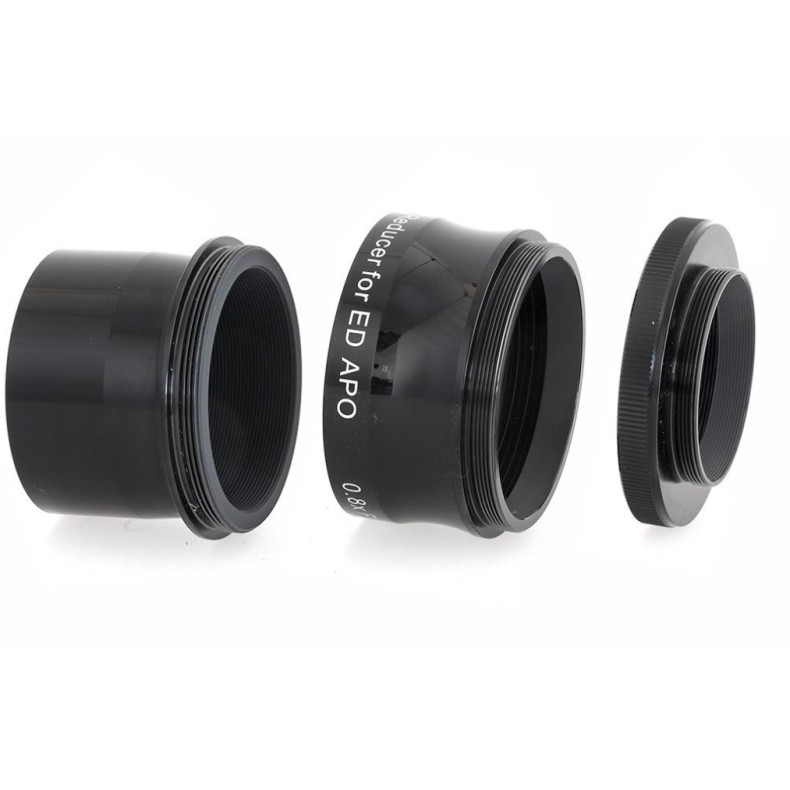

Amateur astronomers who prefer a threaded connection can unscrew the 2" cylinder and make an individual adaptation via the female thread M54x1 on the corrector .We offer an adaptation to the connection thread of your focuser through our special adapters.
The corrector offers the T2 male thread (M42x0.75) on the camera side and the standard working distance of 55 mm .All common mirrorless system cameras, DSLR and astronomical cameras offer an adaptation to T2 with this working distance. For individual adaptation, the M55x0.75 male thread is still available on the corrector. To do this, simply unscrew the T2 adapter. The working distance is then increased from 55 mm to 62.5 mm.
| Design: |
Corrector with focal length reduction |
| Lens: |
2-element design |
| Coating: |
Multiple coating on the surface of each lens |
| Telescope side of connection: |
2" barrel and M54x1 female thread |
| Connecting chamber side: |
Male thread T2 (M42x0.75) and male thread M55x0.75 |
| Working distance: |
55 mm from T2 thread and 62,5 mm from M55 thread |
| Weight: |
170 grams |
