Flattening reducer TS-Optics 0.8x for refractor TS 80mm f/6 CF and Photoline 80mm Triplet Apo

Flattening reducer TS-Optics 0.8x for refractor TS 80mm f/6 CF and Photoline 80mm Triplet Apo

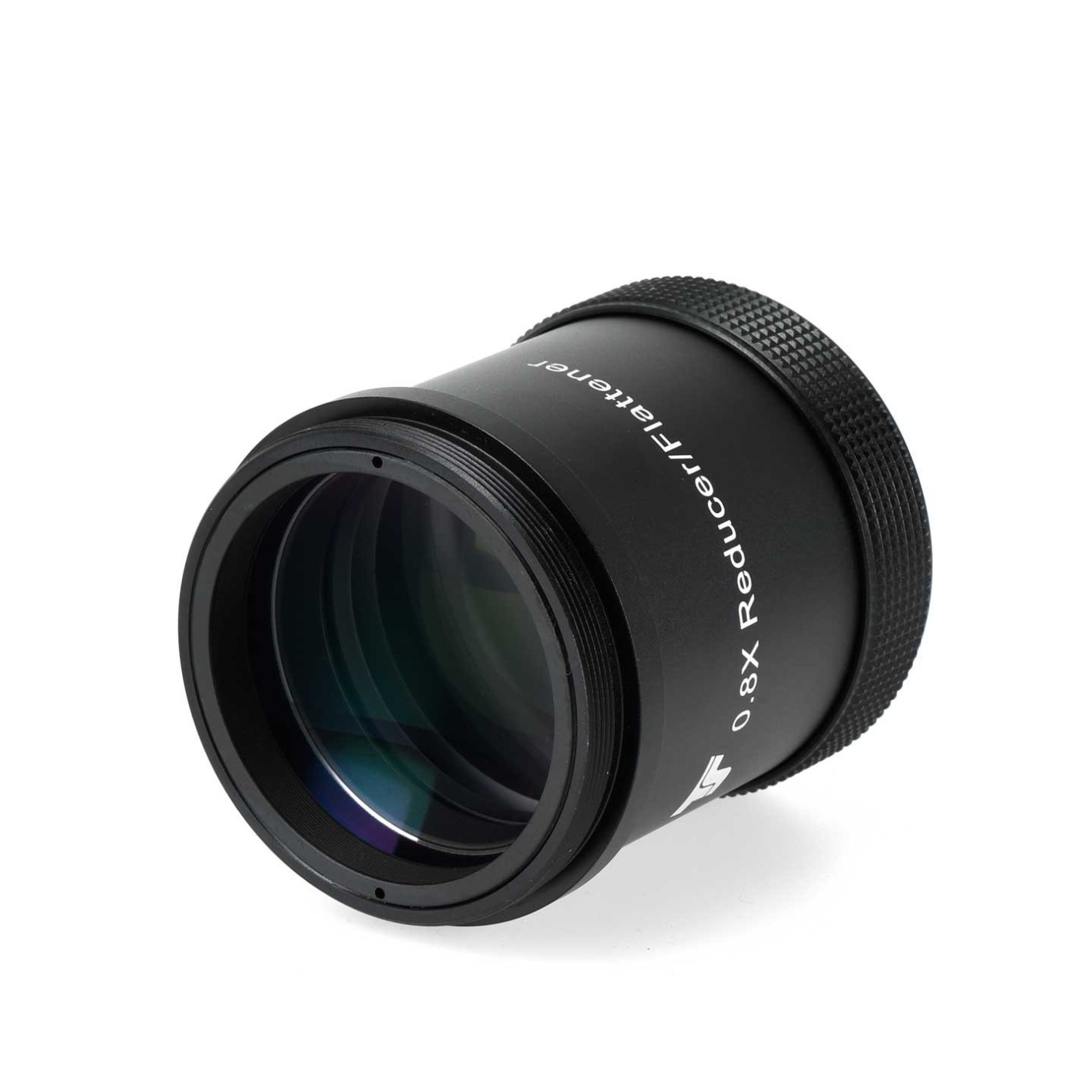

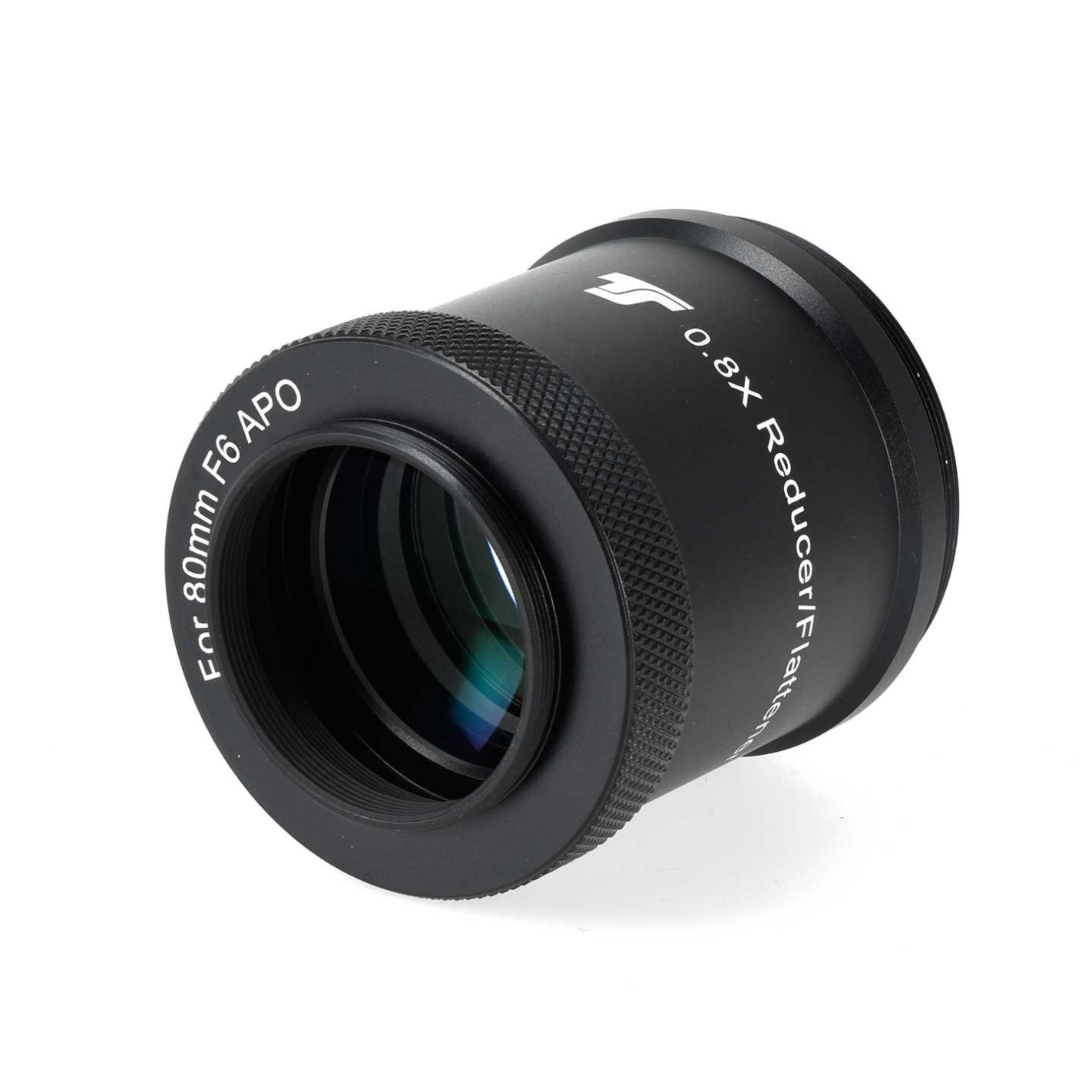

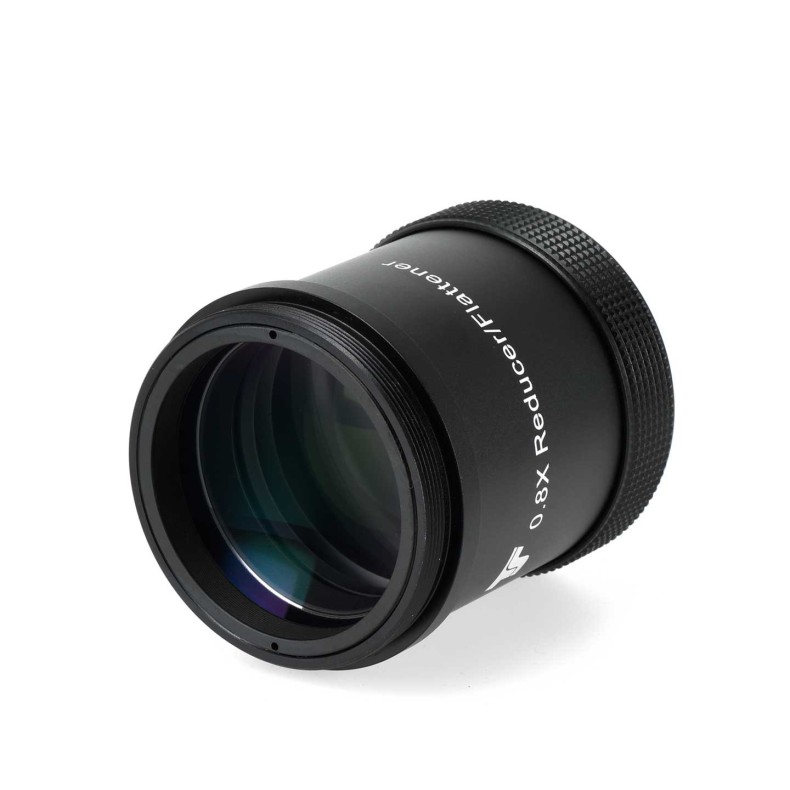

Field corrector TS 0.8x for CF-Apo 80mm and Photoline 80mm Triplet APO f/6
The corrector is designed for this apochromatic and provides optimal astrophotographic results. Cameras up to full frame can be used and images of the stars are accurate down to the corners. In addition, the focal length of the apochromatic is reduced to 384 mm. The focal ratio is improved to f/4.8, saving about 36% in exposure time compared to a 1.0x flattener.

Connecting cameras to the corrector
On the camera side, the corrector has an M48x0.75 male thread. This thread provides 15% more illumination than the T2. Therefore, we can recommend the corrector for all cameras up to full frame. The working distance is exactly 55 mm from the thread. For all astro cameras there are suitable adapters for this thread and distance. We will be pleased to advise you.

Available thread for 2" nebula filters:

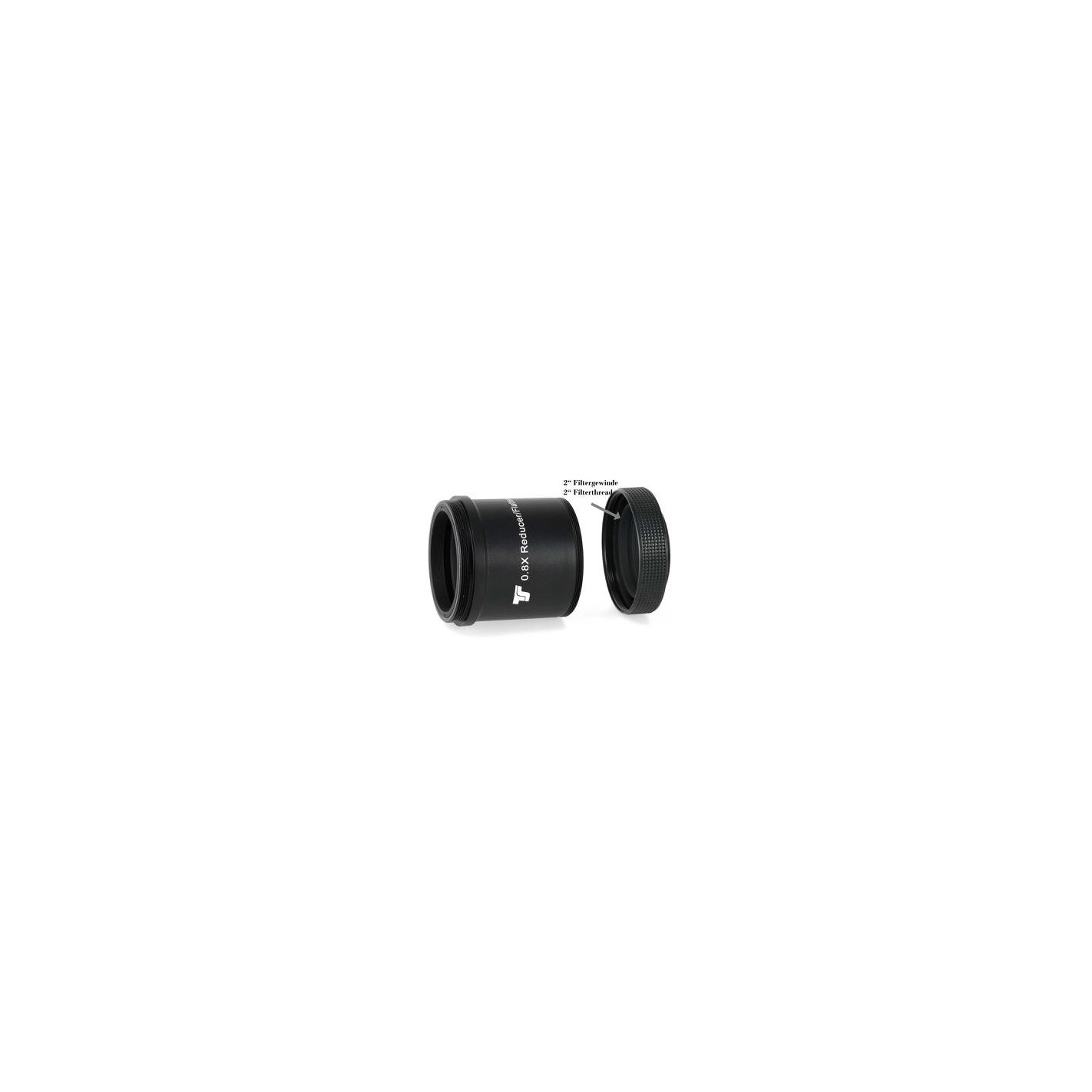

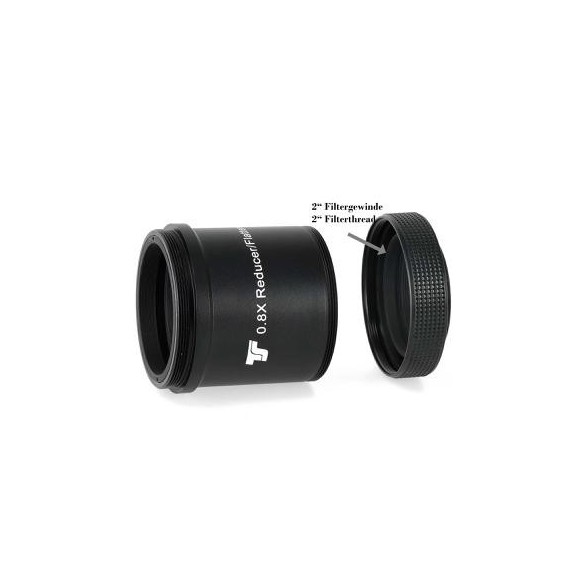

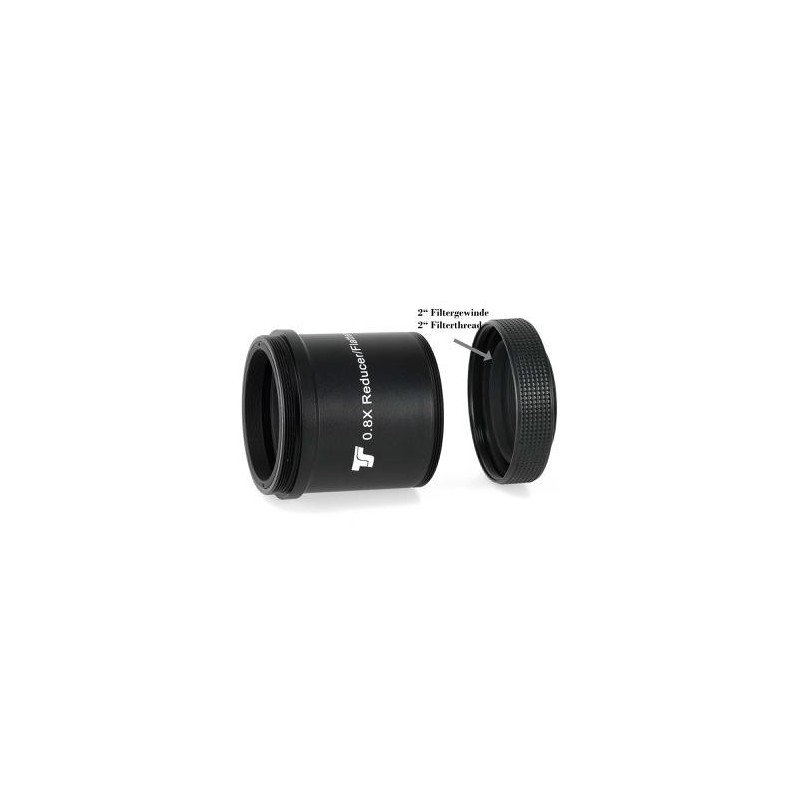

If you unscrew the camera adapter from the corrector, you have a thread for 2" filters inside. Here you can use nebula filters for contrast enhancement or IR cut filters. The working distance is not changed.

[[La conexión en el lado del telescopio:}]The corrector has a M63x1 male thread on the telescope side. With this thread, you can screw the corrector directly onto the focuser of the TS CF apo. No tilting is possible and the image of the stars remains optimal. To adapt the adapter to the TLAPO804, you need the M63 to M68 extension adapter # M68a-M63i.

Adaptation of astro cameras with 17.5 mm T2 thread distance to the sensor:
Many astro cameras have a T2 connection thread and a 17.5 mm rear focus. With this adaptation, a 360° rotation, a quick coupling and even a 2" filter mount have also been integrated. You need the following components, from camera to telescope:

♦ T2AbstimmA05 (tuning ring with 0.5 mm height)
♦ TSROTM48-T2 (adapter to M48, rotation, quick coupling and filter holder).
♦ TSVF208 and TSFV210

Summary of general features:

• Suitable for the TS 80mm f/6 CF Apo, Photoline 80mm f/6 triplet APO and similar telescopes.
• Focal length is reduced to 80% and focal ratio is improved - f/6 becomes f/4.8
• The corrector is designed for cameras up to full frame format
• Telescope-side connection via M63x1 thread (suitable for TSCFAPO80)
• Connection on the camera side via M48x0.75 photographic screw thread
• Working distance is 55 mm from the M48 thread, ideal for DSLRs, system cameras and astro-cameras
• 2" filter thread available for connection of nebula filters

Technical Specifications:

• Type: Corrector for astrophotography
• Focal length change: Reduction 0.8x
• Telescope side connection: Male thread M63x1
• Connection camera side: M48x0.75 male thread (length 4.5 mm), M63x1 male thread (intermediate thread)
• Working distance: 55 mm from M48 thread, 68.3 mm from M63 thread (+ 13.3 mm)
• Body length without male thread 65 mm
• Weight: 450 g
