Reducer/Flattener 0.9x SKYWATCHER for EVOLUX 62ED
SKWSW0471
Stock at Supplier
218.97
242.98
-24.01
VAT excluded
Shipping 5/7d
Two-element design incorporating an ED element. It reduces the standard focal length of the Evolux-62ED by a factor of 0.9x and provides the highest quality edge-of-field correction. The flattener/reducer illuminates a full-frame format and provides accurate stellar images in a 30mm image circle.
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Monday, 13 January - Monday, 20 January |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Monday, 13 January - Monday, 20 January
✖

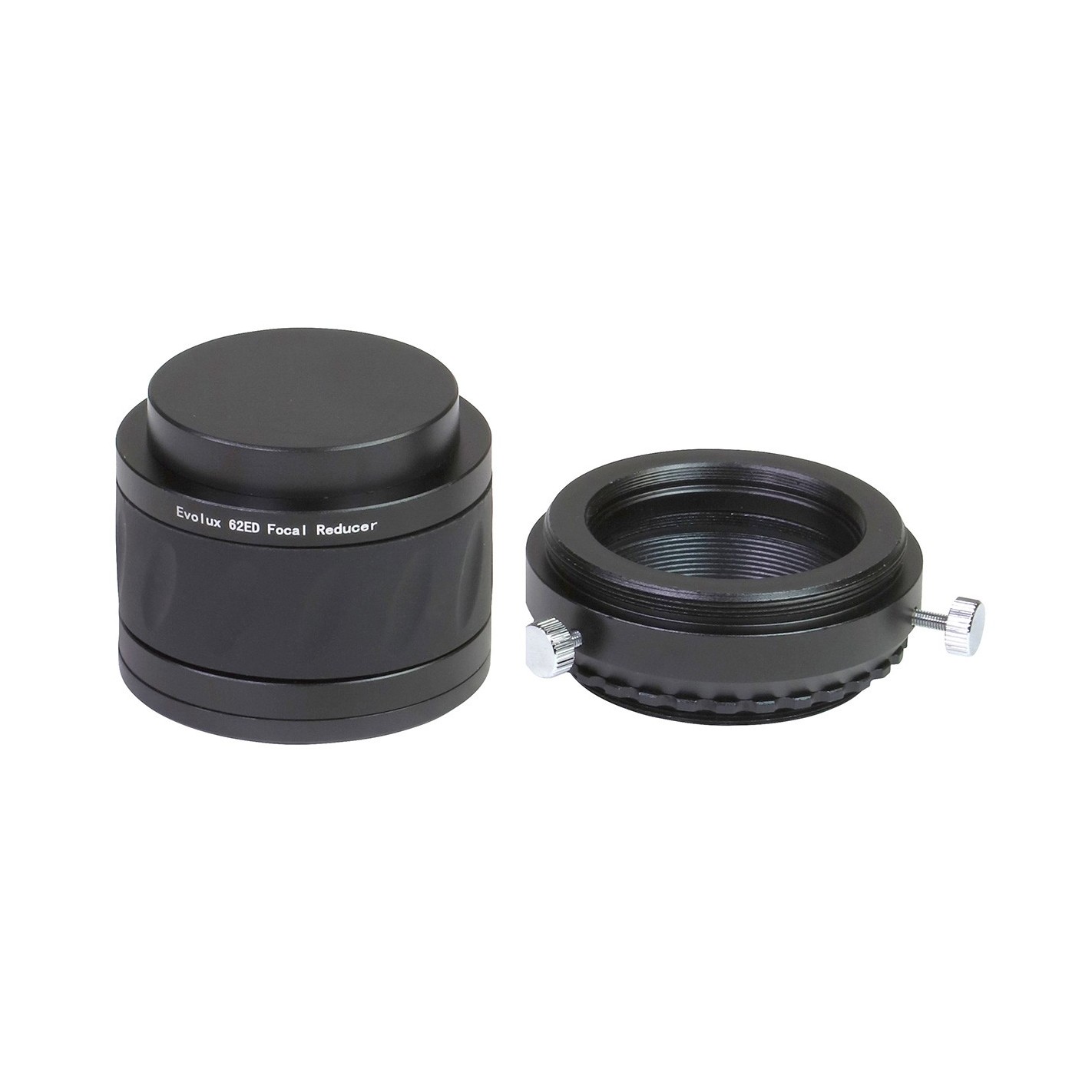

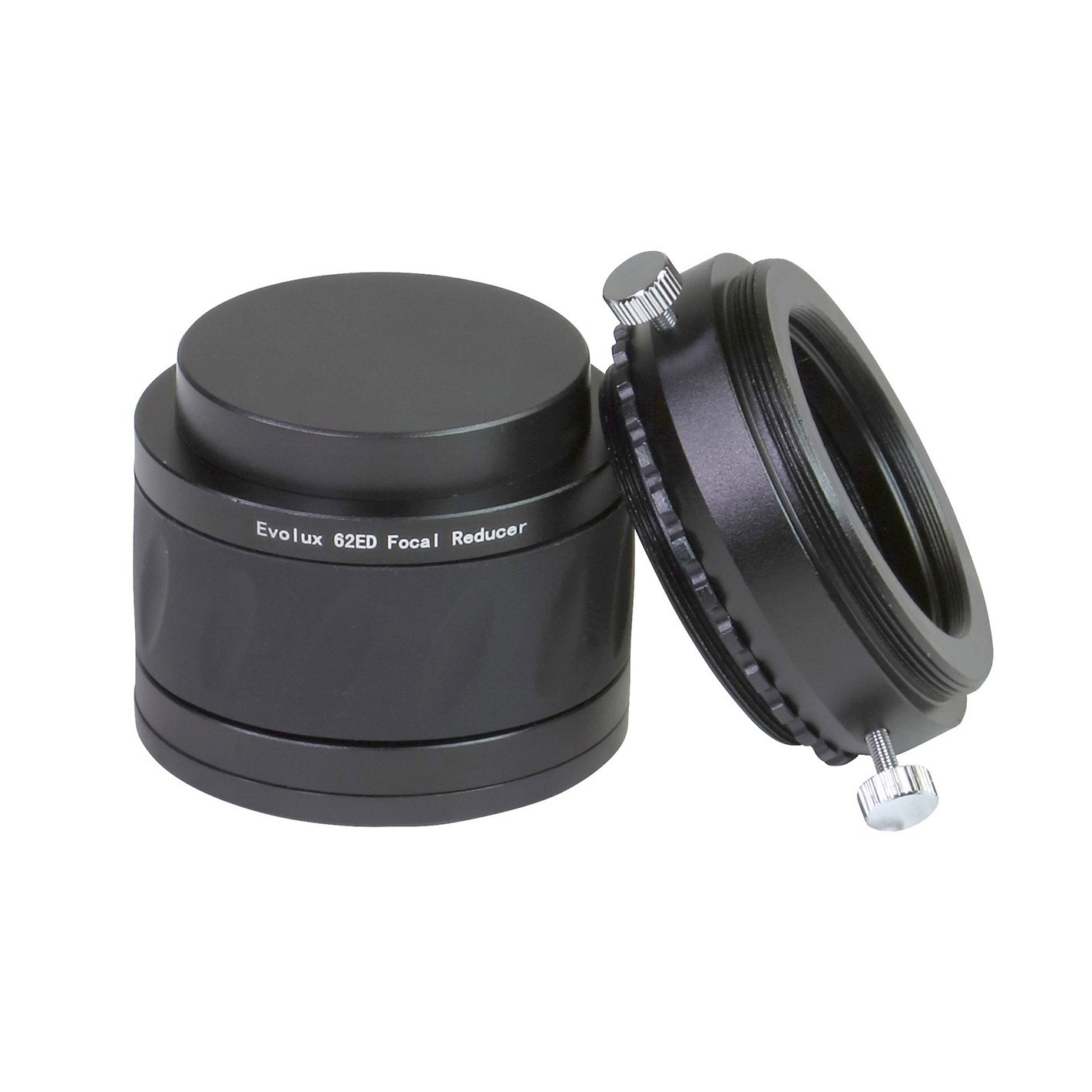

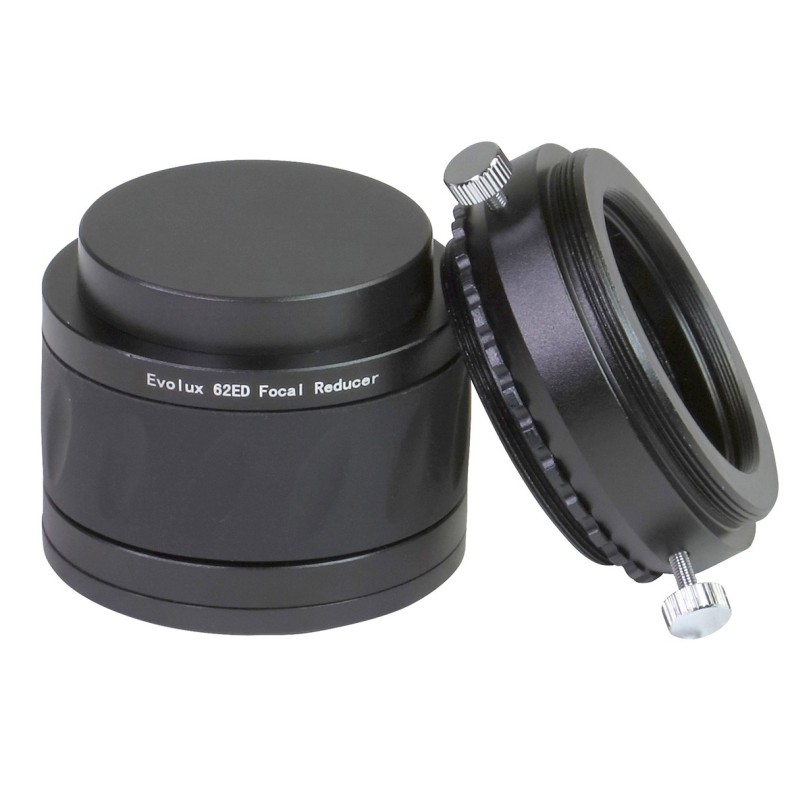

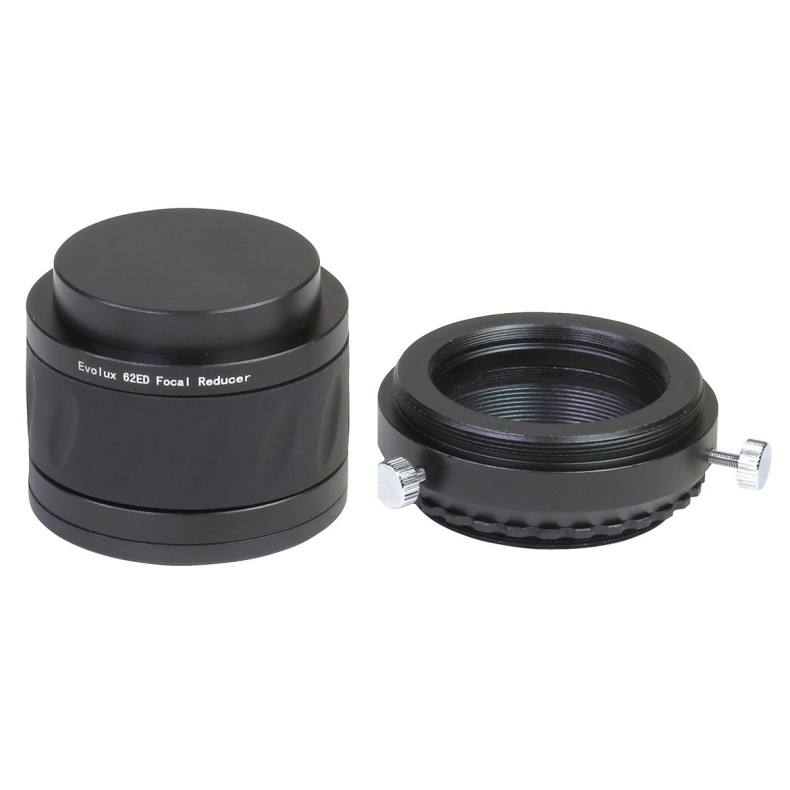

0.9x SKYWATCHER Reducer/Flattener for EVOLUX 62ED
Two-element design incorporating an ED element. Reduces the standard focal length of the Evolux-62ED by a factor of 0.9x and provides the highest quality edge-of-field correction.
The flattener/reducer illuminates a full-frame format and provides accurate stellar images in a 30mm image circle.
Provides a focal length of 360mm and f/5.8. Field of view 5.09°.
Rear focus 55mm. Multi-coated. Supplied with adapter/field rotor. Filter thread inside the adapter to mount 2" filters. Thread M56x1 female / M48 male.
Can be used in conjunction with Canon or Nikon M48 T-ring adapters.
This accessory is necessary because refractors provide a curved focal plane, as stars are not point-like near the edges in the image. It provides an image corrected to the edge of the field. A dedicated adapter will allow you to attach the reducer/corrector to your telescope's eyepiece holder, it is rotatable to optimize your framing and accepts 50.8mm filters. Optimized for the Sky-Watcher Evolux 62ED f/6.45 (Doublet), this screw-in reducer/corrector reduces the scope's focal length by a factor of 0.9x (f/5.8 induced focal ratio - apparent field 5.09°).
The use of a focal reducer in astrophotography also reduces exposure time. It will be necessary to use a dedicated M48 wide field T-ring for your camera, available for Sony (#SKWSW0187), Nikon (#SKWSW0188) or Canon (#SKWSW0189).
Technical specifications of the Sky-Watcher 0.9x reducer/flattener for 62ED:
- M56 female threads on telescope side
- M48 male thread on camera side
- Image circle size corrected by 30mm
- Backfocus: 55mm from the M48 thread
If you have any questions about the configuration to obtain the optimum backfocus please do not hesitate to contact us by email and we will help you to achieve the optimum optical performance of your configuration.
SKYWATCHER 0.9x reducer/flattener for EVOLUX 62ED
